Namespace: |
|
Type: |
anonymous complexType |
Content: |
complex, 4 elements |
Defined: |
|
Includes: |
definitions of 4 elements |
XML Representation Summary | |||||

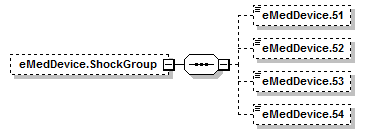

<eMedDevice.ShockGroup> | |||||
|
|||||
</eMedDevice.ShockGroup> |
<xs:element id="eMedDevice.ShockGroup" minOccurs="0" name="eMedDevice.ShockGroup"> <xs:complexType> <xs:sequence> <xs:element id="eMedDevice.eDevice.TypeOfShock" minOccurs="0" name="eMedDevice.51" type="TypeOfShock"/> <xs:element id="eMedDevice.eDevice.ShockorPacingEnergy" minOccurs="0" name="eMedDevice.52" type="ShockOrPacingEnergy"/> <xs:element id="eMedDevice.eDevice.TotalNumberofShocksDelivered" minOccurs="0" name="eMedDevice.53" type="TotalNumberOfShocks"/> <xs:element id="eMedDevice.eDevice.PacingRate" minOccurs="0" name="eMedDevice.54" type="PacingRate"/> </xs:sequence> </xs:complexType> </xs:element> |
Type: |
TypeOfShock, simple content |
enumeration of xs:string |
Enumeration: |
|
<xs:element id="eMedDevice.eDevice.TypeOfShock" minOccurs="0" name="eMedDevice.51" type="TypeOfShock"/> |
Type: |
ShockOrPacingEnergy, simple content |
xs:decimal |
fractionDigits: |
1 |
maxInclusive: |
9000 |
minInclusive: |
1 |
totalDigits: |
5 |
<xs:element id="eMedDevice.eDevice.ShockorPacingEnergy" minOccurs="0" name="eMedDevice.52" type="ShockOrPacingEnergy"/> |
Type: |
TotalNumberOfShocks, simple content |
xs:integer |
maxInclusive: |
100 |
minInclusive: |
1 |
<xs:element id="eMedDevice.eDevice.TotalNumberofShocksDelivered" minOccurs="0" name="eMedDevice.53" type="TotalNumberOfShocks"/> |
Type: |
PacingRate, simple content |
xs:integer |
maxInclusive: |
1000 |
minInclusive: |
1 |
<xs:element id="eMedDevice.eDevice.PacingRate" minOccurs="0" name="eMedDevice.54" type="PacingRate"/> |
