element -> <eMedDevice.LabsGroup>
Group Tag to hold info about the device
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 3 elements
Defined:
locally within eMedDevice complexType in eMedDevice_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements

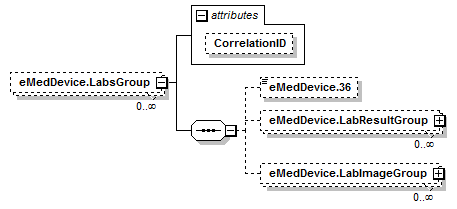

Content Model Diagram
XML Representation Summary
<eMedDevice.LabsGroup
    CorrelationID
 =
 xs:string
    >

Content:
 eMedDevice.36?, eMedDevice.LabResultGroup*, eMedDevice.LabImageGroup*
</eMedDevice.LabsGroup>
Content model elements (3):
eMedDevice.36 (in eMedDevice.LabsGroup),
eMedDevice.LabImageGroup (in eMedDevice.LabsGroup),
eMedDevice.LabResultGroup (in eMedDevice.LabsGroup)
Included in content model of elements (1):
eMedDevice (in MedDeviceDataSet)
XML Source (w/o annotations (11); see within schema source)
<xs:element id="eMedDevice.LabsGroup" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.LabsGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eLabs.DateTimeLaboratoryorImagingResult" minOccurs="0" name="eMedDevice.36" type="DateTimeType"/>
<xs:element id="eMedDevice.LabResultGroup" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.LabResultGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eLabs.LaboratoryResultType" minOccurs="0" name="eMedDevice.37" type="LaboratoryResultType"/>
<xs:element id="eMedDevice.eLabs.LaboratoryResult" minOccurs="0" name="eMedDevice.38" type="LaboratoryResult"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.LabImageGroup" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.LabImageGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eLabs.ImagingStudyType" minOccurs="0" name="eMedDevice.39" type="ImagingStudyType"/>
<xs:element id="eMedDevice.eLabs.ImagingStudyResults" minOccurs="0" name="eMedDevice.40" type="ImagingStudyResults"/>
<xs:element id="eMedDevice.WaveFormGraphicGroup" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.WaveFormGraphicGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eLabs.WaveformGraphicType" minOccurs="0" name="eMedDevice.41" type="GraphicType"/>
<xs:element id="eMedDevice.eLabs.WaveformGraphic" minOccurs="0" name="eMedDevice.42" type="WaveformGraphic"/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 3/3)
eMedDevice.36
Type:
DateTimeType, simple content
eMedDevice.36 eLabs.01 Date/Time of Laboratory or Imaging Result No No The data and time for the specific laboratory result Optional DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table> Added to better document patient care.
Simple Content
xs:dateTime
maxInclusive:
 2050-01-01T00:00:00-00:00
minInclusive:
 1950-01-01T00:00:00-00:00
Pattern:
 [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.eLabs.DateTimeLaboratoryorImagingResult" minOccurs="0" name="eMedDevice.36" type="DateTimeType"/>
eMedDevice.LabImageGroup
Type:
anonymous, complex content
Group Tag to hold info about Lab Image
XML Source (w/o annotations (6); see within schema source)
<xs:element id="eMedDevice.LabImageGroup" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.LabImageGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eLabs.ImagingStudyType" minOccurs="0" name="eMedDevice.39" type="ImagingStudyType"/>
<xs:element id="eMedDevice.eLabs.ImagingStudyResults" minOccurs="0" name="eMedDevice.40" type="ImagingStudyResults"/>
<xs:element id="eMedDevice.WaveFormGraphicGroup" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.WaveFormGraphicGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eLabs.WaveformGraphicType" minOccurs="0" name="eMedDevice.41" type="GraphicType"/>
<xs:element id="eMedDevice.eLabs.WaveformGraphic" minOccurs="0" name="eMedDevice.42" type="WaveformGraphic"/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
eMedDevice.LabResultGroup
Type:
anonymous, complex content
Group Tag to hold the type of laboratory value and its result.
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eMedDevice.LabResultGroup" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.LabResultGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eLabs.LaboratoryResultType" minOccurs="0" name="eMedDevice.37" type="LaboratoryResultType"/>
<xs:element id="eMedDevice.eLabs.LaboratoryResult" minOccurs="0" name="eMedDevice.38" type="LaboratoryResult"/>
</xs:sequence>
</xs:complexType>
</xs:element>
