element -> <eMedDevice.PatientNameGroup>
Group Tag to hold patient's name
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 5 elements
Defined:
locally within eMedDevice complexType in eMedDevice_v3.xsd; see XML source
Includes:
definitions of 5 elements

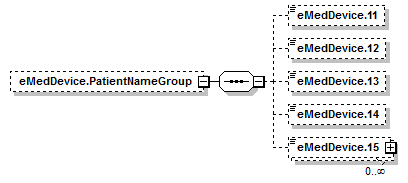

Content Model Diagram
XML Representation Summary
<eMedDevice.PatientNameGroup>

Content:
 eMedDevice.11?, eMedDevice.12?, eMedDevice.13?, eMedDevice.14?, eMedDevice.15*
</eMedDevice.PatientNameGroup>
Content model elements (5):
eMedDevice.11 (in eMedDevice.PatientNameGroup),
eMedDevice.12 (in eMedDevice.PatientNameGroup),
eMedDevice.13 (in eMedDevice.PatientNameGroup),
eMedDevice.14 (in eMedDevice.PatientNameGroup),
eMedDevice.15 (in eMedDevice.PatientNameGroup)
Included in content model of elements (1):
eMedDevice (in MedDeviceDataSet)
XML Source (w/o annotations (6); see within schema source)
<xs:element id="eMedDevice.PatientNameGroup" minOccurs="0" name="eMedDevice.PatientNameGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.ePatient.LastName" minOccurs="0" name="eMedDevice.11">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonLastName"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.ePatient.FirstName" minOccurs="0" name="eMedDevice.12">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonFirstName"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.ePatient.MiddleInitialName" minOccurs="0" name="eMedDevice.13" type="PersonMiddleName"/>
<xs:element id="eMedDevice.ePatient.Gender" minOccurs="0" name="eMedDevice.14">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="Gender"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.ePatient.Race" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.15">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="Race">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
Content Element Detail (all declarations; defined in this component only; 5/5)
eMedDevice.11
Type:
anonymous (extension of PersonLastName), simple content
eMedDevice.11 ePatient.02 Last Name No No The patient's last (family) name E06_01 Optional <comment/>
Simple Content
xs:string
maxLength:
 60
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.ePatient.LastName" minOccurs="0" name="eMedDevice.11">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonLastName"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eMedDevice.12
Type:
anonymous (extension of PersonFirstName), simple content
eMedDevice.12 ePatient.03 First Name No No The patient's first (given) name E06_02 Optional <comment/>
Simple Content
xs:string
maxLength:
 50
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.ePatient.FirstName" minOccurs="0" name="eMedDevice.12">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonFirstName"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eMedDevice.13
Type:
PersonMiddleName, simple content
eMedDevice.13 ePatient.04 Middle Initial/Name No No The patient's middle name, if any E06_03 Optional
Simple Content
xs:string
maxLength:
 50
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.ePatient.MiddleInitialName" minOccurs="0" name="eMedDevice.13" type="PersonMiddleName"/>
eMedDevice.14
Type:
anonymous (extension of Gender), simple content
eMedDevice.14 ePatient.13 Gender No No The Patient's Gender E06_11 Optional Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma
Simple Content
enumeration of xs:string
Enumeration:
"9906001"
 -
 Female
"9906003"
 -
 Male
"9906005"
 -
 Unknown (Unable to Determine)
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.ePatient.Gender" minOccurs="0" name="eMedDevice.14">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="Gender"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eMedDevice.15
Type:
anonymous (extension of Race), simple content
eMedDevice.15 ePatient.14 Race No No The patient's race as defined by the OMB (US Office of Management and Budget) E06_12 Optional Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma OMB requirements are provided at: http://www.omhrc.gov/templates/browse.aspx?lvl=2&lvlID=172. Using single multiple choice question methodology to improve the completion of ethnicity information.<br/><br/>Ethnicity (Version 2.2.1: E06_13) has been merged with this data element and retired.
Simple Content
enumeration of xs:string
Enumeration:
"2514001"
 -
 American Indian or Alaska Native
"2514003"
 -
 Asian
"2514005"
 -
 Black or African American
"2514007"
 -
 Hispanic or Latino
"2514009"
 -
 Native Hawaiian or Other Pacific Islander
"2514011"
 -
 White
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.ePatient.Race" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.15">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="Race">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
