element -> <CADDataSet>
Root Tag For Demographic DataSet
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 3 elements
Defined:
globally in CADDataSet_v3.xsd; see XML source
Includes:
definitions of 3 elements
Used:
never

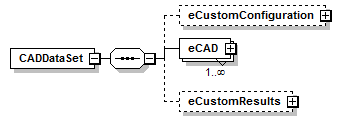

Content Model Diagram
XML Representation Summary
<CADDataSet>

Content:
 eCustomConfiguration?, eCAD+, eCustomResults?
</CADDataSet>
Content model elements (3):
eCAD (in CADDataSet),
eCustomConfiguration (in CADDataSet),
eCustomResults (in CADDataSet)
XML Source (w/o annotations (3); see within schema source)
<xs:element name="CADDataSet">
<xs:complexType>
<xs:sequence>
<xs:element id="eCustomConfigurationSection" minOccurs="0" name="eCustomConfiguration" type="eCustomConfiguration"/>
<xs:element id="eCadSection" maxOccurs="unbounded" name="eCAD" type="eCAD"/>
<xs:element id="eCustomResultsSection" minOccurs="0" name="eCustomResults" type="eCustomResults"/>
</xs:sequence>
</xs:complexType>
</xs:element>
Content Element Detail (all declarations; defined in this component only; 3/3)
eCAD
Type:
eCAD, complex content
State Required Demographic Data Elements
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCadSection" maxOccurs="unbounded" name="eCAD" type="eCAD"/>
eCustomConfiguration
Type:
eCustomConfiguration, complex content
XML Source (see within schema source)
<xs:element id="eCustomConfigurationSection" minOccurs="0" name="eCustomConfiguration" type="eCustomConfiguration"/>
eCustomResults
Type:
eCustomResults, complex content
Custom Data Elements Results
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCustomResultsSection" minOccurs="0" name="eCustomResults" type="eCustomResults"/>
