element -> <dPersonnel.AddressGroup>

Group tag to hold info about the personnel's mailing address

Namespace:	http://www.nemsis.org
Type:	anonymous complexType
Content:	complex, 5 elements
Defined:	locally within dPersonnel.PersonnelGroup element in dPersonnel_v3.xsd; see XML source
Includes:	definitions of 5 elements

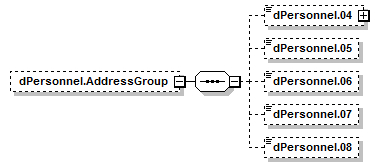

Content Model Diagram

XML Representation Summary

<dPersonnel.AddressGroup>

Content:

dPersonnel.04?, dPersonnel.05?, dPersonnel.06?, dPersonnel.07?, dPersonnel.08?

</dPersonnel.AddressGroup>

Content model elements (5):

dPersonnel.04 (in dPersonnel.AddressGroup),

dPersonnel.05 (in dPersonnel.AddressGroup),

dPersonnel.06 (in dPersonnel.AddressGroup),

dPersonnel.07 (in dPersonnel.AddressGroup),

dPersonnel.08 (in dPersonnel.AddressGroup)

Included in content model of elements (1):

dPersonnel.PersonnelGroup (in dPersonnel)

XML Source (w/o annotations (6); see within schema source)

<xs:element id="dPersonnel.AddressGroup" minOccurs="0" name="dPersonnel.AddressGroup">

<xs:complexType>

<xs:sequence>

<xs:element id="dPersonnel.EMSPersonnelsMailingAddress" minOccurs="0" name="dPersonnel.04">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="StreetAddress">

<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="dPersonnel.EMSPersonnelsCityofResidence" minOccurs="0" name="dPersonnel.05" type="CityGnisCode"/>

<xs:element id="dPersonnel.EMSPersonnelsState" minOccurs="0" name="dPersonnel.06" type="ANSIStateCode"/>

<xs:element id="dPersonnel.EMSPersonnelsZIPCode" minOccurs="0" name="dPersonnel.07" type="ZIP"/>

<xs:element id="dPersonnel.EMSPersonnelsCountry" minOccurs="0" name="dPersonnel.08" type="ANSICountryCodesCAMXUS"/>

</xs:sequence>

</xs:complexType>

</xs:element>

Content Element Detail (all declarations; defined in this component only; 5/5)

dPersonnel.04

Type:

anonymous (extension of StreetAddress), simple content

dPersonnel.04 EMS Personnel's Mailing Address No No The Street or PO Box of the personnel's mailing address. D08_04 Optional For individuals living outside the USA the full address can be entered in the address line.

Simple Content

xs:string

maxLength:	255
minLength:	1

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dPersonnel.EMSPersonnelsMailingAddress" minOccurs="0" name="dPersonnel.04">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="StreetAddress">

<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

dPersonnel.05

Type:

CityGnisCode, simple content

dPersonnel.05 EMS Personnel's City of Residence No No The city of the personnel's mailing address. D08_05 Optional City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. GNIS Codes Website: <a>http://geonames.usgs.gov/domestic/download_data.htm</a>

Simple Content

xs:positiveInteger

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dPersonnel.EMSPersonnelsCityofResidence" minOccurs="0" name="dPersonnel.05" type="CityGnisCode"/>

dPersonnel.06

Type:

ANSIStateCode, simple content

dPersonnel.06 EMS Personnel's State No No The state of the personnel's mailing address. D08_06 Optional Based on ANSI Code. GNIS Codes Website: <a>http://geonames.usgs.gov/domestic/download_data.htm </a>

Simple Content

xs:string

Pattern:

[0-9]{2}

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dPersonnel.EMSPersonnelsState" minOccurs="0" name="dPersonnel.06" type="ANSIStateCode"/>

dPersonnel.07

Type:

ZIP, simple content

dPersonnel.07 EMS Personnel's ZIP Code No No The ZIP code of the personnel's mailing address. D08_07 Optional Zip Codes Product Website: <a>https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> Product: USA - 5-digit ZIP Code Database, Commercial Edition

Simple Content

xs:string

Pattern:

[0-9]{5}|[0-9]{5}-[0-9]{4}|[0-9]{5}-[0-9]{5}|[A-Z][0-9][A-Z] [0-9][A-Z][0-9]

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dPersonnel.EMSPersonnelsZIPCode" minOccurs="0" name="dPersonnel.07" type="ZIP"/>

dPersonnel.08

Type:

ANSICountryCodesCAMXUS, simple content

dPersonnel.08 EMS Personnel's Country No No The country of the personnel mailing address. Optional Based on ANSI Code. ANSI Country Codes (ISO 3166) Website: <a>http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a>

Simple Content

enumeration of xs:string

Enumeration:

"CA"	-	Canada
"MX"	-	Mexico
"US"	-	United States

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dPersonnel.EMSPersonnelsCountry" minOccurs="0" name="dPersonnel.08" type="ANSICountryCodesCAMXUS"/>
