element -> <dPersonnel.NameGroup>
Group tag to hold info about the personnel's name
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 3 elements
Defined:
locally within dPersonnel.PersonnelGroup element in dPersonnel_v3.xsd; see XML source
Includes:
definitions of 3 elements

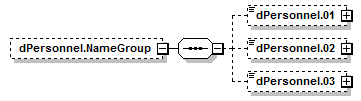

Content Model Diagram
XML Representation Summary
<dPersonnel.NameGroup>

Content:
 dPersonnel.01?, dPersonnel.02?, dPersonnel.03?
</dPersonnel.NameGroup>
Content model elements (3):
dPersonnel.01 (in dPersonnel.NameGroup),
dPersonnel.02 (in dPersonnel.NameGroup),
dPersonnel.03 (in dPersonnel.NameGroup)
Included in content model of elements (1):
dPersonnel.PersonnelGroup (in dPersonnel)
XML Source (w/o annotations (4); see within schema source)
<xs:element id="dPersonnel.NameGroup" minOccurs="0" name="dPersonnel.NameGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dPersonnel.EMSPersonnelsLastName" minOccurs="0" name="dPersonnel.01" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonLastName">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dPersonnel.EMSPersonnelsFirstName" minOccurs="0" name="dPersonnel.02" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonFirstName">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dPersonnel.EMSPersonnelsMiddleNameInitial" minOccurs="0" name="dPersonnel.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonMiddleName">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
Content Element Detail (all declarations; defined in this component only; 3/3)
dPersonnel.01
Type:
anonymous (extension of PersonLastName), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dPersonnel.01 EMS Personnel's Last Name No Yes The last name of the personnel. D08_01 Recommended
Simple Content
xs:string
maxLength:
 60
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dPersonnel.EMSPersonnelsLastName" minOccurs="0" name="dPersonnel.01" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonLastName">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dPersonnel.02
Type:
anonymous (extension of PersonFirstName), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dPersonnel.02 EMS Personnel's First Name No Yes The first name of the personnel. D08_03 Recommended
Simple Content
xs:string
maxLength:
 50
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dPersonnel.EMSPersonnelsFirstName" minOccurs="0" name="dPersonnel.02" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonFirstName">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dPersonnel.03
Type:
anonymous (extension of PersonMiddleName), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dPersonnel.03 EMS Personnel's Middle Name/Initial No Yes The middle name or initial of the personnel. D08_02 Recommended
Simple Content
xs:string
maxLength:
 50
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dPersonnel.EMSPersonnelsMiddleNameInitial" minOccurs="0" name="dPersonnel.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonMiddleName">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
