element -> <Header>
Header for file
Namespace:
Type:
anonymous complexType
Content:
complex, 3 elements
Defined:
Includes:
definitions of 3 elements

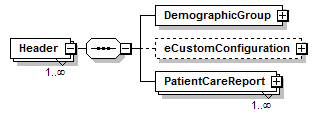

Content Model Diagram
XML Representation Summary
<Header>

Content:
DemographicGroup, eCustomConfiguration?, PatientCareReport+
</Header>
Content model elements (3):
Included in content model of elements (1):
XML Source (w/o annotations (31); see within schema source)
<xs:element id="HeaderGroup" maxOccurs="unbounded" name="Header">
<xs:complexType>
<xs:sequence>
<xs:element id="DemographicGroup" name="DemographicGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="EMSDataset.EMSAgencyUniqueStateID" name="dAgency.01" type="EMSAgencyStateID"/>
<xs:element id="EMSDataset.EMSAgencyNumber" name="dAgency.02">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EMSAgencyNumber"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="EMSDataset.EMSAgencyState" name="dAgency.04">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ANSIStateCode"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eCustomConfigurationSection" minOccurs="0" name="eCustomConfiguration" type="eCustomConfiguration"/>
<xs:element id="PatientCareReportGroup" maxOccurs="unbounded" name="PatientCareReport">
<xs:complexType>
<xs:sequence>
<xs:element id="eRecordSection" name="eRecord" type="eRecord"/>
<xs:element id="eResponseSection" name="eResponse" type="eResponse"/>
<xs:element id="eDispatchSection" name="eDispatch" type="eDispatch"/>
<xs:element id="eCrewSection" minOccurs="0" name="eCrew" type="eCrews"/>
<xs:element id="eTimesSection" name="eTimes" type="eTimes"/>
<xs:element id="ePatientSection" name="ePatient" type="ePatient"/>
<xs:element id="ePaymentSection" name="ePayment" type="ePayment"/>
<xs:element id="eSceneSection" name="eScene" type="eScene"/>
<xs:element id="eSituationSection" name="eSituation" type="eSituation"/>
<xs:element id="eInjurySection" name="eInjury" type="eInjury"/>
<xs:element id="eArrestSection" name="eArrest" type="eArrest"/>
<xs:element id="eHistorySection" name="eHistory" type="eHistory"/>
<xs:element id="eNarrativeSection" minOccurs="0" name="eNarrative" type="eNarrative"/>
<xs:element id="eVitalsSection" name="eVitals" type="eVitals"/>
<xs:element id="eLabsSection" minOccurs="0" name="eLabs" type="eLabs"/>
<xs:element id="eExamSection" minOccurs="0" name="eExam" type="eExam"/>
<xs:element id="eProtocolsSection" name="eProtocols" type="eProtocols"/>
<xs:element id="eMedicationsSection" name="eMedications" type="eMedications"/>
<xs:element id="eProceduresSection" name="eProcedures" type="eProcedures"/>
<xs:element id="eAirwaysSection" minOccurs="0" name="eAirway" type="eAirways"/>
<xs:element id="eDevicesSection" minOccurs="0" name="eDevice" type="eDevices"/>
<xs:element id="eDispositionSection" name="eDisposition" type="eDisposition"/>
<xs:element id="eOutcomeSection" name="eOutcome" type="eOutcome"/>
<xs:element id="eCustomResultsSection" minOccurs="0" name="eCustomResults" type="eCustomResults"/>
<xs:element id="eOtherSection" name="eOther" type="eOther"/>
</xs:sequence>
<!--<xs:attribute name="RecordStatus" type="RecordStatus" use="optional"/>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
-->
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
Content Element Detail (all declarations; defined in this component only; 3/3)
DemographicGroup
Type:
anonymous, complex content
Demographic information related to this agency
XML Source (w/o annotations (4); see within schema source)
<xs:element id="DemographicGroup" name="DemographicGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="EMSDataset.EMSAgencyUniqueStateID" name="dAgency.01" type="EMSAgencyStateID"/>
<xs:element id="EMSDataset.EMSAgencyNumber" name="dAgency.02">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EMSAgencyNumber"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="EMSDataset.EMSAgencyState" name="dAgency.04">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ANSIStateCode"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>

eCustomConfiguration
Type:
eCustomConfiguration, complex content
XML Source (see within schema source)
<xs:element id="eCustomConfigurationSection" minOccurs="0" name="eCustomConfiguration" type="eCustomConfiguration"/>

PatientCareReport
Type:
anonymous, complex content
Container Tag to hold each instance of a patient care report (PCR)
XML Source (w/o annotations (26); see within schema source)
<xs:element id="PatientCareReportGroup" maxOccurs="unbounded" name="PatientCareReport">
<xs:complexType>
<xs:sequence>
<xs:element id="eRecordSection" name="eRecord" type="eRecord"/>
<xs:element id="eResponseSection" name="eResponse" type="eResponse"/>
<xs:element id="eDispatchSection" name="eDispatch" type="eDispatch"/>
<xs:element id="eCrewSection" minOccurs="0" name="eCrew" type="eCrews"/>
<xs:element id="eTimesSection" name="eTimes" type="eTimes"/>
<xs:element id="ePatientSection" name="ePatient" type="ePatient"/>
<xs:element id="ePaymentSection" name="ePayment" type="ePayment"/>
<xs:element id="eSceneSection" name="eScene" type="eScene"/>
<xs:element id="eSituationSection" name="eSituation" type="eSituation"/>
<xs:element id="eInjurySection" name="eInjury" type="eInjury"/>
<xs:element id="eArrestSection" name="eArrest" type="eArrest"/>
<xs:element id="eHistorySection" name="eHistory" type="eHistory"/>
<xs:element id="eNarrativeSection" minOccurs="0" name="eNarrative" type="eNarrative"/>
<xs:element id="eVitalsSection" name="eVitals" type="eVitals"/>
<xs:element id="eLabsSection" minOccurs="0" name="eLabs" type="eLabs"/>
<xs:element id="eExamSection" minOccurs="0" name="eExam" type="eExam"/>
<xs:element id="eProtocolsSection" name="eProtocols" type="eProtocols"/>
<xs:element id="eMedicationsSection" name="eMedications" type="eMedications"/>
<xs:element id="eProceduresSection" name="eProcedures" type="eProcedures"/>
<xs:element id="eAirwaysSection" minOccurs="0" name="eAirway" type="eAirways"/>
<xs:element id="eDevicesSection" minOccurs="0" name="eDevice" type="eDevices"/>
<xs:element id="eDispositionSection" name="eDisposition" type="eDisposition"/>
<xs:element id="eOutcomeSection" name="eOutcome" type="eOutcome"/>
<xs:element id="eCustomResultsSection" minOccurs="0" name="eCustomResults" type="eCustomResults"/>
<xs:element id="eOtherSection" name="eOther" type="eOther"/>
</xs:sequence>
<!--<xs:attribute name="RecordStatus" type="RecordStatus" use="optional"/>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
-->
</xs:complexType>
</xs:element>
