element -> <eAirway.AirwayGroup>
Group Tag to hold Airway information
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 6 elements
Defined:
locally within eAirways complexType in eAirway_v3.xsd; see XML source
Includes:
definitions of 6 elements

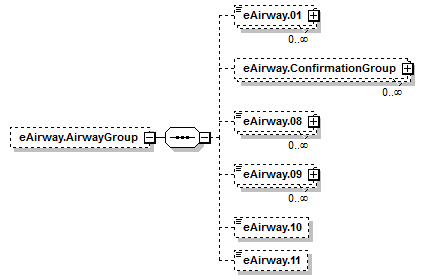

Content Model Diagram
XML Representation Summary
<eAirway.AirwayGroup>

Content:
 eAirway.01*, eAirway.ConfirmationGroup*, eAirway.08*, eAirway.09*, eAirway.10?, eAirway.11?
</eAirway.AirwayGroup>
Content model elements (6):
eAirway.01 (in eAirway.AirwayGroup),
eAirway.08 (in eAirway.AirwayGroup),
eAirway.09 (in eAirway.AirwayGroup),
eAirway.10 (in eAirway.AirwayGroup),
eAirway.11 (in eAirway.AirwayGroup),
eAirway.ConfirmationGroup (in eAirway.AirwayGroup)
Included in content model of elements (1):
eAirway (in PatientCareReport)
XML Source (w/o annotations (13); see within schema source)
<xs:element id="eAirway.AirwayGroup" minOccurs="0" name="eAirway.AirwayGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eAirway.IndicationsforInvasiveAirway" maxOccurs="unbounded" minOccurs="0" name="eAirway.01" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AirwayIndications">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.ConfirmationGroup" maxOccurs="unbounded" minOccurs="0" name="eAirway.ConfirmationGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eAirway.DateTimeAirwayDevicePlacementConfirmation" minOccurs="0" name="eAirway.02" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.AirwayDeviceBeingConfirmed" minOccurs="0" name="eAirway.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DeviceBeingConfirmed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.AirwayDevicePlacementConfirmedMethods" maxOccurs="unbounded" minOccurs="0" name="eAirway.04" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DeviceConfirmedMethods">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.TubeDepth" minOccurs="0" name="eAirway.05" type="TubeDepth"/>
<xs:element id="eAirway.TypeofIndividualConfirmingAirwayDevicePlacement" minOccurs="0" name="eAirway.06" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="IndividualDetails">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.CrewMemberID" minOccurs="0" name="eAirway.07" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CrewMemberID">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="ProcedureGroupCorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.AirwayComplicationsEncountered" maxOccurs="unbounded" minOccurs="0" name="eAirway.08" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ComplicationsEncountered">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.SuspectedReasonsforFailedAirwayManagement" maxOccurs="unbounded" minOccurs="0" name="eAirway.09">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ReasonsForFailure">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.DateTimeDecisiontoManagethePatientwithanInvasiveAirway" minOccurs="0" name="eAirway.10" type="DateTimeType"/>
<xs:element id="eAirway.DateTimeInvasiveAirwayPlacementAttemptsAbandoned" minOccurs="0" name="eAirway.11" type="DateTimeType"/>
</xs:sequence>
<!--<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>-->
</xs:complexType>
</xs:element>
Content Element Detail (all declarations; defined in this component only; 6/6)
eAirway.01
Type:
anonymous (extension of AirwayIndications), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eAirway.01 Indications for Invasive Airway No Yes The clinical indication for performing invasive airway management. Recommended Airway Added to better document airway management.
Simple Content
enumeration of xs:string
Enumeration:
"4001001"
 -
 Adequate Airway Reflexes/Effort, Potential for Compromise
"4001003"
 -
 Airway Reflex Compromised
"4001005"
 -
 Apnea or Agonal Respirations
"4001007"
 -
 Illness Involving Airway
"4001009"
 -
 Injury Involving Airway
"4001011"
 -
 Other
"4001013"
 -
 Ventilatory Effort Compromised
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eAirway.IndicationsforInvasiveAirway" maxOccurs="unbounded" minOccurs="0" name="eAirway.01" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AirwayIndications">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eAirway.08
Type:
anonymous (extension of ComplicationsEncountered), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eAirway.08 Airway Complications Encountered No Yes The airway management complications encountered during the patient care episode. Recommended Airway Added to better document airway management.
Simple Content
enumeration of xs:string
Enumeration:
"4008001"
 -
 Adverse Event from Facilitating Drugs
"4008003"
 -
 Bradycardia (<50)
"4008005"
 -
 Cardiac Arrest
"4008007"
 -
 Esophageal Intubation-Delayed Detection (After Tube Secured)
"4008009"
 -
 Esophageal Intubation-Detected in Emergency Department
"4008011"
 -
 Failed Intubation Effort
"4008013"
 -
 Injury or Trauma to Patient from Airway Management Effort
"4008015"
 -
 Other
"4008017"
 -
 Oxygen Desaturation (<90%)
"4008019"
 -
 Patient Vomiting/Aspiration
"4008021"
 -
 Tube Dislodged During Transport/Patient Care
"4008023"
 -
 Tube Was Not in Correct Position when EMS Crew/Team Assumed Care of the Patient
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eAirway.AirwayComplicationsEncountered" maxOccurs="unbounded" minOccurs="0" name="eAirway.08" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ComplicationsEncountered">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eAirway.09
Type:
anonymous (extension of ReasonsForFailure), simple content
eAirway.09 Suspected Reasons for Failed Airway Management No Yes The reason(s) the airway was unable to be successfully managed. Optional Airway Added to better document airway management.
Simple Content
enumeration of xs:string
Enumeration:
"4009001"
 -
 Difficult Patient Airway Anatomy
"4009003"
 -
 ETI Attempted, but Arrived At Destination Facility Before Accomplished
"4009005"
 -
 Facial or Oral Trauma
"4009007"
 -
 Inability to Expose Vocal Cords
"4009009"
 -
 Inadequate Patient Relaxation/Presence of Protective Airway Reflexes
"4009011"
 -
 Jaw Clenched (Trismus)
"4009013"
 -
 Other
"4009015"
 -
 Poor Patient Access
"4009017"
 -
 Secretions/Blood/Vomit
"4009019"
 -
 Unable to Position or Access Patient
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eAirway.SuspectedReasonsforFailedAirwayManagement" maxOccurs="unbounded" minOccurs="0" name="eAirway.09">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ReasonsForFailure">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eAirway.10
Type:
DateTimeType, simple content
eAirway.10 Date/Time Decision to Manage the Patient with an Invasive Airway No No The date and time the decision was made to manage the patient's airway with an invasive airway device. Optional Airway DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table> Added to better document airway management.
Simple Content
xs:dateTime
maxInclusive:
 2050-01-01T00:00:00-00:00
minInclusive:
 1950-01-01T00:00:00-00:00
Pattern:
 [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eAirway.DateTimeDecisiontoManagethePatientwithanInvasiveAirway" minOccurs="0" name="eAirway.10" type="DateTimeType"/>
eAirway.11
Type:
DateTimeType, simple content
eAirway.11 Date/Time Invasive Airway Placement Attempts Abandoned No No The date and time that the invasive airway attempts were abandoned for the patient. Optional Airway DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table> Added to better document airway management.
Simple Content
xs:dateTime
maxInclusive:
 2050-01-01T00:00:00-00:00
minInclusive:
 1950-01-01T00:00:00-00:00
Pattern:
 [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eAirway.DateTimeInvasiveAirwayPlacementAttemptsAbandoned" minOccurs="0" name="eAirway.11" type="DateTimeType"/>
eAirway.ConfirmationGroup
Type:
anonymous, complex content
Group Tag to hold info about the confirmation methods.
XML Source (w/o annotations (7); see within schema source)
<xs:element id="eAirway.ConfirmationGroup" maxOccurs="unbounded" minOccurs="0" name="eAirway.ConfirmationGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eAirway.DateTimeAirwayDevicePlacementConfirmation" minOccurs="0" name="eAirway.02" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.AirwayDeviceBeingConfirmed" minOccurs="0" name="eAirway.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DeviceBeingConfirmed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.AirwayDevicePlacementConfirmedMethods" maxOccurs="unbounded" minOccurs="0" name="eAirway.04" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DeviceConfirmedMethods">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.TubeDepth" minOccurs="0" name="eAirway.05" type="TubeDepth"/>
<xs:element id="eAirway.TypeofIndividualConfirmingAirwayDevicePlacement" minOccurs="0" name="eAirway.06" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="IndividualDetails">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eAirway.CrewMemberID" minOccurs="0" name="eAirway.07" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CrewMemberID">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="ProcedureGroupCorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
