element -> <eCustomResults.ResultsGroup>
Group Tag to hold custom results
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 3 elements
Defined:
locally within eCustomResults complexType in eCustom_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements

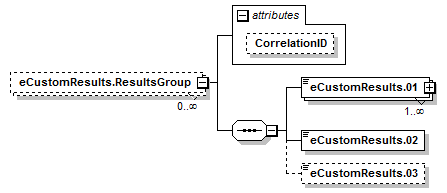

Content Model Diagram
XML Representation Summary
<eCustomResults.ResultsGroup
    CorrelationID
 =
 xs:string
    >

Content:
 eCustomResults.01+, eCustomResults.02, eCustomResults.03?
</eCustomResults.ResultsGroup>
Content model elements (3):
eCustomResults.01 (in eCustomResults.ResultsGroup),
eCustomResults.02 (in eCustomResults.ResultsGroup),
eCustomResults.03 (in eCustomResults.ResultsGroup)
Included in content model of elements (1):
eCustomResults (in PatientCareReport)
XML Source (w/o annotations (4); see within schema source)
<xs:element id="eCustomConfiguration.eResultsGroup" maxOccurs="unbounded" minOccurs="0" name="eCustomResults.ResultsGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eCustomConfiguration.eCustomDataElementResult" maxOccurs="unbounded" minOccurs="1" name="eCustomResults.01" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomResults">
<xs:attribute name="NV" type="NV" use="optional"/>
<xs:attribute name="PN" type="PN" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eCustomConfiguration.eCustomDataElementReference" minOccurs="1" name="eCustomResults.02" type="CorrelationID"/>
<xs:element id="eCustomConfiguration.eCustomCorrelationID" minOccurs="0" name="eCustomResults.03" type="CorrelationID"/>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 3/3)
eCustomResults.01
Type:
anonymous (extension of CustomResults), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eCustomResults.01 Custom Data Element Result No No The actual value or values chosen (if values listed in eCustomConfiguration.06) or result (free text, Date/Time, or number) documented for the Custom Data Element Mandatory Added to allow customized data elements to be inserted and collected from within the NEMSIS Version 3 standard.
Simple Content
xs:string
maxLength:
 100000
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCustomConfiguration.eCustomDataElementResult" maxOccurs="unbounded" minOccurs="1" name="eCustomResults.01" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomResults">
<xs:attribute name="NV" type="NV" use="optional"/>
<xs:attribute name="PN" type="PN" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eCustomResults.02
Type:
CorrelationID, simple content
eCustomResults.02 Custom Element ID Referenced No No References the CustomElementID attribute for eCustomConfiguration.CustomGroup Mandatory
Simple Content
xs:string
maxLength:
 255
minLength:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCustomConfiguration.eCustomDataElementReference" minOccurs="1" name="eCustomResults.02" type="CorrelationID"/>
eCustomResults.03
Type:
CorrelationID, simple content
eCustomResults.03 CorrelationID of PatientCareReport Element or Group No No References the CorrelationID attribute of an element or group in the PatientCareReport section Optional
Simple Content
xs:string
maxLength:
 255
minLength:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCustomConfiguration.eCustomCorrelationID" minOccurs="0" name="eCustomResults.03" type="CorrelationID"/>
