Included schema commonTypes_v3.xsd
Namespace http://www.nemsis.org
Properties
attribute form default unqualified
element form default qualified
Simple Type ANSIStateCode
Namespace http://www.nemsis.org
Annotations

A list of valid ANSI State Codes
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [0-9]{2}
Used by
Source

<xs:simpleType name="ANSIStateCode">
  <xs:annotation>
    <xs:documentation>A list of valid ANSI State Codes</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9]{2}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type CustomTitle
Namespace http://www.nemsis.org
Annotations

This is the title of the custom data element created by an EMS Agency to collect information that is not defined formally in NEMSIS Version 3.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source

<xs:simpleType name="CustomTitle">
  <xs:annotation>
    <xs:documentation>This is the title of the custom data element created by an EMS Agency to collect information that is not defined formally in NEMSIS Version 3.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type CustomDefinition
Namespace http://www.nemsis.org
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 255
Used by
Source

<xs:simpleType name="CustomDefinition">
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Simple Type CustomDataType
Namespace http://www.nemsis.org
Annotations

The list of potential values associated with the custom data elment.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9902001
Binary
enumeration 9902003
Date/Time
enumeration 9902005
Integer/Number
enumeration 9902007
Other
enumeration 9902009
Text/String
enumeration 9902011
Boolean
Used by
Source

<xs:simpleType name="CustomDataType">
  <xs:annotation>
    <xs:documentation>The list of potential values associated with the custom data elment.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9902001">
      <xs:annotation>
        <xs:documentation>Binary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9902003">
      <xs:annotation>
        <xs:documentation>Date/Time</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9902005">
      <xs:annotation>
        <xs:documentation>Integer/Number</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9902007">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9902009">
      <xs:annotation>
        <xs:documentation>Text/String</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9902011">
      <xs:annotation>
        <xs:documentation>Boolean</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type YesNoValues
Namespace http://www.nemsis.org
Annotations

Yes No value data type
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9923001
No
enumeration 9923003
Yes
Used by
Source

<xs:simpleType name="YesNoValues">
  <xs:annotation>
    <xs:documentation>Yes No value data type</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9923001">
      <xs:annotation>
        <xs:documentation>No</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9923003">
      <xs:annotation>
        <xs:documentation>Yes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

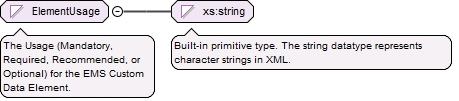

Simple Type ElementUsage
Namespace http://www.nemsis.org
Annotations

The Usage (Mandatory, Required, Recommended, or Optional) for the EMS Custom Data Element.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9903001
Mandatory
enumeration 9903003
Required
enumeration 9903005
Recommended
enumeration 9903007
Optional
Used by
Source

<xs:simpleType name="ElementUsage">
  <xs:annotation>
    <xs:documentation>The Usage (Mandatory, Required, Recommended, or Optional) for the EMS Custom Data Element.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9903001">
      <xs:annotation>
        <xs:documentation>Mandatory</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9903003">
      <xs:annotation>
        <xs:documentation>Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9903005">
      <xs:annotation>
        <xs:documentation>Recommended</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9903007">
      <xs:annotation>
        <xs:documentation>Optional</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CustomValue
Namespace http://www.nemsis.org
Annotations

Associated value(s) for the Custom Element.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 100
Used by
Source

<xs:simpleType name="CustomValue">
  <xs:annotation>
    <xs:documentation>Associated value(s) for the Custom Element.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type NV
Namespace http://www.nemsis.org
Annotations

NOT Values
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 7701001
Not Applicable
enumeration 7701003
Not Recorded
enumeration 7701005
Not Reporting
Used by
Source

<xs:simpleType name="NV">
  <xs:annotation>
    <xs:documentation>NOT Values</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="7701001">
      <xs:annotation>
        <xs:documentation>Not Applicable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="7701003">
      <xs:annotation>
        <xs:documentation>Not Recorded</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="7701005">
      <xs:annotation>
        <xs:documentation>Not Reporting</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN
Namespace http://www.nemsis.org
Annotations

Pertinent Negatives
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801001
Contraindication Noted
enumeration 8801003
Denied By Order
enumeration 8801005
Exam Finding Not Present
enumeration 8801007
Medication Allergy
enumeration 8801009
Medication Already Taken
enumeration 8801013
No Known Drug Allergy
enumeration 8801015
None Reported
enumeration 8801017
Not Performed by EMS
enumeration 8801019
Refused
enumeration 8801021
Unresponsive
enumeration 8801023
Unable to Complete
enumeration 8801025
Not Immunized
enumeration 8801027
Order Criteria Not Met
enumeration 8801029
Approximate
enumeration 8801031
Symptom Not Present
Used by
Source

<xs:simpleType name="PN">
  <xs:annotation>
    <xs:documentation>Pertinent Negatives</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801001">
      <xs:annotation>
        <xs:documentation>Contraindication Noted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801003">
      <xs:annotation>
        <xs:documentation>Denied By Order</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801005">
      <xs:annotation>
        <xs:documentation>Exam Finding Not Present</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801007">
      <xs:annotation>
        <xs:documentation>Medication Allergy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801009">
      <xs:annotation>
        <xs:documentation>Medication Already Taken</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801013">
      <xs:annotation>
        <xs:documentation>No Known Drug Allergy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801015">
      <xs:annotation>
        <xs:documentation>None Reported</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801017">
      <xs:annotation>
        <xs:documentation>Not Performed by EMS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801019">
      <xs:annotation>
        <xs:documentation>Refused</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801021">
      <xs:annotation>
        <xs:documentation>Unresponsive</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801023">
      <xs:annotation>
        <xs:documentation>Unable to Complete</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801025">
      <xs:annotation>
        <xs:documentation>Not Immunized</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801027">
      <xs:annotation>
        <xs:documentation>Order Criteria Not Met</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801029">
      <xs:annotation>
        <xs:documentation>Approximate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="8801031">
      <xs:annotation>
        <xs:documentation>Symptom Not Present</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CorrelationID
Namespace http://www.nemsis.org
Annotations

The correlation ID used to link custom elements
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 255
Used by
Source

<xs:simpleType name="CorrelationID">
  <xs:annotation>
    <xs:documentation>The correlation ID used to link custom elements</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SoftwareCreator
Namespace http://www.nemsis.org
Annotations

The name of the Vendor, Software Manufacturer, or Software Developer
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 50
Used by
Source

<xs:simpleType name="SoftwareCreator">
  <xs:annotation>
    <xs:documentation>The name of the Vendor, Software Manufacturer, or Software Developer</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SoftwareName
Namespace http://www.nemsis.org
Annotations

The name of the software used to collect the EMS event
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 50
Used by
Source

<xs:simpleType name="SoftwareName">
  <xs:annotation>
    <xs:documentation>The name of the software used to collect the EMS event</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SoftwareVersion
Namespace http://www.nemsis.org
Annotations

The version of the software used to collect the EMS event
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 50
Used by
Source

<xs:simpleType name="SoftwareVersion">
  <xs:annotation>
    <xs:documentation>The version of the software used to collect the EMS event</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type StateRequiredElement
Namespace http://www.nemsis.org
Annotations

State Required Element
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 100
Used by
Source

<xs:simpleType name="StateRequiredElement">
  <xs:annotation>
    <xs:documentation>State Required Element</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type StateCertificationLicensureLevels
Namespace http://www.nemsis.org
Annotations

All of the potential levels of certification/licensure for EMS personnel recognized by the state.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9917001
Advanced Emergency Medical Technician (AEMT)
enumeration 9917002
Emergency Medical Technician - Intermediate
enumeration 9917003
Emergency Medical Responder (EMR)
enumeration 9917005
Emergency Medical Technician (EMT)
enumeration 9917007
Paramedic
enumeration 9917019
Physician
enumeration 9917021
Critical Care Paramedic
enumeration 9917023
Community Paramedicine
enumeration 9917025
Nurse Practitioner
enumeration 9917027
Physician Assistant
enumeration 9917029
Licensed Practical Nurse (LPN)
enumeration 9917031
Registered Nurse
Used by
Source

<xs:simpleType name="StateCertificationLicensureLevels">
  <xs:annotation>
    <xs:documentation>All of the potential levels of certification/licensure for EMS personnel recognized by the state.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9917001">
      <xs:annotation>
        <xs:documentation>Advanced Emergency Medical Technician (AEMT)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917002">
      <xs:annotation>
        <xs:documentation>Emergency Medical Technician - Intermediate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917003">
      <xs:annotation>
        <xs:documentation>Emergency Medical Responder (EMR)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917005">
      <xs:annotation>
        <xs:documentation>Emergency Medical Technician (EMT)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917007">
      <xs:annotation>
        <xs:documentation>Paramedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917019">
      <xs:annotation>
        <xs:documentation>Physician</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917021">
      <xs:annotation>
        <xs:documentation>Critical Care Paramedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917023">
      <xs:annotation>
        <xs:documentation>Community Paramedicine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917025">
      <xs:annotation>
        <xs:documentation>Nurse Practitioner</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917027">
      <xs:annotation>
        <xs:documentation>Physician Assistant</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917029">
      <xs:annotation>
        <xs:documentation>Licensed Practical Nurse (LPN)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9917031">
      <xs:annotation>
        <xs:documentation>Registered Nurse</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type snomed
Namespace http://www.nemsis.org
Annotations

SNOMEDCT
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 999999999999999
minInclusive 100000
Used by
Source

<xs:simpleType name="snomed">
  <xs:annotation>
    <xs:documentation>SNOMEDCT</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:maxInclusive value="999999999999999"/>
    <xs:minInclusive value="100000"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Medication
Namespace http://www.nemsis.org
Annotations

Medication
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 9
Used by
Source

<xs:simpleType name="Medication">
  <xs:annotation>
    <xs:documentation>Medication</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="9"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ProtocolsUsed
Namespace http://www.nemsis.org
Annotations

The protocol used by EMS personnel to direct the clinical care of the patient
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9914001
Airway
enumeration 9914003
Airway-Failed
enumeration 9914005
Airway-Obstruction/Foreign Body
enumeration 9914007
Airway-Rapid Sequence Induction (RSI-Paralytic)
enumeration 9914009
Airway-Sedation Assisted (Non-Paralytic)
enumeration 9914011
Cardiac Arrest-Asystole
enumeration 9914013
Cardiac Arrest-Hypothermia-Therapeutic
enumeration 9914015
Cardiac Arrest-Pulseless Electrical Activity
enumeration 9914017
Cardiac Arrest-Ventricular Fibrillation/ Pulseless Ventricular Tachycardia
enumeration 9914019
Cardiac Arrest-Post Resuscitation Care
enumeration 9914021
Environmental-Altitude Sickness
enumeration 9914023
Environmental-Cold Exposure
enumeration 9914025
Environmental-Frostbite/Cold Injury
enumeration 9914027
Environmental-Heat Exposure/Exhaustion
enumeration 9914029
Environmental-Heat Stroke/Hyperthermia
enumeration 9914031
Environmental-Hypothermia
enumeration 9914033
Exposure-Airway/Inhalation Irritants
enumeration 9914035
Exposure-Biological/Infectious
enumeration 9914037
Exposure-Blistering Agents
enumeration 9914041
Exposure-Chemicals to Eye
enumeration 9914043
Exposure-Cyanide
enumeration 9914045
Exposure-Explosive/ Blast Injury
enumeration 9914047
Exposure-Nerve Agents
enumeration 9914049
Exposure-Radiologic Agents
enumeration 9914051
General-Back Pain
enumeration 9914053
General-Behavioral/Patient Restraint
enumeration 9914055
General-Cardiac Arrest
enumeration 9914057
General-Dental Problems
enumeration 9914059
General-Epistaxis
enumeration 9914061
General-Fever
enumeration 9914063
General-Individualized Patient Protocol
enumeration 9914065
General-Indwelling Medical Devices/Equipment
enumeration 9914067
General-IV Access
enumeration 9914069
General-Medical Device Malfunction
enumeration 9914071
General-Pain Control
enumeration 9914073
General-Spinal Immobilization/Clearance
enumeration 9914075
General-Universal Patient Care/ Initial Patient Contact
enumeration 9914077
Injury-Amputation
enumeration 9914079
Injury-Bites and Envenomations-Land
enumeration 9914081
Injury-Bites and Envenomations-Marine
enumeration 9914083
Injury-Bleeding/ Hemorrhage Control
enumeration 9914085
Injury-Burns-Thermal
enumeration 9914087
Injury-Cardiac Arrest
enumeration 9914089
Injury-Crush Syndrome
enumeration 9914091
Injury-Diving Emergencies
enumeration 9914093
Injury-Drowning/Near Drowning
enumeration 9914095
Injury-Electrical Injuries
enumeration 9914097
Injury-Extremity
enumeration 9914099
Injury-Eye
enumeration 9914101
Injury-Head
enumeration 9914103
Injury-Impaled Object
enumeration 9914105
Injury-Multisystem
enumeration 9914107
Injury-Spinal Cord
enumeration 9914109
Medical-Abdominal Pain
enumeration 9914111
Medical-Allergic Reaction/Anaphylaxis
enumeration 9914113
Medical-Altered Mental Status
enumeration 9914115
Medical-Bradycardia
enumeration 9914117
Medical-Cardiac Chest Pain
enumeration 9914119
Medical-Diarrhea
enumeration 9914121
Medical-Hyperglycemia
enumeration 9914123
Medical-Hypertension
enumeration 9914125
Medical-Hypoglycemia/Diabetic Emergency
enumeration 9914127
Medical-Hypotension/Shock (Non-Trauma)
enumeration 9914129
Medical-Influenza-Like Illness/ Upper Respiratory Infection
enumeration 9914131
Medical-Nausea/Vomiting
enumeration 9914133
Medical-Newborn/ Neonatal Resuscitation
enumeration 9914135
General-Overdose/Poisoning/Toxic Ingestion
enumeration 9914137
Medical-Pulmonary Edema/CHF
enumeration 9914139
Medical-Respiratory Distress/Asthma/COPD/Reactive Airway
enumeration 9914141
Medical-Seizure
enumeration 9914143
Medical-ST-Elevation Myocardial Infarction (STEMI)
enumeration 9914145
Medical-Stroke/TIA
enumeration 9914147
Medical-Supraventricular Tachycardia (Including Atrial Fibrillation)
enumeration 9914149
Medical-Syncope
enumeration 9914151
Medical-Ventricular Tachycardia (With Pulse)
enumeration 9914153
Not Done
enumeration 9914155
OB/GYN-Childbirth/Labor/Delivery
enumeration 9914157
OB/GYN-Eclampsia
enumeration 9914159
OB/GYN-Gynecologic Emergencies
enumeration 9914161
OB/GYN-Pregnancy Related Emergencies
enumeration 9914163
OB/GYN-Post-partum Hemorrhage
enumeration 9914165
Other
enumeration 9914167
Exposure-Carbon Monoxide
enumeration 9914169
Cardiac Arrest-Do Not Resuscitate
enumeration 9914171
Cardiac Arrest-Special Resuscitation Orders
enumeration 9914173
Exposure-Smoke Inhalation
enumeration 9914175
General-Community Paramedicine / Mobile Integrated Healthcare
enumeration 9914177
General-Exception Protocol
enumeration 9914179
General-Extended Care Guidelines
enumeration 9914181
General-Interfacility Transfers
enumeration 9914183
General-Law Enforcement - Blood for Legal Purposes
enumeration 9914185
General-Law Enforcement - Assist with Law Enforcement Activity
enumeration 9914187
General-Neglect or Abuse Suspected
enumeration 9914189
General-Refusal of Care
enumeration 9914191
Injury-Mass/Multiple Casualties
enumeration 9914193
Injury-Thoracic
enumeration 9914195
Medical-Adrenal Insufficiency
enumeration 9914197
Medical-Apparent Life Threatening Event (ALTE)
enumeration 9914199
Medical-Tachycardia
enumeration 9914201
Cardiac Arrest-Determination of Death / Withholding Resuscitative Efforts
enumeration 9914203
Injury-Conducted Electrical Weapon (e.g., Taser)
enumeration 9914205
Injury-Facial Trauma
enumeration 9914207
Injury-General Trauma Management
enumeration 9914209
Injury-Lightning/Lightning Strike
enumeration 9914211
Injury-SCUBA Injury/Accidents
enumeration 9914213
Injury-Topical Chemical Burn
enumeration 9914215
Medical-Beta Blocker Poisoning/Overdose
enumeration 9914217
Medical-Calcium Channel Blocker Poisoning/Overdose
enumeration 9914219
Medical-Opioid Poisoning/Overdose
enumeration 9914221
Medical-Respiratory Distress-Bronchiolitis
enumeration 9914223
Medical-Respiratory Distress-Croup
enumeration 9914225
Medical-Stimulant Poisoning/Overdose
Used by
Source

<xs:simpleType name="ProtocolsUsed">
  <xs:annotation>
    <xs:documentation>The protocol used by EMS personnel to direct the clinical care of the patient</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9914001">
      <xs:annotation>
        <xs:documentation>Airway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914003">
      <xs:annotation>
        <xs:documentation>Airway-Failed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914005">
      <xs:annotation>
        <xs:documentation>Airway-Obstruction/Foreign Body</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914007">
      <xs:annotation>
        <xs:documentation>Airway-Rapid Sequence Induction (RSI-Paralytic)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914009">
      <xs:annotation>
        <xs:documentation>Airway-Sedation Assisted (Non-Paralytic)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914011">
      <xs:annotation>
        <xs:documentation>Cardiac Arrest-Asystole</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914013">
      <xs:annotation>
        <xs:documentation>Cardiac Arrest-Hypothermia-Therapeutic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914015">
      <xs:annotation>
        <xs:documentation>Cardiac Arrest-Pulseless Electrical Activity</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914017">
      <xs:annotation>
        <xs:documentation>Cardiac Arrest-Ventricular Fibrillation/ Pulseless Ventricular Tachycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914019">
      <xs:annotation>
        <xs:documentation>Cardiac Arrest-Post Resuscitation Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914021">
      <xs:annotation>
        <xs:documentation>Environmental-Altitude Sickness</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914023">
      <xs:annotation>
        <xs:documentation>Environmental-Cold Exposure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914025">
      <xs:annotation>
        <xs:documentation>Environmental-Frostbite/Cold Injury</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914027">
      <xs:annotation>
        <xs:documentation>Environmental-Heat Exposure/Exhaustion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914029">
      <xs:annotation>
        <xs:documentation>Environmental-Heat Stroke/Hyperthermia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914031">
      <xs:annotation>
        <xs:documentation>Environmental-Hypothermia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914033">
      <xs:annotation>
        <xs:documentation>Exposure-Airway/Inhalation Irritants</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914035">
      <xs:annotation>
        <xs:documentation>Exposure-Biological/Infectious</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914037">
      <xs:annotation>
        <xs:documentation>Exposure-Blistering Agents</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914041">
      <xs:annotation>
        <xs:documentation>Exposure-Chemicals to Eye</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914043">
      <xs:annotation>
        <xs:documentation>Exposure-Cyanide</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914045">
      <xs:annotation>
        <xs:documentation>Exposure-Explosive/ Blast Injury</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914047">
      <xs:annotation>
        <xs:documentation>Exposure-Nerve Agents</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914049">
      <xs:annotation>
        <xs:documentation>Exposure-Radiologic Agents</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914051">
      <xs:annotation>
        <xs:documentation>General-Back Pain</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914053">
      <xs:annotation>
        <xs:documentation>General-Behavioral/Patient Restraint</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914055">
      <xs:annotation>
        <xs:documentation>General-Cardiac Arrest</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914057">
      <xs:annotation>
        <xs:documentation>General-Dental Problems</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914059">
      <xs:annotation>
        <xs:documentation>General-Epistaxis</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914061">
      <xs:annotation>
        <xs:documentation>General-Fever</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914063">
      <xs:annotation>
        <xs:documentation>General-Individualized Patient Protocol</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914065">
      <xs:annotation>
        <xs:documentation>General-Indwelling Medical Devices/Equipment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914067">
      <xs:annotation>
        <xs:documentation>General-IV Access</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914069">
      <xs:annotation>
        <xs:documentation>General-Medical Device Malfunction</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914071">
      <xs:annotation>
        <xs:documentation>General-Pain Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914073">
      <xs:annotation>
        <xs:documentation>General-Spinal Immobilization/Clearance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914075">
      <xs:annotation>
        <xs:documentation>General-Universal Patient Care/ Initial Patient Contact</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914077">
      <xs:annotation>
        <xs:documentation>Injury-Amputation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914079">
      <xs:annotation>
        <xs:documentation>Injury-Bites and Envenomations-Land</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914081">
      <xs:annotation>
        <xs:documentation>Injury-Bites and Envenomations-Marine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914083">
      <xs:annotation>
        <xs:documentation>Injury-Bleeding/ Hemorrhage Control</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914085">
      <xs:annotation>
        <xs:documentation>Injury-Burns-Thermal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914087">
      <xs:annotation>
        <xs:documentation>Injury-Cardiac Arrest</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914089">
      <xs:annotation>
        <xs:documentation>Injury-Crush Syndrome</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914091">
      <xs:annotation>
        <xs:documentation>Injury-Diving Emergencies</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914093">
      <xs:annotation>
        <xs:documentation>Injury-Drowning/Near Drowning</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914095">
      <xs:annotation>
        <xs:documentation>Injury-Electrical Injuries</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914097">
      <xs:annotation>
        <xs:documentation>Injury-Extremity</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914099">
      <xs:annotation>
        <xs:documentation>Injury-Eye</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914101">
      <xs:annotation>
        <xs:documentation>Injury-Head</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914103">
      <xs:annotation>
        <xs:documentation>Injury-Impaled Object</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914105">
      <xs:annotation>
        <xs:documentation>Injury-Multisystem</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914107">
      <xs:annotation>
        <xs:documentation>Injury-Spinal Cord</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914109">
      <xs:annotation>
        <xs:documentation>Medical-Abdominal Pain</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914111">
      <xs:annotation>
        <xs:documentation>Medical-Allergic Reaction/Anaphylaxis</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914113">
      <xs:annotation>
        <xs:documentation>Medical-Altered Mental Status</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914115">
      <xs:annotation>
        <xs:documentation>Medical-Bradycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914117">
      <xs:annotation>
        <xs:documentation>Medical-Cardiac Chest Pain</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914119">
      <xs:annotation>
        <xs:documentation>Medical-Diarrhea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914121">
      <xs:annotation>
        <xs:documentation>Medical-Hyperglycemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914123">
      <xs:annotation>
        <xs:documentation>Medical-Hypertension</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914125">
      <xs:annotation>
        <xs:documentation>Medical-Hypoglycemia/Diabetic Emergency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914127">
      <xs:annotation>
        <xs:documentation>Medical-Hypotension/Shock (Non-Trauma)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914129">
      <xs:annotation>
        <xs:documentation>Medical-Influenza-Like Illness/ Upper Respiratory Infection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914131">
      <xs:annotation>
        <xs:documentation>Medical-Nausea/Vomiting</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914133">
      <xs:annotation>
        <xs:documentation>Medical-Newborn/ Neonatal Resuscitation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914135">
      <xs:annotation>
        <xs:documentation>General-Overdose/Poisoning/Toxic Ingestion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914137">
      <xs:annotation>
        <xs:documentation>Medical-Pulmonary Edema/CHF</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914139">
      <xs:annotation>
        <xs:documentation>Medical-Respiratory Distress/Asthma/COPD/Reactive Airway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914141">
      <xs:annotation>
        <xs:documentation>Medical-Seizure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914143">
      <xs:annotation>
        <xs:documentation>Medical-ST-Elevation Myocardial Infarction (STEMI)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914145">
      <xs:annotation>
        <xs:documentation>Medical-Stroke/TIA</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914147">
      <xs:annotation>
        <xs:documentation>Medical-Supraventricular Tachycardia (Including Atrial Fibrillation)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914149">
      <xs:annotation>
        <xs:documentation>Medical-Syncope</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914151">
      <xs:annotation>
        <xs:documentation>Medical-Ventricular Tachycardia (With Pulse)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914153">
      <xs:annotation>
        <xs:documentation>Not Done</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914155">
      <xs:annotation>
        <xs:documentation>OB/GYN-Childbirth/Labor/Delivery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914157">
      <xs:annotation>
        <xs:documentation>OB/GYN-Eclampsia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914159">
      <xs:annotation>
        <xs:documentation>OB/GYN-Gynecologic Emergencies</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914161">
      <xs:annotation>
        <xs:documentation>OB/GYN-Pregnancy Related Emergencies</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914163">
      <xs:annotation>
        <xs:documentation>OB/GYN-Post-partum Hemorrhage</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914165">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914167">
      <xs:annotation>
        <xs:documentation>Exposure-Carbon Monoxide</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914169">
      <xs:annotation>
        <xs:documentation>Cardiac Arrest-Do Not Resuscitate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914171">
      <xs:annotation>
        <xs:documentation>Cardiac Arrest-Special Resuscitation Orders</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914173">
      <xs:annotation>
        <xs:documentation>Exposure-Smoke Inhalation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914175">
      <xs:annotation>
        <xs:documentation>General-Community Paramedicine / Mobile Integrated Healthcare</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914177">
      <xs:annotation>
        <xs:documentation>General-Exception Protocol</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914179">
      <xs:annotation>
        <xs:documentation>General-Extended Care Guidelines</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914181">
      <xs:annotation>
        <xs:documentation>General-Interfacility Transfers</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914183">
      <xs:annotation>
        <xs:documentation>General-Law Enforcement - Blood for Legal Purposes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914185">
      <xs:annotation>
        <xs:documentation>General-Law Enforcement - Assist with Law Enforcement Activity</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914187">
      <xs:annotation>
        <xs:documentation>General-Neglect or Abuse Suspected</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914189">
      <xs:annotation>
        <xs:documentation>General-Refusal of Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914191">
      <xs:annotation>
        <xs:documentation>Injury-Mass/Multiple Casualties</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914193">
      <xs:annotation>
        <xs:documentation>Injury-Thoracic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914195">
      <xs:annotation>
        <xs:documentation>Medical-Adrenal Insufficiency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914197">
      <xs:annotation>
        <xs:documentation>Medical-Apparent Life Threatening Event (ALTE)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914199">
      <xs:annotation>
        <xs:documentation>Medical-Tachycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914201">
      <xs:annotation>
        <xs:documentation>Cardiac Arrest-Determination of Death / Withholding Resuscitative Efforts</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914203">
      <xs:annotation>
        <xs:documentation>Injury-Conducted Electrical Weapon (e.g., Taser)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914205">
      <xs:annotation>
        <xs:documentation>Injury-Facial Trauma</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914207">
      <xs:annotation>
        <xs:documentation>Injury-General Trauma Management</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914209">
      <xs:annotation>
        <xs:documentation>Injury-Lightning/Lightning Strike</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914211">
      <xs:annotation>
        <xs:documentation>Injury-SCUBA Injury/Accidents</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914213">
      <xs:annotation>
        <xs:documentation>Injury-Topical Chemical Burn</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914215">
      <xs:annotation>
        <xs:documentation>Medical-Beta Blocker Poisoning/Overdose</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914217">
      <xs:annotation>
        <xs:documentation>Medical-Calcium Channel Blocker Poisoning/Overdose</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914219">
      <xs:annotation>
        <xs:documentation>Medical-Opioid Poisoning/Overdose</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914221">
      <xs:annotation>
        <xs:documentation>Medical-Respiratory Distress-Bronchiolitis</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914223">
      <xs:annotation>
        <xs:documentation>Medical-Respiratory Distress-Croup</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9914225">
      <xs:annotation>
        <xs:documentation>Medical-Stimulant Poisoning/Overdose</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

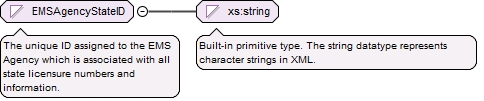

Simple Type EMSAgencyStateID
Namespace http://www.nemsis.org
Annotations

The unique ID assigned to the EMS Agency which is associated with all state licensure numbers and information.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 50
Used by
Source

<xs:simpleType name="EMSAgencyStateID">
  <xs:annotation>
    <xs:documentation>The unique ID assigned to the EMS Agency which is associated with all state licensure numbers and information.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSAgencyNumber
Namespace http://www.nemsis.org
Annotations

The state-assigned provider number of the responding agency.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 15
Used by
Source

<xs:simpleType name="EMSAgencyNumber">
  <xs:annotation>
    <xs:documentation>The state-assigned provider number of the responding agency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="15"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSAgencyName
Namespace http://www.nemsis.org
Annotations

The formal name of the agency.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source

<xs:simpleType name="EMSAgencyName">
  <xs:annotation>
    <xs:documentation>The formal name of the agency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TypeOfFacility
Namespace http://www.nemsis.org
Annotations

The type of facility.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 1701001
Assisted Living Facility
enumeration 1701003
Clinic
enumeration 1701005
Hospital
enumeration 1701007
Nursing Home
enumeration 1701009
Other
enumeration 1701011
Urgent Care
enumeration 1701013
Physical Rehabilitation Facility
enumeration 1701015
Mental Health Facility
enumeration 1701017
Dialysis Center
enumeration 1701019
Diagnostic Services
enumeration 1701021
Freestanding Emergency Department
enumeration 1701023
Morgue/Mortuary
enumeration 1701025
Police/Jail
enumeration 1701027
Other EMS Responder (air)
enumeration 1701029
Other EMS Responder (ground)
enumeration 1701031
Other Recurring Care Center
enumeration 1701033
Drug and/or Alcohol Rehabilitation Facility
enumeration 1701035
Skilled Nursing Facility
Used by
Source

<xs:simpleType name="TypeOfFacility">
  <xs:annotation>
    <xs:documentation>The type of facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="1701001">
      <xs:annotation>
        <xs:documentation>Assisted Living Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701003">
      <xs:annotation>
        <xs:documentation>Clinic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701005">
      <xs:annotation>
        <xs:documentation>Hospital</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701007">
      <xs:annotation>
        <xs:documentation>Nursing Home</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701009">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701011">
      <xs:annotation>
        <xs:documentation>Urgent Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701013">
      <xs:annotation>
        <xs:documentation>Physical Rehabilitation Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701015">
      <xs:annotation>
        <xs:documentation>Mental Health Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701017">
      <xs:annotation>
        <xs:documentation>Dialysis Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701019">
      <xs:annotation>
        <xs:documentation>Diagnostic Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701021">
      <xs:annotation>
        <xs:documentation>Freestanding Emergency Department</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701023">
      <xs:annotation>
        <xs:documentation>Morgue/Mortuary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701025">
      <xs:annotation>
        <xs:documentation>Police/Jail</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701027">
      <xs:annotation>
        <xs:documentation>Other EMS Responder (air)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701029">
      <xs:annotation>
        <xs:documentation>Other EMS Responder (ground)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701031">
      <xs:annotation>
        <xs:documentation>Other Recurring Care Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701033">
      <xs:annotation>
        <xs:documentation>Drug and/or Alcohol Rehabilitation Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="1701035">
      <xs:annotation>
        <xs:documentation>Skilled Nursing Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type FacilityName
Namespace http://www.nemsis.org
Annotations

The name of the facility.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source

<xs:simpleType name="FacilityName">
  <xs:annotation>
    <xs:documentation>The name of the facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type FacilityCode
Namespace http://www.nemsis.org
Annotations

The code of the facility as assigned by the state or the EMS agency.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 50
Used by
Source

<xs:simpleType name="FacilityCode">
  <xs:annotation>
    <xs:documentation>The code of the facility as assigned by the state or the EMS agency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type HospitalDesignation
Namespace http://www.nemsis.org
Annotations

The designation associated with the hospital for this transport (e.g., Trauma, STEMI, Peds, etc.).
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9908001
Behavioral Health
enumeration 9908003
Burn Center
enumeration 9908005
Critical Access Hospital
enumeration 9908007
Hospital (General)
enumeration 9908009
Neonatal Center
enumeration 9908011
Pediatric Center
enumeration 9908019
Rehab Center
enumeration 9908021
Trauma Center Level 1
enumeration 9908023
Trauma Center Level 2
enumeration 9908025
Trauma Center Level 3
enumeration 9908027
Trauma Center Level 4
enumeration 9908029
Trauma Center Level 5
enumeration 9908031
Cardiac-STEMI/PCI Capable
enumeration 9908033
Cardiac-STEMI/PCI Capable (24/7)
enumeration 9908035
Cardiac-STEMI/Non-PCI Capable
enumeration 9908037
Stroke-Acute Stroke Ready Hospital (ASRH)
enumeration 9908039
Stroke-Primary Stroke Center (PSC)
enumeration 9908041
Stroke-Thrombectomy-Capable Stroke Center (TSC)
enumeration 9908043
Stroke-Comprehensive Stroke Center (CSC)
enumeration 9908045
Cancer Center
enumeration 9908047
Labor and Delivery
Used by
Source

<xs:simpleType name="HospitalDesignation">
  <xs:annotation>
    <xs:documentation>The designation associated with the hospital for this transport (e.g., Trauma, STEMI, Peds, etc.).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9908001">
      <xs:annotation>
        <xs:documentation>Behavioral Health</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908003">
      <xs:annotation>
        <xs:documentation>Burn Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908005">
      <xs:annotation>
        <xs:documentation>Critical Access Hospital</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908007">
      <xs:annotation>
        <xs:documentation>Hospital (General)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908009">
      <xs:annotation>
        <xs:documentation>Neonatal Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908011">
      <xs:annotation>
        <xs:documentation>Pediatric Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908019">
      <xs:annotation>
        <xs:documentation>Rehab Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908021">
      <xs:annotation>
        <xs:documentation>Trauma Center Level 1</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908023">
      <xs:annotation>
        <xs:documentation>Trauma Center Level 2</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908025">
      <xs:annotation>
        <xs:documentation>Trauma Center Level 3</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908027">
      <xs:annotation>
        <xs:documentation>Trauma Center Level 4</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908029">
      <xs:annotation>
        <xs:documentation>Trauma Center Level 5</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908031">
      <xs:annotation>
        <xs:documentation>Cardiac-STEMI/PCI Capable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908033">
      <xs:annotation>
        <xs:documentation>Cardiac-STEMI/PCI Capable (24/7)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908035">
      <xs:annotation>
        <xs:documentation>Cardiac-STEMI/Non-PCI Capable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908037">
      <xs:annotation>
        <xs:documentation>Stroke-Acute Stroke Ready Hospital (ASRH)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908039">
      <xs:annotation>
        <xs:documentation>Stroke-Primary Stroke Center (PSC)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908041">
      <xs:annotation>
        <xs:documentation>Stroke-Thrombectomy-Capable Stroke Center (TSC)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908043">
      <xs:annotation>
        <xs:documentation>Stroke-Comprehensive Stroke Center (CSC)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908045">
      <xs:annotation>
        <xs:documentation>Cancer Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9908047">
      <xs:annotation>
        <xs:documentation>Labor and Delivery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type NationalProviderIdentifier
Namespace http://www.nemsis.org
Annotations

The National Provider Identifier associated with National Provider System (NPS) and used in all standard HIPAA transactions such as electronic claim filing.
Diagram
Diagram
Type restriction of xs:string
Facets
length 10
Used by
Source

<xs:simpleType name="NationalProviderIdentifier">
  <xs:annotation>
    <xs:documentation>The National Provider Identifier associated with National Provider System (NPS) and used in all standard HIPAA transactions such as electronic claim filing.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="10"/>
  </xs:restriction>
</xs:simpleType>
Simple Type FacilityRoom
Namespace http://www.nemsis.org
Annotations

The number of the specific room, suite, or apartment.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 15
Used by
Source

<xs:simpleType name="FacilityRoom">
  <xs:annotation>
    <xs:documentation>The number of the specific room, suite, or apartment.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="15"/>
  </xs:restriction>
</xs:simpleType>
Simple Type StreetAddress
Namespace http://www.nemsis.org
Annotations

A mailing or street address
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 255
Used by
Source

<xs:simpleType name="StreetAddress">
  <xs:annotation>
    <xs:documentation>A mailing or street address</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Simple Type CityGnisCode
Namespace http://www.nemsis.org
Annotations

City GNIS Code
Diagram
Diagram
Type xs:positiveInteger
Used by
Source

<xs:simpleType name="CityGnisCode">
  <xs:annotation>
    <xs:documentation>City GNIS Code</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:positiveInteger"/>
</xs:simpleType>
Simple Type ZIP
Namespace http://www.nemsis.org
Annotations

ZIP code
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [0-9]{5}|[0-9]{5}-[0-9]{4}|[0-9]{5}-[0-9]{5}|[A-Z][0-9][A-Z] [0-9][A-Z][0-9]
Used by
Source

<xs:simpleType name="ZIP">
  <xs:annotation>
    <xs:documentation>ZIP code</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9]{5}|[0-9]{5}-[0-9]{4}|[0-9]{5}-[0-9]{5}|[A-Z][0-9][A-Z] [0-9][A-Z][0-9]"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ANSICountyCode
Namespace http://www.nemsis.org
Annotations

A list of valid US County ANSI Codes by State
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [0-9]{5}
Used by
Source

<xs:simpleType name="ANSICountyCode">
  <xs:annotation>
    <xs:documentation>A list of valid US County ANSI Codes by State</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9]{5}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ANSICountryCodesCAMXUS
Namespace http://www.nemsis.org
Annotations

ANSI Codes for USA, Mexico, and Canada
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration CA
Canada
enumeration MX
Mexico
enumeration US
United States
Used by
Source

<xs:simpleType name="ANSICountryCodesCAMXUS">
  <xs:annotation>
    <xs:documentation>ANSI Codes for USA, Mexico, and Canada</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="CA">
      <xs:annotation>
        <xs:documentation>Canada</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="MX">
      <xs:annotation>
        <xs:documentation>Mexico</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="US">
      <xs:annotation>
        <xs:documentation>United States</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type GPSLocation
Namespace http://www.nemsis.org
Annotations

GPS Location
Diagram
Diagram
Type restriction of xs:string
Facets
pattern (\+|-)?(90(\.[0]{1,6})?|([1-8][0-9]|[0-9])(\.[0-9]{1,6})?),(\+|-)?(180(\.[0]{1,6})?|(1[0-7][0-9]|[1-9][0-9]|[0-9])(\.[0-9]{1,6})?)
Used by
Source

<xs:simpleType name="GPSLocation">
  <xs:annotation>
    <xs:documentation>GPS Location</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="(\+|-)?(90(\.[0]{1,6})?|([1-8][0-9]|[0-9])(\.[0-9]{1,6})?),(\+|-)?(180(\.[0]{1,6})?|(1[0-7][0-9]|[1-9][0-9]|[0-9])(\.[0-9]{1,6})?)"/>
  </xs:restriction>
</xs:simpleType>
Simple Type USNG
Namespace http://www.nemsis.org
Annotations

The US National Grid Coordinates
Diagram
Diagram
Type restriction of xs:string
Facets
pattern ([1-9]|[1-5][0-9]|60)[C-HJ-NP-X][A-HJ-NP-Z][A-HJ-NP-V][0-9]{8}
Used by
Source

<xs:simpleType name="USNG">
  <xs:annotation>
    <xs:documentation>The US National Grid Coordinates</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="([1-9]|[1-5][0-9]|60)[C-HJ-NP-X][A-HJ-NP-Z][A-HJ-NP-V][0-9]{8}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PhoneNumber
Namespace http://www.nemsis.org
Annotations

A home, cell, work, pager, or fax number.
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [2-9][0-9][0-9]-[2-9][0-9][0-9]-[0-9][0-9][0-9][0-9]
Used by
Source

<xs:simpleType name="PhoneNumber">
  <xs:annotation>
    <xs:documentation>A home, cell, work, pager, or fax number.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[2-9][0-9][0-9]-[2-9][0-9][0-9]-[0-9][0-9][0-9][0-9]"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PhoneNumberType
Namespace http://www.nemsis.org
Annotations

The Phone Number Type
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9913001
Fax
enumeration 9913003
Home
enumeration 9913005
Mobile
enumeration 9913007
Pager
enumeration 9913009
Work
Used by
Source

<xs:simpleType name="PhoneNumberType">
  <xs:annotation>
    <xs:documentation>The Phone Number Type</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9913001">
      <xs:annotation>
        <xs:documentation>Fax</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9913003">
      <xs:annotation>
        <xs:documentation>Home</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9913005">
      <xs:annotation>
        <xs:documentation>Mobile</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9913007">
      <xs:annotation>
        <xs:documentation>Pager</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9913009">
      <xs:annotation>
        <xs:documentation>Work</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type DateTimeType
Namespace http://www.nemsis.org
Annotations

The Date Time combination of the event or occurrence.
Diagram
Diagram
Type restriction of xs:dateTime
Facets
maxInclusive 2050-01-01T00:00:00-00:00
minInclusive 1950-01-01T00:00:00-00:00
pattern [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
Used by
Source

<xs:simpleType name="DateTimeType">
  <xs:annotation>
    <xs:documentation>The Date Time combination of the event or occurrence.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:dateTime">
    <xs:minInclusive value="1950-01-01T00:00:00-00:00"/>
    <xs:maxInclusive value="2050-01-01T00:00:00-00:00"/>
    <xs:pattern value="[0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ANSICountryCode
Namespace http://www.nemsis.org
Annotations

A list of valid Country ANSI Codes
Diagram
Diagram
Type restriction of xs:string
Facets
length 2
Source

<xs:simpleType name="ANSICountryCode">
  <xs:annotation>
    <xs:documentation>A list of valid Country ANSI Codes</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:length value="2"/>
  </xs:restriction>
</xs:simpleType>
Simple Type CardiacRhythm
Namespace http://www.nemsis.org
Annotations

The cardiac rhythm and other electrocardiography findings associated with the patient.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9901001
Agonal/Idioventricular
enumeration 9901003
Asystole
enumeration 9901005
Artifact
enumeration 9901007
Atrial Fibrillation
enumeration 9901009
Atrial Flutter
enumeration 9901011
AV Block-1st Degree
enumeration 9901013
AV Block-2nd Degree-Type 1
enumeration 9901015
AV Block-2nd Degree-Type 2
enumeration 9901017
AV Block-3rd Degree
enumeration 9901019
Junctional
enumeration 9901021
Left Bundle Branch Block
enumeration 9901023
Non-STEMI Anterior Ischemia
enumeration 9901025
Non-STEMI Inferior Ischemia
enumeration 9901027
Non-STEMI Lateral Ischemia
enumeration 9901029
Non-STEMI Posterior Ischemia
enumeration 9901030
Non-STEMI Septal Ischemia
enumeration 9901031
Other
enumeration 9901033
Paced Rhythm
enumeration 9901035
PEA
enumeration 9901037
Premature Atrial Contractions
enumeration 9901039
Premature Ventricular Contractions
enumeration 9901041
Right Bundle Branch Block
enumeration 9901043
Sinus Arrhythmia
enumeration 9901045
Sinus Bradycardia
enumeration 9901047
Sinus Rhythm
enumeration 9901049
Sinus Tachycardia
enumeration 9901051
STEMI Anterior Ischemia
enumeration 9901053
STEMI Inferior Ischemia
enumeration 9901055
STEMI Lateral Ischemia
enumeration 9901057
STEMI Posterior Ischemia
enumeration 9901058
STEMI Septal Ischemia
enumeration 9901059
Supraventricular Tachycardia
enumeration 9901061
Torsades De Points
enumeration 9901063
Unknown AED Non-Shockable Rhythm
enumeration 9901065
Unknown AED Shockable Rhythm
enumeration 9901067
Ventricular Fibrillation
enumeration 9901069
Ventricular Tachycardia (With Pulse)
enumeration 9901071
Ventricular Tachycardia (Pulseless)
Source

<xs:simpleType name="CardiacRhythm">
  <xs:annotation>
    <xs:documentation>The cardiac rhythm and other electrocardiography findings associated with the patient.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9901001">
      <xs:annotation>
        <xs:documentation>Agonal/Idioventricular</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901003">
      <xs:annotation>
        <xs:documentation>Asystole</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901005">
      <xs:annotation>
        <xs:documentation>Artifact</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901007">
      <xs:annotation>
        <xs:documentation>Atrial Fibrillation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901009">
      <xs:annotation>
        <xs:documentation>Atrial Flutter</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901011">
      <xs:annotation>
        <xs:documentation>AV Block-1st Degree</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901013">
      <xs:annotation>
        <xs:documentation>AV Block-2nd Degree-Type 1</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901015">
      <xs:annotation>
        <xs:documentation>AV Block-2nd Degree-Type 2</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901017">
      <xs:annotation>
        <xs:documentation>AV Block-3rd Degree</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901019">
      <xs:annotation>
        <xs:documentation>Junctional</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901021">
      <xs:annotation>
        <xs:documentation>Left Bundle Branch Block</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901023">
      <xs:annotation>
        <xs:documentation>Non-STEMI Anterior Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901025">
      <xs:annotation>
        <xs:documentation>Non-STEMI Inferior Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901027">
      <xs:annotation>
        <xs:documentation>Non-STEMI Lateral Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901029">
      <xs:annotation>
        <xs:documentation>Non-STEMI Posterior Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901030">
      <xs:annotation>
        <xs:documentation>Non-STEMI Septal Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901031">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901033">
      <xs:annotation>
        <xs:documentation>Paced Rhythm</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901035">
      <xs:annotation>
        <xs:documentation>PEA</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901037">
      <xs:annotation>
        <xs:documentation>Premature Atrial Contractions</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901039">
      <xs:annotation>
        <xs:documentation>Premature Ventricular Contractions</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901041">
      <xs:annotation>
        <xs:documentation>Right Bundle Branch Block</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901043">
      <xs:annotation>
        <xs:documentation>Sinus Arrhythmia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901045">
      <xs:annotation>
        <xs:documentation>Sinus Bradycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901047">
      <xs:annotation>
        <xs:documentation>Sinus Rhythm</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901049">
      <xs:annotation>
        <xs:documentation>Sinus Tachycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901051">
      <xs:annotation>
        <xs:documentation>STEMI Anterior Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901053">
      <xs:annotation>
        <xs:documentation>STEMI Inferior Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901055">
      <xs:annotation>
        <xs:documentation>STEMI Lateral Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901057">
      <xs:annotation>
        <xs:documentation>STEMI Posterior Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901058">
      <xs:annotation>
        <xs:documentation>STEMI Septal Ischemia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901059">
      <xs:annotation>
        <xs:documentation>Supraventricular Tachycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901061">
      <xs:annotation>
        <xs:documentation>Torsades De Points</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901063">
      <xs:annotation>
        <xs:documentation>Unknown AED Non-Shockable Rhythm</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901065">
      <xs:annotation>
        <xs:documentation>Unknown AED Shockable Rhythm</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901067">
      <xs:annotation>
        <xs:documentation>Ventricular Fibrillation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901069">
      <xs:annotation>
        <xs:documentation>Ventricular Tachycardia (With Pulse)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9901071">
      <xs:annotation>
        <xs:documentation>Ventricular Tachycardia (Pulseless)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CensusTracts
Namespace http://www.nemsis.org
Annotations

A list of valid Census Tracts
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [0-9]{11}
Source

<xs:simpleType name="CensusTracts">
  <xs:annotation>
    <xs:documentation>A list of valid Census Tracts</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9]{11}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type CityGnisCodePayment
Namespace http://www.nemsis.org
Annotations

City GNIS Code
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 30
Source

<xs:simpleType name="CityGnisCodePayment">
  <xs:annotation>
    <xs:documentation>City GNIS Code</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="30"/>
  </xs:restriction>
</xs:simpleType>
Simple Type CodeType
Namespace http://www.nemsis.org
Annotations

Identifier if the code used is based on an RxNorm code, an ICD-10 code, or a SNOMED-CT code.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9924001
ICD-10
enumeration 9924003
RxNorm
enumeration 9924005
SNOMED-CT
Source

<xs:simpleType name="CodeType">
  <xs:annotation>
    <xs:documentation>Identifier if the code used is based on an RxNorm code, an ICD-10 code, or a SNOMED-CT code.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9924001">
      <xs:annotation>
        <xs:documentation>ICD-10</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9924003">
      <xs:annotation>
        <xs:documentation>RxNorm</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9924005">
      <xs:annotation>
        <xs:documentation>SNOMED-CT</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CodeType.ICD10
Namespace http://www.nemsis.org
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9924001
ICD-10
Source

<xs:simpleType name="CodeType.ICD10">
  <xs:restriction base="xs:string">
    <xs:enumeration value="9924001">
      <xs:annotation>
        <xs:documentation>ICD-10</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CodeType.RxNorm
Namespace http://www.nemsis.org
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9924003
RxNorm
Source

<xs:simpleType name="CodeType.RxNorm">
  <xs:restriction base="xs:string">
    <xs:enumeration value="9924003">
      <xs:annotation>
        <xs:documentation>RxNorm</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CodeType.SNOMED
Namespace http://www.nemsis.org
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9924005
SNOMED-CT
Source

<xs:simpleType name="CodeType.SNOMED">
  <xs:restriction base="xs:string">
    <xs:enumeration value="9924005">
      <xs:annotation>
        <xs:documentation>SNOMED-CT</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CrewMemberID
Namespace http://www.nemsis.org
Annotations

The State Certification/Licensure ID number assigned to the crew member.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 50
Source

<xs:simpleType name="CrewMemberID">
  <xs:annotation>
    <xs:documentation>The State Certification/Licensure ID number assigned to the crew member.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type CurrentMedicationAdministrationRoute
Namespace http://www.nemsis.org
Annotations

The functioning level of the crew member during this EMS patient encounter
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9927001
Blow-By
enumeration 9927003
Buccal
enumeration 9927005
Endotracheal Tube (ET)
enumeration 9927007
Gastrostomy Tube
enumeration 9927009
Inhalation
enumeration 9927011
Intraarterial
enumeration 9927013
Intradermal
enumeration 9927015
Intramuscular (IM)
enumeration 9927017
Intranasal
enumeration 9927019
Intraocular
enumeration 9927021
Intraosseous (IO)
enumeration 9927023
Intravenous (IV)
enumeration 9927025
Nasal Cannula
enumeration 9927027
Nasogastric
enumeration 9927029
Nasotracheal Tube
enumeration 9927031
Non-Rebreather Mask
enumeration 9927033
Ophthalmic
enumeration 9927035
Oral
enumeration 9927037
Other/miscellaneous
enumeration 9927039
Otic
enumeration 9927041
Re-breather mask
enumeration 9927043
Rectal
enumeration 9927045
Subcutaneous
enumeration 9927047
Sublingual
enumeration 9927049
Topical
enumeration 9927051
Tracheostomy
enumeration 9927053
Transdermal
enumeration 9927055
Urethral
enumeration 9927057
Ventimask
enumeration 9927059
Wound
enumeration 9927061
Portacath
enumeration 9927063
Auto Injector
enumeration 9927065
BVM
enumeration 9927067
CPAP
enumeration 9927069
IV Pump
enumeration 9927071
Nebulizer
enumeration 9927073
Umbilical Artery Catheter
enumeration 9927075
Umbilical Venous Catheter
Source

<xs:simpleType name="CurrentMedicationAdministrationRoute">
  <xs:annotation>
    <xs:documentation>The functioning level of the crew member during this EMS patient encounter</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9927001">
      <xs:annotation>
        <xs:documentation>Blow-By</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927003">
      <xs:annotation>
        <xs:documentation>Buccal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927005">
      <xs:annotation>
        <xs:documentation>Endotracheal Tube (ET)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927007">
      <xs:annotation>
        <xs:documentation>Gastrostomy Tube</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927009">
      <xs:annotation>
        <xs:documentation>Inhalation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927011">
      <xs:annotation>
        <xs:documentation>Intraarterial</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927013">
      <xs:annotation>
        <xs:documentation>Intradermal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927015">
      <xs:annotation>
        <xs:documentation>Intramuscular (IM)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927017">
      <xs:annotation>
        <xs:documentation>Intranasal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927019">
      <xs:annotation>
        <xs:documentation>Intraocular</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927021">
      <xs:annotation>
        <xs:documentation>Intraosseous (IO)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927023">
      <xs:annotation>
        <xs:documentation>Intravenous (IV)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927025">
      <xs:annotation>
        <xs:documentation>Nasal Cannula</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927027">
      <xs:annotation>
        <xs:documentation>Nasogastric</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927029">
      <xs:annotation>
        <xs:documentation>Nasotracheal Tube</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927031">
      <xs:annotation>
        <xs:documentation>Non-Rebreather Mask</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927033">
      <xs:annotation>
        <xs:documentation>Ophthalmic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927035">
      <xs:annotation>
        <xs:documentation>Oral</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927037">
      <xs:annotation>
        <xs:documentation>Other/miscellaneous</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927039">
      <xs:annotation>
        <xs:documentation>Otic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927041">
      <xs:annotation>
        <xs:documentation>Re-breather mask</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927043">
      <xs:annotation>
        <xs:documentation>Rectal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927045">
      <xs:annotation>
        <xs:documentation>Subcutaneous</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927047">
      <xs:annotation>
        <xs:documentation>Sublingual</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927049">
      <xs:annotation>
        <xs:documentation>Topical</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927051">
      <xs:annotation>
        <xs:documentation>Tracheostomy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927053">
      <xs:annotation>
        <xs:documentation>Transdermal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927055">
      <xs:annotation>
        <xs:documentation>Urethral</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927057">
      <xs:annotation>
        <xs:documentation>Ventimask</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927059">
      <xs:annotation>
        <xs:documentation>Wound</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927061">
      <xs:annotation>
        <xs:documentation>Portacath</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927063">
      <xs:annotation>
        <xs:documentation>Auto Injector</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927065">
      <xs:annotation>
        <xs:documentation>BVM</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927067">
      <xs:annotation>
        <xs:documentation>CPAP</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927069">
      <xs:annotation>
        <xs:documentation>IV Pump</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927071">
      <xs:annotation>
        <xs:documentation>Nebulizer</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927073">
      <xs:annotation>
        <xs:documentation>Umbilical Artery Catheter</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9927075">
      <xs:annotation>
        <xs:documentation>Umbilical Venous Catheter</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CustomResults
Namespace http://www.nemsis.org
Annotations

Associated result(s) for the Custom Element.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 100000
Source

<xs:simpleType name="CustomResults">
  <xs:annotation>
    <xs:documentation>Associated result(s) for the Custom Element.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="100000"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DateType
Namespace http://www.nemsis.org
Annotations

The Date of event or occurrence.
Diagram
Diagram
Type restriction of xs:date
Facets
maxInclusive 2050-01-01
minInclusive 1900-01-01
Source

<xs:simpleType name="DateType">
  <xs:annotation>
    <xs:documentation>The Date of event or occurrence.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:date">
    <xs:minInclusive value="1900-01-01"/>
    <xs:maxInclusive value="2050-01-01"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DateOfBirth
Namespace http://www.nemsis.org
Annotations

The Date on an event or occurrence.
Diagram
Diagram
Type restriction of xs:date
Facets
maxInclusive 2050-01-01
minInclusive 1890-01-01
Source

<xs:simpleType name="DateOfBirth">
  <xs:annotation>
    <xs:documentation>The Date on an event or occurrence.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:date">
    <xs:minInclusive value="1890-01-01"/>
    <xs:maxInclusive value="2050-01-01"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DBP
Namespace http://www.nemsis.org
Annotations

The patient's diastolic blood pressure.
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [5][0][0]|[1-4][0-9][0-9]|[0-9]|[1-9][0-9]|P|p
Source

<xs:simpleType name="DBP">
  <xs:annotation>
    <xs:documentation>The patient's diastolic blood pressure.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[5][0][0]|[1-4][0-9][0-9]|[0-9]|[1-9][0-9]|P|p"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DeviceSerialNumber
Namespace http://www.nemsis.org
Annotations

The unique manufacturer's serial number associated with a medical device.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 50
Source

<xs:simpleType name="DeviceSerialNumber">
  <xs:annotation>
    <xs:documentation>The unique manufacturer's serial number associated with a medical device.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DistanceUnits
Namespace http://www.nemsis.org
Annotations

Distance in miles or kilometers
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9929001
Kilometers
enumeration 9929003
Miles
Source

<xs:simpleType name="DistanceUnits">
  <xs:annotation>
    <xs:documentation>Distance in miles or kilometers</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9929001">
      <xs:annotation>
        <xs:documentation>Kilometers</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9929003">
      <xs:annotation>
        <xs:documentation>Miles</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EmailAddress
Namespace http://www.nemsis.org
Annotations

An Email Address.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 3
maxLength 100
pattern .+@.+
Source

<xs:simpleType name="EmailAddress">
  <xs:annotation>
    <xs:documentation>An Email Address.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="100"/>
    <xs:pattern value=".+@.+"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EmailAddressType
Namespace http://www.nemsis.org
Annotations

Email Address Type
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9904001
Personal
enumeration 9904003
Work
Source

<xs:simpleType name="EmailAddressType">
  <xs:annotation>
    <xs:documentation>Email Address Type</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9904001">
      <xs:annotation>
        <xs:documentation>Personal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9904003">
      <xs:annotation>
        <xs:documentation>Work</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSCaregiverLevel
Namespace http://www.nemsis.org
Annotations

The type (level) of EMS or Healthcare Professional administering a Medication or Procedure. For care given prior to EMS arrival, this may be a non-EMS healthcare professional.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9905001
Advanced Emergency Medical Technician (AEMT)
enumeration 9905002
Emergency Medical Technician - Intermediate
enumeration 9905003
Emergency Medical Responder (EMR)
enumeration 9905005
Emergency Medical Technician (EMT)
enumeration 9905007
Paramedic
enumeration 9905019
Other Healthcare Professional
enumeration 9905021
Other Non-Healthcare Professional
enumeration 9905025
Physician
enumeration 9905027
Respiratory Therapist
enumeration 9905029
Student
enumeration 9905031
Critical Care Paramedic
enumeration 9905033
Community Paramedicine
enumeration 9905035
Nurse Practitioner
enumeration 9905037
Physician Assistant
enumeration 9905039
Licensed Practical Nurse (LPN)
enumeration 9905041
Registered Nurse
enumeration 9905043
Patient
enumeration 9905045
Lay Person
enumeration 9905047
Law Enforcement
enumeration 9905049
Family Member
enumeration 9905051
Fire Personnel (non EMS)
Source

<xs:simpleType name="EMSCaregiverLevel">
  <xs:annotation>
    <xs:documentation>The type (level) of EMS or Healthcare Professional administering a Medication or Procedure. For care given prior to EMS arrival, this may be a non-EMS healthcare professional.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9905001">
      <xs:annotation>
        <xs:documentation>Advanced Emergency Medical Technician (AEMT)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905002">
      <xs:annotation>
        <xs:documentation>Emergency Medical Technician - Intermediate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905003">
      <xs:annotation>
        <xs:documentation>Emergency Medical Responder (EMR)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905005">
      <xs:annotation>
        <xs:documentation>Emergency Medical Technician (EMT)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905007">
      <xs:annotation>
        <xs:documentation>Paramedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905019">
      <xs:annotation>
        <xs:documentation>Other Healthcare Professional</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905021">
      <xs:annotation>
        <xs:documentation>Other Non-Healthcare Professional</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905025">
      <xs:annotation>
        <xs:documentation>Physician</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905027">
      <xs:annotation>
        <xs:documentation>Respiratory Therapist</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905029">
      <xs:annotation>
        <xs:documentation>Student</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905031">
      <xs:annotation>
        <xs:documentation>Critical Care Paramedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905033">
      <xs:annotation>
        <xs:documentation>Community Paramedicine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905035">
      <xs:annotation>
        <xs:documentation>Nurse Practitioner</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905037">
      <xs:annotation>
        <xs:documentation>Physician Assistant</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905039">
      <xs:annotation>
        <xs:documentation>Licensed Practical Nurse (LPN)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905041">
      <xs:annotation>
        <xs:documentation>Registered Nurse</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905043">
      <xs:annotation>
        <xs:documentation>Patient</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905045">
      <xs:annotation>
        <xs:documentation>Lay Person</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905047">
      <xs:annotation>
        <xs:documentation>Law Enforcement</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905049">
      <xs:annotation>
        <xs:documentation>Family Member</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9905051">
      <xs:annotation>
        <xs:documentation>Fire Personnel (non EMS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSUnitCallSign
Namespace http://www.nemsis.org
Annotations

The EMS unit number used to dispatch and communicate with the unit.  This may be the same as the EMS Unit/Vehicle Number in many agencies.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 50
Source

<xs:simpleType name="EMSUnitCallSign">
  <xs:annotation>
    <xs:documentation>The EMS unit number used to dispatch and communicate with the unit. This may be the same as the EMS Unit/Vehicle Number in many agencies.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Gender
Namespace http://www.nemsis.org
Annotations

Gender (DEPRECATED)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9906001
Female (DEPRECATED)
enumeration 9906003
Male (DEPRECATED)
enumeration 9906007
Female-to-Male, Transgender Male (DEPRECATED)
enumeration 9906009
Male-to-Female, Transgender Female (DEPRECATED)
enumeration 9906011
Other, neither exclusively male or female (DEPRECATED)
enumeration 9906005
Unknown (Unable to Determine) (DEPRECATED)
Source

<xs:simpleType name="Gender">
  <xs:annotation>
    <xs:documentation>Gender (DEPRECATED)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9906001">
      <xs:annotation>
        <xs:documentation>Female (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9906003">
      <xs:annotation>
        <xs:documentation>Male (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9906007">
      <xs:annotation>
        <xs:documentation>Female-to-Male, Transgender Male (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9906009">
      <xs:annotation>
        <xs:documentation>Male-to-Female, Transgender Female (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9906011">
      <xs:annotation>
        <xs:documentation>Other, neither exclusively male or female (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9906005">
      <xs:annotation>
        <xs:documentation>Unknown (Unable to Determine) (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type Graphic
Namespace http://www.nemsis.org
Annotations

The type of graphic file
Diagram
Diagram
Type xs:base64Binary
Source

<xs:simpleType name="Graphic">
  <xs:annotation>
    <xs:documentation>The type of graphic file</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:base64Binary"/>
</xs:simpleType>
Simple Type GraphicType
Namespace http://www.nemsis.org
Annotations

The type of graphic file
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 255
Source

<xs:simpleType name="GraphicType">
  <xs:annotation>
    <xs:documentation>The type of graphic file</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Simple Type HowPatientWasMovedToFromAmbulance
Namespace http://www.nemsis.org
Annotations

The method the patient was moved to the ambulance from the scene
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9909001
Assisted/Walk
enumeration 9909003
Backboard
enumeration 9909005
Chair
enumeration 9909007
Carried
enumeration 9909009
Other
enumeration 9909011
Stairchair
enumeration 9909013
Stretcher
enumeration 9909015
Wheelchair
Source

<xs:simpleType name="HowPatientWasMovedToFromAmbulance">
  <xs:annotation>
    <xs:documentation>The method the patient was moved to the ambulance from the scene</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9909001">
      <xs:annotation>
        <xs:documentation>Assisted/Walk</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9909003">
      <xs:annotation>
        <xs:documentation>Backboard</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9909005">
      <xs:annotation>
        <xs:documentation>Chair</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9909007">
      <xs:annotation>
        <xs:documentation>Carried</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9909009">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9909011">
      <xs:annotation>
        <xs:documentation>Stairchair</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9909013">
      <xs:annotation>
        <xs:documentation>Stretcher</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9909015">
      <xs:annotation>
        <xs:documentation>Wheelchair</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type icd10Code
Namespace http://www.nemsis.org
Annotations

ICD10 Code:
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [A-Z][0-9][0-9A-Z]((\.[0-9A-Z]{1,4})?)
Source

<xs:simpleType name="icd10Code">
  <xs:annotation>
    <xs:documentation>ICD10 Code:</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[A-Z][0-9][0-9A-Z]((\.[0-9A-Z]{1,4})?)"/>
  </xs:restriction>
</xs:simpleType>
Simple Type icd10CodeInjury
Namespace http://www.nemsis.org
Annotations

ICD10 Code: T36.0 - T65.949, T71.11 - T71.999, T75.00 - T76.929, or V00.0 - Y38.999 with 1 to 4 decimals
Diagram
Diagram
Type restriction of xs:string
Facets
pattern ([TV-Y][0-9]{2})((\.[0-9A-Z]{1,4})?)
Source

<xs:simpleType name="icd10CodeInjury">
  <xs:annotation>
    <xs:documentation>ICD10 Code: T36.0 - T65.949, T71.11 - T71.999, T75.00 - T76.929, or V00.0 - Y38.999 with 1 to 4 decimals</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="([TV-Y][0-9]{2})((\.[0-9A-Z]{1,4})?)"/>
  </xs:restriction>
</xs:simpleType>
Simple Type icd10MedSurge
Namespace http://www.nemsis.org
Annotations

ICD10 Code:
Diagram
Diagram
Type restriction of xs:string
Facets
pattern ([A-QRSTZ][0-9][0-9A-Z])((\.[0-9A-Z]{1,3})?)|[0-9A-HJ-NP-Z]{3,7}
Source

<xs:simpleType name="icd10MedSurge">
  <xs:annotation>
    <xs:documentation>ICD10 Code:</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="([A-QRSTZ][0-9][0-9A-Z])((\.[0-9A-Z]{1,3})?)|[0-9A-HJ-NP-Z]{3,7}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type icd10CodeOutcomeProcedures
Namespace http://www.nemsis.org
Annotations

ICD10 Codes for Outcomes Procedures
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [0-9A-HJ-NP-Z]{3,7}
Source

<xs:simpleType name="icd10CodeOutcomeProcedures">
  <xs:annotation>
    <xs:documentation>ICD10 Codes for Outcomes Procedures</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9A-HJ-NP-Z]{3,7}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ImmunizationType
Namespace http://www.nemsis.org
Annotations

The type of Immunization
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9910001
Anthrax
enumeration 9910003
Cholera
enumeration 9910005
DPT / TDaP (Diphtheria, Pertussis, Tetanus)
enumeration 9910007
Hemophilus Influenza B
enumeration 9910009
Hepatitis A
enumeration 9910011
Hepatitis B
enumeration 9910013
Human Papilloma Virus (HPV)
enumeration 9910015
Influenza-H1N1
enumeration 9910017
Influenza-Other
enumeration 9910019
Influenza-Seasonal (In past 12 months)
enumeration 9910021
Lyme Disease
enumeration 9910023
Meningococcus
enumeration 9910025
MMR (Measles, Mumps, Rubella)
enumeration 9910027
Other-Not Listed
enumeration 9910029
Plague
enumeration 9910031
Pneumococcal (Pneumonia)
enumeration 9910033
Polio
enumeration 9910035
Rabies
enumeration 9910037
Rotavirus
enumeration 9910039
Shingles
enumeration 9910041
Small Pox
enumeration 9910043
Tetanus
enumeration 9910045
Tuberculosis
enumeration 9910047
Typhoid
enumeration 9910049
Varicella (Chickenpox)
enumeration 9910051
Yellow Fever
enumeration 9910053
None
Source

<xs:simpleType name="ImmunizationType">
  <xs:annotation>
    <xs:documentation>The type of Immunization</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9910001">
      <xs:annotation>
        <xs:documentation>Anthrax</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910003">
      <xs:annotation>
        <xs:documentation>Cholera</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910005">
      <xs:annotation>
        <xs:documentation>DPT / TDaP (Diphtheria, Pertussis, Tetanus)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910007">
      <xs:annotation>
        <xs:documentation>Hemophilus Influenza B</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910009">
      <xs:annotation>
        <xs:documentation>Hepatitis A</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910011">
      <xs:annotation>
        <xs:documentation>Hepatitis B</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910013">
      <xs:annotation>
        <xs:documentation>Human Papilloma Virus (HPV)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910015">
      <xs:annotation>
        <xs:documentation>Influenza-H1N1</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910017">
      <xs:annotation>
        <xs:documentation>Influenza-Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910019">
      <xs:annotation>
        <xs:documentation>Influenza-Seasonal (In past 12 months)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910021">
      <xs:annotation>
        <xs:documentation>Lyme Disease</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910023">
      <xs:annotation>
        <xs:documentation>Meningococcus</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910025">
      <xs:annotation>
        <xs:documentation>MMR (Measles, Mumps, Rubella)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910027">
      <xs:annotation>
        <xs:documentation>Other-Not Listed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910029">
      <xs:annotation>
        <xs:documentation>Plague</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910031">
      <xs:annotation>
        <xs:documentation>Pneumococcal (Pneumonia)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910033">
      <xs:annotation>
        <xs:documentation>Polio</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910035">
      <xs:annotation>
        <xs:documentation>Rabies</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910037">
      <xs:annotation>
        <xs:documentation>Rotavirus</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910039">
      <xs:annotation>
        <xs:documentation>Shingles</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910041">
      <xs:annotation>
        <xs:documentation>Small Pox</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910043">
      <xs:annotation>
        <xs:documentation>Tetanus</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910045">
      <xs:annotation>
        <xs:documentation>Tuberculosis</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910047">
      <xs:annotation>
        <xs:documentation>Typhoid</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910049">
      <xs:annotation>
        <xs:documentation>Varicella (Chickenpox)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910051">
      <xs:annotation>
        <xs:documentation>Yellow Fever</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9910053">
      <xs:annotation>
        <xs:documentation>None</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type Latitude
Namespace http://www.nemsis.org
Annotations

Latitude
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 8
fractionDigits 6
Source

<xs:simpleType name="Latitude">
  <xs:annotation>
    <xs:documentation>Latitude</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="6"/>
    <xs:totalDigits value="8"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Longitude
Namespace http://www.nemsis.org
Annotations

Longitude
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 9
fractionDigits 6
Source

<xs:simpleType name="Longitude">
  <xs:annotation>
    <xs:documentation>Longitude</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="6"/>
    <xs:totalDigits value="9"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Mileage
Namespace http://www.nemsis.org
Annotations

The mileage to the closest hospital facility from the scene. Documented only if the patient was transported to a facility farther away than the closest hospital.
Diagram
Diagram
Type restriction of xs:decimal
Facets
fractionDigits 2
maxInclusive 1000
minInclusive 1
Source

<xs:simpleType name="Mileage">
  <xs:annotation>
    <xs:documentation>The mileage to the closest hospital facility from the scene. Documented only if the patient was transported to a facility farther away than the closest hospital.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="2"/>
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="1000"/>
  </xs:restriction>
</xs:simpleType>
Simple Type NV.NotApplicable
Namespace http://www.nemsis.org
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 7701001
Not Applicable
Source

<xs:simpleType name="NV.NotApplicable">
  <xs:restriction base="xs:string">
    <xs:enumeration value="7701001">
      <xs:annotation>
        <xs:documentation>Not Applicable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type NV.NotRecorded
Namespace http://www.nemsis.org
Annotations

Not Recorded
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 7701003
Not Recorded
Source

<xs:simpleType name="NV.NotRecorded">
  <xs:annotation>
    <xs:documentation>Not Recorded</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="7701003">
      <xs:annotation>
        <xs:documentation>Not Recorded</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type NV.NotReporting
Namespace http://www.nemsis.org
Annotations

Not Reporting
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 7701005
Not Reporting
Source

<xs:simpleType name="NV.NotReporting">
  <xs:annotation>
    <xs:documentation>Not Reporting</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="7701005">
      <xs:annotation>
        <xs:documentation>Not Reporting</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type OrganizationalType
Namespace http://www.nemsis.org
Annotations

The organizational structure from which EMS services are delivered (fire, hospital, county, etc.)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9912001
Fire Department
enumeration 9912003
Governmental, Non-Fire
enumeration 9912005
Hospital
enumeration 9912007
Private, Nonhospital
enumeration 9912009
Tribal
Source

<xs:simpleType name="OrganizationalType">
  <xs:annotation>
    <xs:documentation>The organizational structure from which EMS services are delivered (fire, hospital, county, etc.)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9912001">
      <xs:annotation>
        <xs:documentation>Fire Department</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9912003">
      <xs:annotation>
        <xs:documentation>Governmental, Non-Fire</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9912005">
      <xs:annotation>
        <xs:documentation>Hospital</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9912007">
      <xs:annotation>
        <xs:documentation>Private, Nonhospital</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9912009">
      <xs:annotation>
        <xs:documentation>Tribal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PersonName
Namespace http://www.nemsis.org
Annotations

Person name
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 255
Source

<xs:simpleType name="PersonName">
  <xs:annotation>
    <xs:documentation>Person name</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PersonFirstName
Namespace http://www.nemsis.org
Annotations

Person First Name
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 50
Source

<xs:simpleType name="PersonFirstName">
  <xs:annotation>
    <xs:documentation>Person First Name</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PersonMiddleName
Namespace http://www.nemsis.org
Annotations

Person Middle Name
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 50
Source

<xs:simpleType name="PersonMiddleName">
  <xs:annotation>
    <xs:documentation>Person Middle Name</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PersonLastName
Namespace http://www.nemsis.org
Annotations

Person Last name
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 60
Source

<xs:simpleType name="PersonLastName">
  <xs:annotation>
    <xs:documentation>Person Last name</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="60"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.ContraindicationNoted
Namespace http://www.nemsis.org
Annotations

Contraindication Noted
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801001
Contraindication Noted
Source

<xs:simpleType name="PN.ContraindicationNoted">
  <xs:annotation>
    <xs:documentation>Contraindication Noted</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801001">
      <xs:annotation>
        <xs:documentation>Contraindication Noted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.DeniedByOrder
Namespace http://www.nemsis.org
Annotations

Denied By Order
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801003
Denied By Order
Source

<xs:simpleType name="PN.DeniedByOrder">
  <xs:annotation>
    <xs:documentation>Denied By Order</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801003">
      <xs:annotation>
        <xs:documentation>Denied By Order</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.ExamFindingNotPresent
Namespace http://www.nemsis.org
Annotations

Exam Finding Not Present
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801005
Exam Finding Not Present
Source

<xs:simpleType name="PN.ExamFindingNotPresent">
  <xs:annotation>
    <xs:documentation>Exam Finding Not Present</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801005">
      <xs:annotation>
        <xs:documentation>Exam Finding Not Present</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.MedicationAllergy
Namespace http://www.nemsis.org
Annotations

Medication Allergy
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801007
Medication Allergy
Source

<xs:simpleType name="PN.MedicationAllergy">
  <xs:annotation>
    <xs:documentation>Medication Allergy</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801007">
      <xs:annotation>
        <xs:documentation>Medication Allergy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.MedicationAlreadyTaken
Namespace http://www.nemsis.org
Annotations

Medication Already Taken
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801009
Medication Already Taken
Source

<xs:simpleType name="PN.MedicationAlreadyTaken">
  <xs:annotation>
    <xs:documentation>Medication Already Taken</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801009">
      <xs:annotation>
        <xs:documentation>Medication Already Taken</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.NoKnownDrugAllergy
Namespace http://www.nemsis.org
Annotations

No Known Drug Allergy
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801013
No Known Drug Allergy
Source

<xs:simpleType name="PN.NoKnownDrugAllergy">
  <xs:annotation>
    <xs:documentation>No Known Drug Allergy</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801013">
      <xs:annotation>
        <xs:documentation>No Known Drug Allergy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.NoneReported
Namespace http://www.nemsis.org
Annotations

None Reported
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801015
None Reported
Source

<xs:simpleType name="PN.NoneReported">
  <xs:annotation>
    <xs:documentation>None Reported</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801015">
      <xs:annotation>
        <xs:documentation>None Reported</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.NotPerformedByEMS
Namespace http://www.nemsis.org
Annotations

Not Performed by EMS
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801017
Not Performed by EMS
Source

<xs:simpleType name="PN.NotPerformedByEMS">
  <xs:annotation>
    <xs:documentation>Not Performed by EMS</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801017">
      <xs:annotation>
        <xs:documentation>Not Performed by EMS</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.Refused
Namespace http://www.nemsis.org
Annotations

Refused
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801019
Refused
Source

<xs:simpleType name="PN.Refused">
  <xs:annotation>
    <xs:documentation>Refused</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801019">
      <xs:annotation>
        <xs:documentation>Refused</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.Unresponsive
Namespace http://www.nemsis.org
Annotations

Unresponsive
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801021
Unresponsive
Source

<xs:simpleType name="PN.Unresponsive">
  <xs:annotation>
    <xs:documentation>Unresponsive</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801021">
      <xs:annotation>
        <xs:documentation>Unresponsive</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.UnableToComplete
Namespace http://www.nemsis.org
Annotations

Unable to Complete
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801023
Unable to Complete
Source

<xs:simpleType name="PN.UnableToComplete">
  <xs:annotation>
    <xs:documentation>Unable to Complete</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801023">
      <xs:annotation>
        <xs:documentation>Unable to Complete</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.NotImmunized
Namespace http://www.nemsis.org
Annotations

Not Immunized
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801025
Not Immunized
Source

<xs:simpleType name="PN.NotImmunized">
  <xs:annotation>
    <xs:documentation>Not Immunized</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801025">
      <xs:annotation>
        <xs:documentation>Not Immunized</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.OrderCriteriaNotMet
Namespace http://www.nemsis.org
Annotations

Order Criteria Not Met
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801027
Order Criteria Not Met
Source

<xs:simpleType name="PN.OrderCriteriaNotMet">
  <xs:annotation>
    <xs:documentation>Order Criteria Not Met</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801027">
      <xs:annotation>
        <xs:documentation>Order Criteria Not Met</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.Approximate
Namespace http://www.nemsis.org
Annotations

Approximate
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801029
Approximate
Source

<xs:simpleType name="PN.Approximate">
  <xs:annotation>
    <xs:documentation>Approximate</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801029">
      <xs:annotation>
        <xs:documentation>Approximate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PN.SymptomNotPresent
Namespace http://www.nemsis.org
Annotations

Symptom Not Present
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 8801031
Symptom Not Present
Source

<xs:simpleType name="PN.SymptomNotPresent">
  <xs:annotation>
    <xs:documentation>Symptom Not Present</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="8801031">
      <xs:annotation>
        <xs:documentation>Symptom Not Present</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type RecordStatus
Namespace http://www.nemsis.org
Annotations

An indicator of the status of the patient care report or incident report.  The record may be new, updated, and request for deletion.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9915001
New Record
enumeration 9915003
Updated Record
enumeration 9915005
Delete Record
Source

<xs:simpleType name="RecordStatus">
  <xs:annotation>
    <xs:documentation>An indicator of the status of the patient care report or incident report. The record may be new, updated, and request for deletion.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9915001">
      <xs:annotation>
        <xs:documentation>New Record</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9915003">
      <xs:annotation>
        <xs:documentation>Updated Record</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9915005">
      <xs:annotation>
        <xs:documentation>Delete Record</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type Response
Namespace http://www.nemsis.org
Annotations

The patient's response.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9916001
Improved
enumeration 9916003
Unchanged
enumeration 9916005
Worse
Source

<xs:simpleType name="Response">
  <xs:annotation>
    <xs:documentation>The patient's response.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9916001">
      <xs:annotation>
        <xs:documentation>Improved</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9916003">
      <xs:annotation>
        <xs:documentation>Unchanged</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9916005">
      <xs:annotation>
        <xs:documentation>Worse</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type SBP
Namespace http://www.nemsis.org
Annotations

The patient's systolic blood pressure.
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 500
minInclusive 0
Source

<xs:simpleType name="SBP">
  <xs:annotation>
    <xs:documentation>The patient's systolic blood pressure.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="500"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SocialSecurityNumber
Namespace http://www.nemsis.org
Annotations

A social security number.
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [0-9]{9}
Source

<xs:simpleType name="SocialSecurityNumber">
  <xs:annotation>
    <xs:documentation>A social security number.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[0-9]{9}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Status
Namespace http://www.nemsis.org
Annotations

The Status either Active (A) or Inactive (I)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration A
Active
enumeration I
Inactive
Source

<xs:simpleType name="Status">
  <xs:annotation>
    <xs:documentation>The Status either Active (A) or Inactive (I)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="A">
      <xs:annotation>
        <xs:documentation>Active</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="I">
      <xs:annotation>
        <xs:documentation>Inactive</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type StreetName
Namespace http://www.nemsis.org
Annotations

The street name
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 35
Source

<xs:simpleType name="StreetName">
  <xs:annotation>
    <xs:documentation>The street name</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="35"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TimeStampType
Namespace http://www.nemsis.org
Annotations

The date/time attribute on an event or ocuurence.
Diagram
Diagram
Type restriction of xs:dateTime
Facets
maxInclusive 2050-01-01T00:00:00-00:00
minInclusive 1950-01-01T00:00:00-00:00
pattern [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
Source

<xs:simpleType name="TimeStampType">
  <xs:annotation>
    <xs:documentation>The date/time attribute on an event or ocuurence.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:dateTime">
    <xs:minInclusive value="1950-01-01T00:00:00-00:00"/>
    <xs:maxInclusive value="2050-01-01T00:00:00-00:00"/>
    <xs:pattern value="[0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TxAuthorization
Namespace http://www.nemsis.org
Annotations

The type of treatment authorization obtained
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9918001
On-Line (Remote Verbal Order)
enumeration 9918003
On-Scene
enumeration 9918005
Protocol (Standing Order)
enumeration 9918007
Written Orders (Patient Specific)
Source

<xs:simpleType name="TxAuthorization">
  <xs:annotation>
    <xs:documentation>The type of treatment authorization obtained</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9918001">
      <xs:annotation>
        <xs:documentation>On-Line (Remote Verbal Order)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9918003">
      <xs:annotation>
        <xs:documentation>On-Scene</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9918005">
      <xs:annotation>
        <xs:documentation>Protocol (Standing Order)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9918007">
      <xs:annotation>
        <xs:documentation>Written Orders (Patient Specific)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TrueFalseType
Namespace http://www.nemsis.org
Annotations

Data type for elements defined as having True or False values.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9918001
False
enumeration 9918003
True
Source

<xs:simpleType name="TrueFalseType">
  <xs:annotation>
    <xs:documentation>Data type for elements defined as having True or False values.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9918001">
      <xs:annotation>
        <xs:documentation>False</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9918003">
      <xs:annotation>
        <xs:documentation>True</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TypeOfService
Namespace http://www.nemsis.org
Annotations

The primary service type provided by the agency.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9920001
911 Response (Scene) with Transport Capability
enumeration 9920003
911 Response (Scene) without Transport Capability
enumeration 9920005
Air Medical
enumeration 9920007
ALS Intercept
enumeration 9920011
Hazmat
enumeration 9920013
Medical Transport (Convalescent, Interfacility Transfer Hospital and Nursing Home)
enumeration 9920015
Rescue
enumeration 9920017
Community Paramedicine
enumeration 9920019
Critical Care (Ground)
Source

<xs:simpleType name="TypeOfService">
  <xs:annotation>
    <xs:documentation>The primary service type provided by the agency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9920001">
      <xs:annotation>
        <xs:documentation>911 Response (Scene) with Transport Capability</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9920003">
      <xs:annotation>
        <xs:documentation>911 Response (Scene) without Transport Capability</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9920005">
      <xs:annotation>
        <xs:documentation>Air Medical</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9920007">
      <xs:annotation>
        <xs:documentation>ALS Intercept</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9920011">
      <xs:annotation>
        <xs:documentation>Hazmat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9920013">
      <xs:annotation>
        <xs:documentation>Medical Transport (Convalescent, Interfacility Transfer Hospital and Nursing Home)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9920015">
      <xs:annotation>
        <xs:documentation>Rescue</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9920017">
      <xs:annotation>
        <xs:documentation>Community Paramedicine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9920019">
      <xs:annotation>
        <xs:documentation>Critical Care (Ground)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type UUID
Namespace http://www.nemsis.org
Annotations

A universally unique identifier used to track persistent objects over time.
Diagram
Diagram
Type restriction of xs:string
Facets
pattern [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[1-5][a-fA-F0-9]{3}-[89abAB][a-fA-F0-9]{3}-[a-fA-F0-9]{12}
Source

<xs:simpleType name="UUID">
  <xs:annotation>
    <xs:documentation>A universally unique identifier used to track persistent objects over time.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[1-5][a-fA-F0-9]{3}-[89abAB][a-fA-F0-9]{3}-[a-fA-F0-9]{12}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type VelocityUnits
Namespace http://www.nemsis.org
Annotations

Velocity in MPH or KPH
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9921001
Kilometers per Hour
enumeration 9921003
Miles per Hour
Source

<xs:simpleType name="VelocityUnits">
  <xs:annotation>
    <xs:documentation>Velocity in MPH or KPH</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9921001">
      <xs:annotation>
        <xs:documentation>Kilometers per Hour</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9921003">
      <xs:annotation>
        <xs:documentation>Miles per Hour</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type WaveformGraphic
Namespace http://www.nemsis.org
Annotations

The graphic waveform file.
Diagram
Diagram
Type xs:base64Binary
Source

<xs:simpleType name="WaveformGraphic">
  <xs:annotation>
    <xs:documentation>The graphic waveform file.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:base64Binary"/>
</xs:simpleType>
Simple Type Year
Namespace http://www.nemsis.org
Annotations

The year the event or occurrence pertains to
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 2050
minInclusive 1900
Source

<xs:simpleType name="Year">
  <xs:annotation>
    <xs:documentation>The year the event or occurrence pertains to</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1900"/>
    <xs:maxInclusive value="2050"/>
  </xs:restriction>
</xs:simpleType>
Simple Type YesNoUnkValues
Namespace http://www.nemsis.org
Annotations

Yes No or unknown value data type.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9922001
No
enumeration 9922003
Unknown
enumeration 9922005
Yes
Source

<xs:simpleType name="YesNoUnkValues">
  <xs:annotation>
    <xs:documentation>Yes No or unknown value data type.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9922001">
      <xs:annotation>
        <xs:documentation>No</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9922003">
      <xs:annotation>
        <xs:documentation>Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9922005">
      <xs:annotation>
        <xs:documentation>Yes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type MemberLevel
Namespace http://www.nemsis.org
Annotations

The functioning level of the crew member during this EMS patient encounter
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9925001
Advanced Emergency Medical Technician (AEMT)
enumeration 9925002
Emergency Medical Technician - Intermediate
enumeration 9925003
Emergency Medical Responder (EMR)
enumeration 9925005
Emergency Medical Technician (EMT)
enumeration 9925007
Paramedic
enumeration 9925023
Other Healthcare Professional
enumeration 9925025
Other Non-Healthcare Professional
enumeration 9925027
Physician
enumeration 9925029
Respiratory Therapist
enumeration 9925031
Student
enumeration 9925033
Critical Care Paramedic
enumeration 9925035
Community Paramedicine
enumeration 9925037
Nurse Practitioner
enumeration 9925039
Physician Assistant
enumeration 9925041
Licensed Practical Nurse (LPN)
enumeration 9925043
Registered Nurse
Source

<xs:simpleType name="MemberLevel">
  <xs:annotation>
    <xs:documentation>The functioning level of the crew member during this EMS patient encounter</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9925001">
      <xs:annotation>
        <xs:documentation>Advanced Emergency Medical Technician (AEMT)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925002">
      <xs:annotation>
        <xs:documentation>Emergency Medical Technician - Intermediate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925003">
      <xs:annotation>
        <xs:documentation>Emergency Medical Responder (EMR)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925005">
      <xs:annotation>
        <xs:documentation>Emergency Medical Technician (EMT)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925007">
      <xs:annotation>
        <xs:documentation>Paramedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925023">
      <xs:annotation>
        <xs:documentation>Other Healthcare Professional</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925025">
      <xs:annotation>
        <xs:documentation>Other Non-Healthcare Professional</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925027">
      <xs:annotation>
        <xs:documentation>Physician</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925029">
      <xs:annotation>
        <xs:documentation>Respiratory Therapist</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925031">
      <xs:annotation>
        <xs:documentation>Student</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925033">
      <xs:annotation>
        <xs:documentation>Critical Care Paramedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925035">
      <xs:annotation>
        <xs:documentation>Community Paramedicine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925037">
      <xs:annotation>
        <xs:documentation>Nurse Practitioner</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925039">
      <xs:annotation>
        <xs:documentation>Physician Assistant</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925041">
      <xs:annotation>
        <xs:documentation>Licensed Practical Nurse (LPN)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9925043">
      <xs:annotation>
        <xs:documentation>Registered Nurse</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type FacilityDepartment
Namespace http://www.nemsis.org
Annotations

The name or number of the facility department.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 50
Source

<xs:simpleType name="FacilityDepartment">
  <xs:annotation>
    <xs:documentation>The name or number of the facility department.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Sex
Namespace http://www.nemsis.org
Annotations

Sex
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 9919001
Female
enumeration 9919003
Male
enumeration 9919005
Unknown
Source

<xs:simpleType name="Sex">
  <xs:annotation>
    <xs:documentation>Sex</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="9919001">
      <xs:annotation>
        <xs:documentation>Female</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9919003">
      <xs:annotation>
        <xs:documentation>Male</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="9919005">
      <xs:annotation>
        <xs:documentation>Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
XML Schema documentation generated by ® XML Editor.
