element -> <eMedDevice.VitalsGroup>
Group Tag to hold info about the Vitals of the Patient
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 9 elements
Defined:
locally within eMedDevice complexType in eMedDevice_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 9 elements

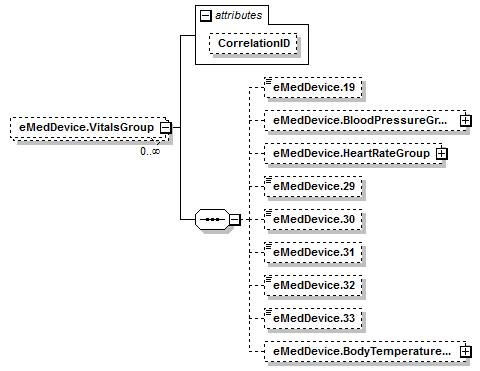

Content Model Diagram
XML Representation Summary
<eMedDevice.VitalsGroup
    CorrelationID
 =
 xs:string
    >

Content:
 eMedDevice.19?, eMedDevice.BloodPressureGroup?, eMedDevice.HeartRateGroup?, eMedDevice.29?, eMedDevice.30?, eMedDevice.31?, eMedDevice.32?, eMedDevice.33?, eMedDevice.BodyTemperatureGroup?
</eMedDevice.VitalsGroup>
Content model elements (9):
eMedDevice.19 (in eMedDevice.VitalsGroup),
eMedDevice.29 (in eMedDevice.VitalsGroup),
eMedDevice.30 (in eMedDevice.VitalsGroup),
eMedDevice.31 (in eMedDevice.VitalsGroup),
eMedDevice.32 (in eMedDevice.VitalsGroup),
eMedDevice.33 (in eMedDevice.VitalsGroup),
eMedDevice.BloodPressureGroup (in eMedDevice.VitalsGroup),
eMedDevice.BodyTemperatureGroup (in eMedDevice.VitalsGroup),
eMedDevice.HeartRateGroup (in eMedDevice.VitalsGroup)
Included in content model of elements (1):
eMedDevice (in MedDeviceDataSet)
XML Source (w/o annotations (18); see within schema source)
<xs:element id="eMedDevice.VitalsGroup" maxOccurs="unbounded" minOccurs="0" name="eMedDevice.VitalsGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eVitals.DateTimeVitalSignsTaken" minOccurs="0" name="eMedDevice.19">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.BloodPressureGroup" minOccurs="0" name="eMedDevice.BloodPressureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eVitals.SBPSystolicBloodPressure" minOccurs="0" name="eMedDevice.23">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="SBP"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.DBPDiastolicBloodPressure" minOccurs="0" name="eMedDevice.24">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DBP"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.MethodofBloodPressureMeasurement" minOccurs="0" name="eMedDevice.25">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodPressureMethod"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.MeanArterialPressure" minOccurs="0" name="eMedDevice.26" type="MAP"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.HeartRateGroup" minOccurs="0" name="eMedDevice.HeartRateGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eVitals.HeartRate" minOccurs="0" name="eMedDevice.27">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HeartRate"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.MethodofHeartRateMeasurement" minOccurs="0" name="eMedDevice.28" type="MethodMeasureHeartRate"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.PulseOximetry" minOccurs="0" name="eMedDevice.29">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PulseOximetry"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.RespiratoryRate" minOccurs="0" name="eMedDevice.30">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="RespiratoryRate"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.EndTidalCarbonDioxideETCO2" minOccurs="0" name="eMedDevice.31" type="CO2"/>
<xs:element id="eMedDevice.eVitals.CarbonMonoxideCO" minOccurs="0" name="eMedDevice.32">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CarbonMonoxideLevel"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.BloodGlucoseLevel" minOccurs="0" name="eMedDevice.33">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodGlucoseLevel"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.BodyTemperatureGroup" minOccurs="0" name="eMedDevice.BodyTemperatureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eVitals.Temperature" minOccurs="0" name="eMedDevice.34">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BodyTemperature"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.TemperatureMethod" minOccurs="0" name="eMedDevice.35" type="MethodBodyTemp"/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 9/9)
eMedDevice.19
Type:
anonymous (extension of DateTimeType), simple content
eMedDevice.19 eVitals.01 Date/Time Vital Signs Taken No No The date/time vital signs were taken on the patient. E14_01 Optional Airway Cardiac Arrest Pediatric STEMI Stroke Trauma DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table>
Simple Content
xs:dateTime
maxInclusive:
 2050-01-01T00:00:00-00:00
minInclusive:
 1950-01-01T00:00:00-00:00
Pattern:
 [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.eVitals.DateTimeVitalSignsTaken" minOccurs="0" name="eMedDevice.19">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eMedDevice.29
Type:
anonymous (extension of PulseOximetry), simple content
eMedDevice.29 eVitals.12 Pulse Oximetry No No The patient's oxygen saturation. E14_09 Optional Airway Cardiac Arrest Pediatric STEMI Stroke Trauma
Simple Content
xs:integer
maxInclusive:
 100
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.eVitals.PulseOximetry" minOccurs="0" name="eMedDevice.29">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PulseOximetry"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eMedDevice.30
Type:
anonymous (extension of RespiratoryRate), simple content
eMedDevice.30 eVitals.14 Respiratory Rate No No The patient's respiratory rate expressed as a number per minute. E14_11 Optional Airway Cardiac Arrest Pediatric STEMI Stroke Trauma
Simple Content
xs:integer
maxInclusive:
 300
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.eVitals.RespiratoryRate" minOccurs="0" name="eMedDevice.30">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="RespiratoryRate"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eMedDevice.31
Type:
CO2, simple content
eMedDevice.31 eVitals.16 End Tidal Carbon Dioxide (ETCO2) No No The numeric value of the patient’s exhaled end tidal carbon dioxide (ETCO2) level measured as a unit of pressure in millimeters of mercury (mmHg). E14_13 Optional Airway Cardiac Arrest Pediatric STEMI Stroke Trauma
Simple Content
xs:integer
maxInclusive:
 200
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.eVitals.EndTidalCarbonDioxideETCO2" minOccurs="0" name="eMedDevice.31" type="CO2"/>
eMedDevice.32
Type:
anonymous (extension of CarbonMonoxideLevel), simple content
eMedDevice.32 eVitals.17 Carbon Monoxide (CO) No No The numeric value of the patient's carbon monoxide level measured as a percentage (%) of carboxyhemoglobin (COHb). Optional <comment/> Added to allow use of a new patient monitoring devices.
Simple Content
xs:decimal
fractionDigits:
 1
maxInclusive:
 100
minInclusive:
 0
totalDigits:
 3
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.eVitals.CarbonMonoxideCO" minOccurs="0" name="eMedDevice.32">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CarbonMonoxideLevel"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eMedDevice.33
Type:
anonymous (extension of BloodGlucoseLevel), simple content
eMedDevice.33 eVitals.18 Blood Glucose Level No No The patient's blood glucose level. E14_14 Optional Pediatric Stroke
Simple Content
xs:integer
maxInclusive:
 2000
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eMedDevice.eVitals.BloodGlucoseLevel" minOccurs="0" name="eMedDevice.33">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodGlucoseLevel"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eMedDevice.BloodPressureGroup
Type:
anonymous, complex content
Group Tag to hold the details of Patient's systolic blood pressure and its procedure
XML Source (w/o annotations (5); see within schema source)
<xs:element id="eMedDevice.BloodPressureGroup" minOccurs="0" name="eMedDevice.BloodPressureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eVitals.SBPSystolicBloodPressure" minOccurs="0" name="eMedDevice.23">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="SBP"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.DBPDiastolicBloodPressure" minOccurs="0" name="eMedDevice.24">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DBP"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.MethodofBloodPressureMeasurement" minOccurs="0" name="eMedDevice.25">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodPressureMethod"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.MeanArterialPressure" minOccurs="0" name="eMedDevice.26" type="MAP"/>
</xs:sequence>
</xs:complexType>
</xs:element>
eMedDevice.BodyTemperatureGroup
Type:
anonymous, complex content
Group Tag to hold information about patient's body temperature
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eMedDevice.BodyTemperatureGroup" minOccurs="0" name="eMedDevice.BodyTemperatureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eVitals.Temperature" minOccurs="0" name="eMedDevice.34">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BodyTemperature"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.TemperatureMethod" minOccurs="0" name="eMedDevice.35" type="MethodBodyTemp"/>
</xs:sequence>
</xs:complexType>
</xs:element>
eMedDevice.HeartRateGroup
Type:
anonymous, complex content
Group Tag to hold the details of Patient's systolic blood pressure and its procedure
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eMedDevice.HeartRateGroup" minOccurs="0" name="eMedDevice.HeartRateGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eMedDevice.eVitals.HeartRate" minOccurs="0" name="eMedDevice.27">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HeartRate"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eMedDevice.eVitals.MethodofHeartRateMeasurement" minOccurs="0" name="eMedDevice.28" type="MethodMeasureHeartRate"/>
</xs:sequence>
</xs:complexType>
</xs:element>
