element -> <eCad.DestinationGroup>

Group Tag to hold info about the Destination and the Disposition details

Namespace:	http://www.nemsis.org
Type:	anonymous complexType
Content:	complex, 10 elements
Defined:	locally within eCAD complexType in eCAD_v3.xsd; see XML source
Includes:	definitions of 10 elements

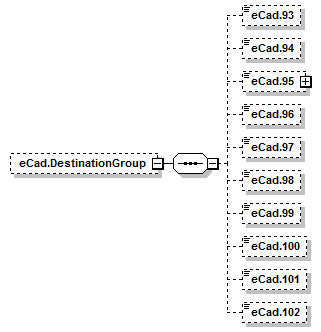

Content Model Diagram

XML Representation Summary

<eCad.DestinationGroup>

Content:

eCad.93?, eCad.94?, eCad.95?, eCad.96?, eCad.97?, eCad.98?, eCad.99?, eCad.100?, eCad.101?, eCad.102?

</eCad.DestinationGroup>

Content model elements (10):

eCad.100 (in eCad.DestinationGroup),

eCad.101 (in eCad.DestinationGroup),

eCad.102 (in eCad.DestinationGroup),

eCad.93 (in eCad.DestinationGroup),

eCad.94 (in eCad.DestinationGroup),

eCad.95 (in eCad.DestinationGroup),

eCad.96 (in eCad.DestinationGroup),

eCad.97 (in eCad.DestinationGroup),

eCad.98 (in eCad.DestinationGroup),

eCad.99 (in eCad.DestinationGroup)

Included in content model of elements (1):

eCAD (in CADDataSet)

XML Source (w/o annotations (11); see within schema source)

<xs:element id="eCad.eDisposition.DestinationGroup" minOccurs="0" name="eCad.DestinationGroup">

<xs:complexType>

<xs:sequence>

<xs:element id="eCad.eDisposition.DestinationTransferredToName" minOccurs="0" name="eCad.93">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="DestinationTransferredToName"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eCad.eDisposition.DestinationTransferredToCode" minOccurs="0" name="eCad.94">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="DestinationTransferredToCode"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eCad.eDisposition.DestinationStreetAddress" minOccurs="0" name="eCad.95">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="StreetAddress">

<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eCad.eDisposition.DestinationCity" minOccurs="0" name="eCad.96" type="CityGnisCode"/>

<xs:element id="eCad.eDisposition.DestinationState" minOccurs="0" name="eCad.97">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="ANSIStateCode"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eCad.eDisposition.DestinationCounty" minOccurs="0" name="eCad.98">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="ANSICountyCode"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eCad.eDisposition.DestinationZIPCode" minOccurs="0" name="eCad.99">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="ZIP"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eCad.eDisposition.DestinationCountry" minOccurs="0" name="eCad.100" type="ANSICountryCode"/>

<xs:element id="eCad.eDisposition.DestinationGPSLocation" minOccurs="0" name="eCad.101" type="GPSLocation">

</xs:element>

<xs:element id="eCad.eDisposition.DestinationLocationUSNationalGridCoordinates" minOccurs="0" name="eCad.102" type="USNG"/>

</xs:sequence>

</xs:complexType>

</xs:element>

Content Element Detail (all declarations; defined in this component only; 10/10)

eCad.100

Type:

ANSICountryCode, simple content

eCad.100 eDisposition.08 Destination Country No No The country of the destination. Optional May be auto-populated if list created in dFacility.12 (Facility Country). ANSI Country Codes (ISO 3166) Website: <a>http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a> Added for improved international compatibility.

Simple Content

xs:string

Length:

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationCountry" minOccurs="0" name="eCad.100" type="ANSICountryCode"/>

eCad.101

Type:

GPSLocation, simple content

eCad.101 eDisposition.09 Destination GPS Location No No The destination GPS Coordinates to which the patient was delivered or transferred to. E20_08 Optional May be auto-populated if list created in dFacility.13 (Facility GPS Location). The pattern for GPS location is in the format "latitude,longitude" where: - latitude has a minimum of -90 and a maximum of 90 with up to 6 decimal places - longitude has a minimum of -180 and a maximum of 180 with up to 6 decimal places

Simple Content

xs:string

Pattern:

(\+|-)?(90(\.[0]{1,6})?|([1-8][0-9]|[0-9])(\.[0-9]{1,6})?),(\+|-)?(180(\.[0]{1,6})?|(1[0-7][0-9]|[1-9][0-9]|[0-9])(\.[0-9]{1,6})?)

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationGPSLocation" minOccurs="0" name="eCad.101" type="GPSLocation">

</xs:element>

eCad.102

Type:

USNG, simple content

eCad.102 eDisposition.10 Destination Location US National Grid Coordinates No No The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates. Optional Standard found at www.fgdc.gov/usng. Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).

Simple Content

xs:string

Pattern:

([1-9]|[1-5][0-9]|60)[C-HJ-NP-X][A-HJ-NP-Z][A-HJ-NP-V][0-9]{8}

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationLocationUSNationalGridCoordinates" minOccurs="0" name="eCad.102" type="USNG"/>

eCad.93

Type:

anonymous (extension of DestinationTransferredToName), simple content

eCad.93 eDisposition.01 Destination/Transferred To, Name No No The destination the patient was delivered or transferred to. E20_01 Optional Airway Cardiac Arrest Pediatric STEMI Stroke Trauma Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).

Simple Content

xs:string

maxLength:	100
minLength:	2

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationTransferredToName" minOccurs="0" name="eCad.93">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="DestinationTransferredToName"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

eCad.94

Type:

anonymous (extension of DestinationTransferredToCode), simple content

eCad.94 eDisposition.02 Destination/Transferred To, Code No No The code of the destination the patient was delivered or transferred to. E20_02 Optional Airway Cardiac Arrest Pediatric STEMI Stroke Trauma May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.

Simple Content

xs:string

maxLength:	50
minLength:	2

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationTransferredToCode" minOccurs="0" name="eCad.94">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="DestinationTransferredToCode"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

eCad.95

Type:

anonymous (extension of StreetAddress), simple content

eCad.95 eDisposition.03 Destination Street Address No No The street address of the destination the patient was delivered or transferred to. E20_03 Optional May be auto-populated if list created in dFacility.07 (Facility Street Address).

Simple Content

xs:string

maxLength:	255
minLength:	1

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationStreetAddress" minOccurs="0" name="eCad.95">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="StreetAddress">

<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

eCad.96

Type:

CityGnisCode, simple content

eCad.96 eDisposition.04 Destination City No No The city name of the destination the patient was delivered or transferred to. E20_04 Optional Based on GNIS Civil Code or Populated Place code. May be auto-populated if list created in dFacility.08 (Facility City). GNIS Codes Website: <a>http://geonames.usgs.gov/domestic/download_data.htm</a>

Simple Content

xs:positiveInteger

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationCity" minOccurs="0" name="eCad.96" type="CityGnisCode"/>

eCad.97

Type:

anonymous (extension of ANSIStateCode), simple content

eCad.97 eDisposition.05 Destination State No No The state of the destination the patient was delivered or transferred to. E20_05 Optional Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State). GNIS Codes Website: <a>http://geonames.usgs.gov/domestic/download_data.htm</a>

Simple Content

xs:string

Pattern:

[0-9]{2}

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationState" minOccurs="0" name="eCad.97">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="ANSIStateCode"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

eCad.98

Type:

anonymous (extension of ANSICountyCode), simple content

eCad.98 eDisposition.06 Destination County No No The destination county in which the patient was delivered or transferred to. E20_06 Optional Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. GNIS Codes Website: <a>http://geonames.usgs.gov/domestic/download_data.htm</a>

Simple Content

xs:string

Pattern:

[0-9]{5}

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationCounty" minOccurs="0" name="eCad.98">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="ANSICountyCode"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

eCad.99

Type:

anonymous (extension of ZIP), simple content

eCad.99 eDisposition.07 Destination ZIP Code No No The destination ZIP code in which the patient was delivered or transferred to. E20_07 Optional Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma May be auto-populated if list created in dFacility.10 (Facility ZIP Code). ZIP Codes Product Website: <a>https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> Product: USA - 5-digit ZIP Code Database, Commercial Edition

Simple Content

xs:string

Pattern:

[0-9]{5}|[0-9]{5}-[0-9]{4}|[0-9]{5}-[0-9]{5}|[A-Z][0-9][A-Z] [0-9][A-Z][0-9]

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCad.eDisposition.DestinationZIPCode" minOccurs="0" name="eCad.99">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="ZIP"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>
