element -> <eCad.HospitalTeamActivationGroup>
Group Tag to hold info about the destination team pre-arrival activation
Namespace:
Type:
anonymous complexType
Content:
complex, 1 attribute, 2 elements
Defined:
locally within eCAD complexType in eCAD_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements

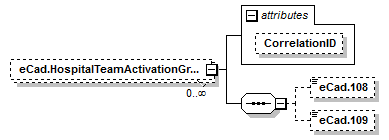

Content Model Diagram
XML Representation Summary
<eCad.HospitalTeamActivationGroup
    CorrelationID
 =
xs:string
    >

Content:
eCad.108?, eCad.109?
</eCad.HospitalTeamActivationGroup>
Content model elements (2):
Included in content model of elements (1):
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eCad.eDisposition.HospitalTeamActivationGroup" maxOccurs="unbounded" minOccurs="0" name="eCad.HospitalTeamActivationGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eCad.eDisposition.DestinationTeamPreArrivalActivation" minOccurs="0" name="eCad.108">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DestinationPrearrivalActivation"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eCad.eDisposition.DestinationPrearrivalActivationDateTime" minOccurs="0" name="eCad.109">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
Use:
optional
Attribute Value
xs:string
MaxLength:
255
MinLength:
0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 2/2)
eCad.108
Type:
anonymous (extension of DestinationPrearrivalActivation), simple content
eCad.108 eDisposition.24 Destination Team Pre-Arrival Activation No No Activation of the Destination Healthcare Facility Team prior to EMS arrival for acute ill or injured patient. Optional Cardiac Arrest STEMI Stroke Trauma Added to better document performance measure for acute time dependent illness and injury systems of care.
Simple Content
enumeration of xs:string
Enumeration:
"4224001"
 -
No
"4224003"
 -
Yes-Adult Trauma
"4224005"
 -
Yes-Cardiac Arrest
"4224007"
 -
Yes-Obstetrics
"4224009"
 -
Yes-Other
"4224011"
 -
Yes-Pediatric Trauma
"4224013"
 -
Yes-STEMI
"4224015"
 -
Yes-Stroke
"4224017"
 -
Yes-Trauma (General)
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCad.eDisposition.DestinationTeamPreArrivalActivation" minOccurs="0" name="eCad.108">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DestinationPrearrivalActivation"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>

eCad.109
Type:
anonymous (extension of DateTimeType), simple content
eCad.109 eDisposition.25 Date/Time of Destination Prearrival Activation No No Date/Time EMS Notified/Activated the Destination Healthcare Facility Team prior to EMS arrival for acute ill or injured patient. Optional Airway Cardiac Arrest Pediatric STEMI Stroke Trauma DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz)<table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr></table> </td></tr></table><br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr></table></td></tr></table> Added to better document performance measure for acute time dependent illness and injury systems of care.
Simple Content
xs:dateTime
maxInclusive:
2050-01-01T00:00:00-00:00
minInclusive:
1950-01-01T00:00:00-00:00
Pattern:
[0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCad.eDisposition.DestinationPrearrivalActivationDateTime" minOccurs="0" name="eCad.109">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
