element -> <eCad.PatientNameGroup>
Group Tag to hold patient's name
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 3 elements
Defined:
locally within eCAD complexType in eCAD_v3.xsd; see XML source
Includes:
definitions of 3 elements

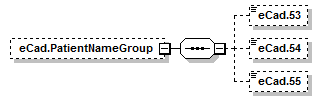

Content Model Diagram
XML Representation Summary
<eCad.PatientNameGroup>

Content:
 eCad.53?, eCad.54?, eCad.55?
</eCad.PatientNameGroup>
Content model elements (3):
eCad.53 (in eCad.PatientNameGroup),
eCad.54 (in eCad.PatientNameGroup),
eCad.55 (in eCad.PatientNameGroup)
Included in content model of elements (1):
eCAD (in CADDataSet)
XML Source (w/o annotations (4); see within schema source)
<xs:element id="eCad.ePatient.PatientNameGroup" minOccurs="0" name="eCad.PatientNameGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eCad.ePatient.LastName" minOccurs="0" name="eCad.53">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonLastName"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eCad.ePatient.FirstName" minOccurs="0" name="eCad.54">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonFirstName"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eCad.ePatient.MiddleInitialName" minOccurs="0" name="eCad.55" type="PersonMiddleName"/>
</xs:sequence>
</xs:complexType>
</xs:element>
Content Element Detail (all declarations; defined in this component only; 3/3)
eCad.53
Type:
anonymous (extension of PersonLastName), simple content
eCad.53 ePatient.02 Last Name No No The patient's last (family) name E06_01 Optional <comment/>
Simple Content
xs:string
maxLength:
 60
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCad.ePatient.LastName" minOccurs="0" name="eCad.53">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonLastName"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eCad.54
Type:
anonymous (extension of PersonFirstName), simple content
eCad.54 ePatient.03 First Name No No The patient's first (given) name E06_02 Optional <comment/>
Simple Content
xs:string
maxLength:
 50
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCad.ePatient.FirstName" minOccurs="0" name="eCad.54">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PersonFirstName"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eCad.55
Type:
PersonMiddleName, simple content
eCad.55 ePatient.04 Middle Initial/Name No No The patient's middle name, if any E06_03 Optional
Simple Content
xs:string
maxLength:
 50
minLength:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eCad.ePatient.MiddleInitialName" minOccurs="0" name="eCad.55" type="PersonMiddleName"/>
