element -> <eDevice.WaveformGroup>

Group Tag to hold info about Wave type

Namespace:	http://www.nemsis.org
Type:	anonymous complexType
Content:	complex, 3 elements
Defined:	locally within eDevice.DeviceGroup element in eDevice_v3.xsd; see XML source
Includes:	definitions of 3 elements

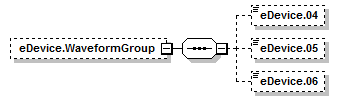

Content Model Diagram

XML Representation Summary

<eDevice.WaveformGroup>

Content:

eDevice.04?, eDevice.05?, eDevice.06?

</eDevice.WaveformGroup>

Content model elements (3):

Included in content model of elements (1):

XML Source (w/o annotations (4); see within schema source)

<xs:element id="eDevice.WaveformGroup" minOccurs="0" name="eDevice.WaveformGroup">

<xs:complexType>

<xs:sequence>

<xs:element id="eDevice.WaveformGraphicType" minOccurs="0" name="eDevice.04" type="GraphicType"/>

<xs:element id="eDevice.WaveformGraphic" minOccurs="0" name="eDevice.05" type="WaveformGraphic"/>

<xs:element id="eDevice.AEDPacingorC02Mode" minOccurs="0" name="eDevice.06" type="AEDPacingOrCO2Mode"/>

</xs:sequence>

</xs:complexType>

</xs:element>

Content Element Detail (all declarations; defined in this component only; 3/3)

Type:

GraphicType, simple content

eDevice.04 Medical Device Waveform Graphic Type No No The description of the waveform file stored in Waveform Graphic (eDevice.05). E21_03 Optional Airway Cardiac Arrest STEMI The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: http://www.fileinfo.com/filetypes/3d_image</td></tr> <tr><td>Raster Image formats: http://www.fileinfo.com/filetypes/raster_image</td></tr> <tr><td>Vector Image formats: http://www.fileinfo.com/filetypes/vector_image</td></tr> <tr><td> </td></tr> <tr><td>Video formats: http://www.fileinfo.com/filetypes/video</td></tr> <tr><td>Audio formats: http://www.fileinfo.com/filetypes/audio</td></tr> <tr><td> </td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</td></tr> <tr><td>Audio: http://en.wikipedia.org/wiki/Audio_file_format</td></tr> <tr><td>Container: http://en.wikipedia.org/wiki/Comparison_of_container_formats</td></tr> <tr><td> </td></tr> <tr><td>A general list of image formats: http://en.wikipedia.org/wiki/Image_file_formats</td></tr> <tr><td>Mime Types: http://en.wikipedia.org/wiki/Internet_media_type</td></tr> </table> </td></tr></table>

maxLength:	255
minLength:	1

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eDevice.WaveformGraphicType" minOccurs="0" name="eDevice.04" type="GraphicType"/>

Type:

WaveformGraphic, simple content

eDevice.05 Medical Device Waveform Graphic No No The graphic waveform file. E21_04 Optional Airway Cardiac Arrest STEMI

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eDevice.WaveformGraphic" minOccurs="0" name="eDevice.05" type="WaveformGraphic"/>

Type:

AEDPacingOrCO2Mode, simple content

eDevice.06 Medical Device Mode (Manual, AED, Pacing, CO2, O2, etc) No No The mode of operation the device is operating in during the defibrillation, pacing, or rhythm analysis by the device (if appropriate for the event) E21_05 Optional

enumeration of xs:string

Enumeration:

"4106001"	-	Advisory
"4106003"	-	Automated
"4106005"	-	Demand
"4106007"	-	Manual
"4106009"	-	Mid-Stream
"4106011"	-	Sensing
"4106013"	-	Side-Stream

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eDevice.AEDPacingorC02Mode" minOccurs="0" name="eDevice.06" type="AEDPacingOrCO2Mode"/>
