element -> <DEMDataSet>

Root Tag For Demographic DataSet

Namespace:	http://www.nemsis.org
Type:	anonymous complexType
Content:	complex, 3 elements
Defined:	globally in DEMDataSet_v3.xsd; see XML source
Includes:	definitions of 3 elements
Used:	never

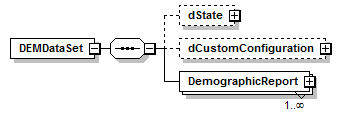

Content Model Diagram

XML Representation Summary

Content:

dState?, dCustomConfiguration?, DemographicReport+

</DEMDataSet>

Content model elements (3):

XML Source (w/o annotations (13); see within schema source)

<xs:element name="DEMDataSet">

<xs:complexType>

<xs:sequence>

<xs:element id="dStateSection" minOccurs="0" name="dState" type="dState"/>

<xs:element id="dCustomConfigurationSection" minOccurs="0" name="dCustomConfiguration" type="dCustomConfiguration"/>

<xs:element id="DemographicReportGroup" maxOccurs="unbounded" name="DemographicReport">

<xs:complexType>

<xs:sequence>

<xs:element id="dAgencySection" name="dAgency" type="dAgency"/>

<xs:element id="dContactSection" minOccurs="0" name="dContact" type="dContact"/>

<xs:element id="dConfigurationSection" name="dConfiguration" type="dConfiguration"/>

<xs:element id="dLocationSection" minOccurs="0" name="dLocation" type="dLocation"/>

<xs:element id="dVehicleSection" minOccurs="0" name="dVehicle" type="dVehicle"/>

<xs:element id="dPersonnelSection" minOccurs="0" name="dPersonnel" type="dPersonnel"/>

<xs:element id="dDeviceSection" minOccurs="0" name="dDevice" type="dDevice"/>

<xs:element id="dFacilitySection" minOccurs="0" name="dFacility" type="dFacility"/>

<xs:element id="dCustomResultsSection" minOccurs="0" name="dCustomResults" type="dCustomResults"/>

</xs:sequence>

<xs:attribute name="timeStamp" type="DateTimeType" use="required"/>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

Content Element Detail (all declarations; defined in this component only; 3/3)

Type:

dCustomConfiguration, complex content

Contains information for demographic custom elements.

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dCustomConfigurationSection" minOccurs="0" name="dCustomConfiguration" type="dCustomConfiguration"/>

Type:

anonymous, complex content

Container Tag to hold each instance of a demographic record

XML Source (w/o annotations (10); see within schema source)

<xs:element id="DemographicReportGroup" maxOccurs="unbounded" name="DemographicReport">

<xs:complexType>

<xs:sequence>

<xs:element id="dAgencySection" name="dAgency" type="dAgency"/>

<xs:element id="dContactSection" minOccurs="0" name="dContact" type="dContact"/>

<xs:element id="dConfigurationSection" name="dConfiguration" type="dConfiguration"/>

<xs:element id="dLocationSection" minOccurs="0" name="dLocation" type="dLocation"/>

<xs:element id="dVehicleSection" minOccurs="0" name="dVehicle" type="dVehicle"/>

<xs:element id="dPersonnelSection" minOccurs="0" name="dPersonnel" type="dPersonnel"/>

<xs:element id="dDeviceSection" minOccurs="0" name="dDevice" type="dDevice"/>

<xs:element id="dFacilitySection" minOccurs="0" name="dFacility" type="dFacility"/>

<xs:element id="dCustomResultsSection" minOccurs="0" name="dCustomResults" type="dCustomResults"/>

</xs:sequence>

<xs:attribute name="timeStamp" type="DateTimeType" use="required"/>

</xs:complexType>

</xs:element>

Type:

dState, complex content

State Required Demographic Data Elements

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dStateSection" minOccurs="0" name="dState" type="dState"/>
