element -> <DemographicReport>

Container Tag to hold each instance of a demographic record

Namespace:	http://www.nemsis.org
Type:	anonymous complexType
Content:	complex, 1 attribute, 9 elements
Defined:	locally within DEMDataSet element in DEMDataSet_v3.xsd; see XML source
Includes:	definitions of 1 attribute, 9 elements

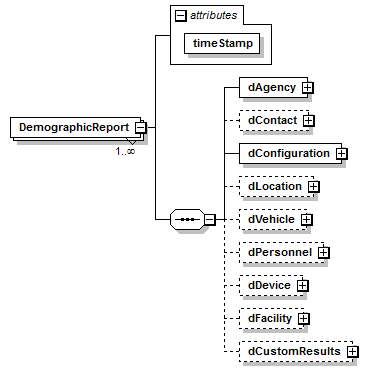

Content Model Diagram

XML Representation Summary

<DemographicReport

=

xs:dateTime

>

Content:

dAgency, dContact?, dConfiguration, dLocation?, dVehicle?, dPersonnel?, dDevice?, dFacility?, dCustomResults?

</DemographicReport>

Content model elements (9):

dAgency (in DemographicReport),

dConfiguration (in DemographicReport),

dContact (in DemographicReport),

dCustomResults (in DemographicReport),

dDevice (in DemographicReport),

dFacility (in DemographicReport),

dLocation (in DemographicReport),

dPersonnel (in DemographicReport),

dVehicle (in DemographicReport)

Included in content model of elements (1):

XML Source (w/o annotations (10); see within schema source)

<xs:element id="DemographicReportGroup" maxOccurs="unbounded" name="DemographicReport">

<xs:complexType>

<xs:sequence>

<xs:element id="dAgencySection" name="dAgency" type="dAgency"/>

<xs:element id="dContactSection" minOccurs="0" name="dContact" type="dContact"/>

<xs:element id="dConfigurationSection" name="dConfiguration" type="dConfiguration"/>

<xs:element id="dLocationSection" minOccurs="0" name="dLocation" type="dLocation"/>

<xs:element id="dVehicleSection" minOccurs="0" name="dVehicle" type="dVehicle"/>

<xs:element id="dPersonnelSection" minOccurs="0" name="dPersonnel" type="dPersonnel"/>

<xs:element id="dDeviceSection" minOccurs="0" name="dDevice" type="dDevice"/>

<xs:element id="dFacilitySection" minOccurs="0" name="dFacility" type="dFacility"/>

<xs:element id="dCustomResultsSection" minOccurs="0" name="dCustomResults" type="dCustomResults"/>

</xs:sequence>

<xs:attribute name="timeStamp" type="DateTimeType" use="required"/>

</xs:complexType>

</xs:element>

Attribute Detail (all declarations; defined in this component only; 1/1)

timeStamp

Type:	DateTimeType
Use:	required

Attribute Value

xs:dateTime

MaxInclusive:	2050-01-01T00:00:00-00:00
MinInclusive:	1950-01-01T00:00:00-00:00
Pattern:	[0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+\|-)[0-9]{2}:[0-9]{2}

XML Source (see within schema source)

<xs:attribute name="timeStamp" type="DateTimeType" use="required"/>

Content Element Detail (all declarations; defined in this component only; 9/9)

Type:

dAgency, complex content

Agency Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dAgencySection" name="dAgency" type="dAgency"/>

Type:

dConfiguration, complex content

Configuration Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dConfigurationSection" name="dConfiguration" type="dConfiguration"/>

Type:

dContact, complex content

Contact Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dContactSection" minOccurs="0" name="dContact" type="dContact"/>

Type:

dCustomResults, complex content

Custom Data Element Results

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dCustomResultsSection" minOccurs="0" name="dCustomResults" type="dCustomResults"/>

Type:

dDevice, complex content

Device Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dDeviceSection" minOccurs="0" name="dDevice" type="dDevice"/>

Type:

dFacility, complex content

Device Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dFacilitySection" minOccurs="0" name="dFacility" type="dFacility"/>

Type:

dLocation, complex content

Location Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dLocationSection" minOccurs="0" name="dLocation" type="dLocation"/>

Type:

dPersonnel, complex content

Personnel Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dPersonnelSection" minOccurs="0" name="dPersonnel" type="dPersonnel"/>

Type:

dVehicle, complex content

Vehicle Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="dVehicleSection" minOccurs="0" name="dVehicle" type="dVehicle"/>
