element -> <dAgency.AgencyYearGroup>
Group Tag to hold information about EMS agency annual statistics.
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 8 elements
Defined:
locally within dAgency complexType in dAgency_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 8 elements

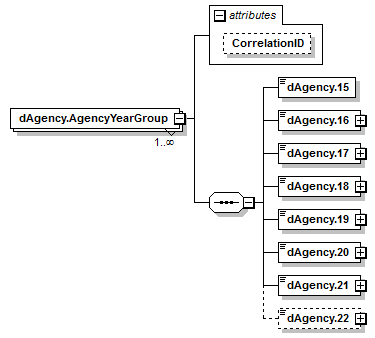

Content Model Diagram
XML Representation Summary
<dAgency.AgencyYearGroup
    CorrelationID
 =
 xs:string
    >

Content:
 dAgency.15, dAgency.16, dAgency.17, dAgency.18, dAgency.19, dAgency.20, dAgency.21, dAgency.22?
</dAgency.AgencyYearGroup>
Content model elements (8):
dAgency.15 (in dAgency.AgencyYearGroup),
dAgency.16 (in dAgency.AgencyYearGroup),
dAgency.17 (in dAgency.AgencyYearGroup),
dAgency.18 (in dAgency.AgencyYearGroup),
dAgency.19 (in dAgency.AgencyYearGroup),
dAgency.20 (in dAgency.AgencyYearGroup),
dAgency.21 (in dAgency.AgencyYearGroup),
dAgency.22 (in dAgency.AgencyYearGroup)
Included in content model of elements (1):
dAgency (in DemographicReport)
XML Source (w/o annotations (9); see within schema source)
<xs:element id="dAgency.AgencyYearGroup" maxOccurs="unbounded" name="dAgency.AgencyYearGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dAgency.StatisticalCalendarYear" name="dAgency.15" type="Year"/>
<xs:element id="dAgency.TotalPrimaryServiceSizeArea" name="dAgency.16" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dAgency.TotalServiceAreaPopulation" name="dAgency.17" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dAgency.NineOneOneEMSCallCenterVolumeperYear" name="dAgency.18" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dAgency.EMSDispatchVolumeperYear" name="dAgency.19" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dAgency.EMSPatientTransportVolumeperYear" name="dAgency.20" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dAgency.EMSPatientContactVolumeperYear" name="dAgency.21" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dAgency.EMSBillableCallsperYear" minOccurs="0" name="dAgency.22" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 8/8)
dAgency.15
Type:
Year, simple content
dAgency.15 Statistical Calendar Year Yes Yes The calendar year to which the information pertains for the EMS Agency and the specific EMS Agency Number (dAgency.02). D01_10 Mandatory Added Calendar Year to the definition to remove confusion noted in draft comments. Will allow multiple entry to allow data to be stored on several years. This statistical information is associated with the EMS Agency's specific EMS Agency Number (dAgency.02) and elements dAgency.16 through dAgency.22
Simple Content
xs:integer
maxInclusive:
 2050
minInclusive:
 1900
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dAgency.StatisticalCalendarYear" name="dAgency.15" type="Year"/>
dAgency.16
Type:
anonymous (extension of AnnualAgencyStatistics), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dAgency.16 Total Primary Service Area Size Yes Yes The total square miles in the agency's service area. D01_12 Required Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma This statistical information is associated with the EMS Agency's specific EMS Agency Number (dAgency.02). A value should be associated with each with (dAgency.15) Statistical Calendar Year
Simple Content
xs:positiveInteger
maxInclusive:
 4000000
minInclusive:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dAgency.TotalPrimaryServiceSizeArea" name="dAgency.16" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dAgency.17
Type:
anonymous (extension of AnnualAgencyStatistics), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dAgency.17 Total Service Area Population Yes Yes The total population in the agency's service area based if possible on year 2010 census data. D01_13 Required Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma This statistical information is associated with the EMS Agency's specific EMS Agency Number (dAgency.02). A value should be associated with each with (dAgency.15) Statistical Calendar Year.
Simple Content
xs:positiveInteger
maxInclusive:
 4000000
minInclusive:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dAgency.TotalServiceAreaPopulation" name="dAgency.17" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dAgency.18
Type:
anonymous (extension of AnnualAgencyStatistics), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dAgency.18 911 EMS Call Center Volume per Year Yes Yes The number of 911 calls received by the call center during the last calendar year D01_14 Required Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma This statistical information is associated with the EMS Agency's specific EMS Agency Number (dAgency.02). A value should be associated with each with (dAgency.15) Statistical Calendar Year. Name Clarified with "Call Center"
Simple Content
xs:positiveInteger
maxInclusive:
 4000000
minInclusive:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dAgency.NineOneOneEMSCallCenterVolumeperYear" name="dAgency.18" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dAgency.19
Type:
anonymous (extension of AnnualAgencyStatistics), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dAgency.19 EMS Dispatch Volume per Year Yes Yes The number of EMS dispatches during the last calendar year D01_15 Required Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma This statistical information is associated with the EMS Agency's specific EMS Agency Number (dAgency.02). A value should be associated with each with (dAgency.15) Statistical Calendar Year.
Simple Content
xs:positiveInteger
maxInclusive:
 4000000
minInclusive:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dAgency.EMSDispatchVolumeperYear" name="dAgency.19" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dAgency.20
Type:
anonymous (extension of AnnualAgencyStatistics), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dAgency.20 EMS Patient Transport Volume per Year Yes Yes The number of EMS transports per year based on last calendar year. D01_16 Required Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma This statistical information is associated with the EMS Agency's specific EMS Agency Number (dAgency.02). A value should be associated with each with (dAgency.15) Statistical Calendar Year.
Simple Content
xs:positiveInteger
maxInclusive:
 4000000
minInclusive:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dAgency.EMSPatientTransportVolumeperYear" name="dAgency.20" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dAgency.21
Type:
anonymous (extension of AnnualAgencyStatistics), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dAgency.21 EMS Patient Contact Volume per Year Yes Yes The number of EMS patient contacts per year based on last calendar year. D01_17 Required Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma This statistical information is associated with the EMS Agency's specific EMS Agency Number (dAgency.02). A value should be associated with each with (dAgency.15) Statistical Calendar Year.
Simple Content
xs:positiveInteger
maxInclusive:
 4000000
minInclusive:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dAgency.EMSPatientContactVolumeperYear" name="dAgency.21" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dAgency.22
Type:
anonymous (extension of AnnualAgencyStatistics), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dAgency.22 EMS Billable Calls per Year No Yes The number of EMS patient encounters which are billable based on the last calendar year. D01_18 Recommended This statistical information is associated with the EMS Agency's specific EMS Agency Number (dAgency.02). A value should be associated with each with (dAgency.15) Statistical Calendar Year.
Simple Content
xs:positiveInteger
maxInclusive:
 4000000
minInclusive:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dAgency.EMSBillableCallsperYear" minOccurs="0" name="dAgency.22" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AnnualAgencyStatistics">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
