element -> <dFacilityGroup>
Group Tag to hold info about Facility Information and Facility Type
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 2 elements
Defined:
locally within dFacility complexType in dFacility_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements

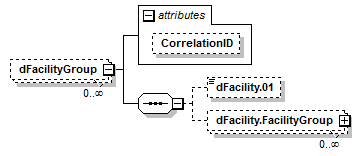

Content Model Diagram
XML Representation Summary
<dFacilityGroup
    CorrelationID
 =
 xs:string
    >

Content:
 dFacility.01?, dFacility.FacilityGroup*
</dFacilityGroup>
Content model elements (2):
dFacility.01 (in dFacilityGroup),
dFacility.FacilityGroup (in dFacilityGroup)
Included in content model of elements (1):
dFacility (in DemographicReport)
XML Source (w/o annotations (17); see within schema source)
<xs:element id="dFacility.dFacilityGroup" maxOccurs="unbounded" minOccurs="0" name="dFacilityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.TypeofFacility" minOccurs="0" name="dFacility.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TypeOfFacility"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityGroup" maxOccurs="unbounded" minOccurs="0" name="dFacility.FacilityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.FacilityName" minOccurs="0" name="dFacility.02" type="FacilityName"/>
<xs:element id="dFacility.FacilityCode" minOccurs="0" name="dFacility.03" type="FacilityCode"/>
<xs:element id="dFacility.HospitalDesignation" maxOccurs="unbounded" minOccurs="0" name="dFacility.04">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HospitalDesignation">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityNationalProviderIdentifier" maxOccurs="unbounded" minOccurs="0" name="dFacility.05">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="NationalProviderIdentifier">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityRoomSuiteorApartment" minOccurs="0" name="dFacility.06" type="FacilityRoom"/>
<xs:element id="dFacility.FacilityStreetAddress" minOccurs="0" name="dFacility.07">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StreetAddress">
<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityCity" minOccurs="0" name="dFacility.08" type="CityGnisCode"/>
<xs:element id="dFacility.FacilityState" minOccurs="0" name="dFacility.09" type="ANSIStateCode"/>
<xs:element id="dFacility.FacilityZIPCode" minOccurs="0" name="dFacility.10" type="ZIP"/>
<xs:element id="dFacility.FacilityCounty" minOccurs="0" name="dFacility.11" type="ANSICountyCode"/>
<xs:element id="dFacility.FacilityCountry" minOccurs="0" name="dFacility.12" type="ANSICountryCodesCAMXUS"/>
<xs:element id="dFacility.FacilityGPSLocation" minOccurs="0" name="dFacility.13" type="GPSLocation"/>
<xs:element id="dFacility.FacilityUSNationalGridCoordinates" minOccurs="0" name="dFacility.14" type="USNG"/>
<xs:element id="dFacility.FacilityPhoneNumber" maxOccurs="unbounded" minOccurs="0" name="dFacility.15">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PhoneNumber">
<xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 2/2)
dFacility.01
Type:
anonymous (extension of TypeOfFacility), simple content
dFacility.01 Type of Facility No No The type of facility (healthcare or other) that the EMS agency transports patients to or from. D04_15 Optional
Simple Content
enumeration of xs:string
Enumeration:
"1701001"
 -
 Assisted Living Facility
"1701003"
 -
 Clinic
"1701005"
 -
 Hospital
"1701007"
 -
 Nursing Home
"1701009"
 -
 Other
"1701011"
 -
 Urgent Care
"1701013"
 -
 Rehabilitation Facility
"1701015"
 -
 Mental Health Facility
"1701017"
 -
 Dialysis Center
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dFacility.TypeofFacility" minOccurs="0" name="dFacility.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TypeOfFacility"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dFacility.FacilityGroup
Type:
anonymous, complex content
Group Tag to hold info about the Facility and the Facility details
XML Source (w/o annotations (15); see within schema source)
<xs:element id="dFacility.FacilityGroup" maxOccurs="unbounded" minOccurs="0" name="dFacility.FacilityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.FacilityName" minOccurs="0" name="dFacility.02" type="FacilityName"/>
<xs:element id="dFacility.FacilityCode" minOccurs="0" name="dFacility.03" type="FacilityCode"/>
<xs:element id="dFacility.HospitalDesignation" maxOccurs="unbounded" minOccurs="0" name="dFacility.04">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HospitalDesignation">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityNationalProviderIdentifier" maxOccurs="unbounded" minOccurs="0" name="dFacility.05">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="NationalProviderIdentifier">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityRoomSuiteorApartment" minOccurs="0" name="dFacility.06" type="FacilityRoom"/>
<xs:element id="dFacility.FacilityStreetAddress" minOccurs="0" name="dFacility.07">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StreetAddress">
<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityCity" minOccurs="0" name="dFacility.08" type="CityGnisCode"/>
<xs:element id="dFacility.FacilityState" minOccurs="0" name="dFacility.09" type="ANSIStateCode"/>
<xs:element id="dFacility.FacilityZIPCode" minOccurs="0" name="dFacility.10" type="ZIP"/>
<xs:element id="dFacility.FacilityCounty" minOccurs="0" name="dFacility.11" type="ANSICountyCode"/>
<xs:element id="dFacility.FacilityCountry" minOccurs="0" name="dFacility.12" type="ANSICountryCodesCAMXUS"/>
<xs:element id="dFacility.FacilityGPSLocation" minOccurs="0" name="dFacility.13" type="GPSLocation"/>
<xs:element id="dFacility.FacilityUSNationalGridCoordinates" minOccurs="0" name="dFacility.14" type="USNG"/>
<xs:element id="dFacility.FacilityPhoneNumber" maxOccurs="unbounded" minOccurs="0" name="dFacility.15">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PhoneNumber">
<xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
