element -> <eExam.ExtremityGroup>
Group Tag to hold extremity assessment findings information
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 2 elements
Defined:
locally within eExam.AssessmentGroup element in eExam_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements

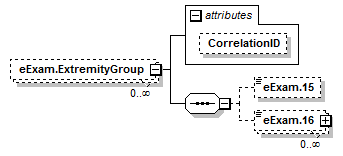

Content Model Diagram
XML Representation Summary
<eExam.ExtremityGroup
    CorrelationID
 =
 xs:string
    >

Content:
 eExam.15?, eExam.16*
</eExam.ExtremityGroup>
Content model elements (2):
eExam.15 (in eExam.ExtremityGroup),
eExam.16 (in eExam.ExtremityGroup)
Included in content model of elements (1):
eExam.AssessmentGroup (in eExam)
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eExam.ExtremityGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.ExtremityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.ExtremityAssessmentFindingLocation" minOccurs="0" name="eExam.15" type="ExtremityAssessmentLocation"/>
<xs:element id="eExam.ExtremitiesAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.16">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ExtremitiesAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 2/2)
eExam.15
Type:
ExtremityAssessmentLocation, simple content
eExam.15 Extremity Assessment Finding Location No No The location of the patient's extremity assessment findings. Optional Element eExam.16 - Extremities Assessment represents Version 2.2.1 NHTSA Injury Matrix elements E15_08 Upper Extremities and E15_10 Lower Extremities AND E16_17 Extremities-Right Upper Assessment, E16_18 Extremities-Right Lower Assessment, E16_19 Extremities-Left Upper Assessment, and E16_20 Extremities-Left Lower Assessment. The element value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3515001"
 -
 Ankle-Left
"3515003"
 -
 Ankle-Right
"3515005"
 -
 Arm-Upper-Left
"3515007"
 -
 Arm-Upper-Right
"3515009"
 -
 Elbow-Left
"3515011"
 -
 Elbow-Right
"3515013"
 -
 Finger-2nd (Index)-Left
"3515015"
 -
 Finger-2nd (Index)-Right
"3515017"
 -
 Finger-3rd (Middle)-Left
"3515019"
 -
 Finger-3rd (Middle)-Right
"3515021"
 -
 Finger-4th (Ring)-Left
"3515023"
 -
 Finger-4th (Ring)-Right
"3515025"
 -
 Finger-5th (Smallest)-Left
"3515027"
 -
 Finger-5th (Smallest)-Right
"3515029"
 -
 Foot-Dorsal-Left
"3515031"
 -
 Foot-Dorsal-Right
"3515033"
 -
 Foot-Plantar-Left
"3515035"
 -
 Foot-Plantar-Right
"3515037"
 -
 Forearm-Left
"3515039"
 -
 Forearm-Right
"3515041"
 -
 Hand-Dorsal-Left
"3515043"
 -
 Hand-Dorsal-Right
"3515045"
 -
 Hand-Palm-Left
"3515047"
 -
 Hand-Palm-Right
"3515049"
 -
 Hip-Left
"3515051"
 -
 Hip-Right
"3515053"
 -
 Knee-Left
"3515055"
 -
 Knee-Right
"3515057"
 -
 Leg-Lower-Left
"3515059"
 -
 Leg-Lower-Right
"3515061"
 -
 Leg-Upper-Left
"3515063"
 -
 Leg-Upper-Right
"3515065"
 -
 Shoulder-Left
"3515067"
 -
 Shoulder-Right
"3515069"
 -
 Thumb-Left
"3515071"
 -
 Thumb-Right
"3515073"
 -
 Toe-1st (Big)-Left
"3515075"
 -
 Toe-1st (Big)-Right
"3515077"
 -
 Toe-2nd-Left
"3515079"
 -
 Toe-2nd-Right
"3515081"
 -
 Toe-3rd-Left
"3515083"
 -
 Toe-3rd-Right
"3515085"
 -
 Toe-4th-Left
"3515087"
 -
 Toe-4th-Right
"3515089"
 -
 Toe-5th (Smallest)-Left
"3515091"
 -
 Toe-5th (Smallest)-Right
"3515093"
 -
 Wrist-Left
"3515095"
 -
 Wrist-Right
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.ExtremityAssessmentFindingLocation" minOccurs="0" name="eExam.15" type="ExtremityAssessmentLocation"/>
eExam.16
Type:
anonymous (extension of ExtremitiesAssessment), simple content
eExam.16 Extremities Assessment No No The assessment findings associated with the patient's extremities. E16_17 Optional Element eExam.16 - Extremities Assessment represents Version 2.2.1 NHTSA Injury Matrix elements E15_08 Upper Extremities and E15_10 Lower Extremities AND E16_17 Extremities-Right Upper Assessment, E16_18 Extremities-Right Lower Assessment, E16_19 Extremities-Left Upper Assessment, and E16_20 Extremities-Left Lower Assessment. The element value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3516001"
 -
 Abrasion
"3516003"
 -
 Amputation-Acute
"3516005"
 -
 Amputation-Previous
"3516007"
 -
 Avulsion
"3516009"
 -
 Bleeding Controlled
"3516011"
 -
 Bleeding Uncontrolled
"3516013"
 -
 Burn-Blistering
"3516015"
 -
 Burn-Charring
"3516017"
 -
 Burn-Redness
"3516019"
 -
 Burn-White/Waxy
"3516021"
 -
 Clubbing (of fingers)
"3516023"
 -
 Crush Injury
"3516025"
 -
 Deformity
"3516027"
 -
 Dislocation
"3516029"
 -
 Edema
"3516031"
 -
 Foreign Body
"3516033"
 -
 Fracture-Closed
"3516035"
 -
 Fracture-Open
"3516041"
 -
 Laceration
"3516043"
 -
 Motor Function-Abnormal/Weakness
"3516045"
 -
 Motor Function-Absent
"3516047"
 -
 Motor Function-Normal
"3516049"
 -
 Normal
"3516051"
 -
 Not Done
"3516053"
 -
 Pain
"3516055"
 -
 Paralysis
"3516057"
 -
 Pulse-Abnormal
"3516059"
 -
 Pulse-Absent
"3516061"
 -
 Pulse-Normal
"3516063"
 -
 Puncture/Stab Wound
"3516065"
 -
 Sensation-Abnormal
"3516067"
 -
 Sensation-Absent
"3516069"
 -
 Sensation-Normal
"3516075"
 -
 Tenderness
"3516077"
 -
 Gunshot Wound
"3516079"
 -
 Swelling
"3516081"
 -
 Contusion
"3516083"
 -
 Arm Drift
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.ExtremitiesAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.16">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ExtremitiesAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
