element -> <eExam.AssessmentGroup>
Group Tag to hold assessment information
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 14 elements
Defined:
locally within eExam complexType in eExam_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 14 elements

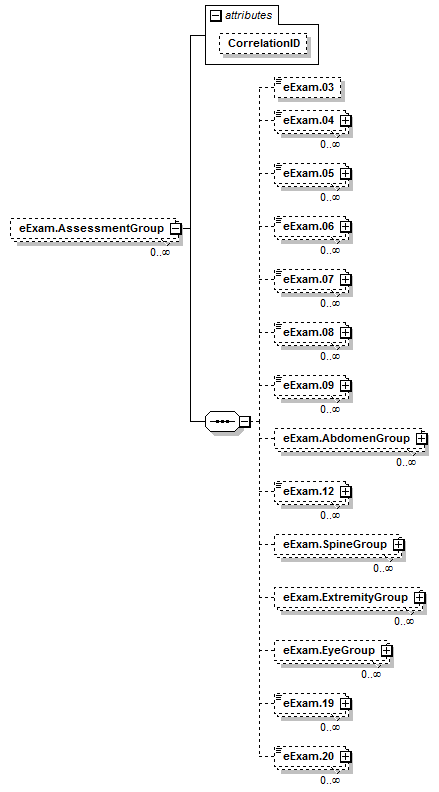

Content Model Diagram
XML Representation Summary
<eExam.AssessmentGroup
    CorrelationID
 =
 xs:string
    >

Content:
 eExam.03?, eExam.04*, eExam.05*, eExam.06*, eExam.07*, eExam.08*, eExam.09*, eExam.AbdomenGroup*, eExam.12*, eExam.SpineGroup*, eExam.ExtremityGroup*, eExam.EyeGroup*, eExam.19*, eExam.20*
</eExam.AssessmentGroup>
Content model elements (14):
eExam.03 (in eExam.AssessmentGroup),
eExam.04 (in eExam.AssessmentGroup),
eExam.05 (in eExam.AssessmentGroup),
eExam.06 (in eExam.AssessmentGroup),
eExam.07 (in eExam.AssessmentGroup),
eExam.08 (in eExam.AssessmentGroup),
eExam.09 (in eExam.AssessmentGroup),
eExam.12 (in eExam.AssessmentGroup),
eExam.19 (in eExam.AssessmentGroup),
eExam.20 (in eExam.AssessmentGroup),
eExam.AbdomenGroup (in eExam.AssessmentGroup),
eExam.ExtremityGroup (in eExam.AssessmentGroup),
eExam.EyeGroup (in eExam.AssessmentGroup),
eExam.SpineGroup (in eExam.AssessmentGroup)
Included in content model of elements (1):
eExam (in PatientCareReport)
XML Source (w/o annotations (23); see within schema source)
<xs:element id="eExam.AssessmentGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.AssessmentGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.DateTimeofAssessment" minOccurs="0" name="eExam.03">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.SkinAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.04">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="SkinAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.HeadAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.05">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HeadAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.FaceAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="FaceAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.NeckAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.07">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="NeckAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.ChestLungsAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.08">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ChestLungsAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.HeartAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.09">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HeartAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.AbdomenGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.AbdomenGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.AbdominalAssessmentFindingLocation" minOccurs="0" name="eExam.10" type="AbdominalExamFindingLocation"/>
<xs:element id="eExam.AbdomenAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.11">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AbdomenAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
<xs:element id="eExam.PelvisGenitourinaryAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.12">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GUAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.SpineGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.SpineGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.BackandSpineAssessmentFindingLocation" minOccurs="0" name="eExam.13" type="BackAndSpineAssessmentLocation"/>
<xs:element id="eExam.BackandSpineAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.14">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BackAndSpineAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
<xs:element id="eExam.ExtremityGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.ExtremityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.ExtremityAssessmentFindingLocation" minOccurs="0" name="eExam.15" type="ExtremityAssessmentLocation"/>
<xs:element id="eExam.ExtremitiesAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.16">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ExtremitiesAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
<xs:element id="eExam.EyeGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.EyeGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.EyeAssessmentFindingLocation" minOccurs="0" name="eExam.17" type="EyesAssessmentLocation"/>
<xs:element id="eExam.EyeAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.18">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EyesAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
<xs:element id="eExam.MentalStatusAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.19">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="MentalStatusAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eExam.NeurologicalAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.20">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="NeurologicalAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 14/14)
eExam.03
Type:
anonymous (extension of DateTimeType), simple content
eExam.03 Date/Time of Assessment No No The date/time of the assessment E16_03 Optional Airway Stroke Cardiac Arrest DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table>
Simple Content
xs:dateTime
maxInclusive:
 2050-01-01T00:00:00-00:00
minInclusive:
 1950-01-01T00:00:00-00:00
Pattern:
 [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.DateTimeofAssessment" minOccurs="0" name="eExam.03">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.04
Type:
anonymous (extension of SkinAssessment), simple content
eExam.04 Skin Assessment No No The assessment findings associated with the patient's skin. E16_04 Optional Element eExam.04 - Skin Assessment represents Version 2.2.1 elements E15_01 NHTSA Injury Matrix External/Skin and E16_04 Skin Assessment. The element value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3504001"
 -
 Clammy
"3504003"
 -
 Cold
"3504005"
 -
 Cyanotic
"3504007"
 -
 Diaphoretic
"3504009"
 -
 Dry
"3504011"
 -
 Flushed
"3504013"
 -
 Hot
"3504015"
 -
 Jaundiced
"3504017"
 -
 Lividity
"3504019"
 -
 Mottled
"3504021"
 -
 Normal
"3504023"
 -
 Not Done
"3504025"
 -
 Pale
"3504027"
 -
 Poor Turgor
"3504029"
 -
 Red (Erythematous)
"3504031"
 -
 Tenting
"3504033"
 -
 Warm
"3504035"
 -
 Capillary Nail Bed Refill less than 2 seconds
"3504037"
 -
 Capillary Nail Bed Refill 2-4 seconds
"3504039"
 -
 Capillary Nail Bed Refill more than 4 seconds
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.SkinAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.04">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="SkinAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.05
Type:
anonymous (extension of HeadAssessment), simple content
eExam.05 Head Assessment No No The assessment findings associated with the patient's head. E16_05 Optional Element eExam.05 - Head Assessment represents Version 2.2.1 elements E15_02 NHTSA Injury Matrix Head and E16_05 Head/Face Assessment. The element value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3505001"
 -
 Abrasion
"3505003"
 -
 Avulsion
"3505005"
 -
 Bleeding Controlled
"3505007"
 -
 Bleeding Uncontrolled
"3505009"
 -
 Burn-Blistering
"3505011"
 -
 Burn-Charring
"3505013"
 -
 Burn-Redness
"3505015"
 -
 Burn-White/Waxy
"3505017"
 -
 Decapitation
"3505019"
 -
 Deformity
"3505021"
 -
 Drainage
"3505023"
 -
 Foreign Body
"3505029"
 -
 Laceration
"3505031"
 -
 Mass/Lesion
"3505033"
 -
 Normal
"3505035"
 -
 Not Done
"3505037"
 -
 Pain
"3505039"
 -
 Puncture/Stab Wound
"3505045"
 -
 Gunshot Wound
"3505047"
 -
 Crush Injury
"3505049"
 -
 Swelling
"3505051"
 -
 Contusion
"3505053"
 -
 Tenderness
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.HeadAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.05">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HeadAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.06
Type:
anonymous (extension of FaceAssessment), simple content
eExam.06 Face Assessment No No The assessment findings associated with the patient's face. Optional Element eExam.06 - Face Assessment represents Version 2.2.1 element E15_03 NHTSA Injury Matrix Face The element value choices have been expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3506001"
 -
 Abrasion
"3506003"
 -
 Asymmetric Smile or Droop
"3506005"
 -
 Avulsion
"3506007"
 -
 Bleeding Controlled
"3506009"
 -
 Bleeding Uncontrolled
"3506011"
 -
 Burn-Blistering
"3506013"
 -
 Burn-Charring
"3506015"
 -
 Burn-Redness
"3506017"
 -
 Burn-White/Waxy
"3506021"
 -
 Deformity
"3506023"
 -
 Drainage
"3506025"
 -
 Foreign Body
"3506031"
 -
 Laceration
"3506033"
 -
 Mass/Lesion
"3506035"
 -
 Normal
"3506037"
 -
 Not Done
"3506039"
 -
 Pain
"3506041"
 -
 Puncture/Stab Wound
"3506047"
 -
 Gunshot Wound
"3506049"
 -
 Crush Injury
"3506051"
 -
 Tenderness
"3506053"
 -
 Swelling
"3506055"
 -
 Contusion
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.FaceAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="FaceAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.07
Type:
anonymous (extension of NeckAssessment), simple content
eExam.07 Neck Assessment No No The assessment findings associated with the patient's neck. E16_06 Optional Element eExam.07 - Neck Assessment represents Version 2.2.1 elements E15_04 NHTSA Injury Matrix Neck and E16_06 Neck Assessment. The element value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3507001"
 -
 Abrasion
"3507003"
 -
 Avulsion
"3507005"
 -
 Bleeding Controlled
"3507007"
 -
 Bleeding Uncontrolled
"3507009"
 -
 Burn-Blistering
"3507011"
 -
 Burn-Charring
"3507013"
 -
 Burn-Redness
"3507015"
 -
 Burn-White/Waxy
"3507017"
 -
 Decapitation
"3507019"
 -
 Foreign Body
"3507025"
 -
 JVD
"3507027"
 -
 Laceration
"3507029"
 -
 Normal
"3507031"
 -
 Not Done
"3507033"
 -
 Pain
"3507035"
 -
 Puncture/Stab Wound
"3507037"
 -
 Stridor
"3507039"
 -
 Subcutaneous Air
"3507045"
 -
 Tracheal Deviation-Left
"3507047"
 -
 Tracheal Deviation-Right
"3507049"
 -
 Gunshot Wound
"3507051"
 -
 Crush Injury
"3507053"
 -
 Swelling
"3507055"
 -
 Contusion
"3507057"
 -
 Deformity
"3507059"
 -
 Tenderness
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.NeckAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.07">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="NeckAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.08
Type:
anonymous (extension of ChestLungsAssessment), simple content
eExam.08 Chest/Lungs Assessment No No The assessment findings associated with the patient's chest/lungs. E16_07 Optional Element eExam.08 - Chest/Lungs Assessment represents Version 2.2.1 element E16_07 Chest/Lungs Assessment. The element value choices have been expanded. Airway Pediatric
Simple Content
enumeration of xs:string
Enumeration:
"3508001"
 -
 Abrasion
"3508003"
 -
 Avulsion
"3508005"
 -
 Accessory Muscles Used with Breathing
"3508007"
 -
 Bleeding Controlled
"3508009"
 -
 Bleeding Uncontrolled
"3508011"
 -
 Breath Sounds-Absent-Left
"3508013"
 -
 Breath Sounds-Absent-Right
"3508015"
 -
 Breath Sounds-Decreased Left
"3508017"
 -
 Breath Sounds-Decreased Right
"3508019"
 -
 Breath Sounds-Equal
"3508021"
 -
 Breath Sounds-Normal-Left
"3508023"
 -
 Breath Sounds-Normal-Right
"3508025"
 -
 Burn-Blistering
"3508027"
 -
 Burn-Charring
"3508029"
 -
 Burn-Redness
"3508031"
 -
 Burn-White/Waxy
"3508033"
 -
 Crush Injury
"3508035"
 -
 Deformity
"3508037"
 -
 Flail Segment-Left
"3508039"
 -
 Flail Segment-Right
"3508041"
 -
 Foreign Body
"3508047"
 -
 Increased Respiratory Effort
"3508049"
 -
 Implanted Device
"3508051"
 -
 Laceration
"3508053"
 -
 Normal
"3508055"
 -
 Not Done
"3508057"
 -
 Pain
"3508059"
 -
 Pain with Inspiration/expiration-Left
"3508061"
 -
 Pain with Inspiration/expiration-Right
"3508063"
 -
 Puncture/Stab Wound
"3508065"
 -
 Rales-Left
"3508067"
 -
 Rales-Right
"3508069"
 -
 Retraction
"3508071"
 -
 Rhonchi-Left
"3508073"
 -
 Rhonchi-Right
"3508075"
 -
 Rhonchi/Wheezing
"3508077"
 -
 Stridor-Left
"3508079"
 -
 Stridor-Right
"3508085"
 -
 Tenderness-Left
"3508087"
 -
 Tenderness-Right
"3508089"
 -
 Wheezing-Expiratory - Left
"3508091"
 -
 Wheezing-Expiratory - Right
"3508093"
 -
 Wheezing-Inspiratory - Left
"3508095"
 -
 Wheezing-Inspiratory - Right
"3508097"
 -
 Gunshot Wound
"3508099"
 -
 Swelling
"3508101"
 -
 Contusion
"3508103"
 -
 Tenderness-General
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.ChestLungsAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.08">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ChestLungsAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.09
Type:
anonymous (extension of HeartAssessment), simple content
eExam.09 Heart Assessment No No The assessment findings associated with the patient's heart. E16_08 Optional Element eExam.09 - Heart Assessment represents Version 2.2.1 element E16_08 Heart Assessment. The element value choices have been expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3509001"
 -
 Clicks
"3509003"
 -
 Heart Sounds Decreased
"3509005"
 -
 Murmur-Diastolic
"3509007"
 -
 Murmur-Systolic
"3509009"
 -
 Normal
"3509011"
 -
 Not Done
"3509013"
 -
 Rubs
"3509015"
 -
 S1
"3509017"
 -
 S2
"3509019"
 -
 S3
"3509021"
 -
 S4
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.HeartAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.09">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HeartAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.12
Type:
anonymous (extension of GUAssessment), simple content
eExam.12 Pelvis/Genitourinary Assessment No No The assessment findings associated with the patient's pelvis/genitourinary. E16_13 Optional Element eExam.12 - Pelvis/Genitourinary Assessment represents Version 2.2.1 elements E15_09 NHTSA Injury Matrix Pelvis and E16_13 GU Assessment. The element value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3512001"
 -
 Abrasion
"3512003"
 -
 Avulsion
"3512005"
 -
 Bleeding Controlled
"3512007"
 -
 Bleeding Uncontrolled
"3512009"
 -
 Bleeding-Rectal
"3512011"
 -
 Bleeding-Urethral
"3512013"
 -
 Bleeding-Vaginal
"3512015"
 -
 Burn-Blistering
"3512017"
 -
 Burn-Charring
"3512019"
 -
 Burn-Redness
"3512021"
 -
 Burn-White/Waxy
"3512023"
 -
 Deformity
"3512025"
 -
 Foreign Body
"3512027"
 -
 Genital Injury
"3512033"
 -
 Laceration
"3512035"
 -
 Mass/Lesion
"3512037"
 -
 Normal
"3512039"
 -
 Not Done
"3512041"
 -
 Pain
"3512043"
 -
 Pelvic Fracture
"3512045"
 -
 Pelvic Instability
"3512047"
 -
 Penile Priapism/Erection
"3512049"
 -
 Pregnant-Crowning
"3512051"
 -
 Puncture/Stab Wound
"3512057"
 -
 Tenderness
"3512059"
 -
 Gunshot Wound
"3512061"
 -
 Crush Injury
"3512063"
 -
 Swelling
"3512065"
 -
 Contusion
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.PelvisGenitourinaryAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.12">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GUAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.19
Type:
anonymous (extension of MentalStatusAssessment), simple content
eExam.19 Mental Status Assessment No No The assessment findings of the patient's mental status examination. E16_23 Optional Element eExam.19 - Mental Status Assessment represents Version 2.2.1 element E16_23 Mental Status Assessment. The element value choices have been expanded. Cardiac Arrest Stroke
Simple Content
enumeration of xs:string
Enumeration:
"3519001"
 -
 Combative
"3519003"
 -
 Confused
"3519005"
 -
 Hallucinations
"3519007"
 -
 Normal Baseline for Patient
"3519009"
 -
 Not Done
"3519011"
 -
 Oriented-Person
"3519013"
 -
 Oriented-Place
"3519015"
 -
 Oriented-Event
"3519017"
 -
 Oriented-Time
"3519019"
 -
 Pharmacologically Sedated/Paralyzed
"3519021"
 -
 Unresponsive
"3519023"
 -
 Agitation
"3519025"
 -
 Somnolent
"3519027"
 -
 Stupor
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.MentalStatusAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.19">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="MentalStatusAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.20
Type:
anonymous (extension of NeurologicalAssessment), simple content
eExam.20 Neurological Assessment No No The assessment findings of the patient's neurological examination. E16_24 Optional Element eExam.20 - Neurological Assessment represents Version 2.2.1 element E16_24 Neurological Assessment. The element value choices have been expanded. Cardiac Arrest Stroke
Simple Content
enumeration of xs:string
Enumeration:
"3520001"
 -
 Aphagia
"3520003"
 -
 Aphasia
"3520005"
 -
 Cerebellar Function-Abnormal
"3520007"
 -
 Cerebellar Function-Normal
"3520009"
 -
 Decerebrate Posturing
"3520011"
 -
 Decorticate Posturing
"3520013"
 -
 Gait-Abnormal
"3520015"
 -
 Gait-Normal
"3520017"
 -
 Hemiplegia-Left
"3520019"
 -
 Hemiplegia-Right
"3520021"
 -
 Normal Baseline for Patient
"3520023"
 -
 Not Done
"3520025"
 -
 Seizures
"3520027"
 -
 Speech Normal
"3520029"
 -
 Speech Slurring
"3520031"
 -
 Strength-Asymmetric
"3520033"
 -
 Strength-Normal
"3520035"
 -
 Strength-Symmetric
"3520037"
 -
 Tremors
"3520039"
 -
 Weakness-Facial Droop-Left
"3520041"
 -
 Weakness-Facial Droop-Right
"3520043"
 -
 Weakness-Left Sided
"3520045"
 -
 Weakness-Right Sided
"3520051"
 -
 Arm Drift-Left
"3520053"
 -
 Arm Drift-Right
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.NeurologicalAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.20">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="NeurologicalAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eExam.AbdomenGroup
Type:
anonymous, complex content
Group Tag to hold abdomen assessment findings information
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eExam.AbdomenGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.AbdomenGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.AbdominalAssessmentFindingLocation" minOccurs="0" name="eExam.10" type="AbdominalExamFindingLocation"/>
<xs:element id="eExam.AbdomenAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.11">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="AbdomenAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
eExam.ExtremityGroup
Type:
anonymous, complex content
Group Tag to hold extremity assessment findings information
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eExam.ExtremityGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.ExtremityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.ExtremityAssessmentFindingLocation" minOccurs="0" name="eExam.15" type="ExtremityAssessmentLocation"/>
<xs:element id="eExam.ExtremitiesAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.16">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ExtremitiesAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
eExam.EyeGroup
Type:
anonymous, complex content
Group Tag to hold eye assessment findings information
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eExam.EyeGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.EyeGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.EyeAssessmentFindingLocation" minOccurs="0" name="eExam.17" type="EyesAssessmentLocation"/>
<xs:element id="eExam.EyeAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.18">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EyesAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
eExam.SpineGroup
Type:
anonymous, complex content
Group Tag to hold spine assessment findings information
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eExam.SpineGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.SpineGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.BackandSpineAssessmentFindingLocation" minOccurs="0" name="eExam.13" type="BackAndSpineAssessmentLocation"/>
<xs:element id="eExam.BackandSpineAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.14">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BackAndSpineAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
