element -> <eExam.EyeGroup>
Group Tag to hold eye assessment findings information
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 2 elements
Defined:
locally within eExam.AssessmentGroup element in eExam_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements

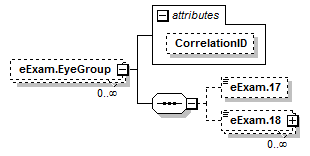

Content Model Diagram
XML Representation Summary
<eExam.EyeGroup
    CorrelationID
 =
 xs:string
    >

Content:
 eExam.17?, eExam.18*
</eExam.EyeGroup>
Content model elements (2):
eExam.17 (in eExam.EyeGroup),
eExam.18 (in eExam.EyeGroup)
Included in content model of elements (1):
eExam.AssessmentGroup (in eExam)
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eExam.EyeGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.EyeGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.EyeAssessmentFindingLocation" minOccurs="0" name="eExam.17" type="EyesAssessmentLocation"/>
<xs:element id="eExam.EyeAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.18">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EyesAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 2/2)
eExam.17
Type:
EyesAssessmentLocation, simple content
eExam.17 Eye Assessment Finding Location No No The location of the patient's eye assessment findings. Optional Element eExam.17 - Eye Assessment Finding Location represents Version 2.2.1 elements E16_21 Eyes-Left Assessment and E16_22 Eyes-Right Assessment. The eye location value choices have been expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3517001"
 -
 Bilateral
"3517003"
 -
 Left
"3517005"
 -
 Right
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.EyeAssessmentFindingLocation" minOccurs="0" name="eExam.17" type="EyesAssessmentLocation"/>
eExam.18
Type:
anonymous (extension of EyesAssessment), simple content
eExam.18 Eye Assessment No No The assessment findings of the patient's eye examination. E16_21 Optional Element eExam.18 - Eye Assessment represents Version 2.2.1 elements E16_21 Eyes-Left Assessment and E16_22 Eyes-Right Assessment. The eye assessment value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3518001"
 -
 1-mm
"3518003"
 -
 2-mm
"3518005"
 -
 3-mm
"3518007"
 -
 4-mm
"3518009"
 -
 5-mm
"3518011"
 -
 6-mm
"3518013"
 -
 7-mm
"3518015"
 -
 8-mm or >
"3518017"
 -
 Blind
"3518019"
 -
 Cataract Present
"3518021"
 -
 Clouded
"3518023"
 -
 Deformity
"3518025"
 -
 Dysconjugate Gaze
"3518027"
 -
 Foreign Body
"3518029"
 -
 Glaucoma Present
"3518031"
 -
 Hyphema
"3518033"
 -
 Jaundiced Sclera
"3518035"
 -
 Missing
"3518037"
 -
 Non-Reactive
"3518039"
 -
 Not Done
"3518041"
 -
 Non-Reactive Prosthetic
"3518043"
 -
 Nystagmus Noted
"3518045"
 -
 Open Globe
"3518047"
 -
 PERRL
"3518049"
 -
 Pupil-Irregular/Teardrop
"3518051"
 -
 Reactive
"3518053"
 -
 Sluggish
"3518055"
 -
 Swelling
"3518057"
 -
 Contusion
"3518059"
 -
 Puncture/Stab Wound
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.EyeAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.18">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EyesAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
