element -> <eExam.SpineGroup>
Group Tag to hold spine assessment findings information
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 2 elements
Defined:
locally within eExam.AssessmentGroup element in eExam_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements

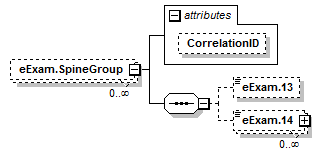

Content Model Diagram
XML Representation Summary
<eExam.SpineGroup
    CorrelationID
 =
 xs:string
    >

Content:
 eExam.13?, eExam.14*
</eExam.SpineGroup>
Content model elements (2):
eExam.13 (in eExam.SpineGroup),
eExam.14 (in eExam.SpineGroup)
Included in content model of elements (1):
eExam.AssessmentGroup (in eExam)
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eExam.SpineGroup" maxOccurs="unbounded" minOccurs="0" name="eExam.SpineGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eExam.BackandSpineAssessmentFindingLocation" minOccurs="0" name="eExam.13" type="BackAndSpineAssessmentLocation"/>
<xs:element id="eExam.BackandSpineAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.14">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BackAndSpineAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 2/2)
eExam.13
Type:
BackAndSpineAssessmentLocation, simple content
eExam.13 Back and Spine Assessment Finding Location No No The location of the patient's back and spine assessment findings. Optional Element eExam.14 - Back and Spine Assessment represents Version 2.2.1 NHTSA Injury Matrix elements E15_07 Spine and E15_05 Thorax AND E16_14 Back Cervical Assessment, E16_15 Back Thoracic Assessment, and E16_16 Back Lumbar/Sacral Assessment. The element value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3513001"
 -
 Back-General
"3513003"
 -
 Cervical-Left
"3513005"
 -
 Cervical-Midline
"3513007"
 -
 Cervical-Right
"3513009"
 -
 Lumbar-Left
"3513011"
 -
 Lumbar-Midline
"3513013"
 -
 Lumbar-Right
"3513015"
 -
 Thoracic-Left
"3513017"
 -
 Thoracic-Midline
"3513019"
 -
 Thoracic-Right
"3513021"
 -
 Sacral-Left
"3513023"
 -
 Sacral-Midline
"3513025"
 -
 Sacral-Right
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.BackandSpineAssessmentFindingLocation" minOccurs="0" name="eExam.13" type="BackAndSpineAssessmentLocation"/>
eExam.14
Type:
anonymous (extension of BackAndSpineAssessment), simple content
eExam.14 Back and Spine Assessment No No The assessment findings associated with the patient's spine (Cervical, Thoracic, Lumbar, and Sacral) and back exam. E16_14 Optional Element eExam.14 - Back and Spine Assessment represents Version 2.2.1 NHTSA Injury Matrix elements E15_07 Spine and E15_05 Thorax AND E16_14 Back Cervical Assessment, E16_15 Back Thoracic Assessment, and E16_16 Back Lumbar/Sacral Assessment. The element value choices have been combined and expanded.
Simple Content
enumeration of xs:string
Enumeration:
"3514001"
 -
 Abrasion
"3514003"
 -
 Avulsion
"3514005"
 -
 Bleeding Controlled
"3514007"
 -
 Bleeding Uncontrolled
"3514009"
 -
 Burn-Blistering
"3514011"
 -
 Burn-Charring
"3514013"
 -
 Burn-Redness
"3514015"
 -
 Burn-White/Waxy
"3514017"
 -
 Deformity
"3514019"
 -
 Foreign Body
"3514025"
 -
 Laceration
"3514027"
 -
 Normal
"3514029"
 -
 Not Done
"3514031"
 -
 Pain
"3514033"
 -
 Pain with Range of Motion
"3514035"
 -
 Puncture/Stab Wound
"3514041"
 -
 Tenderness Costovertebral Angle
"3514043"
 -
 Tenderness Midline Spinous Process
"3514045"
 -
 Tenderness Paraspinous
"3514047"
 -
 Gunshot Wound
"3514049"
 -
 Crush Injury
"3514051"
 -
 Swelling
"3514053"
 -
 Contusion
"3514055"
 -
 Tenderness
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eExam.BackandSpineAssessment" maxOccurs="unbounded" minOccurs="0" name="eExam.14">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BackAndSpineAssessment">
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
