element -> <eVitals.BloodPressureGroup>
Group Tag to hold the details of patient's blood pressure.
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 4 elements
Defined:
locally within eVitals.VitalGroup element in eVitals_v3.xsd; see XML source
Includes:
definitions of 4 elements

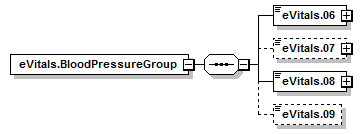

Content Model Diagram
XML Representation Summary
<eVitals.BloodPressureGroup>

Content:
 eVitals.06, eVitals.07?, eVitals.08, eVitals.09?
</eVitals.BloodPressureGroup>
Content model elements (4):
eVitals.06 (in eVitals.BloodPressureGroup),
eVitals.07 (in eVitals.BloodPressureGroup),
eVitals.08 (in eVitals.BloodPressureGroup),
eVitals.09 (in eVitals.BloodPressureGroup)
Included in content model of elements (1):
eVitals.VitalGroup (in eVitals)
XML Source (w/o annotations (5); see within schema source)
<xs:element id="eVitals.BloodPressureGroup" name="eVitals.BloodPressureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.SBPSystolicBloodPressure" name="eVitals.06" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="SBP">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.DBPDiastolicBloodPressure" minOccurs="0" name="eVitals.07" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DBP">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MethodofBloodPressureMeasurement" name="eVitals.08" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodPressureMethod">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MeanArterialPressure" minOccurs="0" name="eVitals.09" type="MAP"/>
</xs:sequence>
</xs:complexType>
</xs:element>
Content Element Detail (all declarations; defined in this component only; 4/4)
eVitals.06
Type:
anonymous (extension of SBP), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.06 SBP (Systolic Blood Pressure) Yes Yes The patient's systolic blood pressure. E14_04 Required Airway Cardiac Arrest Pediatric STEMI Stroke Trauma Required for ACS-Field Triage and other patient scoring systems. Yes
Simple Content
xs:integer
maxInclusive:
 500
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.SBPSystolicBloodPressure" name="eVitals.06" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="SBP">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.07
Type:
anonymous (extension of DBP), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.07 DBP (Diastolic Blood Pressure) No Yes The patient's diastolic blood pressure. E14_05 Recommended Diastolic blood pressure pattern allows for the following values:<br/>1) A number 0 through 500 <br/>2) P<br/>3) p Yes
Simple Content
xs:string
Pattern:
 [5][0][0]|[1-4][0-9][0-9]|[0]|[1-9][0-9]|P|p
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.DBPDiastolicBloodPressure" minOccurs="0" name="eVitals.07" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DBP">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.08
Type:
anonymous (extension of BloodPressureMethod), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.08 Method of Blood Pressure Measurement Yes Yes Indication of method of blood pressure measurement. E14_06 Required
Simple Content
enumeration of xs:string
Enumeration:
"3308001"
 -
 Arterial Line
"3308003"
 -
 Doppler
"3308005"
 -
 Cuff-Automated
"3308007"
 -
 Cuff-Manual Auscultated
"3308009"
 -
 Cuff-Manual Palpated Only
"3308011"
 -
 Venous Line
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.MethodofBloodPressureMeasurement" name="eVitals.08" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodPressureMethod">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.09
Type:
MAP, simple content
eVitals.09 Mean Arterial Pressure No No The patient's mean arterial pressure. Optional Added for additional patient monitoring capability.
Simple Content
xs:integer
maxInclusive:
 500
minInclusive:
 1
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.MeanArterialPressure" minOccurs="0" name="eVitals.09" type="MAP"/>
