element -> <eVitals.VitalGroup>
Group Tag to hold eVitals information
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 20 elements
Defined:
locally within eVitals complexType in eVitals_v3.xsd; see XML source
Includes:
definitions of 1 attribute, 20 elements

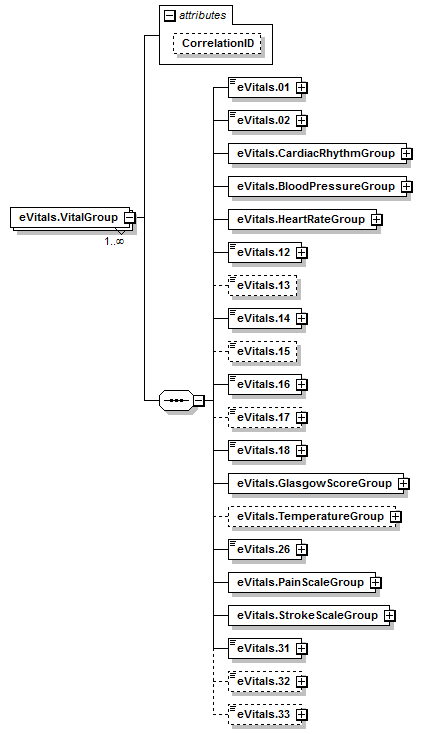

Content Model Diagram
XML Representation Summary
<eVitals.VitalGroup
    CorrelationID
 =
 xs:string
    >

Content:
 eVitals.01, eVitals.02, eVitals.CardiacRhythmGroup, eVitals.BloodPressureGroup, eVitals.HeartRateGroup, eVitals.12, eVitals.13?, eVitals.14, eVitals.15?, eVitals.16, eVitals.17?, eVitals.18, eVitals.GlasgowScoreGroup, eVitals.TemperatureGroup?, eVitals.26, eVitals.PainScaleGroup, eVitals.StrokeScaleGroup, eVitals.31, eVitals.32?, eVitals.33?
</eVitals.VitalGroup>
Content model elements (20):
eVitals.01 (in eVitals.VitalGroup),
eVitals.02 (in eVitals.VitalGroup),
eVitals.12 (in eVitals.VitalGroup),
eVitals.13 (in eVitals.VitalGroup),
eVitals.14 (in eVitals.VitalGroup),
eVitals.15 (in eVitals.VitalGroup),
eVitals.16 (in eVitals.VitalGroup),
eVitals.17 (in eVitals.VitalGroup),
eVitals.18 (in eVitals.VitalGroup),
eVitals.26 (in eVitals.VitalGroup),
eVitals.31 (in eVitals.VitalGroup),
eVitals.32 (in eVitals.VitalGroup),
eVitals.33 (in eVitals.VitalGroup),
eVitals.BloodPressureGroup (in eVitals.VitalGroup),
eVitals.CardiacRhythmGroup (in eVitals.VitalGroup),
eVitals.GlasgowScoreGroup (in eVitals.VitalGroup),
eVitals.HeartRateGroup (in eVitals.VitalGroup),
eVitals.PainScaleGroup (in eVitals.VitalGroup),
eVitals.StrokeScaleGroup (in eVitals.VitalGroup),
eVitals.TemperatureGroup (in eVitals.VitalGroup)
Included in content model of elements (1):
eVitals (in PatientCareReport)
XML Source (w/o annotations (41); see within schema source)
<xs:element id="eVitals.VitalGroup" maxOccurs="unbounded" name="eVitals.VitalGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.DateTimeVitalSignsTaken" name="eVitals.01" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.ObtainedPriortothisUnitsEMSCare" name="eVitals.02" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="YesNoValues">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.CardiacRhythmGroup" name="eVitals.CardiacRhythmGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.CardiacRhythmandElectrocardiography" maxOccurs="unbounded" name="eVitals.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CardiacRhythm">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.ECGType" name="eVitals.04" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ECGType">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MethodofECGInterpretation" maxOccurs="unbounded" name="eVitals.05" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ECGMethod">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.BloodPressureGroup" name="eVitals.BloodPressureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.SBPSystolicBloodPressure" name="eVitals.06" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="SBP">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.DBPDiastolicBloodPressure" minOccurs="0" name="eVitals.07" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DBP">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MethodofBloodPressureMeasurement" name="eVitals.08" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodPressureMethod">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MeanArterialPressure" minOccurs="0" name="eVitals.09" type="MAP"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.HeartRateGroup" name="eVitals.HeartRateGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.HeartRate" name="eVitals.10" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HeartRate">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MethodofHeartRateMeasurement" minOccurs="0" name="eVitals.11" type="MethodMeasureHeartRate"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.PulseOximetry" name="eVitals.12" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PulseOximetry">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.PulseRhythm" minOccurs="0" name="eVitals.13" type="PulseRhythm"/>
<xs:element id="eVitals.RespiratoryRate" name="eVitals.14" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="RespiratoryRate">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.RespiratoryEffort" minOccurs="0" name="eVitals.15">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="RespiratoryEffort"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.EndTidalCarbonDioxideETCO2" name="eVitals.16" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CO2">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.CarbonMonoxideCO" minOccurs="0" name="eVitals.17" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CarbonMonoxideLevel">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.BloodGlucoseLevel" name="eVitals.18" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodGlucoseLevel">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.GlasgowScoreGroup" name="eVitals.GlasgowScoreGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.GlasgowComaScoreEye" name="eVitals.19" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GlasgowComaScoreEyes">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.GlasgowComaScoreVerbal" name="eVitals.20" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GlasgowComaScoreVerbal">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.GlasgowComaScoreMotor" name="eVitals.21" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GlasgowComaScoreMotor">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.GlasgowComaScoreQualifier" maxOccurs="unbounded" name="eVitals.22" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GCSScoreQualifier">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.TotalGlasgowComaScore" minOccurs="0" name="eVitals.23" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TotalGCS">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.TemperatureGroup" minOccurs="0" name="eVitals.TemperatureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.Temperature" minOccurs="0" name="eVitals.24" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BodyTemperature">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.TemperatureMethod" minOccurs="0" name="eVitals.25" type="MethodBodyTemp"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.LevelofResponsivenessAPVU" name="eVitals.26" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PatientsHighestLevelResponsiveness">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.PainScaleGroup" name="eVitals.PainScaleGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.PainScore" name="eVitals.27" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PainScale">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.PainScaleType" minOccurs="0" name="eVitals.28" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TypeOfPainScale">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.StrokeScaleGroup" name="eVitals.StrokeScaleGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.StrokeScaleScore" name="eVitals.29" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StrokeScale">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.StrokeScaleType" name="eVitals.30" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TypeOfStrokeScale">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.ReperfusionChecklist" name="eVitals.31" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ReperfusionChecklist">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.APGAR" minOccurs="0" name="eVitals.32" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="APGAR">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.RevisedTraumaScore" minOccurs="0" name="eVitals.33" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="RTS">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
CorrelationID
Type:
CorrelationID
Use:
optional
Attribute Value
xs:string
MaxLength:
 255
MinLength:
 0
XML Source (see within schema source)
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Content Element Detail (all declarations; defined in this component only; 20/20)
eVitals.01
Type:
anonymous (extension of DateTimeType), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.01 Date/Time Vital Signs Taken Yes Yes The date/time vital signs were taken on the patient. E14_01 Required Airway Cardiac Arrest Pediatric STEMI Stroke Trauma DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table>
Simple Content
xs:dateTime
maxInclusive:
 2050-01-01T00:00:00-00:00
minInclusive:
 1950-01-01T00:00:00-00:00
Pattern:
 [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.DateTimeVitalSignsTaken" name="eVitals.01" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DateTimeType">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.02
Type:
anonymous (extension of YesNoValues), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.02 Obtained Prior to this Unit's EMS Care Yes Yes Indicates that the information which is documented was obtained prior to the documenting EMS units care. E14_02 Required Airway Cardiac Arrest Pediatric STEMI Stroke Trauma This is the NEMSIS Version 3 method to document prior aid.
Simple Content
enumeration of xs:string
Enumeration:
"9923001"
 -
 No
"9923003"
 -
 Yes
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.ObtainedPriortothisUnitsEMSCare" name="eVitals.02" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="YesNoValues">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.12
Type:
anonymous (extension of PulseOximetry), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.12 Pulse Oximetry Yes Yes The patient's oxygen saturation. E14_09 Required Airway Cardiac Arrest Pediatric STEMI Stroke Trauma Yes
Simple Content
xs:integer
maxInclusive:
 100
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.PulseOximetry" name="eVitals.12" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PulseOximetry">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.13
Type:
PulseRhythm, simple content
eVitals.13 Pulse Rhythm No No The clinical rhythm of the patient's pulse. E14_10 Optional
Simple Content
enumeration of xs:string
Enumeration:
"3313001"
 -
 Irregularly Irregular
"3313003"
 -
 Regular
"3313005"
 -
 Regularly Irregular
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.PulseRhythm" minOccurs="0" name="eVitals.13" type="PulseRhythm"/>
eVitals.14
Type:
anonymous (extension of RespiratoryRate), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.14 Respiratory Rate Yes Yes The patient's respiratory rate expressed as a number per minute. E14_11 Required Airway Cardiac Arrest Pediatric STEMI Stroke Trauma Yes
Simple Content
xs:integer
maxInclusive:
 300
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.RespiratoryRate" name="eVitals.14" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="RespiratoryRate">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.15
Type:
anonymous (extension of RespiratoryEffort), simple content
eVitals.15 Respiratory Effort No No The patient's respiratory effort. E14_12 Optional
Simple Content
enumeration of xs:string
Enumeration:
"3315001"
 -
 Apneic
"3315003"
 -
 Labored
"3315005"
 -
 Mechanically Assisted (BVM, CPAP, etc.)
"3315007"
 -
 Normal
"3315009"
 -
 Rapid
"3315011"
 -
 Shallow
"3315013"
 -
 Weak/Agonal
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.RespiratoryEffort" minOccurs="0" name="eVitals.15">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="RespiratoryEffort"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.16
Type:
anonymous (extension of CO2), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.16 End Tidal Carbon Dioxide (ETCO2) Yes Yes The numeric value of the patient's exhaled end tidal carbon dioxide (ETCO2) level measured as a unit of pressure in millimeters of mercury (mmHg). E14_13 Required <comment/> Airway Cardiac Arrest Pediatric STEMI Stroke Trauma Yes
Simple Content
xs:integer
maxInclusive:
 200
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.EndTidalCarbonDioxideETCO2" name="eVitals.16" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CO2">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.17
Type:
anonymous (extension of CarbonMonoxideLevel), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.17 Carbon Monoxide (CO) No Yes The numeric value of the patient's carbon monoxide level measured as a percentage (%) of carboxyhemoglobin (COHb). Recommended Added to allow use of new patient monitoring devices. Yes
Simple Content
xs:decimal
fractionDigits:
 1
maxInclusive:
 100
minInclusive:
 0
totalDigits:
 3
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.CarbonMonoxideCO" minOccurs="0" name="eVitals.17" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CarbonMonoxideLevel">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.18
Type:
anonymous (extension of BloodGlucoseLevel), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.18 Blood Glucose Level Yes Yes The patient's blood glucose level. E14_14 Required Pediatric Stroke For glucometers with "High" and "Low" readings, report "600" for "High" and "20" for "Low". Yes
Simple Content
xs:integer
maxInclusive:
 2000
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.BloodGlucoseLevel" name="eVitals.18" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodGlucoseLevel">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.26
Type:
anonymous (extension of PatientsHighestLevelResponsiveness), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.26 Level of Responsiveness (AVPU) Yes Yes The patient's highest level of responsiveness. E14_22 Required Airway Cardiac Arrest Pediatric STEMI Stroke Trauma Definition changed to indicate highest level of responsiveness.
Simple Content
enumeration of xs:string
Enumeration:
"3326001"
 -
 Alert
"3326003"
 -
 Verbal
"3326005"
 -
 Painful
"3326007"
 -
 Unresponsive
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.LevelofResponsivenessAPVU" name="eVitals.26" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PatientsHighestLevelResponsiveness">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.31
Type:
anonymous (extension of ReperfusionChecklist), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.31 Reperfusion Checklist Yes Yes The results of the patient's Reperfusion Checklist for potential Thrombolysis use. E14_25 Required STEMI Stroke Name changed from Thrombolytic Screen Yes
Simple Content
enumeration of xs:string
Enumeration:
"3331001"
 -
 Definite Contraindications to Thrombolytic Use
"3331003"
 -
 No Contraindications to Thrombolytic Use
"3331005"
 -
 Possible Contraindications to Thrombolytic Use
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.ReperfusionChecklist" name="eVitals.31" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ReperfusionChecklist">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.32
Type:
anonymous (extension of APGAR), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.32 APGAR No No The patient's total APGAR score (0-10). E14_26 Optional Recommended to be taken at 1 and 5 minutes after the infants birth Yes
Simple Content
xs:integer
maxInclusive:
 10
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.APGAR" minOccurs="0" name="eVitals.32" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="APGAR">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.33
Type:
anonymous (extension of RTS), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
eVitals.33 Revised Trauma Score No No The patient's Revised Trauma Score. E14_27 Optional The Revised Trauma Score is a physiological scoring system that is based on the first set of vital signs obtained from the patient, and consists of Glasgow Coma Scale, Systolic Blood Pressure and Respiratory Rate. Trauma Yes
Simple Content
xs:integer
maxInclusive:
 12
minInclusive:
 0
XML Source (w/o annotations (1); see within schema source)
<xs:element id="eVitals.RevisedTraumaScore" minOccurs="0" name="eVitals.33" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="RTS">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
eVitals.BloodPressureGroup
Type:
anonymous, complex content
Group Tag to hold the details of patient's blood pressure.
XML Source (w/o annotations (5); see within schema source)
<xs:element id="eVitals.BloodPressureGroup" name="eVitals.BloodPressureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.SBPSystolicBloodPressure" name="eVitals.06" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="SBP">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.DBPDiastolicBloodPressure" minOccurs="0" name="eVitals.07" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="DBP">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MethodofBloodPressureMeasurement" name="eVitals.08" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BloodPressureMethod">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MeanArterialPressure" minOccurs="0" name="eVitals.09" type="MAP"/>
</xs:sequence>
</xs:complexType>
</xs:element>
eVitals.CardiacRhythmGroup
Type:
anonymous, complex content
Group Tag to hold information of the type and method used for ECG interpretation associated with the cardiac rhythm.
XML Source (w/o annotations (4); see within schema source)
<xs:element id="eVitals.CardiacRhythmGroup" name="eVitals.CardiacRhythmGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.CardiacRhythmandElectrocardiography" maxOccurs="unbounded" name="eVitals.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CardiacRhythm">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.ECGType" name="eVitals.04" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ECGType">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MethodofECGInterpretation" maxOccurs="unbounded" name="eVitals.05" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ECGMethod">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:complexType>
</xs:element>
eVitals.GlasgowScoreGroup
Type:
anonymous, complex content
Group Tag to hold the details of patient's glasgow scale
XML Source (w/o annotations (6); see within schema source)
<xs:element id="eVitals.GlasgowScoreGroup" name="eVitals.GlasgowScoreGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.GlasgowComaScoreEye" name="eVitals.19" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GlasgowComaScoreEyes">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.GlasgowComaScoreVerbal" name="eVitals.20" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GlasgowComaScoreVerbal">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.GlasgowComaScoreMotor" name="eVitals.21" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GlasgowComaScoreMotor">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.GlasgowComaScoreQualifier" maxOccurs="unbounded" name="eVitals.22" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="GCSScoreQualifier">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.TotalGlasgowComaScore" minOccurs="0" name="eVitals.23" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TotalGCS">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
eVitals.HeartRateGroup
Type:
anonymous, complex content
Group Tag to hold the details of patient's heart rate.
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eVitals.HeartRateGroup" name="eVitals.HeartRateGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.HeartRate" name="eVitals.10" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HeartRate">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.MethodofHeartRateMeasurement" minOccurs="0" name="eVitals.11" type="MethodMeasureHeartRate"/>
</xs:sequence>
</xs:complexType>
</xs:element>
eVitals.PainScaleGroup
Type:
anonymous, complex content
Group Tag to hold the scale of patient's pain and the type of pain scale used.
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eVitals.PainScaleGroup" name="eVitals.PainScaleGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.PainScore" name="eVitals.27" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PainScale">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.PainScaleType" minOccurs="0" name="eVitals.28" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TypeOfPainScale">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
eVitals.StrokeScaleGroup
Type:
anonymous, complex content
Group Tag to hold the results of patient's stroke scale and the type of stroke pain scale used.
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eVitals.StrokeScaleGroup" name="eVitals.StrokeScaleGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.StrokeScaleScore" name="eVitals.29" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StrokeScale">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.StrokeScaleType" name="eVitals.30" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TypeOfStrokeScale">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
eVitals.TemperatureGroup
Type:
anonymous, complex content
Group Tag to hold information about patient's body temperature.
XML Source (w/o annotations (3); see within schema source)
<xs:element id="eVitals.TemperatureGroup" minOccurs="0" name="eVitals.TemperatureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eVitals.Temperature" minOccurs="0" name="eVitals.24" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="BodyTemperature">
<xs:attribute name="PN" use="optional">
<xs:simpleType>
<xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eVitals.TemperatureMethod" minOccurs="0" name="eVitals.25" type="MethodBodyTemp"/>
</xs:sequence>
</xs:complexType>
</xs:element>
