element -> <StateDataSet>
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 1 attribute, 8 elements
Defined:
globally in StateDataSet.xsd; see XML source
Includes:
definitions of 1 attribute, 8 elements
Used:
never

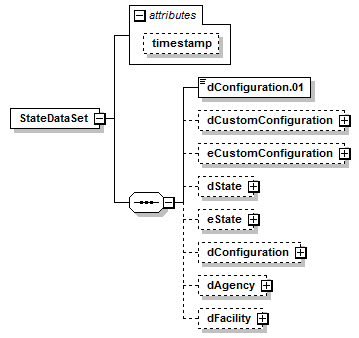

Content Model Diagram
XML Representation Summary
<StateDataSet
    timestamp
 =
 xs:dateTime
    >

Content:
 dConfiguration.01, dCustomConfiguration?, eCustomConfiguration?, dState?, eState?, dConfiguration?, dAgency?, dFacility?
</StateDataSet>
Content model elements (8):
dAgency (in StateDataSet),
dConfiguration (in StateDataSet),
dConfiguration.01 (in StateDataSet),
dCustomConfiguration (in StateDataSet),
dFacility (in StateDataSet),
dState (in StateDataSet),
eCustomConfiguration (in StateDataSet),
eState (in StateDataSet)
XML Source (w/o annotations (51); see within schema source)
<xs:element name="StateDataSet">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.StateAssociatedwiththeCertificationLicensureLevels" name="dConfiguration.01" type="ANSIStateCode"/>
<xs:element minOccurs="0" name="dCustomConfiguration">
<xs:complexType>
<xs:sequence>
<xs:element id="dCustomConfiguration.dCustomGroup" maxOccurs="unbounded" minOccurs="0" name="dCustomConfiguration.CustomGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dCustomConfiguration.dCustomDataElementTitle" minOccurs="0" name="dCustomConfiguration.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomTitle">
<xs:attribute name="nemsisElement" type="xs:string" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dCustomConfiguration.dCustomDefinition" minOccurs="0" name="dCustomConfiguration.02" type="CustomDefinition"/>
<xs:element id="dCustomConfiguration.dCustomDataType" minOccurs="0" name="dCustomConfiguration.03" type="CustomDataType"/>
<xs:element id="dCustomConfiguration.dCustomDataElementRecurrence" minOccurs="0" name="dCustomConfiguration.04" type="YesNoValues"/>
<xs:element id="dCustomConfiguration.dCustomDataElementUsage" minOccurs="0" name="dCustomConfiguration.05" type="ElementUsage"/>
<xs:element id="dCustomConfiguration.dCustomDataElementPotentialValues" maxOccurs="unbounded" minOccurs="0" name="dCustomConfiguration.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomValue">
<xs:attribute name="nemsisCode" type="xs:string" use="optional"/>
<xs:attribute name="customValueDescription" type="xs:string" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dCustomConfiguration.dCustomAcceptableNV" maxOccurs="unbounded" minOccurs="0" name="dCustomConfiguration.07" type="NV"/>
<xs:element id="dCustomConfiguration.dCustomAcceptablePN" maxOccurs="unbounded" minOccurs="0" name="dCustomConfiguration.08" type="PN"/>
<xs:element id="dCustomConfiguration.CustomDataElementGroupingID" minOccurs="0" name="dCustomConfiguration.09" type="CorrelationID"/>
</xs:sequence>
<xs:attribute name="CustomElementID" type="CorrelationID" use="required"/>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element minOccurs="0" name="eCustomConfiguration">
<xs:complexType>
<xs:sequence>
<xs:element id="eCustomConfiguration.eCustomGroup" maxOccurs="unbounded" minOccurs="0" name="eCustomConfiguration.CustomGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eCustomConfiguration.eCustomDataElementTitle" minOccurs="0" name="eCustomConfiguration.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomTitle">
<xs:attribute name="nemsisElement" type="xs:string" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eCustomConfiguration.eCustomDefinition" minOccurs="0" name="eCustomConfiguration.02" type="CustomDefinition"/>
<xs:element id="eCustomConfiguration.eCustomDataType" minOccurs="0" name="eCustomConfiguration.03" type="CustomDataType"/>
<xs:element id="eCustomConfiguration.eCustomDataElementRecurrence" minOccurs="0" name="eCustomConfiguration.04" type="YesNoValues"/>
<xs:element id="eCustomConfiguration.eCustomDataElementUsage" minOccurs="0" name="eCustomConfiguration.05" type="ElementUsage"/>
<xs:element id="eCustomConfiguration.eCustomDataElementPotentialValues" maxOccurs="unbounded" minOccurs="0" name="eCustomConfiguration.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomValue">
<xs:attribute name="nemsisCode" type="xs:string" use="optional"/>
<xs:attribute name="customValueDescription" type="xs:string" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eCustomConfiguration.eCustomAcceptableNV" maxOccurs="unbounded" minOccurs="0" name="eCustomConfiguration.07" type="NV"/>
<xs:element id="eCustomConfiguration.eCustomAcceptablePN" maxOccurs="unbounded" minOccurs="0" name="eCustomConfiguration.08" type="PN"/>
<xs:element id="eCustomConfiguration.CustomDataElementGroupingID" minOccurs="0" name="eCustomConfiguration.09" type="CorrelationID"/>
</xs:sequence>
<xs:attribute name="CustomElementID" type="CorrelationID" use="required"/>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element minOccurs="0" name="dState">
<xs:complexType>
<xs:sequence>
<xs:element id="dState.dStateRequiredElement" maxOccurs="unbounded" minOccurs="0" name="dState.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StateRequiredElement">
<xs:attribute name="TIMESTAMP" type="TimeStampType" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element minOccurs="0" name="eState">
<xs:complexType>
<xs:sequence>
<xs:element id="eState.StateRequiredElement" maxOccurs="unbounded" minOccurs="0" name="eState.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StateRequiredElement">
<xs:attribute name="TIMESTAMP" type="TimeStampType" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element minOccurs="0" name="dConfiguration">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.StateCertificationLicensureLevels" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.02">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="LicensureLevels"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.AgencyProcedureGroup" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.ProcedureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.EMSPersonnelLevelPermittedtoPerformtheProcedure" minOccurs="0" name="dConfiguration.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StateCertificationLicensureLevels"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.ProceduresPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="snomed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.AgencyMedicationGroup" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.MedicationGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.PersonnelLevelPermittedtoAdministertheMedication" minOccurs="0" name="dConfiguration.08" type="StateCertificationLicensureLevels"/>
<xs:element id="dConfiguration.MedicationsPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.04" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="Medication">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.ProtocolsPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.05" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ProtocolsUsed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element minOccurs="0" name="dAgency">
<xs:complexType>
<xs:sequence>
<xs:element maxOccurs="unbounded" minOccurs="0" name="dAgencyGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dAgency.EMSAgencyUniqueStateID" minOccurs="0" name="dAgency.01" type="EMSAgencyStateID"/>
<xs:element id="dAgency.EMSAgencyNumber" minOccurs="0" name="dAgency.02">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EMSAgencyNumber"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dAgency.EMSAgencyName" minOccurs="0" name="dAgency.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EMSAgencyName">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element minOccurs="0" name="dFacility">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.dFacilityGroup" maxOccurs="unbounded" minOccurs="0" name="dFacilityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.TypeofFacility" minOccurs="0" name="dFacility.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TypeOfFacility"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityGroup" maxOccurs="unbounded" minOccurs="0" name="dFacility.FacilityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.FacilityName" minOccurs="0" name="dFacility.02" type="FacilityName"/>
<xs:element id="dFacility.FacilityCode" minOccurs="0" name="dFacility.03" type="FacilityCode"/>
<xs:element id="dFacility.HospitalDesignation" maxOccurs="unbounded" minOccurs="0" name="dFacility.04">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HospitalDesignation"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityNationalProviderIdentifier" maxOccurs="unbounded" minOccurs="0" name="dFacility.05" type="NationalProviderIdentifier"/>
<xs:element id="dFacility.FacilityRoomSuiteorApartment" minOccurs="0" name="dFacility.06" type="FacilityRoom"/>
<xs:element id="dFacility.FacilityStreetAddress" minOccurs="0" name="dFacility.07">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StreetAddress">
<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityCity" minOccurs="0" name="dFacility.08" type="CityGnisCode"/>
<xs:element id="dFacility.FacilityState" minOccurs="0" name="dFacility.09" type="ANSIStateCode"/>
<xs:element id="dFacility.FacilityZIPCode" minOccurs="0" name="dFacility.10" type="ZIP"/>
<xs:element id="dFacility.FacilityCounty" minOccurs="0" name="dFacility.11" type="ANSICountyCode"/>
<xs:element id="dFacility.FacilityCountry" minOccurs="0" name="dFacility.12" type="ANSICountryCodesCAMXUS"/>
<xs:element id="dFacility.FacilityGPSLocation" minOccurs="0" name="dFacility.13" type="GPSLocation"/>
<xs:element id="dFacility.FacilityUSNationalGridCoordinates" minOccurs="0" name="dFacility.14" type="USNG"/>
<xs:element id="dPatient.FacilityPhoneNumber" maxOccurs="unbounded" minOccurs="0" name="dFacility.15">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PhoneNumber">
<xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="timestamp" type="DateTimeType"/>
</xs:complexType>
</xs:element>
Attribute Detail (all declarations; defined in this component only; 1/1)
timestamp
Type:
DateTimeType
Use:
optional
Attribute Value
xs:dateTime
MaxInclusive:
 2050-01-01T00:00:00-00:00
MinInclusive:
 1950-01-01T00:00:00-00:00
Pattern:
 [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
XML Source (see within schema source)
<xs:attribute name="timestamp" type="DateTimeType"/>
Content Element Detail (all declarations; defined in this component only; 8/8)
dAgency
Type:
anonymous, complex content
XML Source (w/o annotations (3); see within schema source)
<xs:element minOccurs="0" name="dAgency">
<xs:complexType>
<xs:sequence>
<xs:element maxOccurs="unbounded" minOccurs="0" name="dAgencyGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dAgency.EMSAgencyUniqueStateID" minOccurs="0" name="dAgency.01" type="EMSAgencyStateID"/>
<xs:element id="dAgency.EMSAgencyNumber" minOccurs="0" name="dAgency.02">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EMSAgencyNumber"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dAgency.EMSAgencyName" minOccurs="0" name="dAgency.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="EMSAgencyName">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
dConfiguration
Type:
anonymous, complex content
XML Source (w/o annotations (8); see within schema source)
<xs:element minOccurs="0" name="dConfiguration">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.StateCertificationLicensureLevels" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.02">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="LicensureLevels"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.AgencyProcedureGroup" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.ProcedureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.EMSPersonnelLevelPermittedtoPerformtheProcedure" minOccurs="0" name="dConfiguration.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StateCertificationLicensureLevels"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.ProceduresPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="snomed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.AgencyMedicationGroup" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.MedicationGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.PersonnelLevelPermittedtoAdministertheMedication" minOccurs="0" name="dConfiguration.08" type="StateCertificationLicensureLevels"/>
<xs:element id="dConfiguration.MedicationsPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.04" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="Medication">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.ProtocolsPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.05" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ProtocolsUsed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
dConfiguration.01
Type:
ANSIStateCode, simple content
dConfiguration.01 State Associated with the Certification/Licensure Levels Yes Yes The state associated with the state certification/licensure levels. Mandatory Associated with the state (dAgency.01 - EMS Agency State). <br/><br/>GNIS Codes Website: <a>http://geonames.usgs.gov/domestic/download_data.htm</a> <br/><br/>The state EMS system does not need to import this information into their database. Reference the Demographic Dataset Submission Guide for further details.
Simple Content
xs:string
Pattern:
 [0-9]{2}
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dConfiguration.StateAssociatedwiththeCertificationLicensureLevels" name="dConfiguration.01" type="ANSIStateCode"/>
dCustomConfiguration
Type:
anonymous, complex content
XML Source (w/o annotations (10); see within schema source)
<xs:element minOccurs="0" name="dCustomConfiguration">
<xs:complexType>
<xs:sequence>
<xs:element id="dCustomConfiguration.dCustomGroup" maxOccurs="unbounded" minOccurs="0" name="dCustomConfiguration.CustomGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dCustomConfiguration.dCustomDataElementTitle" minOccurs="0" name="dCustomConfiguration.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomTitle">
<xs:attribute name="nemsisElement" type="xs:string" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dCustomConfiguration.dCustomDefinition" minOccurs="0" name="dCustomConfiguration.02" type="CustomDefinition"/>
<xs:element id="dCustomConfiguration.dCustomDataType" minOccurs="0" name="dCustomConfiguration.03" type="CustomDataType"/>
<xs:element id="dCustomConfiguration.dCustomDataElementRecurrence" minOccurs="0" name="dCustomConfiguration.04" type="YesNoValues"/>
<xs:element id="dCustomConfiguration.dCustomDataElementUsage" minOccurs="0" name="dCustomConfiguration.05" type="ElementUsage"/>
<xs:element id="dCustomConfiguration.dCustomDataElementPotentialValues" maxOccurs="unbounded" minOccurs="0" name="dCustomConfiguration.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomValue">
<xs:attribute name="nemsisCode" type="xs:string" use="optional"/>
<xs:attribute name="customValueDescription" type="xs:string" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dCustomConfiguration.dCustomAcceptableNV" maxOccurs="unbounded" minOccurs="0" name="dCustomConfiguration.07" type="NV"/>
<xs:element id="dCustomConfiguration.dCustomAcceptablePN" maxOccurs="unbounded" minOccurs="0" name="dCustomConfiguration.08" type="PN"/>
<xs:element id="dCustomConfiguration.CustomDataElementGroupingID" minOccurs="0" name="dCustomConfiguration.09" type="CorrelationID"/>
</xs:sequence>
<xs:attribute name="CustomElementID" type="CorrelationID" use="required"/>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
dFacility
Type:
anonymous, complex content
XML Source (w/o annotations (17); see within schema source)
<xs:element minOccurs="0" name="dFacility">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.dFacilityGroup" maxOccurs="unbounded" minOccurs="0" name="dFacilityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.TypeofFacility" minOccurs="0" name="dFacility.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="TypeOfFacility"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityGroup" maxOccurs="unbounded" minOccurs="0" name="dFacility.FacilityGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dFacility.FacilityName" minOccurs="0" name="dFacility.02" type="FacilityName"/>
<xs:element id="dFacility.FacilityCode" minOccurs="0" name="dFacility.03" type="FacilityCode"/>
<xs:element id="dFacility.HospitalDesignation" maxOccurs="unbounded" minOccurs="0" name="dFacility.04">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="HospitalDesignation"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityNationalProviderIdentifier" maxOccurs="unbounded" minOccurs="0" name="dFacility.05" type="NationalProviderIdentifier"/>
<xs:element id="dFacility.FacilityRoomSuiteorApartment" minOccurs="0" name="dFacility.06" type="FacilityRoom"/>
<xs:element id="dFacility.FacilityStreetAddress" minOccurs="0" name="dFacility.07">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StreetAddress">
<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dFacility.FacilityCity" minOccurs="0" name="dFacility.08" type="CityGnisCode"/>
<xs:element id="dFacility.FacilityState" minOccurs="0" name="dFacility.09" type="ANSIStateCode"/>
<xs:element id="dFacility.FacilityZIPCode" minOccurs="0" name="dFacility.10" type="ZIP"/>
<xs:element id="dFacility.FacilityCounty" minOccurs="0" name="dFacility.11" type="ANSICountyCode"/>
<xs:element id="dFacility.FacilityCountry" minOccurs="0" name="dFacility.12" type="ANSICountryCodesCAMXUS"/>
<xs:element id="dFacility.FacilityGPSLocation" minOccurs="0" name="dFacility.13" type="GPSLocation"/>
<xs:element id="dFacility.FacilityUSNationalGridCoordinates" minOccurs="0" name="dFacility.14" type="USNG"/>
<xs:element id="dPatient.FacilityPhoneNumber" maxOccurs="unbounded" minOccurs="0" name="dFacility.15">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="PhoneNumber">
<xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
dState
Type:
anonymous, complex content
XML Source (w/o annotations (1); see within schema source)
<xs:element minOccurs="0" name="dState">
<xs:complexType>
<xs:sequence>
<xs:element id="dState.dStateRequiredElement" maxOccurs="unbounded" minOccurs="0" name="dState.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StateRequiredElement">
<xs:attribute name="TIMESTAMP" type="TimeStampType" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
eCustomConfiguration
Type:
anonymous, complex content
XML Source (w/o annotations (10); see within schema source)
<xs:element minOccurs="0" name="eCustomConfiguration">
<xs:complexType>
<xs:sequence>
<xs:element id="eCustomConfiguration.eCustomGroup" maxOccurs="unbounded" minOccurs="0" name="eCustomConfiguration.CustomGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="eCustomConfiguration.eCustomDataElementTitle" minOccurs="0" name="eCustomConfiguration.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomTitle">
<xs:attribute name="nemsisElement" type="xs:string" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eCustomConfiguration.eCustomDefinition" minOccurs="0" name="eCustomConfiguration.02" type="CustomDefinition"/>
<xs:element id="eCustomConfiguration.eCustomDataType" minOccurs="0" name="eCustomConfiguration.03" type="CustomDataType"/>
<xs:element id="eCustomConfiguration.eCustomDataElementRecurrence" minOccurs="0" name="eCustomConfiguration.04" type="YesNoValues"/>
<xs:element id="eCustomConfiguration.eCustomDataElementUsage" minOccurs="0" name="eCustomConfiguration.05" type="ElementUsage"/>
<xs:element id="eCustomConfiguration.eCustomDataElementPotentialValues" maxOccurs="unbounded" minOccurs="0" name="eCustomConfiguration.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="CustomValue">
<xs:attribute name="nemsisCode" type="xs:string" use="optional"/>
<xs:attribute name="customValueDescription" type="xs:string" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="eCustomConfiguration.eCustomAcceptableNV" maxOccurs="unbounded" minOccurs="0" name="eCustomConfiguration.07" type="NV"/>
<xs:element id="eCustomConfiguration.eCustomAcceptablePN" maxOccurs="unbounded" minOccurs="0" name="eCustomConfiguration.08" type="PN"/>
<xs:element id="eCustomConfiguration.CustomDataElementGroupingID" minOccurs="0" name="eCustomConfiguration.09" type="CorrelationID"/>
</xs:sequence>
<xs:attribute name="CustomElementID" type="CorrelationID" use="required"/>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
eState
Type:
anonymous, complex content
XML Source (w/o annotations (1); see within schema source)
<xs:element minOccurs="0" name="eState">
<xs:complexType>
<xs:sequence>
<xs:element id="eState.StateRequiredElement" maxOccurs="unbounded" minOccurs="0" name="eState.01">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StateRequiredElement">
<xs:attribute name="TIMESTAMP" type="TimeStampType" use="optional"/>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
