element -> <dConfiguration>
Namespace:
http://www.nemsis.org
Type:
anonymous complexType
Content:
complex, 4 elements
Defined:
locally within StateDataSet element in StateDataSet.xsd; see XML source
Includes:
definitions of 4 elements

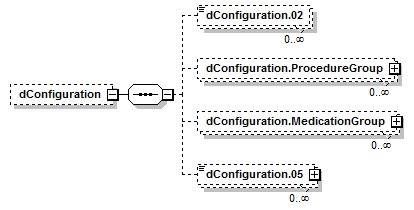

Content Model Diagram
XML Representation Summary
<dConfiguration>

Content:
 dConfiguration.02*, dConfiguration.ProcedureGroup*, dConfiguration.MedicationGroup*, dConfiguration.05*
</dConfiguration>
Content model elements (4):
dConfiguration.02 (in dConfiguration),
dConfiguration.05 (in dConfiguration),
dConfiguration.MedicationGroup (in dConfiguration),
dConfiguration.ProcedureGroup (in dConfiguration)
Included in content model of elements (1):
StateDataSet
XML Source (w/o annotations (8); see within schema source)
<xs:element minOccurs="0" name="dConfiguration">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.StateCertificationLicensureLevels" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.02">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="LicensureLevels"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.AgencyProcedureGroup" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.ProcedureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.EMSPersonnelLevelPermittedtoPerformtheProcedure" minOccurs="0" name="dConfiguration.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StateCertificationLicensureLevels"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.ProceduresPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="snomed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.AgencyMedicationGroup" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.MedicationGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.PersonnelLevelPermittedtoAdministertheMedication" minOccurs="0" name="dConfiguration.08" type="StateCertificationLicensureLevels"/>
<xs:element id="dConfiguration.MedicationsPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.04" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="Medication">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.ProtocolsPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.05" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ProtocolsUsed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
Content Element Detail (all declarations; defined in this component only; 4/4)
dConfiguration.02
Type:
anonymous (extension of LicensureLevels), simple content
dConfiguration.02 State Certification/Licensure Levels Yes Yes All of the potential levels of certification/licensure for EMS personnel recognized by the state. D04_01 Mandatory The new 2009 Education Levels have been added. The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level. <br/><br/>The state EMS system does not need to import this information into their database. Reference the Demographic Dataset Submission Guide for further details.
Simple Content
enumeration of xs:string
Enumeration:
"9911001"
 -
 2009 Advanced Emergency Medical Technician (AEMT)
"9911003"
 -
 2009 Emergency Medical Responder (EMR)
"9911005"
 -
 2009 Emergency Medical Technician (EMT)
"9911007"
 -
 2009 Paramedic
"9911009"
 -
 EMT-Basic
"9911011"
 -
 EMT-Intermediate
"9911013"
 -
 EMT-Paramedic
"9911015"
 -
 First Responder
"9911019"
 -
 Other
"9911021"
 -
 Physician
"9911023"
 -
 Critical Care Paramedic
"9911025"
 -
 Community Paramedicine
"9911027"
 -
 Nurse Practitioner
"9911029"
 -
 Physician Assistant
"9911031"
 -
 Licensed Practical Nurse (LPN)
"9911033"
 -
 Registered Nurse
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dConfiguration.StateCertificationLicensureLevels" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.02">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="LicensureLevels"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dConfiguration.05
Type:
anonymous (extension of ProtocolsUsed), simple content
Nillable:
(can be declared as nil using xsi:nil attribute in instance XML documents)
dConfiguration.05 Protocols Permitted by the State Yes Yes A list of all of the protocols permitted by the state. Required Airway Cardiac Arrest Pediatric Response STEMI Stroke Trauma This data element should capture all of the protocols permitted by the state for any/all levels of EMS personnel in the state. This is associated with the EMS Agency State (dAgency.01). <br/><br/>States can add additional protocols to the list but the additional state protocols must map to these uniform codes. <br/><br/>The list is defined by the NASEMSO State Medical Directors. <br/><br/>The EMS agency should submit "Not Applicable" and "Nil" to the state system for the demographic export. The state EMS system does not need to import this information into their database. It is the responsibility of the state to submit this element to the national EMS database (NEMSIS). Reference the Demographic Dataset Submission Guide for further details. Added to better identify states with statewide protocols and define state EMS capability and care.
Simple Content
enumeration of xs:string
Enumeration:
"9914001"
 -
 Airway
"9914003"
 -
 Airway-Failed
"9914005"
 -
 Airway-Obstruction/Foreign Body
"9914007"
 -
 Airway-Rapid Sequence Induction (RSI-Paralytic)
"9914009"
 -
 Airway-Sedation Assisted (Non-Paralytic)
"9914011"
 -
 Cardiac Arrest-Asystole
"9914013"
 -
 Cardiac Arrest-Hypothermia-Therapeutic
"9914015"
 -
 Cardiac Arrest-Pulseless Electrical Activity
"9914017"
 -
 Cardiac Arrest-Ventricular Fibrillation/ Pulseless Ventricular Tachycardia
"9914019"
 -
 Cardiac Arrest-Post Resuscitation Care
"9914021"
 -
 Environmental-Altitude Sickness
"9914023"
 -
 Environmental-Cold Exposure
"9914025"
 -
 Environmental-Frostbite/Cold Injury
"9914027"
 -
 Environmental-Heat Exposure/Exhaustion
"9914029"
 -
 Environmental-Heat Stroke/Hyperthermia
"9914031"
 -
 Environmental-Hypothermia
"9914033"
 -
 Exposure-Airway/Inhalation Irritants
"9914035"
 -
 Exposure-Biological/Infectious
"9914037"
 -
 Exposure-Blistering Agents
"9914041"
 -
 Exposure-Chemicals to Eye
"9914043"
 -
 Exposure-Cyanide
"9914045"
 -
 Exposure-Explosive/ Blast Injury
"9914047"
 -
 Exposure-Nerve Agents
"9914049"
 -
 Exposure-Radiologic Agents
"9914051"
 -
 General-Back Pain
"9914053"
 -
 General-Behavioral/Patient Restraint
"9914055"
 -
 General-Cardiac Arrest
"9914057"
 -
 General-Dental Problems
"9914059"
 -
 General-Epistaxis
"9914061"
 -
 General-Fever
"9914063"
 -
 General-Individualized Patient Protocol
"9914065"
 -
 General-Indwelling Medical Devices/Equipment
"9914067"
 -
 General-IV Access
"9914069"
 -
 General-Medical Device Malfunction
"9914071"
 -
 General-Pain Control
"9914073"
 -
 General-Spinal Immobilization/Clearance
"9914075"
 -
 General-Universal Patient Care/ Initial Patient Contact
"9914077"
 -
 Injury-Amputation
"9914079"
 -
 Injury-Bites and Envenomations-Land
"9914081"
 -
 Injury-Bites and Envenomations-Marine
"9914083"
 -
 Injury-Bleeding/ Hemorrhage Control
"9914085"
 -
 Injury-Burns-Thermal
"9914087"
 -
 Injury-Cardiac Arrest
"9914089"
 -
 Injury-Crush Syndrome
"9914091"
 -
 Injury-Diving Emergencies
"9914093"
 -
 Injury-Drowning/Near Drowning
"9914095"
 -
 Injury-Electrical Injuries
"9914097"
 -
 Injury-Extremity
"9914099"
 -
 Injury-Eye
"9914101"
 -
 Injury-Head
"9914103"
 -
 Injury-Impaled Object
"9914105"
 -
 Injury-Multisystem
"9914107"
 -
 Injury-Spinal Cord
"9914109"
 -
 Medical-Abdominal Pain
"9914111"
 -
 Medical-Allergic Reaction/Anaphylaxis
"9914113"
 -
 Medical-Altered Mental Status
"9914115"
 -
 Medical-Bradycardia
"9914117"
 -
 Medical-Cardiac Chest Pain
"9914119"
 -
 Medical-Diarrhea
"9914121"
 -
 Medical-Hyperglycemia
"9914123"
 -
 Medical-Hypertension
"9914125"
 -
 Medical-Hypoglycemia/Diabetic Emergency
"9914127"
 -
 Medical-Hypotension/Shock (Non-Trauma)
"9914129"
 -
 Medical-Influenza-Like Illness/ Upper Respiratory Infection
"9914131"
 -
 Medical-Nausea/Vomiting
"9914133"
 -
 Medical-Newborn/ Neonatal Resuscitation
"9914135"
 -
 General-Overdose/Poisoning/Toxic Ingestion
"9914137"
 -
 Medical-Pulmonary Edema/CHF
"9914139"
 -
 Medical-Respiratory Distress/Asthma/COPD/Reactive Airway
"9914141"
 -
 Medical-Seizure
"9914143"
 -
 Medical-ST-Elevation Myocardial Infarction (STEMI)
"9914145"
 -
 Medical-Stroke/TIA
"9914147"
 -
 Medical-Supraventricular Tachycardia (Including Atrial Fibrillation)
"9914149"
 -
 Medical-Syncope
"9914151"
 -
 Medical-Ventricular Tachycardia (With Pulse)
"9914153"
 -
 Not Done
"9914155"
 -
 OB/GYN-Childbirth/Labor/Delivery
"9914157"
 -
 OB/GYN-Eclampsia
"9914159"
 -
 OB/GYN-Gynecologic Emergencies
"9914161"
 -
 OB/GYN-Pregnancy Related Emergencies
"9914163"
 -
 OB/GYN-Post-partum Hemorrhage
"9914165"
 -
 Other
"9914167"
 -
 Exposure-Carbon Monoxide
"9914169"
 -
 Cardiac Arrest-Do Not Resuscitate
"9914171"
 -
 Cardiac Arrest-Special Resuscitation Orders
"9914173"
 -
 Exposure-Smoke Inhalation
"9914175"
 -
 General-Community Paramedicine / Mobile Integrated Healthcare
"9914177"
 -
 General-Exception Protocol
"9914179"
 -
 General-Extended Care Guidelines
"9914181"
 -
 General-Interfacility Transfers
"9914183"
 -
 General-Law Enforcement - Blood for Legal Purposes
"9914185"
 -
 General-Law Enforcement - Assist with Law Enforcement Activity
"9914187"
 -
 General-Neglect or Abuse Suspected
"9914189"
 -
 General-Refusal of Care
"9914191"
 -
 Injury-Mass/Multiple Casualties
"9914193"
 -
 Injury-Thoracic
"9914195"
 -
 Medical-Adrenal Insufficiency
"9914197"
 -
 Medical-Apparent Life Threatening Event (ALTE)
"9914199"
 -
 Medical-Tachycardia
"9914201"
 -
 Cardiac Arrest-Determination of Death / Withholding Resuscitative Efforts
"9914203"
 -
 Injury-Conducted Electrical Weapon (e.g., Taser)
"9914205"
 -
 Injury-Facial Trauma
"9914207"
 -
 Injury-General Trauma Management
"9914209"
 -
 Injury-Lightning/Lightning Strike
"9914211"
 -
 Injury-SCUBA Injury/Accidents
"9914213"
 -
 Injury-Topical Chemical Burn
"9914215"
 -
 Medical-Beta Blocker Poisoning/Overdose
"9914217"
 -
 Medical-Calcium Channel Blocker Poisoning/Overdose
"9914219"
 -
 Medical-Opioid Poisoning/Overdose
"9914221"
 -
 Medical-Respiratory Distress-Bronchiolitis
"9914223"
 -
 Medical-Respiratory Distress-Croup
"9914225"
 -
 Medical-Stimulant Poisoning/Overdose
XML Source (w/o annotations (1); see within schema source)
<xs:element id="dConfiguration.ProtocolsPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.05" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="ProtocolsUsed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
dConfiguration.MedicationGroup
Type:
anonymous, complex content
Group Tag to hold info about Medication information
XML Source (w/o annotations (3); see within schema source)
<xs:element id="dConfiguration.AgencyMedicationGroup" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.MedicationGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.PersonnelLevelPermittedtoAdministertheMedication" minOccurs="0" name="dConfiguration.08" type="StateCertificationLicensureLevels"/>
<xs:element id="dConfiguration.MedicationsPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.04" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="Medication">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
dConfiguration.ProcedureGroup
Type:
anonymous, complex content
Group Tag to hold info about Procedure information
XML Source (w/o annotations (3); see within schema source)
<xs:element id="dConfiguration.AgencyProcedureGroup" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.ProcedureGroup">
<xs:complexType>
<xs:sequence>
<xs:element id="dConfiguration.EMSPersonnelLevelPermittedtoPerformtheProcedure" minOccurs="0" name="dConfiguration.06">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StateCertificationLicensureLevels"/>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element id="dConfiguration.ProceduresPermittedbytheState" maxOccurs="unbounded" minOccurs="0" name="dConfiguration.03" nillable="true">
<xs:complexType>
<xs:simpleContent>
<xs:extension base="snomed">
<xs:attribute name="NV" use="optional">
<xs:simpleType>
<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
