Element eDevices / eDevice.DeviceGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold Device Information
Diagram
DiagrameDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_CorrelationIDeDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevice.01eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevice.02eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevice.03eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevice.WaveformGroupeDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevice.07eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevice.08eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevice.ShockGroup
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eDevice.01, eDevice.02, eDevice.03, eDevice.07, eDevice.08, eDevice.ShockGroup, eDevice.WaveformGroup
Instance

<eDevice.DeviceGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eDevice.01>{0,1}</eDevice.01>
  <eDevice.02>{0,1}</eDevice.02>
  <eDevice.03 CorrelationID="">{0,unbounded}</eDevice.03>
  <eDevice.WaveformGroup>{0,1}</eDevice.WaveformGroup>
  <eDevice.07 CorrelationID="">{0,unbounded}</eDevice.07>
  <eDevice.08>{0,1}</eDevice.08>
  <eDevice.ShockGroup>{0,1}</eDevice.ShockGroup>
</eDevice.DeviceGroup>
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDevice.DeviceGroup" id="eDevice.DeviceGroup" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold Device Information</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDevice.01" type="DeviceSerialNumber" id="eDevice.DeviceSerialNumber" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.01</number>
              <name>Medical Device Serial Number</name>
              <national>No</national>
              <state>No</state>
              <definition>The unique manufacturer's serial number associated with a medical device.</definition>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDevice.02" type="DateTimeType" id="eDevice.EventDateTime" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.02</number>
              <name>Date/Time of Event (per Medical Device)</name>
              <national>No</national>
              <state>No</state>
              <definition>The time of the event recorded by the device's internal clock.</definition>
              <v2Number>E21_01</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDevice.03" id="eDevice.MedicalDeviceEventName" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.03</number>
              <name>Medical Device Event Type</name>
              <national>No</national>
              <state>No</state>
              <definition>The type of event documented by the medical device.</definition>
              <v2Number>E21_02</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Can be displayed in the Vital Signs or Procedure Sections.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="MedicalDeviceEventType">
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>

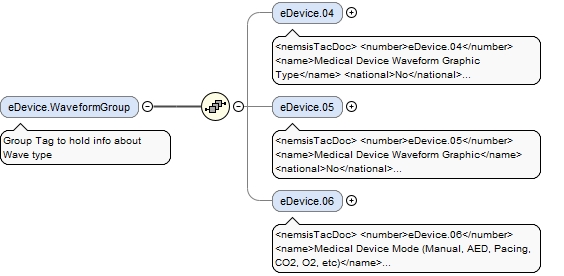

      <xs:element name="eDevice.WaveformGroup" id="eDevice.WaveformGroup" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Group Tag to hold info about Wave type</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eDevice.04" type="GraphicType" id="eDevice.WaveformGraphicType" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eDevice.04</number>
                    <name>Medical Device Waveform Graphic Type</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The description of the waveform file stored in Waveform Graphic (eDevice.05).</definition>
                    <v2Number>E21_03</v2Number>
                    <usage>Optional</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="eDevice.05" type="WaveformGraphic" id="eDevice.WaveformGraphic" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eDevice.05</number>
                    <name>Medical Device Waveform Graphic</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The graphic waveform file.</definition>
                    <v2Number>E21_04</v2Number>
                    <usage>Optional</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                    </performanceMeasuresGroup>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="eDevice.06" type="AEDPacingOrCO2Mode" id="eDevice.AEDPacingorCO2Mode" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eDevice.06</number>
                    <name>Medical Device Mode (Manual, AED, Pacing, CO2, O2, etc)</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The mode of operation the device is operating in during the defibrillation, pacing, or rhythm analysis by the device (if appropriate for the event).</definition>
                    <v2Number>E21_05</v2Number>
                    <usage>Optional</usage>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDevice.07" id="eDevice.ECGLead" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.07</number>
              <name>Medical Device ECG Lead</name>
              <national>No</national>
              <state>No</state>
              <definition>The lead or source which the medical device used to obtain the rhythm (if appropriate for the event).</definition>
              <v2Number>E21_06</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Can be displayed in the Vital Signs or Procedure Sections.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ECGLead">
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDevice.08" type="ECGInterpretation" id="eDevice.ECGInterpretation" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.08</number>
              <name>Medical Device ECG Interpretation</name>
              <national>No</national>
              <state>No</state>
              <definition>The interpretation of the rhythm by the device (if appropriate for the event).</definition>
              <v2Number>E21_07</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>The rhythm interpretation text imported from the device.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDevice.ShockGroup" id="eDevice.ShockGroup" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Group Tag to hold shock information</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eDevice.09" type="TypeOfShock" id="eDevice.TypeOfShock" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eDevice.09</number>
                    <name>Type of Shock</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The type of shock used by the device for the defibrillation (if appropriate for the event).</definition>
                    <v2Number>E21_08</v2Number>
                    <usage>Optional</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    </performanceMeasuresGroup>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="eDevice.10" type="ShockOrPacingEnergy" id="eDevice.ShockorPacingEnergy" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eDevice.10</number>
                    <name>Shock or Pacing Energy</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The energy (in joules) used for the shock or pacing (if appropriate for the event).</definition>
                    <v2Number>E21_09</v2Number>
                    <usage>Optional</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    </performanceMeasuresGroup>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="eDevice.11" type="TotalNumberOfShocks" id="eDevice.TotalNumberofShocksDelivered" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eDevice.11</number>
                    <name>Total Number of Shocks Delivered</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The number of times the patient was defibrillated, if the patient was defibrillated during the patient encounter.</definition>
                    <v2Number>E21_10</v2Number>
                    <usage>Optional</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    </performanceMeasuresGroup>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="eDevice.12" type="PacingRate" id="eDevice.PacingRate" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eDevice.12</number>
                    <name>Pacing Rate</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The rate the device was calibrated to pace during the event, if appropriate.</definition>
                    <v2Number>E21_11</v2Number>
                    <usage>Optional</usage>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.01
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.01</number>
  <name>Medical Device Serial Number</name>
  <national>No</national>
  <state>No</state>
  <definition>The unique manufacturer's serial number associated with a medical device.</definition>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#DeviceSerialNumber
Type DeviceSerialNumber
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 50
Source

<xs:element name="eDevice.01" type="DeviceSerialNumber" id="eDevice.DeviceSerialNumber" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.01</number>
        <name>Medical Device Serial Number</name>
        <national>No</national>
        <state>No</state>
        <definition>The unique manufacturer's serial number associated with a medical device.</definition>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.02
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.02</number>
  <name>Date/Time of Event (per Medical Device)</name>
  <national>No</national>
  <state>No</state>
  <definition>The time of the event recorded by the device's internal clock.</definition>
  <v2Number>E21_01</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
maxInclusive 2050-01-01T00:00:00-00:00
minInclusive 1950-01-01T00:00:00-00:00
pattern [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
Source

<xs:element name="eDevice.02" type="DateTimeType" id="eDevice.EventDateTime" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.02</number>
        <name>Date/Time of Event (per Medical Device)</name>
        <national>No</national>
        <state>No</state>
        <definition>The time of the event recorded by the device's internal clock.</definition>
        <v2Number>E21_01</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.03
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.03</number>
  <name>Medical Device Event Type</name>
  <national>No</national>
  <state>No</state>
  <definition>The type of event documented by the medical device.</definition>
  <v2Number>E21_02</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Can be displayed in the Vital Signs or Procedure Sections.</comment>
</nemsisTacDoc>
Diagram
DiagrameDevice_v3_xsd.tmp#MedicalDeviceEventTypeeDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.03_CorrelationID
Type extension of MedicalDeviceEventType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDevice.03" id="eDevice.MedicalDeviceEventName" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.03</number>
        <name>Medical Device Event Type</name>
        <national>No</national>
        <state>No</state>
        <definition>The type of event documented by the medical device.</definition>
        <v2Number>E21_02</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Can be displayed in the Vital Signs or Procedure Sections.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="MedicalDeviceEventType">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.WaveformGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold info about Wave type
Diagram
DiagrameDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.WaveformGroup_eDevice.04eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.WaveformGroup_eDevice.05eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.WaveformGroup_eDevice.06
Properties
content complex
minOccurs 0
Model
Children eDevice.04, eDevice.05, eDevice.06
Instance

<eDevice.WaveformGroup xmlns="http://www.nemsis.org">
  <eDevice.04>{0,1}</eDevice.04>
  <eDevice.05>{0,1}</eDevice.05>
  <eDevice.06>{0,1}</eDevice.06>
</eDevice.WaveformGroup>
Source

<xs:element name="eDevice.WaveformGroup" id="eDevice.WaveformGroup" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about Wave type</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDevice.04" type="GraphicType" id="eDevice.WaveformGraphicType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.04</number>
              <name>Medical Device Waveform Graphic Type</name>
              <national>No</national>
              <state>No</state>
              <definition>The description of the waveform file stored in Waveform Graphic (eDevice.05).</definition>
              <v2Number>E21_03</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDevice.05" type="WaveformGraphic" id="eDevice.WaveformGraphic" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.05</number>
              <name>Medical Device Waveform Graphic</name>
              <national>No</national>
              <state>No</state>
              <definition>The graphic waveform file.</definition>
              <v2Number>E21_04</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDevice.06" type="AEDPacingOrCO2Mode" id="eDevice.AEDPacingorCO2Mode" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.06</number>
              <name>Medical Device Mode (Manual, AED, Pacing, CO2, O2, etc)</name>
              <national>No</national>
              <state>No</state>
              <definition>The mode of operation the device is operating in during the defibrillation, pacing, or rhythm analysis by the device (if appropriate for the event).</definition>
              <v2Number>E21_05</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.WaveformGroup / eDevice.04
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.04</number>
  <name>Medical Device Waveform Graphic Type</name>
  <national>No</national>
  <state>No</state>
  <definition>The description of the waveform file stored in Waveform Graphic (eDevice.05).</definition>
  <v2Number>E21_03</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#GraphicType
Type GraphicType
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 255
Source

<xs:element name="eDevice.04" type="GraphicType" id="eDevice.WaveformGraphicType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.04</number>
        <name>Medical Device Waveform Graphic Type</name>
        <national>No</national>
        <state>No</state>
        <definition>The description of the waveform file stored in Waveform Graphic (eDevice.05).</definition>
        <v2Number>E21_03</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.WaveformGroup / eDevice.05
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.05</number>
  <name>Medical Device Waveform Graphic</name>
  <national>No</national>
  <state>No</state>
  <definition>The graphic waveform file.</definition>
  <v2Number>E21_04</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#WaveformGraphic
Type WaveformGraphic
Properties
content simple
minOccurs 0
Source

<xs:element name="eDevice.05" type="WaveformGraphic" id="eDevice.WaveformGraphic" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.05</number>
        <name>Medical Device Waveform Graphic</name>
        <national>No</national>
        <state>No</state>
        <definition>The graphic waveform file.</definition>
        <v2Number>E21_04</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.WaveformGroup / eDevice.06
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.06</number>
  <name>Medical Device Mode (Manual, AED, Pacing, CO2, O2, etc)</name>
  <national>No</national>
  <state>No</state>
  <definition>The mode of operation the device is operating in during the defibrillation, pacing, or rhythm analysis by the device (if appropriate for the event).</definition>
  <v2Number>E21_05</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagrameDevice_v3_xsd.tmp#AEDPacingOrCO2Mode
Type AEDPacingOrCO2Mode
Properties
content simple
minOccurs 0
Facets
enumeration 4106001
Advisory
enumeration 4106003
Automated
enumeration 4106005
Demand
enumeration 4106007
Manual
enumeration 4106009
Mid-Stream
enumeration 4106011
Sensing
enumeration 4106013
Side-Stream
Source

<xs:element name="eDevice.06" type="AEDPacingOrCO2Mode" id="eDevice.AEDPacingorCO2Mode" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.06</number>
        <name>Medical Device Mode (Manual, AED, Pacing, CO2, O2, etc)</name>
        <national>No</national>
        <state>No</state>
        <definition>The mode of operation the device is operating in during the defibrillation, pacing, or rhythm analysis by the device (if appropriate for the event).</definition>
        <v2Number>E21_05</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.07
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.07</number>
  <name>Medical Device ECG Lead</name>
  <national>No</national>
  <state>No</state>
  <definition>The lead or source which the medical device used to obtain the rhythm (if appropriate for the event).</definition>
  <v2Number>E21_06</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Can be displayed in the Vital Signs or Procedure Sections.</comment>
</nemsisTacDoc>
Diagram
DiagrameDevice_v3_xsd.tmp#ECGLeadeDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.07_CorrelationID
Type extension of ECGLead
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDevice.07" id="eDevice.ECGLead" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.07</number>
        <name>Medical Device ECG Lead</name>
        <national>No</national>
        <state>No</state>
        <definition>The lead or source which the medical device used to obtain the rhythm (if appropriate for the event).</definition>
        <v2Number>E21_06</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Can be displayed in the Vital Signs or Procedure Sections.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ECGLead">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.08
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.08</number>
  <name>Medical Device ECG Interpretation</name>
  <national>No</national>
  <state>No</state>
  <definition>The interpretation of the rhythm by the device (if appropriate for the event).</definition>
  <v2Number>E21_07</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>The rhythm interpretation text imported from the device.</comment>
</nemsisTacDoc>
Diagram
DiagrameDevice_v3_xsd.tmp#ECGInterpretation
Type ECGInterpretation
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 2000
Source

<xs:element name="eDevice.08" type="ECGInterpretation" id="eDevice.ECGInterpretation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.08</number>
        <name>Medical Device ECG Interpretation</name>
        <national>No</national>
        <state>No</state>
        <definition>The interpretation of the rhythm by the device (if appropriate for the event).</definition>
        <v2Number>E21_07</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>The rhythm interpretation text imported from the device.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.ShockGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold shock information
Diagram
DiagrameDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.ShockGroup_eDevice.09eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.ShockGroup_eDevice.10eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.ShockGroup_eDevice.11eDevice_v3_xsd.tmp#eDevices_eDevices_eDevice.DeviceGroup_eDevices_eDevices_eDevice.DeviceGroup_eDevice.ShockGroup_eDevice.12
Properties
content complex
minOccurs 0
Model
Children eDevice.09, eDevice.10, eDevice.11, eDevice.12
Instance

<eDevice.ShockGroup xmlns="http://www.nemsis.org">
  <eDevice.09>{0,1}</eDevice.09>
  <eDevice.10>{0,1}</eDevice.10>
  <eDevice.11>{0,1}</eDevice.11>
  <eDevice.12>{0,1}</eDevice.12>
</eDevice.ShockGroup>
Source

<xs:element name="eDevice.ShockGroup" id="eDevice.ShockGroup" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Group Tag to hold shock information</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDevice.09" type="TypeOfShock" id="eDevice.TypeOfShock" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.09</number>
              <name>Type of Shock</name>
              <national>No</national>
              <state>No</state>
              <definition>The type of shock used by the device for the defibrillation (if appropriate for the event).</definition>
              <v2Number>E21_08</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
              </performanceMeasuresGroup>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDevice.10" type="ShockOrPacingEnergy" id="eDevice.ShockorPacingEnergy" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.10</number>
              <name>Shock or Pacing Energy</name>
              <national>No</national>
              <state>No</state>
              <definition>The energy (in joules) used for the shock or pacing (if appropriate for the event).</definition>
              <v2Number>E21_09</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
              </performanceMeasuresGroup>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDevice.11" type="TotalNumberOfShocks" id="eDevice.TotalNumberofShocksDelivered" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.11</number>
              <name>Total Number of Shocks Delivered</name>
              <national>No</national>
              <state>No</state>
              <definition>The number of times the patient was defibrillated, if the patient was defibrillated during the patient encounter.</definition>
              <v2Number>E21_10</v2Number>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
              </performanceMeasuresGroup>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDevice.12" type="PacingRate" id="eDevice.PacingRate" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDevice.12</number>
              <name>Pacing Rate</name>
              <national>No</national>
              <state>No</state>
              <definition>The rate the device was calibrated to pace during the event, if appropriate.</definition>
              <v2Number>E21_11</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.ShockGroup / eDevice.09
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.09</number>
  <name>Type of Shock</name>
  <national>No</national>
  <state>No</state>
  <definition>The type of shock used by the device for the defibrillation (if appropriate for the event).</definition>
  <v2Number>E21_08</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>
Diagram
DiagrameDevice_v3_xsd.tmp#TypeOfShock
Type TypeOfShock
Properties
content simple
minOccurs 0
Facets
enumeration 4109001
Biphasic
enumeration 4109003
Monophasic
Source

<xs:element name="eDevice.09" type="TypeOfShock" id="eDevice.TypeOfShock" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.09</number>
        <name>Type of Shock</name>
        <national>No</national>
        <state>No</state>
        <definition>The type of shock used by the device for the defibrillation (if appropriate for the event).</definition>
        <v2Number>E21_08</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.ShockGroup / eDevice.10
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.10</number>
  <name>Shock or Pacing Energy</name>
  <national>No</national>
  <state>No</state>
  <definition>The energy (in joules) used for the shock or pacing (if appropriate for the event).</definition>
  <v2Number>E21_09</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>
Diagram
DiagrameDevice_v3_xsd.tmp#ShockOrPacingEnergy
Type ShockOrPacingEnergy
Properties
content simple
minOccurs 0
Facets
totalDigits 5
fractionDigits 1
maxInclusive 9000
minInclusive 1
Source

<xs:element name="eDevice.10" type="ShockOrPacingEnergy" id="eDevice.ShockorPacingEnergy" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.10</number>
        <name>Shock or Pacing Energy</name>
        <national>No</national>
        <state>No</state>
        <definition>The energy (in joules) used for the shock or pacing (if appropriate for the event).</definition>
        <v2Number>E21_09</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.ShockGroup / eDevice.11
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.11</number>
  <name>Total Number of Shocks Delivered</name>
  <national>No</national>
  <state>No</state>
  <definition>The number of times the patient was defibrillated, if the patient was defibrillated during the patient encounter.</definition>
  <v2Number>E21_10</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>
Diagram
DiagrameDevice_v3_xsd.tmp#TotalNumberOfShocks
Type TotalNumberOfShocks
Properties
content simple
minOccurs 0
Facets
maxInclusive 100
minInclusive 1
Source

<xs:element name="eDevice.11" type="TotalNumberOfShocks" id="eDevice.TotalNumberofShocksDelivered" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.11</number>
        <name>Total Number of Shocks Delivered</name>
        <national>No</national>
        <state>No</state>
        <definition>The number of times the patient was defibrillated, if the patient was defibrillated during the patient encounter.</definition>
        <v2Number>E21_10</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDevices / eDevice.DeviceGroup / eDevice.ShockGroup / eDevice.12
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDevice.12</number>
  <name>Pacing Rate</name>
  <national>No</national>
  <state>No</state>
  <definition>The rate the device was calibrated to pace during the event, if appropriate.</definition>
  <v2Number>E21_11</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagrameDevice_v3_xsd.tmp#PacingRate
Type PacingRate
Properties
content simple
minOccurs 0
Facets
maxInclusive 1000
minInclusive 1
Source

<xs:element name="eDevice.12" type="PacingRate" id="eDevice.PacingRate" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDevice.12</number>
        <name>Pacing Rate</name>
        <national>No</national>
        <state>No</state>
        <definition>The rate the device was calibrated to pace during the event, if appropriate.</definition>
        <v2Number>E21_11</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type eDevices
Namespace http://www.nemsis.org
Diagram
DiagrameDevice_v3_xsd.tmp#eDevices_eDevice.DeviceGroup
Used by
Model
Children eDevice.DeviceGroup
Source

<xs:complexType name="eDevices">
  <xs:sequence>
    <xs:element name="eDevice.DeviceGroup" id="eDevice.DeviceGroup" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold Device Information</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eDevice.01" type="DeviceSerialNumber" id="eDevice.DeviceSerialNumber" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDevice.01</number>
                  <name>Medical Device Serial Number</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The unique manufacturer's serial number associated with a medical device.</definition>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDevice.02" type="DateTimeType" id="eDevice.EventDateTime" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDevice.02</number>
                  <name>Date/Time of Event (per Medical Device)</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The time of the event recorded by the device's internal clock.</definition>
                  <v2Number>E21_01</v2Number>
                  <usage>Optional</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDevice.03" id="eDevice.MedicalDeviceEventName" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDevice.03</number>
                  <name>Medical Device Event Type</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The type of event documented by the medical device.</definition>
                  <v2Number>E21_02</v2Number>
                  <usage>Optional</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Can be displayed in the Vital Signs or Procedure Sections.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="MedicalDeviceEventType">
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDevice.WaveformGroup" id="eDevice.WaveformGroup" minOccurs="0">
            <xs:annotation>
              <xs:documentation>Group Tag to hold info about Wave type</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eDevice.04" type="GraphicType" id="eDevice.WaveformGraphicType" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eDevice.04</number>
                        <name>Medical Device Waveform Graphic Type</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The description of the waveform file stored in Waveform Graphic (eDevice.05).</definition>
                        <v2Number>E21_03</v2Number>
                        <usage>Optional</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
                <xs:element name="eDevice.05" type="WaveformGraphic" id="eDevice.WaveformGraphic" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eDevice.05</number>
                        <name>Medical Device Waveform Graphic</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The graphic waveform file.</definition>
                        <v2Number>E21_04</v2Number>
                        <usage>Optional</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                        </performanceMeasuresGroup>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
                <xs:element name="eDevice.06" type="AEDPacingOrCO2Mode" id="eDevice.AEDPacingorCO2Mode" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eDevice.06</number>
                        <name>Medical Device Mode (Manual, AED, Pacing, CO2, O2, etc)</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The mode of operation the device is operating in during the defibrillation, pacing, or rhythm analysis by the device (if appropriate for the event).</definition>
                        <v2Number>E21_05</v2Number>
                        <usage>Optional</usage>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDevice.07" id="eDevice.ECGLead" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDevice.07</number>
                  <name>Medical Device ECG Lead</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The lead or source which the medical device used to obtain the rhythm (if appropriate for the event).</definition>
                  <v2Number>E21_06</v2Number>
                  <usage>Optional</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Can be displayed in the Vital Signs or Procedure Sections.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ECGLead">
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDevice.08" type="ECGInterpretation" id="eDevice.ECGInterpretation" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDevice.08</number>
                  <name>Medical Device ECG Interpretation</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The interpretation of the rhythm by the device (if appropriate for the event).</definition>
                  <v2Number>E21_07</v2Number>
                  <usage>Optional</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>The rhythm interpretation text imported from the device.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDevice.ShockGroup" id="eDevice.ShockGroup" minOccurs="0">
            <xs:annotation>
              <xs:documentation>Group Tag to hold shock information</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eDevice.09" type="TypeOfShock" id="eDevice.TypeOfShock" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eDevice.09</number>
                        <name>Type of Shock</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The type of shock used by the device for the defibrillation (if appropriate for the event).</definition>
                        <v2Number>E21_08</v2Number>
                        <usage>Optional</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                        </performanceMeasuresGroup>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
                <xs:element name="eDevice.10" type="ShockOrPacingEnergy" id="eDevice.ShockorPacingEnergy" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eDevice.10</number>
                        <name>Shock or Pacing Energy</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The energy (in joules) used for the shock or pacing (if appropriate for the event).</definition>
                        <v2Number>E21_09</v2Number>
                        <usage>Optional</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                        </performanceMeasuresGroup>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
                <xs:element name="eDevice.11" type="TotalNumberOfShocks" id="eDevice.TotalNumberofShocksDelivered" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eDevice.11</number>
                        <name>Total Number of Shocks Delivered</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The number of times the patient was defibrillated, if the patient was defibrillated during the patient encounter.</definition>
                        <v2Number>E21_10</v2Number>
                        <usage>Optional</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                        </performanceMeasuresGroup>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
                <xs:element name="eDevice.12" type="PacingRate" id="eDevice.PacingRate" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eDevice.12</number>
                        <name>Pacing Rate</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The rate the device was calibrated to pace during the event, if appropriate.</definition>
                        <v2Number>E21_11</v2Number>
                        <usage>Optional</usage>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type MedicalDeviceEventType
Namespace http://www.nemsis.org
Annotations

The type of event documented by the medical device.

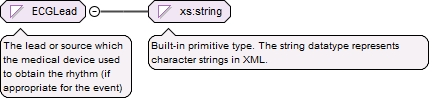

Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4103001
12-Lead ECG
enumeration 4103003
Analysis (Button Pressed)
enumeration 4103005
CO2
enumeration 4103007
Data Transmitted
enumeration 4103009
Defibrillation
enumeration 4103011
ECG-Monitor
enumeration 4103013
Heart Rate
enumeration 4103015
Invasive Pressure 1
enumeration 4103017
Invasive Pressure 2
enumeration 4103019
No Shock Advised
enumeration 4103021
Non-Invasive BP
enumeration 4103023
Other
enumeration 4103025
Pacing Electrical Capture
enumeration 4103027
Pacing Started
enumeration 4103029
Pacing Stopped
enumeration 4103031
Patient Connected
enumeration 4103033
Power On
enumeration 4103035
Pulse Oximetry
enumeration 4103037
Pulse Rate
enumeration 4103039
Respiratory Rate
enumeration 4103041
Shock Advised
enumeration 4103043
Sync Off
enumeration 4103045
Sync On
enumeration 4103047
Temperature 1
enumeration 4103049
Temperature 2
Used by
Source

<xs:simpleType name="MedicalDeviceEventType">
  <xs:annotation>
    <xs:documentation>The type of event documented by the medical device.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4103001">
      <xs:annotation>
        <xs:documentation>12-Lead ECG</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103003">
      <xs:annotation>
        <xs:documentation>Analysis (Button Pressed)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103005">
      <xs:annotation>
        <xs:documentation>CO2</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103007">
      <xs:annotation>
        <xs:documentation>Data Transmitted</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103009">
      <xs:annotation>
        <xs:documentation>Defibrillation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103011">
      <xs:annotation>
        <xs:documentation>ECG-Monitor</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103013">
      <xs:annotation>
        <xs:documentation>Heart Rate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103015">
      <xs:annotation>
        <xs:documentation>Invasive Pressure 1</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103017">
      <xs:annotation>
        <xs:documentation>Invasive Pressure 2</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103019">
      <xs:annotation>
        <xs:documentation>No Shock Advised</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103021">
      <xs:annotation>
        <xs:documentation>Non-Invasive BP</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103023">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103025">
      <xs:annotation>
        <xs:documentation>Pacing Electrical Capture</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103027">
      <xs:annotation>
        <xs:documentation>Pacing Started</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103029">
      <xs:annotation>
        <xs:documentation>Pacing Stopped</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103031">
      <xs:annotation>
        <xs:documentation>Patient Connected</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103033">
      <xs:annotation>
        <xs:documentation>Power On</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103035">
      <xs:annotation>
        <xs:documentation>Pulse Oximetry</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103037">
      <xs:annotation>
        <xs:documentation>Pulse Rate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103039">
      <xs:annotation>
        <xs:documentation>Respiratory Rate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103041">
      <xs:annotation>
        <xs:documentation>Shock Advised</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103043">
      <xs:annotation>
        <xs:documentation>Sync Off</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103045">
      <xs:annotation>
        <xs:documentation>Sync On</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103047">
      <xs:annotation>
        <xs:documentation>Temperature 1</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4103049">
      <xs:annotation>
        <xs:documentation>Temperature 2</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type AEDPacingOrCO2Mode
Namespace http://www.nemsis.org
Annotations

The mode of operation the device is operating in during the defibrillation, pacing, or rhythm analysis by the device (if appropriate for the event)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4106001
Advisory
enumeration 4106003
Automated
enumeration 4106005
Demand
enumeration 4106007
Manual
enumeration 4106009
Mid-Stream
enumeration 4106011
Sensing
enumeration 4106013
Side-Stream
Used by
Source

<xs:simpleType name="AEDPacingOrCO2Mode">
  <xs:annotation>
    <xs:documentation>The mode of operation the device is operating in during the defibrillation, pacing, or rhythm analysis by the device (if appropriate for the event)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4106001">
      <xs:annotation>
        <xs:documentation>Advisory</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4106003">
      <xs:annotation>
        <xs:documentation>Automated</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4106005">
      <xs:annotation>
        <xs:documentation>Demand</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4106007">
      <xs:annotation>
        <xs:documentation>Manual</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4106009">
      <xs:annotation>
        <xs:documentation>Mid-Stream</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4106011">
      <xs:annotation>
        <xs:documentation>Sensing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4106013">
      <xs:annotation>
        <xs:documentation>Side-Stream</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type ECGLead
Namespace http://www.nemsis.org
Annotations

The lead or source which the medical device used to obtain the rhythm (if appropriate for the event)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4107001
I
enumeration 4107003
II
enumeration 4107005
III
enumeration 4107007
AVR
enumeration 4107009
AVL
enumeration 4107011
AVF
enumeration 4107013
Paddle
enumeration 4107015
Pads
enumeration 4107017
V1
enumeration 4107019
V2
enumeration 4107021
V3
enumeration 4107023
V3r
enumeration 4107025
V4
enumeration 4107027
V4r
enumeration 4107029
V5
enumeration 4107031
V5r
enumeration 4107033
V6
enumeration 4107035
V6r
enumeration 4107037
V7
enumeration 4107039
V8
enumeration 4107041
V9
Used by
Source

<xs:simpleType name="ECGLead">
  <xs:annotation>
    <xs:documentation>The lead or source which the medical device used to obtain the rhythm (if appropriate for the event)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4107001">
      <xs:annotation>
        <xs:documentation>I</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107003">
      <xs:annotation>
        <xs:documentation>II</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107005">
      <xs:annotation>
        <xs:documentation>III</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107007">
      <xs:annotation>
        <xs:documentation>AVR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107009">
      <xs:annotation>
        <xs:documentation>AVL</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107011">
      <xs:annotation>
        <xs:documentation>AVF</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107013">
      <xs:annotation>
        <xs:documentation>Paddle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107015">
      <xs:annotation>
        <xs:documentation>Pads</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107017">
      <xs:annotation>
        <xs:documentation>V1</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107019">
      <xs:annotation>
        <xs:documentation>V2</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107021">
      <xs:annotation>
        <xs:documentation>V3</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107023">
      <xs:annotation>
        <xs:documentation>V3r</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107025">
      <xs:annotation>
        <xs:documentation>V4</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107027">
      <xs:annotation>
        <xs:documentation>V4r</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107029">
      <xs:annotation>
        <xs:documentation>V5</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107031">
      <xs:annotation>
        <xs:documentation>V5r</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107033">
      <xs:annotation>
        <xs:documentation>V6</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107035">
      <xs:annotation>
        <xs:documentation>V6r</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107037">
      <xs:annotation>
        <xs:documentation>V7</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107039">
      <xs:annotation>
        <xs:documentation>V8</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4107041">
      <xs:annotation>
        <xs:documentation>V9</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type ECGInterpretation
Namespace http://www.nemsis.org
Annotations

The interpretation of the rhythm by the device (if appropriate for the event)
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 2000
Used by
Source

<xs:simpleType name="ECGInterpretation">
  <xs:annotation>
    <xs:documentation>The interpretation of the rhythm by the device (if appropriate for the event)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="2000"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TypeOfShock
Namespace http://www.nemsis.org
Annotations

The energy form used by the device for the defibrillation (if appropriate for the event)
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4109001
Biphasic
enumeration 4109003
Monophasic
Used by
Source

<xs:simpleType name="TypeOfShock">
  <xs:annotation>
    <xs:documentation>The energy form used by the device for the defibrillation (if appropriate for the event)</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4109001">
      <xs:annotation>
        <xs:documentation>Biphasic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4109003">
      <xs:annotation>
        <xs:documentation>Monophasic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type ShockOrPacingEnergy
Namespace http://www.nemsis.org
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 5
fractionDigits 1
maxInclusive 9000
minInclusive 1
Used by
Source

<xs:simpleType name="ShockOrPacingEnergy">
  <xs:restriction base="xs:decimal">
    <xs:totalDigits value="5"/>
    <xs:fractionDigits value="1"/>
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="9000"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TotalNumberOfShocks
Namespace http://www.nemsis.org
Annotations

The number of times the patient was defibrillated, if the patient was defibrillated during the patient encounter.
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 100
minInclusive 1
Used by
Source

<xs:simpleType name="TotalNumberOfShocks">
  <xs:annotation>
    <xs:documentation>The number of times the patient was defibrillated, if the patient was defibrillated during the patient encounter.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PacingRate
Namespace http://www.nemsis.org
Annotations

The rate the device was calibrated to pace during the event, if appropriate.
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 1000
minInclusive 1
Used by
Source

<xs:simpleType name="PacingRate">
  <xs:annotation>
    <xs:documentation>The rate the device was calibrated to pace during the event, if appropriate.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="1000"/>
  </xs:restriction>
</xs:simpleType>
Attribute eDevices / eDevice.DeviceGroup / eDevice.03 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDevices / eDevice.DeviceGroup / eDevice.07 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDevices / eDevice.DeviceGroup / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
XML Schema documentation generated by ® XML Editor.
