Included schema eDisposition_v3.xsd
Namespace http://www.nemsis.org
Properties
attribute form default unqualified
element form default qualified
Element eDisposition / eDisposition.DestinationGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold info about the Destination and the Disposition details

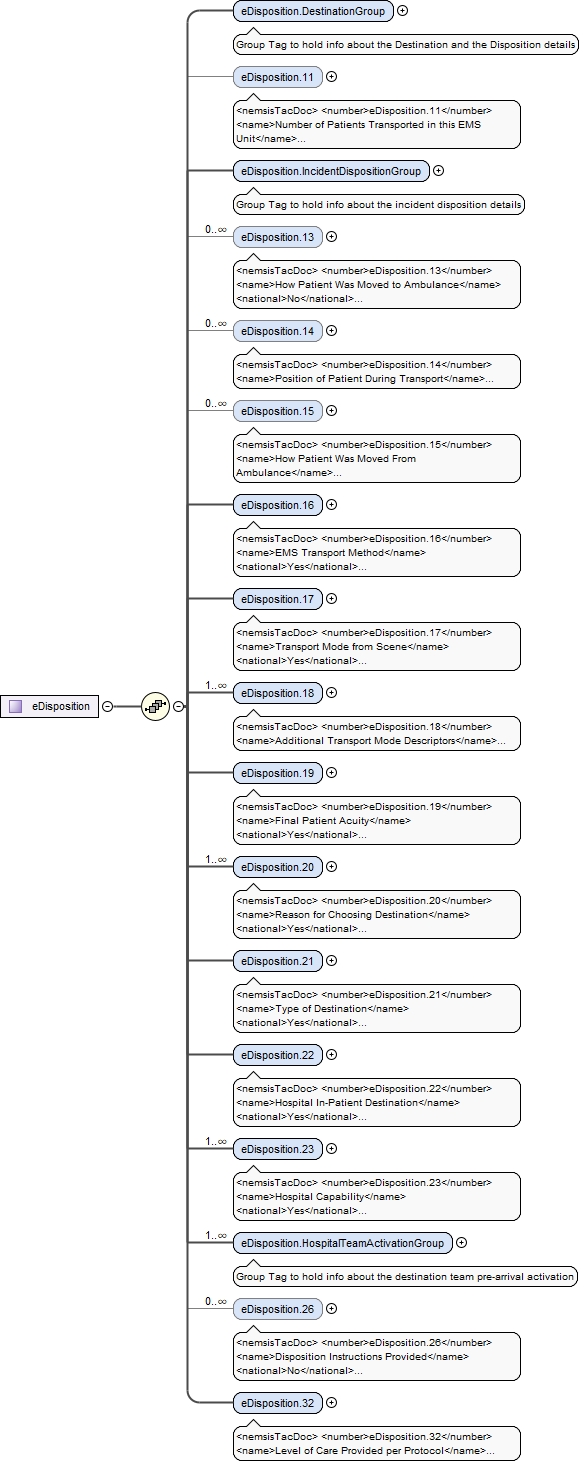

Diagram
DiagrameDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.01eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.02eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.03eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.04eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.05eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.06eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.07eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.08eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.09eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.10
Properties
content complex
Model
Children eDisposition.01, eDisposition.02, eDisposition.03, eDisposition.04, eDisposition.05, eDisposition.06, eDisposition.07, eDisposition.08, eDisposition.09, eDisposition.10
Instance

<eDisposition.DestinationGroup xmlns="http://www.nemsis.org">
  <eDisposition.01 NV="">{0,1}</eDisposition.01>
  <eDisposition.02 NV="">{0,1}</eDisposition.02>
  <eDisposition.03 StreetAddress2="">{0,1}</eDisposition.03>
  <eDisposition.04>{0,1}</eDisposition.04>
  <eDisposition.05 NV="">{1,1}</eDisposition.05>
  <eDisposition.06 NV="">{1,1}</eDisposition.06>
  <eDisposition.07 NV="">{1,1}</eDisposition.07>
  <eDisposition.08>{0,1}</eDisposition.08>
  <eDisposition.09>{0,1}</eDisposition.09>
  <eDisposition.10>{0,1}</eDisposition.10>
</eDisposition.DestinationGroup>
Source

<xs:element name="eDisposition.DestinationGroup" id="eDisposition.DestinationGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about the Destination and the Disposition details</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDisposition.01" nillable="true" id="eDisposition.DestinationTransferredToName" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.01</number>
              <name>Destination/Transferred To, Name</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The destination the patient was delivered or transferred to.</definition>
              <v2Number>E20_01</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DestinationTransferredToName">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.02" nillable="true" id="eDisposition.DestinationTransferredToCode" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.02</number>
              <name>Destination/Transferred To, Code</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The code of the destination the patient was delivered or transferred to.</definition>
              <v2Number>E20_02</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DestinationTransferredToCode">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.03" id="eDisposition.DestinationStreetAddress" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.03</number>
              <name>Destination Street Address</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The street address of the destination the patient was delivered or transferred to.</definition>
              <v2Number>E20_03</v2Number>
              <usage>Optional</usage>
              <comment>May be auto-populated if list created in dFacility.07 (Facility Street Address).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="StreetAddress">
              <xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.04" type="CityGnisCode" id="eDisposition.DestinationCity" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.04</number>
              <name>Destination City</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The city of the destination the patient was delivered or transferred to (physical address).</definition>
              <v2Number>E20_04</v2Number>
              <usage>Optional</usage>
              <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDisposition.05" nillable="true" id="eDisposition.DestinationState">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.05</number>
              <name>Destination State</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The state of the destination the patient was delivered or transferred to.</definition>
              <v2Number>E20_05</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State).<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ANSIStateCode">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.06" nillable="true" id="eDisposition.DestinationCounty">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.06</number>
              <name>Destination County</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The destination county in which the patient was delivered or transferred to.</definition>
              <v2Number>E20_06</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ANSICountyCode">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.07" nillable="true" id="eDisposition.DestinationZIPCode">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.07</number>
              <name>Destination ZIP Code</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The destination ZIP code in which the patient was delivered or transferred to.</definition>
              <v2Number>E20_07</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>May be auto-populated if list created in dFacility.10 (Facility ZIP Code).<br/><br/>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ZIP">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.08" type="ANSICountryCode" id="eDisposition.DestinationCountry" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.08</number>
              <name>Destination Country</name>
              <national>No</national>
              <state>No</state>
              <definition>The country of the destination.</definition>
              <usage>Optional</usage>
              <comment>May be auto-populated if list created in dFacility.12 (Facility Country).<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm" target="_blank">http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a></comment>
              <v3Changes>Added for improved international compatibility.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDisposition.09" type="GPSLocation" id="eDisposition.DestinationGPSLocation" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.09</number>
              <name>Destination GPS Location</name>
              <national>No</national>
              <state>No</state>
              <definition>The destination GPS Coordinates to which the patient was delivered or transferred to.</definition>
              <v2Number>E20_08</v2Number>
              <usage>Optional</usage>
              <comment>May be auto-populated if list created in dFacility.13 (Facility GPS Location). <br/><br/>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDisposition.10" type="USNG" id="eDisposition.DestinationLocationUSNationalGridCoordinates" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.10</number>
              <name>Destination Location US National Grid Coordinates</name>
              <national>No</national>
              <state>No</state>
              <definition>The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates.</definition>
              <usage>Optional</usage>
              <comment>Standard found at www.fgdc.gov/usng. <br/> Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.01
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.01</number>
  <name>Destination/Transferred To, Name</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_01</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).</comment>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#DestinationTransferredToNameeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.01_NV
Type extension of DestinationTransferredToName
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eDisposition.01" nillable="true" id="eDisposition.DestinationTransferredToName" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.01</number>
        <name>Destination/Transferred To, Name</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_01</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DestinationTransferredToName">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.02
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.02</number>
  <name>Destination/Transferred To, Code</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The code of the destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_02</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.</comment>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#DestinationTransferredToCodeeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.02_NV
Type extension of DestinationTransferredToCode
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eDisposition.02" nillable="true" id="eDisposition.DestinationTransferredToCode" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.02</number>
        <name>Destination/Transferred To, Code</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The code of the destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_02</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DestinationTransferredToCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.03
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.03</number>
  <name>Destination Street Address</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The street address of the destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_03</v2Number>
  <usage>Optional</usage>
  <comment>May be auto-populated if list created in dFacility.07 (Facility Street Address).</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#StreetAddresseDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.03_StreetAddress2
Type extension of StreetAddress
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
StreetAddress2 StreetAddress optional
Source

<xs:element name="eDisposition.03" id="eDisposition.DestinationStreetAddress" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.03</number>
        <name>Destination Street Address</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The street address of the destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_03</v2Number>
        <usage>Optional</usage>
        <comment>May be auto-populated if list created in dFacility.07 (Facility Street Address).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="StreetAddress">
        <xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.04
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.04</number>
  <name>Destination City</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The city of the destination the patient was delivered or transferred to (physical address).</definition>
  <v2Number>E20_04</v2Number>
  <usage>Optional</usage>
  <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#CityGnisCode
Type CityGnisCode
Properties
content simple
minOccurs 0
Source

<xs:element name="eDisposition.04" type="CityGnisCode" id="eDisposition.DestinationCity" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.04</number>
        <name>Destination City</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The city of the destination the patient was delivered or transferred to (physical address).</definition>
        <v2Number>E20_04</v2Number>
        <usage>Optional</usage>
        <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.05
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.05</number>
  <name>Destination State</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The state of the destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_05</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State).<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#ANSIStateCodeeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.05_NV
Type extension of ANSIStateCode
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.05" nillable="true" id="eDisposition.DestinationState">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.05</number>
        <name>Destination State</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The state of the destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_05</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State).<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ANSIStateCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.06
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.06</number>
  <name>Destination County</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The destination county in which the patient was delivered or transferred to.</definition>
  <v2Number>E20_06</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#ANSICountyCodeeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.06_NV
Type extension of ANSICountyCode
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.06" nillable="true" id="eDisposition.DestinationCounty">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.06</number>
        <name>Destination County</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The destination county in which the patient was delivered or transferred to.</definition>
        <v2Number>E20_06</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ANSICountyCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.07
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.07</number>
  <name>Destination ZIP Code</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The destination ZIP code in which the patient was delivered or transferred to.</definition>
  <v2Number>E20_07</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>May be auto-populated if list created in dFacility.10 (Facility ZIP Code).<br/><br/>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#ZIPeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition_eDisposition_eDisposition.DestinationGroup_eDisposition.07_NV
Type extension of ZIP
Type hierarchy
  • xs:string
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.07" nillable="true" id="eDisposition.DestinationZIPCode">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.07</number>
        <name>Destination ZIP Code</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The destination ZIP code in which the patient was delivered or transferred to.</definition>
        <v2Number>E20_07</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>May be auto-populated if list created in dFacility.10 (Facility ZIP Code).<br/><br/>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ZIP">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.08
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.08</number>
  <name>Destination Country</name>
  <national>No</national>
  <state>No</state>
  <definition>The country of the destination.</definition>
  <usage>Optional</usage>
  <comment>May be auto-populated if list created in dFacility.12 (Facility Country).<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm" target="_blank">http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a></comment>
  <v3Changes>Added for improved international compatibility.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#ANSICountryCode
Type ANSICountryCode
Properties
content simple
minOccurs 0
Facets
length 2
Source

<xs:element name="eDisposition.08" type="ANSICountryCode" id="eDisposition.DestinationCountry" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.08</number>
        <name>Destination Country</name>
        <national>No</national>
        <state>No</state>
        <definition>The country of the destination.</definition>
        <usage>Optional</usage>
        <comment>May be auto-populated if list created in dFacility.12 (Facility Country).<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm" target="_blank">http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a></comment>
        <v3Changes>Added for improved international compatibility.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.09
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.09</number>
  <name>Destination GPS Location</name>
  <national>No</national>
  <state>No</state>
  <definition>The destination GPS Coordinates to which the patient was delivered or transferred to.</definition>
  <v2Number>E20_08</v2Number>
  <usage>Optional</usage>
  <comment>May be auto-populated if list created in dFacility.13 (Facility GPS Location). <br/><br/>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#GPSLocation
Type GPSLocation
Properties
content simple
minOccurs 0
Facets
pattern (\+|-)?(90(\.[0]{1,6})?|([1-8][0-9]|[0-9])(\.[0-9]{1,6})?),(\+|-)?(180(\.[0]{1,6})?|(1[0-7][0-9]|[1-9][0-9]|[0-9])(\.[0-9]{1,6})?)
Source

<xs:element name="eDisposition.09" type="GPSLocation" id="eDisposition.DestinationGPSLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.09</number>
        <name>Destination GPS Location</name>
        <national>No</national>
        <state>No</state>
        <definition>The destination GPS Coordinates to which the patient was delivered or transferred to.</definition>
        <v2Number>E20_08</v2Number>
        <usage>Optional</usage>
        <comment>May be auto-populated if list created in dFacility.13 (Facility GPS Location). <br/><br/>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDisposition / eDisposition.DestinationGroup / eDisposition.10
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.10</number>
  <name>Destination Location US National Grid Coordinates</name>
  <national>No</national>
  <state>No</state>
  <definition>The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates.</definition>
  <usage>Optional</usage>
  <comment>Standard found at www.fgdc.gov/usng. <br/> Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#USNG
Type USNG
Properties
content simple
minOccurs 0
Facets
pattern ([1-9]|[1-5][0-9]|60)[C-HJ-NP-X][A-HJ-NP-Z][A-HJ-NP-V][0-9]{8}
Source

<xs:element name="eDisposition.10" type="USNG" id="eDisposition.DestinationLocationUSNationalGridCoordinates" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.10</number>
        <name>Destination Location US National Grid Coordinates</name>
        <national>No</national>
        <state>No</state>
        <definition>The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates.</definition>
        <usage>Optional</usage>
        <comment>Standard found at www.fgdc.gov/usng. <br/> Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDisposition / eDisposition.11
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.11</number>
  <name>Number of Patients Transported in this EMS Unit</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The number of patients transported by this EMS crew and unit.</definition>
  <usage>Recommended</usage>
  <comment>Added to document multiple patients being transported with the same vehicle and crew.</comment>
  <v3Changes>Added to document multiple patients being transported with the same vehicle and crew.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#NumberOfPatientseDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.11_NV
Type extension of NumberOfPatients
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eDisposition.11" nillable="true" id="eDisposition.NumberofPatientsTransportedinthisEMSUnit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.11</number>
        <name>Number of Patients Transported in this EMS Unit</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The number of patients transported by this EMS crew and unit.</definition>
        <usage>Recommended</usage>
        <comment>Added to document multiple patients being transported with the same vehicle and crew.</comment>
        <v3Changes>Added to document multiple patients being transported with the same vehicle and crew.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="NumberOfPatients">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.IncidentDispositionGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold info about the incident disposition details
Diagram
DiagrameDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.27eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.28eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.29eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.30eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.31
Properties
content complex
Model
Children eDisposition.27, eDisposition.28, eDisposition.29, eDisposition.30, eDisposition.31
Instance

<eDisposition.IncidentDispositionGroup xmlns="http://www.nemsis.org">
  <eDisposition.27>{1,1}</eDisposition.27>
  <eDisposition.28 NV="">{1,1}</eDisposition.28>
  <eDisposition.29 NV="">{1,1}</eDisposition.29>
  <eDisposition.30 NV="">{1,1}</eDisposition.30>
  <eDisposition.31 CorrelationID="">{0,unbounded}</eDisposition.31>
</eDisposition.IncidentDispositionGroup>
Source

<xs:element name="eDisposition.IncidentDispositionGroup" id="eDisposition.IncidentDispositionGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about the incident disposition details</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDisposition.27" id="eDisposition.UnitDisposition" type="UnitDisposition">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.27</number>
              <name>Unit Disposition</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient disposition for an EMS event identifying whether patient contact was made.</definition>
              <v2Number/>
              <usage>Mandatory</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Grouped with Incident and Transport dispositions. Who provided care or services is defined in Incident Dispostion.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>

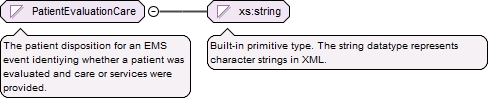

      <xs:element name="eDisposition.28" id="eDisposition.PatientEvaluationCare" nillable="true">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.28</number>
              <name>Patient Evaluation/Care</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient disposition for an EMS event identifying whether a patient was evaluated and care or services were provided.</definition>
              <v2Number/>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Grouped with Incident and Transport Dispositions. Who provided care or services is defined in Incident Disposition.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="PatientEvaluationCare">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>

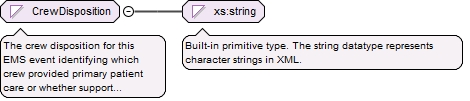

      <xs:element name="eDisposition.29" id="eDisposition.CrewDisposition" nillable="true">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.29</number>
              <name>Crew Disposition</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</definition>
              <v2Number/>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Grouped with Patient and Transport Dispositions. Depending on context of the Value, "Unit" could be Vehicle or Service/Agency.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="CrewDisposition">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.30" id="eDisposition.TransportDisposition" nillable="true">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.30</number>
              <name>Transport Disposition</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The transport disposition for an EMS event identifying whether a transport occurred and by which unit.</definition>
              <v2Number/>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Grouped with Patient and Incident Dispositions. Provides a rapid filter for transport or no transport for incident evaluation, business entry rules and Schematron rules.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="TransportDisposition">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.31" id="eDisposition.ReasonForRefusalRelease" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.31</number>
              <name>Reason for Refusal/Release</name>
              <national>No</national>
              <state>No</state>
              <definition>Describes reason(s) for the patient's refusal of care/transport OR the EMS clinician's decision to release the patient.</definition>
              <v2Number/>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>This works in combination with the dispositions and signatures to provide general categories for the patient refusal. Specific legal refusal language should be developed by the agency's legal counsel and provided to the patient or guardian upon refusal per local policies.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ReasonForRefusalRelease">
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.27
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.27</number>
  <name>Unit Disposition</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient disposition for an EMS event identifying whether patient contact was made.</definition>
  <v2Number/>
  <usage>Mandatory</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Grouped with Incident and Transport dispositions. Who provided care or services is defined in Incident Dispostion.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#UnitDisposition
Type UnitDisposition
Properties
content simple
Facets
enumeration 4227001
Patient Contact Made
enumeration 4227003
Cancelled on Scene
enumeration 4227005
Cancelled Prior to Arrival at Scene
enumeration 4227007
No Patient Contact
enumeration 4227009
No Patient Found
enumeration 4227011
Non-Patient Incident (Not Otherwise Listed)
Source

<xs:element name="eDisposition.27" id="eDisposition.UnitDisposition" type="UnitDisposition">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.27</number>
        <name>Unit Disposition</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient disposition for an EMS event identifying whether patient contact was made.</definition>
        <v2Number/>
        <usage>Mandatory</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Grouped with Incident and Transport dispositions. Who provided care or services is defined in Incident Dispostion.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.28
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.28</number>
  <name>Patient Evaluation/Care</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient disposition for an EMS event identifying whether a patient was evaluated and care or services were provided.</definition>
  <v2Number/>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Grouped with Incident and Transport Dispositions. Who provided care or services is defined in Incident Disposition.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#PatientEvaluationCareeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.28_NV
Type extension of PatientEvaluationCare
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.28" id="eDisposition.PatientEvaluationCare" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.28</number>
        <name>Patient Evaluation/Care</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient disposition for an EMS event identifying whether a patient was evaluated and care or services were provided.</definition>
        <v2Number/>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Grouped with Incident and Transport Dispositions. Who provided care or services is defined in Incident Disposition.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PatientEvaluationCare">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.29
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.29</number>
  <name>Crew Disposition</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</definition>
  <v2Number/>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Grouped with Patient and Transport Dispositions. Depending on context of the Value, "Unit" could be Vehicle or Service/Agency.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#CrewDispositioneDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.29_NV
Type extension of CrewDisposition
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.29" id="eDisposition.CrewDisposition" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.29</number>
        <name>Crew Disposition</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</definition>
        <v2Number/>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Grouped with Patient and Transport Dispositions. Depending on context of the Value, "Unit" could be Vehicle or Service/Agency.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CrewDisposition">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.30
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.30</number>
  <name>Transport Disposition</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The transport disposition for an EMS event identifying whether a transport occurred and by which unit.</definition>
  <v2Number/>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Grouped with Patient and Incident Dispositions. Provides a rapid filter for transport or no transport for incident evaluation, business entry rules and Schematron rules.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#TransportDispositioneDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.30_NV
Type extension of TransportDisposition
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.30" id="eDisposition.TransportDisposition" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.30</number>
        <name>Transport Disposition</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The transport disposition for an EMS event identifying whether a transport occurred and by which unit.</definition>
        <v2Number/>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Grouped with Patient and Incident Dispositions. Provides a rapid filter for transport or no transport for incident evaluation, business entry rules and Schematron rules.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TransportDisposition">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.31
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.31</number>
  <name>Reason for Refusal/Release</name>
  <national>No</national>
  <state>No</state>
  <definition>Describes reason(s) for the patient's refusal of care/transport OR the EMS clinician's decision to release the patient.</definition>
  <v2Number/>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This works in combination with the dispositions and signatures to provide general categories for the patient refusal. Specific legal refusal language should be developed by the agency's legal counsel and provided to the patient or guardian upon refusal per local policies.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#ReasonForRefusalReleaseeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition_eDisposition_eDisposition.IncidentDispositionGroup_eDisposition.31_CorrelationID
Type extension of ReasonForRefusalRelease
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDisposition.31" id="eDisposition.ReasonForRefusalRelease" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.31</number>
        <name>Reason for Refusal/Release</name>
        <national>No</national>
        <state>No</state>
        <definition>Describes reason(s) for the patient's refusal of care/transport OR the EMS clinician's decision to release the patient.</definition>
        <v2Number/>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This works in combination with the dispositions and signatures to provide general categories for the patient refusal. Specific legal refusal language should be developed by the agency's legal counsel and provided to the patient or guardian upon refusal per local policies.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ReasonForRefusalRelease">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.13
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.13</number>
  <name>How Patient Was Moved to Ambulance</name>
  <national>No</national>
  <state>No</state>
  <definition>The method by which the patient was moved to the ambulance from the scene.</definition>
  <v2Number>E20_11</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#HowPatientWasMovedToFromAmbulanceeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.13_CorrelationID
Type extension of HowPatientWasMovedToFromAmbulance
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDisposition.13" id="eDisposition.HowPatientWasMovedtoAmbulance" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.13</number>
        <name>How Patient Was Moved to Ambulance</name>
        <national>No</national>
        <state>No</state>
        <definition>The method by which the patient was moved to the ambulance from the scene.</definition>
        <v2Number>E20_11</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HowPatientWasMovedToFromAmbulance">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.14
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.14</number>
  <name>Position of Patient During Transport</name>
  <national>No</national>
  <state>No</state>
  <definition>The position of the patient during transport from the scene.</definition>
  <v2Number>E20_12</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#PositionOfPatientDuringTransporteDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.14_CorrelationID
Type extension of PositionOfPatientDuringTransport
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDisposition.14" id="eDisposition.PositionofPatientDuringTransport" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.14</number>
        <name>Position of Patient During Transport</name>
        <national>No</national>
        <state>No</state>
        <definition>The position of the patient during transport from the scene.</definition>
        <v2Number>E20_12</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PositionOfPatientDuringTransport">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.15
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.15</number>
  <name>How Patient Was Moved From Ambulance</name>
  <national>No</national>
  <state>No</state>
  <definition>The method by which the patient was moved from the ambulance to the destination.</definition>
  <v2Number>E20_13</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#HowPatientWasMovedToFromAmbulanceeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.15_CorrelationID
Type extension of HowPatientWasMovedToFromAmbulance
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDisposition.15" id="eDisposition.HowPatientWasMovedFromAmbulance" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.15</number>
        <name>How Patient Was Moved From Ambulance</name>
        <national>No</national>
        <state>No</state>
        <definition>The method by which the patient was moved from the ambulance to the destination.</definition>
        <v2Number>E20_13</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HowPatientWasMovedToFromAmbulance">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.16
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.16</number>
  <name>EMS Transport Method</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The method of transport by this EMS Unit.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Required if the patient is transported by EMS.</comment>
  <v3Changes>Added to better describe Air and Ground Transport methods.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#EMSTransportMethodeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.16_NV
Type extension of EMSTransportMethod
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.16" nillable="true" id="eDisposition.EMSTransportMethod">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.16</number>
        <name>EMS Transport Method</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The method of transport by this EMS Unit.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Required if the patient is transported by EMS.</comment>
        <v3Changes>Added to better describe Air and Ground Transport methods.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSTransportMethod">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.17
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.17</number>
  <name>Transport Mode from Scene</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indication whether the transport was emergent or non-emergent.</definition>
  <v2Number>E20_14</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#TransportModeFromSceneeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.17_NV
Type extension of TransportModeFromScene
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.17" nillable="true" id="eDisposition.TransportModefromScene">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.17</number>
        <name>Transport Mode from Scene</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indication whether the transport was emergent or non-emergent.</definition>
        <v2Number>E20_14</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TransportModeFromScene">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.18
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.18</number>
  <name>Additional Transport Mode Descriptors</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The documentation of transport mode techniques for this EMS response.</definition>
  <usage>Required</usage>
  <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#AdditionalTransportModeDescriptorseDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.18_NVeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.18_CorrelationID
Type extension of AdditionalTransportModeDescriptors
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.18" nillable="true" id="eDisposition.AdditionalTransportModeDescriptors" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.18</number>
        <name>Additional Transport Mode Descriptors</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The documentation of transport mode techniques for this EMS response.</definition>
        <usage>Required</usage>
        <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="AdditionalTransportModeDescriptors">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.19
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.19</number>
  <name>Final Patient Acuity</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The acuity of the patient's condition after EMS care.</definition>
  <v2Number>E20_15</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="http://www.nhtsa.gov/people/injury/ems/emscorecontent/images/EMSCoreContent.pdf" target="_blank">http://www.nhtsa.gov/people/injury/ems/emscorecontent/images/EMSCoreContent.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as a refusal for a life assist-or for routine transfers. "Dead with Resuscitation Efforts (Black)" added for EMS units that arrived and provided resuscitation to a critical patient, but who was deceased at the end of the event (such as in a cardiac arrest).</comment>
  <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#FinalPatientAcuityeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.19_NV
Type extension of FinalPatientAcuity
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.19" nillable="true" id="eDisposition.FinalPatientAcuity">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.19</number>
        <name>Final Patient Acuity</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The acuity of the patient's condition after EMS care.</definition>
        <v2Number>E20_15</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="http://www.nhtsa.gov/people/injury/ems/emscorecontent/images/EMSCoreContent.pdf" target="_blank">http://www.nhtsa.gov/people/injury/ems/emscorecontent/images/EMSCoreContent.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as a refusal for a life assist-or for routine transfers. "Dead with Resuscitation Efforts (Black)" added for EMS units that arrived and provided resuscitation to a critical patient, but who was deceased at the end of the event (such as in a cardiac arrest).</comment>
        <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="FinalPatientAcuity">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.20
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.20</number>
  <name>Reason for Choosing Destination</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The reason the unit chose to deliver or transfer the patient to the destination.</definition>
  <v2Number>E20_16</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Required if the patient was transported.</comment>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#ReasonForChoosingDestinationeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.20_NVeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.20_CorrelationID
Type extension of ReasonForChoosingDestination
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.20" nillable="true" id="eDisposition.ReasonforChoosingDestination" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.20</number>
        <name>Reason for Choosing Destination</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The reason the unit chose to deliver or transfer the patient to the destination.</definition>
        <v2Number>E20_16</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Required if the patient was transported.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ReasonForChoosingDestination">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.21
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.21</number>
  <name>Type of Destination</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The type of destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_17</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Required if Patient Transported by EMS.</comment>
  <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#TypeOfDestinationeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.21_NV
Type extension of TypeOfDestination
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.21" nillable="true" id="eDisposition.TypeofDestination">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.21</number>
        <name>Type of Destination</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The type of destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_17</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Required if Patient Transported by EMS.</comment>
        <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TypeOfDestination">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.22
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.22</number>
  <name>Hospital In-Patient Destination</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).</definition>
  <usage>Required</usage>
  <comment>To be documented when in eDisposition.21 "Hospital-Non-Emergency Department Bed" is selected.</comment>
  <v3Changes>Added to identify the location within the hospital that the patient was directly taken to by EMS.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#HospitalInPatientDestinationeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.22_NV
Type extension of HospitalInPatientDestination
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.22" nillable="true" id="eDisposition.HospitalInPatientDestination">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.22</number>
        <name>Hospital In-Patient Destination</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).</definition>
        <usage>Required</usage>
        <comment>To be documented when in eDisposition.21 "Hospital-Non-Emergency Department Bed" is selected.</comment>
        <v3Changes>Added to identify the location within the hospital that the patient was directly taken to by EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HospitalInPatientDestination">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.23
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.23</number>
  <name>Hospital Capability</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The primary hospital capability associated with the patient's condition for this transport (e.g., Trauma, STEMI, Peds, etc.).</definition>
  <usage>Required</usage>
  <comment>To be documented when eDisposition.21 (Type of Destination) is 1) Hospital-Emergency Department, 2) Hospital-Non-Emergency Department Bed, or 3) Freestanding Emergency Department. <br/><br/>Stroke Center classifications based on Join Commission stroke certification: <a href="https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/" target="_blank">https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/</a></comment>
  <v3Changes>Added to aid in determining if patients are transported to the appropriate hospital based on provider impression, assessment, and treatment.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#HospitalDesignationeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.23_NVeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.23_CorrelationID
Type extension of HospitalDesignation
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.23" nillable="true" id="eDisposition.HospitalCapability" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.23</number>
        <name>Hospital Capability</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The primary hospital capability associated with the patient's condition for this transport (e.g., Trauma, STEMI, Peds, etc.).</definition>
        <usage>Required</usage>
        <comment>To be documented when eDisposition.21 (Type of Destination) is 1) Hospital-Emergency Department, 2) Hospital-Non-Emergency Department Bed, or 3) Freestanding Emergency Department. <br/><br/>Stroke Center classifications based on Join Commission stroke certification: <a href="https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/" target="_blank">https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/</a></comment>
        <v3Changes>Added to aid in determining if patients are transported to the appropriate hospital based on provider impression, assessment, and treatment.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HospitalDesignation">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.HospitalTeamActivationGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold info about the destination team pre-arrival activation
Diagram
DiagrameDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.HospitalTeamActivationGroup_CorrelationIDeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.HospitalTeamActivationGroup_eDisposition.24eDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.HospitalTeamActivationGroup_eDisposition.25
Properties
content complex
maxOccurs unbounded
Model
Children eDisposition.24, eDisposition.25
Instance

<eDisposition.HospitalTeamActivationGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eDisposition.24 NV="">{1,1}</eDisposition.24>
  <eDisposition.25 NV="">{1,1}</eDisposition.25>
</eDisposition.HospitalTeamActivationGroup>
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDisposition.HospitalTeamActivationGroup" id="eDisposition.HospitalTeamActivationGroup" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about the destination team pre-arrival activation</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDisposition.24" nillable="true" id="eDisposition.DestinationTeamPreArrivalActivation">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.24</number>
              <name>Destination Team Pre-Arrival Alert or Activation</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>Indication that an alert (or activation) was called by EMS to the appropriate destination healthcare facility team. The alert (or activation) should occur prior to the EMS Unit arrival at the destination with the patient.</definition>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment/>
              <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DestinationPrearrivalActivation">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.25" nillable="true" id="eDisposition.DestinationPrearrivalActivationDateTime">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.25</number>
              <name>Date/Time of Destination Prearrival Alert or Activation</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The Date/Time EMS alerted, notified, or activated the Destination Healthcare Facility prior to EMS arrival. The EMS assessment identified the patient as acutely ill or injured based on exam and possibly specified alert criteria.</definition>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
              <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DateTimeType">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.HospitalTeamActivationGroup / eDisposition.24
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.24</number>
  <name>Destination Team Pre-Arrival Alert or Activation</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indication that an alert (or activation) was called by EMS to the appropriate destination healthcare facility team. The alert (or activation) should occur prior to the EMS Unit arrival at the destination with the patient.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment/>
  <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#DestinationPrearrivalActivationeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.HospitalTeamActivationGroup_eDisposition_eDisposition_eDisposition.HospitalTeamActivationGroup_eDisposition.24_NV
Type extension of DestinationPrearrivalActivation
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.24" nillable="true" id="eDisposition.DestinationTeamPreArrivalActivation">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.24</number>
        <name>Destination Team Pre-Arrival Alert or Activation</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indication that an alert (or activation) was called by EMS to the appropriate destination healthcare facility team. The alert (or activation) should occur prior to the EMS Unit arrival at the destination with the patient.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment/>
        <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DestinationPrearrivalActivation">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.HospitalTeamActivationGroup / eDisposition.25
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.25</number>
  <name>Date/Time of Destination Prearrival Alert or Activation</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The Date/Time EMS alerted, notified, or activated the Destination Healthcare Facility prior to EMS arrival. The EMS assessment identified the patient as acutely ill or injured based on exam and possibly specified alert criteria.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
  <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#DateTimeTypeeDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.HospitalTeamActivationGroup_eDisposition_eDisposition_eDisposition.HospitalTeamActivationGroup_eDisposition.25_NV
Type extension of DateTimeType
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.25" nillable="true" id="eDisposition.DestinationPrearrivalActivationDateTime">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.25</number>
        <name>Date/Time of Destination Prearrival Alert or Activation</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The Date/Time EMS alerted, notified, or activated the Destination Healthcare Facility prior to EMS arrival. The EMS assessment identified the patient as acutely ill or injured based on exam and possibly specified alert criteria.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
        <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DateTimeType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.26
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.26</number>
  <name>Disposition Instructions Provided</name>
  <national>No</national>
  <state>No</state>
  <definition>Information provided to patient during disposition for patients not transported or treated.</definition>
  <usage>Optional</usage>
  <v3Changes>Added to better document instructions given to patients not transported by EMS.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#DispositionInstructioneDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.26_CorrelationID
Type extension of DispositionInstruction
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eDisposition.26" id="eDisposition.DispositionInstructionsProvided" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.26</number>
        <name>Disposition Instructions Provided</name>
        <national>No</national>
        <state>No</state>
        <definition>Information provided to patient during disposition for patients not transported or treated.</definition>
        <usage>Optional</usage>
        <v3Changes>Added to better document instructions given to patients not transported by EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DispositionInstruction">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eDisposition / eDisposition.32
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eDisposition.32</number>
  <name>Level of Care Provided per Protocol</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.</definition>
  <usage>Required</usage>
  <comment>The level of care should be defined by the situation, medications, and procedures provided to the patient based on what is allowed in the local EMS protocols. This definition can vary between regions; what may be allowed for BLS providers in one region may be considered ALS care in another. This is not a reflection of the provider levels providing care, but the actual care given-for example, BLS care provided by a paramedic would be entered as "BLS". This element benefits reviews of performance, resource demand and utilization, and reimbursement coding.</comment>
  <v3Changes>Element added wit the release of v3.5.0</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameDisposition_v3_xsd.tmp#LevelofCareProvidedperProtocoleDisposition_v3_xsd.tmp#eDisposition_eDisposition_eDisposition.32_NV
Type extension of LevelofCareProvidedperProtocol
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eDisposition.32" id="eDisposition.LevelofCareProvidedperProtocol" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.32</number>
        <name>Level of Care Provided per Protocol</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.</definition>
        <usage>Required</usage>
        <comment>The level of care should be defined by the situation, medications, and procedures provided to the patient based on what is allowed in the local EMS protocols. This definition can vary between regions; what may be allowed for BLS providers in one region may be considered ALS care in another. This is not a reflection of the provider levels providing care, but the actual care given-for example, BLS care provided by a paramedic would be entered as "BLS". This element benefits reviews of performance, resource demand and utilization, and reimbursement coding.</comment>
        <v3Changes>Element added wit the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="LevelofCareProvidedperProtocol">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Complex Type eDisposition
Namespace http://www.nemsis.org
Diagram
DiagrameDisposition_v3_xsd.tmp#eDisposition_eDisposition.DestinationGroupeDisposition_v3_xsd.tmp#eDisposition_eDisposition.11eDisposition_v3_xsd.tmp#eDisposition_eDisposition.IncidentDispositionGroupeDisposition_v3_xsd.tmp#eDisposition_eDisposition.13eDisposition_v3_xsd.tmp#eDisposition_eDisposition.14eDisposition_v3_xsd.tmp#eDisposition_eDisposition.15eDisposition_v3_xsd.tmp#eDisposition_eDisposition.16eDisposition_v3_xsd.tmp#eDisposition_eDisposition.17eDisposition_v3_xsd.tmp#eDisposition_eDisposition.18eDisposition_v3_xsd.tmp#eDisposition_eDisposition.19eDisposition_v3_xsd.tmp#eDisposition_eDisposition.20eDisposition_v3_xsd.tmp#eDisposition_eDisposition.21eDisposition_v3_xsd.tmp#eDisposition_eDisposition.22eDisposition_v3_xsd.tmp#eDisposition_eDisposition.23eDisposition_v3_xsd.tmp#eDisposition_eDisposition.HospitalTeamActivationGroupeDisposition_v3_xsd.tmp#eDisposition_eDisposition.26eDisposition_v3_xsd.tmp#eDisposition_eDisposition.32
Used by
Model
Children eDisposition.11, eDisposition.13, eDisposition.14, eDisposition.15, eDisposition.16, eDisposition.17, eDisposition.18, eDisposition.19, eDisposition.20, eDisposition.21, eDisposition.22, eDisposition.23, eDisposition.26, eDisposition.32, eDisposition.DestinationGroup, eDisposition.HospitalTeamActivationGroup, eDisposition.IncidentDispositionGroup
Source

<xs:complexType name="eDisposition" id="eDisposition.Disposition">
  <xs:sequence>
    <xs:element name="eDisposition.DestinationGroup" id="eDisposition.DestinationGroup">
      <xs:annotation>
        <xs:documentation>Group Tag to hold info about the Destination and the Disposition details</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eDisposition.01" nillable="true" id="eDisposition.DestinationTransferredToName" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.01</number>
                  <name>Destination/Transferred To, Name</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The destination the patient was delivered or transferred to.</definition>
                  <v2Number>E20_01</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DestinationTransferredToName">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.02" nillable="true" id="eDisposition.DestinationTransferredToCode" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.02</number>
                  <name>Destination/Transferred To, Code</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The code of the destination the patient was delivered or transferred to.</definition>
                  <v2Number>E20_02</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DestinationTransferredToCode">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.03" id="eDisposition.DestinationStreetAddress" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.03</number>
                  <name>Destination Street Address</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The street address of the destination the patient was delivered or transferred to.</definition>
                  <v2Number>E20_03</v2Number>
                  <usage>Optional</usage>
                  <comment>May be auto-populated if list created in dFacility.07 (Facility Street Address).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="StreetAddress">
                  <xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.04" type="CityGnisCode" id="eDisposition.DestinationCity" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.04</number>
                  <name>Destination City</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The city of the destination the patient was delivered or transferred to (physical address).</definition>
                  <v2Number>E20_04</v2Number>
                  <usage>Optional</usage>
                  <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDisposition.05" nillable="true" id="eDisposition.DestinationState">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.05</number>
                  <name>Destination State</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The state of the destination the patient was delivered or transferred to.</definition>
                  <v2Number>E20_05</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State).<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ANSIStateCode">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.06" nillable="true" id="eDisposition.DestinationCounty">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.06</number>
                  <name>Destination County</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The destination county in which the patient was delivered or transferred to.</definition>
                  <v2Number>E20_06</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ANSICountyCode">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.07" nillable="true" id="eDisposition.DestinationZIPCode">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.07</number>
                  <name>Destination ZIP Code</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The destination ZIP code in which the patient was delivered or transferred to.</definition>
                  <v2Number>E20_07</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>May be auto-populated if list created in dFacility.10 (Facility ZIP Code).<br/><br/>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ZIP">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.08" type="ANSICountryCode" id="eDisposition.DestinationCountry" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.08</number>
                  <name>Destination Country</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The country of the destination.</definition>
                  <usage>Optional</usage>
                  <comment>May be auto-populated if list created in dFacility.12 (Facility Country).<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm" target="_blank">http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a></comment>
                  <v3Changes>Added for improved international compatibility.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDisposition.09" type="GPSLocation" id="eDisposition.DestinationGPSLocation" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.09</number>
                  <name>Destination GPS Location</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The destination GPS Coordinates to which the patient was delivered or transferred to.</definition>
                  <v2Number>E20_08</v2Number>
                  <usage>Optional</usage>
                  <comment>May be auto-populated if list created in dFacility.13 (Facility GPS Location). <br/><br/>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDisposition.10" type="USNG" id="eDisposition.DestinationLocationUSNationalGridCoordinates" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.10</number>
                  <name>Destination Location US National Grid Coordinates</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates.</definition>
                  <usage>Optional</usage>
                  <comment>Standard found at www.fgdc.gov/usng. <br/> Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.11" nillable="true" id="eDisposition.NumberofPatientsTransportedinthisEMSUnit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.11</number>
            <name>Number of Patients Transported in this EMS Unit</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The number of patients transported by this EMS crew and unit.</definition>
            <usage>Recommended</usage>
            <comment>Added to document multiple patients being transported with the same vehicle and crew.</comment>
            <v3Changes>Added to document multiple patients being transported with the same vehicle and crew.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="NumberOfPatients">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.IncidentDispositionGroup" id="eDisposition.IncidentDispositionGroup">
      <xs:annotation>
        <xs:documentation>Group Tag to hold info about the incident disposition details</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eDisposition.27" id="eDisposition.UnitDisposition" type="UnitDisposition">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.27</number>
                  <name>Unit Disposition</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient disposition for an EMS event identifying whether patient contact was made.</definition>
                  <v2Number/>
                  <usage>Mandatory</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Grouped with Incident and Transport dispositions. Who provided care or services is defined in Incident Dispostion.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDisposition.28" id="eDisposition.PatientEvaluationCare" nillable="true">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.28</number>
                  <name>Patient Evaluation/Care</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient disposition for an EMS event identifying whether a patient was evaluated and care or services were provided.</definition>
                  <v2Number/>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Grouped with Incident and Transport Dispositions. Who provided care or services is defined in Incident Disposition.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="PatientEvaluationCare">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.29" id="eDisposition.CrewDisposition" nillable="true">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.29</number>
                  <name>Crew Disposition</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</definition>
                  <v2Number/>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Grouped with Patient and Transport Dispositions. Depending on context of the Value, "Unit" could be Vehicle or Service/Agency.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="CrewDisposition">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.30" id="eDisposition.TransportDisposition" nillable="true">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.30</number>
                  <name>Transport Disposition</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The transport disposition for an EMS event identifying whether a transport occurred and by which unit.</definition>
                  <v2Number/>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Grouped with Patient and Incident Dispositions. Provides a rapid filter for transport or no transport for incident evaluation, business entry rules and Schematron rules.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="TransportDisposition">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.31" id="eDisposition.ReasonForRefusalRelease" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.31</number>
                  <name>Reason for Refusal/Release</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>Describes reason(s) for the patient's refusal of care/transport OR the EMS clinician's decision to release the patient.</definition>
                  <v2Number/>
                  <usage>Optional</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>This works in combination with the dispositions and signatures to provide general categories for the patient refusal. Specific legal refusal language should be developed by the agency's legal counsel and provided to the patient or guardian upon refusal per local policies.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ReasonForRefusalRelease">
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.13" id="eDisposition.HowPatientWasMovedtoAmbulance" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.13</number>
            <name>How Patient Was Moved to Ambulance</name>
            <national>No</national>
            <state>No</state>
            <definition>The method by which the patient was moved to the ambulance from the scene.</definition>
            <v2Number>E20_11</v2Number>
            <usage>Optional</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="HowPatientWasMovedToFromAmbulance">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.14" id="eDisposition.PositionofPatientDuringTransport" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.14</number>
            <name>Position of Patient During Transport</name>
            <national>No</national>
            <state>No</state>
            <definition>The position of the patient during transport from the scene.</definition>
            <v2Number>E20_12</v2Number>
            <usage>Optional</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="PositionOfPatientDuringTransport">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.15" id="eDisposition.HowPatientWasMovedFromAmbulance" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.15</number>
            <name>How Patient Was Moved From Ambulance</name>
            <national>No</national>
            <state>No</state>
            <definition>The method by which the patient was moved from the ambulance to the destination.</definition>
            <v2Number>E20_13</v2Number>
            <usage>Optional</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="HowPatientWasMovedToFromAmbulance">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.16" nillable="true" id="eDisposition.EMSTransportMethod">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.16</number>
            <name>EMS Transport Method</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The method of transport by this EMS Unit.</definition>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Required if the patient is transported by EMS.</comment>
            <v3Changes>Added to better describe Air and Ground Transport methods.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSTransportMethod">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.17" nillable="true" id="eDisposition.TransportModefromScene">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.17</number>
            <name>Transport Mode from Scene</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Indication whether the transport was emergent or non-emergent.</definition>
            <v2Number>E20_14</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="TransportModeFromScene">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.18" nillable="true" id="eDisposition.AdditionalTransportModeDescriptors" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.18</number>
            <name>Additional Transport Mode Descriptors</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The documentation of transport mode techniques for this EMS response.</definition>
            <usage>Required</usage>
            <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="AdditionalTransportModeDescriptors">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.19" nillable="true" id="eDisposition.FinalPatientAcuity">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.19</number>
            <name>Final Patient Acuity</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The acuity of the patient's condition after EMS care.</definition>
            <v2Number>E20_15</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="http://www.nhtsa.gov/people/injury/ems/emscorecontent/images/EMSCoreContent.pdf" target="_blank">http://www.nhtsa.gov/people/injury/ems/emscorecontent/images/EMSCoreContent.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as a refusal for a life assist-or for routine transfers. "Dead with Resuscitation Efforts (Black)" added for EMS units that arrived and provided resuscitation to a critical patient, but who was deceased at the end of the event (such as in a cardiac arrest).</comment>
            <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="FinalPatientAcuity">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.20" nillable="true" id="eDisposition.ReasonforChoosingDestination" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.20</number>
            <name>Reason for Choosing Destination</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The reason the unit chose to deliver or transfer the patient to the destination.</definition>
            <v2Number>E20_16</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Required if the patient was transported.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ReasonForChoosingDestination">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.21" nillable="true" id="eDisposition.TypeofDestination">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.21</number>
            <name>Type of Destination</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The type of destination the patient was delivered or transferred to.</definition>
            <v2Number>E20_17</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Required if Patient Transported by EMS.</comment>
            <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="TypeOfDestination">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.22" nillable="true" id="eDisposition.HospitalInPatientDestination">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.22</number>
            <name>Hospital In-Patient Destination</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).</definition>
            <usage>Required</usage>
            <comment>To be documented when in eDisposition.21 "Hospital-Non-Emergency Department Bed" is selected.</comment>
            <v3Changes>Added to identify the location within the hospital that the patient was directly taken to by EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="HospitalInPatientDestination">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.23" nillable="true" id="eDisposition.HospitalCapability" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.23</number>
            <name>Hospital Capability</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The primary hospital capability associated with the patient's condition for this transport (e.g., Trauma, STEMI, Peds, etc.).</definition>
            <usage>Required</usage>
            <comment>To be documented when eDisposition.21 (Type of Destination) is 1) Hospital-Emergency Department, 2) Hospital-Non-Emergency Department Bed, or 3) Freestanding Emergency Department. <br/><br/>Stroke Center classifications based on Join Commission stroke certification: <a href="https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/" target="_blank">https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/</a></comment>
            <v3Changes>Added to aid in determining if patients are transported to the appropriate hospital based on provider impression, assessment, and treatment.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="HospitalDesignation">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.HospitalTeamActivationGroup" id="eDisposition.HospitalTeamActivationGroup" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold info about the destination team pre-arrival activation</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eDisposition.24" nillable="true" id="eDisposition.DestinationTeamPreArrivalActivation">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.24</number>
                  <name>Destination Team Pre-Arrival Alert or Activation</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>Indication that an alert (or activation) was called by EMS to the appropriate destination healthcare facility team. The alert (or activation) should occur prior to the EMS Unit arrival at the destination with the patient.</definition>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment/>
                  <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DestinationPrearrivalActivation">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.25" nillable="true" id="eDisposition.DestinationPrearrivalActivationDateTime">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.25</number>
                  <name>Date/Time of Destination Prearrival Alert or Activation</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The Date/Time EMS alerted, notified, or activated the Destination Healthcare Facility prior to EMS arrival. The EMS assessment identified the patient as acutely ill or injured based on exam and possibly specified alert criteria.</definition>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
                  <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DateTimeType">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.26" id="eDisposition.DispositionInstructionsProvided" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.26</number>
            <name>Disposition Instructions Provided</name>
            <national>No</national>
            <state>No</state>
            <definition>Information provided to patient during disposition for patients not transported or treated.</definition>
            <usage>Optional</usage>
            <v3Changes>Added to better document instructions given to patients not transported by EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="DispositionInstruction">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.32" id="eDisposition.LevelofCareProvidedperProtocol" nillable="true">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.32</number>
            <name>Level of Care Provided per Protocol</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.</definition>
            <usage>Required</usage>
            <comment>The level of care should be defined by the situation, medications, and procedures provided to the patient based on what is allowed in the local EMS protocols. This definition can vary between regions; what may be allowed for BLS providers in one region may be considered ALS care in another. This is not a reflection of the provider levels providing care, but the actual care given-for example, BLS care provided by a paramedic would be entered as "BLS". This element benefits reviews of performance, resource demand and utilization, and reimbursement coding.</comment>
            <v3Changes>Element added wit the release of v3.5.0</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="LevelofCareProvidedperProtocol">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type DestinationTransferredToName
Namespace http://www.nemsis.org
Annotations

The destination the patient was delivered or transferred to
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source

<xs:simpleType name="DestinationTransferredToName">
  <xs:annotation>
    <xs:documentation>The destination the patient was delivered or transferred to</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DestinationTransferredToCode
Namespace http://www.nemsis.org
Annotations

The code of the destination the patient was delivered or transferred to
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 50
Used by
Source

<xs:simpleType name="DestinationTransferredToCode">
  <xs:annotation>
    <xs:documentation>The code of the destination the patient was delivered or transferred to</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type NumberOfPatients
Namespace http://www.nemsis.org
Annotations

The number of patients transported by this EMS crew and unit.
Diagram
Diagram
Type restriction of xs:positiveInteger
Facets
maxInclusive 100
minInclusive 1
Used by
Source

<xs:simpleType name="NumberOfPatients">
  <xs:annotation>
    <xs:documentation>The number of patients transported by this EMS crew and unit.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:positiveInteger">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type UnitDisposition
Namespace http://www.nemsis.org
Annotations

The patient disposition for an EMS event identifying whether patient contact was made
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4227001
Patient Contact Made
enumeration 4227003
Cancelled on Scene
enumeration 4227005
Cancelled Prior to Arrival at Scene
enumeration 4227007
No Patient Contact
enumeration 4227009
No Patient Found
enumeration 4227011
Non-Patient Incident (Not Otherwise Listed)
Used by
Source

<xs:simpleType name="UnitDisposition">
  <xs:annotation>
    <xs:documentation>The patient disposition for an EMS event identifying whether patient contact was made</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4227001">
      <xs:annotation>
        <xs:documentation>Patient Contact Made</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227003">
      <xs:annotation>
        <xs:documentation>Cancelled on Scene</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227005">
      <xs:annotation>
        <xs:documentation>Cancelled Prior to Arrival at Scene</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227007">
      <xs:annotation>
        <xs:documentation>No Patient Contact</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227009">
      <xs:annotation>
        <xs:documentation>No Patient Found</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227011">
      <xs:annotation>
        <xs:documentation>Non-Patient Incident (Not Otherwise Listed)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PatientEvaluationCare
Namespace http://www.nemsis.org
Annotations

The patient disposition for an EMS event identiying whether a patient was evaluated and care or services were provided.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4228001
Patient Evaluated and Care Provided
enumeration 4228003
Patient Evaluated and Refused Care
enumeration 4228005
Patient Evaluated, No Care Required
enumeration 4228007
Patient Refused Evaluation/Care
enumeration 4228009
Patient Support Services Provided
Used by
Source

<xs:simpleType name="PatientEvaluationCare">
  <xs:annotation>
    <xs:documentation>The patient disposition for an EMS event identiying whether a patient was evaluated and care or services were provided.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4228001">
      <xs:annotation>
        <xs:documentation>Patient Evaluated and Care Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4228003">
      <xs:annotation>
        <xs:documentation>Patient Evaluated and Refused Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4228005">
      <xs:annotation>
        <xs:documentation>Patient Evaluated, No Care Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4228007">
      <xs:annotation>
        <xs:documentation>Patient Refused Evaluation/Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4228009">
      <xs:annotation>
        <xs:documentation>Patient Support Services Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CrewDisposition
Namespace http://www.nemsis.org
Annotations

The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4229001
Initiated and Continued Primary Care
enumeration 4229003
Initiated Primary Care and Transferred to Another EMS Crew
enumeration 4229005
Provided Care Supporting Primary EMS Crew
enumeration 4229007
Assumed Primary Care from Another EMS Crew
enumeration 4229009
Incident Support Services Provided (Including Standby)
enumeration 4229011
Back in Service, No Care/Support Services Required
enumeration 4229013
Back in Service, Care/Support Services Refused
Used by
Source

<xs:simpleType name="CrewDisposition">
  <xs:annotation>
    <xs:documentation>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4229001">
      <xs:annotation>
        <xs:documentation>Initiated and Continued Primary Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229003">
      <xs:annotation>
        <xs:documentation>Initiated Primary Care and Transferred to Another EMS Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229005">
      <xs:annotation>
        <xs:documentation>Provided Care Supporting Primary EMS Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229007">
      <xs:annotation>
        <xs:documentation>Assumed Primary Care from Another EMS Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229009">
      <xs:annotation>
        <xs:documentation>Incident Support Services Provided (Including Standby)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229011">
      <xs:annotation>
        <xs:documentation>Back in Service, No Care/Support Services Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229013">
      <xs:annotation>
        <xs:documentation>Back in Service, Care/Support Services Refused</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TransportDisposition
Namespace http://www.nemsis.org
Annotations

The transport disposition for an EMS event idetifying whether a transport occurred and by which unit.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4230001
Transport by This EMS Unit (This Crew Only)
enumeration 4230003
Transport by This EMS Unit, with a Member of Another Crew
enumeration 4230005
Transport by Another EMS Unit
enumeration 4230007
Transport by Another EMS Unit, with a Member of This Crew
enumeration 4230009
Patient Refused Transport
enumeration 4230011
Non-Patient Transport (Not Otherwise Listed)
enumeration 4230013
No Transport
Used by
Source

<xs:simpleType name="TransportDisposition">
  <xs:annotation>
    <xs:documentation>The transport disposition for an EMS event idetifying whether a transport occurred and by which unit.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4230001">
      <xs:annotation>
        <xs:documentation>Transport by This EMS Unit (This Crew Only)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230003">
      <xs:annotation>
        <xs:documentation>Transport by This EMS Unit, with a Member of Another Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230005">
      <xs:annotation>
        <xs:documentation>Transport by Another EMS Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230007">
      <xs:annotation>
        <xs:documentation>Transport by Another EMS Unit, with a Member of This Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230009">
      <xs:annotation>
        <xs:documentation>Patient Refused Transport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230011">
      <xs:annotation>
        <xs:documentation>Non-Patient Transport (Not Otherwise Listed)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230013">
      <xs:annotation>
        <xs:documentation>No Transport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type ReasonForRefusalRelease
Namespace http://www.nemsis.org
Annotations

Describes reason(s) for the patient's refusal of care/transport or the EMS clinician's decision to release the patient.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4231001
Against Medical Advice
enumeration 4231003
Patient/Guardian Indicates Ambulance Transport is Not Necessary
enumeration 4231005
Released Following Protocol Guidelines
enumeration 4231007
Released to Law Enforcement
enumeration 4231009
Patient/Guardian States Intent to Transport by Other Means
enumeration 4231011
DNR
enumeration 4231013
Medical/Physician Orders for Life Sustaining Treatment
enumeration 4231015
Other, Not Listed
Used by
Source

<xs:simpleType name="ReasonForRefusalRelease">
  <xs:annotation>
    <xs:documentation>Describes reason(s) for the patient's refusal of care/transport or the EMS clinician's decision to release the patient.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4231001">
      <xs:annotation>
        <xs:documentation>Against Medical Advice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231003">
      <xs:annotation>
        <xs:documentation>Patient/Guardian Indicates Ambulance Transport is Not Necessary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231005">
      <xs:annotation>
        <xs:documentation>Released Following Protocol Guidelines</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231007">
      <xs:annotation>
        <xs:documentation>Released to Law Enforcement</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231009">
      <xs:annotation>
        <xs:documentation>Patient/Guardian States Intent to Transport by Other Means</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231011">
      <xs:annotation>
        <xs:documentation>DNR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231013">
      <xs:annotation>
        <xs:documentation>Medical/Physician Orders for Life Sustaining Treatment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231015">
      <xs:annotation>
        <xs:documentation>Other, Not Listed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PositionOfPatientDuringTransport
Namespace http://www.nemsis.org
Annotations

The position of the patient during transport from the scene
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4214001
Car Seat
enumeration 4214003
Fowlers (Semi-Upright Sitting)
enumeration 4214005
Lateral Left
enumeration 4214007
Lateral Right
enumeration 4214009
Other
enumeration 4214011
Prone
enumeration 4214013
Semi-Fowlers
enumeration 4214015
Sitting
enumeration 4214017
Supine
enumeration 4214019
Trendelenburg
Used by
Source

<xs:simpleType name="PositionOfPatientDuringTransport">
  <xs:annotation>
    <xs:documentation>The position of the patient during transport from the scene</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4214001">
      <xs:annotation>
        <xs:documentation>Car Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214003">
      <xs:annotation>
        <xs:documentation>Fowlers (Semi-Upright Sitting)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214005">
      <xs:annotation>
        <xs:documentation>Lateral Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214007">
      <xs:annotation>
        <xs:documentation>Lateral Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214009">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214011">
      <xs:annotation>
        <xs:documentation>Prone</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214013">
      <xs:annotation>
        <xs:documentation>Semi-Fowlers</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214015">
      <xs:annotation>
        <xs:documentation>Sitting</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214017">
      <xs:annotation>
        <xs:documentation>Supine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214019">
      <xs:annotation>
        <xs:documentation>Trendelenburg</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSTransportMethod
Namespace http://www.nemsis.org
Annotations

The method of transport by EMS.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4216001
Air Medical-Fixed Wing
enumeration 4216003
Air Medical-Rotor Craft
enumeration 4216005
Ground-Ambulance
enumeration 4216007
Ground-ATV or Rescue Vehicle
enumeration 4216009
Ground-Bariatric
enumeration 4216011
Ground-Other Not Listed
enumeration 4216013
Ground-Mass Casualty Bus/Vehicle
enumeration 4216015
Ground-Wheelchair Van
enumeration 4216017
Water-Boat
Used by
Source

<xs:simpleType name="EMSTransportMethod">
  <xs:annotation>
    <xs:documentation>The method of transport by EMS.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4216001">
      <xs:annotation>
        <xs:documentation>Air Medical-Fixed Wing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216003">
      <xs:annotation>
        <xs:documentation>Air Medical-Rotor Craft</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216005">
      <xs:annotation>
        <xs:documentation>Ground-Ambulance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216007">
      <xs:annotation>
        <xs:documentation>Ground-ATV or Rescue Vehicle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216009">
      <xs:annotation>
        <xs:documentation>Ground-Bariatric</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216011">
      <xs:annotation>
        <xs:documentation>Ground-Other Not Listed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216013">
      <xs:annotation>
        <xs:documentation>Ground-Mass Casualty Bus/Vehicle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216015">
      <xs:annotation>
        <xs:documentation>Ground-Wheelchair Van</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216017">
      <xs:annotation>
        <xs:documentation>Water-Boat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TransportModeFromScene
Namespace http://www.nemsis.org
Annotations

Indication whether the transport was emergent or non-emergent.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4217001
Emergent (Immediate Response)
enumeration 4217003
Emergent Downgraded to Non-Emergent
enumeration 4217005
Non-Emergent
enumeration 4217007
Non-Emergent Upgraded to Emergent
Used by
Source

<xs:simpleType name="TransportModeFromScene">
  <xs:annotation>
    <xs:documentation>Indication whether the transport was emergent or non-emergent.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4217001">
      <xs:annotation>
        <xs:documentation>Emergent (Immediate Response)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4217003">
      <xs:annotation>
        <xs:documentation>Emergent Downgraded to Non-Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4217005">
      <xs:annotation>
        <xs:documentation>Non-Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4217007">
      <xs:annotation>
        <xs:documentation>Non-Emergent Upgraded to Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type AdditionalTransportModeDescriptors
Namespace http://www.nemsis.org
Annotations

Indication whether or not lights and/or sirens were used on the vehicle while leaving scene
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4218001
Intersection Navigation-Against Normal Light Patterns
enumeration 4218003
Intersection Navigation-With Automated Light Changing Technology
enumeration 4218005
Intersection Navigation-With Normal Light Patterns
enumeration 4218007
Speed-Enhanced per Local Policy
enumeration 4218009
Speed-Normal Traffic
enumeration 4218011
Lights and Sirens
enumeration 4218013
Lights and No Sirens
enumeration 4218015
No Lights or Sirens
enumeration 4218017
Initial No Lights or Sirens, Upgraded to Lights and Sirens
enumeration 4218019
Initial Lights and Sirens, Downgraded to No Lights or Sirens
Used by
Source

<xs:simpleType name="AdditionalTransportModeDescriptors">
  <xs:annotation>
    <xs:documentation>Indication whether or not lights and/or sirens were used on the vehicle while leaving scene</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4218001">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-Against Normal Light Patterns</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218003">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-With Automated Light Changing Technology</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218005">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-With Normal Light Patterns</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218007">
      <xs:annotation>
        <xs:documentation>Speed-Enhanced per Local Policy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218009">
      <xs:annotation>
        <xs:documentation>Speed-Normal Traffic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218011">
      <xs:annotation>
        <xs:documentation>Lights and Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218013">
      <xs:annotation>
        <xs:documentation>Lights and No Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218015">
      <xs:annotation>
        <xs:documentation>No Lights or Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218017">
      <xs:annotation>
        <xs:documentation>Initial No Lights or Sirens, Upgraded to Lights and Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218019">
      <xs:annotation>
        <xs:documentation>Initial Lights and Sirens, Downgraded to No Lights or Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type FinalPatientAcuity
Namespace http://www.nemsis.org
Annotations

The patient's response.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4219001
Critical (Red)
enumeration 4219003
Emergent (Yellow)
enumeration 4219005
Lower Acuity (Green)
enumeration 4219007
Dead without Resuscitation Efforts (Black)
enumeration 4219009
Dead with Resuscitation Efforts (Black)
enumeration 4219011
Non-Acute/Routine
Used by
Source

<xs:simpleType name="FinalPatientAcuity">
  <xs:annotation>
    <xs:documentation>The patient's response.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4219001">
      <xs:annotation>
        <xs:documentation>Critical (Red)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219003">
      <xs:annotation>
        <xs:documentation>Emergent (Yellow)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219005">
      <xs:annotation>
        <xs:documentation>Lower Acuity (Green)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219007">
      <xs:annotation>
        <xs:documentation>Dead without Resuscitation Efforts (Black)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219009">
      <xs:annotation>
        <xs:documentation>Dead with Resuscitation Efforts (Black)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219011">
      <xs:annotation>
        <xs:documentation>Non-Acute/Routine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type ReasonForChoosingDestination
Namespace http://www.nemsis.org
Annotations

The reason the unit chose to deliver or transfer the patient to the destination
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4220001
Closest Facility
enumeration 4220003
Diversion
enumeration 4220005
Family Choice
enumeration 4220007
Insurance Status/Requirement
enumeration 4220009
Law Enforcement Choice
enumeration 4220011
On-Line/On-Scene Medical Direction
enumeration 4220013
Other
enumeration 4220015
Patient's Choice
enumeration 4220017
Patient's Physician's Choice
enumeration 4220019
Protocol
enumeration 4220021
Regional Specialty Center
Used by
Source

<xs:simpleType name="ReasonForChoosingDestination">
  <xs:annotation>
    <xs:documentation>The reason the unit chose to deliver or transfer the patient to the destination</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4220001">
      <xs:annotation>
        <xs:documentation>Closest Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220003">
      <xs:annotation>
        <xs:documentation>Diversion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220005">
      <xs:annotation>
        <xs:documentation>Family Choice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220007">
      <xs:annotation>
        <xs:documentation>Insurance Status/Requirement</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220009">
      <xs:annotation>
        <xs:documentation>Law Enforcement Choice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220011">
      <xs:annotation>
        <xs:documentation>On-Line/On-Scene Medical Direction</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220013">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220015">
      <xs:annotation>
        <xs:documentation>Patient's Choice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220017">
      <xs:annotation>
        <xs:documentation>Patient's Physician's Choice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220019">
      <xs:annotation>
        <xs:documentation>Protocol</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220021">
      <xs:annotation>
        <xs:documentation>Regional Specialty Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TypeOfDestination
Namespace http://www.nemsis.org
Annotations

The type of destination the patient was delivered or transferred to
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4221001
Home
enumeration 4221003
Hospital-Emergency Department
enumeration 4221005
Hospital-Non-Emergency Department Bed
enumeration 4221007
Clinic
enumeration 4221009
Morgue/Mortuary
enumeration 4221013
Other
enumeration 4221015
Other EMS Responder (air)
enumeration 4221017
Other EMS Responder (ground)
enumeration 4221019
Police/Jail
enumeration 4221021
Urgent Care
enumeration 4221023
Freestanding Emergency Department
enumeration 4221025
Dialysis Center
enumeration 4221027
Diagnostic Services
enumeration 4221029
Assisted Living Facility
enumeration 4221031
Mental Health Facility
enumeration 4221033
Nursing Home
enumeration 4221035
Other Recurring Care Center
enumeration 4221037
Physical Rehabilitation Facility
enumeration 4221039
Drug and/or Alcohol Rehabilitation Facility
enumeration 4221041
Skilled Nursing Facility
Used by
Source

<xs:simpleType name="TypeOfDestination">
  <xs:annotation>
    <xs:documentation>The type of destination the patient was delivered or transferred to</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4221001">
      <xs:annotation>
        <xs:documentation>Home</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221003">
      <xs:annotation>
        <xs:documentation>Hospital-Emergency Department</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221005">
      <xs:annotation>
        <xs:documentation>Hospital-Non-Emergency Department Bed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221007">
      <xs:annotation>
        <xs:documentation>Clinic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221009">
      <xs:annotation>
        <xs:documentation>Morgue/Mortuary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221013">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221015">
      <xs:annotation>
        <xs:documentation>Other EMS Responder (air)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221017">
      <xs:annotation>
        <xs:documentation>Other EMS Responder (ground)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221019">
      <xs:annotation>
        <xs:documentation>Police/Jail</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221021">
      <xs:annotation>
        <xs:documentation>Urgent Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221023">
      <xs:annotation>
        <xs:documentation>Freestanding Emergency Department</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221025">
      <xs:annotation>
        <xs:documentation>Dialysis Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221027">
      <xs:annotation>
        <xs:documentation>Diagnostic Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221029">
      <xs:annotation>
        <xs:documentation>Assisted Living Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221031">
      <xs:annotation>
        <xs:documentation>Mental Health Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221033">
      <xs:annotation>
        <xs:documentation>Nursing Home</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221035">
      <xs:annotation>
        <xs:documentation>Other Recurring Care Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221037">
      <xs:annotation>
        <xs:documentation>Physical Rehabilitation Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221039">
      <xs:annotation>
        <xs:documentation>Drug and/or Alcohol Rehabilitation Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221041">
      <xs:annotation>
        <xs:documentation>Skilled Nursing Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type HospitalInPatientDestination
Namespace http://www.nemsis.org
Annotations

The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4222001
Hospital-Burn
enumeration 4222003
Hospital-Cath Lab
enumeration 4222005
Hospital-CCU
enumeration 4222007
Hospital-Endoscopy
enumeration 4222009
Hospital-Hospice
enumeration 4222011
Hospital-Hyperbaric Oxygen Treatment
enumeration 4222013
Hospital-ICU
enumeration 4222015
Hospital-Labor and Delivery
enumeration 4222017
Hospital-Med/Surg
enumeration 4222019
Hospital-Mental Health
enumeration 4222021
Hospital-MICU
enumeration 4222023
Hospital-NICU
enumeration 4222025
Hospital-Nursery
enumeration 4222027
Hospital-Peds (General)
enumeration 4222029
Hospital-Peds ICU
enumeration 4222031
Hospital-OR
enumeration 4222033
Hospital-Orthopedic
enumeration 4222035
Hospital-Other
enumeration 4222037
Hospital-Out-Patient Bed
enumeration 4222039
Hospital-Radiology Services - MRI
enumeration 4222041
Hospital-Radiology Services - CT/PET
enumeration 4222043
Hospital-Radiology Services - X-Ray
enumeration 4222045
Hospital-Radiation
enumeration 4222047
Hospital-Rehab
enumeration 4222049
Hospital-SICU
enumeration 4222051
Hospital-Oncology
enumeration 4222053
Hospital-Outpatient Surgery
Used by
Source

<xs:simpleType name="HospitalInPatientDestination">
  <xs:annotation>
    <xs:documentation>The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4222001">
      <xs:annotation>
        <xs:documentation>Hospital-Burn</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222003">
      <xs:annotation>
        <xs:documentation>Hospital-Cath Lab</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222005">
      <xs:annotation>
        <xs:documentation>Hospital-CCU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222007">
      <xs:annotation>
        <xs:documentation>Hospital-Endoscopy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222009">
      <xs:annotation>
        <xs:documentation>Hospital-Hospice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222011">
      <xs:annotation>
        <xs:documentation>Hospital-Hyperbaric Oxygen Treatment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222013">
      <xs:annotation>
        <xs:documentation>Hospital-ICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222015">
      <xs:annotation>
        <xs:documentation>Hospital-Labor and Delivery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222017">
      <xs:annotation>
        <xs:documentation>Hospital-Med/Surg</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222019">
      <xs:annotation>
        <xs:documentation>Hospital-Mental Health</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222021">
      <xs:annotation>
        <xs:documentation>Hospital-MICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222023">
      <xs:annotation>
        <xs:documentation>Hospital-NICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222025">
      <xs:annotation>
        <xs:documentation>Hospital-Nursery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222027">
      <xs:annotation>
        <xs:documentation>Hospital-Peds (General)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222029">
      <xs:annotation>
        <xs:documentation>Hospital-Peds ICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222031">
      <xs:annotation>
        <xs:documentation>Hospital-OR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222033">
      <xs:annotation>
        <xs:documentation>Hospital-Orthopedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222035">
      <xs:annotation>
        <xs:documentation>Hospital-Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222037">
      <xs:annotation>
        <xs:documentation>Hospital-Out-Patient Bed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222039">
      <xs:annotation>
        <xs:documentation>Hospital-Radiology Services - MRI</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222041">
      <xs:annotation>
        <xs:documentation>Hospital-Radiology Services - CT/PET</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222043">
      <xs:annotation>
        <xs:documentation>Hospital-Radiology Services - X-Ray</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222045">
      <xs:annotation>
        <xs:documentation>Hospital-Radiation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222047">
      <xs:annotation>
        <xs:documentation>Hospital-Rehab</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222049">
      <xs:annotation>
        <xs:documentation>Hospital-SICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222051">
      <xs:annotation>
        <xs:documentation>Hospital-Oncology</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222053">
      <xs:annotation>
        <xs:documentation>Hospital-Outpatient Surgery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type DestinationPrearrivalActivation
Namespace http://www.nemsis.org
Annotations

Activation of the Destination Healthcare Facility Team prior to EMS arrival for acute ill or injured patient.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4224001
No
enumeration 4224003
Yes-Adult Trauma
enumeration 4224005
Yes-Cardiac Arrest
enumeration 4224007
Yes-Obstetrics
enumeration 4224009
Yes-Other
enumeration 4224011
Yes-Pediatric Trauma
enumeration 4224013
Yes-STEMI
enumeration 4224015
Yes-Stroke
enumeration 4224017
Yes-Trauma (General)
enumeration 4224019
Yes-Sepsis
Used by
Source

<xs:simpleType name="DestinationPrearrivalActivation">
  <xs:annotation>
    <xs:documentation>Activation of the Destination Healthcare Facility Team prior to EMS arrival for acute ill or injured patient.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4224001">
      <xs:annotation>
        <xs:documentation>No</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224003">
      <xs:annotation>
        <xs:documentation>Yes-Adult Trauma</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224005">
      <xs:annotation>
        <xs:documentation>Yes-Cardiac Arrest</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224007">
      <xs:annotation>
        <xs:documentation>Yes-Obstetrics</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224009">
      <xs:annotation>
        <xs:documentation>Yes-Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224011">
      <xs:annotation>
        <xs:documentation>Yes-Pediatric Trauma</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224013">
      <xs:annotation>
        <xs:documentation>Yes-STEMI</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224015">
      <xs:annotation>
        <xs:documentation>Yes-Stroke</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224017">
      <xs:annotation>
        <xs:documentation>Yes-Trauma (General)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224019">
      <xs:annotation>
        <xs:documentation>Yes-Sepsis</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type DispositionInstruction
Namespace http://www.nemsis.org
Annotations

Information provided to the patient during the disposition
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4226001
Contact 911 or see your Doctor if problem returns
enumeration 4226003
Contact 911 or see your Doctor if problem worsens
enumeration 4226005
Other Not Listed (Described in Narrative)
enumeration 4226007
Problem Specific Instructions Provided
enumeration 4226009
See Your Doctor or the Emergency Department immediately
enumeration 4226011
See Your Doctor or the Emergency Department in the next 24 hours
enumeration 4226013
See Your Doctor or the Emergency Department in the next 4 hours
enumeration 4226015
See Your Doctor within the next one week
Used by
Source

<xs:simpleType name="DispositionInstruction">
  <xs:annotation>
    <xs:documentation>Information provided to the patient during the disposition</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4226001">
      <xs:annotation>
        <xs:documentation>Contact 911 or see your Doctor if problem returns</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226003">
      <xs:annotation>
        <xs:documentation>Contact 911 or see your Doctor if problem worsens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226005">
      <xs:annotation>
        <xs:documentation>Other Not Listed (Described in Narrative)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226007">
      <xs:annotation>
        <xs:documentation>Problem Specific Instructions Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226009">
      <xs:annotation>
        <xs:documentation>See Your Doctor or the Emergency Department immediately</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226011">
      <xs:annotation>
        <xs:documentation>See Your Doctor or the Emergency Department in the next 24 hours</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226013">
      <xs:annotation>
        <xs:documentation>See Your Doctor or the Emergency Department in the next 4 hours</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226015">
      <xs:annotation>
        <xs:documentation>See Your Doctor within the next one week</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type LevelofCareProvidedperProtocol
Namespace http://www.nemsis.org
Annotations

The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4232001
BLS - All Levels
enumeration 4232003
ALS - AEMT/Intermediate
enumeration 4232005
ALS - Paramedic
enumeration 4232007
EMS and Other Health-Care Staff
enumeration 4232009
Critical Care
enumeration 4232011
Integrated Health Care
enumeration 4232013
No Care Provided
Used by
Source

<xs:simpleType name="LevelofCareProvidedperProtocol">
  <xs:annotation>
    <xs:documentation>The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4232001">
      <xs:annotation>
        <xs:documentation>BLS - All Levels</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232003">
      <xs:annotation>
        <xs:documentation>ALS - AEMT/Intermediate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232005">
      <xs:annotation>
        <xs:documentation>ALS - Paramedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232007">
      <xs:annotation>
        <xs:documentation>EMS and Other Health-Care Staff</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232009">
      <xs:annotation>
        <xs:documentation>Critical Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232011">
      <xs:annotation>
        <xs:documentation>Integrated Health Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232013">
      <xs:annotation>
        <xs:documentation>No Care Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.01 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.02 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.03 / @StreetAddress2
Namespace No namespace
Type StreetAddress
Properties
use optional
Facets
minLength 1
maxLength 255
Used by
Source

<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.05 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.06 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.07 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.11 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.28 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.29 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.30 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.31 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.13 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.14 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.15 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.16 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.17 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.18 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.18 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.19 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.20 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.20 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.21 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.22 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.23 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.23 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.HospitalTeamActivationGroup / eDisposition.24 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.HospitalTeamActivationGroup / eDisposition.25 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eDisposition / eDisposition.HospitalTeamActivationGroup / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.26 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eDisposition / eDisposition.32 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
