Included schema eInjury_v3.xsd
Namespace http://www.nemsis.org
Properties
attribute form default unqualified
element form default qualified
Element eInjury / eInjury.01
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.01</number>
  <name>Cause of Injury</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The category of the reported/suspected external cause of the injury.</definition>
  <v2Number>E10_01</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Suggested code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>Code list is represented in ICD-10 Codes. <br/>Website - http://uts.nlm.nih.gov <br/>Product - UMLS Metathesaurus</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#icd10CodeInjuryeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.01_NVeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.01_CorrelationID
Type extension of icd10CodeInjury
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source
<xs:element name="eInjury.01" nillable="true" id="eInjury.CauseofInjury" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.01</number>
        <name>Cause of Injury</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The category of the reported/suspected external cause of the injury.</definition>
        <v2Number>E10_01</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Suggested code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>Code list is represented in ICD-10 Codes. <br/>Website - http://uts.nlm.nih.gov <br/>Product - UMLS Metathesaurus</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="icd10CodeInjury">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.02
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.02</number>
  <name>Mechanism of Injury</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The mechanism of the event which caused the injury.</definition>
  <v2Number>E10_03</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#MechanismOfInjuryeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.02_NVeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.02_CorrelationID
Type extension of MechanismOfInjury
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source
<xs:element name="eInjury.02" nillable="true" id="eInjury.MechanismofInjury" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.02</number>
        <name>Mechanism of Injury</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The mechanism of the event which caused the injury.</definition>
        <v2Number>E10_03</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="MechanismOfInjury">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.03
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.03</number>
  <name>Trauma Triage Criteria (High Risk for Serious Injury)</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Trauma triage criteria for the red boxes (Injury Patterns and Mental Status and Vital Signs) in the 2021 ACS National Guideline for the Field Triage of Injured Patients.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>2021 National Guidelines for the Field Triage of Injured Patients - Red Criteria (i.e., Injury Patterns, Mental Status & Vital Signs)</comment>
  <v3Changes>Revised to represent the 2021 National Guidelines for the Field Triage of Injured Patients - Red Criteria. Website: <a href="https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/" target="_blank">https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/</a></v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#TraumaTriageCriteriaSteps1and2eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.03_PNeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.03_NVeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.03_CorrelationID
Type extension of TraumaTriageCriteriaSteps1and2
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
PN union of(PN.NoneReported) optional
Source
<xs:element name="eInjury.03" nillable="true" id="eInjury.TraumaTriageCriteriaSteps1and2" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.03</number>
        <name>Trauma Triage Criteria (High Risk for Serious Injury)</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Trauma triage criteria for the red boxes (Injury Patterns and Mental Status and Vital Signs) in the 2021 ACS National Guideline for the Field Triage of Injured Patients.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>2021 National Guidelines for the Field Triage of Injured Patients - Red Criteria (i.e., Injury Patterns, Mental Status & Vital Signs)</comment>
        <v3Changes>Revised to represent the 2021 National Guidelines for the Field Triage of Injured Patients - Red Criteria. Website: <a href="https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/" target="_blank">https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/</a></v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TraumaTriageCriteriaSteps1and2">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.NoneReported"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.04
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.04</number>
  <name>Trauma Triage Criteria (Moderate Risk for Serious Injury)</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Trauma triage criteria for the yellow boxes (Mechanism of Injury and EMS Judgment) in the 2021 ACS National Guideline for the Field Triage of Injured Patients.</definition>
  <v2Number>E10_04</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>2021 National Guidelines for the Field Triage of Injured Patients - Yellow Criteria (i.e., Mechanism of Injury and EMS Judgment)</comment>
  <v3Changes>Revised to represent the 2021 National Guidelines for the Field Triage of Injured Patients - Yellow Criteria. Website: <a href="https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/" target="_blank">https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines</a></v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#TraumaTriageCriteriaSteps3and4eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.04_PNeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.04_NVeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.04_CorrelationID
Type extension of TraumaTriageCriteriaSteps3and4
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
PN union of(PN.NoneReported) optional
Source
<xs:element name="eInjury.04" nillable="true" id="eInjury.TraumaTriageCriteriaSteps3and4" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.04</number>
        <name>Trauma Triage Criteria (Moderate Risk for Serious Injury)</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Trauma triage criteria for the yellow boxes (Mechanism of Injury and EMS Judgment) in the 2021 ACS National Guideline for the Field Triage of Injured Patients.</definition>
        <v2Number>E10_04</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>2021 National Guidelines for the Field Triage of Injured Patients - Yellow Criteria (i.e., Mechanism of Injury and EMS Judgment)</comment>
        <v3Changes>Revised to represent the 2021 National Guidelines for the Field Triage of Injured Patients - Yellow Criteria. Website: <a href="https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/" target="_blank">https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines</a></v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TraumaTriageCriteriaSteps3and4">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.NoneReported"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.05
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.05</number>
  <name>Main Area of the Vehicle Impacted by the Collision</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The area or location of initial impact on the vehicle based on 12-point clock diagram.</definition>
  <v2Number>E10_05</v2Number>
  <usage>Optional</usage>
  <comment>The front of the vehicle is 12, passenger (right) side is 3, rear is 6, etc.<br/><br/>Based on MMUCC via areas(s) of impact & FARS coding manual clock diagram.</comment>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#AreaOfVehicleImpact
Type AreaOfVehicleImpact
Properties
content simple
minOccurs 0
Facets
maxInclusive 12
minInclusive 1
Source
<xs:element name="eInjury.05" type="AreaOfVehicleImpact" id="eInjury.MainAreaoftheVehicleimpactedbythecollision" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.05</number>
        <name>Main Area of the Vehicle Impacted by the Collision</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The area or location of initial impact on the vehicle based on 12-point clock diagram.</definition>
        <v2Number>E10_05</v2Number>
        <usage>Optional</usage>
        <comment>The front of the vehicle is 12, passenger (right) side is 3, rear is 6, etc.<br/><br/>Based on MMUCC via areas(s) of impact & FARS coding manual clock diagram.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.06
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.06</number>
  <name>Location of Patient in Vehicle</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The seat row location of the vehicle at the time of the crash with the front seat numbered as 1.</definition>
  <v2Number>E10_06</v2Number>
  <usage>Optional</usage>
  <comment>MMUCC P6 data element</comment>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#SeatRowLocation
Type SeatRowLocation
Properties
content simple
minOccurs 0
Facets
enumeration 2906001
Front Seat-Left Side (or motorcycle driver)
enumeration 2906003
Front Seat-Middle
enumeration 2906005
Front Seat-Right Side
enumeration 2906007
Passenger in other enclosed passenger or cargo area (non-trailing unit such as a bus, etc.)
enumeration 2906009
Passenger in unenclosed passenger or cargo area (non-trailing unit such as a pickup, etc.)
enumeration 2906011
Riding on Vehicle Exterior (non-trailing unit)
enumeration 2906013
Second Seat-Left Side (or motorcycle passenger)
enumeration 2906015
Second Seat-Middle
enumeration 2906017
Second Seat-Right Side
enumeration 2906019
Sleeper Section of Cab (truck)
enumeration 2906021
Third Row-Left Side (or motorcycle passenger)
enumeration 2906023
Third Row-Middle
enumeration 2906025
Third Row-Right Side
enumeration 2906027
Trailing Unit
enumeration 2906029
Unknown
Source
<xs:element name="eInjury.06" type="SeatRowLocation" id="eInjury.LocationofPatientinVehicle" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.06</number>
        <name>Location of Patient in Vehicle</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The seat row location of the vehicle at the time of the crash with the front seat numbered as 1.</definition>
        <v2Number>E10_06</v2Number>
        <usage>Optional</usage>
        <comment>MMUCC P6 data element</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.07
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.07</number>
  <name>Use of Occupant Safety Equipment</name>
  <national>No</national>
  <state>Yes</state>
  <definition>Safety equipment in use by the patient at the time of the injury.</definition>
  <v2Number>E10_08</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>MMUCC P7 data element used as baseline information. Data element expanded for added definition in non-vehicular settings.</comment>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#UseOfOccupantSafetyEquipmenteInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.07_NVeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.07_CorrelationID
Type extension of UseOfOccupantSafetyEquipment
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source
<xs:element name="eInjury.07" nillable="true" id="eInjury.UseofOccupantSafetyEquipment" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.07</number>
        <name>Use of Occupant Safety Equipment</name>
        <national>No</national>
        <state>Yes</state>
        <definition>Safety equipment in use by the patient at the time of the injury.</definition>
        <v2Number>E10_08</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>MMUCC P7 data element used as baseline information. Data element expanded for added definition in non-vehicular settings.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="UseOfOccupantSafetyEquipment">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.08
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.08</number>
  <name>Airbag Deployment</name>
  <national>No</national>
  <state>Yes</state>
  <definition>Indication of Airbag Deployment.</definition>
  <v2Number>E10_09</v2Number>
  <usage>Optional</usage>
  <comment>MMUCC P8 data element baseline was used for this element.</comment>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#AirbagDeploymenteInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.08_CorrelationID
Type extension of AirbagDeployment
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source
<xs:element name="eInjury.08" id="eInjury.AirbagDeployment" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.08</number>
        <name>Airbag Deployment</name>
        <national>No</national>
        <state>Yes</state>
        <definition>Indication of Airbag Deployment.</definition>
        <v2Number>E10_09</v2Number>
        <usage>Optional</usage>
        <comment>MMUCC P8 data element baseline was used for this element.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="AirbagDeployment">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.09
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.09</number>
  <name>Height of Fall (feet)</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The distance in feet the patient fell, measured from the lowest point of the patient to the ground.</definition>
  <v2Number>E10_10</v2Number>
  <usage>Optional</usage>
  <comment>Classify same level falls as 0 feet</comment>
</nemsisTacDoc>

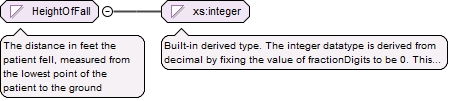

Diagram
DiagrameInjury_v3_xsd.tmp#HeightOfFall
Type HeightOfFall
Properties
content simple
minOccurs 0
Facets
maxInclusive 10000
minInclusive 0
Source
<xs:element name="eInjury.09" type="HeightOfFall" id="eInjury.HeightofFallfeet" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.09</number>
        <name>Height of Fall (feet)</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The distance in feet the patient fell, measured from the lowest point of the patient to the ground.</definition>
        <v2Number>E10_10</v2Number>
        <usage>Optional</usage>
        <comment>Classify same level falls as 0 feet</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.10
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.10</number>
  <name>OSHA Personal Protective Equipment Used</name>
  <national>No</national>
  <state>No</state>
  <definition>Documentation of the use of OSHA required protective equipment used by the patient at the time of injury.</definition>
  <usage>Optional</usage>
  <v3Changes>Added to better document personal protection equipment used by the patient associated with an injury.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#EquipmentUsedeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.10_CorrelationID
Type extension of EquipmentUsed
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source
<xs:element name="eInjury.10" id="eInjury.OSHAPersonalProtectiveEquipmentUsed" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.10</number>
        <name>OSHA Personal Protective Equipment Used</name>
        <national>No</national>
        <state>No</state>
        <definition>Documentation of the use of OSHA required protective equipment used by the patient at the time of injury.</definition>
        <usage>Optional</usage>
        <v3Changes>Added to better document personal protection equipment used by the patient associated with an injury.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EquipmentUsed">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.CollisionGroup
Namespace http://www.nemsis.org
Annotations
Group Tag to hold the automated collision notification details
Diagram
DiagrameInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.11eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.12eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.13eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.14eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.15eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.16eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.17eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.18eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.19eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.20eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.21eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.22eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.23eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.24eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.25eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury.SeatGroup
Properties
content complex
minOccurs 0
Model
Children eInjury.11, eInjury.12, eInjury.13, eInjury.14, eInjury.15, eInjury.16, eInjury.17, eInjury.18, eInjury.19, eInjury.20, eInjury.21, eInjury.22, eInjury.23, eInjury.24, eInjury.25, eInjury.SeatGroup
Instance
<eInjury.CollisionGroup xmlns="http://www.nemsis.org">
  <eInjury.11>{0,1}</eInjury.11>
  <eInjury.12>{0,1}</eInjury.12>
  <eInjury.13 CorrelationID="" PhoneNumberType="">{0,unbounded}</eInjury.13>
  <eInjury.14>{0,1}</eInjury.14>
  <eInjury.15>{0,1}</eInjury.15>
  <eInjury.16>{0,1}</eInjury.16>
  <eInjury.17>{0,1}</eInjury.17>
  <eInjury.18>{0,1}</eInjury.18>
  <eInjury.19>{0,1}</eInjury.19>
  <eInjury.20>{0,1}</eInjury.20>
  <eInjury.21>{0,1}</eInjury.21>
  <eInjury.22 CorrelationID="" DeltaVelocityOrdinal="" VelocityUnit="">{0,unbounded}</eInjury.22>
  <eInjury.23>{0,1}</eInjury.23>
  <eInjury.24>{0,1}</eInjury.24>
  <eInjury.25>{0,1}</eInjury.25>
  <eInjury.SeatGroup CorrelationID="">{0,unbounded}</eInjury.SeatGroup>
</eInjury.CollisionGroup>
Source
<xs:element name="eInjury.CollisionGroup" id="eInjury.CollisionGroup" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Group Tag to hold the automated collision notification details</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eInjury.11" type="Company" id="eInjury.ACNSystemCompanyProvidingACNData" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.11</number>
              <name>ACN System/Company Providing ACN Data</name>
              <national>No</national>
              <state>No</state>
              <definition>The agency providing the Automated Collision Notification (ACN) Data.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Provider Name. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.12" type="IncidentID" id="eInjury.ACNIncidentID" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.12</number>
              <name>ACN Incident ID</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Incident ID.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Incident ID. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.13" id="eInjury.ACNCallBackPhoneNumber" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.13</number>
              <name>ACN Call Back Phone Number</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Call Back Phone Number (US Only).</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Call Back Number. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="PhoneNumber">
              <xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eInjury.14" type="DateTimeType" id="eInjury.ACNIncidentDateTime" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.14</number>
              <name>Date/Time of ACN Incident</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Incident Date and Time.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Incident Date and Time. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group. <br/><br/>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.15" type="GPSLocation" id="eInjury.ACNIncidentLocation" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.15</number>
              <name>ACN Incident Location</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification GPS Location.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Location (combining Latitude and Longitude). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group. The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.16" type="BodyType" id="eInjury.ACNIncidentVehicleBodyType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.16</number>
              <name>ACN Incident Vehicle Body Type</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Vehicle Body Type.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Body Type. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.17" type="Manufacturer" id="eInjury.ACNIncidentVehicleManufacturer" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>

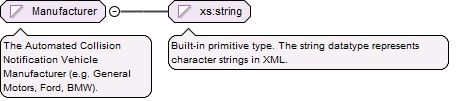

              <number>eInjury.17</number>
              <name>ACN Incident Vehicle Manufacturer</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Vehicle Manufacturer (e.g., General Motors, Ford, BMW, etc.).</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Manufacturer. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>

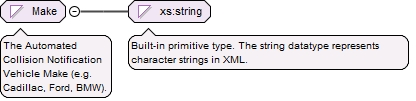

      <xs:element name="eInjury.18" type="Make" id="eInjury.ACNIncidentVehicleMake" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.18</number>
              <name>ACN Incident Vehicle Make</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Vehicle Make (e.g., Cadillac, Ford, BMW, etc.).</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Make. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>

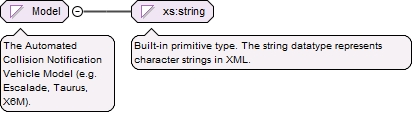

      <xs:element name="eInjury.19" type="Model" id="eInjury.ACNIncidentVehicleModel" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.19</number>
              <name>ACN Incident Vehicle Model</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Vehicle Model (e.g., Escalade, Taurus, X6M, etc.).</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Model. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.20" type="Year" id="eInjury.ACNIncidentVehicleModelYear" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.20</number>
              <name>ACN Incident Vehicle Model Year</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Vehicle Model Year (e.g., 2010).</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Year. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.21" type="YesNoValues" id="eInjury.ACNIncidentMultipleImpacts" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.21</number>
              <name>ACN Incident Multiple Impacts</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Indication of Multiple Impacts associated with the collision.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Multiple Impacts. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>

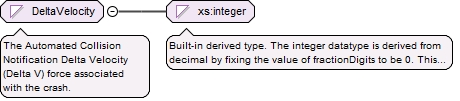

      <xs:element name="eInjury.22" id="eInjury.ACNIncidentDeltaVelocity" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.22</number>
              <name>ACN Incident Delta Velocity</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Delta Velocity (Delta V) force associated with the crash.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Delta Velocity. The force of impact based on the change in velocity over the duration of the crash pulse. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DeltaVelocity">
              <xs:attribute name="DeltaVelocityOrdinal" type="DeltaVelocityOrdinalRanking" use="optional"/>
              <xs:attribute name="VelocityUnit" type="VelocityUnits" use="optional"/>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eInjury.23" type="YesNoValues" id="eInjury.ACNHighProbabilityofInjury" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.23</number>
              <name>ACN High Probability of Injury</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification of the High Probability of Injury.</definition>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <!--Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.-->
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>

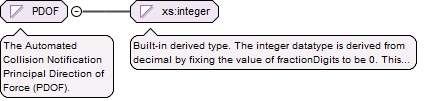

      <xs:element name="eInjury.24" type="PDOF" id="eInjury.ACNIncidentPDOF" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.24</number>
              <name>ACN Incident PDOF</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Principal Direction of Force (PDOF).</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: PDOF. Principal direction of the force of the impact to nearest o'clock reading. Values are 1 through 12 (e.g., 12=Frontal collision, 3=passenger side (right) collision, etc.). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.25" type="ACNYesNoType" id="eInjury.ACNIncidentRollover" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.25</number>
              <name>ACN Incident Rollover</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Indication that the Vehicle Rolled Over.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Rollover. Indicates if the vehicle rolled over during the collision/event (e.g., True=Rollover, False=No Rollover). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.SeatGroup" id="eInjury.SeatGroup" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Group Tag to hold the seat details</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>

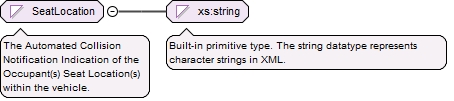

            <xs:element name="eInjury.26" id="eInjury.ACNVehicleSeatLocation" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eInjury.26</number>
                    <name>ACN Vehicle Seat Location</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The Automated Collision Notification Indication of the Occupant(s) Seat Location(s) within the vehicle.</definition>
                    <usage>Optional</usage>
                    <comment>Based on Vehicular Emergency Data Set: Seat - Multiple entry for each seats data. Indicates seatbelt and seat sensor data for individual seat position in the vehicle. These elements come from passenger vehicle. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                    <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="SeatLocation"/>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eInjury.27" type="ACNYesNoType" id="eInjury.SeatOccupied" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eInjury.27</number>
                    <name>Seat Occupied</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>Indication if seat is occupied based on seat sensor data.</definition>
                    <usage>Optional</usage>
                    <comment>Based on Vehicular Emergency Data Set: Occupied - Associated with each seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                    <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="eInjury.28" type="ACNYesNoType" id="eInjury.ACNIncidentSeatbeltUse" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eInjury.28</number>
                    <name>ACN Incident Seatbelt Use</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The Automated Collision Notification Indication of Seatbelt use by the occupant(s).</definition>
                    <usage>Optional</usage>
                    <comment>Based on Vehicular Emergency Data Set: Belt Fastened - Associated with each Seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                    <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="eInjury.29" type="ACNYesNoType" id="eInjury.ACNIncidentAirbagDeployed" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eInjury.29</number>
                    <name>ACN Incident Airbag Deployed</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The Automated Collision Notification Indication of Airbag Deployment.</definition>
                    <usage>Optional</usage>
                    <comment>Based on Vehicular Emergency Data Set: Deployed - Associated with each seat. Indicates if airbag is deployed. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                    <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
          <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.11
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.11</number>
  <name>ACN System/Company Providing ACN Data</name>
  <national>No</national>
  <state>No</state>
  <definition>The agency providing the Automated Collision Notification (ACN) Data.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Provider Name. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#Company
Type Company
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 30
Source
<xs:element name="eInjury.11" type="Company" id="eInjury.ACNSystemCompanyProvidingACNData" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.11</number>
        <name>ACN System/Company Providing ACN Data</name>
        <national>No</national>
        <state>No</state>
        <definition>The agency providing the Automated Collision Notification (ACN) Data.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Provider Name. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.12
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.12</number>
  <name>ACN Incident ID</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Incident ID.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Incident ID. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#IncidentID
Type IncidentID
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 100
Source
<xs:element name="eInjury.12" type="IncidentID" id="eInjury.ACNIncidentID" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.12</number>
        <name>ACN Incident ID</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Incident ID.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Incident ID. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.13
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.13</number>
  <name>ACN Call Back Phone Number</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Call Back Phone Number (US Only).</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Call Back Number. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#PhoneNumbereInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.13_PhoneNumberTypeeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.13_CorrelationID
Type extension of PhoneNumber
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
PhoneNumberType PhoneNumberType optional
Source
<xs:element name="eInjury.13" id="eInjury.ACNCallBackPhoneNumber" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.13</number>
        <name>ACN Call Back Phone Number</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Call Back Phone Number (US Only).</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Call Back Number. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PhoneNumber">
        <xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.14
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.14</number>
  <name>Date/Time of ACN Incident</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Incident Date and Time.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Incident Date and Time. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group. <br/><br/>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
maxInclusive 2050-01-01T00:00:00-00:00
minInclusive 1950-01-01T00:00:00-00:00
pattern [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
Source
<xs:element name="eInjury.14" type="DateTimeType" id="eInjury.ACNIncidentDateTime" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.14</number>
        <name>Date/Time of ACN Incident</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Incident Date and Time.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Incident Date and Time. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group. <br/><br/>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.15
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.15</number>
  <name>ACN Incident Location</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification GPS Location.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Location (combining Latitude and Longitude). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group. The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#GPSLocation
Type GPSLocation
Properties
content simple
minOccurs 0
Facets
pattern (\+|-)?(90(\.[0]{1,6})?|([1-8][0-9]|[0-9])(\.[0-9]{1,6})?),(\+|-)?(180(\.[0]{1,6})?|(1[0-7][0-9]|[1-9][0-9]|[0-9])(\.[0-9]{1,6})?)
Source
<xs:element name="eInjury.15" type="GPSLocation" id="eInjury.ACNIncidentLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.15</number>
        <name>ACN Incident Location</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification GPS Location.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Location (combining Latitude and Longitude). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group. The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.16
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.16</number>
  <name>ACN Incident Vehicle Body Type</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Vehicle Body Type.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Body Type. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#BodyType
Type BodyType
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 100
Source
<xs:element name="eInjury.16" type="BodyType" id="eInjury.ACNIncidentVehicleBodyType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.16</number>
        <name>ACN Incident Vehicle Body Type</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Vehicle Body Type.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Body Type. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.17
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.17</number>
  <name>ACN Incident Vehicle Manufacturer</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Vehicle Manufacturer (e.g., General Motors, Ford, BMW, etc.).</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Manufacturer. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#Manufacturer
Type Manufacturer
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 100
Source
<xs:element name="eInjury.17" type="Manufacturer" id="eInjury.ACNIncidentVehicleManufacturer" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.17</number>
        <name>ACN Incident Vehicle Manufacturer</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Vehicle Manufacturer (e.g., General Motors, Ford, BMW, etc.).</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Manufacturer. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.18
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.18</number>
  <name>ACN Incident Vehicle Make</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Vehicle Make (e.g., Cadillac, Ford, BMW, etc.).</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Make. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#Make
Type Make
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 100
Source
<xs:element name="eInjury.18" type="Make" id="eInjury.ACNIncidentVehicleMake" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.18</number>
        <name>ACN Incident Vehicle Make</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Vehicle Make (e.g., Cadillac, Ford, BMW, etc.).</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Make. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.19
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.19</number>
  <name>ACN Incident Vehicle Model</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Vehicle Model (e.g., Escalade, Taurus, X6M, etc.).</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Model. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#Model
Type Model
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 100
Source
<xs:element name="eInjury.19" type="Model" id="eInjury.ACNIncidentVehicleModel" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.19</number>
        <name>ACN Incident Vehicle Model</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Vehicle Model (e.g., Escalade, Taurus, X6M, etc.).</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Model. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.20
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.20</number>
  <name>ACN Incident Vehicle Model Year</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Vehicle Model Year (e.g., 2010).</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Year. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#Year
Type Year
Properties
content simple
minOccurs 0
Facets
maxInclusive 2050
minInclusive 1900
Source
<xs:element name="eInjury.20" type="Year" id="eInjury.ACNIncidentVehicleModelYear" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.20</number>
        <name>ACN Incident Vehicle Model Year</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Vehicle Model Year (e.g., 2010).</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Year. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.21
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.21</number>
  <name>ACN Incident Multiple Impacts</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Indication of Multiple Impacts associated with the collision.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Multiple Impacts. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoValues
Type YesNoValues
Properties
content simple
minOccurs 0
Facets
enumeration 9923001
No
enumeration 9923003
Yes
Source
<xs:element name="eInjury.21" type="YesNoValues" id="eInjury.ACNIncidentMultipleImpacts" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.21</number>
        <name>ACN Incident Multiple Impacts</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Indication of Multiple Impacts associated with the collision.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Multiple Impacts. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.22
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.22</number>
  <name>ACN Incident Delta Velocity</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Delta Velocity (Delta V) force associated with the crash.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Delta Velocity. The force of impact based on the change in velocity over the duration of the crash pulse. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#DeltaVelocityeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.22_DeltaVelocityOrdinaleInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.22_VelocityUniteInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.22_CorrelationID
Type extension of DeltaVelocity
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
Source
<xs:element name="eInjury.22" id="eInjury.ACNIncidentDeltaVelocity" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.22</number>
        <name>ACN Incident Delta Velocity</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Delta Velocity (Delta V) force associated with the crash.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Delta Velocity. The force of impact based on the change in velocity over the duration of the crash pulse. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DeltaVelocity">
        <xs:attribute name="DeltaVelocityOrdinal" type="DeltaVelocityOrdinalRanking" use="optional"/>
        <xs:attribute name="VelocityUnit" type="VelocityUnits" use="optional"/>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.23
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.23</number>
  <name>ACN High Probability of Injury</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification of the High Probability of Injury.</definition>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <!--Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.-->
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoValues
Type YesNoValues
Properties
content simple
minOccurs 0
Facets
enumeration 9923001
No
enumeration 9923003
Yes
Source
<xs:element name="eInjury.23" type="YesNoValues" id="eInjury.ACNHighProbabilityofInjury" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.23</number>
        <name>ACN High Probability of Injury</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification of the High Probability of Injury.</definition>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <!--Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.-->
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.24
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.24</number>
  <name>ACN Incident PDOF</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Principal Direction of Force (PDOF).</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: PDOF. Principal direction of the force of the impact to nearest o'clock reading. Values are 1 through 12 (e.g., 12=Frontal collision, 3=passenger side (right) collision, etc.). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#PDOF
Type PDOF
Properties
content simple
minOccurs 0
Facets
maxInclusive 12
minInclusive 1
Source
<xs:element name="eInjury.24" type="PDOF" id="eInjury.ACNIncidentPDOF" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.24</number>
        <name>ACN Incident PDOF</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Principal Direction of Force (PDOF).</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: PDOF. Principal direction of the force of the impact to nearest o'clock reading. Values are 1 through 12 (e.g., 12=Frontal collision, 3=passenger side (right) collision, etc.). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.25
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.25</number>
  <name>ACN Incident Rollover</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Indication that the Vehicle Rolled Over.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Rollover. Indicates if the vehicle rolled over during the collision/event (e.g., True=Rollover, False=No Rollover). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#ACNYesNoType
Type ACNYesNoType
Properties
content simple
minOccurs 0
Facets
enumeration Y
Yes
enumeration N
No
Source
<xs:element name="eInjury.25" type="ACNYesNoType" id="eInjury.ACNIncidentRollover" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.25</number>
        <name>ACN Incident Rollover</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Indication that the Vehicle Rolled Over.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Rollover. Indicates if the vehicle rolled over during the collision/event (e.g., True=Rollover, False=No Rollover). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.SeatGroup
Namespace http://www.nemsis.org
Annotations
Group Tag to hold the seat details
Diagram
DiagrameInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.SeatGroup_CorrelationIDeInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.SeatGroup_eInjury.26eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.SeatGroup_eInjury.27eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.SeatGroup_eInjury.28eInjury_v3_xsd.tmp#eInjury_eInjury_eInjury.CollisionGroup_eInjury_eInjury_eInjury.CollisionGroup_eInjury.SeatGroup_eInjury.29
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eInjury.26, eInjury.27, eInjury.28, eInjury.29
Instance
<eInjury.SeatGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eInjury.26>{0,1}</eInjury.26>
  <eInjury.27>{0,1}</eInjury.27>
  <eInjury.28>{0,1}</eInjury.28>
  <eInjury.29>{0,1}</eInjury.29>
</eInjury.SeatGroup>
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source
<xs:element name="eInjury.SeatGroup" id="eInjury.SeatGroup" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold the seat details</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eInjury.26" id="eInjury.ACNVehicleSeatLocation" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.26</number>
              <name>ACN Vehicle Seat Location</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Indication of the Occupant(s) Seat Location(s) within the vehicle.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Seat - Multiple entry for each seats data. Indicates seatbelt and seat sensor data for individual seat position in the vehicle. These elements come from passenger vehicle. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="SeatLocation"/>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eInjury.27" type="ACNYesNoType" id="eInjury.SeatOccupied" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.27</number>
              <name>Seat Occupied</name>
              <national>No</national>
              <state>No</state>
              <definition>Indication if seat is occupied based on seat sensor data.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Occupied - Associated with each seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.28" type="ACNYesNoType" id="eInjury.ACNIncidentSeatbeltUse" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.28</number>
              <name>ACN Incident Seatbelt Use</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Indication of Seatbelt use by the occupant(s).</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Belt Fastened - Associated with each Seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eInjury.29" type="ACNYesNoType" id="eInjury.ACNIncidentAirbagDeployed" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eInjury.29</number>
              <name>ACN Incident Airbag Deployed</name>
              <national>No</national>
              <state>No</state>
              <definition>The Automated Collision Notification Indication of Airbag Deployment.</definition>
              <usage>Optional</usage>
              <comment>Based on Vehicular Emergency Data Set: Deployed - Associated with each seat. Indicates if airbag is deployed. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
              <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.SeatGroup / eInjury.26
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.26</number>
  <name>ACN Vehicle Seat Location</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Indication of the Occupant(s) Seat Location(s) within the vehicle.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Seat - Multiple entry for each seats data. Indicates seatbelt and seat sensor data for individual seat position in the vehicle. These elements come from passenger vehicle. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#SeatLocation
Type extension of SeatLocation
Type hierarchy
Properties
content complex
minOccurs 0
Source
<xs:element name="eInjury.26" id="eInjury.ACNVehicleSeatLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.26</number>
        <name>ACN Vehicle Seat Location</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Indication of the Occupant(s) Seat Location(s) within the vehicle.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Seat - Multiple entry for each seats data. Indicates seatbelt and seat sensor data for individual seat position in the vehicle. These elements come from passenger vehicle. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="SeatLocation"/>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.SeatGroup / eInjury.27
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.27</number>
  <name>Seat Occupied</name>
  <national>No</national>
  <state>No</state>
  <definition>Indication if seat is occupied based on seat sensor data.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Occupied - Associated with each seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#ACNYesNoType
Type ACNYesNoType
Properties
content simple
minOccurs 0
Facets
enumeration Y
Yes
enumeration N
No
Source
<xs:element name="eInjury.27" type="ACNYesNoType" id="eInjury.SeatOccupied" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.27</number>
        <name>Seat Occupied</name>
        <national>No</national>
        <state>No</state>
        <definition>Indication if seat is occupied based on seat sensor data.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Occupied - Associated with each seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.SeatGroup / eInjury.28
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.28</number>
  <name>ACN Incident Seatbelt Use</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Indication of Seatbelt use by the occupant(s).</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Belt Fastened - Associated with each Seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#ACNYesNoType
Type ACNYesNoType
Properties
content simple
minOccurs 0
Facets
enumeration Y
Yes
enumeration N
No
Source
<xs:element name="eInjury.28" type="ACNYesNoType" id="eInjury.ACNIncidentSeatbeltUse" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.28</number>
        <name>ACN Incident Seatbelt Use</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Indication of Seatbelt use by the occupant(s).</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Belt Fastened - Associated with each Seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eInjury / eInjury.CollisionGroup / eInjury.SeatGroup / eInjury.29
Namespace http://www.nemsis.org
Annotations
<nemsisTacDoc>
  <number>eInjury.29</number>
  <name>ACN Incident Airbag Deployed</name>
  <national>No</national>
  <state>No</state>
  <definition>The Automated Collision Notification Indication of Airbag Deployment.</definition>
  <usage>Optional</usage>
  <comment>Based on Vehicular Emergency Data Set: Deployed - Associated with each seat. Indicates if airbag is deployed. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameInjury_v3_xsd.tmp#ACNYesNoType
Type ACNYesNoType
Properties
content simple
minOccurs 0
Facets
enumeration Y
Yes
enumeration N
No
Source
<xs:element name="eInjury.29" type="ACNYesNoType" id="eInjury.ACNIncidentAirbagDeployed" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eInjury.29</number>
        <name>ACN Incident Airbag Deployed</name>
        <national>No</national>
        <state>No</state>
        <definition>The Automated Collision Notification Indication of Airbag Deployment.</definition>
        <usage>Optional</usage>
        <comment>Based on Vehicular Emergency Data Set: Deployed - Associated with each seat. Indicates if airbag is deployed. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Complex Type eInjury
Namespace http://www.nemsis.org
Diagram
DiagrameInjury_v3_xsd.tmp#eInjury_eInjury.01eInjury_v3_xsd.tmp#eInjury_eInjury.02eInjury_v3_xsd.tmp#eInjury_eInjury.03eInjury_v3_xsd.tmp#eInjury_eInjury.04eInjury_v3_xsd.tmp#eInjury_eInjury.05eInjury_v3_xsd.tmp#eInjury_eInjury.06eInjury_v3_xsd.tmp#eInjury_eInjury.07eInjury_v3_xsd.tmp#eInjury_eInjury.08eInjury_v3_xsd.tmp#eInjury_eInjury.09eInjury_v3_xsd.tmp#eInjury_eInjury.10eInjury_v3_xsd.tmp#eInjury_eInjury.CollisionGroup
Used by
Model
Children eInjury.01, eInjury.02, eInjury.03, eInjury.04, eInjury.05, eInjury.06, eInjury.07, eInjury.08, eInjury.09, eInjury.10, eInjury.CollisionGroup
Source
<xs:complexType name="eInjury" id="eInjury.SituationTrauma">
  <xs:sequence>
    <xs:element name="eInjury.01" nillable="true" id="eInjury.CauseofInjury" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.01</number>
            <name>Cause of Injury</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The category of the reported/suspected external cause of the injury.</definition>
            <v2Number>E10_01</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Suggested code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>Code list is represented in ICD-10 Codes. <br/>Website - http://uts.nlm.nih.gov <br/>Product - UMLS Metathesaurus</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="icd10CodeInjury">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eInjury.02" nillable="true" id="eInjury.MechanismofInjury" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.02</number>
            <name>Mechanism of Injury</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The mechanism of the event which caused the injury.</definition>
            <v2Number>E10_03</v2Number>
            <usage>Recommended</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="MechanismOfInjury">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eInjury.03" nillable="true" id="eInjury.TraumaTriageCriteriaSteps1and2" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.03</number>
            <name>Trauma Triage Criteria (High Risk for Serious Injury)</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Trauma triage criteria for the red boxes (Injury Patterns and Mental Status and Vital Signs) in the 2021 ACS National Guideline for the Field Triage of Injured Patients.</definition>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>2021 National Guidelines for the Field Triage of Injured Patients - Red Criteria (i.e., Injury Patterns, Mental Status & Vital Signs)</comment>
            <v3Changes>Revised to represent the 2021 National Guidelines for the Field Triage of Injured Patients - Red Criteria. Website: <a href="https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/" target="_blank">https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/</a></v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="TraumaTriageCriteriaSteps1and2">
            <xs:attribute name="PN" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="PN.NoneReported"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eInjury.04" nillable="true" id="eInjury.TraumaTriageCriteriaSteps3and4" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.04</number>
            <name>Trauma Triage Criteria (Moderate Risk for Serious Injury)</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Trauma triage criteria for the yellow boxes (Mechanism of Injury and EMS Judgment) in the 2021 ACS National Guideline for the Field Triage of Injured Patients.</definition>
            <v2Number>E10_04</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>2021 National Guidelines for the Field Triage of Injured Patients - Yellow Criteria (i.e., Mechanism of Injury and EMS Judgment)</comment>
            <v3Changes>Revised to represent the 2021 National Guidelines for the Field Triage of Injured Patients - Yellow Criteria. Website: <a href="https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines/" target="_blank">https://www.facs.org/quality-programs/trauma/systems/field-triage-guidelines</a></v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="TraumaTriageCriteriaSteps3and4">
            <xs:attribute name="PN" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="PN.NoneReported"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eInjury.05" type="AreaOfVehicleImpact" id="eInjury.MainAreaoftheVehicleimpactedbythecollision" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.05</number>
            <name>Main Area of the Vehicle Impacted by the Collision</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The area or location of initial impact on the vehicle based on 12-point clock diagram.</definition>
            <v2Number>E10_05</v2Number>
            <usage>Optional</usage>
            <comment>The front of the vehicle is 12, passenger (right) side is 3, rear is 6, etc.<br/><br/>Based on MMUCC via areas(s) of impact & FARS coding manual clock diagram.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eInjury.06" type="SeatRowLocation" id="eInjury.LocationofPatientinVehicle" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.06</number>
            <name>Location of Patient in Vehicle</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The seat row location of the vehicle at the time of the crash with the front seat numbered as 1.</definition>
            <v2Number>E10_06</v2Number>
            <usage>Optional</usage>
            <comment>MMUCC P6 data element</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eInjury.07" nillable="true" id="eInjury.UseofOccupantSafetyEquipment" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.07</number>
            <name>Use of Occupant Safety Equipment</name>
            <national>No</national>
            <state>Yes</state>
            <definition>Safety equipment in use by the patient at the time of the injury.</definition>
            <v2Number>E10_08</v2Number>
            <usage>Recommended</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>MMUCC P7 data element used as baseline information. Data element expanded for added definition in non-vehicular settings.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="UseOfOccupantSafetyEquipment">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eInjury.08" id="eInjury.AirbagDeployment" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.08</number>
            <name>Airbag Deployment</name>
            <national>No</national>
            <state>Yes</state>
            <definition>Indication of Airbag Deployment.</definition>
            <v2Number>E10_09</v2Number>
            <usage>Optional</usage>
            <comment>MMUCC P8 data element baseline was used for this element.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="AirbagDeployment">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eInjury.09" type="HeightOfFall" id="eInjury.HeightofFallfeet" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.09</number>
            <name>Height of Fall (feet)</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The distance in feet the patient fell, measured from the lowest point of the patient to the ground.</definition>
            <v2Number>E10_10</v2Number>
            <usage>Optional</usage>
            <comment>Classify same level falls as 0 feet</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eInjury.10" id="eInjury.OSHAPersonalProtectiveEquipmentUsed" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eInjury.10</number>
            <name>OSHA Personal Protective Equipment Used</name>
            <national>No</national>
            <state>No</state>
            <definition>Documentation of the use of OSHA required protective equipment used by the patient at the time of injury.</definition>
            <usage>Optional</usage>
            <v3Changes>Added to better document personal protection equipment used by the patient associated with an injury.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EquipmentUsed">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eInjury.CollisionGroup" id="eInjury.CollisionGroup" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Group Tag to hold the automated collision notification details</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eInjury.11" type="Company" id="eInjury.ACNSystemCompanyProvidingACNData" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.11</number>
                  <name>ACN System/Company Providing ACN Data</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The agency providing the Automated Collision Notification (ACN) Data.</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Provider Name. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.12" type="IncidentID" id="eInjury.ACNIncidentID" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.12</number>
                  <name>ACN Incident ID</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Incident ID.</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Incident ID. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.13" id="eInjury.ACNCallBackPhoneNumber" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.13</number>
                  <name>ACN Call Back Phone Number</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Call Back Phone Number (US Only).</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Call Back Number. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="PhoneNumber">
                  <xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eInjury.14" type="DateTimeType" id="eInjury.ACNIncidentDateTime" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.14</number>
                  <name>Date/Time of ACN Incident</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Incident Date and Time.</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Incident Date and Time. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group. <br/><br/>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.15" type="GPSLocation" id="eInjury.ACNIncidentLocation" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.15</number>
                  <name>ACN Incident Location</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification GPS Location.</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Location (combining Latitude and Longitude). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group. The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.16" type="BodyType" id="eInjury.ACNIncidentVehicleBodyType" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.16</number>
                  <name>ACN Incident Vehicle Body Type</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Vehicle Body Type.</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Body Type. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.17" type="Manufacturer" id="eInjury.ACNIncidentVehicleManufacturer" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.17</number>
                  <name>ACN Incident Vehicle Manufacturer</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Vehicle Manufacturer (e.g., General Motors, Ford, BMW, etc.).</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Manufacturer. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.18" type="Make" id="eInjury.ACNIncidentVehicleMake" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.18</number>
                  <name>ACN Incident Vehicle Make</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Vehicle Make (e.g., Cadillac, Ford, BMW, etc.).</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Make. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.19" type="Model" id="eInjury.ACNIncidentVehicleModel" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.19</number>
                  <name>ACN Incident Vehicle Model</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Vehicle Model (e.g., Escalade, Taurus, X6M, etc.).</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Model. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.20" type="Year" id="eInjury.ACNIncidentVehicleModelYear" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.20</number>
                  <name>ACN Incident Vehicle Model Year</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Vehicle Model Year (e.g., 2010).</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Year. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.21" type="YesNoValues" id="eInjury.ACNIncidentMultipleImpacts" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.21</number>
                  <name>ACN Incident Multiple Impacts</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Indication of Multiple Impacts associated with the collision.</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Multiple Impacts. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.22" id="eInjury.ACNIncidentDeltaVelocity" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.22</number>
                  <name>ACN Incident Delta Velocity</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Delta Velocity (Delta V) force associated with the crash.</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Delta Velocity. The force of impact based on the change in velocity over the duration of the crash pulse. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DeltaVelocity">
                  <xs:attribute name="DeltaVelocityOrdinal" type="DeltaVelocityOrdinalRanking" use="optional"/>
                  <xs:attribute name="VelocityUnit" type="VelocityUnits" use="optional"/>
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eInjury.23" type="YesNoValues" id="eInjury.ACNHighProbabilityofInjury" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.23</number>
                  <name>ACN High Probability of Injury</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification of the High Probability of Injury.</definition>
                  <usage>Optional</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <!--Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.-->
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.24" type="PDOF" id="eInjury.ACNIncidentPDOF" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.24</number>
                  <name>ACN Incident PDOF</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Principal Direction of Force (PDOF).</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: PDOF. Principal direction of the force of the impact to nearest o'clock reading. Values are 1 through 12 (e.g., 12=Frontal collision, 3=passenger side (right) collision, etc.). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.25" type="ACNYesNoType" id="eInjury.ACNIncidentRollover" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eInjury.25</number>
                  <name>ACN Incident Rollover</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The Automated Collision Notification Indication that the Vehicle Rolled Over.</definition>
                  <usage>Optional</usage>
                  <comment>Based on Vehicular Emergency Data Set: Rollover. Indicates if the vehicle rolled over during the collision/event (e.g., True=Rollover, False=No Rollover). Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN) Joint APCO/NENA Data Standardization Working Group.</comment>
                  <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eInjury.SeatGroup" id="eInjury.SeatGroup" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>Group Tag to hold the seat details</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eInjury.26" id="eInjury.ACNVehicleSeatLocation" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eInjury.26</number>
                        <name>ACN Vehicle Seat Location</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The Automated Collision Notification Indication of the Occupant(s) Seat Location(s) within the vehicle.</definition>
                        <usage>Optional</usage>
                        <comment>Based on Vehicular Emergency Data Set: Seat - Multiple entry for each seats data. Indicates seatbelt and seat sensor data for individual seat position in the vehicle. These elements come from passenger vehicle. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="SeatLocation"/>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eInjury.27" type="ACNYesNoType" id="eInjury.SeatOccupied" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eInjury.27</number>
                        <name>Seat Occupied</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>Indication if seat is occupied based on seat sensor data.</definition>
                        <usage>Optional</usage>
                        <comment>Based on Vehicular Emergency Data Set: Occupied - Associated with each seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
                <xs:element name="eInjury.28" type="ACNYesNoType" id="eInjury.ACNIncidentSeatbeltUse" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eInjury.28</number>
                        <name>ACN Incident Seatbelt Use</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The Automated Collision Notification Indication of Seatbelt use by the occupant(s).</definition>
                        <usage>Optional</usage>
                        <comment>Based on Vehicular Emergency Data Set: Belt Fastened - Associated with each Seat. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
                <xs:element name="eInjury.29" type="ACNYesNoType" id="eInjury.ACNIncidentAirbagDeployed" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eInjury.29</number>
                        <name>ACN Incident Airbag Deployed</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The Automated Collision Notification Indication of Airbag Deployment.</definition>
                        <usage>Optional</usage>
                        <comment>Based on Vehicular Emergency Data Set: Deployed - Associated with each seat. Indicates if airbag is deployed. Vehicular Emergency Data Set (VEDS) Recommendations. Version 3.0 Prepared: (February 2011) by the Advanced Automatic Crash Notification (AACN)Joint APCO/NENA Data Standardization Working Group.</comment>
                        <v3Changes>Added to better incorporate advanced automated collision notification information.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
              </xs:sequence>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type MechanismOfInjury
Namespace http://www.nemsis.org
Annotations
The mechanism of the event which caused the injury
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2902001
Blunt
enumeration 2902003
Burn
enumeration 2902005
Other
enumeration 2902007
Penetrating
Used by
Source
<xs:simpleType name="MechanismOfInjury">
  <xs:annotation>
    <xs:documentation>The mechanism of the event which caused the injury</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2902001">
      <xs:annotation>
        <xs:documentation>Blunt</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2902003">
      <xs:annotation>
        <xs:documentation>Burn</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2902005">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2902007">
      <xs:annotation>
        <xs:documentation>Penetrating</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TraumaTriageCriteriaSteps1and2
Namespace http://www.nemsis.org
Annotations
Field Triage Criteria for transport to a trauma center as defined by the Centers for Disease Control and Prevention and the American College of Surgeons-Committee on Trauma.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2903001
Amputation proximal to wrist or ankle
enumeration 2903003
Crushed, degloved, mangled, or pulseless extremity
enumeration 2903005
Chest wall instability, deformity, or suspected flail chest
enumeration 2903007
Glasgow Coma Score <= 13 (DEPRECATED)
enumeration 2903009
Skull deformity, suspected skull fracture
enumeration 2903011
Paralysis (DEPRECATED)
enumeration 2903013
Suspected pelvic fracture
enumeration 2903015
Penetrating injuries to head, neck, torso, and proximal extremities
enumeration 2903017
Respiratory Rate  <10 or >29 breaths per minute (<20 in infants aged <1 year) or need for ventilatory support (DEPRECATED)
enumeration 2903019
Systolic Blood Pressure <90 mmHg (DEPRECATED)
enumeration 2903021
Suspected fracture of two or more proximal long bones
enumeration 2903023
Active bleeding requiring a tourniquet or wound packing with continuous pressure
enumeration 2903025
Age >= 10 years: HR > SBP
enumeration 2903027
Age >= 65 years: SBP < 110 mmHg
enumeration 2903029
Age 0-9 years: SBP < 70mm Hg + (2 x age in years)
enumeration 2903031
Age 10-64 years: SBP < 90 mmHg
enumeration 2903033
Respiratory distress or need for respiratory support
enumeration 2903035
Room-air pulse oximetry < 90%
enumeration 2903037
RR < 10 or > 29 breaths/min
enumeration 2903039
Suspected spinal injury with new motor or sensory loss
enumeration 2903041
Unable to follow commands (motor GCS < 6)
Used by
Source
<xs:simpleType name="TraumaTriageCriteriaSteps1and2">
  <xs:annotation>
    <xs:documentation>Field Triage Criteria for transport to a trauma center as defined by the Centers for Disease Control and Prevention and the American College of Surgeons-Committee on Trauma.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2903001">
      <xs:annotation>
        <xs:documentation>Amputation proximal to wrist or ankle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903003">
      <xs:annotation>
        <xs:documentation>Crushed, degloved, mangled, or pulseless extremity</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903005">
      <xs:annotation>
        <xs:documentation>Chest wall instability, deformity, or suspected flail chest</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903007">
      <xs:annotation>
        <xs:documentation>Glasgow Coma Score <= 13 (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903009">
      <xs:annotation>
        <xs:documentation>Skull deformity, suspected skull fracture</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903011">
      <xs:annotation>
        <xs:documentation>Paralysis (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903013">
      <xs:annotation>
        <xs:documentation>Suspected pelvic fracture</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903015">
      <xs:annotation>
        <xs:documentation>Penetrating injuries to head, neck, torso, and proximal extremities</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903017">
      <xs:annotation>
        <xs:documentation>Respiratory Rate <10 or >29 breaths per minute (<20 in infants aged <1 year) or need for ventilatory support (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903019">
      <xs:annotation>
        <xs:documentation>Systolic Blood Pressure <90 mmHg (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903021">
      <xs:annotation>
        <xs:documentation>Suspected fracture of two or more proximal long bones</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903023">
      <xs:annotation>
        <xs:documentation>Active bleeding requiring a tourniquet or wound packing with continuous pressure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903025">
      <xs:annotation>
        <xs:documentation>Age >= 10 years: HR > SBP</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903027">
      <xs:annotation>
        <xs:documentation>Age >= 65 years: SBP < 110 mmHg</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903029">
      <xs:annotation>
        <xs:documentation>Age 0-9 years: SBP < 70mm Hg + (2 x age in years)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903031">
      <xs:annotation>
        <xs:documentation>Age 10-64 years: SBP < 90 mmHg</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903033">
      <xs:annotation>
        <xs:documentation>Respiratory distress or need for respiratory support</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903035">
      <xs:annotation>
        <xs:documentation>Room-air pulse oximetry < 90%</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903037">
      <xs:annotation>
        <xs:documentation>RR < 10 or > 29 breaths/min</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903039">
      <xs:annotation>
        <xs:documentation>Suspected spinal injury with new motor or sensory loss</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2903041">
      <xs:annotation>
        <xs:documentation>Unable to follow commands (motor GCS < 6)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TraumaTriageCriteriaSteps3and4
Namespace http://www.nemsis.org
Annotations
The kind of risk factor predictors present at the incident
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2904001
Pedestrian/bicycle rider thrown, run over, or with significant impact
enumeration 2904003
Fall Adults: > 20 ft. (one story is equal to 10 ft.) (DEPRECATED)
enumeration 2904005
Fall Children: > 10 ft. or 2-3 times the height of the child (DEPRECATED)
enumeration 2904007
Auto Crash: Death in passenger compartment
enumeration 2904009
Auto Crash: Partial or complete ejection
enumeration 2904011
Auto Crash: Significant intrusion (including roof): >12 inches occupant site; >18 inches any site; need for extrication
enumeration 2904013
Auto Crash: Vehicle telemetry data consistent with severe injury
enumeration 2904015
Motorcycle Crash > 20 MPH (DEPRECATED)
enumeration 2904017
SBP < 110 for age > 65 (DEPRECATED)
enumeration 2904019
Anticoagulant use
enumeration 2904021
Pregnancy > 20 weeks
enumeration 2904023
Other EMS judgment
enumeration 2904025
Burn, without other trauma (DEPRECATED)
enumeration 2904027
Burns in conjunction with trauma
enumeration 2904029
Auto Crash: Child (age 0-9 years) unrestrained or in unsecured child safety seat
enumeration 2904031
Fall from height > 10 feet (all ages)
enumeration 2904033
Low-level falls in young children (age <= 5 years) or older adults (age >= 65 years) with significant head impact
enumeration 2904035
Rider separated from transport vehicle with significant impact (eg, motorcycle, ATV, horse, etc.)
enumeration 2904037
Special, high-resource healthcare needs
enumeration 2904039
Suspicion of child abuse
Used by
Source
<xs:simpleType name="TraumaTriageCriteriaSteps3and4">
  <xs:annotation>
    <xs:documentation>The kind of risk factor predictors present at the incident</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2904001">
      <xs:annotation>
        <xs:documentation>Pedestrian/bicycle rider thrown, run over, or with significant impact</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904003">
      <xs:annotation>
        <xs:documentation>Fall Adults: > 20 ft. (one story is equal to 10 ft.) (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904005">
      <xs:annotation>
        <xs:documentation>Fall Children: > 10 ft. or 2-3 times the height of the child (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904007">
      <xs:annotation>
        <xs:documentation>Auto Crash: Death in passenger compartment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904009">
      <xs:annotation>
        <xs:documentation>Auto Crash: Partial or complete ejection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904011">
      <xs:annotation>
        <xs:documentation>Auto Crash: Significant intrusion (including roof): >12 inches occupant site; >18 inches any site; need for extrication</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904013">
      <xs:annotation>
        <xs:documentation>Auto Crash: Vehicle telemetry data consistent with severe injury</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904015">
      <xs:annotation>
        <xs:documentation>Motorcycle Crash > 20 MPH (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904017">
      <xs:annotation>
        <xs:documentation>SBP < 110 for age > 65 (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904019">
      <xs:annotation>
        <xs:documentation>Anticoagulant use</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904021">
      <xs:annotation>
        <xs:documentation>Pregnancy > 20 weeks</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904023">
      <xs:annotation>
        <xs:documentation>Other EMS judgment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904025">
      <xs:annotation>
        <xs:documentation>Burn, without other trauma (DEPRECATED)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904027">
      <xs:annotation>
        <xs:documentation>Burns in conjunction with trauma</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904029">
      <xs:annotation>
        <xs:documentation>Auto Crash: Child (age 0-9 years) unrestrained or in unsecured child safety seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904031">
      <xs:annotation>
        <xs:documentation>Fall from height > 10 feet (all ages)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904033">
      <xs:annotation>
        <xs:documentation>Low-level falls in young children (age <= 5 years) or older adults (age >= 65 years) with significant head impact</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904035">
      <xs:annotation>
        <xs:documentation>Rider separated from transport vehicle with significant impact (eg, motorcycle, ATV, horse, etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904037">
      <xs:annotation>
        <xs:documentation>Special, high-resource healthcare needs</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2904039">
      <xs:annotation>
        <xs:documentation>Suspicion of child abuse</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type AreaOfVehicleImpact
Namespace http://www.nemsis.org
Annotations
The area or location of impact on the vehicle
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 12
minInclusive 1
Used by
Source
<xs:simpleType name="AreaOfVehicleImpact">
  <xs:annotation>
    <xs:documentation>The area or location of impact on the vehicle</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="12"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SeatRowLocation
Namespace http://www.nemsis.org
Annotations
The seat row location of the vehicle at the time of the crash with the front seat numbered as 1
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2906001
Front Seat-Left Side (or motorcycle driver)
enumeration 2906003
Front Seat-Middle
enumeration 2906005
Front Seat-Right Side
enumeration 2906007
Passenger in other enclosed passenger or cargo area (non-trailing unit such as a bus, etc.)
enumeration 2906009
Passenger in unenclosed passenger or cargo area (non-trailing unit such as a pickup, etc.)
enumeration 2906011
Riding on Vehicle Exterior (non-trailing unit)
enumeration 2906013
Second Seat-Left Side (or motorcycle passenger)
enumeration 2906015
Second Seat-Middle
enumeration 2906017
Second Seat-Right Side
enumeration 2906019
Sleeper Section of Cab (truck)
enumeration 2906021
Third Row-Left Side (or motorcycle passenger)
enumeration 2906023
Third Row-Middle
enumeration 2906025
Third Row-Right Side
enumeration 2906027
Trailing Unit
enumeration 2906029
Unknown
Used by
Source
<xs:simpleType name="SeatRowLocation">
  <xs:annotation>
    <xs:documentation>The seat row location of the vehicle at the time of the crash with the front seat numbered as 1</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2906001">
      <xs:annotation>
        <xs:documentation>Front Seat-Left Side (or motorcycle driver)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906003">
      <xs:annotation>
        <xs:documentation>Front Seat-Middle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906005">
      <xs:annotation>
        <xs:documentation>Front Seat-Right Side</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906007">
      <xs:annotation>
        <xs:documentation>Passenger in other enclosed passenger or cargo area (non-trailing unit such as a bus, etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906009">
      <xs:annotation>
        <xs:documentation>Passenger in unenclosed passenger or cargo area (non-trailing unit such as a pickup, etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906011">
      <xs:annotation>
        <xs:documentation>Riding on Vehicle Exterior (non-trailing unit)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906013">
      <xs:annotation>
        <xs:documentation>Second Seat-Left Side (or motorcycle passenger)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906015">
      <xs:annotation>
        <xs:documentation>Second Seat-Middle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906017">
      <xs:annotation>
        <xs:documentation>Second Seat-Right Side</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906019">
      <xs:annotation>
        <xs:documentation>Sleeper Section of Cab (truck)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906021">
      <xs:annotation>
        <xs:documentation>Third Row-Left Side (or motorcycle passenger)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906023">
      <xs:annotation>
        <xs:documentation>Third Row-Middle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906025">
      <xs:annotation>
        <xs:documentation>Third Row-Right Side</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906027">
      <xs:annotation>
        <xs:documentation>Trailing Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2906029">
      <xs:annotation>
        <xs:documentation>Unknown</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type UseOfOccupantSafetyEquipment
Namespace http://www.nemsis.org
Annotations
Safety equipment in use by the patient at the time of the injury
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2907001
Child Booster Seat
enumeration 2907003
Eye Protection
enumeration 2907005
Helmet Worn
enumeration 2907007
Infant Car Seat Forward Facing
enumeration 2907009
Infant Car Seat Rear Facing
enumeration 2907015
None
enumeration 2907017
Other
enumeration 2907019
Personal Floatation Device
enumeration 2907021
Protective Clothing
enumeration 2907023
Protective Non-Clothing Gear
enumeration 2907027
Shoulder and Lap Belt Used
enumeration 2907029
Lap Belt Only Used
enumeration 2907031
Shoulder Belt Only Used
enumeration 2907033
Unable to Determine
Used by
Source
<xs:simpleType name="UseOfOccupantSafetyEquipment">
  <xs:annotation>
    <xs:documentation>Safety equipment in use by the patient at the time of the injury</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2907001">
      <xs:annotation>
        <xs:documentation>Child Booster Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907003">
      <xs:annotation>
        <xs:documentation>Eye Protection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907005">
      <xs:annotation>
        <xs:documentation>Helmet Worn</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907007">
      <xs:annotation>
        <xs:documentation>Infant Car Seat Forward Facing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907009">
      <xs:annotation>
        <xs:documentation>Infant Car Seat Rear Facing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907015">
      <xs:annotation>
        <xs:documentation>None</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907017">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907019">
      <xs:annotation>
        <xs:documentation>Personal Floatation Device</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907021">
      <xs:annotation>
        <xs:documentation>Protective Clothing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907023">
      <xs:annotation>
        <xs:documentation>Protective Non-Clothing Gear</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907027">
      <xs:annotation>
        <xs:documentation>Shoulder and Lap Belt Used</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907029">
      <xs:annotation>
        <xs:documentation>Lap Belt Only Used</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907031">
      <xs:annotation>
        <xs:documentation>Shoulder Belt Only Used</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2907033">
      <xs:annotation>
        <xs:documentation>Unable to Determine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type AirbagDeployment
Namespace http://www.nemsis.org
Annotations
IndicationOfAirbagDeployment
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2908001
Airbag Deployed Front
enumeration 2908003
Airbag Deployed Side
enumeration 2908005
Airbag Deployed Other (knee, air belt, etc.)
enumeration 2908007
No Airbag Deployed
enumeration 2908009
No Airbag Present
Used by
Source
<xs:simpleType name="AirbagDeployment">
  <xs:annotation>
    <xs:documentation>IndicationOfAirbagDeployment</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2908001">
      <xs:annotation>
        <xs:documentation>Airbag Deployed Front</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2908003">
      <xs:annotation>
        <xs:documentation>Airbag Deployed Side</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2908005">
      <xs:annotation>
        <xs:documentation>Airbag Deployed Other (knee, air belt, etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2908007">
      <xs:annotation>
        <xs:documentation>No Airbag Deployed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2908009">
      <xs:annotation>
        <xs:documentation>No Airbag Present</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type HeightOfFall
Namespace http://www.nemsis.org
Annotations
The distance in feet the patient fell, measured from the lowest point of the patient to the ground
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 10000
minInclusive 0
Used by
Source
<xs:simpleType name="HeightOfFall">
  <xs:annotation>
    <xs:documentation>The distance in feet the patient fell, measured from the lowest point of the patient to the ground</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="10000"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EquipmentUsed
Namespace http://www.nemsis.org
Annotations
Documentation of the use of OSHA required equipment associated with the injury.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2910001
Eye and Face Protection
enumeration 2910003
Foot Protection
enumeration 2910005
Head Protection
enumeration 2910007
Hearing Protection
enumeration 2910009
Respiratory Protection
enumeration 2910011
Safety Belts, lifelines, and lanyards
enumeration 2910013
Safety Nets
Used by
Source
<xs:simpleType name="EquipmentUsed">
  <xs:annotation>
    <xs:documentation>Documentation of the use of OSHA required equipment associated with the injury.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2910001">
      <xs:annotation>
        <xs:documentation>Eye and Face Protection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2910003">
      <xs:annotation>
        <xs:documentation>Foot Protection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2910005">
      <xs:annotation>
        <xs:documentation>Head Protection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2910007">
      <xs:annotation>
        <xs:documentation>Hearing Protection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2910009">
      <xs:annotation>
        <xs:documentation>Respiratory Protection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2910011">
      <xs:annotation>
        <xs:documentation>Safety Belts, lifelines, and lanyards</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2910013">
      <xs:annotation>
        <xs:documentation>Safety Nets</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type Company
Namespace http://www.nemsis.org
Annotations
The Agency providing the Automated Collision Notification Data.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 30
Used by
Source
<xs:simpleType name="Company">
  <xs:annotation>
    <xs:documentation>The Agency providing the Automated Collision Notification Data.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="30"/>
  </xs:restriction>
</xs:simpleType>
Simple Type IncidentID
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Incident ID.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source
<xs:simpleType name="IncidentID">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Incident ID.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type BodyType
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Vehicle Body Type.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source
<xs:simpleType name="BodyType">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Vehicle Body Type.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Manufacturer
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Vehicle Manufacturer (e.g. General Motors, Ford, BMW).
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source
<xs:simpleType name="Manufacturer">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Vehicle Manufacturer (e.g. General Motors, Ford, BMW).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Make
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Vehicle Make (e.g. Cadillac, Ford, BMW).
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source
<xs:simpleType name="Make">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Vehicle Make (e.g. Cadillac, Ford, BMW).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type Model
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Vehicle Model (e.g. Escalade, Taurus, X6M).
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 100
Used by
Source
<xs:simpleType name="Model">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Vehicle Model (e.g. Escalade, Taurus, X6M).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DeltaVelocity
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Delta Velocity (Delta V) force associated with the crash.
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 999
minInclusive 0
Used by
Source
<xs:simpleType name="DeltaVelocity">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Delta Velocity (Delta V) force associated with the crash.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="999"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DeltaVelocityOrdinalRanking
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Delta Velocity (Delta V) force ordinal value. 1 equals first impact, 2 equals second, etc.
Diagram
Diagram
Type restriction of xs:integer
Facets
minInclusive 1
Used by
Source
<xs:simpleType name="DeltaVelocityOrdinalRanking">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Delta Velocity (Delta V) force ordinal value. 1 equals first impact, 2 equals second, etc.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
  </xs:restriction>
</xs:simpleType>
Simple Type PDOF
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Principal Direction of Force (PDOF).
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 12
minInclusive 1
Used by
Source
<xs:simpleType name="PDOF">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Principal Direction of Force (PDOF).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="12"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ACNYesNoType
Namespace http://www.nemsis.org
Annotations
IndicationOfAirbagDeployment
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration Y
Yes
enumeration N
No
Used by
Source
<xs:simpleType name="ACNYesNoType">
  <xs:annotation>
    <xs:documentation>IndicationOfAirbagDeployment</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="Y">
      <xs:annotation>
        <xs:documentation>Yes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="N">
      <xs:annotation>
        <xs:documentation>No</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type SeatLocation
Namespace http://www.nemsis.org
Annotations
The Automated Collision Notification Indication of the Occupant(s) Seat Location(s) within the vehicle.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2926001
Driver Front Seat
enumeration 2926003
Front Row Middle Seat
enumeration 2926005
Passenger Front Seat
enumeration 2926007
Second Row Left Seat
enumeration 2926009
Second Row Middle Seat
enumeration 2926011
Second Row Right Seat
enumeration 2926013
Third Row Left Seat
enumeration 2926015
Third Row Middle Seat
enumeration 2926017
Third Row Right Seat
Used by
Source
<xs:simpleType name="SeatLocation">
  <xs:annotation>
    <xs:documentation>The Automated Collision Notification Indication of the Occupant(s) Seat Location(s) within the vehicle.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2926001">
      <xs:annotation>
        <xs:documentation>Driver Front Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2926003">
      <xs:annotation>
        <xs:documentation>Front Row Middle Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2926005">
      <xs:annotation>
        <xs:documentation>Passenger Front Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2926007">
      <xs:annotation>
        <xs:documentation>Second Row Left Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2926009">
      <xs:annotation>
        <xs:documentation>Second Row Middle Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2926011">
      <xs:annotation>
        <xs:documentation>Second Row Right Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2926013">
      <xs:annotation>
        <xs:documentation>Third Row Left Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2926015">
      <xs:annotation>
        <xs:documentation>Third Row Middle Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2926017">
      <xs:annotation>
        <xs:documentation>Third Row Right Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type CauseOfInjury
Namespace http://www.nemsis.org
Annotations
The category of the reported/suspected external cause of the injury.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2901001
Accidental drowning and submersion (ICD-10:W65-W74)
enumeration 2901003
Accidental exposure to other and unspecified factors (ICD-10: X58-X59)
enumeration 2901005
Accidental poisoning by and exposure to noxious substances (ICD-10: X40-X49)
enumeration 2901007
Air and space transport accidents (ICD-10: V95-V97)
enumeration 2901009
Assault (ICD-10: X85-Y09)
enumeration 2901011
Bus occupant injured in transport accident (ICD-10: V70-V79)
enumeration 2901013
Car occupant injured in transport accident (ICD-10: V40-V49)
enumeration 2901015
Complications of medical and surgical care (ICD-10:Y40-Y84)
enumeration 2901017
Contact with heat and hot substances (ICD-10:X10-X19)
enumeration 2901019
Contact with venomous animals and plants (ICD-10: X20-X29)
enumeration 2901021
Event of undetermined intent (ICD-10: Y10-Y34)
enumeration 2901023
Exposure to animate mechanical forces (ICD-10:W50-W64)
enumeration 2901025
Exposure to electric current, radiation and extreme ambient air temperature and pressure
enumeration 2901027
Exposure to forces of nature (ICD-10: X30-X39)
enumeration 2901029
Exposure to inanimate mechanical forces (ICD-10: W20-W49)
enumeration 2901031
Exposure to smoke, fire and flames (ICD_10:X00-X09)
enumeration 2901033
Falls (ICD-10: W00-W19)
enumeration 2901035
Intentional self-harm (ICD-10: X60-X84)
enumeration 2901037
Legal intervention and operations of war (ICD-10:Y35-Y36)
enumeration 2901039
Motorcycle rider injured in transport accident (ICD-10: V20-V29)
enumeration 2901041
Occupant of heavy transport vehicle injured in transport accident (ICD-10: V60-V69)
enumeration 2901043
Occupant of pick-up truck or van injured in transport accident (ICD-10: V50-V59)
enumeration 2901045
Occupant of three-wheeled motor vehicle injured in transport accident (ICD-10: V30-V39)
enumeration 2901047
Other accidental threats to breathing (ICD-10:W75-W84)
enumeration 2901049
Other and unspecified transport accidents (ICD-10: V98-V99)
enumeration 2901051
Other land transport accidents (ICD-10: V80-V89)
enumeration 2901053
Overexertion, travel and privation (ICD-10: X50-X57)
enumeration 2901055
Pedal cyclist injured in transport accident (ICD-10: V10-V19)
enumeration 2901057
Pedestrian injured in transport accident (ICD-10: V01-V09)
enumeration 2901059
Sequelae (Circumstances) of external causes of morbidity and mortality (ICD-10: Y85-Y89)
enumeration 2901061
Water transport accidents (ICD-10: V90-V94)
Source
<xs:simpleType name="CauseOfInjury">
  <xs:annotation>
    <xs:documentation>The category of the reported/suspected external cause of the injury.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2901001">
      <xs:annotation>
        <xs:documentation>Accidental drowning and submersion (ICD-10:W65-W74)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901003">
      <xs:annotation>
        <xs:documentation>Accidental exposure to other and unspecified factors (ICD-10: X58-X59)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901005">
      <xs:annotation>
        <xs:documentation>Accidental poisoning by and exposure to noxious substances (ICD-10: X40-X49)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901007">
      <xs:annotation>
        <xs:documentation>Air and space transport accidents (ICD-10: V95-V97)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901009">
      <xs:annotation>
        <xs:documentation>Assault (ICD-10: X85-Y09)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901011">
      <xs:annotation>
        <xs:documentation>Bus occupant injured in transport accident (ICD-10: V70-V79)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901013">
      <xs:annotation>
        <xs:documentation>Car occupant injured in transport accident (ICD-10: V40-V49)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901015">
      <xs:annotation>
        <xs:documentation>Complications of medical and surgical care (ICD-10:Y40-Y84)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901017">
      <xs:annotation>
        <xs:documentation>Contact with heat and hot substances (ICD-10:X10-X19)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901019">
      <xs:annotation>
        <xs:documentation>Contact with venomous animals and plants (ICD-10: X20-X29)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901021">
      <xs:annotation>
        <xs:documentation>Event of undetermined intent (ICD-10: Y10-Y34)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901023">
      <xs:annotation>
        <xs:documentation>Exposure to animate mechanical forces (ICD-10:W50-W64)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901025">
      <xs:annotation>
        <xs:documentation>Exposure to electric current, radiation and extreme ambient air temperature and pressure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901027">
      <xs:annotation>
        <xs:documentation>Exposure to forces of nature (ICD-10: X30-X39)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901029">
      <xs:annotation>
        <xs:documentation>Exposure to inanimate mechanical forces (ICD-10: W20-W49)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901031">
      <xs:annotation>
        <xs:documentation>Exposure to smoke, fire and flames (ICD_10:X00-X09)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901033">
      <xs:annotation>
        <xs:documentation>Falls (ICD-10: W00-W19)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901035">
      <xs:annotation>
        <xs:documentation>Intentional self-harm (ICD-10: X60-X84)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901037">
      <xs:annotation>
        <xs:documentation>Legal intervention and operations of war (ICD-10:Y35-Y36)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901039">
      <xs:annotation>
        <xs:documentation>Motorcycle rider injured in transport accident (ICD-10: V20-V29)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901041">
      <xs:annotation>
        <xs:documentation>Occupant of heavy transport vehicle injured in transport accident (ICD-10: V60-V69)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901043">
      <xs:annotation>
        <xs:documentation>Occupant of pick-up truck or van injured in transport accident (ICD-10: V50-V59)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901045">
      <xs:annotation>
        <xs:documentation>Occupant of three-wheeled motor vehicle injured in transport accident (ICD-10: V30-V39)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901047">
      <xs:annotation>
        <xs:documentation>Other accidental threats to breathing (ICD-10:W75-W84)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901049">
      <xs:annotation>
        <xs:documentation>Other and unspecified transport accidents (ICD-10: V98-V99)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901051">
      <xs:annotation>
        <xs:documentation>Other land transport accidents (ICD-10: V80-V89)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901053">
      <xs:annotation>
        <xs:documentation>Overexertion, travel and privation (ICD-10: X50-X57)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901055">
      <xs:annotation>
        <xs:documentation>Pedal cyclist injured in transport accident (ICD-10: V10-V19)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901057">
      <xs:annotation>
        <xs:documentation>Pedestrian injured in transport accident (ICD-10: V01-V09)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901059">
      <xs:annotation>
        <xs:documentation>Sequelae (Circumstances) of external causes of morbidity and mortality (ICD-10: Y85-Y89)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2901061">
      <xs:annotation>
        <xs:documentation>Water transport accidents (ICD-10: V90-V94)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Attribute eInjury / eInjury.01 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source
<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eInjury / eInjury.01 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.02 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source
<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eInjury / eInjury.02 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.03 / @PN
Namespace No namespace
Type union of(PN.NoneReported)
Properties
use optional
Used by
Source
<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.NoneReported"/>
  </xs:simpleType>
</xs:attribute>
Attribute eInjury / eInjury.03 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source
<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eInjury / eInjury.03 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.04 / @PN
Namespace No namespace
Type union of(PN.NoneReported)
Properties
use optional
Used by
Source
<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.NoneReported"/>
  </xs:simpleType>
</xs:attribute>
Attribute eInjury / eInjury.04 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source
<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eInjury / eInjury.04 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.07 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source
<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eInjury / eInjury.07 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.08 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.10 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.CollisionGroup / eInjury.13 / @PhoneNumberType
Namespace No namespace
Type PhoneNumberType
Properties
use optional
Facets
enumeration 9913001
Fax
enumeration 9913003
Home
enumeration 9913005
Mobile
enumeration 9913007
Pager
enumeration 9913009
Work
Used by
Source
<xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>
Attribute eInjury / eInjury.CollisionGroup / eInjury.13 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.CollisionGroup / eInjury.22 / @DeltaVelocityOrdinal
Namespace No namespace
Type DeltaVelocityOrdinalRanking
Properties
use optional
Facets
minInclusive 1
Used by
Source
<xs:attribute name="DeltaVelocityOrdinal" type="DeltaVelocityOrdinalRanking" use="optional"/>
Attribute eInjury / eInjury.CollisionGroup / eInjury.22 / @VelocityUnit
Namespace No namespace
Type VelocityUnits
Properties
use optional
Facets
enumeration 9921001
Kilometers per Hour
enumeration 9921003
Miles per Hour
Used by
Source
<xs:attribute name="VelocityUnit" type="VelocityUnits" use="optional"/>
Attribute eInjury / eInjury.CollisionGroup / eInjury.22 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eInjury / eInjury.CollisionGroup / eInjury.SeatGroup / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source
<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
