Included schema eResponse_v3.xsd
Namespace http://www.nemsis.org
Properties
attribute form default unqualified
element form default qualified
Element eResponse / eResponse.AgencyGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold EMS agency number and name
Diagram
DiagrameResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.AgencyGroup_eResponse.01eResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.AgencyGroup_eResponse.02
Properties
content complex
Model
Children eResponse.01, eResponse.02
Instance

<eResponse.AgencyGroup xmlns="http://www.nemsis.org">
  <eResponse.01>{1,1}</eResponse.01>
  <eResponse.02 NV="">{0,1}</eResponse.02>
</eResponse.AgencyGroup>
Source

<xs:element name="eResponse.AgencyGroup" id="eResponse.AgencyGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold EMS agency number and name</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eResponse.01" type="EMSAgencyNumber" id="eResponse.EMSAgencyNumber">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eResponse.01</number>
              <name>EMS Agency Number</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The state-assigned provider number of the responding agency.</definition>
              <v2Number>E02_01</v2Number>
              <usage>Mandatory</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>The EMS Agency Number in eResponse.01 can auto-populate from dAgency.02 EMS Agency Number in the demographic section.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eResponse.02" nillable="true" id="eResponse.EMSAgencyName" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eResponse.02</number>
              <name>EMS Agency Name</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The EMS agency's name.</definition>
              <usage>Recommended</usage>
              <comment>Added to better identify the EMS Agency associated with the EMS event.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="EMSAgencyName">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.AgencyGroup / eResponse.01
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.01</number>
  <name>EMS Agency Number</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The state-assigned provider number of the responding agency.</definition>
  <v2Number>E02_01</v2Number>
  <usage>Mandatory</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>The EMS Agency Number in eResponse.01 can auto-populate from dAgency.02 EMS Agency Number in the demographic section.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#EMSAgencyNumber
Type EMSAgencyNumber
Properties
content simple
Facets
minLength 1
maxLength 15
Source

<xs:element name="eResponse.01" type="EMSAgencyNumber" id="eResponse.EMSAgencyNumber">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.01</number>
        <name>EMS Agency Number</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The state-assigned provider number of the responding agency.</definition>
        <v2Number>E02_01</v2Number>
        <usage>Mandatory</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>The EMS Agency Number in eResponse.01 can auto-populate from dAgency.02 EMS Agency Number in the demographic section.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.AgencyGroup / eResponse.02
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.02</number>
  <name>EMS Agency Name</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The EMS agency's name.</definition>
  <usage>Recommended</usage>
  <comment>Added to better identify the EMS Agency associated with the EMS event.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#EMSAgencyNameeResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.AgencyGroup_eResponse_eResponse_eResponse.AgencyGroup_eResponse.02_NV
Type extension of EMSAgencyName
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eResponse.02" nillable="true" id="eResponse.EMSAgencyName" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.02</number>
        <name>EMS Agency Name</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The EMS agency's name.</definition>
        <usage>Recommended</usage>
        <comment>Added to better identify the EMS Agency associated with the EMS event.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSAgencyName">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.03
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.03</number>
  <name>Incident Number</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The incident number assigned by the 911 Dispatch System.</definition>
  <v2Number>E02_02</v2Number>
  <usage>Required</usage>
  <comment>This number can be used to associate multiple EMS responses, dispatch information, and other information to the same EMS event or patient.</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSIncidentNumbereResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.03_NV
Type extension of EMSIncidentNumber
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eResponse.03" nillable="true" id="eResponse.IncidentNumber">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.03</number>
        <name>Incident Number</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The incident number assigned by the 911 Dispatch System.</definition>
        <v2Number>E02_02</v2Number>
        <usage>Required</usage>
        <comment>This number can be used to associate multiple EMS responses, dispatch information, and other information to the same EMS event or patient.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSIncidentNumber">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.04
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.04</number>
  <name>EMS Response Number</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The internal EMS response number which is unique for each EMS Vehicle's (Unit) response to an incident within an EMS Agency.</definition>
  <v2Number>E02_03</v2Number>
  <usage>Required</usage>
</nemsisTacDoc>
Diagram

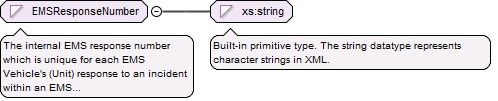

DiagrameResponse_v3_xsd.tmp#EMSResponseNumbereResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.04_NV
Type extension of EMSResponseNumber
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eResponse.04" nillable="true" id="eResponse.EMSResponseNumber">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.04</number>
        <name>EMS Response Number</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The internal EMS response number which is unique for each EMS Vehicle's (Unit) response to an incident within an EMS Agency.</definition>
        <v2Number>E02_03</v2Number>
        <usage>Required</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSResponseNumber">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.ServiceGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold details about EMS category of service and the stand by reason
Diagram
DiagrameResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.ServiceGroup_eResponse.05eResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.ServiceGroup_eResponse.06
Properties
content complex
Model
Children eResponse.05, eResponse.06
Instance

<eResponse.ServiceGroup xmlns="http://www.nemsis.org">
  <eResponse.05>{1,1}</eResponse.05>
  <eResponse.06>{0,1}</eResponse.06>
</eResponse.ServiceGroup>
Source

<xs:element name="eResponse.ServiceGroup" id="eResponse.ServiceGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold details about EMS category of service and the stand by reason</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>

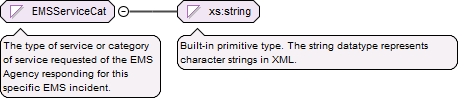

      <xs:element name="eResponse.05" type="EMSServiceCat" id="eResponse.TypeofServiceRequested">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eResponse.05</number>
              <name>Type of Service Requested</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The type of service or category of service requested of the EMS Agency responding for this specific EMS event.</definition>
              <v2Number>E02_04</v2Number>
              <usage>Mandatory</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Values for "911 Response (Scene)", "Intercept", and "Mutual Aid" have been relabeled to start with "Emergency Response" to more easily identify these options. "Interfacility Transport" was relabeled to "Hospital-to-Hospital Transfer" to be more accurate; options for "Sending Hospital Staff" and "Critical or Specialty Care" were added to better track resource utilization at local and state levels and support reimbursement levels. "Medical Transport" was relabeled to "Other Medical Needs Transport" to cover any other medical transports such as transports to and from dialysis, doctor appointments, return home, or nursing homes. Values added to consolidate types of service previously captured in "Primary Role of Unit" and eDisposition.12 as found in V3.4.0. Additional values added to reflect emerging service types.</comment>
              <v3Changes>With the release of v3.5.0 values were added to meet the needs of EMS</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>

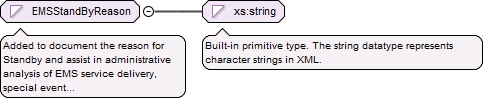

      <xs:element name="eResponse.06" type="EMSStandByReason" id="eResponse.StandbyPurpose" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eResponse.06</number>
              <name>Standby Purpose</name>
              <national>No</national>
              <state>No</state>
              <definition>The main reason the EMS Unit is on Standby as the Primary Type of Service for the EMS event.</definition>
              <usage>Optional</usage>
              <comment>Added to document the reason for "Standby" when populated in eResponse.05 (Type of Service Requested). This information will assist in administrative analysis of EMS service delivery, special event coverage, etc.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.ServiceGroup / eResponse.05
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.05</number>
  <name>Type of Service Requested</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The type of service or category of service requested of the EMS Agency responding for this specific EMS event.</definition>
  <v2Number>E02_04</v2Number>
  <usage>Mandatory</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Values for "911 Response (Scene)", "Intercept", and "Mutual Aid" have been relabeled to start with "Emergency Response" to more easily identify these options. "Interfacility Transport" was relabeled to "Hospital-to-Hospital Transfer" to be more accurate; options for "Sending Hospital Staff" and "Critical or Specialty Care" were added to better track resource utilization at local and state levels and support reimbursement levels. "Medical Transport" was relabeled to "Other Medical Needs Transport" to cover any other medical transports such as transports to and from dialysis, doctor appointments, return home, or nursing homes. Values added to consolidate types of service previously captured in "Primary Role of Unit" and eDisposition.12 as found in V3.4.0. Additional values added to reflect emerging service types.</comment>
  <v3Changes>With the release of v3.5.0 values were added to meet the needs of EMS</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSServiceCat
Type EMSServiceCat
Properties
content simple
Facets
enumeration 2205001
Emergency Response (Primary Response Area)
enumeration 2205003
Emergency Response (Intercept)
enumeration 2205009
Emergency Response (Mutual Aid)
enumeration 2205005
Hospital-to-Hospital Transfer
enumeration 2205015
Hospital to Non-Hospital Facility Transfer
enumeration 2205017
Non-Hospital Facility to Non-Hospital Facility Transfer
enumeration 2205019
Non-Hospital Facility to Hospital Transfer
enumeration 2205007
Other Routine Medical Transport
enumeration 2205011
Public Assistance
enumeration 2205013
Standby
enumeration 2205021
Support Services
enumeration 2205023
Non-Patient Care Rescue/Extrication
enumeration 2205025
Crew Transport Only
enumeration 2205027
Transport of Organs or Body Parts
enumeration 2205029
Mortuary Services
enumeration 2205031
Mobile Integrated Health Care Encounter
enumeration 2205033
Evaluation for Special Referral/Intake Programs
enumeration 2205035
Administrative Operations
Source

<xs:element name="eResponse.05" type="EMSServiceCat" id="eResponse.TypeofServiceRequested">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.05</number>
        <name>Type of Service Requested</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The type of service or category of service requested of the EMS Agency responding for this specific EMS event.</definition>
        <v2Number>E02_04</v2Number>
        <usage>Mandatory</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Values for "911 Response (Scene)", "Intercept", and "Mutual Aid" have been relabeled to start with "Emergency Response" to more easily identify these options. "Interfacility Transport" was relabeled to "Hospital-to-Hospital Transfer" to be more accurate; options for "Sending Hospital Staff" and "Critical or Specialty Care" were added to better track resource utilization at local and state levels and support reimbursement levels. "Medical Transport" was relabeled to "Other Medical Needs Transport" to cover any other medical transports such as transports to and from dialysis, doctor appointments, return home, or nursing homes. Values added to consolidate types of service previously captured in "Primary Role of Unit" and eDisposition.12 as found in V3.4.0. Additional values added to reflect emerging service types.</comment>
        <v3Changes>With the release of v3.5.0 values were added to meet the needs of EMS</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.ServiceGroup / eResponse.06
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.06</number>
  <name>Standby Purpose</name>
  <national>No</national>
  <state>No</state>
  <definition>The main reason the EMS Unit is on Standby as the Primary Type of Service for the EMS event.</definition>
  <usage>Optional</usage>
  <comment>Added to document the reason for "Standby" when populated in eResponse.05 (Type of Service Requested). This information will assist in administrative analysis of EMS service delivery, special event coverage, etc.</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSStandByReason
Type EMSStandByReason
Properties
content simple
minOccurs 0
Facets
enumeration 2206001
Disaster Event-Drill/Exercise
enumeration 2206003
Disaster Event-Live Staging
enumeration 2206005
Education
enumeration 2206007
EMS Staging-Improve Coverage
enumeration 2206009
Fire Support-Rehab
enumeration 2206011
Fire Support-Standby
enumeration 2206013
Mass Gathering-Concert/Entertainment Event
enumeration 2206015
Mass Gathering-Fair/Community Event
enumeration 2206017
Mass Gathering-Sporting Event
enumeration 2206019
Other
enumeration 2206021
Public Safety Support
Source

<xs:element name="eResponse.06" type="EMSStandByReason" id="eResponse.StandbyPurpose" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.06</number>
        <name>Standby Purpose</name>
        <national>No</national>
        <state>No</state>
        <definition>The main reason the EMS Unit is on Standby as the Primary Type of Service for the EMS event.</definition>
        <usage>Optional</usage>
        <comment>Added to document the reason for "Standby" when populated in eResponse.05 (Type of Service Requested). This information will assist in administrative analysis of EMS service delivery, special event coverage, etc.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.07
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.07</number>
  <name>Unit Transport and Equipment Capability</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The transport and equipment capabilities of the EMS Unit which responded to this specific EMS event.</definition>
  <v2Number>E02_05</v2Number>
  <usage>Mandatory</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Element relabeled from "Primary Role of Unit" to "Unit Transport and Equipment Capability" to better reflect its new defined purpose and allow the deprecation of eResponse.15 "Level of Care of This Unit". V3.4.0 Non-Transport values deprecated as these are types of service and were moved to eResponse.05 "Type of Service Requested". Values have been added to better capture transport capability and available equipment. These values should be tied to the capabilities and role of the unit and not reflect the level of providers responding to an event. <br/> <br/>Supervisor clarified to Administrative Only. If the Supervisor is responding to assist, that would be considered Non-Transport. Transport separated into Air and Ground. In Version 2 there was no way to identify Air Transport.</comment>
  <v3Changes>With the release of V3.5.0 values were deprecated, added, and relabeled to meet the needs of EMS.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#UnitTransportEquipmentCapability
Type UnitTransportEquipmentCapability
Properties
content simple
Facets
enumeration 2207011
Air Transport-Helicopter
enumeration 2207013
Air Transport-Fixed Wing
enumeration 2207015
Ground Transport (ALS Equipped)
enumeration 2207017
Ground Transport (BLS Equipped)
enumeration 2207019
Ground Transport (Critical Care Equipped)
enumeration 2207021
Non-Transport-Medical Treatment (ALS Equipped)
enumeration 2207023
Non-Transport-Medical Treatment (BLS Equipped)
enumeration 2207025
Wheel Chair Van/Ambulette
enumeration 2207027
Non-Transport-No Medical Equipment
Source

<xs:element name="eResponse.07" type="UnitTransportEquipmentCapability" id="eResponse.UnitTransportEquipmentCapability">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.07</number>
        <name>Unit Transport and Equipment Capability</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The transport and equipment capabilities of the EMS Unit which responded to this specific EMS event.</definition>
        <v2Number>E02_05</v2Number>
        <usage>Mandatory</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Element relabeled from "Primary Role of Unit" to "Unit Transport and Equipment Capability" to better reflect its new defined purpose and allow the deprecation of eResponse.15 "Level of Care of This Unit". V3.4.0 Non-Transport values deprecated as these are types of service and were moved to eResponse.05 "Type of Service Requested". Values have been added to better capture transport capability and available equipment. These values should be tied to the capabilities and role of the unit and not reflect the level of providers responding to an event. <br/> <br/>Supervisor clarified to Administrative Only. If the Supervisor is responding to assist, that would be considered Non-Transport. Transport separated into Air and Ground. In Version 2 there was no way to identify Air Transport.</comment>
        <v3Changes>With the release of V3.5.0 values were deprecated, added, and relabeled to meet the needs of EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.08
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.08</number>
  <name>Type of Dispatch Delay</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The dispatch delays, if any, associated with the dispatch of the EMS unit to the EMS event.</definition>
  <v2Number>E02_06</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>A dispatch delay is any time delay that occurs from the time of PSAP call (eTimes.01) to the time the unit is notified by dispatch (eTimes.03).</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSDispatchDelayReasoneResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.08_NVeResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.08_CorrelationID
Type extension of EMSDispatchDelayReason
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eResponse.08" nillable="true" id="eResponse.TypeofDispatchDelay" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.08</number>
        <name>Type of Dispatch Delay</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The dispatch delays, if any, associated with the dispatch of the EMS unit to the EMS event.</definition>
        <v2Number>E02_06</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>A dispatch delay is any time delay that occurs from the time of PSAP call (eTimes.01) to the time the unit is notified by dispatch (eTimes.03).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSDispatchDelayReason">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.09
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.09</number>
  <name>Type of Response Delay</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The response delays, if any, of the EMS unit associated with the EMS event.</definition>
  <v2Number>E02_07</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. to return to service. <br/><br/>A response delay is any time delay that occurs from the time the unit is notified by dispatch (eTimes.03) to the time the unit arrived on scene (eTimes.06).</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSUnitDelayReasoneResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.09_NVeResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.09_CorrelationID
Type extension of EMSUnitDelayReason
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eResponse.09" nillable="true" id="eResponse.TypeofResponseDelay" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.09</number>
        <name>Type of Response Delay</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The response delays, if any, of the EMS unit associated with the EMS event.</definition>
        <v2Number>E02_07</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. to return to service. <br/><br/>A response delay is any time delay that occurs from the time the unit is notified by dispatch (eTimes.03) to the time the unit arrived on scene (eTimes.06).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSUnitDelayReason">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.10
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.10</number>
  <name>Type of Scene Delay</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The scene delays, if any, of the EMS unit associated with the EMS event.</definition>
  <v2Number>E02_08</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>A scene delay is any time delay that occurs from the time the unit arrived on scene (eTimes.06) to the time the unit left the scene (eTimes.09).</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSSceneUnitDelayReasoneResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.10_NVeResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.10_CorrelationID
Type extension of EMSSceneUnitDelayReason
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eResponse.10" nillable="true" id="eResponse.TypeofSceneDelay" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.10</number>
        <name>Type of Scene Delay</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The scene delays, if any, of the EMS unit associated with the EMS event.</definition>
        <v2Number>E02_08</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>A scene delay is any time delay that occurs from the time the unit arrived on scene (eTimes.06) to the time the unit left the scene (eTimes.09).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSSceneUnitDelayReason">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.11
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.11</number>
  <name>Type of Transport Delay</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The transport delays, if any, of the EMS unit associated with the EMS event.</definition>
  <v2Number>E02_09</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. <br/><br/>A transport delay is any time delay that occurs from the time the unit left the scene (eTimes.09) to the time the patient arrived at the destination (eTimes.10).</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSTransportUnitDelayReasoneResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.11_NVeResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.11_CorrelationID
Type extension of EMSTransportUnitDelayReason
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eResponse.11" nillable="true" id="eResponse.TypeofTransportDelay" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.11</number>
        <name>Type of Transport Delay</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The transport delays, if any, of the EMS unit associated with the EMS event.</definition>
        <v2Number>E02_09</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. <br/><br/>A transport delay is any time delay that occurs from the time the unit left the scene (eTimes.09) to the time the patient arrived at the destination (eTimes.10).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSTransportUnitDelayReason">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.12
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.12</number>
  <name>Type of Turn-Around Delay</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The turn-around delays, if any, of EMS unit associated with the EMS event.</definition>
  <v2Number>E02_10</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Response</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. to return to service. <br/><br/>If a patient is being transported by the unit, turn-around delay is any time delay that occurs from the time the patient arrived at the destination (eTimes.11) until the time the unit is back in service (eTimes.13) or unit back at the home location (eTimes.15) [whichever is the greater of the two times]. <br/><br/>If no patient is being transported by the unit, turn-around delay is any time delay that occurs from the time the unit arrived on scene (eTimes.06) until the unit is back in service (eTimes.13) or the unit back at the home location (eTimes.15) [whichever is the greater of the two times].</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSTurnaroundUnitDelayReasoneResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.12_NVeResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.12_CorrelationID
Type extension of EMSTurnaroundUnitDelayReason
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eResponse.12" nillable="true" id="eResponse.TypeofTurnAroundDelay" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.12</number>
        <name>Type of Turn-Around Delay</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The turn-around delays, if any, of EMS unit associated with the EMS event.</definition>
        <v2Number>E02_10</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Response</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. to return to service. <br/><br/>If a patient is being transported by the unit, turn-around delay is any time delay that occurs from the time the patient arrived at the destination (eTimes.11) until the time the unit is back in service (eTimes.13) or unit back at the home location (eTimes.15) [whichever is the greater of the two times]. <br/><br/>If no patient is being transported by the unit, turn-around delay is any time delay that occurs from the time the unit arrived on scene (eTimes.06) until the unit is back in service (eTimes.13) or the unit back at the home location (eTimes.15) [whichever is the greater of the two times].</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSTurnaroundUnitDelayReason">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eResponse / eResponse.13
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.13</number>
  <name>EMS Vehicle (Unit) Number</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The unique physical vehicle number of the responding unit.</definition>
  <v2Number>E02_11</v2Number>
  <usage>Mandatory</usage>
  <comment>This is recommended to be the State Vehicle Permit Number if unique to the vehicle. If the vehicle is not licensed by the state, this should be a unique number only associated with a specific vehicle. This element should be populated from dVehicle.01 - Unit/Vehicle Number.</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSVehicleNumber
Type EMSVehicleNumber
Properties
content simple
Facets
minLength 1
maxLength 25
Source

<xs:element name="eResponse.13" type="EMSVehicleNumber" id="eResponse.EMSVehicleUnitNumber">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.13</number>
        <name>EMS Vehicle (Unit) Number</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The unique physical vehicle number of the responding unit.</definition>
        <v2Number>E02_11</v2Number>
        <usage>Mandatory</usage>
        <comment>This is recommended to be the State Vehicle Permit Number if unique to the vehicle. If the vehicle is not licensed by the state, this should be a unique number only associated with a specific vehicle. This element should be populated from dVehicle.01 - Unit/Vehicle Number.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.14
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.14</number>
  <name>EMS Unit Call Sign</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The EMS unit number used to dispatch and communicate with the unit. This may be the same as the EMS Unit/Vehicle Number in many agencies.</definition>
  <v2Number>E02_12</v2Number>
  <usage>Mandatory</usage>
  <comment>"This element could be populated from a list created in dVehicle.03 EMS Unit Call Sign or dConfiguration.16 (Crew Call Sign).</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#EMSUnitCallSign
Type EMSUnitCallSign
Properties
content simple
Facets
minLength 1
maxLength 50
Source

<xs:element name="eResponse.14" type="EMSUnitCallSign" id="eResponse.EMSUnitCallSign">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.14</number>
        <name>EMS Unit Call Sign</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The EMS unit number used to dispatch and communicate with the unit. This may be the same as the EMS Unit/Vehicle Number in many agencies.</definition>
        <v2Number>E02_12</v2Number>
        <usage>Mandatory</usage>
        <comment>"This element could be populated from a list created in dVehicle.03 EMS Unit Call Sign or dConfiguration.16 (Crew Call Sign).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.16
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.16</number>
  <name>Vehicle Dispatch Location</name>
  <national>No</national>
  <state>No</state>
  <definition>The geographic location of the EMS unit or crew at the time of dispatch.</definition>
  <v2Number>E02_13</v2Number>
  <usage>Optional</usage>
  <comment>This element can be populated from dLocation.02 EMS Location Name or dFacility information. Depending on the information the EMS Agency or State is interested in knowing the following elements can be utilized: <br/>1. dLocation.02 EMS Location Name <br/>2. dFacility.02 Facility Name <br/>3. dFacility.03 Facility Code</comment>
</nemsisTacDoc>

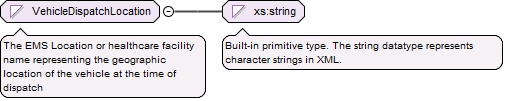

Diagram
DiagrameResponse_v3_xsd.tmp#VehicleDispatchLocation
Type VehicleDispatchLocation
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 100
Source

<xs:element name="eResponse.16" type="VehicleDispatchLocation" id="eResponse.VehicleDispatchLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.16</number>
        <name>Vehicle Dispatch Location</name>
        <national>No</national>
        <state>No</state>
        <definition>The geographic location of the EMS unit or crew at the time of dispatch.</definition>
        <v2Number>E02_13</v2Number>
        <usage>Optional</usage>
        <comment>This element can be populated from dLocation.02 EMS Location Name or dFacility information. Depending on the information the EMS Agency or State is interested in knowing the following elements can be utilized: <br/>1. dLocation.02 EMS Location Name <br/>2. dFacility.02 Facility Name <br/>3. dFacility.03 Facility Code</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.17
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.17</number>
  <name>Vehicle Dispatch GPS Location</name>
  <national>No</national>
  <state>No</state>
  <definition>The GPS coordinates associated with the EMS unit at the time of dispatch documented in decimal degrees.</definition>
  <v2Number>E02_15</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Response</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#GPSLocation
Type GPSLocation
Properties
content simple
minOccurs 0
Facets
pattern (\+|-)?(90(\.[0]{1,6})?|([1-8][0-9]|[0-9])(\.[0-9]{1,6})?),(\+|-)?(180(\.[0]{1,6})?|(1[0-7][0-9]|[1-9][0-9]|[0-9])(\.[0-9]{1,6})?)
Source

<xs:element name="eResponse.17" type="GPSLocation" id="eResponse.VehicleDispatchGPSLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.17</number>
        <name>Vehicle Dispatch GPS Location</name>
        <national>No</national>
        <state>No</state>
        <definition>The GPS coordinates associated with the EMS unit at the time of dispatch documented in decimal degrees.</definition>
        <v2Number>E02_15</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Response</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.18
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.18</number>
  <name>Vehicle Dispatch Location US National Grid Coordinates</name>
  <national>No</national>
  <state>No</state>
  <definition>The US National Grid Coordinates for the EMS Vehicle's Dispatch Location.</definition>
  <usage>Optional</usage>
  <comment>Standard found at www.fgdc.gov/usng. Used by the EMS components of US Governmental entities such as national parks and military agencies.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#USNG
Type USNG
Properties
content simple
minOccurs 0
Facets
pattern ([1-9]|[1-5][0-9]|60)[C-HJ-NP-X][A-HJ-NP-Z][A-HJ-NP-V][0-9]{8}
Source

<xs:element name="eResponse.18" type="USNG" id="eResponse.VehicleDispatchUSNationalGridLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.18</number>
        <name>Vehicle Dispatch Location US National Grid Coordinates</name>
        <national>No</national>
        <state>No</state>
        <definition>The US National Grid Coordinates for the EMS Vehicle's Dispatch Location.</definition>
        <usage>Optional</usage>
        <comment>Standard found at www.fgdc.gov/usng. Used by the EMS components of US Governmental entities such as national parks and military agencies.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.19
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.19</number>
  <name>Beginning Odometer Reading of Responding Vehicle</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The mileage (counter or odometer reading) of the vehicle at the beginning of the call (when the wheels begin moving). If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
  <v2Number>E02_16</v2Number>
  <usage>Optional</usage>
  <comment>If a mileage counter is being used instead of an odometer, this value would be 0.</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSMileageOdometer
Type EMSMileageOdometer
Properties
content simple
minOccurs 0
Facets
totalDigits 8
fractionDigits 2
Source

<xs:element name="eResponse.19" type="EMSMileageOdometer" id="eResponse.BeginningOdometerReadingofRespondingVehicle" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.19</number>
        <name>Beginning Odometer Reading of Responding Vehicle</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The mileage (counter or odometer reading) of the vehicle at the beginning of the call (when the wheels begin moving). If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
        <v2Number>E02_16</v2Number>
        <usage>Optional</usage>
        <comment>If a mileage counter is being used instead of an odometer, this value would be 0.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.20
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.20</number>
  <name>On-Scene Odometer Reading of Responding Vehicle</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The mileage (counter or odometer reading) of the vehicle when it arrives at the scene. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
  <v2Number>E02_17</v2Number>
  <usage>Optional</usage>
  <comment>If using a counter, this is the mileage traveled from dispatch to the scene starting from 0.</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSMileageOdometer
Type EMSMileageOdometer
Properties
content simple
minOccurs 0
Facets
totalDigits 8
fractionDigits 2
Source

<xs:element name="eResponse.20" type="EMSMileageOdometer" id="eResponse.OnSceneOdometerReadingofRespondingVehicle" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.20</number>
        <name>On-Scene Odometer Reading of Responding Vehicle</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The mileage (counter or odometer reading) of the vehicle when it arrives at the scene. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
        <v2Number>E02_17</v2Number>
        <usage>Optional</usage>
        <comment>If using a counter, this is the mileage traveled from dispatch to the scene starting from 0.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.21
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.21</number>
  <name>Patient Destination Odometer Reading of Responding Vehicle</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The mileage (counter or odometer reading) of the vehicle when it arrives at the patient's destination. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
  <v2Number>E02_18</v2Number>
  <usage>Optional</usage>
  <comment>If using a counter, this is the mileage traveled from dispatch to the patient's transport destination starting from 0.</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSMileageOdometer
Type EMSMileageOdometer
Properties
content simple
minOccurs 0
Facets
totalDigits 8
fractionDigits 2
Source

<xs:element name="eResponse.21" type="EMSMileageOdometer" id="eResponse.PatientDestinationOdometerReadingofRespondingVehicle" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.21</number>
        <name>Patient Destination Odometer Reading of Responding Vehicle</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The mileage (counter or odometer reading) of the vehicle when it arrives at the patient's destination. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
        <v2Number>E02_18</v2Number>
        <usage>Optional</usage>
        <comment>If using a counter, this is the mileage traveled from dispatch to the patient's transport destination starting from 0.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.22
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.22</number>
  <name>Ending Odometer Reading of Responding Vehicle</name>
  <national>No</national>
  <state>Yes</state>
  <definition>If using a counter, this is the mileage traveled beginning with dispatch through the transport of the patient to their destination and ending when back in service, starting from 0. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of boat, Fixed Wing, or Rotor Craft in eDisposition.16.</definition>
  <v2Number>E02_19</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSMileageOdometer
Type EMSMileageOdometer
Properties
content simple
minOccurs 0
Facets
totalDigits 8
fractionDigits 2
Source

<xs:element name="eResponse.22" type="EMSMileageOdometer" id="eResponse.EndingOdometerReadingofRespondingVehicle" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.22</number>
        <name>Ending Odometer Reading of Responding Vehicle</name>
        <national>No</national>
        <state>Yes</state>
        <definition>If using a counter, this is the mileage traveled beginning with dispatch through the transport of the patient to their destination and ending when back in service, starting from 0. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of boat, Fixed Wing, or Rotor Craft in eDisposition.16.</definition>
        <v2Number>E02_19</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.23
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.23</number>
  <name>Response Mode to Scene</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The indication whether the response was emergent or non-emergent. An emergent response is an immediate response.</definition>
  <v2Number>E02_20</v2Number>
  <usage>Mandatory</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Information now split between eResponse.23 (Response Mode to Scene) and eResponse.24 (Additional Response Mode Descriptors)</comment>
</nemsisTacDoc>
Diagram

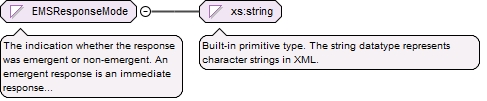

DiagrameResponse_v3_xsd.tmp#EMSResponseMode
Type EMSResponseMode
Properties
content simple
Facets
enumeration 2223001
Emergent (Immediate Response)
enumeration 2223003
Emergent Downgraded to Non-Emergent
enumeration 2223005
Non-Emergent
enumeration 2223007
Non-Emergent Upgraded to Emergent
Source

<xs:element name="eResponse.23" type="EMSResponseMode" id="eResponse.ResponseModetoScene">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.23</number>
        <name>Response Mode to Scene</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The indication whether the response was emergent or non-emergent. An emergent response is an immediate response.</definition>
        <v2Number>E02_20</v2Number>
        <usage>Mandatory</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Information now split between eResponse.23 (Response Mode to Scene) and eResponse.24 (Additional Response Mode Descriptors)</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eResponse / eResponse.24
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eResponse.24</number>
  <name>Additional Response Mode Descriptors</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The documentation of response mode techniques used for this EMS response.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Descriptors have been added to better describe the EMS Response. This includes information on whether the EMS event was schedule or unscheduled.</comment>
</nemsisTacDoc>
Diagram
DiagrameResponse_v3_xsd.tmp#EMSAdditionalResponseModeeResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.24_NVeResponse_v3_xsd.tmp#eResponse_eResponse_eResponse.24_CorrelationID
Type extension of EMSAdditionalResponseMode
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eResponse.24" nillable="true" id="eResponse.AdditionalResponseModeDescriptors" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eResponse.24</number>
        <name>Additional Response Mode Descriptors</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The documentation of response mode techniques used for this EMS response.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Descriptors have been added to better describe the EMS Response. This includes information on whether the EMS event was schedule or unscheduled.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSAdditionalResponseMode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Complex Type eResponse
Namespace http://www.nemsis.org
Annotations

Unit Agency Information section
Diagram
DiagrameResponse_v3_xsd.tmp#eResponse_eResponse.AgencyGroupeResponse_v3_xsd.tmp#eResponse_eResponse.03eResponse_v3_xsd.tmp#eResponse_eResponse.04eResponse_v3_xsd.tmp#eResponse_eResponse.ServiceGroupeResponse_v3_xsd.tmp#eResponse_eResponse.07eResponse_v3_xsd.tmp#eResponse_eResponse.08eResponse_v3_xsd.tmp#eResponse_eResponse.09eResponse_v3_xsd.tmp#eResponse_eResponse.10eResponse_v3_xsd.tmp#eResponse_eResponse.11eResponse_v3_xsd.tmp#eResponse_eResponse.12eResponse_v3_xsd.tmp#eResponse_eResponse.13eResponse_v3_xsd.tmp#eResponse_eResponse.14eResponse_v3_xsd.tmp#eResponse_eResponse.16eResponse_v3_xsd.tmp#eResponse_eResponse.17eResponse_v3_xsd.tmp#eResponse_eResponse.18eResponse_v3_xsd.tmp#eResponse_eResponse.19eResponse_v3_xsd.tmp#eResponse_eResponse.20eResponse_v3_xsd.tmp#eResponse_eResponse.21eResponse_v3_xsd.tmp#eResponse_eResponse.22eResponse_v3_xsd.tmp#eResponse_eResponse.23eResponse_v3_xsd.tmp#eResponse_eResponse.24
Used by
Model
Children eResponse.03, eResponse.04, eResponse.07, eResponse.08, eResponse.09, eResponse.10, eResponse.11, eResponse.12, eResponse.13, eResponse.14, eResponse.16, eResponse.17, eResponse.18, eResponse.19, eResponse.20, eResponse.21, eResponse.22, eResponse.23, eResponse.24, eResponse.AgencyGroup, eResponse.ServiceGroup
Source

<xs:complexType name="eResponse" id="eResponse.UnitAgencyInformationType">
  <xs:annotation>
    <xs:documentation>Unit Agency Information section</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="eResponse.AgencyGroup" id="eResponse.AgencyGroup">
      <xs:annotation>
        <xs:documentation>Group Tag to hold EMS agency number and name</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eResponse.01" type="EMSAgencyNumber" id="eResponse.EMSAgencyNumber">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eResponse.01</number>
                  <name>EMS Agency Number</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The state-assigned provider number of the responding agency.</definition>
                  <v2Number>E02_01</v2Number>
                  <usage>Mandatory</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>The EMS Agency Number in eResponse.01 can auto-populate from dAgency.02 EMS Agency Number in the demographic section.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eResponse.02" nillable="true" id="eResponse.EMSAgencyName" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eResponse.02</number>
                  <name>EMS Agency Name</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The EMS agency's name.</definition>
                  <usage>Recommended</usage>
                  <comment>Added to better identify the EMS Agency associated with the EMS event.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="EMSAgencyName">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.03" nillable="true" id="eResponse.IncidentNumber">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.03</number>
            <name>Incident Number</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The incident number assigned by the 911 Dispatch System.</definition>
            <v2Number>E02_02</v2Number>
            <usage>Required</usage>
            <comment>This number can be used to associate multiple EMS responses, dispatch information, and other information to the same EMS event or patient.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSIncidentNumber">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.04" nillable="true" id="eResponse.EMSResponseNumber">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.04</number>
            <name>EMS Response Number</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The internal EMS response number which is unique for each EMS Vehicle's (Unit) response to an incident within an EMS Agency.</definition>
            <v2Number>E02_03</v2Number>
            <usage>Required</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSResponseNumber">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.ServiceGroup" id="eResponse.ServiceGroup">
      <xs:annotation>
        <xs:documentation>Group Tag to hold details about EMS category of service and the stand by reason</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eResponse.05" type="EMSServiceCat" id="eResponse.TypeofServiceRequested">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eResponse.05</number>
                  <name>Type of Service Requested</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The type of service or category of service requested of the EMS Agency responding for this specific EMS event.</definition>
                  <v2Number>E02_04</v2Number>
                  <usage>Mandatory</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Values for "911 Response (Scene)", "Intercept", and "Mutual Aid" have been relabeled to start with "Emergency Response" to more easily identify these options. "Interfacility Transport" was relabeled to "Hospital-to-Hospital Transfer" to be more accurate; options for "Sending Hospital Staff" and "Critical or Specialty Care" were added to better track resource utilization at local and state levels and support reimbursement levels. "Medical Transport" was relabeled to "Other Medical Needs Transport" to cover any other medical transports such as transports to and from dialysis, doctor appointments, return home, or nursing homes. Values added to consolidate types of service previously captured in "Primary Role of Unit" and eDisposition.12 as found in V3.4.0. Additional values added to reflect emerging service types.</comment>
                  <v3Changes>With the release of v3.5.0 values were added to meet the needs of EMS</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eResponse.06" type="EMSStandByReason" id="eResponse.StandbyPurpose" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eResponse.06</number>
                  <name>Standby Purpose</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The main reason the EMS Unit is on Standby as the Primary Type of Service for the EMS event.</definition>
                  <usage>Optional</usage>
                  <comment>Added to document the reason for "Standby" when populated in eResponse.05 (Type of Service Requested). This information will assist in administrative analysis of EMS service delivery, special event coverage, etc.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.07" type="UnitTransportEquipmentCapability" id="eResponse.UnitTransportEquipmentCapability">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.07</number>
            <name>Unit Transport and Equipment Capability</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The transport and equipment capabilities of the EMS Unit which responded to this specific EMS event.</definition>
            <v2Number>E02_05</v2Number>
            <usage>Mandatory</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Element relabeled from "Primary Role of Unit" to "Unit Transport and Equipment Capability" to better reflect its new defined purpose and allow the deprecation of eResponse.15 "Level of Care of This Unit". V3.4.0 Non-Transport values deprecated as these are types of service and were moved to eResponse.05 "Type of Service Requested". Values have been added to better capture transport capability and available equipment. These values should be tied to the capabilities and role of the unit and not reflect the level of providers responding to an event. <br/> <br/>Supervisor clarified to Administrative Only. If the Supervisor is responding to assist, that would be considered Non-Transport. Transport separated into Air and Ground. In Version 2 there was no way to identify Air Transport.</comment>
            <v3Changes>With the release of V3.5.0 values were deprecated, added, and relabeled to meet the needs of EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.08" nillable="true" id="eResponse.TypeofDispatchDelay" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.08</number>
            <name>Type of Dispatch Delay</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The dispatch delays, if any, associated with the dispatch of the EMS unit to the EMS event.</definition>
            <v2Number>E02_06</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>A dispatch delay is any time delay that occurs from the time of PSAP call (eTimes.01) to the time the unit is notified by dispatch (eTimes.03).</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSDispatchDelayReason">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.09" nillable="true" id="eResponse.TypeofResponseDelay" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.09</number>
            <name>Type of Response Delay</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The response delays, if any, of the EMS unit associated with the EMS event.</definition>
            <v2Number>E02_07</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. to return to service. <br/><br/>A response delay is any time delay that occurs from the time the unit is notified by dispatch (eTimes.03) to the time the unit arrived on scene (eTimes.06).</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSUnitDelayReason">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.10" nillable="true" id="eResponse.TypeofSceneDelay" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.10</number>
            <name>Type of Scene Delay</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The scene delays, if any, of the EMS unit associated with the EMS event.</definition>
            <v2Number>E02_08</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>A scene delay is any time delay that occurs from the time the unit arrived on scene (eTimes.06) to the time the unit left the scene (eTimes.09).</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSSceneUnitDelayReason">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.11" nillable="true" id="eResponse.TypeofTransportDelay" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.11</number>
            <name>Type of Transport Delay</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The transport delays, if any, of the EMS unit associated with the EMS event.</definition>
            <v2Number>E02_09</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. <br/><br/>A transport delay is any time delay that occurs from the time the unit left the scene (eTimes.09) to the time the patient arrived at the destination (eTimes.10).</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSTransportUnitDelayReason">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.12" nillable="true" id="eResponse.TypeofTurnAroundDelay" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.12</number>
            <name>Type of Turn-Around Delay</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The turn-around delays, if any, of EMS unit associated with the EMS event.</definition>
            <v2Number>E02_10</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Response</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Rendezvous Transport Unavailable added for situations where there is a wait for an EMS Transport Unit, a Ferry, Air Medical, etc. to return to service. <br/><br/>If a patient is being transported by the unit, turn-around delay is any time delay that occurs from the time the patient arrived at the destination (eTimes.11) until the time the unit is back in service (eTimes.13) or unit back at the home location (eTimes.15) [whichever is the greater of the two times]. <br/><br/>If no patient is being transported by the unit, turn-around delay is any time delay that occurs from the time the unit arrived on scene (eTimes.06) until the unit is back in service (eTimes.13) or the unit back at the home location (eTimes.15) [whichever is the greater of the two times].</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSTurnaroundUnitDelayReason">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eResponse.13" type="EMSVehicleNumber" id="eResponse.EMSVehicleUnitNumber">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.13</number>
            <name>EMS Vehicle (Unit) Number</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The unique physical vehicle number of the responding unit.</definition>
            <v2Number>E02_11</v2Number>
            <usage>Mandatory</usage>
            <comment>This is recommended to be the State Vehicle Permit Number if unique to the vehicle. If the vehicle is not licensed by the state, this should be a unique number only associated with a specific vehicle. This element should be populated from dVehicle.01 - Unit/Vehicle Number.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.14" type="EMSUnitCallSign" id="eResponse.EMSUnitCallSign">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.14</number>
            <name>EMS Unit Call Sign</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The EMS unit number used to dispatch and communicate with the unit. This may be the same as the EMS Unit/Vehicle Number in many agencies.</definition>
            <v2Number>E02_12</v2Number>
            <usage>Mandatory</usage>
            <comment>"This element could be populated from a list created in dVehicle.03 EMS Unit Call Sign or dConfiguration.16 (Crew Call Sign).</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.16" type="VehicleDispatchLocation" id="eResponse.VehicleDispatchLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.16</number>
            <name>Vehicle Dispatch Location</name>
            <national>No</national>
            <state>No</state>
            <definition>The geographic location of the EMS unit or crew at the time of dispatch.</definition>
            <v2Number>E02_13</v2Number>
            <usage>Optional</usage>
            <comment>This element can be populated from dLocation.02 EMS Location Name or dFacility information. Depending on the information the EMS Agency or State is interested in knowing the following elements can be utilized: <br/>1. dLocation.02 EMS Location Name <br/>2. dFacility.02 Facility Name <br/>3. dFacility.03 Facility Code</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.17" type="GPSLocation" id="eResponse.VehicleDispatchGPSLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.17</number>
            <name>Vehicle Dispatch GPS Location</name>
            <national>No</national>
            <state>No</state>
            <definition>The GPS coordinates associated with the EMS unit at the time of dispatch documented in decimal degrees.</definition>
            <v2Number>E02_15</v2Number>
            <usage>Optional</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Response</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.18" type="USNG" id="eResponse.VehicleDispatchUSNationalGridLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.18</number>
            <name>Vehicle Dispatch Location US National Grid Coordinates</name>
            <national>No</national>
            <state>No</state>
            <definition>The US National Grid Coordinates for the EMS Vehicle's Dispatch Location.</definition>
            <usage>Optional</usage>
            <comment>Standard found at www.fgdc.gov/usng. Used by the EMS components of US Governmental entities such as national parks and military agencies.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.19" type="EMSMileageOdometer" id="eResponse.BeginningOdometerReadingofRespondingVehicle" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.19</number>
            <name>Beginning Odometer Reading of Responding Vehicle</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The mileage (counter or odometer reading) of the vehicle at the beginning of the call (when the wheels begin moving). If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
            <v2Number>E02_16</v2Number>
            <usage>Optional</usage>
            <comment>If a mileage counter is being used instead of an odometer, this value would be 0.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.20" type="EMSMileageOdometer" id="eResponse.OnSceneOdometerReadingofRespondingVehicle" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.20</number>
            <name>On-Scene Odometer Reading of Responding Vehicle</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The mileage (counter or odometer reading) of the vehicle when it arrives at the scene. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
            <v2Number>E02_17</v2Number>
            <usage>Optional</usage>
            <comment>If using a counter, this is the mileage traveled from dispatch to the scene starting from 0.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.21" type="EMSMileageOdometer" id="eResponse.PatientDestinationOdometerReadingofRespondingVehicle" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.21</number>
            <name>Patient Destination Odometer Reading of Responding Vehicle</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The mileage (counter or odometer reading) of the vehicle when it arrives at the patient's destination. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of Boat, Fixed Wing, or Rotor Craft in eDisposition.16 (EMS Transport Method).</definition>
            <v2Number>E02_18</v2Number>
            <usage>Optional</usage>
            <comment>If using a counter, this is the mileage traveled from dispatch to the patient's transport destination starting from 0.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.22" type="EMSMileageOdometer" id="eResponse.EndingOdometerReadingofRespondingVehicle" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.22</number>
            <name>Ending Odometer Reading of Responding Vehicle</name>
            <national>No</national>
            <state>Yes</state>
            <definition>If using a counter, this is the mileage traveled beginning with dispatch through the transport of the patient to their destination and ending when back in service, starting from 0. If EMS vehicle/unit is via water or air travel document the number in "hours" as it relates to the documentation of boat, Fixed Wing, or Rotor Craft in eDisposition.16.</definition>
            <v2Number>E02_19</v2Number>
            <usage>Optional</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.23" type="EMSResponseMode" id="eResponse.ResponseModetoScene">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.23</number>
            <name>Response Mode to Scene</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The indication whether the response was emergent or non-emergent. An emergent response is an immediate response.</definition>
            <v2Number>E02_20</v2Number>
            <usage>Mandatory</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Information now split between eResponse.23 (Response Mode to Scene) and eResponse.24 (Additional Response Mode Descriptors)</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eResponse.24" nillable="true" id="eResponse.AdditionalResponseModeDescriptors" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eResponse.24</number>
            <name>Additional Response Mode Descriptors</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The documentation of response mode techniques used for this EMS response.</definition>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Descriptors have been added to better describe the EMS Response. This includes information on whether the EMS event was schedule or unscheduled.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSAdditionalResponseMode">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type EMSIncidentNumber
Namespace http://www.nemsis.org
Annotations

The incident number assigned by the 911 Dispatch System
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 3
maxLength 50
Used by
Source

<xs:simpleType name="EMSIncidentNumber">
  <xs:annotation>
    <xs:documentation>The incident number assigned by the 911 Dispatch System</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSResponseNumber
Namespace http://www.nemsis.org
Annotations

The internal EMS response number which is unique for each EMS Vehicle's (Unit) response to an incident within an EMS Agency.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 3
maxLength 50
Used by
Source

<xs:simpleType name="EMSResponseNumber">
  <xs:annotation>
    <xs:documentation>The internal EMS response number which is unique for each EMS Vehicle's (Unit) response to an incident within an EMS Agency.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSServiceCat
Namespace http://www.nemsis.org
Annotations

The type of service or category of service requested of the EMS Agency responding for this specific EMS incident.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2205001
Emergency Response (Primary Response Area)
enumeration 2205003
Emergency Response (Intercept)
enumeration 2205009
Emergency Response (Mutual Aid)
enumeration 2205005
Hospital-to-Hospital Transfer
enumeration 2205015
Hospital to Non-Hospital Facility Transfer
enumeration 2205017
Non-Hospital Facility to Non-Hospital Facility Transfer
enumeration 2205019
Non-Hospital Facility to Hospital Transfer
enumeration 2205007
Other Routine Medical Transport
enumeration 2205011
Public Assistance
enumeration 2205013
Standby
enumeration 2205021
Support Services
enumeration 2205023
Non-Patient Care Rescue/Extrication
enumeration 2205025
Crew Transport Only
enumeration 2205027
Transport of Organs or Body Parts
enumeration 2205029
Mortuary Services
enumeration 2205031
Mobile Integrated Health Care Encounter
enumeration 2205033
Evaluation for Special Referral/Intake Programs
enumeration 2205035
Administrative Operations
Used by
Source

<xs:simpleType name="EMSServiceCat">
  <xs:annotation>
    <xs:documentation>The type of service or category of service requested of the EMS Agency responding for this specific EMS incident.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2205001">
      <xs:annotation>
        <xs:documentation>Emergency Response (Primary Response Area)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205003">
      <xs:annotation>
        <xs:documentation>Emergency Response (Intercept)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205009">
      <xs:annotation>
        <xs:documentation>Emergency Response (Mutual Aid)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205005">
      <xs:annotation>
        <xs:documentation>Hospital-to-Hospital Transfer</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205015">
      <xs:annotation>
        <xs:documentation>Hospital to Non-Hospital Facility Transfer</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205017">
      <xs:annotation>
        <xs:documentation>Non-Hospital Facility to Non-Hospital Facility Transfer</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205019">
      <xs:annotation>
        <xs:documentation>Non-Hospital Facility to Hospital Transfer</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205007">
      <xs:annotation>
        <xs:documentation>Other Routine Medical Transport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205011">
      <xs:annotation>
        <xs:documentation>Public Assistance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205013">
      <xs:annotation>
        <xs:documentation>Standby</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205021">
      <xs:annotation>
        <xs:documentation>Support Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205023">
      <xs:annotation>
        <xs:documentation>Non-Patient Care Rescue/Extrication</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205025">
      <xs:annotation>
        <xs:documentation>Crew Transport Only</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205027">
      <xs:annotation>
        <xs:documentation>Transport of Organs or Body Parts</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205029">
      <xs:annotation>
        <xs:documentation>Mortuary Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205031">
      <xs:annotation>
        <xs:documentation>Mobile Integrated Health Care Encounter</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205033">
      <xs:annotation>
        <xs:documentation>Evaluation for Special Referral/Intake Programs</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2205035">
      <xs:annotation>
        <xs:documentation>Administrative Operations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSStandByReason
Namespace http://www.nemsis.org
Annotations

Added to document the reason for Standby and assist in administrative analysis of EMS service delivery, special event coverage, etc.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2206001
Disaster Event-Drill/Exercise
enumeration 2206003
Disaster Event-Live Staging
enumeration 2206005
Education
enumeration 2206007
EMS Staging-Improve Coverage
enumeration 2206009
Fire Support-Rehab
enumeration 2206011
Fire Support-Standby
enumeration 2206013
Mass Gathering-Concert/Entertainment Event
enumeration 2206015
Mass Gathering-Fair/Community Event
enumeration 2206017
Mass Gathering-Sporting Event
enumeration 2206019
Other
enumeration 2206021
Public Safety Support
Used by
Source

<xs:simpleType name="EMSStandByReason">
  <xs:annotation>
    <xs:documentation>Added to document the reason for Standby and assist in administrative analysis of EMS service delivery, special event coverage, etc.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2206001">
      <xs:annotation>
        <xs:documentation>Disaster Event-Drill/Exercise</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206003">
      <xs:annotation>
        <xs:documentation>Disaster Event-Live Staging</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206005">
      <xs:annotation>
        <xs:documentation>Education</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206007">
      <xs:annotation>
        <xs:documentation>EMS Staging-Improve Coverage</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206009">
      <xs:annotation>
        <xs:documentation>Fire Support-Rehab</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206011">
      <xs:annotation>
        <xs:documentation>Fire Support-Standby</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206013">
      <xs:annotation>
        <xs:documentation>Mass Gathering-Concert/Entertainment Event</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206015">
      <xs:annotation>
        <xs:documentation>Mass Gathering-Fair/Community Event</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206017">
      <xs:annotation>
        <xs:documentation>Mass Gathering-Sporting Event</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206019">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2206021">
      <xs:annotation>
        <xs:documentation>Public Safety Support</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type UnitTransportEquipmentCapability
Namespace http://www.nemsis.org
Annotations

The Primary role of the EMS Unit which responded to this specific EMS incident.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2207011
Air Transport-Helicopter
enumeration 2207013
Air Transport-Fixed Wing
enumeration 2207015
Ground Transport (ALS Equipped)
enumeration 2207017
Ground Transport (BLS Equipped)
enumeration 2207019
Ground Transport (Critical Care Equipped)
enumeration 2207021
Non-Transport-Medical Treatment (ALS Equipped)
enumeration 2207023
Non-Transport-Medical Treatment (BLS Equipped)
enumeration 2207025
Wheel Chair Van/Ambulette
enumeration 2207027
Non-Transport-No Medical Equipment
Used by
Source

<xs:simpleType name="UnitTransportEquipmentCapability">
  <xs:annotation>
    <xs:documentation>The Primary role of the EMS Unit which responded to this specific EMS incident.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2207011">
      <xs:annotation>
        <xs:documentation>Air Transport-Helicopter</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2207013">
      <xs:annotation>
        <xs:documentation>Air Transport-Fixed Wing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2207015">
      <xs:annotation>
        <xs:documentation>Ground Transport (ALS Equipped)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2207017">
      <xs:annotation>
        <xs:documentation>Ground Transport (BLS Equipped)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2207019">
      <xs:annotation>
        <xs:documentation>Ground Transport (Critical Care Equipped)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2207021">
      <xs:annotation>
        <xs:documentation>Non-Transport-Medical Treatment (ALS Equipped)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2207023">
      <xs:annotation>
        <xs:documentation>Non-Transport-Medical Treatment (BLS Equipped)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2207025">
      <xs:annotation>
        <xs:documentation>Wheel Chair Van/Ambulette</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2207027">
      <xs:annotation>
        <xs:documentation>Non-Transport-No Medical Equipment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSDispatchDelayReason
Namespace http://www.nemsis.org
Annotations

The dispatch delays, if any, associated with the dispatch of the EMS unit to the patient encounter.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2208001
Caller (Uncooperative)
enumeration 2208003
Diversion/Failure (of previous unit)
enumeration 2208005
High Call Volume
enumeration 2208007
Language Barrier
enumeration 2208009
Incomplete Address Information Provided
enumeration 2208011
No EMS Vehicles (Units) Available
enumeration 2208013
None/No Delay
enumeration 2208015
Other
enumeration 2208017
Technical Failure (Computer, Phone etc.)
enumeration 2208019
Communication Specialist-Assignment Error
enumeration 2208021
No Receiving MD, Bed, Hospital
enumeration 2208023
Specialty Team Delay
Used by
Source

<xs:simpleType name="EMSDispatchDelayReason">
  <xs:annotation>
    <xs:documentation>The dispatch delays, if any, associated with the dispatch of the EMS unit to the patient encounter.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2208001">
      <xs:annotation>
        <xs:documentation>Caller (Uncooperative)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208003">
      <xs:annotation>
        <xs:documentation>Diversion/Failure (of previous unit)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208005">
      <xs:annotation>
        <xs:documentation>High Call Volume</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208007">
      <xs:annotation>
        <xs:documentation>Language Barrier</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208009">
      <xs:annotation>
        <xs:documentation>Incomplete Address Information Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208011">
      <xs:annotation>
        <xs:documentation>No EMS Vehicles (Units) Available</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208013">
      <xs:annotation>
        <xs:documentation>None/No Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208015">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208017">
      <xs:annotation>
        <xs:documentation>Technical Failure (Computer, Phone etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208019">
      <xs:annotation>
        <xs:documentation>Communication Specialist-Assignment Error</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208021">
      <xs:annotation>
        <xs:documentation>No Receiving MD, Bed, Hospital</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2208023">
      <xs:annotation>
        <xs:documentation>Specialty Team Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSUnitDelayReason
Namespace http://www.nemsis.org
Annotations

The response delays, if any, of the unit associated with the patient encounter
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2209001
Crowd
enumeration 2209003
Directions/Unable to Locate
enumeration 2209005
Distance
enumeration 2209007
Diversion (Different Incident)
enumeration 2209009
HazMat
enumeration 2209011
None/No Delay
enumeration 2209013
Other
enumeration 2209015
Rendezvous Transport Unavailable
enumeration 2209017
Route Obstruction (e.g., Train)
enumeration 2209019
Scene Safety (Not Secure for EMS)
enumeration 2209021
Staff Delay
enumeration 2209023
Traffic
enumeration 2209025
Vehicle Crash Involving this Unit
enumeration 2209027
Vehicle Failure of this Unit
enumeration 2209029
Weather
enumeration 2209031
Mechanical Issue-Unit, Equipment, etc.
enumeration 2209033
Flight Planning
Used by
Source

<xs:simpleType name="EMSUnitDelayReason">
  <xs:annotation>
    <xs:documentation>The response delays, if any, of the unit associated with the patient encounter</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2209001">
      <xs:annotation>
        <xs:documentation>Crowd</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209003">
      <xs:annotation>
        <xs:documentation>Directions/Unable to Locate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209005">
      <xs:annotation>
        <xs:documentation>Distance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209007">
      <xs:annotation>
        <xs:documentation>Diversion (Different Incident)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209009">
      <xs:annotation>
        <xs:documentation>HazMat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209011">
      <xs:annotation>
        <xs:documentation>None/No Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209013">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209015">
      <xs:annotation>
        <xs:documentation>Rendezvous Transport Unavailable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209017">
      <xs:annotation>
        <xs:documentation>Route Obstruction (e.g., Train)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209019">
      <xs:annotation>
        <xs:documentation>Scene Safety (Not Secure for EMS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209021">
      <xs:annotation>
        <xs:documentation>Staff Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209023">
      <xs:annotation>
        <xs:documentation>Traffic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209025">
      <xs:annotation>
        <xs:documentation>Vehicle Crash Involving this Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209027">
      <xs:annotation>
        <xs:documentation>Vehicle Failure of this Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209029">
      <xs:annotation>
        <xs:documentation>Weather</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209031">
      <xs:annotation>
        <xs:documentation>Mechanical Issue-Unit, Equipment, etc.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2209033">
      <xs:annotation>
        <xs:documentation>Flight Planning</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSSceneUnitDelayReason
Namespace http://www.nemsis.org
Annotations

The scene delays, if any, of the unit associated with the patient encounter
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2210001
Awaiting Air Unit
enumeration 2210003
Awaiting Ground Unit
enumeration 2210005
Crowd
enumeration 2210007
Directions/Unable to Locate
enumeration 2210009
Distance
enumeration 2210011
Extrication
enumeration 2210013
HazMat
enumeration 2210015
Language Barrier
enumeration 2210017
None/No Delay
enumeration 2210019
Other
enumeration 2210021
Patient Access
enumeration 2210023
Safety-Crew/Staging
enumeration 2210025
Safety-Patient
enumeration 2210027
Staff Delay
enumeration 2210029
Traffic
enumeration 2210031
Triage/Multiple Patients
enumeration 2210033
Vehicle Crash Involving this Unit
enumeration 2210035
Vehicle Failure of this Unit
enumeration 2210037
Weather
enumeration 2210039
Mechanical Issue-Unit, Equipment, etc.
Used by
Source

<xs:simpleType name="EMSSceneUnitDelayReason">
  <xs:annotation>
    <xs:documentation>The scene delays, if any, of the unit associated with the patient encounter</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2210001">
      <xs:annotation>
        <xs:documentation>Awaiting Air Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210003">
      <xs:annotation>
        <xs:documentation>Awaiting Ground Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210005">
      <xs:annotation>
        <xs:documentation>Crowd</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210007">
      <xs:annotation>
        <xs:documentation>Directions/Unable to Locate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210009">
      <xs:annotation>
        <xs:documentation>Distance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210011">
      <xs:annotation>
        <xs:documentation>Extrication</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210013">
      <xs:annotation>
        <xs:documentation>HazMat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210015">
      <xs:annotation>
        <xs:documentation>Language Barrier</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210017">
      <xs:annotation>
        <xs:documentation>None/No Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210019">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210021">
      <xs:annotation>
        <xs:documentation>Patient Access</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210023">
      <xs:annotation>
        <xs:documentation>Safety-Crew/Staging</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210025">
      <xs:annotation>
        <xs:documentation>Safety-Patient</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210027">
      <xs:annotation>
        <xs:documentation>Staff Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210029">
      <xs:annotation>
        <xs:documentation>Traffic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210031">
      <xs:annotation>
        <xs:documentation>Triage/Multiple Patients</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210033">
      <xs:annotation>
        <xs:documentation>Vehicle Crash Involving this Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210035">
      <xs:annotation>
        <xs:documentation>Vehicle Failure of this Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210037">
      <xs:annotation>
        <xs:documentation>Weather</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2210039">
      <xs:annotation>
        <xs:documentation>Mechanical Issue-Unit, Equipment, etc.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSTransportUnitDelayReason
Namespace http://www.nemsis.org
Annotations

The transport delays, if any, of the unit associated with the patient encounter
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2211001
Crowd
enumeration 2211003
Directions/Unable to Locate
enumeration 2211005
Distance
enumeration 2211007
Diversion
enumeration 2211009
HazMat
enumeration 2211011
None/No Delay
enumeration 2211013
Other
enumeration 2211015
Rendezvous Transport Unavailable
enumeration 2211017
Route Obstruction (e.g., Train)
enumeration 2211019
Safety
enumeration 2211021
Staff Delay
enumeration 2211023
Traffic
enumeration 2211025
Vehicle Crash Involving this Unit
enumeration 2211027
Vehicle Failure of this Unit
enumeration 2211029
Weather
enumeration 2211031
Patient Condition Change (e.g., Unit Stopped)
Used by
Source

<xs:simpleType name="EMSTransportUnitDelayReason">
  <xs:annotation>
    <xs:documentation>The transport delays, if any, of the unit associated with the patient encounter</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2211001">
      <xs:annotation>
        <xs:documentation>Crowd</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211003">
      <xs:annotation>
        <xs:documentation>Directions/Unable to Locate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211005">
      <xs:annotation>
        <xs:documentation>Distance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211007">
      <xs:annotation>
        <xs:documentation>Diversion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211009">
      <xs:annotation>
        <xs:documentation>HazMat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211011">
      <xs:annotation>
        <xs:documentation>None/No Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211013">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211015">
      <xs:annotation>
        <xs:documentation>Rendezvous Transport Unavailable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211017">
      <xs:annotation>
        <xs:documentation>Route Obstruction (e.g., Train)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211019">
      <xs:annotation>
        <xs:documentation>Safety</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211021">
      <xs:annotation>
        <xs:documentation>Staff Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211023">
      <xs:annotation>
        <xs:documentation>Traffic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211025">
      <xs:annotation>
        <xs:documentation>Vehicle Crash Involving this Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211027">
      <xs:annotation>
        <xs:documentation>Vehicle Failure of this Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211029">
      <xs:annotation>
        <xs:documentation>Weather</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2211031">
      <xs:annotation>
        <xs:documentation>Patient Condition Change (e.g., Unit Stopped)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSTurnaroundUnitDelayReason
Namespace http://www.nemsis.org
Annotations

The turn-around delays, if any, associated with the EMS unit associated with the patient encounter
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2212001
Clean-up
enumeration 2212003
Decontamination
enumeration 2212005
Distance
enumeration 2212007
Documentation
enumeration 2212009
ED Overcrowding / Transfer of Care
enumeration 2212011
Equipment Failure
enumeration 2212013
Equipment/Supply Replenishment
enumeration 2212015
None/No Delay
enumeration 2212017
Other
enumeration 2212019
Rendezvous Transport Unavailable
enumeration 2212021
Route Obstruction (e.g., Train)
enumeration 2212023
Staff Delay
enumeration 2212025
Traffic
enumeration 2212027
Vehicle Crash of this Unit
enumeration 2212029
Vehicle Failure of this Unit
enumeration 2212031
Weather
enumeration 2212033
EMS Crew Accompanies Patient for Facility Procedure
Used by
Source

<xs:simpleType name="EMSTurnaroundUnitDelayReason">
  <xs:annotation>
    <xs:documentation>The turn-around delays, if any, associated with the EMS unit associated with the patient encounter</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2212001">
      <xs:annotation>
        <xs:documentation>Clean-up</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212003">
      <xs:annotation>
        <xs:documentation>Decontamination</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212005">
      <xs:annotation>
        <xs:documentation>Distance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212007">
      <xs:annotation>
        <xs:documentation>Documentation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212009">
      <xs:annotation>
        <xs:documentation>ED Overcrowding / Transfer of Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212011">
      <xs:annotation>
        <xs:documentation>Equipment Failure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212013">
      <xs:annotation>
        <xs:documentation>Equipment/Supply Replenishment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212015">
      <xs:annotation>
        <xs:documentation>None/No Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212017">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212019">
      <xs:annotation>
        <xs:documentation>Rendezvous Transport Unavailable</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212021">
      <xs:annotation>
        <xs:documentation>Route Obstruction (e.g., Train)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212023">
      <xs:annotation>
        <xs:documentation>Staff Delay</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212025">
      <xs:annotation>
        <xs:documentation>Traffic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212027">
      <xs:annotation>
        <xs:documentation>Vehicle Crash of this Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212029">
      <xs:annotation>
        <xs:documentation>Vehicle Failure of this Unit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212031">
      <xs:annotation>
        <xs:documentation>Weather</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2212033">
      <xs:annotation>
        <xs:documentation>EMS Crew Accompanies Patient for Facility Procedure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSVehicleNumber
Namespace http://www.nemsis.org
Annotations

The unique physical vehicle number of the responding unit.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 25
Used by
Source

<xs:simpleType name="EMSVehicleNumber">
  <xs:annotation>
    <xs:documentation>The unique physical vehicle number of the responding unit.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="25"/>
  </xs:restriction>
</xs:simpleType>
Simple Type VehicleDispatchLocation
Namespace http://www.nemsis.org
Annotations

The EMS Location or healthcare facility name representing the geographic location of the vehicle at the time of dispatch
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source

<xs:simpleType name="VehicleDispatchLocation">
  <xs:annotation>
    <xs:documentation>The EMS Location or healthcare facility name representing the geographic location of the vehicle at the time of dispatch</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSMileageOdometer
Namespace http://www.nemsis.org
Annotations

The mileage (counter or odometer reading) of the vehicle
Diagram
Diagram
Type restriction of xs:decimal
Facets
totalDigits 8
fractionDigits 2
Used by
Source

<xs:simpleType name="EMSMileageOdometer">
  <xs:annotation>
    <xs:documentation>The mileage (counter or odometer reading) of the vehicle</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:fractionDigits value="2"/>
    <xs:totalDigits value="8"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSResponseMode
Namespace http://www.nemsis.org
Annotations

The indication whether the response was emergent or non-emergent. An emergent response is an immediate response (typically using lights and sirens).
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2223001
Emergent (Immediate Response)
enumeration 2223003
Emergent Downgraded to Non-Emergent
enumeration 2223005
Non-Emergent
enumeration 2223007
Non-Emergent Upgraded to Emergent
Used by
Source

<xs:simpleType name="EMSResponseMode">
  <xs:annotation>
    <xs:documentation>The indication whether the response was emergent or non-emergent. An emergent response is an immediate response (typically using lights and sirens).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2223001">
      <xs:annotation>
        <xs:documentation>Emergent (Immediate Response)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2223003">
      <xs:annotation>
        <xs:documentation>Emergent Downgraded to Non-Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2223005">
      <xs:annotation>
        <xs:documentation>Non-Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2223007">
      <xs:annotation>
        <xs:documentation>Non-Emergent Upgraded to Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSAdditionalResponseMode
Namespace http://www.nemsis.org
Annotations

The documentation of response mode techniques used for this EMS response..
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2224001
Intersection Navigation-Against Normal Light  Patterns
enumeration 2224003
Intersection Navigation-With Automated Light Changing Technology
enumeration 2224005
Intersection Navigation-With Normal Light Patterns
enumeration 2224007
Scheduled
enumeration 2224009
Speed-Enhanced per Local Policy
enumeration 2224011
Speed-Normal Traffic
enumeration 2224013
Unscheduled
enumeration 2224015
Lights and Sirens
enumeration 2224017
Lights and No Sirens
enumeration 2224019
No Lights or Sirens
enumeration 2224021
Initial No Lights or Sirens, Upgraded to Lights and Sirens
enumeration 2224023
Initial Lights and Sirens, Downgraded to No Lights or Sirens
Used by
Source

<xs:simpleType name="EMSAdditionalResponseMode">
  <xs:annotation>
    <xs:documentation>The documentation of response mode techniques used for this EMS response..</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2224001">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-Against Normal Light Patterns</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224003">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-With Automated Light Changing Technology</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224005">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-With Normal Light Patterns</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224007">
      <xs:annotation>
        <xs:documentation>Scheduled</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224009">
      <xs:annotation>
        <xs:documentation>Speed-Enhanced per Local Policy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224011">
      <xs:annotation>
        <xs:documentation>Speed-Normal Traffic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224013">
      <xs:annotation>
        <xs:documentation>Unscheduled</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224015">
      <xs:annotation>
        <xs:documentation>Lights and Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224017">
      <xs:annotation>
        <xs:documentation>Lights and No Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224019">
      <xs:annotation>
        <xs:documentation>No Lights or Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224021">
      <xs:annotation>
        <xs:documentation>Initial No Lights or Sirens, Upgraded to Lights and Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2224023">
      <xs:annotation>
        <xs:documentation>Initial Lights and Sirens, Downgraded to No Lights or Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Attribute eResponse / eResponse.AgencyGroup / eResponse.02 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.03 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.04 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.08 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.08 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eResponse / eResponse.09 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.09 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eResponse / eResponse.10 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.10 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eResponse / eResponse.11 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.11 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eResponse / eResponse.12 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.12 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eResponse / eResponse.24 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eResponse / eResponse.24 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
XML Schema documentation generated by ® XML Editor.
