Included schema eScene_v3.xsd
Namespace http://www.nemsis.org
Properties
attribute form default unqualified
element form default qualified
Element eScene / eScene.01
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.01</number>
  <name>First EMS Unit on Scene</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Documentation that this EMS Unit was the first EMS Unit among all EMS Agencies on the Scene.</definition>
  <usage>Required</usage>
  <comment>Added to improve the evaluation of Response Times when multiple EMS units are responding to the same scene.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoValueseScene_v3_xsd.tmp#eScene_eScene_eScene.01_NV
Type extension of YesNoValues
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.01" nillable="true" id="eScene.FirstEMSUnitonScene">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.01</number>
        <name>First EMS Unit on Scene</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Documentation that this EMS Unit was the first EMS Unit among all EMS Agencies on the Scene.</definition>
        <usage>Required</usage>
        <comment>Added to improve the evaluation of Response Times when multiple EMS units are responding to the same scene.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.ResponderGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold info from all responders to the scene.
Diagram
DiagrameScene_v3_xsd.tmp#eScene_eScene_eScene.ResponderGroup_CorrelationIDeScene_v3_xsd.tmp#eScene_eScene_eScene.ResponderGroup_eScene.02eScene_v3_xsd.tmp#eScene_eScene_eScene.ResponderGroup_eScene.03eScene_v3_xsd.tmp#eScene_eScene_eScene.ResponderGroup_eScene.04eScene_v3_xsd.tmp#eScene_eScene_eScene.ResponderGroup_eScene.24
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eScene.02, eScene.03, eScene.04, eScene.24
Instance

<eScene.ResponderGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eScene.02>{0,1}</eScene.02>
  <eScene.03>{0,1}</eScene.03>
  <eScene.04>{0,1}</eScene.04>
  <eScene.24 NV="">{0,1}</eScene.24>
</eScene.ResponderGroup>
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eScene.ResponderGroup" id="eScene.ResponderGroup" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info from all responders to the scene.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eScene.02" type="OtherEMSAgenciesAtScene" id="eScene.OtherEMSorPublicSafetyAgenciesatScene" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eScene.02</number>
              <name>Other EMS or Public Safety Agencies at Scene</name>
              <national>No</national>
              <state>No</state>
              <definition>Other EMS agency names that were at the scene, if any.</definition>
              <v2Number>E08_01</v2Number>
              <usage>Optional</usage>
              <comment>For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.02 and eScene.03 are used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eScene.03" type="EMSAgencyID" id="eScene.OtherPublicSafetyorEMSAgencyIDNumber" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eScene.03</number>
              <name>Other EMS or Public Safety Agency ID Number</name>
              <national>No</national>
              <state>No</state>
              <definition>The ID number for the EMS Agency or Other Public Safety listed in eScene.02.</definition>
              <usage>Optional</usage>
              <comment>The ID should be the state ID (license number) for the EMS agency or ID number for the law enforcement. This may be an ID assigned by the state or created by the EMS agency. <br /><br />For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.02 and eScene.03 are used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eScene.04" type="OtherServicesAtScene" id="eScene.TypeofOtherServiceatScene" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eScene.04</number>
              <name>Type of Other Service at Scene</name>
              <national>No</national>
              <state>No</state>
              <definition>The type of public safety or EMS service associated with Other Agencies on Scene.</definition>
              <v2Number>E08_02</v2Number>
              <usage>Optional</usage>
              <comment>Associated with each Other Service in eScene.02</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eScene.24" id="eScene.FirstOtherAgencyToProvideCare" minOccurs="0" nillable="true">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eScene.24</number>
              <name>First Other EMS or Public Safety Agency at Scene to Provide Patient Care</name>
              <national>No</national>
              <state>No</state>
              <definition>When there are multiple other EMS Agencies or Public Safety Agencies at the scene, this element documents the other EMS or public safety agency that was first to provide care to the patient.</definition>
              <usage>Optional</usage>
              <comment>For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.24 is used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>
Element eScene / eScene.ResponderGroup / eScene.02
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.02</number>
  <name>Other EMS or Public Safety Agencies at Scene</name>
  <national>No</national>
  <state>No</state>
  <definition>Other EMS agency names that were at the scene, if any.</definition>
  <v2Number>E08_01</v2Number>
  <usage>Optional</usage>
  <comment>For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.02 and eScene.03 are used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#OtherEMSAgenciesAtScene
Type OtherEMSAgenciesAtScene
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 100
Source

<xs:element name="eScene.02" type="OtherEMSAgenciesAtScene" id="eScene.OtherEMSorPublicSafetyAgenciesatScene" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.02</number>
        <name>Other EMS or Public Safety Agencies at Scene</name>
        <national>No</national>
        <state>No</state>
        <definition>Other EMS agency names that were at the scene, if any.</definition>
        <v2Number>E08_01</v2Number>
        <usage>Optional</usage>
        <comment>For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.02 and eScene.03 are used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eScene / eScene.ResponderGroup / eScene.03
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.03</number>
  <name>Other EMS or Public Safety Agency ID Number</name>
  <national>No</national>
  <state>No</state>
  <definition>The ID number for the EMS Agency or Other Public Safety listed in eScene.02.</definition>
  <usage>Optional</usage>
  <comment>The ID should be the state ID (license number) for the EMS agency or ID number for the law enforcement. This may be an ID assigned by the state or created by the EMS agency. <br /><br />For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.02 and eScene.03 are used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#EMSAgencyID
Type EMSAgencyID
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 25
Source

<xs:element name="eScene.03" type="EMSAgencyID" id="eScene.OtherPublicSafetyorEMSAgencyIDNumber" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.03</number>
        <name>Other EMS or Public Safety Agency ID Number</name>
        <national>No</national>
        <state>No</state>
        <definition>The ID number for the EMS Agency or Other Public Safety listed in eScene.02.</definition>
        <usage>Optional</usage>
        <comment>The ID should be the state ID (license number) for the EMS agency or ID number for the law enforcement. This may be an ID assigned by the state or created by the EMS agency. <br /><br />For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.02 and eScene.03 are used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eScene / eScene.ResponderGroup / eScene.04
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.04</number>
  <name>Type of Other Service at Scene</name>
  <national>No</national>
  <state>No</state>
  <definition>The type of public safety or EMS service associated with Other Agencies on Scene.</definition>
  <v2Number>E08_02</v2Number>
  <usage>Optional</usage>
  <comment>Associated with each Other Service in eScene.02</comment>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#OtherServicesAtScene
Type OtherServicesAtScene
Properties
content simple
minOccurs 0
Facets
enumeration 2704001
EMS Mutual Aid
enumeration 2704003
Fire
enumeration 2704005
First Responder
enumeration 2704007
Hazmat
enumeration 2704009
Law
enumeration 2704011
Other
enumeration 2704013
Other EMS Agency
enumeration 2704015
Other Health Care Provider
enumeration 2704017
Rescue
enumeration 2704019
Utilities
Source

<xs:element name="eScene.04" type="OtherServicesAtScene" id="eScene.TypeofOtherServiceatScene" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.04</number>
        <name>Type of Other Service at Scene</name>
        <national>No</national>
        <state>No</state>
        <definition>The type of public safety or EMS service associated with Other Agencies on Scene.</definition>
        <v2Number>E08_02</v2Number>
        <usage>Optional</usage>
        <comment>Associated with each Other Service in eScene.02</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eScene / eScene.ResponderGroup / eScene.24
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.24</number>
  <name>First Other EMS or Public Safety Agency at Scene to Provide Patient Care</name>
  <national>No</national>
  <state>No</state>
  <definition>When there are multiple other EMS Agencies or Public Safety Agencies at the scene, this element documents the other EMS or public safety agency that was first to provide care to the patient.</definition>
  <usage>Optional</usage>
  <comment>For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.24 is used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoValueseScene_v3_xsd.tmp#eScene_eScene_eScene.ResponderGroup_eScene_eScene_eScene.ResponderGroup_eScene.24_NV
Type extension of YesNoValues
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.24" id="eScene.FirstOtherAgencyToProvideCare" minOccurs="0" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.24</number>
        <name>First Other EMS or Public Safety Agency at Scene to Provide Patient Care</name>
        <national>No</national>
        <state>No</state>
        <definition>When there are multiple other EMS Agencies or Public Safety Agencies at the scene, this element documents the other EMS or public safety agency that was first to provide care to the patient.</definition>
        <usage>Optional</usage>
        <comment>For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.24 is used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.05
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.05</number>
  <name>Date/Time Initial Responder Arrived on Scene</name>
  <national>No</national>
  <state>No</state>
  <definition>The time that the initial responder arrived on the scene, if applicable.</definition>
  <v2Number>E08_04</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
maxInclusive 2050-01-01T00:00:00-00:00
minInclusive 1950-01-01T00:00:00-00:00
pattern [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
Source

<xs:element name="eScene.05" type="DateTimeType" id="eScene.DateTimeInitialResponderArrivedonScene" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.05</number>
        <name>Date/Time Initial Responder Arrived on Scene</name>
        <national>No</national>
        <state>No</state>
        <definition>The time that the initial responder arrived on the scene, if applicable.</definition>
        <v2Number>E08_04</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eScene / eScene.06
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.06</number>
  <name>Number of Patients at Scene</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indicator of how many total patients were at the scene.</definition>
  <v2Number>E08_05</v2Number>
  <usage>Required</usage>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#NumberOfPatientsAtSceneeScene_v3_xsd.tmp#eScene_eScene_eScene.06_NV
Type extension of NumberOfPatientsAtScene
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.06" nillable="true" id="eScene.NumberofPatientsatScene">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.06</number>
        <name>Number of Patients at Scene</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indicator of how many total patients were at the scene.</definition>
        <v2Number>E08_05</v2Number>
        <usage>Required</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="NumberOfPatientsAtScene">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.07
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.07</number>
  <name>Mass Casualty Incident</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indicator if this event would be considered a mass casualty incident (overwhelmed existing EMS resources).</definition>
  <v2Number>E08_06</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoValueseScene_v3_xsd.tmp#eScene_eScene_eScene.07_NV
Type extension of YesNoValues
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.07" nillable="true" id="eScene.MassCasualtyIncident">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.07</number>
        <name>Mass Casualty Incident</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indicator if this event would be considered a mass casualty incident (overwhelmed existing EMS resources).</definition>
        <v2Number>E08_06</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.08
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.08</number>
  <name>Triage Classification for MCI Patient</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The color associated with the initial triage assessment/classification of the MCI patient.</definition>
  <v2Number/>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This element is documented when eScene.07 (Mass Casualty Incident) = Yes. <br/><br/> Examples of triage systems include START and SALT. <br/><br/> <div style="font-size:11px">Adapted from: SALT mass casualty triage: concept endorsed by the American College of Emergency Physicians, American College of Surgeons Committee on Trauma, American Trauma Society, National Association of EMS Physicians, National Disaster Life Support Education Consortium, and State and Territorial Injury Prevention Directors Association. Disaster Med Public Health Prep. 2008 Dec;2(4):245-6. </div> <br/><br/> <div style="font-size:11px"> START reference: Benson M, Koenig KL, Schultz CH. Disaster triage: START, then SAVE-a new method of dynamic triage for victims of a catastrophic earthquake. Prehospital Disaster Med. 1996; Apr-Jun; 11(2): 117-24 </div></comment>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#TriageClassificationeScene_v3_xsd.tmp#eScene_eScene_eScene.08_NV
Type extension of TriageClassification
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.08" nillable="true" id="eScene.TriageClassificationforMCIPatient">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.08</number>
        <name>Triage Classification for MCI Patient</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The color associated with the initial triage assessment/classification of the MCI patient.</definition>
        <v2Number/>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This element is documented when eScene.07 (Mass Casualty Incident) = Yes. <br/><br/> Examples of triage systems include START and SALT. <br/><br/> <div style="font-size:11px">Adapted from: SALT mass casualty triage: concept endorsed by the American College of Emergency Physicians, American College of Surgeons Committee on Trauma, American Trauma Society, National Association of EMS Physicians, National Disaster Life Support Education Consortium, and State and Territorial Injury Prevention Directors Association. Disaster Med Public Health Prep. 2008 Dec;2(4):245-6. </div> <br/><br/> <div style="font-size:11px"> START reference: Benson M, Koenig KL, Schultz CH. Disaster triage: START, then SAVE-a new method of dynamic triage for victims of a catastrophic earthquake. Prehospital Disaster Med. 1996; Apr-Jun; 11(2): 117-24 </div></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TriageClassification">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.09
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.09</number>
  <name>Incident Location Type</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The kind of location where the incident happened.</definition>
  <v2Number>E08_07</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#IncidentLocationTypeeScene_v3_xsd.tmp#eScene_eScene_eScene.09_NV
Type extension of IncidentLocationType
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.09" nillable="true" id="eScene.IncidentLocationType">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.09</number>
        <name>Incident Location Type</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The kind of location where the incident happened.</definition>
        <v2Number>E08_07</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="IncidentLocationType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.10
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.10</number>
  <name>Incident Facility Code</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The state, regulatory, or other unique number (code) associated with the facility if the Incident is a Healthcare Facility.</definition>
  <v2Number>E08_08</v2Number>
  <usage>Recommended</usage>
  <comment>This may be populated from a list created within dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier).</comment>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#IncidentFacilityCodeeScene_v3_xsd.tmp#eScene_eScene_eScene.10_NV
Type extension of IncidentFacilityCode
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eScene.10" nillable="true" id="eScene.IncidentFacilityCode" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.10</number>
        <name>Incident Facility Code</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The state, regulatory, or other unique number (code) associated with the facility if the Incident is a Healthcare Facility.</definition>
        <v2Number>E08_08</v2Number>
        <usage>Recommended</usage>
        <comment>This may be populated from a list created within dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="IncidentFacilityCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.11
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.11</number>
  <name>Scene GPS Location</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The GPS coordinates associated with the Scene.</definition>
  <v2Number>E08_10</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#GPSLocation
Type GPSLocation
Properties
content simple
minOccurs 0
Facets
pattern (\+|-)?(90(\.[0]{1,6})?|([1-8][0-9]|[0-9])(\.[0-9]{1,6})?),(\+|-)?(180(\.[0]{1,6})?|(1[0-7][0-9]|[1-9][0-9]|[0-9])(\.[0-9]{1,6})?)
Source

<xs:element name="eScene.11" type="GPSLocation" id="eScene.SceneGPSLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.11</number>
        <name>Scene GPS Location</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The GPS coordinates associated with the Scene.</definition>
        <v2Number>E08_10</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eScene / eScene.12
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.12</number>
  <name>Scene US National Grid Coordinates</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The US National Grid Coordinates for the Scene.</definition>
  <usage>Optional</usage>
  <comment>Standard found at www.fgdc.gov/usng</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#USNG
Type USNG
Properties
content simple
minOccurs 0
Facets
pattern ([1-9]|[1-5][0-9]|60)[C-HJ-NP-X][A-HJ-NP-Z][A-HJ-NP-V][0-9]{8}
Source

<xs:element name="eScene.12" type="USNG" id="eScene.SceneUSNationalGridCoordinates" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.12</number>
        <name>Scene US National Grid Coordinates</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The US National Grid Coordinates for the Scene.</definition>
        <usage>Optional</usage>
        <comment>Standard found at www.fgdc.gov/usng</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eScene / eScene.13
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.13</number>
  <name>Incident Facility or Location Name</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The name of the facility, business, building, etc. associated with the scene of the EMS event.</definition>
  <usage>Optional</usage>
  <comment>This element may be populated from a list created within dFacility.02 (Facility Name).</comment>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#IncidentFacilityName
Type IncidentFacilityName
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 100
Source

<xs:element name="eScene.13" type="IncidentFacilityName" id="eScene.IncidentFacilityorLocationName" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.13</number>
        <name>Incident Facility or Location Name</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The name of the facility, business, building, etc. associated with the scene of the EMS event.</definition>
        <usage>Optional</usage>
        <comment>This element may be populated from a list created within dFacility.02 (Facility Name).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eScene / eScene.14
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.14</number>
  <name>Mile Post or Major Roadway</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The mile post or major roadway associated with the incident locations.</definition>
  <usage>Recommended</usage>
  <comment/>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#MilePostOrMajorRoadwayeScene_v3_xsd.tmp#eScene_eScene_eScene.14_NV
Type extension of MilePostOrMajorRoadway
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eScene.14" nillable="true" id="eScene.MilePostOrMajorRoadway" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.14</number>
        <name>Mile Post or Major Roadway</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The mile post or major roadway associated with the incident locations.</definition>
        <usage>Recommended</usage>
        <comment/>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="MilePostOrMajorRoadway">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.15
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.15</number>
  <name>Incident Street Address</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The street address where the patient was found, or, if no patient, the address to which the unit responded.</definition>
  <v2Number>E08_11</v2Number>
  <usage>Recommended</usage>
  <comment/>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#StreetAddresseScene_v3_xsd.tmp#eScene_eScene_eScene.15_NVeScene_v3_xsd.tmp#eScene_eScene_eScene.15_StreetAddress2
Type extension of StreetAddress
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
StreetAddress2 StreetAddress optional
Source

<xs:element name="eScene.15" nillable="true" id="eScene.IncidentStreetAddress" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.15</number>
        <name>Incident Street Address</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The street address where the patient was found, or, if no patient, the address to which the unit responded.</definition>
        <v2Number>E08_11</v2Number>
        <usage>Recommended</usage>
        <comment/>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="StreetAddress">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.16
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.16</number>
  <name>Incident Apartment, Suite, or Room</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The number of the specific apartment, suite, or room where the incident occurred.</definition>
  <usage>Recommended</usage>
</nemsisTacDoc>
Diagram
DiagrameScene_v3_xsd.tmp#SceneApartmenteScene_v3_xsd.tmp#eScene_eScene_eScene.16_NV
Type extension of SceneApartment
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eScene.16" nillable="true" id="eScene.IncidentApartmentSuiteorRoom" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.16</number>
        <name>Incident Apartment, Suite, or Room</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The number of the specific apartment, suite, or room where the incident occurred.</definition>
        <usage>Recommended</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="SceneApartment">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.17
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.17</number>
  <name>Incident City</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The city or township (if applicable) where the patient was found or to which the unit responded (or best approximation).</definition>
  <v2Number>E08_12</v2Number>
  <usage>Recommended</usage>
  <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#CityGnisCodeeScene_v3_xsd.tmp#eScene_eScene_eScene.17_NV
Type extension of CityGnisCode
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eScene.17" nillable="true" id="eScene.IncidentCity" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.17</number>
        <name>Incident City</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The city or township (if applicable) where the patient was found or to which the unit responded (or best approximation).</definition>
        <v2Number>E08_12</v2Number>
        <usage>Recommended</usage>
        <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CityGnisCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.18
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.18</number>
  <name>Incident State</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The state, territory, or province where the patient was found or to which the unit responded (or best approximation).</definition>
  <v2Number>E08_14</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Based on the ANSI State Code.<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#ANSIStateCodeeScene_v3_xsd.tmp#eScene_eScene_eScene.18_NV
Type extension of ANSIStateCode
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.18" nillable="true" id="eScene.IncidentState">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.18</number>
        <name>Incident State</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The state, territory, or province where the patient was found or to which the unit responded (or best approximation).</definition>
        <v2Number>E08_14</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Based on the ANSI State Code.<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ANSIStateCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.19
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.19</number>
  <name>Incident ZIP Code</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The ZIP code of the incident location.</definition>
  <v2Number>E08_15</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#ZIPeScene_v3_xsd.tmp#eScene_eScene_eScene.19_NV
Type extension of ZIP
Type hierarchy
  • xs:string
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.19" nillable="true" id="eScene.IncidentZIPCode">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.19</number>
        <name>Incident ZIP Code</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The ZIP code of the incident location.</definition>
        <v2Number>E08_15</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ZIP">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.20
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.20</number>
  <name>Scene Cross Street or Directions</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The nearest cross street to the incident address or directions from a recognized landmark or the second street name of an intersection.</definition>
  <usage>Recommended</usage>
  <v3Changes>Added to better locate/document the scene (incident) location.</v3Changes>
</nemsisTacDoc>

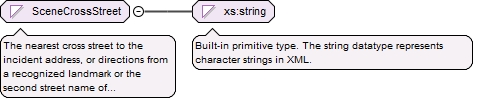

Diagram
DiagrameScene_v3_xsd.tmp#SceneCrossStreeteScene_v3_xsd.tmp#eScene_eScene_eScene.20_NV
Type extension of SceneCrossStreet
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eScene.20" nillable="true" id="eScene.SceneCrossStreetorDirections" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.20</number>
        <name>Scene Cross Street or Directions</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The nearest cross street to the incident address or directions from a recognized landmark or the second street name of an intersection.</definition>
        <usage>Recommended</usage>
        <v3Changes>Added to better locate/document the scene (incident) location.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="SceneCrossStreet">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.21
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.21</number>
  <name>Incident County</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The county or parish where the patient was found or to which the unit responded (or best approximation).</definition>
  <v2Number>E08_13</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#ANSICountyCodeeScene_v3_xsd.tmp#eScene_eScene_eScene.21_NV
Type extension of ANSICountyCode
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eScene.21" nillable="true" id="eScene.IncidentCounty">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.21</number>
        <name>Incident County</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The county or parish where the patient was found or to which the unit responded (or best approximation).</definition>
        <v2Number>E08_13</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ANSICountyCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eScene / eScene.22
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.22</number>
  <name>Incident Country</name>
  <national>No</national>
  <state>No</state>
  <definition>The country of the incident location.</definition>
  <usage>Optional</usage>
  <comment>Based on the ISO Country Code.<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm" target="_blank">http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a></comment>
  <v3Changes>Added for international compatibility.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#ANSICountryCode
Type ANSICountryCode
Properties
content simple
minOccurs 0
Facets
length 2
Source

<xs:element name="eScene.22" type="ANSICountryCode" id="eScene.IncidentCountry" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.22</number>
        <name>Incident Country</name>
        <national>No</national>
        <state>No</state>
        <definition>The country of the incident location.</definition>
        <usage>Optional</usage>
        <comment>Based on the ISO Country Code.<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm" target="_blank">http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a></comment>
        <v3Changes>Added for international compatibility.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eScene / eScene.23
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eScene.23</number>
  <name>Incident Census Tract</name>
  <national>No</national>
  <state>No</state>
  <definition>The census tract in which the incident occurred.</definition>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This data element was added to better document the service area of the EMS Agency. Each state listed is associated with the counties, census tracts, and ZIP codes within the EMS Agency Service Area for each state. <br/><br/>The format of the census tract number must be an 11-digit number, based upon the 2010 census, using the pattern: <br/>2-digit State Code 3-digit County Code 6-digit Census Tract Number (no decimal) <br/><br/>Example: NEMSIS TAC office (UT, Salt Lake County, Census Tract - located at 295 Chipeta Way, Salt Lake City, UT) 49035101400 <br/><br/>Census Tract Data Website (files and descriptions): <a href="http://www.census.gov/geo/maps-data/data/tract_rel_download.html" target="_blank">http://www.census.gov/geo/maps-data/data/tract_rel_download.html</a></comment>
  <v3Changes>Added to improve the ability to use census and other demographic information within EMS research.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#CensusTracts
Type CensusTracts
Properties
content simple
minOccurs 0
Facets
pattern [0-9]{11}
Source

<xs:element name="eScene.23" type="CensusTracts" id="eScene.IncidentCensusTract" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eScene.23</number>
        <name>Incident Census Tract</name>
        <national>No</national>
        <state>No</state>
        <definition>The census tract in which the incident occurred.</definition>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This data element was added to better document the service area of the EMS Agency. Each state listed is associated with the counties, census tracts, and ZIP codes within the EMS Agency Service Area for each state. <br/><br/>The format of the census tract number must be an 11-digit number, based upon the 2010 census, using the pattern: <br/>2-digit State Code 3-digit County Code 6-digit Census Tract Number (no decimal) <br/><br/>Example: NEMSIS TAC office (UT, Salt Lake County, Census Tract - located at 295 Chipeta Way, Salt Lake City, UT) 49035101400 <br/><br/>Census Tract Data Website (files and descriptions): <a href="http://www.census.gov/geo/maps-data/data/tract_rel_download.html" target="_blank">http://www.census.gov/geo/maps-data/data/tract_rel_download.html</a></comment>
        <v3Changes>Added to improve the ability to use census and other demographic information within EMS research.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

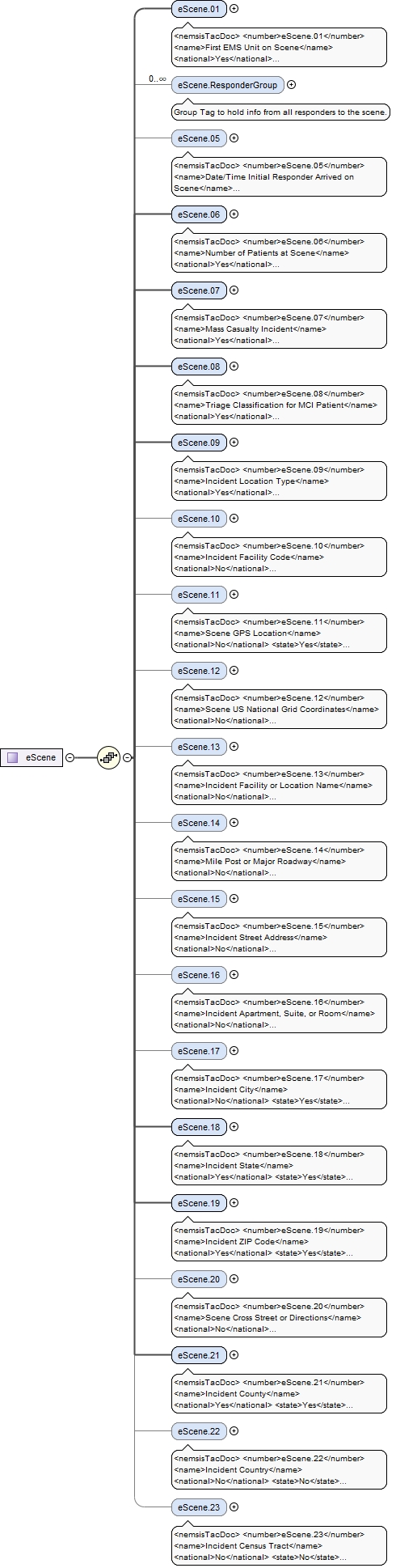

Complex Type eScene
Namespace http://www.nemsis.org
Diagram
DiagrameScene_v3_xsd.tmp#eScene_eScene.01eScene_v3_xsd.tmp#eScene_eScene.ResponderGroupeScene_v3_xsd.tmp#eScene_eScene.05eScene_v3_xsd.tmp#eScene_eScene.06eScene_v3_xsd.tmp#eScene_eScene.07eScene_v3_xsd.tmp#eScene_eScene.08eScene_v3_xsd.tmp#eScene_eScene.09eScene_v3_xsd.tmp#eScene_eScene.10eScene_v3_xsd.tmp#eScene_eScene.11eScene_v3_xsd.tmp#eScene_eScene.12eScene_v3_xsd.tmp#eScene_eScene.13eScene_v3_xsd.tmp#eScene_eScene.14eScene_v3_xsd.tmp#eScene_eScene.15eScene_v3_xsd.tmp#eScene_eScene.16eScene_v3_xsd.tmp#eScene_eScene.17eScene_v3_xsd.tmp#eScene_eScene.18eScene_v3_xsd.tmp#eScene_eScene.19eScene_v3_xsd.tmp#eScene_eScene.20eScene_v3_xsd.tmp#eScene_eScene.21eScene_v3_xsd.tmp#eScene_eScene.22eScene_v3_xsd.tmp#eScene_eScene.23
Used by
Model
Children eScene.01, eScene.05, eScene.06, eScene.07, eScene.08, eScene.09, eScene.10, eScene.11, eScene.12, eScene.13, eScene.14, eScene.15, eScene.16, eScene.17, eScene.18, eScene.19, eScene.20, eScene.21, eScene.22, eScene.23, eScene.ResponderGroup
Source

<xs:complexType name="eScene" id="eScene.Scene">
  <xs:sequence>
    <xs:element name="eScene.01" nillable="true" id="eScene.FirstEMSUnitonScene">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.01</number>
            <name>First EMS Unit on Scene</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Documentation that this EMS Unit was the first EMS Unit among all EMS Agencies on the Scene.</definition>
            <usage>Required</usage>
            <comment>Added to improve the evaluation of Response Times when multiple EMS units are responding to the same scene.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="YesNoValues">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.ResponderGroup" id="eScene.ResponderGroup" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold info from all responders to the scene.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eScene.02" type="OtherEMSAgenciesAtScene" id="eScene.OtherEMSorPublicSafetyAgenciesatScene" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eScene.02</number>
                  <name>Other EMS or Public Safety Agencies at Scene</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>Other EMS agency names that were at the scene, if any.</definition>
                  <v2Number>E08_01</v2Number>
                  <usage>Optional</usage>
                  <comment>For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.02 and eScene.03 are used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eScene.03" type="EMSAgencyID" id="eScene.OtherPublicSafetyorEMSAgencyIDNumber" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eScene.03</number>
                  <name>Other EMS or Public Safety Agency ID Number</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The ID number for the EMS Agency or Other Public Safety listed in eScene.02.</definition>
                  <usage>Optional</usage>
                  <comment>The ID should be the state ID (license number) for the EMS agency or ID number for the law enforcement. This may be an ID assigned by the state or created by the EMS agency. <br /><br />For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.02 and eScene.03 are used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eScene.04" type="OtherServicesAtScene" id="eScene.TypeofOtherServiceatScene" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eScene.04</number>
                  <name>Type of Other Service at Scene</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The type of public safety or EMS service associated with Other Agencies on Scene.</definition>
                  <v2Number>E08_02</v2Number>
                  <usage>Optional</usage>
                  <comment>Associated with each Other Service in eScene.02</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eScene.24" id="eScene.FirstOtherAgencyToProvideCare" minOccurs="0" nillable="true">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eScene.24</number>
                  <name>First Other EMS or Public Safety Agency at Scene to Provide Patient Care</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>When there are multiple other EMS Agencies or Public Safety Agencies at the scene, this element documents the other EMS or public safety agency that was first to provide care to the patient.</definition>
                  <usage>Optional</usage>
                  <comment>For states and local agencies that participate in the Cardiac Arrest Registry for Enhanced Survival (CARES), eScene.24 is used to populate CARES data element #16 Fire/First Responder as defined by CARES in the CARES 2019 Data Dictionary: <a href="https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf" target="_blank">https://mycares.net/sitepages/uploads/2019/Data%20Dictionary%20(2019).pdf</a>.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.05" type="DateTimeType" id="eScene.DateTimeInitialResponderArrivedonScene" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.05</number>
            <name>Date/Time Initial Responder Arrived on Scene</name>
            <national>No</national>
            <state>No</state>
            <definition>The time that the initial responder arrived on the scene, if applicable.</definition>
            <v2Number>E08_04</v2Number>
            <usage>Optional</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eScene.06" nillable="true" id="eScene.NumberofPatientsatScene">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.06</number>
            <name>Number of Patients at Scene</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Indicator of how many total patients were at the scene.</definition>
            <v2Number>E08_05</v2Number>
            <usage>Required</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="NumberOfPatientsAtScene">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.07" nillable="true" id="eScene.MassCasualtyIncident">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.07</number>
            <name>Mass Casualty Incident</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Indicator if this event would be considered a mass casualty incident (overwhelmed existing EMS resources).</definition>
            <v2Number>E08_06</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="YesNoValues">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.08" nillable="true" id="eScene.TriageClassificationforMCIPatient">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.08</number>
            <name>Triage Classification for MCI Patient</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The color associated with the initial triage assessment/classification of the MCI patient.</definition>
            <v2Number/>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>This element is documented when eScene.07 (Mass Casualty Incident) = Yes. <br/><br/> Examples of triage systems include START and SALT. <br/><br/> <div style="font-size:11px">Adapted from: SALT mass casualty triage: concept endorsed by the American College of Emergency Physicians, American College of Surgeons Committee on Trauma, American Trauma Society, National Association of EMS Physicians, National Disaster Life Support Education Consortium, and State and Territorial Injury Prevention Directors Association. Disaster Med Public Health Prep. 2008 Dec;2(4):245-6. </div> <br/><br/> <div style="font-size:11px"> START reference: Benson M, Koenig KL, Schultz CH. Disaster triage: START, then SAVE-a new method of dynamic triage for victims of a catastrophic earthquake. Prehospital Disaster Med. 1996; Apr-Jun; 11(2): 117-24 </div></comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="TriageClassification">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.09" nillable="true" id="eScene.IncidentLocationType">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.09</number>
            <name>Incident Location Type</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The kind of location where the incident happened.</definition>
            <v2Number>E08_07</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="IncidentLocationType">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.10" nillable="true" id="eScene.IncidentFacilityCode" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.10</number>
            <name>Incident Facility Code</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The state, regulatory, or other unique number (code) associated with the facility if the Incident is a Healthcare Facility.</definition>
            <v2Number>E08_08</v2Number>
            <usage>Recommended</usage>
            <comment>This may be populated from a list created within dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier).</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="IncidentFacilityCode">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.11" type="GPSLocation" id="eScene.SceneGPSLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.11</number>
            <name>Scene GPS Location</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The GPS coordinates associated with the Scene.</definition>
            <v2Number>E08_10</v2Number>
            <usage>Optional</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eScene.12" type="USNG" id="eScene.SceneUSNationalGridCoordinates" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.12</number>
            <name>Scene US National Grid Coordinates</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The US National Grid Coordinates for the Scene.</definition>
            <usage>Optional</usage>
            <comment>Standard found at www.fgdc.gov/usng</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eScene.13" type="IncidentFacilityName" id="eScene.IncidentFacilityorLocationName" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.13</number>
            <name>Incident Facility or Location Name</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The name of the facility, business, building, etc. associated with the scene of the EMS event.</definition>
            <usage>Optional</usage>
            <comment>This element may be populated from a list created within dFacility.02 (Facility Name).</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eScene.14" nillable="true" id="eScene.MilePostOrMajorRoadway" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.14</number>
            <name>Mile Post or Major Roadway</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The mile post or major roadway associated with the incident locations.</definition>
            <usage>Recommended</usage>
            <comment/>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="MilePostOrMajorRoadway">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.15" nillable="true" id="eScene.IncidentStreetAddress" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.15</number>
            <name>Incident Street Address</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The street address where the patient was found, or, if no patient, the address to which the unit responded.</definition>
            <v2Number>E08_11</v2Number>
            <usage>Recommended</usage>
            <comment/>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="StreetAddress">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.16" nillable="true" id="eScene.IncidentApartmentSuiteorRoom" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.16</number>
            <name>Incident Apartment, Suite, or Room</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The number of the specific apartment, suite, or room where the incident occurred.</definition>
            <usage>Recommended</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="SceneApartment">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.17" nillable="true" id="eScene.IncidentCity" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.17</number>
            <name>Incident City</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The city or township (if applicable) where the patient was found or to which the unit responded (or best approximation).</definition>
            <v2Number>E08_12</v2Number>
            <usage>Recommended</usage>
            <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="CityGnisCode">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.18" nillable="true" id="eScene.IncidentState">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.18</number>
            <name>Incident State</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The state, territory, or province where the patient was found or to which the unit responded (or best approximation).</definition>
            <v2Number>E08_14</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Based on the ANSI State Code.<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ANSIStateCode">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.19" nillable="true" id="eScene.IncidentZIPCode">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.19</number>
            <name>Incident ZIP Code</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The ZIP code of the incident location.</definition>
            <v2Number>E08_15</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ZIP">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.20" nillable="true" id="eScene.SceneCrossStreetorDirections" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.20</number>
            <name>Scene Cross Street or Directions</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The nearest cross street to the incident address or directions from a recognized landmark or the second street name of an intersection.</definition>
            <usage>Recommended</usage>
            <v3Changes>Added to better locate/document the scene (incident) location.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="SceneCrossStreet">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.21" nillable="true" id="eScene.IncidentCounty">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.21</number>
            <name>Incident County</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The county or parish where the patient was found or to which the unit responded (or best approximation).</definition>
            <v2Number>E08_13</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ANSICountyCode">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eScene.22" type="ANSICountryCode" id="eScene.IncidentCountry" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.22</number>
            <name>Incident Country</name>
            <national>No</national>
            <state>No</state>
            <definition>The country of the incident location.</definition>
            <usage>Optional</usage>
            <comment>Based on the ISO Country Code.<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm" target="_blank">http://www.iso.org/iso/country_codes/iso_3166_code_lists.htm</a></comment>
            <v3Changes>Added for international compatibility.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eScene.23" type="CensusTracts" id="eScene.IncidentCensusTract" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eScene.23</number>
            <name>Incident Census Tract</name>
            <national>No</national>
            <state>No</state>
            <definition>The census tract in which the incident occurred.</definition>
            <usage>Optional</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>This data element was added to better document the service area of the EMS Agency. Each state listed is associated with the counties, census tracts, and ZIP codes within the EMS Agency Service Area for each state. <br/><br/>The format of the census tract number must be an 11-digit number, based upon the 2010 census, using the pattern: <br/>2-digit State Code 3-digit County Code 6-digit Census Tract Number (no decimal) <br/><br/>Example: NEMSIS TAC office (UT, Salt Lake County, Census Tract - located at 295 Chipeta Way, Salt Lake City, UT) 49035101400 <br/><br/>Census Tract Data Website (files and descriptions): <a href="http://www.census.gov/geo/maps-data/data/tract_rel_download.html" target="_blank">http://www.census.gov/geo/maps-data/data/tract_rel_download.html</a></comment>
            <v3Changes>Added to improve the ability to use census and other demographic information within EMS research.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type OtherEMSAgenciesAtScene
Namespace http://www.nemsis.org
Annotations

Other EMS agencies that were at the scene, if any
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source

<xs:simpleType name="OtherEMSAgenciesAtScene">
  <xs:annotation>
    <xs:documentation>Other EMS agencies that were at the scene, if any</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type EMSAgencyID
Namespace http://www.nemsis.org
Annotations

The ID number for the Other Public Safety or EMS Agency listed in E08_01.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 25
Used by
Source

<xs:simpleType name="EMSAgencyID">
  <xs:annotation>
    <xs:documentation>The ID number for the Other Public Safety or EMS Agency listed in E08_01.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="25"/>
  </xs:restriction>
</xs:simpleType>
Simple Type OtherServicesAtScene
Namespace http://www.nemsis.org
Annotations

Other services that were at the scene, if any
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2704001
EMS Mutual Aid
enumeration 2704003
Fire
enumeration 2704005
First Responder
enumeration 2704007
Hazmat
enumeration 2704009
Law
enumeration 2704011
Other
enumeration 2704013
Other EMS Agency
enumeration 2704015
Other Health Care Provider
enumeration 2704017
Rescue
enumeration 2704019
Utilities
Used by
Source

<xs:simpleType name="OtherServicesAtScene">
  <xs:annotation>
    <xs:documentation>Other services that were at the scene, if any</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2704001">
      <xs:annotation>
        <xs:documentation>EMS Mutual Aid</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704003">
      <xs:annotation>
        <xs:documentation>Fire</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704005">
      <xs:annotation>
        <xs:documentation>First Responder</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704007">
      <xs:annotation>
        <xs:documentation>Hazmat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704009">
      <xs:annotation>
        <xs:documentation>Law</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704011">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704013">
      <xs:annotation>
        <xs:documentation>Other EMS Agency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704015">
      <xs:annotation>
        <xs:documentation>Other Health Care Provider</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704017">
      <xs:annotation>
        <xs:documentation>Rescue</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2704019">
      <xs:annotation>
        <xs:documentation>Utilities</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type NumberOfPatientsAtScene
Namespace http://www.nemsis.org
Annotations

Indicator of how many total patients were at the scene
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2707001
Multiple
enumeration 2707003
None
enumeration 2707005
Single
Used by
Source

<xs:simpleType name="NumberOfPatientsAtScene">
  <xs:annotation>
    <xs:documentation>Indicator of how many total patients were at the scene</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2707001">
      <xs:annotation>
        <xs:documentation>Multiple</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2707003">
      <xs:annotation>
        <xs:documentation>None</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2707005">
      <xs:annotation>
        <xs:documentation>Single</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TriageClassification
Namespace http://www.nemsis.org
Annotations

Other services that were at the scene, if any
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2708001
Red - Immediate
enumeration 2708003
Yellow - Delayed
enumeration 2708005
Green - Minimal (Minor)
enumeration 2708007
Gray - Expectant
enumeration 2708009
Black - Deceased
Used by
Source

<xs:simpleType name="TriageClassification">
  <xs:annotation>
    <xs:documentation>Other services that were at the scene, if any</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2708001">
      <xs:annotation>
        <xs:documentation>Red - Immediate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2708003">
      <xs:annotation>
        <xs:documentation>Yellow - Delayed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2708005">
      <xs:annotation>
        <xs:documentation>Green - Minimal (Minor)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2708007">
      <xs:annotation>
        <xs:documentation>Gray - Expectant</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2708009">
      <xs:annotation>
        <xs:documentation>Black - Deceased</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type IncidentLocationType
Namespace http://www.nemsis.org
Annotations

The kind of location where the incident happened
Diagram
Diagram
Type restriction of xs:string
Facets
pattern Y92\.[0-9]{1,3}
Used by
Source

<xs:simpleType name="IncidentLocationType">
  <xs:annotation>
    <xs:documentation>The kind of location where the incident happened</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="Y92\.[0-9]{1,3}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type IncidentFacilityCode
Namespace http://www.nemsis.org
Annotations

The state or regulatory number (code) associated with the facility if the Incident is a Healthcare Facility.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 50
Used by
Source

<xs:simpleType name="IncidentFacilityCode">
  <xs:annotation>
    <xs:documentation>The state or regulatory number (code) associated with the facility if the Incident is a Healthcare Facility.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>
Simple Type IncidentFacilityName
Namespace http://www.nemsis.org
Annotations

The destination the patient was delivered or transferred to
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 100
Used by
Source

<xs:simpleType name="IncidentFacilityName">
  <xs:annotation>
    <xs:documentation>The destination the patient was delivered or transferred to</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>
Simple Type MilePostOrMajorRoadway
Namespace http://www.nemsis.org
Annotations

The address number or mile post associated with the incident location.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 35
Used by
Source

<xs:simpleType name="MilePostOrMajorRoadway">
  <xs:annotation>
    <xs:documentation>The address number or mile post associated with the incident location.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="35"/>
    <xs:minLength value="1"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SceneApartment
Namespace http://www.nemsis.org
Annotations

The number of the specific apartment, suite, or room where the incident occurred.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 15
Used by
Source

<xs:simpleType name="SceneApartment">
  <xs:annotation>
    <xs:documentation>The number of the specific apartment, suite, or room where the incident occurred.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="15"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SceneCrossStreet
Namespace http://www.nemsis.org
Annotations

The nearest cross street to the incident address, or directions from a recognized landmark or the second street name of an intersection.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 2
maxLength 255
Used by
Source

<xs:simpleType name="SceneCrossStreet">
  <xs:annotation>
    <xs:documentation>The nearest cross street to the incident address, or directions from a recognized landmark or the second street name of an intersection.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Attribute eScene / eScene.01 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.ResponderGroup / eScene.24 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.ResponderGroup / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eScene / eScene.06 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.07 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.08 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.09 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.10 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.14 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.15 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.15 / @StreetAddress2
Namespace No namespace
Type StreetAddress
Properties
use optional
Facets
minLength 1
maxLength 255
Used by
Source

<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
Attribute eScene / eScene.16 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.17 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.18 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.19 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.20 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eScene / eScene.21 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
