Schema documentation for eDisposition

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Model

Properties

Source

Used by

Included schema eDisposition_v3.xsd

Namespace

http://www.nemsis.org

Properties

attribute form default	unqualified
element form default	qualified

Element eDisposition / eDisposition.DestinationGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold info about the Destination and the Disposition details

Diagram

Properties

content

complex

Model

eDisposition.01{0,1} , eDisposition.02{0,1} , eDisposition.03{0,1} , eDisposition.04{0,1} , eDisposition.05 , eDisposition.06 , eDisposition.07 , eDisposition.08{0,1} , eDisposition.09{0,1} , eDisposition.10{0,1}

Children

eDisposition.01, eDisposition.02, eDisposition.03, eDisposition.04, eDisposition.05, eDisposition.06, eDisposition.07, eDisposition.08, eDisposition.09, eDisposition.10

Instance

<eDisposition.DestinationGroup xmlns="http://www.nemsis.org">
  <eDisposition.01 NV="">{0,1}</eDisposition.01>
  <eDisposition.02 NV="">{0,1}</eDisposition.02>
  <eDisposition.03 StreetAddress2="">{0,1}</eDisposition.03>
  <eDisposition.04>{0,1}</eDisposition.04>
  <eDisposition.05 NV="">{1,1}</eDisposition.05>
  <eDisposition.06 NV="">{1,1}</eDisposition.06>
  <eDisposition.07 NV="">{1,1}</eDisposition.07>
  <eDisposition.08>{0,1}</eDisposition.08>
  <eDisposition.09>{0,1}</eDisposition.09>
  <eDisposition.10>{0,1}</eDisposition.10>
</eDisposition.DestinationGroup>

Source

<xs:element name="eDisposition.DestinationGroup" id="eDisposition.DestinationGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about the Destination and the Disposition details</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDisposition.01" nillable="true" id="eDisposition.DestinationTransferredToName" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.01</number>
              <name>Destination/Transferred To, Name</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The destination the patient was delivered or transferred to.</definition>
              <v2Number>E20_01</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DestinationTransferredToName">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.02" nillable="true" id="eDisposition.DestinationTransferredToCode" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.02</number>
              <name>Destination/Transferred To, Code</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The code of the destination the patient was delivered or transferred to.</definition>
              <v2Number>E20_02</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DestinationTransferredToCode">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.03" id="eDisposition.DestinationStreetAddress" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.03</number>
              <name>Destination Street Address</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The street address of the destination the patient was delivered or transferred to.</definition>
              <v2Number>E20_03</v2Number>
              <usage>Optional</usage>
              <comment>May be auto-populated if list created in dFacility.07 (Facility Street Address).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="StreetAddress">
              <xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.04" type="CityGnisCode" id="eDisposition.DestinationCity" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.04</number>
              <name>Destination City</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The city of the destination the patient was delivered or transferred to (physical address).</definition>
              <v2Number>E20_04</v2Number>
              <usage>Optional</usage>
              <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDisposition.05" nillable="true" id="eDisposition.DestinationState">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.05</number>
              <name>Destination State</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The state of the destination the patient was delivered or transferred to.</definition>
              <v2Number>E20_05</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State).<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ANSIStateCode">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.06" nillable="true" id="eDisposition.DestinationCounty">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.06</number>
              <name>Destination County</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The destination county in which the patient was delivered or transferred to.</definition>
              <v2Number>E20_06</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ANSICountyCode">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.07" nillable="true" id="eDisposition.DestinationZIPCode">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.07</number>
              <name>Destination ZIP Code</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The destination ZIP code in which the patient was delivered or transferred to.</definition>
              <v2Number>E20_07</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>May be auto-populated if list created in dFacility.10 (Facility ZIP Code).<br/><br/>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ZIP">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.08" type="ANSICountryCode" id="eDisposition.DestinationCountry" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.08</number>
              <name>Destination Country</name>
              <national>No</national>
              <state>No</state>
              <definition>The country of the destination.</definition>
              <usage>Optional</usage>
              <comment>May be auto-populated if list created in dFacility.12 (Facility Country).<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="https://www.iso.org/iso-3166-country-codes.html" target="_blank">https://www.iso.org/iso-3166-country-codes.html</a></comment>
              <v3Changes>Added for improved international compatibility.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDisposition.09" type="GPSLocation" id="eDisposition.DestinationGPSLocation" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.09</number>
              <name>Destination GPS Location</name>
              <national>No</national>
              <state>No</state>
              <definition>The destination GPS Coordinates to which the patient was delivered or transferred to.</definition>
              <v2Number>E20_08</v2Number>
              <usage>Optional</usage>
              <comment>May be auto-populated if list created in dFacility.13 (Facility GPS Location). <br/><br/>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eDisposition.10" type="USNG" id="eDisposition.DestinationLocationUSNationalGridCoordinates" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.10</number>
              <name>Destination Location US National Grid Coordinates</name>
              <national>No</national>
              <state>No</state>
              <definition>The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates.</definition>
              <usage>Optional</usage>
              <comment>Standard found at www.fgdc.gov/usng. <br/> Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.01

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.01</number>
  <name>Destination/Transferred To, Name</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_01</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).</comment>
</nemsisTacDoc>

Diagram

Type

extension of DestinationTransferredToName

Type hierarchy

xs:string
- DestinationTransferredToName

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional

Source

<xs:element name="eDisposition.01" nillable="true" id="eDisposition.DestinationTransferredToName" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.01</number>
        <name>Destination/Transferred To, Name</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_01</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DestinationTransferredToName">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.02

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.02</number>
  <name>Destination/Transferred To, Code</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The code of the destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_02</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.</comment>
</nemsisTacDoc>

Diagram

Type

extension of DestinationTransferredToCode

Type hierarchy

xs:string
- DestinationTransferredToCode

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional

Source

<xs:element name="eDisposition.02" nillable="true" id="eDisposition.DestinationTransferredToCode" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.02</number>
        <name>Destination/Transferred To, Code</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The code of the destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_02</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DestinationTransferredToCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.03

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.03</number>
  <name>Destination Street Address</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The street address of the destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_03</v2Number>
  <usage>Optional</usage>
  <comment>May be auto-populated if list created in dFacility.07 (Facility Street Address).</comment>
</nemsisTacDoc>

Diagram

Type

extension of StreetAddress

Type hierarchy

xs:string
- StreetAddress

Properties

content	complex
minOccurs	0

Attributes

QName	Type	Use
StreetAddress2	StreetAddress	optional

Source

<xs:element name="eDisposition.03" id="eDisposition.DestinationStreetAddress" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.03</number>
        <name>Destination Street Address</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The street address of the destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_03</v2Number>
        <usage>Optional</usage>
        <comment>May be auto-populated if list created in dFacility.07 (Facility Street Address).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="StreetAddress">
        <xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.04

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.04</number>
  <name>Destination City</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The city of the destination the patient was delivered or transferred to (physical address).</definition>
  <v2Number>E20_04</v2Number>
  <usage>Optional</usage>
  <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>

Diagram

Type

CityGnisCode

Properties

content	simple
minOccurs	0

Source

<xs:element name="eDisposition.04" type="CityGnisCode" id="eDisposition.DestinationCity" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.04</number>
        <name>Destination City</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The city of the destination the patient was delivered or transferred to (physical address).</definition>
        <v2Number>E20_04</v2Number>
        <usage>Optional</usage>
        <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.05

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.05</number>
  <name>Destination State</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The state of the destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_05</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State).<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>

Diagram

Type

extension of ANSIStateCode

Type hierarchy

xs:string
- ANSIStateCode

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.05" nillable="true" id="eDisposition.DestinationState">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.05</number>
        <name>Destination State</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The state of the destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_05</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State).<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ANSIStateCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.06

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.06</number>
  <name>Destination County</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The destination county in which the patient was delivered or transferred to.</definition>
  <v2Number>E20_06</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
</nemsisTacDoc>

Diagram

Type

extension of ANSICountyCode

Type hierarchy

xs:string
- ANSICountyCode

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.06" nillable="true" id="eDisposition.DestinationCounty">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.06</number>
        <name>Destination County</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The destination county in which the patient was delivered or transferred to.</definition>
        <v2Number>E20_06</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ANSICountyCode">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.07

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.07</number>
  <name>Destination ZIP Code</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The destination ZIP code in which the patient was delivered or transferred to.</definition>
  <v2Number>E20_07</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>May be auto-populated if list created in dFacility.10 (Facility ZIP Code).<br/><br/>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
</nemsisTacDoc>

Diagram

Type

extension of ZIP

Type hierarchy

xs:string
- ZIP

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.07" nillable="true" id="eDisposition.DestinationZIPCode">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.07</number>
        <name>Destination ZIP Code</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The destination ZIP code in which the patient was delivered or transferred to.</definition>
        <v2Number>E20_07</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>May be auto-populated if list created in dFacility.10 (Facility ZIP Code).<br/><br/>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ZIP">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.08

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.08</number>
  <name>Destination Country</name>
  <national>No</national>
  <state>No</state>
  <definition>The country of the destination.</definition>
  <usage>Optional</usage>
  <comment>May be auto-populated if list created in dFacility.12 (Facility Country).<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="https://www.iso.org/iso-3166-country-codes.html" target="_blank">https://www.iso.org/iso-3166-country-codes.html</a></comment>
  <v3Changes>Added for improved international compatibility.</v3Changes>
</nemsisTacDoc>

Diagram

Type

ANSICountryCode

Properties

content	simple
minOccurs	0

Facets

length

Source

<xs:element name="eDisposition.08" type="ANSICountryCode" id="eDisposition.DestinationCountry" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.08</number>
        <name>Destination Country</name>
        <national>No</national>
        <state>No</state>
        <definition>The country of the destination.</definition>
        <usage>Optional</usage>
        <comment>May be auto-populated if list created in dFacility.12 (Facility Country).<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="https://www.iso.org/iso-3166-country-codes.html" target="_blank">https://www.iso.org/iso-3166-country-codes.html</a></comment>
        <v3Changes>Added for improved international compatibility.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.09

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.09</number>
  <name>Destination GPS Location</name>
  <national>No</national>
  <state>No</state>
  <definition>The destination GPS Coordinates to which the patient was delivered or transferred to.</definition>
  <v2Number>E20_08</v2Number>
  <usage>Optional</usage>
  <comment>May be auto-populated if list created in dFacility.13 (Facility GPS Location). <br/><br/>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
</nemsisTacDoc>

Diagram

Type

GPSLocation

Properties

content	simple
minOccurs	0

Facets

pattern

(\+|-)?(90(\.[0]{1,6})?|([1-8][0-9]|[0-9])(\.[0-9]{1,6})?),(\+|-)?(180(\.[0]{1,6})?|(1[0-7][0-9]|[1-9][0-9]|[0-9])(\.[0-9]{1,6})?)

Source

<xs:element name="eDisposition.09" type="GPSLocation" id="eDisposition.DestinationGPSLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.09</number>
        <name>Destination GPS Location</name>
        <national>No</national>
        <state>No</state>
        <definition>The destination GPS Coordinates to which the patient was delivered or transferred to.</definition>
        <v2Number>E20_08</v2Number>
        <usage>Optional</usage>
        <comment>May be auto-populated if list created in dFacility.13 (Facility GPS Location). <br/><br/>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eDisposition / eDisposition.DestinationGroup / eDisposition.10

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.10</number>
  <name>Destination Location US National Grid Coordinates</name>
  <national>No</national>
  <state>No</state>
  <definition>The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates.</definition>
  <usage>Optional</usage>
  <comment>Standard found at www.fgdc.gov/usng. <br/> Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).</comment>
</nemsisTacDoc>

Diagram

Type

USNG

Properties

content	simple
minOccurs	0

Facets

pattern

([1-9]|[1-5][0-9]|60)[C-HJ-NP-X][A-HJ-NP-Z][A-HJ-NP-V]([0-9][0-9]){4,5}

Source

<xs:element name="eDisposition.10" type="USNG" id="eDisposition.DestinationLocationUSNationalGridCoordinates" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.10</number>
        <name>Destination Location US National Grid Coordinates</name>
        <national>No</national>
        <state>No</state>
        <definition>The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates.</definition>
        <usage>Optional</usage>
        <comment>Standard found at www.fgdc.gov/usng. <br/> Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eDisposition / eDisposition.11

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.11</number>
  <name>Number of Patients Transported in this EMS Unit</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The number of patients transported by this EMS crew and unit.</definition>
  <usage>Recommended</usage>
  <comment>Added to document multiple patients being transported with the same vehicle and crew.</comment>
  <v3Changes>Added to document multiple patients being transported with the same vehicle and crew.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of NumberOfPatients

Type hierarchy

xs:positiveInteger
- NumberOfPatients

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional

Source

<xs:element name="eDisposition.11" nillable="true" id="eDisposition.NumberofPatientsTransportedinthisEMSUnit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.11</number>
        <name>Number of Patients Transported in this EMS Unit</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The number of patients transported by this EMS crew and unit.</definition>
        <usage>Recommended</usage>
        <comment>Added to document multiple patients being transported with the same vehicle and crew.</comment>
        <v3Changes>Added to document multiple patients being transported with the same vehicle and crew.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="NumberOfPatients">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.IncidentDispositionGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold info about the incident disposition details

Diagram

Properties

content

complex

Model

eDisposition.27 , eDisposition.28 , eDisposition.29 , eDisposition.30 , eDisposition.31*

Children

eDisposition.27, eDisposition.28, eDisposition.29, eDisposition.30, eDisposition.31

Instance

<eDisposition.IncidentDispositionGroup xmlns="http://www.nemsis.org">
  <eDisposition.27>{1,1}</eDisposition.27>
  <eDisposition.28 NV="">{1,1}</eDisposition.28>
  <eDisposition.29 NV="">{1,1}</eDisposition.29>
  <eDisposition.30 NV="">{1,1}</eDisposition.30>
  <eDisposition.31 CorrelationID="">{0,unbounded}</eDisposition.31>
</eDisposition.IncidentDispositionGroup>

Source

<xs:element name="eDisposition.IncidentDispositionGroup" id="eDisposition.IncidentDispositionGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about the incident disposition details</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDisposition.27" id="eDisposition.UnitDisposition" type="UnitDisposition">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.27</number>
              <name>Unit Disposition</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The unit disposition for an EMS event identifying whether patient contact was made by this EMS unit/crew.</definition>
              <v2Number/>
              <usage>Mandatory</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Grouped with Incident and Transport dispositions. Who provided care or services is defined in Incident Dispostion.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>

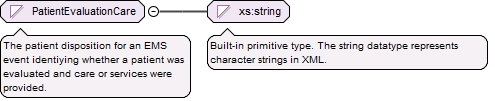

      <xs:element name="eDisposition.28" id="eDisposition.PatientEvaluationCare" nillable="true">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.28</number>
              <name>Patient Evaluation/Care</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient disposition for an EMS event identifying whether a patient was evaluated and care or services were provided.</definition>
              <v2Number/>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Grouped with Incident and Transport Dispositions. Who provided care or services is defined in Incident Disposition.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="PatientEvaluationCare">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>

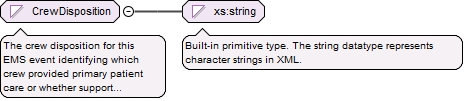

      <xs:element name="eDisposition.29" id="eDisposition.CrewDisposition" nillable="true">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.29</number>
              <name>Crew Disposition</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</definition>
              <v2Number/>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Grouped with Patient and Transport Dispositions. Depending on context of the Value, "Unit" could be Vehicle or Service/Agency.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="CrewDisposition">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.30" id="eDisposition.TransportDisposition" nillable="true">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.30</number>
              <name>Transport Disposition</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The transport disposition for an EMS event identifying whether a transport occurred and by which unit.</definition>
              <v2Number/>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Grouped with Patient and Incident Dispositions. Provides a rapid filter for transport or no transport for incident evaluation, business entry rules and Schematron rules.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="TransportDisposition">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.31" id="eDisposition.ReasonForRefusalRelease" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.31</number>
              <name>Reason for Refusal/Release</name>
              <national>No</national>
              <state>No</state>
              <definition>Describes reason(s) for the patient's refusal of care/transport OR the EMS clinician's decision to release the patient.</definition>
              <v2Number/>
              <usage>Optional</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>This works in combination with the dispositions and signatures to provide general categories for the patient refusal. Specific legal refusal language should be developed by the agency's legal counsel and provided to the patient or guardian upon refusal per local policies.</comment>
              <v3Changes>Element added with the release of v3.5.0</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ReasonForRefusalRelease">
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.27

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.27</number>
  <name>Unit Disposition</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The unit disposition for an EMS event identifying whether patient contact was made by this EMS unit/crew.</definition>
  <v2Number/>
  <usage>Mandatory</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Grouped with Incident and Transport dispositions. Who provided care or services is defined in Incident Dispostion.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>

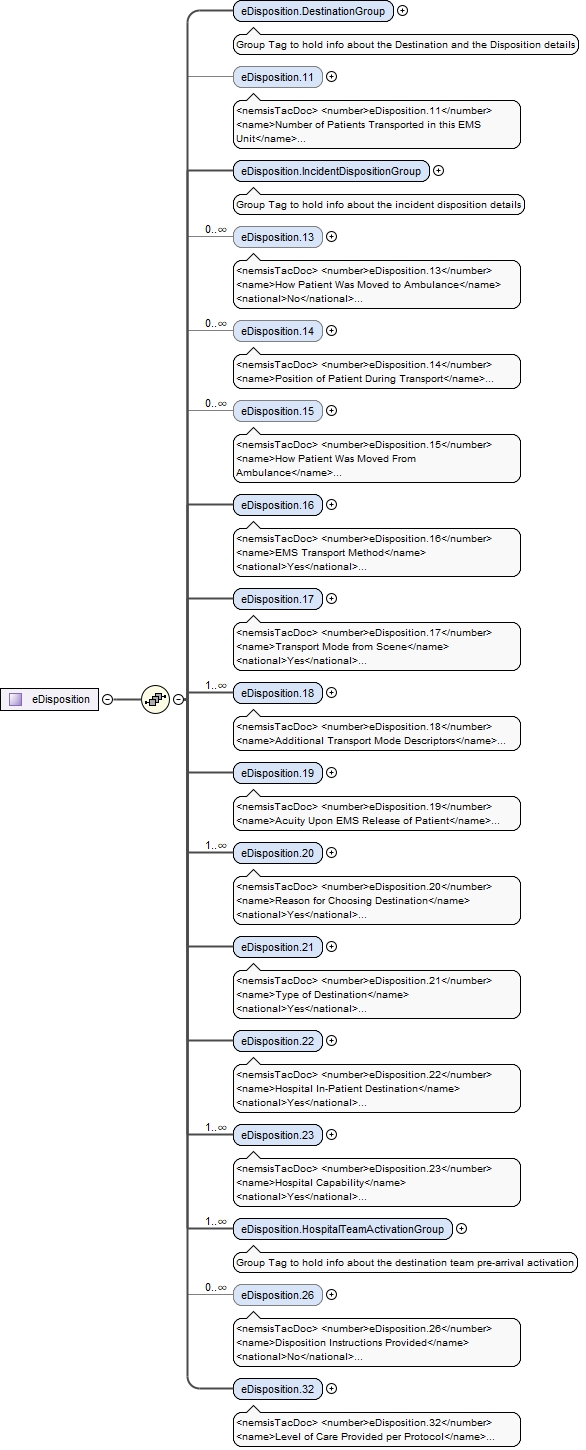

Diagram

Type

UnitDisposition

Properties

content

simple

Facets

enumeration

4227001

Patient Contact Made

enumeration

4227003

Cancelled on Scene

enumeration

4227005

Cancelled Prior to Arrival at Scene

enumeration

4227007

No Patient Contact

enumeration

4227009

No Patient Found

enumeration

4227011

Non-Patient Incident (Not Otherwise Listed)

Source

<xs:element name="eDisposition.27" id="eDisposition.UnitDisposition" type="UnitDisposition">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.27</number>
        <name>Unit Disposition</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The unit disposition for an EMS event identifying whether patient contact was made by this EMS unit/crew.</definition>
        <v2Number/>
        <usage>Mandatory</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Grouped with Incident and Transport dispositions. Who provided care or services is defined in Incident Dispostion.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.28

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.28</number>
  <name>Patient Evaluation/Care</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient disposition for an EMS event identifying whether a patient was evaluated and care or services were provided.</definition>
  <v2Number/>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Grouped with Incident and Transport Dispositions. Who provided care or services is defined in Incident Disposition.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of PatientEvaluationCare

Type hierarchy

xs:string
- PatientEvaluationCare

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.28" id="eDisposition.PatientEvaluationCare" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.28</number>
        <name>Patient Evaluation/Care</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient disposition for an EMS event identifying whether a patient was evaluated and care or services were provided.</definition>
        <v2Number/>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Grouped with Incident and Transport Dispositions. Who provided care or services is defined in Incident Disposition.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PatientEvaluationCare">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.29

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.29</number>
  <name>Crew Disposition</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</definition>
  <v2Number/>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Grouped with Patient and Transport Dispositions. Depending on context of the Value, "Unit" could be Vehicle or Service/Agency.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of CrewDisposition

Type hierarchy

xs:string
- CrewDisposition

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.29" id="eDisposition.CrewDisposition" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.29</number>
        <name>Crew Disposition</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</definition>
        <v2Number/>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Grouped with Patient and Transport Dispositions. Depending on context of the Value, "Unit" could be Vehicle or Service/Agency.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CrewDisposition">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.30

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.30</number>
  <name>Transport Disposition</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The transport disposition for an EMS event identifying whether a transport occurred and by which unit.</definition>
  <v2Number/>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Grouped with Patient and Incident Dispositions. Provides a rapid filter for transport or no transport for incident evaluation, business entry rules and Schematron rules.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of TransportDisposition

Type hierarchy

xs:string
- TransportDisposition

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.30" id="eDisposition.TransportDisposition" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.30</number>
        <name>Transport Disposition</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The transport disposition for an EMS event identifying whether a transport occurred and by which unit.</definition>
        <v2Number/>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Grouped with Patient and Incident Dispositions. Provides a rapid filter for transport or no transport for incident evaluation, business entry rules and Schematron rules.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TransportDisposition">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.31

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.31</number>
  <name>Reason for Refusal/Release</name>
  <national>No</national>
  <state>No</state>
  <definition>Describes reason(s) for the patient's refusal of care/transport OR the EMS clinician's decision to release the patient.</definition>
  <v2Number/>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This works in combination with the dispositions and signatures to provide general categories for the patient refusal. Specific legal refusal language should be developed by the agency's legal counsel and provided to the patient or guardian upon refusal per local policies.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of ReasonForRefusalRelease

Type hierarchy

xs:string
- ReasonForRefusalRelease

Properties

content	complex
minOccurs	0
maxOccurs	unbounded

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eDisposition.31" id="eDisposition.ReasonForRefusalRelease" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.31</number>
        <name>Reason for Refusal/Release</name>
        <national>No</national>
        <state>No</state>
        <definition>Describes reason(s) for the patient's refusal of care/transport OR the EMS clinician's decision to release the patient.</definition>
        <v2Number/>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This works in combination with the dispositions and signatures to provide general categories for the patient refusal. Specific legal refusal language should be developed by the agency's legal counsel and provided to the patient or guardian upon refusal per local policies.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ReasonForRefusalRelease">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.13

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.13</number>
  <name>How Patient Was Moved to Ambulance</name>
  <national>No</national>
  <state>No</state>
  <definition>The method by which the patient was moved to the ambulance from the scene.</definition>
  <v2Number>E20_11</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

extension of HowPatientWasMovedToFromAmbulance

Type hierarchy

xs:string
- HowPatientWasMovedToFromAmbulance

Properties

content	complex
minOccurs	0
maxOccurs	unbounded

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eDisposition.13" id="eDisposition.HowPatientWasMovedtoAmbulance" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.13</number>
        <name>How Patient Was Moved to Ambulance</name>
        <national>No</national>
        <state>No</state>
        <definition>The method by which the patient was moved to the ambulance from the scene.</definition>
        <v2Number>E20_11</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HowPatientWasMovedToFromAmbulance">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.14

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.14</number>
  <name>Position of Patient During Transport</name>
  <national>No</national>
  <state>No</state>
  <definition>The position of the patient during transport from the scene.</definition>
  <v2Number>E20_12</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

extension of PositionOfPatientDuringTransport

Type hierarchy

xs:string
- PositionOfPatientDuringTransport

Properties

content	complex
minOccurs	0
maxOccurs	unbounded

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eDisposition.14" id="eDisposition.PositionofPatientDuringTransport" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.14</number>
        <name>Position of Patient During Transport</name>
        <national>No</national>
        <state>No</state>
        <definition>The position of the patient during transport from the scene.</definition>
        <v2Number>E20_12</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PositionOfPatientDuringTransport">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.15

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.15</number>
  <name>How Patient Was Moved From Ambulance</name>
  <national>No</national>
  <state>No</state>
  <definition>The method by which the patient was moved from the ambulance to the destination.</definition>
  <v2Number>E20_13</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

extension of HowPatientWasMovedToFromAmbulance

Type hierarchy

xs:string
- HowPatientWasMovedToFromAmbulance

Properties

content	complex
minOccurs	0
maxOccurs	unbounded

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eDisposition.15" id="eDisposition.HowPatientWasMovedFromAmbulance" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.15</number>
        <name>How Patient Was Moved From Ambulance</name>
        <national>No</national>
        <state>No</state>
        <definition>The method by which the patient was moved from the ambulance to the destination.</definition>
        <v2Number>E20_13</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HowPatientWasMovedToFromAmbulance">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.16

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.16</number>
  <name>EMS Transport Method</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The method of transport by this EMS Unit.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Required if the patient is transported by EMS.</comment>
  <v3Changes>Added to better describe Air and Ground Transport methods.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of EMSTransportMethod

Type hierarchy

xs:string
- EMSTransportMethod

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.16" nillable="true" id="eDisposition.EMSTransportMethod">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.16</number>
        <name>EMS Transport Method</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The method of transport by this EMS Unit.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Required if the patient is transported by EMS.</comment>
        <v3Changes>Added to better describe Air and Ground Transport methods.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSTransportMethod">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.17

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.17</number>
  <name>Transport Mode from Scene</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indication whether the transport was emergent or non-emergent.</definition>
  <v2Number>E20_14</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
</nemsisTacDoc>

Diagram

Type

extension of TransportModeFromScene

Type hierarchy

xs:string
- TransportModeFromScene

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.17" nillable="true" id="eDisposition.TransportModefromScene">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.17</number>
        <name>Transport Mode from Scene</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indication whether the transport was emergent or non-emergent.</definition>
        <v2Number>E20_14</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TransportModeFromScene">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.18

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.18</number>
  <name>Additional Transport Mode Descriptors</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The documentation of transport mode techniques for this EMS response.</definition>
  <usage>Required</usage>
  <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
</nemsisTacDoc>

Diagram

Type

extension of AdditionalTransportModeDescriptors

Type hierarchy

xs:string
- AdditionalTransportModeDescriptors

Properties

content	complex
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.18" nillable="true" id="eDisposition.AdditionalTransportModeDescriptors" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.18</number>
        <name>Additional Transport Mode Descriptors</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The documentation of transport mode techniques for this EMS response.</definition>
        <usage>Required</usage>
        <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="AdditionalTransportModeDescriptors">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.19

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.19</number>
  <name>Acuity Upon EMS Release of Patient</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The acuity of the patient's condition after EMS release of the patient.</definition>
  <v2Number>E20_15</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="https://www.ems.gov/assets/National_EMS_Core_Content.pdf" target="_blank">https://www.ems.gov/assets/National_EMS_Core_Content.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as a refusal for a lift assist-or for routine transfers. "Dead with Resuscitation Efforts (Black)" added for EMS units that arrived and provided resuscitation to a critical patient, but who was deceased at the end of the event (such as in a cardiac arrest).</comment>
  <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of AcuityUponEMSReleaseOfPatient

Type hierarchy

xs:string
- AcuityUponEMSReleaseOfPatient

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.19" nillable="true" id="eDisposition.AcuityUponEMSReleaseOfPatient">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.19</number>
        <name>Acuity Upon EMS Release of Patient</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The acuity of the patient's condition after EMS release of the patient.</definition>
        <v2Number>E20_15</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="https://www.ems.gov/assets/National_EMS_Core_Content.pdf" target="_blank">https://www.ems.gov/assets/National_EMS_Core_Content.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as a refusal for a lift assist-or for routine transfers. "Dead with Resuscitation Efforts (Black)" added for EMS units that arrived and provided resuscitation to a critical patient, but who was deceased at the end of the event (such as in a cardiac arrest).</comment>
        <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="AcuityUponEMSReleaseOfPatient">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.20

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.20</number>
  <name>Reason for Choosing Destination</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The reason(s) this EMS unit delivered or transferred the patient to the destination.</definition>
  <v2Number>E20_16</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Required if the patient was transported. This NEMSIS data element has no relationship to the 5010 CMS claim file data element. Please refer to ePayment.44 Ambulance Transport Reason Code for billing purposes.</comment>
</nemsisTacDoc>

Diagram

Type

extension of ReasonForChoosingDestination

Type hierarchy

xs:string
- ReasonForChoosingDestination

Properties

content	complex
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.20" nillable="true" id="eDisposition.ReasonforChoosingDestination" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.20</number>
        <name>Reason for Choosing Destination</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The reason(s) this EMS unit delivered or transferred the patient to the destination.</definition>
        <v2Number>E20_16</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Required if the patient was transported. This NEMSIS data element has no relationship to the 5010 CMS claim file data element. Please refer to ePayment.44 Ambulance Transport Reason Code for billing purposes.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ReasonForChoosingDestination">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.21

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.21</number>
  <name>Type of Destination</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The type of destination the patient was delivered or transferred to.</definition>
  <v2Number>E20_17</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Required if Patient Transported by EMS.</comment>
  <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of TypeOfDestination

Type hierarchy

xs:string
- TypeOfDestination

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.21" nillable="true" id="eDisposition.TypeofDestination">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.21</number>
        <name>Type of Destination</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The type of destination the patient was delivered or transferred to.</definition>
        <v2Number>E20_17</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Required if Patient Transported by EMS.</comment>
        <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TypeOfDestination">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.22

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.22</number>
  <name>Hospital In-Patient Destination</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).</definition>
  <usage>Required</usage>
  <comment>To be documented when in eDisposition.21 "Hospital-Non-Emergency Department Bed" is selected.</comment>
  <v3Changes>Added to identify the location within the hospital that the patient was directly taken to by EMS.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of HospitalInPatientDestination

Type hierarchy

xs:string
- HospitalInPatientDestination

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.22" nillable="true" id="eDisposition.HospitalInPatientDestination">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.22</number>
        <name>Hospital In-Patient Destination</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).</definition>
        <usage>Required</usage>
        <comment>To be documented when in eDisposition.21 "Hospital-Non-Emergency Department Bed" is selected.</comment>
        <v3Changes>Added to identify the location within the hospital that the patient was directly taken to by EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HospitalInPatientDestination">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.23

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.23</number>
  <name>Hospital Capability</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The primary hospital capability associated with the patient's condition for this transport (e.g., Trauma, STEMI, Peds, etc.).</definition>
  <usage>Required</usage>
  <comment>To be documented when eDisposition.21 (Type of Destination) is 1) Hospital-Emergency Department, 2) Hospital-Non-Emergency Department Bed, or 3) Freestanding Emergency Department. <br/><br/>Stroke Center classifications based on Join Commission stroke certification: <a href="https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/" target="_blank">https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/</a></comment>
  <v3Changes>Added to aid in determining if patients are transported to the appropriate hospital based on provider impression, assessment, and treatment.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of HospitalDesignation

Type hierarchy

xs:string
- HospitalDesignation

Properties

content	complex
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.23" nillable="true" id="eDisposition.HospitalCapability" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.23</number>
        <name>Hospital Capability</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The primary hospital capability associated with the patient's condition for this transport (e.g., Trauma, STEMI, Peds, etc.).</definition>
        <usage>Required</usage>
        <comment>To be documented when eDisposition.21 (Type of Destination) is 1) Hospital-Emergency Department, 2) Hospital-Non-Emergency Department Bed, or 3) Freestanding Emergency Department. <br/><br/>Stroke Center classifications based on Join Commission stroke certification: <a href="https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/" target="_blank">https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/</a></comment>
        <v3Changes>Added to aid in determining if patients are transported to the appropriate hospital based on provider impression, assessment, and treatment.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HospitalDesignation">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.HospitalTeamActivationGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold info about the destination team pre-arrival activation

Diagram

Properties

content	complex
maxOccurs	unbounded

Model

eDisposition.24 , eDisposition.25

Children

eDisposition.24, eDisposition.25

Instance

<eDisposition.HospitalTeamActivationGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eDisposition.24 NV="">{1,1}</eDisposition.24>
  <eDisposition.25 NV="">{1,1}</eDisposition.25>
</eDisposition.HospitalTeamActivationGroup>

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eDisposition.HospitalTeamActivationGroup" id="eDisposition.HospitalTeamActivationGroup" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about the destination team pre-arrival activation</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eDisposition.24" nillable="true" id="eDisposition.DestinationTeamPreArrivalActivation">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.24</number>
              <name>Destination Team Pre-Arrival Alert or Activation</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>Indication that an alert (or activation) was called by EMS to the appropriate destination healthcare facility team. The alert (or activation) should occur prior to the EMS Unit arrival at the destination with the patient.</definition>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment/>
              <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DestinationPrearrivalActivation">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eDisposition.25" nillable="true" id="eDisposition.DestinationPrearrivalActivationDateTime">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eDisposition.25</number>
              <name>Date/Time of Destination Prearrival Alert or Activation</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The Date/Time EMS alerted, notified, or activated the Destination Healthcare Facility prior to EMS arrival. The EMS assessment identified the patient as acutely ill or injured based on exam and possibly specified alert criteria.</definition>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
              <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DateTimeType">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.HospitalTeamActivationGroup / eDisposition.24

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.24</number>
  <name>Destination Team Pre-Arrival Alert or Activation</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indication that an alert (or activation) was called by EMS to the appropriate destination healthcare facility team. The alert (or activation) should occur prior to the EMS Unit arrival at the destination with the patient.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment/>
  <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of DestinationPrearrivalActivation

Type hierarchy

xs:string
- DestinationPrearrivalActivation

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.24" nillable="true" id="eDisposition.DestinationTeamPreArrivalActivation">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.24</number>
        <name>Destination Team Pre-Arrival Alert or Activation</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indication that an alert (or activation) was called by EMS to the appropriate destination healthcare facility team. The alert (or activation) should occur prior to the EMS Unit arrival at the destination with the patient.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment/>
        <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DestinationPrearrivalActivation">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.HospitalTeamActivationGroup / eDisposition.25

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.25</number>
  <name>Date/Time of Destination Prearrival Alert or Activation</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The Date/Time EMS alerted, notified, or activated the Destination Healthcare Facility prior to EMS arrival. The EMS assessment identified the patient as acutely ill or injured based on exam and possibly specified alert criteria.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
  <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of DateTimeType

Type hierarchy

xs:dateTime
- DateTimeType

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.25" nillable="true" id="eDisposition.DestinationPrearrivalActivationDateTime">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.25</number>
        <name>Date/Time of Destination Prearrival Alert or Activation</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The Date/Time EMS alerted, notified, or activated the Destination Healthcare Facility prior to EMS arrival. The EMS assessment identified the patient as acutely ill or injured based on exam and possibly specified alert criteria.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
        <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DateTimeType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.26

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.26</number>
  <name>Disposition Instructions Provided</name>
  <national>No</national>
  <state>No</state>
  <definition>Information provided to patient during disposition for patients not transported or treated.</definition>
  <usage>Optional</usage>
  <v3Changes>Added to better document instructions given to patients not transported by EMS.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of DispositionInstruction

Type hierarchy

xs:string
- DispositionInstruction

Properties

content	complex
minOccurs	0
maxOccurs	unbounded

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eDisposition.26" id="eDisposition.DispositionInstructionsProvided" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.26</number>
        <name>Disposition Instructions Provided</name>
        <national>No</national>
        <state>No</state>
        <definition>Information provided to patient during disposition for patients not transported or treated.</definition>
        <usage>Optional</usage>
        <v3Changes>Added to better document instructions given to patients not transported by EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DispositionInstruction">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eDisposition / eDisposition.32

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eDisposition.32</number>
  <name>Level of Care Provided per Protocol</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.</definition>
  <usage>Required</usage>
  <comment>The level of care should be defined by the situation, medications, and procedures provided to the patient based on what is allowed in the local EMS protocols. This definition can vary between regions; what may be allowed for BLS providers in one region may be considered ALS care in another. This is not a reflection of the provider levels providing care, but the actual care given-for example, BLS care provided by a paramedic would be entered as "BLS". This element benefits reviews of performance, resource demand and utilization, and reimbursement coding.</comment>
  <v3Changes>Element added wit the release of v3.5.0</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of LevelofCareProvidedperProtocol

Type hierarchy

xs:string
- LevelofCareProvidedperProtocol

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eDisposition.32" id="eDisposition.LevelofCareProvidedperProtocol" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eDisposition.32</number>
        <name>Level of Care Provided per Protocol</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.</definition>
        <usage>Required</usage>
        <comment>The level of care should be defined by the situation, medications, and procedures provided to the patient based on what is allowed in the local EMS protocols. This definition can vary between regions; what may be allowed for BLS providers in one region may be considered ALS care in another. This is not a reflection of the provider levels providing care, but the actual care given-for example, BLS care provided by a paramedic would be entered as "BLS". This element benefits reviews of performance, resource demand and utilization, and reimbursement coding.</comment>
        <v3Changes>Element added wit the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="LevelofCareProvidedperProtocol">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Complex Type eDisposition

Namespace

http://www.nemsis.org

Diagram

Used by

Element

EMSDataSet/Header/PatientCareReport/eDisposition

Model

eDisposition.DestinationGroup , eDisposition.11{0,1} , eDisposition.IncidentDispositionGroup , eDisposition.13* , eDisposition.14* , eDisposition.15* , eDisposition.16 , eDisposition.17 , eDisposition.18+ , eDisposition.19 , eDisposition.20+ , eDisposition.21 , eDisposition.22 , eDisposition.23+ , eDisposition.HospitalTeamActivationGroup+ , eDisposition.26* , eDisposition.32

Children

eDisposition.11, eDisposition.13, eDisposition.14, eDisposition.15, eDisposition.16, eDisposition.17, eDisposition.18, eDisposition.19, eDisposition.20, eDisposition.21, eDisposition.22, eDisposition.23, eDisposition.26, eDisposition.32, eDisposition.DestinationGroup, eDisposition.HospitalTeamActivationGroup, eDisposition.IncidentDispositionGroup

Source

<xs:complexType name="eDisposition" id="eDisposition.Disposition">
  <xs:sequence>
    <xs:element name="eDisposition.DestinationGroup" id="eDisposition.DestinationGroup">
      <xs:annotation>
        <xs:documentation>Group Tag to hold info about the Destination and the Disposition details</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eDisposition.01" nillable="true" id="eDisposition.DestinationTransferredToName" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.01</number>
                  <name>Destination/Transferred To, Name</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The destination the patient was delivered or transferred to.</definition>
                  <v2Number>E20_01</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Recommended State data element since no national code for destination. May be populated from the list in dFacility.02 (Facility Name).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DestinationTransferredToName">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.02" nillable="true" id="eDisposition.DestinationTransferredToCode" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.02</number>
                  <name>Destination/Transferred To, Code</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The code of the destination the patient was delivered or transferred to.</definition>
                  <v2Number>E20_02</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>May be populated from list in dFacility.03 (Facility Location Code) or dFacility.05 (Facility National Provider Identifier) if a health care facility.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DestinationTransferredToCode">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.03" id="eDisposition.DestinationStreetAddress" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.03</number>
                  <name>Destination Street Address</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The street address of the destination the patient was delivered or transferred to.</definition>
                  <v2Number>E20_03</v2Number>
                  <usage>Optional</usage>
                  <comment>May be auto-populated if list created in dFacility.07 (Facility Street Address).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="StreetAddress">
                  <xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.04" type="CityGnisCode" id="eDisposition.DestinationCity" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.04</number>
                  <name>Destination City</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The city of the destination the patient was delivered or transferred to (physical address).</definition>
                  <v2Number>E20_04</v2Number>
                  <usage>Optional</usage>
                  <comment>City codes are based on GNIS Feature Class. The primary Feature Class to use is "Civil" with "Populated Place" and "Military" code as additional options. <br/><br/>Definitions for each GNIS City Feature Class can be found on the GNIS Codes website. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDisposition.05" nillable="true" id="eDisposition.DestinationState">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.05</number>
                  <name>Destination State</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The state of the destination the patient was delivered or transferred to.</definition>
                  <v2Number>E20_05</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Based on the ANSI Code. May be auto-populated if list created in dFacility.09 (Facility State).<br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ANSIStateCode">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.06" nillable="true" id="eDisposition.DestinationCounty">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.06</number>
                  <name>Destination County</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The destination county in which the patient was delivered or transferred to.</definition>
                  <v2Number>E20_06</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>May be auto-populated if list created in dFacility.11 (Facility County). Based on the ANSI Code Single Choice based on the County Name but stored as the ANSI code (combined 5 digit State and County codes) Should be required if there is a patient associated with the event. <br/><br/>GNIS Codes Website: <a href="http://geonames.usgs.gov/domestic/download_data.htm" target="_blank">http://geonames.usgs.gov/domestic/download_data.htm</a></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ANSICountyCode">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.07" nillable="true" id="eDisposition.DestinationZIPCode">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.07</number>
                  <name>Destination ZIP Code</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The destination ZIP code in which the patient was delivered or transferred to.</definition>
                  <v2Number>E20_07</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>May be auto-populated if list created in dFacility.10 (Facility ZIP Code).<br/><br/>ZIP Codes Product Website: <a href="https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/" target="_blank">https://www.zipcodedownload.com/Products/Product/Z5Commercial/Standard/Overview/</a> <br/>Product: USA - 5-digit ZIP Code Database, Commercial Edition</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ZIP">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.08" type="ANSICountryCode" id="eDisposition.DestinationCountry" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.08</number>
                  <name>Destination Country</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The country of the destination.</definition>
                  <usage>Optional</usage>
                  <comment>May be auto-populated if list created in dFacility.12 (Facility Country).<br/><br/>ANSI Country Codes (ISO 3166) Website: <a href="https://www.iso.org/iso-3166-country-codes.html" target="_blank">https://www.iso.org/iso-3166-country-codes.html</a></comment>
                  <v3Changes>Added for improved international compatibility.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDisposition.09" type="GPSLocation" id="eDisposition.DestinationGPSLocation" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.09</number>
                  <name>Destination GPS Location</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The destination GPS Coordinates to which the patient was delivered or transferred to.</definition>
                  <v2Number>E20_08</v2Number>
                  <usage>Optional</usage>
                  <comment>May be auto-populated if list created in dFacility.13 (Facility GPS Location). <br/><br/>The pattern for GPS location is in the format "<span style="font-style:italic">latitude</span>,<span style="font-style:italic">longitude</span>" where: <br/>- <span style="font-style:italic">latitude</span> has a minimum of -90 and a maximum of 90 with up to 6 decimal places <br/>- <span style="font-style:italic">longitude</span> has a minimum of -180 and a maximum of 180 with up to 6 decimal places</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDisposition.10" type="USNG" id="eDisposition.DestinationLocationUSNationalGridCoordinates" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.10</number>
                  <name>Destination Location US National Grid Coordinates</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The US National Grid Coordinates for the Destination Location. This may be the Healthcare Facility US National Grid Coordinates.</definition>
                  <usage>Optional</usage>
                  <comment>Standard found at www.fgdc.gov/usng. <br/> Through programming this may be partially auto-populated if the list is created in dFacility.14 (Facility US National Grid Coordinates).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.11" nillable="true" id="eDisposition.NumberofPatientsTransportedinthisEMSUnit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.11</number>
            <name>Number of Patients Transported in this EMS Unit</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The number of patients transported by this EMS crew and unit.</definition>
            <usage>Recommended</usage>
            <comment>Added to document multiple patients being transported with the same vehicle and crew.</comment>
            <v3Changes>Added to document multiple patients being transported with the same vehicle and crew.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="NumberOfPatients">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.IncidentDispositionGroup" id="eDisposition.IncidentDispositionGroup">
      <xs:annotation>
        <xs:documentation>Group Tag to hold info about the incident disposition details</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eDisposition.27" id="eDisposition.UnitDisposition" type="UnitDisposition">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.27</number>
                  <name>Unit Disposition</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The unit disposition for an EMS event identifying whether patient contact was made by this EMS unit/crew.</definition>
                  <v2Number/>
                  <usage>Mandatory</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Grouped with Incident and Transport dispositions. Who provided care or services is defined in Incident Dispostion.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eDisposition.28" id="eDisposition.PatientEvaluationCare" nillable="true">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.28</number>
                  <name>Patient Evaluation/Care</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient disposition for an EMS event identifying whether a patient was evaluated and care or services were provided.</definition>
                  <v2Number/>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Grouped with Incident and Transport Dispositions. Who provided care or services is defined in Incident Disposition.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="PatientEvaluationCare">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.29" id="eDisposition.CrewDisposition" nillable="true">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.29</number>
                  <name>Crew Disposition</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</definition>
                  <v2Number/>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Grouped with Patient and Transport Dispositions. Depending on context of the Value, "Unit" could be Vehicle or Service/Agency.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="CrewDisposition">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.30" id="eDisposition.TransportDisposition" nillable="true">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.30</number>
                  <name>Transport Disposition</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The transport disposition for an EMS event identifying whether a transport occurred and by which unit.</definition>
                  <v2Number/>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Grouped with Patient and Incident Dispositions. Provides a rapid filter for transport or no transport for incident evaluation, business entry rules and Schematron rules.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="TransportDisposition">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.31" id="eDisposition.ReasonForRefusalRelease" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.31</number>
                  <name>Reason for Refusal/Release</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>Describes reason(s) for the patient's refusal of care/transport OR the EMS clinician's decision to release the patient.</definition>
                  <v2Number/>
                  <usage>Optional</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>This works in combination with the dispositions and signatures to provide general categories for the patient refusal. Specific legal refusal language should be developed by the agency's legal counsel and provided to the patient or guardian upon refusal per local policies.</comment>
                  <v3Changes>Element added with the release of v3.5.0</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ReasonForRefusalRelease">
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.13" id="eDisposition.HowPatientWasMovedtoAmbulance" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.13</number>
            <name>How Patient Was Moved to Ambulance</name>
            <national>No</national>
            <state>No</state>
            <definition>The method by which the patient was moved to the ambulance from the scene.</definition>
            <v2Number>E20_11</v2Number>
            <usage>Optional</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="HowPatientWasMovedToFromAmbulance">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.14" id="eDisposition.PositionofPatientDuringTransport" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.14</number>
            <name>Position of Patient During Transport</name>
            <national>No</national>
            <state>No</state>
            <definition>The position of the patient during transport from the scene.</definition>
            <v2Number>E20_12</v2Number>
            <usage>Optional</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="PositionOfPatientDuringTransport">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.15" id="eDisposition.HowPatientWasMovedFromAmbulance" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.15</number>
            <name>How Patient Was Moved From Ambulance</name>
            <national>No</national>
            <state>No</state>
            <definition>The method by which the patient was moved from the ambulance to the destination.</definition>
            <v2Number>E20_13</v2Number>
            <usage>Optional</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="HowPatientWasMovedToFromAmbulance">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.16" nillable="true" id="eDisposition.EMSTransportMethod">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.16</number>
            <name>EMS Transport Method</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The method of transport by this EMS Unit.</definition>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Required if the patient is transported by EMS.</comment>
            <v3Changes>Added to better describe Air and Ground Transport methods.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="EMSTransportMethod">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.17" nillable="true" id="eDisposition.TransportModefromScene">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.17</number>
            <name>Transport Mode from Scene</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Indication whether the transport was emergent or non-emergent.</definition>
            <v2Number>E20_14</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="TransportModeFromScene">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.18" nillable="true" id="eDisposition.AdditionalTransportModeDescriptors" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.18</number>
            <name>Additional Transport Mode Descriptors</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The documentation of transport mode techniques for this EMS response.</definition>
            <usage>Required</usage>
            <comment>Information now split between eDisposition.17 (Transport Mode from Scene) and eDisposition.18 (Additional Transport Mode Descriptors). Element eDisposition.18 (Additional Transport Mode Descriptors) has been added to document the use of lights and sirens or other descriptive information.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="AdditionalTransportModeDescriptors">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.19" nillable="true" id="eDisposition.AcuityUponEMSReleaseOfPatient">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.19</number>
            <name>Acuity Upon EMS Release of Patient</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The acuity of the patient's condition after EMS release of the patient.</definition>
            <v2Number>E20_15</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="https://www.ems.gov/assets/National_EMS_Core_Content.pdf" target="_blank">https://www.ems.gov/assets/National_EMS_Core_Content.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as a refusal for a lift assist-or for routine transfers. "Dead with Resuscitation Efforts (Black)" added for EMS units that arrived and provided resuscitation to a critical patient, but who was deceased at the end of the event (such as in a cardiac arrest).</comment>
            <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="AcuityUponEMSReleaseOfPatient">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.20" nillable="true" id="eDisposition.ReasonforChoosingDestination" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.20</number>
            <name>Reason for Choosing Destination</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The reason(s) this EMS unit delivered or transferred the patient to the destination.</definition>
            <v2Number>E20_16</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Required if the patient was transported. This NEMSIS data element has no relationship to the 5010 CMS claim file data element. Please refer to ePayment.44 Ambulance Transport Reason Code for billing purposes.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ReasonForChoosingDestination">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.21" nillable="true" id="eDisposition.TypeofDestination">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.21</number>
            <name>Type of Destination</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The type of destination the patient was delivered or transferred to.</definition>
            <v2Number>E20_17</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Required if Patient Transported by EMS.</comment>
            <v3Changes>With the release of v3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="TypeOfDestination">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.22" nillable="true" id="eDisposition.HospitalInPatientDestination">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.22</number>
            <name>Hospital In-Patient Destination</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).</definition>
            <usage>Required</usage>
            <comment>To be documented when in eDisposition.21 "Hospital-Non-Emergency Department Bed" is selected.</comment>
            <v3Changes>Added to identify the location within the hospital that the patient was directly taken to by EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="HospitalInPatientDestination">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.23" nillable="true" id="eDisposition.HospitalCapability" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.23</number>
            <name>Hospital Capability</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The primary hospital capability associated with the patient's condition for this transport (e.g., Trauma, STEMI, Peds, etc.).</definition>
            <usage>Required</usage>
            <comment>To be documented when eDisposition.21 (Type of Destination) is 1) Hospital-Emergency Department, 2) Hospital-Non-Emergency Department Bed, or 3) Freestanding Emergency Department. <br/><br/>Stroke Center classifications based on Join Commission stroke certification: <a href="https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/" target="_blank">https://www.jointcommission.org/facts_about_joint_commission_stroke_certification/</a></comment>
            <v3Changes>Added to aid in determining if patients are transported to the appropriate hospital based on provider impression, assessment, and treatment.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="HospitalDesignation">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.HospitalTeamActivationGroup" id="eDisposition.HospitalTeamActivationGroup" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold info about the destination team pre-arrival activation</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eDisposition.24" nillable="true" id="eDisposition.DestinationTeamPreArrivalActivation">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.24</number>
                  <name>Destination Team Pre-Arrival Alert or Activation</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>Indication that an alert (or activation) was called by EMS to the appropriate destination healthcare facility team. The alert (or activation) should occur prior to the EMS Unit arrival at the destination with the patient.</definition>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment/>
                  <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DestinationPrearrivalActivation">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eDisposition.25" nillable="true" id="eDisposition.DestinationPrearrivalActivationDateTime">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eDisposition.25</number>
                  <name>Date/Time of Destination Prearrival Alert or Activation</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The Date/Time EMS alerted, notified, or activated the Destination Healthcare Facility prior to EMS arrival. The EMS assessment identified the patient as acutely ill or injured based on exam and possibly specified alert criteria.</definition>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
                  <v3Changes>Added to better document performance measure for acute time dependent illness and injury systems of care.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DateTimeType">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.26" id="eDisposition.DispositionInstructionsProvided" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.26</number>
            <name>Disposition Instructions Provided</name>
            <national>No</national>
            <state>No</state>
            <definition>Information provided to patient during disposition for patients not transported or treated.</definition>
            <usage>Optional</usage>
            <v3Changes>Added to better document instructions given to patients not transported by EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="DispositionInstruction">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eDisposition.32" id="eDisposition.LevelofCareProvidedperProtocol" nillable="true">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eDisposition.32</number>
            <name>Level of Care Provided per Protocol</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.</definition>
            <usage>Required</usage>
            <comment>The level of care should be defined by the situation, medications, and procedures provided to the patient based on what is allowed in the local EMS protocols. This definition can vary between regions; what may be allowed for BLS providers in one region may be considered ALS care in another. This is not a reflection of the provider levels providing care, but the actual care given-for example, BLS care provided by a paramedic would be entered as "BLS". This element benefits reviews of performance, resource demand and utilization, and reimbursement coding.</comment>
            <v3Changes>Element added wit the release of v3.5.0</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="LevelofCareProvidedperProtocol">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Simple Type DestinationTransferredToName

Namespace

http://www.nemsis.org

Annotations

The destination the patient was delivered or transferred to

Diagram

Type

restriction of xs:string

Facets

minLength	2
maxLength	100

Used by

Element

eDisposition/eDisposition.DestinationGroup/eDisposition.01

Source

<xs:simpleType name="DestinationTransferredToName">
  <xs:annotation>
    <xs:documentation>The destination the patient was delivered or transferred to</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="100"/>
  </xs:restriction>
</xs:simpleType>

Simple Type DestinationTransferredToCode

Namespace

http://www.nemsis.org

Annotations

The code of the destination the patient was delivered or transferred to

Diagram

Type

restriction of xs:string

Facets

minLength	2
maxLength	50

Used by

Element

eDisposition/eDisposition.DestinationGroup/eDisposition.02

Source

<xs:simpleType name="DestinationTransferredToCode">
  <xs:annotation>
    <xs:documentation>The code of the destination the patient was delivered or transferred to</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="2"/>
    <xs:maxLength value="50"/>
  </xs:restriction>
</xs:simpleType>

Simple Type NumberOfPatients

Namespace

http://www.nemsis.org

Annotations

The number of patients transported by this EMS crew and unit.

Diagram

Type

restriction of xs:positiveInteger

Facets

maxInclusive	100
minInclusive	1

Used by

Element

eDisposition/eDisposition.11

Source

<xs:simpleType name="NumberOfPatients">
  <xs:annotation>
    <xs:documentation>The number of patients transported by this EMS crew and unit.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:positiveInteger">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="100"/>
  </xs:restriction>
</xs:simpleType>

Simple Type UnitDisposition

Namespace

http://www.nemsis.org

Annotations

The patient disposition for an EMS event identifying whether patient contact was made

Diagram

Type

restriction of xs:string

Facets

enumeration

4227001

Patient Contact Made

enumeration

4227003

Cancelled on Scene

enumeration

4227005

Cancelled Prior to Arrival at Scene

enumeration

4227007

No Patient Contact

enumeration

4227009

No Patient Found

enumeration

4227011

Non-Patient Incident (Not Otherwise Listed)

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.27

Source

<xs:simpleType name="UnitDisposition">
  <xs:annotation>
    <xs:documentation>The patient disposition for an EMS event identifying whether patient contact was made</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4227001">
      <xs:annotation>
        <xs:documentation>Patient Contact Made</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227003">
      <xs:annotation>
        <xs:documentation>Cancelled on Scene</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227005">
      <xs:annotation>
        <xs:documentation>Cancelled Prior to Arrival at Scene</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227007">
      <xs:annotation>
        <xs:documentation>No Patient Contact</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227009">
      <xs:annotation>
        <xs:documentation>No Patient Found</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4227011">
      <xs:annotation>
        <xs:documentation>Non-Patient Incident (Not Otherwise Listed)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type PatientEvaluationCare

Namespace

http://www.nemsis.org

Annotations

The patient disposition for an EMS event identiying whether a patient was evaluated and care or services were provided.

Diagram

Type

restriction of xs:string

Facets

enumeration

4228001

Patient Evaluated and Care Provided

enumeration

4228003

Patient Evaluated and Refused Care

enumeration

4228005

Patient Evaluated, No Care Required

enumeration

4228007

Patient Refused Evaluation/Care

enumeration

4228009

Patient Support Services Provided

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.28

Source

<xs:simpleType name="PatientEvaluationCare">
  <xs:annotation>
    <xs:documentation>The patient disposition for an EMS event identiying whether a patient was evaluated and care or services were provided.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4228001">
      <xs:annotation>
        <xs:documentation>Patient Evaluated and Care Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4228003">
      <xs:annotation>
        <xs:documentation>Patient Evaluated and Refused Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4228005">
      <xs:annotation>
        <xs:documentation>Patient Evaluated, No Care Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4228007">
      <xs:annotation>
        <xs:documentation>Patient Refused Evaluation/Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4228009">
      <xs:annotation>
        <xs:documentation>Patient Support Services Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type CrewDisposition

Namespace

http://www.nemsis.org

Annotations

The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.

Diagram

Type

restriction of xs:string

Facets

enumeration

4229001

Initiated and Continued Primary Care

enumeration

4229003

Initiated Primary Care and Transferred to Another EMS Crew

enumeration

4229005

Provided Care Supporting Primary EMS Crew

enumeration

4229007

Assumed Primary Care from Another EMS Crew

enumeration

4229009

Incident Support Services Provided (Including Standby)

enumeration

4229011

Back in Service, No Care/Support Services Required

enumeration

4229013

Back in Service, Care/Support Services Refused

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.29

Source

<xs:simpleType name="CrewDisposition">
  <xs:annotation>
    <xs:documentation>The crew disposition for this EMS event identifying which crew provided primary patient care or whether support services were required.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4229001">
      <xs:annotation>
        <xs:documentation>Initiated and Continued Primary Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229003">
      <xs:annotation>
        <xs:documentation>Initiated Primary Care and Transferred to Another EMS Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229005">
      <xs:annotation>
        <xs:documentation>Provided Care Supporting Primary EMS Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229007">
      <xs:annotation>
        <xs:documentation>Assumed Primary Care from Another EMS Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229009">
      <xs:annotation>
        <xs:documentation>Incident Support Services Provided (Including Standby)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229011">
      <xs:annotation>
        <xs:documentation>Back in Service, No Care/Support Services Required</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4229013">
      <xs:annotation>
        <xs:documentation>Back in Service, Care/Support Services Refused</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type TransportDisposition

Namespace

http://www.nemsis.org

Annotations

The transport disposition for an EMS event idetifying whether a transport occurred and by which unit.

Diagram

Type

restriction of xs:string

Facets

enumeration

4230001

Transport by This EMS Unit (This Crew Only)

enumeration

4230003

Transport by This EMS Unit, with a Member of Another Crew

enumeration

4230005

Transport by Another EMS Unit/Agency

enumeration

4230007

Transport by Another EMS Unit/Agency, with a Member of This Crew

enumeration

4230009

Patient Refused Transport

enumeration

4230011

Non-Patient Transport (Not Otherwise Listed)

enumeration

4230013

No Transport

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.30

Source

<xs:simpleType name="TransportDisposition">
  <xs:annotation>
    <xs:documentation>The transport disposition for an EMS event idetifying whether a transport occurred and by which unit.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4230001">
      <xs:annotation>
        <xs:documentation>Transport by This EMS Unit (This Crew Only)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230003">
      <xs:annotation>
        <xs:documentation>Transport by This EMS Unit, with a Member of Another Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230005">
      <xs:annotation>
        <xs:documentation>Transport by Another EMS Unit/Agency</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230007">
      <xs:annotation>
        <xs:documentation>Transport by Another EMS Unit/Agency, with a Member of This Crew</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230009">
      <xs:annotation>
        <xs:documentation>Patient Refused Transport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230011">
      <xs:annotation>
        <xs:documentation>Non-Patient Transport (Not Otherwise Listed)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4230013">
      <xs:annotation>
        <xs:documentation>No Transport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type ReasonForRefusalRelease

Namespace

http://www.nemsis.org

Annotations

Describes reason(s) for the patient's refusal of care/transport or the EMS clinician's decision to release the patient.

Diagram

Type

restriction of xs:string

Facets

enumeration

4231001

Against Medical Advice

enumeration

4231003

Patient/Guardian Indicates Ambulance Transport is Not Necessary

enumeration

4231005

Released Following Protocol Guidelines

enumeration

4231007

Released to Law Enforcement

enumeration

4231009

Patient/Guardian States Intent to Transport by Other Means

enumeration

4231011

DNR

enumeration

4231013

Medical/Physician Orders for Life Sustaining Treatment

enumeration

4231015

Other, Not Listed

enumeration

4231017

Patient Elopement

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.31

Source

<xs:simpleType name="ReasonForRefusalRelease">
  <xs:annotation>
    <xs:documentation>Describes reason(s) for the patient's refusal of care/transport or the EMS clinician's decision to release the patient.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4231001">
      <xs:annotation>
        <xs:documentation>Against Medical Advice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231003">
      <xs:annotation>
        <xs:documentation>Patient/Guardian Indicates Ambulance Transport is Not Necessary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231005">
      <xs:annotation>
        <xs:documentation>Released Following Protocol Guidelines</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231007">
      <xs:annotation>
        <xs:documentation>Released to Law Enforcement</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231009">
      <xs:annotation>
        <xs:documentation>Patient/Guardian States Intent to Transport by Other Means</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231011">
      <xs:annotation>
        <xs:documentation>DNR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231013">
      <xs:annotation>
        <xs:documentation>Medical/Physician Orders for Life Sustaining Treatment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231015">
      <xs:annotation>
        <xs:documentation>Other, Not Listed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4231017">
      <xs:annotation>
        <xs:documentation>Patient Elopement</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type PositionOfPatientDuringTransport

Namespace

http://www.nemsis.org

Annotations

The position of the patient during transport from the scene

Diagram

Type

restriction of xs:string

Facets

enumeration

4214001

Car Seat

enumeration

4214003

Fowlers (Semi-Upright Sitting)

enumeration

4214005

Lateral Left

enumeration

4214007

Lateral Right

enumeration

4214009

Other

enumeration

4214011

Prone

enumeration

4214013

Semi-Fowlers

enumeration

4214015

Sitting

enumeration

4214017

Supine

enumeration

4214019

Trendelenburg

enumeration

4214021

Pediatric Ambulance Restraint Device

enumeration

4214023

Neonatal Ambulance Restraint Device

enumeration

4214025

Patient's Car Seat

enumeration

4214027

Ambulance Integrated Car Seat

Used by

Element

eDisposition/eDisposition.14

Source

<xs:simpleType name="PositionOfPatientDuringTransport">
  <xs:annotation>
    <xs:documentation>The position of the patient during transport from the scene</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4214001">
      <xs:annotation>
        <xs:documentation>Car Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214003">
      <xs:annotation>
        <xs:documentation>Fowlers (Semi-Upright Sitting)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214005">
      <xs:annotation>
        <xs:documentation>Lateral Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214007">
      <xs:annotation>
        <xs:documentation>Lateral Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214009">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214011">
      <xs:annotation>
        <xs:documentation>Prone</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214013">
      <xs:annotation>
        <xs:documentation>Semi-Fowlers</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214015">
      <xs:annotation>
        <xs:documentation>Sitting</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214017">
      <xs:annotation>
        <xs:documentation>Supine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214019">
      <xs:annotation>
        <xs:documentation>Trendelenburg</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214021">
      <xs:annotation>
        <xs:documentation>Pediatric Ambulance Restraint Device</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214023">
      <xs:annotation>
        <xs:documentation>Neonatal Ambulance Restraint Device</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214025">
      <xs:annotation>
        <xs:documentation>Patient's Car Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4214027">
      <xs:annotation>
        <xs:documentation>Ambulance Integrated Car Seat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type EMSTransportMethod

Namespace

http://www.nemsis.org

Annotations

The method of transport by EMS.

Diagram

Type

restriction of xs:string

Facets

enumeration

4216001

Air Medical-Fixed Wing

enumeration

4216003

Air Medical-Rotor Craft

enumeration

4216005

Ground-Ambulance

enumeration

4216007

Ground-ATV or Rescue Vehicle

enumeration

4216009

Ground-Bariatric

enumeration

4216011

Ground-Other Not Listed

enumeration

4216013

Ground-Mass Casualty Bus/Vehicle

enumeration

4216015

Ground-Wheelchair Van

enumeration

4216017

Water-Boat

Used by

Element

eDisposition/eDisposition.16

Source

<xs:simpleType name="EMSTransportMethod">
  <xs:annotation>
    <xs:documentation>The method of transport by EMS.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4216001">
      <xs:annotation>
        <xs:documentation>Air Medical-Fixed Wing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216003">
      <xs:annotation>
        <xs:documentation>Air Medical-Rotor Craft</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216005">
      <xs:annotation>
        <xs:documentation>Ground-Ambulance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216007">
      <xs:annotation>
        <xs:documentation>Ground-ATV or Rescue Vehicle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216009">
      <xs:annotation>
        <xs:documentation>Ground-Bariatric</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216011">
      <xs:annotation>
        <xs:documentation>Ground-Other Not Listed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216013">
      <xs:annotation>
        <xs:documentation>Ground-Mass Casualty Bus/Vehicle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216015">
      <xs:annotation>
        <xs:documentation>Ground-Wheelchair Van</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4216017">
      <xs:annotation>
        <xs:documentation>Water-Boat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type TransportModeFromScene

Namespace

http://www.nemsis.org

Annotations

Indication whether the transport was emergent or non-emergent.

Diagram

Type

restriction of xs:string

Facets

enumeration

4217001

Emergent (Immediate Response)

enumeration

4217003

Emergent Downgraded to Non-Emergent

enumeration

4217005

Non-Emergent

enumeration

4217007

Non-Emergent Upgraded to Emergent

Used by

Element

eDisposition/eDisposition.17

Source

<xs:simpleType name="TransportModeFromScene">
  <xs:annotation>
    <xs:documentation>Indication whether the transport was emergent or non-emergent.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4217001">
      <xs:annotation>
        <xs:documentation>Emergent (Immediate Response)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4217003">
      <xs:annotation>
        <xs:documentation>Emergent Downgraded to Non-Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4217005">
      <xs:annotation>
        <xs:documentation>Non-Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4217007">
      <xs:annotation>
        <xs:documentation>Non-Emergent Upgraded to Emergent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type AdditionalTransportModeDescriptors

Namespace

http://www.nemsis.org

Annotations

Indication whether or not lights and/or sirens were used on the vehicle while leaving scene

Diagram

Type

restriction of xs:string

Facets

enumeration

4218001

Intersection Navigation-Against Normal Light Patterns

enumeration

4218003

Intersection Navigation-With Automated Light Changing Technology

enumeration

4218005

Intersection Navigation-With Normal Light Patterns

enumeration

4218007

Speed-Enhanced per Local Policy

enumeration

4218009

Speed-Normal Traffic

enumeration

4218011

Lights and Sirens

enumeration

4218013

Lights and No Sirens

enumeration

4218015

No Lights or Sirens

enumeration

4218017

Initial No Lights or Sirens, Upgraded to Lights and Sirens

enumeration

4218019

Initial Lights and Sirens, Downgraded to No Lights or Sirens

Used by

Element

eDisposition/eDisposition.18

Source

<xs:simpleType name="AdditionalTransportModeDescriptors">
  <xs:annotation>
    <xs:documentation>Indication whether or not lights and/or sirens were used on the vehicle while leaving scene</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4218001">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-Against Normal Light Patterns</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218003">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-With Automated Light Changing Technology</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218005">
      <xs:annotation>
        <xs:documentation>Intersection Navigation-With Normal Light Patterns</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218007">
      <xs:annotation>
        <xs:documentation>Speed-Enhanced per Local Policy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218009">
      <xs:annotation>
        <xs:documentation>Speed-Normal Traffic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218011">
      <xs:annotation>
        <xs:documentation>Lights and Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218013">
      <xs:annotation>
        <xs:documentation>Lights and No Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218015">
      <xs:annotation>
        <xs:documentation>No Lights or Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218017">
      <xs:annotation>
        <xs:documentation>Initial No Lights or Sirens, Upgraded to Lights and Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4218019">
      <xs:annotation>
        <xs:documentation>Initial Lights and Sirens, Downgraded to No Lights or Sirens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type AcuityUponEMSReleaseOfPatient

Namespace

http://www.nemsis.org

Annotations

The patient's response.

Diagram

Type

restriction of xs:string

Facets

enumeration

4219001

Critical (Red)

enumeration

4219003

Emergent (Yellow)

enumeration

4219005

Lower Acuity (Green)

enumeration

4219007

Dead without Resuscitation Efforts (Black)

enumeration

4219009

Dead with Resuscitation Efforts (Black)

enumeration

4219011

Non-Acute/Routine

Used by

Element

eDisposition/eDisposition.19

Source

<xs:simpleType name="AcuityUponEMSReleaseOfPatient">
  <xs:annotation>
    <xs:documentation>The patient's response.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4219001">
      <xs:annotation>
        <xs:documentation>Critical (Red)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219003">
      <xs:annotation>
        <xs:documentation>Emergent (Yellow)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219005">
      <xs:annotation>
        <xs:documentation>Lower Acuity (Green)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219007">
      <xs:annotation>
        <xs:documentation>Dead without Resuscitation Efforts (Black)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219009">
      <xs:annotation>
        <xs:documentation>Dead with Resuscitation Efforts (Black)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4219011">
      <xs:annotation>
        <xs:documentation>Non-Acute/Routine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type ReasonForChoosingDestination

Namespace

http://www.nemsis.org

Annotations

The reason the unit chose to deliver or transfer the patient to the destination

Diagram

Type

restriction of xs:string

Facets

enumeration

4220001

Closest Facility

enumeration

4220003

Diversion

enumeration

4220005

Family Choice

enumeration

4220007

Insurance Status/Requirement

enumeration

4220009

Law Enforcement Choice

enumeration

4220011

On-Line/On-Scene Medical Direction

enumeration

4220013

Other

enumeration

4220015

Patient's Choice

enumeration

4220017

Patient's Physician's Choice

enumeration

4220019

Protocol

enumeration

4220021

Regional Specialty Center

Used by

Element

eDisposition/eDisposition.20

Source

<xs:simpleType name="ReasonForChoosingDestination">
  <xs:annotation>
    <xs:documentation>The reason the unit chose to deliver or transfer the patient to the destination</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4220001">
      <xs:annotation>
        <xs:documentation>Closest Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220003">
      <xs:annotation>
        <xs:documentation>Diversion</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220005">
      <xs:annotation>
        <xs:documentation>Family Choice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220007">
      <xs:annotation>
        <xs:documentation>Insurance Status/Requirement</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220009">
      <xs:annotation>
        <xs:documentation>Law Enforcement Choice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220011">
      <xs:annotation>
        <xs:documentation>On-Line/On-Scene Medical Direction</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220013">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220015">
      <xs:annotation>
        <xs:documentation>Patient's Choice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220017">
      <xs:annotation>
        <xs:documentation>Patient's Physician's Choice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220019">
      <xs:annotation>
        <xs:documentation>Protocol</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4220021">
      <xs:annotation>
        <xs:documentation>Regional Specialty Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type TypeOfDestination

Namespace

http://www.nemsis.org

Annotations

The type of destination the patient was delivered or transferred to

Diagram

Type

restriction of xs:string

Facets

enumeration

4221001

Home

enumeration

4221003

Hospital-Emergency Department

enumeration

4221005

Hospital-Non-Emergency Department Bed

enumeration

4221007

Clinic

enumeration

4221009

Morgue/Mortuary

enumeration

4221013

Other

enumeration

4221015

Other EMS Responder (air)

enumeration

4221017

Other EMS Responder (ground)

enumeration

4221019

Police/Jail

enumeration

4221021

Urgent Care

enumeration

4221023

Freestanding Emergency Department

enumeration

4221025

Dialysis Center

enumeration

4221027

Diagnostic Services

enumeration

4221029

Assisted Living Facility

enumeration

4221031

Mental Health Facility

enumeration

4221033

Nursing Home

enumeration

4221035

Other Recurring Care Center

enumeration

4221037

Physical Rehabilitation Facility

enumeration

4221039

Drug and/or Alcohol Rehabilitation Facility

enumeration

4221041

Skilled Nursing Facility

Used by

Element

eDisposition/eDisposition.21

Source

<xs:simpleType name="TypeOfDestination">
  <xs:annotation>
    <xs:documentation>The type of destination the patient was delivered or transferred to</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4221001">
      <xs:annotation>
        <xs:documentation>Home</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221003">
      <xs:annotation>
        <xs:documentation>Hospital-Emergency Department</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221005">
      <xs:annotation>
        <xs:documentation>Hospital-Non-Emergency Department Bed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221007">
      <xs:annotation>
        <xs:documentation>Clinic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221009">
      <xs:annotation>
        <xs:documentation>Morgue/Mortuary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221013">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221015">
      <xs:annotation>
        <xs:documentation>Other EMS Responder (air)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221017">
      <xs:annotation>
        <xs:documentation>Other EMS Responder (ground)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221019">
      <xs:annotation>
        <xs:documentation>Police/Jail</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221021">
      <xs:annotation>
        <xs:documentation>Urgent Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221023">
      <xs:annotation>
        <xs:documentation>Freestanding Emergency Department</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221025">
      <xs:annotation>
        <xs:documentation>Dialysis Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221027">
      <xs:annotation>
        <xs:documentation>Diagnostic Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221029">
      <xs:annotation>
        <xs:documentation>Assisted Living Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221031">
      <xs:annotation>
        <xs:documentation>Mental Health Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221033">
      <xs:annotation>
        <xs:documentation>Nursing Home</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221035">
      <xs:annotation>
        <xs:documentation>Other Recurring Care Center</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221037">
      <xs:annotation>
        <xs:documentation>Physical Rehabilitation Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221039">
      <xs:annotation>
        <xs:documentation>Drug and/or Alcohol Rehabilitation Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4221041">
      <xs:annotation>
        <xs:documentation>Skilled Nursing Facility</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type HospitalInPatientDestination

Namespace

http://www.nemsis.org

Annotations

The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).

Diagram

Type

restriction of xs:string

Facets

enumeration

4222001

Hospital-Burn

enumeration

4222003

Hospital-Cath Lab

enumeration

4222005

Hospital-CCU

enumeration

4222007

Hospital-Endoscopy

enumeration

4222009

Hospital-Hospice

enumeration

4222011

Hospital-Hyperbaric Oxygen Treatment

enumeration

4222013

Hospital-ICU

enumeration

4222015

Hospital-Labor and Delivery

enumeration

4222017

Hospital-Med/Surg

enumeration

4222019

Hospital-Mental Health

enumeration

4222021

Hospital-MICU

enumeration

4222023

Hospital-NICU

enumeration

4222025

Hospital-Nursery

enumeration

4222027

Hospital-Peds (General)

enumeration

4222029

Hospital-Peds ICU

enumeration

4222031

Hospital-OR

enumeration

4222033

Hospital-Orthopedic

enumeration

4222035

Hospital-Other

enumeration

4222037

Hospital-Out-Patient Bed

enumeration

4222039

Hospital-Radiology Services - MRI

enumeration

4222041

Hospital-Radiology Services - CT/PET

enumeration

4222043

Hospital-Radiology Services - X-Ray

enumeration

4222045

Hospital-Radiation

enumeration

4222047

Hospital-Rehab

enumeration

4222049

Hospital-SICU

enumeration

4222051

Hospital-Oncology

enumeration

4222053

Hospital-Outpatient Surgery

Used by

Element

eDisposition/eDisposition.22

Source

<xs:simpleType name="HospitalInPatientDestination">
  <xs:annotation>
    <xs:documentation>The location within the hospital that the patient was taken directly by EMS (e.g., Cath Lab, ICU, etc.).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4222001">
      <xs:annotation>
        <xs:documentation>Hospital-Burn</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222003">
      <xs:annotation>
        <xs:documentation>Hospital-Cath Lab</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222005">
      <xs:annotation>
        <xs:documentation>Hospital-CCU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222007">
      <xs:annotation>
        <xs:documentation>Hospital-Endoscopy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222009">
      <xs:annotation>
        <xs:documentation>Hospital-Hospice</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222011">
      <xs:annotation>
        <xs:documentation>Hospital-Hyperbaric Oxygen Treatment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222013">
      <xs:annotation>
        <xs:documentation>Hospital-ICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222015">
      <xs:annotation>
        <xs:documentation>Hospital-Labor and Delivery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222017">
      <xs:annotation>
        <xs:documentation>Hospital-Med/Surg</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222019">
      <xs:annotation>
        <xs:documentation>Hospital-Mental Health</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222021">
      <xs:annotation>
        <xs:documentation>Hospital-MICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222023">
      <xs:annotation>
        <xs:documentation>Hospital-NICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222025">
      <xs:annotation>
        <xs:documentation>Hospital-Nursery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222027">
      <xs:annotation>
        <xs:documentation>Hospital-Peds (General)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222029">
      <xs:annotation>
        <xs:documentation>Hospital-Peds ICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222031">
      <xs:annotation>
        <xs:documentation>Hospital-OR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222033">
      <xs:annotation>
        <xs:documentation>Hospital-Orthopedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222035">
      <xs:annotation>
        <xs:documentation>Hospital-Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222037">
      <xs:annotation>
        <xs:documentation>Hospital-Out-Patient Bed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222039">
      <xs:annotation>
        <xs:documentation>Hospital-Radiology Services - MRI</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222041">
      <xs:annotation>
        <xs:documentation>Hospital-Radiology Services - CT/PET</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222043">
      <xs:annotation>
        <xs:documentation>Hospital-Radiology Services - X-Ray</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222045">
      <xs:annotation>
        <xs:documentation>Hospital-Radiation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222047">
      <xs:annotation>
        <xs:documentation>Hospital-Rehab</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222049">
      <xs:annotation>
        <xs:documentation>Hospital-SICU</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222051">
      <xs:annotation>
        <xs:documentation>Hospital-Oncology</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4222053">
      <xs:annotation>
        <xs:documentation>Hospital-Outpatient Surgery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type DestinationPrearrivalActivation

Namespace

http://www.nemsis.org

Annotations

Activation of the Destination Healthcare Facility Team prior to EMS arrival for acute ill or injured patient.

Diagram

Type

restriction of xs:string

Facets

enumeration

4224001

No

enumeration

4224003

Yes-Adult Trauma

enumeration

4224005

Yes-Cardiac Arrest

enumeration

4224007

Yes-Obstetrics

enumeration

4224009

Yes-Other

enumeration

4224011

Yes-Pediatric Trauma

enumeration

4224013

Yes-STEMI

enumeration

4224015

Yes-Stroke

enumeration

4224017

Yes-Trauma (General)

enumeration

4224019

Yes-Sepsis

Used by

Element

eDisposition/eDisposition.HospitalTeamActivationGroup/eDisposition.24

Source

<xs:simpleType name="DestinationPrearrivalActivation">
  <xs:annotation>
    <xs:documentation>Activation of the Destination Healthcare Facility Team prior to EMS arrival for acute ill or injured patient.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4224001">
      <xs:annotation>
        <xs:documentation>No</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224003">
      <xs:annotation>
        <xs:documentation>Yes-Adult Trauma</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224005">
      <xs:annotation>
        <xs:documentation>Yes-Cardiac Arrest</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224007">
      <xs:annotation>
        <xs:documentation>Yes-Obstetrics</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224009">
      <xs:annotation>
        <xs:documentation>Yes-Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224011">
      <xs:annotation>
        <xs:documentation>Yes-Pediatric Trauma</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224013">
      <xs:annotation>
        <xs:documentation>Yes-STEMI</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224015">
      <xs:annotation>
        <xs:documentation>Yes-Stroke</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224017">
      <xs:annotation>
        <xs:documentation>Yes-Trauma (General)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4224019">
      <xs:annotation>
        <xs:documentation>Yes-Sepsis</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type DispositionInstruction

Namespace

http://www.nemsis.org

Annotations

Information provided to the patient during the disposition

Diagram

Type

restriction of xs:string

Facets

enumeration

4226001

Contact 911 or see your Doctor if problem returns

enumeration

4226003

Contact 911 or see your Doctor if problem worsens

enumeration

4226005

Other Not Listed (Described in Narrative)

enumeration

4226007

Problem Specific Instructions Provided

enumeration

4226009

See Your Doctor or the Emergency Department immediately

enumeration

4226011

See Your Doctor or the Emergency Department in the next 24 hours

enumeration

4226013

See Your Doctor or the Emergency Department in the next 4 hours

enumeration

4226015

See Your Doctor within the next one week

Used by

Element

eDisposition/eDisposition.26

Source

<xs:simpleType name="DispositionInstruction">
  <xs:annotation>
    <xs:documentation>Information provided to the patient during the disposition</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4226001">
      <xs:annotation>
        <xs:documentation>Contact 911 or see your Doctor if problem returns</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226003">
      <xs:annotation>
        <xs:documentation>Contact 911 or see your Doctor if problem worsens</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226005">
      <xs:annotation>
        <xs:documentation>Other Not Listed (Described in Narrative)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226007">
      <xs:annotation>
        <xs:documentation>Problem Specific Instructions Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226009">
      <xs:annotation>
        <xs:documentation>See Your Doctor or the Emergency Department immediately</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226011">
      <xs:annotation>
        <xs:documentation>See Your Doctor or the Emergency Department in the next 24 hours</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226013">
      <xs:annotation>
        <xs:documentation>See Your Doctor or the Emergency Department in the next 4 hours</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4226015">
      <xs:annotation>
        <xs:documentation>See Your Doctor within the next one week</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type LevelofCareProvidedperProtocol

Namespace

http://www.nemsis.org

Annotations

The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.

Diagram

Type

restriction of xs:string

Facets

enumeration

4232001

BLS - All Levels

enumeration

4232003

ALS - AEMT/Intermediate

enumeration

4232005

ALS - Paramedic

enumeration

4232007

EMS and Other Health-Care Staff

enumeration

4232009

Critical Care

enumeration

4232011

Integrated Health Care

enumeration

4232013

No Care Provided

Used by

Element

eDisposition/eDisposition.32

Source

<xs:simpleType name="LevelofCareProvidedperProtocol">
  <xs:annotation>
    <xs:documentation>The general level of care provided to this patient as defined per provider level in local EMS protocols or clinical guidelines.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4232001">
      <xs:annotation>
        <xs:documentation>BLS - All Levels</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232003">
      <xs:annotation>
        <xs:documentation>ALS - AEMT/Intermediate</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232005">
      <xs:annotation>
        <xs:documentation>ALS - Paramedic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232007">
      <xs:annotation>
        <xs:documentation>EMS and Other Health-Care Staff</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232009">
      <xs:annotation>
        <xs:documentation>Critical Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232011">
      <xs:annotation>
        <xs:documentation>Integrated Health Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4232013">
      <xs:annotation>
        <xs:documentation>No Care Provided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.01 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.DestinationGroup/eDisposition.01

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.02 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.DestinationGroup/eDisposition.02

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.03 / @StreetAddress2

Namespace

No namespace

Type

StreetAddress

Properties

use	optional

Facets

minLength	1
maxLength	255

Used by

Element

eDisposition/eDisposition.DestinationGroup/eDisposition.03

Source

<xs:attribute name="StreetAddress2" type="StreetAddress" use="optional"/>

Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.05 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.DestinationGroup/eDisposition.05

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.06 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.DestinationGroup/eDisposition.06

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.DestinationGroup / eDisposition.07 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.DestinationGroup/eDisposition.07

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.11 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.11

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.28 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.28

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.29 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.29

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.30 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.30

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.IncidentDispositionGroup / eDisposition.31 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.IncidentDispositionGroup/eDisposition.31

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.13 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.13

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.14 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.14

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.15 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.15

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.16 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.16

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.17 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.17

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.18 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.18

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.18 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.18

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.19 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.19

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.20 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.20

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.20 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.20

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.21 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.21

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.22 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.22

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.23 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.23

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.23 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.23

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.HospitalTeamActivationGroup / eDisposition.24 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.HospitalTeamActivationGroup/eDisposition.24

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.HospitalTeamActivationGroup / eDisposition.25 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.HospitalTeamActivationGroup/eDisposition.25

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eDisposition / eDisposition.HospitalTeamActivationGroup / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.HospitalTeamActivationGroup

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.26 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eDisposition/eDisposition.26

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eDisposition / eDisposition.32 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eDisposition/eDisposition.32

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
