Schema documentation for eMedications

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Model

Properties

Source

Used by

Included schema eMedications_v3.xsd

Namespace

http://www.nemsis.org

Properties

attribute form default	unqualified
element form default	qualified

Element eMedications / eMedications.MedicationGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold eMedication information

Diagram

Properties

content	complex
maxOccurs	unbounded

Model

eMedications.01 , eMedications.02 , eMedications.03 , eMedications.04 , eMedications.DosageGroup , eMedications.07 , eMedications.08+ , eMedications.09{0,1} , eMedications.10 , eMedications.11{0,1} , eMedications.12{0,1} , eMedications.13{0,1}

Children

eMedications.01, eMedications.02, eMedications.03, eMedications.04, eMedications.07, eMedications.08, eMedications.09, eMedications.10, eMedications.11, eMedications.12, eMedications.13, eMedications.DosageGroup

Instance

<eMedications.MedicationGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eMedications.01 NV="">{1,1}</eMedications.01>
  <eMedications.02 NV="">{1,1}</eMedications.02>
  <eMedications.03 CodeType="" NV="" PN="">{1,1}</eMedications.03>
  <eMedications.04 NV="" PN="">{1,1}</eMedications.04>
  <eMedications.DosageGroup>{1,1}</eMedications.DosageGroup>
  <eMedications.07 NV="">{1,1}</eMedications.07>
  <eMedications.08 CorrelationID="" NV="">{1,unbounded}</eMedications.08>
  <eMedications.09 NV="">{0,1}</eMedications.09>
  <eMedications.10 NV="">{1,1}</eMedications.10>
  <eMedications.11>{0,1}</eMedications.11>
  <eMedications.12>{0,1}</eMedications.12>
  <eMedications.13 NV="">{0,1}</eMedications.13>
</eMedications.MedicationGroup>

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eMedications.MedicationGroup" id="eMedications.MedicationGroup" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold eMedication information</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eMedications.01" nillable="true" id="eMedications.DateTimeMedicationAdministered">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.01</number>
              <name>Date/Time Medication Administered</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The date/time medication administered to the patient.</definition>
              <v2Number>E18_01</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DateTimeType">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.02" nillable="true" id="eMedications.MedicationAdministeredPriortothisUnitsEMSCare">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.02</number>
              <name>Medication Administered Prior to this Unit's EMS Care</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>Indicates that the medication administration which is documented was administered prior to this EMS units care.</definition>
              <v2Number>E18_02</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.03" nillable="true" id="eMedications.MedicationAdministered">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.03</number>
              <name>Medication Administered</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The medication administered to the patient.</definition>
              <v2Number>E18_03</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>List of medications based on RxNorm (RXCUI) code and SNOMED-CT codes for blood products. <br/><br/>Reference the NEMSIS Suggested Lists at: <a href="https://nemsis.org/technical-resources/version-3/version-3-resources/">https://nemsis.org/technical-resources/version-3/version-3-resources/</a> <br/><br/>RxNorm <br/>Website - <a href="http://www.nlm.nih.gov/research/umls/rxnorm/docs/rxnormfiles.html">http://www.nlm.nih.gov/research/umls/rxnorm/docs/rxnormfiles.html</a> <br/>Product - RxNorm Full Monthly Release <br/><br/>SNOMED-CT <br/>Website: <a href="http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html">http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html</a> <br/>Product: Product - UMLS Metathesaurus. <br/><br/>Allowable SNOMED-CT codes are: <br/>116762002 Administration of blood product <br/>116795008 Transfusion of cryoprecipitate <br/>116861002 Transfusion of fresh frozen plasma <br/>116865006 Administration of albumin <br/>180208003 Intravenous blood transfusion of platelets <br/>33389009 Transfusion of whole blood <br/>71493000 Transfusion of packed red blood cells</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="Medication">
              <xs:attribute name="CodeType" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="CodeType.RxNorm CodeType.SNOMED"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.ContraindicationNoted PN.DeniedByOrder PN.MedicationAllergy PN.MedicationAlreadyTaken PN.Refused PN.UnableToComplete PN.OrderCriteriaNotMet"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.04" id="eMedications.MedicationAdministeredRoute" nillable="true">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.04</number>
              <name>Medication Administered Route</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The route medication was administered to the patient.</definition>
              <v2Number>E18_04</v2Number>
              <usage>Required</usage>
              <comment>This medication route list represents a sub-group of values from the Data Elements for Emergency Department Systems (DEEDS), pertaining to prehospital care. <br/> <br/> DEEDS Version 1.0 was utilized for this list: <a href="http://www.sciencedirect.com/science/article/pii/S0196064498703178">http://www.sciencedirect.com/science/article/pii/S0196064498703178</a>. The list can be found on page 152 of 274 of the PDF document in Section 5, 5.13 Current Therapeutic Medication Route.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="CurrentMedicationAdministrationRoute">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.DosageGroup" id="eMedications.DosageGroup">
        <xs:annotation>
          <xs:documentation>Group Tag to hold info about the medication dosage administered to the patient</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eMedications.05" nillable="true" id="eMedications.MedicationDosage">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eMedications.05</number>
                    <name>Medication Dosage</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The dose or amount of the medication administered to the patient.</definition>
                    <v2Number>E18_05</v2Number>
                    <usage>Required</usage>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="MedicationDosage">
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eMedications.06" nillable="true" id="eMedications.MedicationDosageUnits">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eMedications.06</number>
                    <name>Medication Dosage Units</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The unit of medication dosage administered to patient.</definition>
                    <v2Number>E18_06</v2Number>
                    <usage>Required</usage>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="MedicationDosageUnits">
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.07" nillable="true" id="eMedications.ResponsetoMedication">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.07</number>
              <name>Response to Medication</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's response to the medication.</definition>
              <v2Number>E18_07</v2Number>
              <usage>Required</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="Response">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.08" nillable="true" id="eMedications.MedicationComplication" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.08</number>
              <name>Medication Complication</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>Any complication (abnormal effect on the patient) associated with the administration of the medication to the patient by EMS.</definition>
              <v2Number>E18_08</v2Number>
              <usage>Required</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>

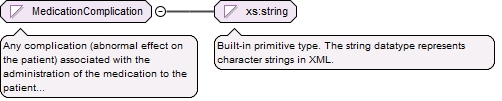

            <xs:extension base="MedicationComplication">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.09" nillable="true" id="eMedications.MedicationCrewHealthcareProfessionalsID" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.09</number>
              <name>Medication Crew (Healthcare Professionals) ID</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The statewide assigned ID number of the EMS crew member giving the treatment to the patient.</definition>
              <v2Number>E18_09</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>How should the state ID for an EMS professional be record when working on an event in 2 states. The ID used would typically be based on the EMS agency's state license specific to each EMS professional. Used for eProcedures.09 (Procedure Crew Members ID) as well.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="CrewMemberID">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.10" nillable="true" id="eMedications.EMSorHealthcareProfessionalTypeAdministeringMedication">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.10</number>
              <name>Role/Type of Person Administering Medication</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The type (level) of EMS or Healthcare Professional Administering the Medication. For medications administered prior to EMS arrival, this may be a non-EMS healthcare professional.</definition>
              <usage>Required</usage>
              <comment>Added to document the type of healthcare professional administering the medication. This could be auto-completed from the crew ID but is necessary to document medication administration prior to EMS arrival. State may maintain an enumerated list but must collapse to the National Standard. <br/><br/>The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level.</comment>
              <v3Changes>Added to better document the type of healthcare professional who administered the medication.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="EMSCaregiverLevel">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.11" type="TxAuthorization" id="eMedications.MedicationAuthorization" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.11</number>
              <name>Medication Authorization</name>
              <national>No</national>
              <state>No</state>
              <definition>The type of treatment authorization obtained.</definition>
              <v2Number>E18_10</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eMedications.12" type="PersonName" id="eMedications.MedicationAuthorizingPhysician" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.12</number>
              <name>Medication Authorizing Physician</name>
              <national>No</national>
              <state>No</state>
              <definition>The name of the authorizing physician ordering the medication administration if the order was provided by any manner other than protocol (standing order) in eMedications.11.</definition>
              <v2Number>E18_11</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eMedications.13" nillable="true" id="eMedications.MedicationByAnotherUnit" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.13</number>
              <name>Medication Administered by Another Unit</name>
              <national>No</national>
              <state>Yes</state>
              <definition>Indicates the medication was administered by someone other than the EMS clinicians in this EMS unit. This is not for prior to arrival medications, but for medications administered when multiple units/caregivers are on scene simultaneously providing patient care.</definition>
              <usage>Recommended</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.01

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.01</number>
  <name>Date/Time Medication Administered</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The date/time medication administered to the patient.</definition>
  <v2Number>E18_01</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
</nemsisTacDoc>

Diagram

Type

extension of DateTimeType

Type hierarchy

xs:dateTime
- DateTimeType

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eMedications.01" nillable="true" id="eMedications.DateTimeMedicationAdministered">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.01</number>
        <name>Date/Time Medication Administered</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The date/time medication administered to the patient.</definition>
        <v2Number>E18_01</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DateTimeType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.02

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.02</number>
  <name>Medication Administered Prior to this Unit's EMS Care</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indicates that the medication administration which is documented was administered prior to this EMS units care.</definition>
  <v2Number>E18_02</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
</nemsisTacDoc>

Diagram

Type

extension of YesNoValues

Type hierarchy

xs:string
- YesNoValues

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eMedications.02" nillable="true" id="eMedications.MedicationAdministeredPriortothisUnitsEMSCare">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.02</number>
        <name>Medication Administered Prior to this Unit's EMS Care</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indicates that the medication administration which is documented was administered prior to this EMS units care.</definition>
        <v2Number>E18_02</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.03

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.03</number>
  <name>Medication Administered</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The medication administered to the patient.</definition>
  <v2Number>E18_03</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>List of medications based on RxNorm (RXCUI) code and SNOMED-CT codes for blood products. <br/><br/>Reference the NEMSIS Suggested Lists at: <a href="https://nemsis.org/technical-resources/version-3/version-3-resources/">https://nemsis.org/technical-resources/version-3/version-3-resources/</a> <br/><br/>RxNorm <br/>Website - <a href="http://www.nlm.nih.gov/research/umls/rxnorm/docs/rxnormfiles.html">http://www.nlm.nih.gov/research/umls/rxnorm/docs/rxnormfiles.html</a> <br/>Product - RxNorm Full Monthly Release <br/><br/>SNOMED-CT <br/>Website: <a href="http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html">http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html</a> <br/>Product: Product - UMLS Metathesaurus. <br/><br/>Allowable SNOMED-CT codes are: <br/>116762002 Administration of blood product <br/>116795008 Transfusion of cryoprecipitate <br/>116861002 Transfusion of fresh frozen plasma <br/>116865006 Administration of albumin <br/>180208003 Intravenous blood transfusion of platelets <br/>33389009 Transfusion of whole blood <br/>71493000 Transfusion of packed red blood cells</comment>
</nemsisTacDoc>

Diagram

Type

extension of Medication

Type hierarchy

xs:string
- Medication

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
CodeType	union of(CodeType.RxNorm, CodeType.SNOMED)	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.ContraindicationNoted, PN.DeniedByOrder, PN.MedicationAllergy, PN.MedicationAlreadyTaken, PN.Refused, PN.UnableToComplete, PN.OrderCriteriaNotMet)	optional

Source

<xs:element name="eMedications.03" nillable="true" id="eMedications.MedicationAdministered">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.03</number>
        <name>Medication Administered</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The medication administered to the patient.</definition>
        <v2Number>E18_03</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>List of medications based on RxNorm (RXCUI) code and SNOMED-CT codes for blood products. <br/><br/>Reference the NEMSIS Suggested Lists at: <a href="https://nemsis.org/technical-resources/version-3/version-3-resources/">https://nemsis.org/technical-resources/version-3/version-3-resources/</a> <br/><br/>RxNorm <br/>Website - <a href="http://www.nlm.nih.gov/research/umls/rxnorm/docs/rxnormfiles.html">http://www.nlm.nih.gov/research/umls/rxnorm/docs/rxnormfiles.html</a> <br/>Product - RxNorm Full Monthly Release <br/><br/>SNOMED-CT <br/>Website: <a href="http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html">http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html</a> <br/>Product: Product - UMLS Metathesaurus. <br/><br/>Allowable SNOMED-CT codes are: <br/>116762002 Administration of blood product <br/>116795008 Transfusion of cryoprecipitate <br/>116861002 Transfusion of fresh frozen plasma <br/>116865006 Administration of albumin <br/>180208003 Intravenous blood transfusion of platelets <br/>33389009 Transfusion of whole blood <br/>71493000 Transfusion of packed red blood cells</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="Medication">
        <xs:attribute name="CodeType" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="CodeType.RxNorm CodeType.SNOMED"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.ContraindicationNoted PN.DeniedByOrder PN.MedicationAllergy PN.MedicationAlreadyTaken PN.Refused PN.UnableToComplete PN.OrderCriteriaNotMet"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.04

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.04</number>
  <name>Medication Administered Route</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The route medication was administered to the patient.</definition>
  <v2Number>E18_04</v2Number>
  <usage>Required</usage>
  <comment>This medication route list represents a sub-group of values from the Data Elements for Emergency Department Systems (DEEDS), pertaining to prehospital care. <br/> <br/> DEEDS Version 1.0 was utilized for this list: <a href="http://www.sciencedirect.com/science/article/pii/S0196064498703178">http://www.sciencedirect.com/science/article/pii/S0196064498703178</a>. The list can be found on page 152 of 274 of the PDF document in Section 5, 5.13 Current Therapeutic Medication Route.</comment>
</nemsisTacDoc>

Diagram

Type

extension of CurrentMedicationAdministrationRoute

Type hierarchy

xs:string
- CurrentMedicationAdministrationRoute

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.UnableToComplete)	optional

Source

<xs:element name="eMedications.04" id="eMedications.MedicationAdministeredRoute" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.04</number>
        <name>Medication Administered Route</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The route medication was administered to the patient.</definition>
        <v2Number>E18_04</v2Number>
        <usage>Required</usage>
        <comment>This medication route list represents a sub-group of values from the Data Elements for Emergency Department Systems (DEEDS), pertaining to prehospital care. <br/> <br/> DEEDS Version 1.0 was utilized for this list: <a href="http://www.sciencedirect.com/science/article/pii/S0196064498703178">http://www.sciencedirect.com/science/article/pii/S0196064498703178</a>. The list can be found on page 152 of 274 of the PDF document in Section 5, 5.13 Current Therapeutic Medication Route.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CurrentMedicationAdministrationRoute">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.DosageGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold info about the medication dosage administered to the patient

Diagram

Properties

content

complex

Model

eMedications.05 , eMedications.06

Children

eMedications.05, eMedications.06

Instance

<eMedications.DosageGroup xmlns="http://www.nemsis.org">
  <eMedications.05 NV="">{1,1}</eMedications.05>
  <eMedications.06 NV="">{1,1}</eMedications.06>
</eMedications.DosageGroup>

Source

<xs:element name="eMedications.DosageGroup" id="eMedications.DosageGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about the medication dosage administered to the patient</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eMedications.05" nillable="true" id="eMedications.MedicationDosage">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.05</number>
              <name>Medication Dosage</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The dose or amount of the medication administered to the patient.</definition>
              <v2Number>E18_05</v2Number>
              <usage>Required</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="MedicationDosage">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eMedications.06" nillable="true" id="eMedications.MedicationDosageUnits">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eMedications.06</number>
              <name>Medication Dosage Units</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The unit of medication dosage administered to patient.</definition>
              <v2Number>E18_06</v2Number>
              <usage>Required</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="MedicationDosageUnits">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.DosageGroup / eMedications.05

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.05</number>
  <name>Medication Dosage</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The dose or amount of the medication administered to the patient.</definition>
  <v2Number>E18_05</v2Number>
  <usage>Required</usage>
</nemsisTacDoc>

Diagram

Type

extension of MedicationDosage

Type hierarchy

xs:decimal
- MedicationDosage

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eMedications.05" nillable="true" id="eMedications.MedicationDosage">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.05</number>
        <name>Medication Dosage</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The dose or amount of the medication administered to the patient.</definition>
        <v2Number>E18_05</v2Number>
        <usage>Required</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="MedicationDosage">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.DosageGroup / eMedications.06

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.06</number>
  <name>Medication Dosage Units</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The unit of medication dosage administered to patient.</definition>
  <v2Number>E18_06</v2Number>
  <usage>Required</usage>
</nemsisTacDoc>

Diagram

Type

extension of MedicationDosageUnits

Type hierarchy

xs:string
- MedicationDosageUnits

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eMedications.06" nillable="true" id="eMedications.MedicationDosageUnits">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.06</number>
        <name>Medication Dosage Units</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The unit of medication dosage administered to patient.</definition>
        <v2Number>E18_06</v2Number>
        <usage>Required</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="MedicationDosageUnits">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.07

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.07</number>
  <name>Response to Medication</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's response to the medication.</definition>
  <v2Number>E18_07</v2Number>
  <usage>Required</usage>
</nemsisTacDoc>

Diagram

Type

extension of Response

Type hierarchy

xs:string
- Response

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eMedications.07" nillable="true" id="eMedications.ResponsetoMedication">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.07</number>
        <name>Response to Medication</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's response to the medication.</definition>
        <v2Number>E18_07</v2Number>
        <usage>Required</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="Response">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.08

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.08</number>
  <name>Medication Complication</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Any complication (abnormal effect on the patient) associated with the administration of the medication to the patient by EMS.</definition>
  <v2Number>E18_08</v2Number>
  <usage>Required</usage>
</nemsisTacDoc>

Diagram

Type

extension of MedicationComplication

Type hierarchy

xs:string
- MedicationComplication

Properties

content	complex
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eMedications.08" nillable="true" id="eMedications.MedicationComplication" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.08</number>
        <name>Medication Complication</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Any complication (abnormal effect on the patient) associated with the administration of the medication to the patient by EMS.</definition>
        <v2Number>E18_08</v2Number>
        <usage>Required</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="MedicationComplication">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.09

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.09</number>
  <name>Medication Crew (Healthcare Professionals) ID</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The statewide assigned ID number of the EMS crew member giving the treatment to the patient.</definition>
  <v2Number>E18_09</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>How should the state ID for an EMS professional be record when working on an event in 2 states. The ID used would typically be based on the EMS agency's state license specific to each EMS professional. Used for eProcedures.09 (Procedure Crew Members ID) as well.</comment>
</nemsisTacDoc>

Diagram

Type

extension of CrewMemberID

Type hierarchy

xs:string
- CrewMemberID

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional

Source

<xs:element name="eMedications.09" nillable="true" id="eMedications.MedicationCrewHealthcareProfessionalsID" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.09</number>
        <name>Medication Crew (Healthcare Professionals) ID</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The statewide assigned ID number of the EMS crew member giving the treatment to the patient.</definition>
        <v2Number>E18_09</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>How should the state ID for an EMS professional be record when working on an event in 2 states. The ID used would typically be based on the EMS agency's state license specific to each EMS professional. Used for eProcedures.09 (Procedure Crew Members ID) as well.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CrewMemberID">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.10

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.10</number>
  <name>Role/Type of Person Administering Medication</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The type (level) of EMS or Healthcare Professional Administering the Medication. For medications administered prior to EMS arrival, this may be a non-EMS healthcare professional.</definition>
  <usage>Required</usage>
  <comment>Added to document the type of healthcare professional administering the medication. This could be auto-completed from the crew ID but is necessary to document medication administration prior to EMS arrival. State may maintain an enumerated list but must collapse to the National Standard. <br/><br/>The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level.</comment>
  <v3Changes>Added to better document the type of healthcare professional who administered the medication.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of EMSCaregiverLevel

Type hierarchy

xs:string
- EMSCaregiverLevel

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eMedications.10" nillable="true" id="eMedications.EMSorHealthcareProfessionalTypeAdministeringMedication">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.10</number>
        <name>Role/Type of Person Administering Medication</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The type (level) of EMS or Healthcare Professional Administering the Medication. For medications administered prior to EMS arrival, this may be a non-EMS healthcare professional.</definition>
        <usage>Required</usage>
        <comment>Added to document the type of healthcare professional administering the medication. This could be auto-completed from the crew ID but is necessary to document medication administration prior to EMS arrival. State may maintain an enumerated list but must collapse to the National Standard. <br/><br/>The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level.</comment>
        <v3Changes>Added to better document the type of healthcare professional who administered the medication.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSCaregiverLevel">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.11

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.11</number>
  <name>Medication Authorization</name>
  <national>No</national>
  <state>No</state>
  <definition>The type of treatment authorization obtained.</definition>
  <v2Number>E18_10</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

TxAuthorization

Properties

content	simple
minOccurs	0

Facets

enumeration

9918001

On-Line (Remote Verbal Order)

enumeration

9918003

On-Scene

enumeration

9918005

Protocol (Standing Order)

enumeration

9918007

Written Orders (Patient Specific)

Source

<xs:element name="eMedications.11" type="TxAuthorization" id="eMedications.MedicationAuthorization" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.11</number>
        <name>Medication Authorization</name>
        <national>No</national>
        <state>No</state>
        <definition>The type of treatment authorization obtained.</definition>
        <v2Number>E18_10</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.12

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.12</number>
  <name>Medication Authorizing Physician</name>
  <national>No</national>
  <state>No</state>
  <definition>The name of the authorizing physician ordering the medication administration if the order was provided by any manner other than protocol (standing order) in eMedications.11.</definition>
  <v2Number>E18_11</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

PersonName

Properties

content	simple
minOccurs	0

Facets

minLength	1
maxLength	255

Source

<xs:element name="eMedications.12" type="PersonName" id="eMedications.MedicationAuthorizingPhysician" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.12</number>
        <name>Medication Authorizing Physician</name>
        <national>No</national>
        <state>No</state>
        <definition>The name of the authorizing physician ordering the medication administration if the order was provided by any manner other than protocol (standing order) in eMedications.11.</definition>
        <v2Number>E18_11</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eMedications / eMedications.MedicationGroup / eMedications.13

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eMedications.13</number>
  <name>Medication Administered by Another Unit</name>
  <national>No</national>
  <state>Yes</state>
  <definition>Indicates the medication was administered by someone other than the EMS clinicians in this EMS unit. This is not for prior to arrival medications, but for medications administered when multiple units/caregivers are on scene simultaneously providing patient care.</definition>
  <usage>Recommended</usage>
</nemsisTacDoc>

Diagram

Type

extension of YesNoValues

Type hierarchy

xs:string
- YesNoValues

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eMedications.13" nillable="true" id="eMedications.MedicationByAnotherUnit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eMedications.13</number>
        <name>Medication Administered by Another Unit</name>
        <national>No</national>
        <state>Yes</state>
        <definition>Indicates the medication was administered by someone other than the EMS clinicians in this EMS unit. This is not for prior to arrival medications, but for medications administered when multiple units/caregivers are on scene simultaneously providing patient care.</definition>
        <usage>Recommended</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Complex Type eMedications

Namespace

http://www.nemsis.org

Diagram

Used by

Element

EMSDataSet/Header/PatientCareReport/eMedications

Model

eMedications.MedicationGroup+

Children

eMedications.MedicationGroup

Source

<xs:complexType name="eMedications">
  <xs:sequence>
    <xs:element name="eMedications.MedicationGroup" id="eMedications.MedicationGroup" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold eMedication information</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eMedications.01" nillable="true" id="eMedications.DateTimeMedicationAdministered">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.01</number>
                  <name>Date/Time Medication Administered</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The date/time medication administered to the patient.</definition>
                  <v2Number>E18_01</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DateTimeType">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.02" nillable="true" id="eMedications.MedicationAdministeredPriortothisUnitsEMSCare">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.02</number>
                  <name>Medication Administered Prior to this Unit's EMS Care</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>Indicates that the medication administration which is documented was administered prior to this EMS units care.</definition>
                  <v2Number>E18_02</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.03" nillable="true" id="eMedications.MedicationAdministered">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.03</number>
                  <name>Medication Administered</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The medication administered to the patient.</definition>
                  <v2Number>E18_03</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>List of medications based on RxNorm (RXCUI) code and SNOMED-CT codes for blood products. <br/><br/>Reference the NEMSIS Suggested Lists at: <a href="https://nemsis.org/technical-resources/version-3/version-3-resources/">https://nemsis.org/technical-resources/version-3/version-3-resources/</a> <br/><br/>RxNorm <br/>Website - <a href="http://www.nlm.nih.gov/research/umls/rxnorm/docs/rxnormfiles.html">http://www.nlm.nih.gov/research/umls/rxnorm/docs/rxnormfiles.html</a> <br/>Product - RxNorm Full Monthly Release <br/><br/>SNOMED-CT <br/>Website: <a href="http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html">http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html</a> <br/>Product: Product - UMLS Metathesaurus. <br/><br/>Allowable SNOMED-CT codes are: <br/>116762002 Administration of blood product <br/>116795008 Transfusion of cryoprecipitate <br/>116861002 Transfusion of fresh frozen plasma <br/>116865006 Administration of albumin <br/>180208003 Intravenous blood transfusion of platelets <br/>33389009 Transfusion of whole blood <br/>71493000 Transfusion of packed red blood cells</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="Medication">
                  <xs:attribute name="CodeType" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="CodeType.RxNorm CodeType.SNOMED"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.ContraindicationNoted PN.DeniedByOrder PN.MedicationAllergy PN.MedicationAlreadyTaken PN.Refused PN.UnableToComplete PN.OrderCriteriaNotMet"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.04" id="eMedications.MedicationAdministeredRoute" nillable="true">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.04</number>
                  <name>Medication Administered Route</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The route medication was administered to the patient.</definition>
                  <v2Number>E18_04</v2Number>
                  <usage>Required</usage>
                  <comment>This medication route list represents a sub-group of values from the Data Elements for Emergency Department Systems (DEEDS), pertaining to prehospital care. <br/> <br/> DEEDS Version 1.0 was utilized for this list: <a href="http://www.sciencedirect.com/science/article/pii/S0196064498703178">http://www.sciencedirect.com/science/article/pii/S0196064498703178</a>. The list can be found on page 152 of 274 of the PDF document in Section 5, 5.13 Current Therapeutic Medication Route.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="CurrentMedicationAdministrationRoute">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.DosageGroup" id="eMedications.DosageGroup">
            <xs:annotation>
              <xs:documentation>Group Tag to hold info about the medication dosage administered to the patient</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eMedications.05" nillable="true" id="eMedications.MedicationDosage">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eMedications.05</number>
                        <name>Medication Dosage</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The dose or amount of the medication administered to the patient.</definition>
                        <v2Number>E18_05</v2Number>
                        <usage>Required</usage>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="MedicationDosage">
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eMedications.06" nillable="true" id="eMedications.MedicationDosageUnits">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eMedications.06</number>
                        <name>Medication Dosage Units</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The unit of medication dosage administered to patient.</definition>
                        <v2Number>E18_06</v2Number>
                        <usage>Required</usage>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="MedicationDosageUnits">
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.07" nillable="true" id="eMedications.ResponsetoMedication">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.07</number>
                  <name>Response to Medication</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient's response to the medication.</definition>
                  <v2Number>E18_07</v2Number>
                  <usage>Required</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="Response">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.08" nillable="true" id="eMedications.MedicationComplication" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.08</number>
                  <name>Medication Complication</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>Any complication (abnormal effect on the patient) associated with the administration of the medication to the patient by EMS.</definition>
                  <v2Number>E18_08</v2Number>
                  <usage>Required</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="MedicationComplication">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.09" nillable="true" id="eMedications.MedicationCrewHealthcareProfessionalsID" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.09</number>
                  <name>Medication Crew (Healthcare Professionals) ID</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The statewide assigned ID number of the EMS crew member giving the treatment to the patient.</definition>
                  <v2Number>E18_09</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>How should the state ID for an EMS professional be record when working on an event in 2 states. The ID used would typically be based on the EMS agency's state license specific to each EMS professional. Used for eProcedures.09 (Procedure Crew Members ID) as well.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="CrewMemberID">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.10" nillable="true" id="eMedications.EMSorHealthcareProfessionalTypeAdministeringMedication">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.10</number>
                  <name>Role/Type of Person Administering Medication</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The type (level) of EMS or Healthcare Professional Administering the Medication. For medications administered prior to EMS arrival, this may be a non-EMS healthcare professional.</definition>
                  <usage>Required</usage>
                  <comment>Added to document the type of healthcare professional administering the medication. This could be auto-completed from the crew ID but is necessary to document medication administration prior to EMS arrival. State may maintain an enumerated list but must collapse to the National Standard. <br/><br/>The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level.</comment>
                  <v3Changes>Added to better document the type of healthcare professional who administered the medication.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="EMSCaregiverLevel">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eMedications.11" type="TxAuthorization" id="eMedications.MedicationAuthorization" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.11</number>
                  <name>Medication Authorization</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The type of treatment authorization obtained.</definition>
                  <v2Number>E18_10</v2Number>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eMedications.12" type="PersonName" id="eMedications.MedicationAuthorizingPhysician" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.12</number>
                  <name>Medication Authorizing Physician</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The name of the authorizing physician ordering the medication administration if the order was provided by any manner other than protocol (standing order) in eMedications.11.</definition>
                  <v2Number>E18_11</v2Number>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eMedications.13" nillable="true" id="eMedications.MedicationByAnotherUnit" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eMedications.13</number>
                  <name>Medication Administered by Another Unit</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>Indicates the medication was administered by someone other than the EMS clinicians in this EMS unit. This is not for prior to arrival medications, but for medications administered when multiple units/caregivers are on scene simultaneously providing patient care.</definition>
                  <usage>Recommended</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Simple Type MedicationDosage

Namespace

http://www.nemsis.org

Annotations

The dose or amount of the medication administered to the patient

Diagram

Type

restriction of xs:decimal

Facets

totalDigits	9
fractionDigits	3

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.DosageGroup/eMedications.05

Source

<xs:simpleType name="MedicationDosage">
  <xs:annotation>
    <xs:documentation>The dose or amount of the medication administered to the patient</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:totalDigits value="9"/>
    <xs:fractionDigits value="3"/>
  </xs:restriction>
</xs:simpleType>

Simple Type MedicationDosageUnits

Namespace

http://www.nemsis.org

Annotations

The unit of medication dosage administered to patient

Diagram

Type

restriction of xs:string

Facets

enumeration

3706001

Grams (gms)

enumeration

3706003

Inches (in)

enumeration

3706005

International Units (IU)

enumeration

3706007

Keep Vein Open (kvo)

enumeration

3706009

Liters (l)

enumeration

3706013

Metered Dose (MDI)

enumeration

3706015

Micrograms (mcg)

enumeration

3706017

Micrograms per Kilogram per Minute (mcg/kg/min)

enumeration

3706019

Milliequivalents (mEq)

enumeration

3706021

Milligrams (mg)

enumeration

3706023

Milligrams per Kilogram Per Minute (mg/kg/min)

enumeration

3706025

Milliliters (ml)

enumeration

3706027

Milliliters per Hour (ml/hr)

enumeration

3706029

Other

enumeration

3706031

Centimeters (cm)

enumeration

3706033

Drops (gtts)

enumeration

3706035

Liters Per Minute (LPM [gas])

enumeration

3706037

Micrograms per Minute (mcg/min)

enumeration

3706039

Milligrams per Kilogram (mg/kg)

enumeration

3706041

Milligrams per Minute (mg/min)

enumeration

3706043

Puffs

enumeration

3706045

Units per Hour (units/hr)

enumeration

3706047

Micrograms per Kilogram (mcg/kg)

enumeration

3706049

Units

enumeration

3706051

Units per Kilogram per Hour (units/kg/hr)

enumeration

3706053

Units per Kilogram (units/kg)

enumeration

3706055

Milligrams per Hour (mg/hr)

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.DosageGroup/eMedications.06

Source

<xs:simpleType name="MedicationDosageUnits">
  <xs:annotation>
    <xs:documentation>The unit of medication dosage administered to patient</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3706001">
      <xs:annotation>
        <xs:documentation>Grams (gms)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706003">
      <xs:annotation>
        <xs:documentation>Inches (in)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706005">
      <xs:annotation>
        <xs:documentation>International Units (IU)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706007">
      <xs:annotation>
        <xs:documentation>Keep Vein Open (kvo)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706009">
      <xs:annotation>
        <xs:documentation>Liters (l)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706013">
      <xs:annotation>
        <xs:documentation>Metered Dose (MDI)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706015">
      <xs:annotation>
        <xs:documentation>Micrograms (mcg)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706017">
      <xs:annotation>
        <xs:documentation>Micrograms per Kilogram per Minute (mcg/kg/min)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706019">
      <xs:annotation>
        <xs:documentation>Milliequivalents (mEq)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706021">
      <xs:annotation>
        <xs:documentation>Milligrams (mg)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706023">
      <xs:annotation>
        <xs:documentation>Milligrams per Kilogram Per Minute (mg/kg/min)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706025">
      <xs:annotation>
        <xs:documentation>Milliliters (ml)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706027">
      <xs:annotation>
        <xs:documentation>Milliliters per Hour (ml/hr)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706029">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706031">
      <xs:annotation>
        <xs:documentation>Centimeters (cm)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706033">
      <xs:annotation>
        <xs:documentation>Drops (gtts)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706035">
      <xs:annotation>
        <xs:documentation>Liters Per Minute (LPM [gas])</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706037">
      <xs:annotation>
        <xs:documentation>Micrograms per Minute (mcg/min)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706039">
      <xs:annotation>
        <xs:documentation>Milligrams per Kilogram (mg/kg)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706041">
      <xs:annotation>
        <xs:documentation>Milligrams per Minute (mg/min)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706043">
      <xs:annotation>
        <xs:documentation>Puffs</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706045">
      <xs:annotation>
        <xs:documentation>Units per Hour (units/hr)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706047">
      <xs:annotation>
        <xs:documentation>Micrograms per Kilogram (mcg/kg)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706049">
      <xs:annotation>
        <xs:documentation>Units</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706051">
      <xs:annotation>
        <xs:documentation>Units per Kilogram per Hour (units/kg/hr)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706053">
      <xs:annotation>
        <xs:documentation>Units per Kilogram (units/kg)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3706055">
      <xs:annotation>
        <xs:documentation>Milligrams per Hour (mg/hr)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type MedicationComplication

Namespace

http://www.nemsis.org

Annotations

Any complication (abnormal effect on the patient) associated with the administration of the medication to the patient by EMS

Diagram

Type

restriction of xs:string

Facets

enumeration

3708001

Altered Mental Status

enumeration

3708003

Apnea

enumeration

3708005

Bleeding

enumeration

3708007

Bradycardia

enumeration

3708009

Bradypnea

enumeration

3708011

Diarrhea

enumeration

3708013

Extravasation

enumeration

3708015

Hypertension

enumeration

3708017

Hyperthermia

enumeration

3708019

Hypotension

enumeration

3708021

Hypothermia

enumeration

3708023

Hypoxia

enumeration

3708025

Injury

enumeration

3708029

Nausea

enumeration

3708031

None

enumeration

3708033

Other

enumeration

3708035

Respiratory Distress

enumeration

3708037

Tachycardia

enumeration

3708039

Tachypnea

enumeration

3708041

Vomiting

enumeration

3708043

Itching

enumeration

3708045

Urticaria

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.08

Source

<xs:simpleType name="MedicationComplication">
  <xs:annotation>
    <xs:documentation>Any complication (abnormal effect on the patient) associated with the administration of the medication to the patient by EMS</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3708001">
      <xs:annotation>
        <xs:documentation>Altered Mental Status</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708003">
      <xs:annotation>
        <xs:documentation>Apnea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708005">
      <xs:annotation>
        <xs:documentation>Bleeding</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708007">
      <xs:annotation>
        <xs:documentation>Bradycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708009">
      <xs:annotation>
        <xs:documentation>Bradypnea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708011">
      <xs:annotation>
        <xs:documentation>Diarrhea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708013">
      <xs:annotation>
        <xs:documentation>Extravasation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708015">
      <xs:annotation>
        <xs:documentation>Hypertension</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708017">
      <xs:annotation>
        <xs:documentation>Hyperthermia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708019">
      <xs:annotation>
        <xs:documentation>Hypotension</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708021">
      <xs:annotation>
        <xs:documentation>Hypothermia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708023">
      <xs:annotation>
        <xs:documentation>Hypoxia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708025">
      <xs:annotation>
        <xs:documentation>Injury</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708029">
      <xs:annotation>
        <xs:documentation>Nausea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708031">
      <xs:annotation>
        <xs:documentation>None</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708033">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708035">
      <xs:annotation>
        <xs:documentation>Respiratory Distress</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708037">
      <xs:annotation>
        <xs:documentation>Tachycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708039">
      <xs:annotation>
        <xs:documentation>Tachypnea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708041">
      <xs:annotation>
        <xs:documentation>Vomiting</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708043">
      <xs:annotation>
        <xs:documentation>Itching</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3708045">
      <xs:annotation>
        <xs:documentation>Urticaria</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Attribute eMedications / eMedications.MedicationGroup / eMedications.01 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.01

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.02 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.02

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.03 / @CodeType

Namespace

No namespace

Type

union of(CodeType.RxNorm, CodeType.SNOMED)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.03

Source

<xs:attribute name="CodeType" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="CodeType.RxNorm CodeType.SNOMED"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.03 / @PN

Namespace

No namespace

Type

union of(PN.ContraindicationNoted, PN.DeniedByOrder, PN.MedicationAllergy, PN.MedicationAlreadyTaken, PN.Refused, PN.UnableToComplete, PN.OrderCriteriaNotMet)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.03

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.ContraindicationNoted PN.DeniedByOrder PN.MedicationAllergy PN.MedicationAlreadyTaken PN.Refused PN.UnableToComplete PN.OrderCriteriaNotMet"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.03 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.03

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.04 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.04

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.04 / @PN

Namespace

No namespace

Type

union of(PN.UnableToComplete)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.04

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.DosageGroup / eMedications.05 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.DosageGroup/eMedications.05

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.DosageGroup / eMedications.06 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.DosageGroup/eMedications.06

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.07 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.07

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.08 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.08

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.08 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.08

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eMedications / eMedications.MedicationGroup / eMedications.09 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.09

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.10 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.10

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / eMedications.13 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eMedications/eMedications.MedicationGroup/eMedications.13

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eMedications / eMedications.MedicationGroup / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eMedications/eMedications.MedicationGroup

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
