Included schema eOther_v3.xsd
Namespace http://www.nemsis.org
Properties
attribute form default unqualified
element form default qualified
Element eOther / eOther.01
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.01</number>
  <name>Review Requested</name>
  <national>No</national>
  <state>No</state>
  <definition>Indication of whether the PCR needs review by anyone.</definition>
  <v2Number>E23_01</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoValues
Type YesNoValues
Properties
content simple
minOccurs 0
Facets
enumeration 9923001
No
enumeration 9923003
Yes
Source

<xs:element name="eOther.01" type="YesNoValues" id="eOther.ReviewRequested" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.01</number>
        <name>Review Requested</name>
        <national>No</national>
        <state>No</state>
        <definition>Indication of whether the PCR needs review by anyone.</definition>
        <v2Number>E23_01</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.02
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.02</number>
  <name>Potential System of Care/Specialty/Registry Patient</name>
  <national>No</national>
  <state>No</state>
  <definition>An indication if the patient may meet the entry criteria for an injury or illness specific registry.</definition>
  <v2Number>E23_02</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#PotentialRegistryCandidateeOther_v3_xsd.tmp#eOther_eOther_eOther.02_CorrelationID
Type extension of PotentialRegistryCandidate
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eOther.02" id="eOther.PotentialSystemofCareSpecialtyRegistryPatient" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.02</number>
        <name>Potential System of Care/Specialty/Registry Patient</name>
        <national>No</national>
        <state>No</state>
        <definition>An indication if the patient may meet the entry criteria for an injury or illness specific registry.</definition>
        <v2Number>E23_02</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PotentialRegistryCandidate">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.EMSCrewMemberGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold info about the EMS Crew Member
Diagram
DiagrameOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_CorrelationIDeOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_eOther.03eOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_eOther.04eOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_eOther.05eOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_eOther.06
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eOther.03, eOther.04, eOther.05, eOther.06
Instance

<eOther.EMSCrewMemberGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eOther.03 CorrelationID="">{0,unbounded}</eOther.03>
  <eOther.04>{0,1}</eOther.04>
  <eOther.05 NV="">{0,1}</eOther.05>
  <eOther.06 CorrelationID="" NV="">{0,unbounded}</eOther.06>
</eOther.EMSCrewMemberGroup>
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eOther.EMSCrewMemberGroup" id="eOther.EMSCrewMemberGroup" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold info about the EMS Crew Member</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eOther.03" id="eOther.PersonalProtectiveEquipmentUsed" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.03</number>
              <name>Personal Protective Equipment Used</name>
              <national>No</national>
              <state>No</state>
              <definition>The personal protective equipment which was used by EMS personnel during this EMS patient contact.</definition>
              <v2Number>E23_03</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="PersonalProtectiveEquipmentUsed">
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eOther.04" type="CrewMemberID" id="eOther.EMSProfessionalCrewMemberID" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.04</number>
              <name>EMS Professional (Crew Member) ID</name>
              <national>No</national>
              <state>No</state>
              <definition>The ID number of the EMS Crew Member associated with eOther.03, eOther.05, eOther.06.</definition>
              <usage>Optional</usage>
              <comment>Added to allow documentation of PPE and work related health and safety down to the individual level within each EMS crew.</comment>
              <v3Changes>Added to better document EMS workplace health and safety issues.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.05" nillable="true" id="eOther.SuspectedEMSWorkRelatedExposureInjuryorDeath" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.05</number>
              <name>Suspected EMS Work Related Exposure, Injury, or Death</name>
              <national>No</national>
              <state>Yes</state>
              <definition>Indication of an EMS work related exposure, injury, or death associated with this EMS event.</definition>
              <v2Number>E23_05</v2Number>
              <usage>Recommended</usage>
              <comment>Associated with eOther.04 (EMS Professional (Crew Member) ID)</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eOther.06" nillable="true" id="eOther.TypeOfWorkRelatedInjuryDeathOrSuspectedExposure" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.06</number>
              <name>The Type of Work-Related Injury, Death or Suspected Exposure</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The type of EMS crew member work-related injury, death, or suspected exposure related to the EMS response.</definition>
              <v2Number>E23_06</v2Number>
              <usage>Recommended</usage>
              <comment>Associated witheOther.04 (EMS Professional (Crew Member) ID).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="TypeOfInjuryDeathOrSuspectedExposure">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>
Element eOther / eOther.EMSCrewMemberGroup / eOther.03
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.03</number>
  <name>Personal Protective Equipment Used</name>
  <national>No</national>
  <state>No</state>
  <definition>The personal protective equipment which was used by EMS personnel during this EMS patient contact.</definition>
  <v2Number>E23_03</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#PersonalProtectiveEquipmentUsedeOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_eOther_eOther_eOther.EMSCrewMemberGroup_eOther.03_CorrelationID
Type extension of PersonalProtectiveEquipmentUsed
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eOther.03" id="eOther.PersonalProtectiveEquipmentUsed" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.03</number>
        <name>Personal Protective Equipment Used</name>
        <national>No</national>
        <state>No</state>
        <definition>The personal protective equipment which was used by EMS personnel during this EMS patient contact.</definition>
        <v2Number>E23_03</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PersonalProtectiveEquipmentUsed">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.EMSCrewMemberGroup / eOther.04
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.04</number>
  <name>EMS Professional (Crew Member) ID</name>
  <national>No</national>
  <state>No</state>
  <definition>The ID number of the EMS Crew Member associated with eOther.03, eOther.05, eOther.06.</definition>
  <usage>Optional</usage>
  <comment>Added to allow documentation of PPE and work related health and safety down to the individual level within each EMS crew.</comment>
  <v3Changes>Added to better document EMS workplace health and safety issues.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#CrewMemberID
Type CrewMemberID
Properties
content simple
minOccurs 0
Facets
minLength 2
maxLength 50
Source

<xs:element name="eOther.04" type="CrewMemberID" id="eOther.EMSProfessionalCrewMemberID" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.04</number>
        <name>EMS Professional (Crew Member) ID</name>
        <national>No</national>
        <state>No</state>
        <definition>The ID number of the EMS Crew Member associated with eOther.03, eOther.05, eOther.06.</definition>
        <usage>Optional</usage>
        <comment>Added to allow documentation of PPE and work related health and safety down to the individual level within each EMS crew.</comment>
        <v3Changes>Added to better document EMS workplace health and safety issues.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.EMSCrewMemberGroup / eOther.05
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.05</number>
  <name>Suspected EMS Work Related Exposure, Injury, or Death</name>
  <national>No</national>
  <state>Yes</state>
  <definition>Indication of an EMS work related exposure, injury, or death associated with this EMS event.</definition>
  <v2Number>E23_05</v2Number>
  <usage>Recommended</usage>
  <comment>Associated with eOther.04 (EMS Professional (Crew Member) ID)</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoValueseOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_eOther_eOther_eOther.EMSCrewMemberGroup_eOther.05_NV
Type extension of YesNoValues
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eOther.05" nillable="true" id="eOther.SuspectedEMSWorkRelatedExposureInjuryorDeath" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.05</number>
        <name>Suspected EMS Work Related Exposure, Injury, or Death</name>
        <national>No</national>
        <state>Yes</state>
        <definition>Indication of an EMS work related exposure, injury, or death associated with this EMS event.</definition>
        <v2Number>E23_05</v2Number>
        <usage>Recommended</usage>
        <comment>Associated with eOther.04 (EMS Professional (Crew Member) ID)</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.EMSCrewMemberGroup / eOther.06
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.06</number>
  <name>The Type of Work-Related Injury, Death or Suspected Exposure</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The type of EMS crew member work-related injury, death, or suspected exposure related to the EMS response.</definition>
  <v2Number>E23_06</v2Number>
  <usage>Recommended</usage>
  <comment>Associated witheOther.04 (EMS Professional (Crew Member) ID).</comment>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#TypeOfInjuryDeathOrSuspectedExposureeOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_eOther_eOther_eOther.EMSCrewMemberGroup_eOther.06_NVeOther_v3_xsd.tmp#eOther_eOther_eOther.EMSCrewMemberGroup_eOther_eOther_eOther.EMSCrewMemberGroup_eOther.06_CorrelationID
Type extension of TypeOfInjuryDeathOrSuspectedExposure
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eOther.06" nillable="true" id="eOther.TypeOfWorkRelatedInjuryDeathOrSuspectedExposure" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.06</number>
        <name>The Type of Work-Related Injury, Death or Suspected Exposure</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The type of EMS crew member work-related injury, death, or suspected exposure related to the EMS response.</definition>
        <v2Number>E23_06</v2Number>
        <usage>Recommended</usage>
        <comment>Associated witheOther.04 (EMS Professional (Crew Member) ID).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TypeOfInjuryDeathOrSuspectedExposure">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.07
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.07</number>
  <name>Natural, Suspected, Intentional, or Unintentional Disaster</name>
  <national>No</national>
  <state>No</state>
  <definition>Event caused by natural forces or Suspected and Intentional/Unintentional Disasters (terrorism).</definition>
  <v2Number>E23_04</v2Number>
  <usage>Optional</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Based on FEMA website</comment>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#SuspectedIntentionalOrUnintentionalDisastereOther_v3_xsd.tmp#eOther_eOther_eOther.07_CorrelationID
Type extension of SuspectedIntentionalOrUnintentionalDisaster
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eOther.07" id="eOther.NaturalSuspectedIntentionalorUnintentionalDisaster" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.07</number>
        <name>Natural, Suspected, Intentional, or Unintentional Disaster</name>
        <national>No</national>
        <state>No</state>
        <definition>Event caused by natural forces or Suspected and Intentional/Unintentional Disasters (terrorism).</definition>
        <v2Number>E23_04</v2Number>
        <usage>Optional</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Based on FEMA website</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="SuspectedIntentionalOrUnintentionalDisaster">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.08
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.08</number>
  <name>Crew Member Completing this Report</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The statewide assigned ID number of the EMS crew member which completed this patient care report.</definition>
  <v2Number>E23_10</v2Number>
  <usage>Recommended</usage>
  <comment>If the EMS Professional has a specific ID associated with two states, the ID used would typically be based on the EMS Agencies state license.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#CrewMemberIDeOther_v3_xsd.tmp#eOther_eOther_eOther.08_NV
Type extension of CrewMemberID
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eOther.08" nillable="true" id="eOther.CrewMemberCompletingthisReport" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.08</number>
        <name>Crew Member Completing this Report</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The statewide assigned ID number of the EMS crew member which completed this patient care report.</definition>
        <v2Number>E23_10</v2Number>
        <usage>Recommended</usage>
        <comment>If the EMS Professional has a specific ID associated with two states, the ID used would typically be based on the EMS Agencies state license.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CrewMemberID">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.FileGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold document types, file information and other information.
Diagram
DiagrameOther_v3_xsd.tmp#eOther_eOther_eOther.FileGroup_CorrelationIDeOther_v3_xsd.tmp#eOther_eOther_eOther.FileGroup_eOther.09eOther_v3_xsd.tmp#eOther_eOther_eOther.FileGroup_eOther.10eOther_v3_xsd.tmp#eOther_eOther_eOther.FileGroup_eOther.11eOther_v3_xsd.tmp#eOther_eOther_eOther.FileGroup_eOther.22
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eOther.09, eOther.10, eOther.11, eOther.22
Instance

<eOther.FileGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eOther.09>{0,1}</eOther.09>
  <eOther.10>{0,1}</eOther.10>
  <eOther.11>{0,1}</eOther.11>
  <eOther.22>{0,1}</eOther.22>
</eOther.FileGroup>
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eOther.FileGroup" id="eOther.FileGroup" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold document types, file information and other information.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eOther.09" id="eOther.ExternalElectronicDocumentType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.09</number>
              <name>External Electronic Document Type</name>
              <national>No</national>
              <state>No</state>
              <definition>Document type which has been electronically stored with PCR.</definition>
              <usage>Optional</usage>
              <comment>Added to allow an improved implementation of electronic healthcare records.</comment>
              <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ExternalElectronicDocuments"/>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eOther.10" type="GraphicType" id="eOther.FileAttachmentType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.10</number>
              <name>File Attachment Type</name>
              <national>No</national>
              <state>No</state>
              <definition>The description of the file attachment stored in File Attachment Image (eOther.11).</definition>
              <usage>Optional</usage>
              <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
              <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.11" id="eOther.FileAttachmentImage" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.11</number>
              <name>File Attachment Image</name>
              <national>No</national>
              <state>No</state>
              <definition>The file that is attached electronically to the patient care report.</definition>
              <usage>Optional</usage>
              <comment>Associated with eOther.09 (External Electronic Documents) and eOther.10 (File Attachment Type).</comment>
              <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="FileImage"/>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eOther.22" type="FileName" id="eOther.FileAttachmentName" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.22</number>
              <name>File Attachment Name</name>
              <national>No</national>
              <state>No</state>
              <definition>The name of the attached file.</definition>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>
Element eOther / eOther.FileGroup / eOther.09
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.09</number>
  <name>External Electronic Document Type</name>
  <national>No</national>
  <state>No</state>
  <definition>Document type which has been electronically stored with PCR.</definition>
  <usage>Optional</usage>
  <comment>Added to allow an improved implementation of electronic healthcare records.</comment>
  <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#ExternalElectronicDocuments
Type extension of ExternalElectronicDocuments
Type hierarchy
Properties
content complex
minOccurs 0
Source

<xs:element name="eOther.09" id="eOther.ExternalElectronicDocumentType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.09</number>
        <name>External Electronic Document Type</name>
        <national>No</national>
        <state>No</state>
        <definition>Document type which has been electronically stored with PCR.</definition>
        <usage>Optional</usage>
        <comment>Added to allow an improved implementation of electronic healthcare records.</comment>
        <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ExternalElectronicDocuments"/>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.FileGroup / eOther.10
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.10</number>
  <name>File Attachment Type</name>
  <national>No</national>
  <state>No</state>
  <definition>The description of the file attachment stored in File Attachment Image (eOther.11).</definition>
  <usage>Optional</usage>
  <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
  <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#GraphicType
Type GraphicType
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 255
Source

<xs:element name="eOther.10" type="GraphicType" id="eOther.FileAttachmentType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.10</number>
        <name>File Attachment Type</name>
        <national>No</national>
        <state>No</state>
        <definition>The description of the file attachment stored in File Attachment Image (eOther.11).</definition>
        <usage>Optional</usage>
        <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
        <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.FileGroup / eOther.11
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.11</number>
  <name>File Attachment Image</name>
  <national>No</national>
  <state>No</state>
  <definition>The file that is attached electronically to the patient care report.</definition>
  <usage>Optional</usage>
  <comment>Associated with eOther.09 (External Electronic Documents) and eOther.10 (File Attachment Type).</comment>
  <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#FileImage
Type extension of FileImage
Type hierarchy
Properties
content complex
minOccurs 0
Source

<xs:element name="eOther.11" id="eOther.FileAttachmentImage" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.11</number>
        <name>File Attachment Image</name>
        <national>No</national>
        <state>No</state>
        <definition>The file that is attached electronically to the patient care report.</definition>
        <usage>Optional</usage>
        <comment>Associated with eOther.09 (External Electronic Documents) and eOther.10 (File Attachment Type).</comment>
        <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="FileImage"/>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.FileGroup / eOther.22
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.22</number>
  <name>File Attachment Name</name>
  <national>No</national>
  <state>No</state>
  <definition>The name of the attached file.</definition>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#FileName
Type FileName
Properties
content simple
minOccurs 0
Facets
maxLength 255
Source

<xs:element name="eOther.22" type="FileName" id="eOther.FileAttachmentName" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.22</number>
        <name>File Attachment Name</name>
        <national>No</national>
        <state>No</state>
        <definition>The name of the attached file.</definition>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold signature details
Diagram
DiagrameOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_CorrelationIDeOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.12eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.13eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.14eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.15eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.16eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.17eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.18eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.19eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.20eOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther.21
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eOther.12, eOther.13, eOther.14, eOther.15, eOther.16, eOther.17, eOther.18, eOther.19, eOther.20, eOther.21
Instance

<eOther.SignatureGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eOther.12>{0,1}</eOther.12>
  <eOther.13 CorrelationID="">{0,unbounded}</eOther.13>
  <eOther.14>{0,1}</eOther.14>
  <eOther.15>{0,1}</eOther.15>
  <eOther.16>{0,1}</eOther.16>
  <eOther.17>{0,1}</eOther.17>
  <eOther.18>{0,1}</eOther.18>
  <eOther.19>{0,1}</eOther.19>
  <eOther.20>{0,1}</eOther.20>
  <eOther.21>{0,1}</eOther.21>
</eOther.SignatureGroup>
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eOther.SignatureGroup" id="eOther.SignatureGroup" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold signature details</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eOther.12" type="SignatureType" id="eOther.TypeofPersonSigning" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.12</number>
              <name>Type of Person Signing</name>
              <national>No</national>
              <state>No</state>
              <definition>The individual's signature associated with eOther.15 (Signature Status).</definition>
              <usage>Optional</usage>
              <v3Changes>Added to better document disposition and billing information.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.13" id="eOther.SignatureReason" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.13</number>
              <name>Signature Reason</name>
              <national>No</national>
              <state>No</state>
              <definition>The reason for the individuals signature.</definition>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="SignatureReason">
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>

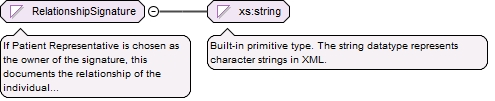

      <xs:element name="eOther.14" type="RelationshipSignature" id="eOther.TypeOfPatientRepresentative" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.14</number>
              <name>Type Of Patient Representative</name>
              <national>No</national>
              <state>No</state>
              <definition>If Patient Representative is chosen as the owner of the signature, this documents the relationship of the individual signing to the patient.</definition>
              <usage>Optional</usage>
              <comment>Required for Billing.</comment>
              <v3Changes>Added to improve documentation on disposition and billing.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.15" type="SignatureStatus" id="eOther.SignatureStatus" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.15</number>
              <name>Signature Status</name>
              <national>No</national>
              <state>No</state>
              <definition>Indication that the signature for the Type of Person Signing and Signature Reason has been collected or attempted to be collected.</definition>
              <usage>Optional</usage>
              <v3Changes>Added to better document disposition and billing.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.16" type="FileName" id="eOther.SignatureFileName" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.16</number>
              <name>Signature File Name</name>
              <national>No</national>
              <state>No</state>
              <definition>The name of the graphic file for the signature.</definition>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.17" type="GraphicType" id="eOther.SignatureFileType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.17</number>
              <name>Signature File Type</name>
              <national>No</national>
              <state>No</state>
              <definition>The description of the file attachment stored in Signature Graphic (eOther.18).</definition>
              <usage>Optional</usage>
              <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.18" type="Graphic" id="eOther.SignatureGraphic" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.18</number>
              <name>Signature Graphic</name>
              <national>No</national>
              <state>No</state>
              <definition>The graphic file for the signature.</definition>
              <usage>Optional</usage>
              <v3Changes>Added to better document disposition and billing.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.19" type="DateTimeType" id="eOther.DateTimeofSignature" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.19</number>
              <name>Date/Time of Signature</name>
              <national>No</national>
              <state>No</state>
              <definition>The date and time the crew member, patient, patient representative, or facility representative signature was captured.</definition>
              <usage>Optional</usage>
              <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
              <v3Changes>Added to better document disposition and billing.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.20" type="PersonLastName" id="eOther.SignatureLastName" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.20</number>
              <name>Signature Last Name</name>
              <national>No</national>
              <state>No</state>
              <definition>The last name of the crew member, patient, patient representative, or facility representative associated with the signature group.</definition>
              <usage>Optional</usage>
              <v3Changes>Added to better document disposition and billing.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eOther.21" type="PersonFirstName" id="eOther.SignatureFirstName" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eOther.21</number>
              <name>Signature First Name</name>
              <national>No</national>
              <state>No</state>
              <definition>The first name of the crew member, patient, patient representative, or facility representative associated with the signature group.</definition>
              <usage>Optional</usage>
              <v3Changes>Added to better document disposition and billing.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.12
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.12</number>
  <name>Type of Person Signing</name>
  <national>No</national>
  <state>No</state>
  <definition>The individual's signature associated with eOther.15 (Signature Status).</definition>
  <usage>Optional</usage>
  <v3Changes>Added to better document disposition and billing information.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#SignatureType
Type SignatureType
Properties
content simple
minOccurs 0
Facets
enumeration 4512001
EMS Crew Member (Other)
enumeration 4512003
EMS Primary Care Provider (for this event)
enumeration 4512005
Healthcare Provider
enumeration 4512007
Medical Director
enumeration 4512009
Non-Healthcare Provider
enumeration 4512011
Online Medical Control Healthcare Practitioner
enumeration 4512013
Other
enumeration 4512015
Patient
enumeration 4512017
Patient Representative
enumeration 4512019
Witness
Source

<xs:element name="eOther.12" type="SignatureType" id="eOther.TypeofPersonSigning" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.12</number>
        <name>Type of Person Signing</name>
        <national>No</national>
        <state>No</state>
        <definition>The individual's signature associated with eOther.15 (Signature Status).</definition>
        <usage>Optional</usage>
        <v3Changes>Added to better document disposition and billing information.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.13
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.13</number>
  <name>Signature Reason</name>
  <national>No</national>
  <state>No</state>
  <definition>The reason for the individuals signature.</definition>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#SignatureReasoneOther_v3_xsd.tmp#eOther_eOther_eOther.SignatureGroup_eOther_eOther_eOther.SignatureGroup_eOther.13_CorrelationID
Type extension of SignatureReason
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eOther.13" id="eOther.SignatureReason" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.13</number>
        <name>Signature Reason</name>
        <national>No</national>
        <state>No</state>
        <definition>The reason for the individuals signature.</definition>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="SignatureReason">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.14
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.14</number>
  <name>Type Of Patient Representative</name>
  <national>No</national>
  <state>No</state>
  <definition>If Patient Representative is chosen as the owner of the signature, this documents the relationship of the individual signing to the patient.</definition>
  <usage>Optional</usage>
  <comment>Required for Billing.</comment>
  <v3Changes>Added to improve documentation on disposition and billing.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#RelationshipSignature
Type RelationshipSignature
Properties
content simple
minOccurs 0
Facets
enumeration 4514001
Aunt
enumeration 4514003
Brother
enumeration 4514005
Daughter
enumeration 4514007
Discharge Planner
enumeration 4514009
Domestic Partner
enumeration 4514011
Father
enumeration 4514013
Friend
enumeration 4514015
Grandfather
enumeration 4514017
Grandmother
enumeration 4514019
Guardian
enumeration 4514021
Husband
enumeration 4514023
Law Enforcement
enumeration 4514025
MD/DO
enumeration 4514027
Mother
enumeration 4514029
Nurse (RN)
enumeration 4514031
Nurse Practitioner (NP)
enumeration 4514033
Other Care Provider (Home health, hospice, etc.)
enumeration 4514035
Other
enumeration 4514037
Physician's Assistant (PA)
enumeration 4514039
Power of Attorney
enumeration 4514041
Other Relative
enumeration 4514043
Self
enumeration 4514045
Sister
enumeration 4514047
Son
enumeration 4514049
Uncle
enumeration 4514051
Wife
Source

<xs:element name="eOther.14" type="RelationshipSignature" id="eOther.TypeOfPatientRepresentative" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.14</number>
        <name>Type Of Patient Representative</name>
        <national>No</national>
        <state>No</state>
        <definition>If Patient Representative is chosen as the owner of the signature, this documents the relationship of the individual signing to the patient.</definition>
        <usage>Optional</usage>
        <comment>Required for Billing.</comment>
        <v3Changes>Added to improve documentation on disposition and billing.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.15
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.15</number>
  <name>Signature Status</name>
  <national>No</national>
  <state>No</state>
  <definition>Indication that the signature for the Type of Person Signing and Signature Reason has been collected or attempted to be collected.</definition>
  <usage>Optional</usage>
  <v3Changes>Added to better document disposition and billing.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#SignatureStatus
Type SignatureStatus
Properties
content simple
minOccurs 0
Facets
enumeration 4515001
Not Signed - Crew Called out to another call
enumeration 4515003
Not Signed - Deceased
enumeration 4515005
Not Signed - Due to Distress Level
enumeration 4515007
Not Signed - Equipment Failure
enumeration 4515009
Not Signed - In Law Enforcement Custody
enumeration 4515011
Not Signed - Language Barrier
enumeration 4515013
Not Signed - Mental Status/Impaired
enumeration 4515015
Not Signed - Minor/Child
enumeration 4515017
Not Signed - Physical Impairment of Extremities
enumeration 4515019
Not Signed - Refused
enumeration 4515021
Not Signed - Transferred Care/No Access to Obtain Signature
enumeration 4515023
Not Signed - Unconscious
enumeration 4515025
Not Signed -Visually Impaired
enumeration 4515027
Physical Signature/Paper Copy Obtained
enumeration 4515031
Signed
enumeration 4515033
Signed-Not Patient
enumeration 4515035
Not Signed-Illiterate (Unable to Read)
enumeration 4515037
Not Signed-Restrained
enumeration 4515039
Not Signed-Combative or Uncooperative
Source

<xs:element name="eOther.15" type="SignatureStatus" id="eOther.SignatureStatus" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.15</number>
        <name>Signature Status</name>
        <national>No</national>
        <state>No</state>
        <definition>Indication that the signature for the Type of Person Signing and Signature Reason has been collected or attempted to be collected.</definition>
        <usage>Optional</usage>
        <v3Changes>Added to better document disposition and billing.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.16
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.16</number>
  <name>Signature File Name</name>
  <national>No</national>
  <state>No</state>
  <definition>The name of the graphic file for the signature.</definition>
  <usage>Optional</usage>
</nemsisTacDoc>
Diagram
DiagrameOther_v3_xsd.tmp#FileName
Type FileName
Properties
content simple
minOccurs 0
Facets
maxLength 255
Source

<xs:element name="eOther.16" type="FileName" id="eOther.SignatureFileName" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.16</number>
        <name>Signature File Name</name>
        <national>No</national>
        <state>No</state>
        <definition>The name of the graphic file for the signature.</definition>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.17
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.17</number>
  <name>Signature File Type</name>
  <national>No</national>
  <state>No</state>
  <definition>The description of the file attachment stored in Signature Graphic (eOther.18).</definition>
  <usage>Optional</usage>
  <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#GraphicType
Type GraphicType
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 255
Source

<xs:element name="eOther.17" type="GraphicType" id="eOther.SignatureFileType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.17</number>
        <name>Signature File Type</name>
        <national>No</national>
        <state>No</state>
        <definition>The description of the file attachment stored in Signature Graphic (eOther.18).</definition>
        <usage>Optional</usage>
        <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.18
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.18</number>
  <name>Signature Graphic</name>
  <national>No</national>
  <state>No</state>
  <definition>The graphic file for the signature.</definition>
  <usage>Optional</usage>
  <v3Changes>Added to better document disposition and billing.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#Graphic
Type Graphic
Properties
content simple
minOccurs 0
Source

<xs:element name="eOther.18" type="Graphic" id="eOther.SignatureGraphic" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.18</number>
        <name>Signature Graphic</name>
        <national>No</national>
        <state>No</state>
        <definition>The graphic file for the signature.</definition>
        <usage>Optional</usage>
        <v3Changes>Added to better document disposition and billing.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.19
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.19</number>
  <name>Date/Time of Signature</name>
  <national>No</national>
  <state>No</state>
  <definition>The date and time the crew member, patient, patient representative, or facility representative signature was captured.</definition>
  <usage>Optional</usage>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
  <v3Changes>Added to better document disposition and billing.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#DateTimeType
Type DateTimeType
Properties
content simple
minOccurs 0
Facets
maxInclusive 2050-01-01T00:00:00-00:00
minInclusive 1950-01-01T00:00:00-00:00
pattern [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
Source

<xs:element name="eOther.19" type="DateTimeType" id="eOther.DateTimeofSignature" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.19</number>
        <name>Date/Time of Signature</name>
        <national>No</national>
        <state>No</state>
        <definition>The date and time the crew member, patient, patient representative, or facility representative signature was captured.</definition>
        <usage>Optional</usage>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
        <v3Changes>Added to better document disposition and billing.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.20
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.20</number>
  <name>Signature Last Name</name>
  <national>No</national>
  <state>No</state>
  <definition>The last name of the crew member, patient, patient representative, or facility representative associated with the signature group.</definition>
  <usage>Optional</usage>
  <v3Changes>Added to better document disposition and billing.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#PersonLastName
Type PersonLastName
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 60
Source

<xs:element name="eOther.20" type="PersonLastName" id="eOther.SignatureLastName" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.20</number>
        <name>Signature Last Name</name>
        <national>No</national>
        <state>No</state>
        <definition>The last name of the crew member, patient, patient representative, or facility representative associated with the signature group.</definition>
        <usage>Optional</usage>
        <v3Changes>Added to better document disposition and billing.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eOther / eOther.SignatureGroup / eOther.21
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eOther.21</number>
  <name>Signature First Name</name>
  <national>No</national>
  <state>No</state>
  <definition>The first name of the crew member, patient, patient representative, or facility representative associated with the signature group.</definition>
  <usage>Optional</usage>
  <v3Changes>Added to better document disposition and billing.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#PersonFirstName
Type PersonFirstName
Properties
content simple
minOccurs 0
Facets
minLength 1
maxLength 50
Source

<xs:element name="eOther.21" type="PersonFirstName" id="eOther.SignatureFirstName" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eOther.21</number>
        <name>Signature First Name</name>
        <national>No</national>
        <state>No</state>
        <definition>The first name of the crew member, patient, patient representative, or facility representative associated with the signature group.</definition>
        <usage>Optional</usage>
        <v3Changes>Added to better document disposition and billing.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

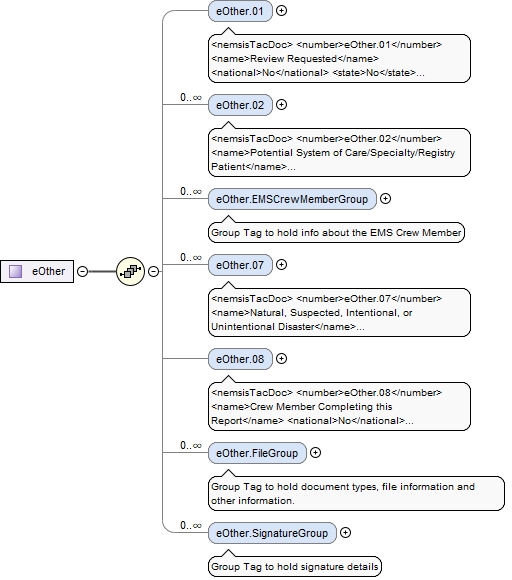

Complex Type eOther
Namespace http://www.nemsis.org
Diagram
DiagrameOther_v3_xsd.tmp#eOther_eOther.01eOther_v3_xsd.tmp#eOther_eOther.02eOther_v3_xsd.tmp#eOther_eOther.EMSCrewMemberGroupeOther_v3_xsd.tmp#eOther_eOther.07eOther_v3_xsd.tmp#eOther_eOther.08eOther_v3_xsd.tmp#eOther_eOther.FileGroupeOther_v3_xsd.tmp#eOther_eOther.SignatureGroup
Used by
Model
Children eOther.01, eOther.02, eOther.07, eOther.08, eOther.EMSCrewMemberGroup, eOther.FileGroup, eOther.SignatureGroup
Source

<xs:complexType name="eOther" id="eOther.Miscellaneous">
  <xs:sequence>
    <xs:element name="eOther.01" type="YesNoValues" id="eOther.ReviewRequested" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eOther.01</number>
            <name>Review Requested</name>
            <national>No</national>
            <state>No</state>
            <definition>Indication of whether the PCR needs review by anyone.</definition>
            <v2Number>E23_01</v2Number>
            <usage>Optional</usage>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="eOther.02" id="eOther.PotentialSystemofCareSpecialtyRegistryPatient" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eOther.02</number>
            <name>Potential System of Care/Specialty/Registry Patient</name>
            <national>No</national>
            <state>No</state>
            <definition>An indication if the patient may meet the entry criteria for an injury or illness specific registry.</definition>
            <v2Number>E23_02</v2Number>
            <usage>Optional</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="PotentialRegistryCandidate">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eOther.EMSCrewMemberGroup" id="eOther.EMSCrewMemberGroup" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold info about the EMS Crew Member</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eOther.03" id="eOther.PersonalProtectiveEquipmentUsed" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.03</number>
                  <name>Personal Protective Equipment Used</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The personal protective equipment which was used by EMS personnel during this EMS patient contact.</definition>
                  <v2Number>E23_03</v2Number>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="PersonalProtectiveEquipmentUsed">
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eOther.04" type="CrewMemberID" id="eOther.EMSProfessionalCrewMemberID" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.04</number>
                  <name>EMS Professional (Crew Member) ID</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The ID number of the EMS Crew Member associated with eOther.03, eOther.05, eOther.06.</definition>
                  <usage>Optional</usage>
                  <comment>Added to allow documentation of PPE and work related health and safety down to the individual level within each EMS crew.</comment>
                  <v3Changes>Added to better document EMS workplace health and safety issues.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.05" nillable="true" id="eOther.SuspectedEMSWorkRelatedExposureInjuryorDeath" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.05</number>
                  <name>Suspected EMS Work Related Exposure, Injury, or Death</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>Indication of an EMS work related exposure, injury, or death associated with this EMS event.</definition>
                  <v2Number>E23_05</v2Number>
                  <usage>Recommended</usage>
                  <comment>Associated with eOther.04 (EMS Professional (Crew Member) ID)</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eOther.06" nillable="true" id="eOther.TypeOfWorkRelatedInjuryDeathOrSuspectedExposure" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.06</number>
                  <name>The Type of Work-Related Injury, Death or Suspected Exposure</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The type of EMS crew member work-related injury, death, or suspected exposure related to the EMS response.</definition>
                  <v2Number>E23_06</v2Number>
                  <usage>Recommended</usage>
                  <comment>Associated witheOther.04 (EMS Professional (Crew Member) ID).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="TypeOfInjuryDeathOrSuspectedExposure">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="eOther.07" id="eOther.NaturalSuspectedIntentionalorUnintentionalDisaster" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eOther.07</number>
            <name>Natural, Suspected, Intentional, or Unintentional Disaster</name>
            <national>No</national>
            <state>No</state>
            <definition>Event caused by natural forces or Suspected and Intentional/Unintentional Disasters (terrorism).</definition>
            <v2Number>E23_04</v2Number>
            <usage>Optional</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Based on FEMA website</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="SuspectedIntentionalOrUnintentionalDisaster">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eOther.08" nillable="true" id="eOther.CrewMemberCompletingthisReport" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eOther.08</number>
            <name>Crew Member Completing this Report</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The statewide assigned ID number of the EMS crew member which completed this patient care report.</definition>
            <v2Number>E23_10</v2Number>
            <usage>Recommended</usage>
            <comment>If the EMS Professional has a specific ID associated with two states, the ID used would typically be based on the EMS Agencies state license.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="CrewMemberID">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eOther.FileGroup" id="eOther.FileGroup" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold document types, file information and other information.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eOther.09" id="eOther.ExternalElectronicDocumentType" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.09</number>
                  <name>External Electronic Document Type</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>Document type which has been electronically stored with PCR.</definition>
                  <usage>Optional</usage>
                  <comment>Added to allow an improved implementation of electronic healthcare records.</comment>
                  <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ExternalElectronicDocuments"/>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eOther.10" type="GraphicType" id="eOther.FileAttachmentType" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.10</number>
                  <name>File Attachment Type</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The description of the file attachment stored in File Attachment Image (eOther.11).</definition>
                  <usage>Optional</usage>
                  <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
                  <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.11" id="eOther.FileAttachmentImage" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.11</number>
                  <name>File Attachment Image</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The file that is attached electronically to the patient care report.</definition>
                  <usage>Optional</usage>
                  <comment>Associated with eOther.09 (External Electronic Documents) and eOther.10 (File Attachment Type).</comment>
                  <v3Changes>Added to allow an improved implementation of electronic healthcare records.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="FileImage"/>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eOther.22" type="FileName" id="eOther.FileAttachmentName" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.22</number>
                  <name>File Attachment Name</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The name of the attached file.</definition>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="eOther.SignatureGroup" id="eOther.SignatureGroup" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold signature details</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eOther.12" type="SignatureType" id="eOther.TypeofPersonSigning" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.12</number>
                  <name>Type of Person Signing</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The individual's signature associated with eOther.15 (Signature Status).</definition>
                  <usage>Optional</usage>
                  <v3Changes>Added to better document disposition and billing information.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.13" id="eOther.SignatureReason" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.13</number>
                  <name>Signature Reason</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The reason for the individuals signature.</definition>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="SignatureReason">
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eOther.14" type="RelationshipSignature" id="eOther.TypeOfPatientRepresentative" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.14</number>
                  <name>Type Of Patient Representative</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>If Patient Representative is chosen as the owner of the signature, this documents the relationship of the individual signing to the patient.</definition>
                  <usage>Optional</usage>
                  <comment>Required for Billing.</comment>
                  <v3Changes>Added to improve documentation on disposition and billing.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.15" type="SignatureStatus" id="eOther.SignatureStatus" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.15</number>
                  <name>Signature Status</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>Indication that the signature for the Type of Person Signing and Signature Reason has been collected or attempted to be collected.</definition>
                  <usage>Optional</usage>
                  <v3Changes>Added to better document disposition and billing.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.16" type="FileName" id="eOther.SignatureFileName" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.16</number>
                  <name>Signature File Name</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The name of the graphic file for the signature.</definition>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.17" type="GraphicType" id="eOther.SignatureFileType" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.17</number>
                  <name>Signature File Type</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The description of the file attachment stored in Signature Graphic (eOther.18).</definition>
                  <usage>Optional</usage>
                  <comment>The description is defined as the extension of the file type. Examples of file name extensions include "doc", "jpeg", "tiff", etc. For a list of additional extensions reference the following website(s): <br/> <table><tr><td width="10px"></td><td> <table> <tr><td>3D Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/3d_image</span></td></tr> <tr><td>Raster Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/raster_image</span></td></tr> <tr><td>Vector Image formats: <span style="color:blue">http://www.fileinfo.com/filetypes/vector_image</span></td></tr> <tr><td><br/></td></tr> <tr><td>Video formats: <span style="color:blue">http://www.fileinfo.com/filetypes/video</span></td></tr> <tr><td>Audio formats: <span style="color:blue">http://www.fileinfo.com/filetypes/audio</span></td></tr> <tr><td><br/></td></tr> <tr><td>Comparison of formats:</td></tr> <tr><td>Image: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_image_file_formats</span></td></tr> <tr><td>Audio: <span style="color:blue">http://en.wikipedia.org/wiki/Audio_file_format</span></td></tr> <tr><td>Container: <span style="color:blue">http://en.wikipedia.org/wiki/Comparison_of_container_formats</span></td></tr> <tr><td><br/></td></tr> <tr><td>A general list of image formats: <span style="color:blue">http://en.wikipedia.org/wiki/Image_file_formats</span></td></tr> <tr><td>Mime Types: <span style="color:blue">http://en.wikipedia.org/wiki/Internet_media_type</span></td></tr> </table> </td></tr></table></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.18" type="Graphic" id="eOther.SignatureGraphic" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.18</number>
                  <name>Signature Graphic</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The graphic file for the signature.</definition>
                  <usage>Optional</usage>
                  <v3Changes>Added to better document disposition and billing.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.19" type="DateTimeType" id="eOther.DateTimeofSignature" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.19</number>
                  <name>Date/Time of Signature</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The date and time the crew member, patient, patient representative, or facility representative signature was captured.</definition>
                  <usage>Optional</usage>
                  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
                  <v3Changes>Added to better document disposition and billing.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.20" type="PersonLastName" id="eOther.SignatureLastName" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.20</number>
                  <name>Signature Last Name</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The last name of the crew member, patient, patient representative, or facility representative associated with the signature group.</definition>
                  <usage>Optional</usage>
                  <v3Changes>Added to better document disposition and billing.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eOther.21" type="PersonFirstName" id="eOther.SignatureFirstName" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eOther.21</number>
                  <name>Signature First Name</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The first name of the crew member, patient, patient representative, or facility representative associated with the signature group.</definition>
                  <usage>Optional</usage>
                  <v3Changes>Added to better document disposition and billing.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type PotentialRegistryCandidate
Namespace http://www.nemsis.org
Annotations

An indication if the patient may meet the entry criteria for an injury or illness specific registry
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4502001
Airway
enumeration 4502003
Burn
enumeration 4502005
Cardiac/MI
enumeration 4502007
CVA/Stroke
enumeration 4502009
Drowning
enumeration 4502011
Other
enumeration 4502013
Spinal Cord Injury
enumeration 4502015
STEMI/Acute Cardiac
enumeration 4502017
Trauma
enumeration 4502019
Traumatic Brain Injury
Used by
Source

<xs:simpleType name="PotentialRegistryCandidate">
  <xs:annotation>
    <xs:documentation>An indication if the patient may meet the entry criteria for an injury or illness specific registry</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4502001">
      <xs:annotation>
        <xs:documentation>Airway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502003">
      <xs:annotation>
        <xs:documentation>Burn</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502005">
      <xs:annotation>
        <xs:documentation>Cardiac/MI</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502007">
      <xs:annotation>
        <xs:documentation>CVA/Stroke</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502009">
      <xs:annotation>
        <xs:documentation>Drowning</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502011">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502013">
      <xs:annotation>
        <xs:documentation>Spinal Cord Injury</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502015">
      <xs:annotation>
        <xs:documentation>STEMI/Acute Cardiac</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502017">
      <xs:annotation>
        <xs:documentation>Trauma</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4502019">
      <xs:annotation>
        <xs:documentation>Traumatic Brain Injury</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PersonalProtectiveEquipmentUsed
Namespace http://www.nemsis.org
Annotations

The personal protective equipment which was used by EMS personnel during this EMS patient contact.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4503001
Eye Protection
enumeration 4503003
Gloves
enumeration 4503005
Helmet
enumeration 4503007
Level A Suit
enumeration 4503009
Level B Suit
enumeration 4503011
Level C Suit
enumeration 4503013
Level D Suit (Turn out gear)
enumeration 4503015
Mask-N95
enumeration 4503017
Mask-Surgical (Non-Fitted)
enumeration 4503019
Other
enumeration 4503021
PAPR
enumeration 4503023
Reflective Vest
Used by
Source

<xs:simpleType name="PersonalProtectiveEquipmentUsed">
  <xs:annotation>
    <xs:documentation>The personal protective equipment which was used by EMS personnel during this EMS patient contact.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4503001">
      <xs:annotation>
        <xs:documentation>Eye Protection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503003">
      <xs:annotation>
        <xs:documentation>Gloves</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503005">
      <xs:annotation>
        <xs:documentation>Helmet</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503007">
      <xs:annotation>
        <xs:documentation>Level A Suit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503009">
      <xs:annotation>
        <xs:documentation>Level B Suit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503011">
      <xs:annotation>
        <xs:documentation>Level C Suit</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503013">
      <xs:annotation>
        <xs:documentation>Level D Suit (Turn out gear)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503015">
      <xs:annotation>
        <xs:documentation>Mask-N95</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503017">
      <xs:annotation>
        <xs:documentation>Mask-Surgical (Non-Fitted)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503019">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503021">
      <xs:annotation>
        <xs:documentation>PAPR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4503023">
      <xs:annotation>
        <xs:documentation>Reflective Vest</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type TypeOfInjuryDeathOrSuspectedExposure
Namespace http://www.nemsis.org
Annotations

The type of injury, death, or exposure to blood or body fluids
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4506001
Death-Cardiac Arrest
enumeration 4506003
Death-Injury Related
enumeration 4506005
Death-Other
enumeration 4506007
Exposure-Airborne Respiratory/Biological/Aerosolized Secretions
enumeration 4506009
Exposure-Body Fluid Contact to Broken Skin
enumeration 4506011
Exposure-Body Fluid Contact with Eye
enumeration 4506013
Exposure-Body Fluid Contact with Intact Skin
enumeration 4506015
Exposure-Body Fluid Contact with Mucosal Surface
enumeration 4506017
Exposure-Needle Stick with Body Fluid Injection
enumeration 4506019
Exposure-Needle Stick without Body Fluid Injection
enumeration 4506021
Exposure-Toxin/Chemical/Hazmat
enumeration 4506023
Injury-Lifting/Back/Musculoskeletal
enumeration 4506025
Injury-Other
enumeration 4506027
None
enumeration 4506029
Other
enumeration 4506031
Violence-Offensive, Intimidating, or Hateful Language
enumeration 4506033
Violence-Physical Threat, or Threatening Behavior
enumeration 4506035
Violence-Physical Attack or Attempt to Attack
enumeration 4506037
Violence-Unwelcome Sexual Attention, Remarks, Jokes or Gestures
enumeration 4506039
Violence-Unwanted Touching of a Sexual Nature
enumeration 4506041
Struck-by-Struck by Vehicle Along Roadway
Used by
Source

<xs:simpleType name="TypeOfInjuryDeathOrSuspectedExposure">
  <xs:annotation>
    <xs:documentation>The type of injury, death, or exposure to blood or body fluids</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4506001">
      <xs:annotation>
        <xs:documentation>Death-Cardiac Arrest</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506003">
      <xs:annotation>
        <xs:documentation>Death-Injury Related</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506005">
      <xs:annotation>
        <xs:documentation>Death-Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506007">
      <xs:annotation>
        <xs:documentation>Exposure-Airborne Respiratory/Biological/Aerosolized Secretions</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506009">
      <xs:annotation>
        <xs:documentation>Exposure-Body Fluid Contact to Broken Skin</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506011">
      <xs:annotation>
        <xs:documentation>Exposure-Body Fluid Contact with Eye</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506013">
      <xs:annotation>
        <xs:documentation>Exposure-Body Fluid Contact with Intact Skin</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506015">
      <xs:annotation>
        <xs:documentation>Exposure-Body Fluid Contact with Mucosal Surface</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506017">
      <xs:annotation>
        <xs:documentation>Exposure-Needle Stick with Body Fluid Injection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506019">
      <xs:annotation>
        <xs:documentation>Exposure-Needle Stick without Body Fluid Injection</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506021">
      <xs:annotation>
        <xs:documentation>Exposure-Toxin/Chemical/Hazmat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506023">
      <xs:annotation>
        <xs:documentation>Injury-Lifting/Back/Musculoskeletal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506025">
      <xs:annotation>
        <xs:documentation>Injury-Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506027">
      <xs:annotation>
        <xs:documentation>None</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506029">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506031">
      <xs:annotation>
        <xs:documentation>Violence-Offensive, Intimidating, or Hateful Language</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506033">
      <xs:annotation>
        <xs:documentation>Violence-Physical Threat, or Threatening Behavior</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506035">
      <xs:annotation>
        <xs:documentation>Violence-Physical Attack or Attempt to Attack</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506037">
      <xs:annotation>
        <xs:documentation>Violence-Unwelcome Sexual Attention, Remarks, Jokes or Gestures</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506039">
      <xs:annotation>
        <xs:documentation>Violence-Unwanted Touching of a Sexual Nature</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4506041">
      <xs:annotation>
        <xs:documentation>Struck-by-Struck by Vehicle Along Roadway</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type SuspectedIntentionalOrUnintentionalDisaster
Namespace http://www.nemsis.org
Annotations

Suspicion of the listed multi-casualty or domestic terrorism causes.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4507001
Biologic Agent
enumeration 4507003
Building Failure
enumeration 4507005
Chemical Agent
enumeration 4507007
Explosive Device
enumeration 4507009
Fire
enumeration 4507011
Hostage Event
enumeration 4507013
Mass Gathering
enumeration 4507015
Mass Illness
enumeration 4507017
Nuclear Agent
enumeration 4507019
Radioactive Device
enumeration 4507021
Secondary Destructive Device
enumeration 4507023
Shooting/Sniper
enumeration 4507025
Vehicular
enumeration 4507027
Weather (Other)
enumeration 4507029
Earthquake
enumeration 4507031
Flood
enumeration 4507033
Land Slide
enumeration 4507035
Winter Storm
enumeration 4507037
Tornado
enumeration 4507039
Hurricane
Used by
Source

<xs:simpleType name="SuspectedIntentionalOrUnintentionalDisaster">
  <xs:annotation>
    <xs:documentation>Suspicion of the listed multi-casualty or domestic terrorism causes.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4507001">
      <xs:annotation>
        <xs:documentation>Biologic Agent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507003">
      <xs:annotation>
        <xs:documentation>Building Failure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507005">
      <xs:annotation>
        <xs:documentation>Chemical Agent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507007">
      <xs:annotation>
        <xs:documentation>Explosive Device</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507009">
      <xs:annotation>
        <xs:documentation>Fire</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507011">
      <xs:annotation>
        <xs:documentation>Hostage Event</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507013">
      <xs:annotation>
        <xs:documentation>Mass Gathering</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507015">
      <xs:annotation>
        <xs:documentation>Mass Illness</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507017">
      <xs:annotation>
        <xs:documentation>Nuclear Agent</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507019">
      <xs:annotation>
        <xs:documentation>Radioactive Device</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507021">
      <xs:annotation>
        <xs:documentation>Secondary Destructive Device</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507023">
      <xs:annotation>
        <xs:documentation>Shooting/Sniper</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507025">
      <xs:annotation>
        <xs:documentation>Vehicular</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507027">
      <xs:annotation>
        <xs:documentation>Weather (Other)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507029">
      <xs:annotation>
        <xs:documentation>Earthquake</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507031">
      <xs:annotation>
        <xs:documentation>Flood</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507033">
      <xs:annotation>
        <xs:documentation>Land Slide</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507035">
      <xs:annotation>
        <xs:documentation>Winter Storm</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507037">
      <xs:annotation>
        <xs:documentation>Tornado</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4507039">
      <xs:annotation>
        <xs:documentation>Hurricane</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type ExternalElectronicDocuments
Namespace http://www.nemsis.org
Annotations

Document types which have been electronically stored with PCR.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4509001
Other Audio Recording
enumeration 4509003
Billing Information
enumeration 4509005
Diagnostic Image (CT, X-ray, US, etc.)
enumeration 4509006
DNR
enumeration 4509008
Living Will
enumeration 4509009
ECG/Lab Results
enumeration 4509011
Guardianship/Power of Attorney
enumeration 4509013
Other Healthcare Record
enumeration 4509015
Other
enumeration 4509017
Patient Identification
enumeration 4509019
Patient Refusal Sheet
enumeration 4509021
Other Picture/Graphic
enumeration 4509025
Other Video/Movie
enumeration 4509027
ePCR
Used by
Source

<xs:simpleType name="ExternalElectronicDocuments">
  <xs:annotation>
    <xs:documentation>Document types which have been electronically stored with PCR.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4509001">
      <xs:annotation>
        <xs:documentation>Other Audio Recording</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509003">
      <xs:annotation>
        <xs:documentation>Billing Information</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509005">
      <xs:annotation>
        <xs:documentation>Diagnostic Image (CT, X-ray, US, etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509006">
      <xs:annotation>
        <xs:documentation>DNR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509008">
      <xs:annotation>
        <xs:documentation>Living Will</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509009">
      <xs:annotation>
        <xs:documentation>ECG/Lab Results</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509011">
      <xs:annotation>
        <xs:documentation>Guardianship/Power of Attorney</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509013">
      <xs:annotation>
        <xs:documentation>Other Healthcare Record</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509015">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509017">
      <xs:annotation>
        <xs:documentation>Patient Identification</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509019">
      <xs:annotation>
        <xs:documentation>Patient Refusal Sheet</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509021">
      <xs:annotation>
        <xs:documentation>Other Picture/Graphic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509025">
      <xs:annotation>
        <xs:documentation>Other Video/Movie</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4509027">
      <xs:annotation>
        <xs:documentation>ePCR</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type FileImage
Namespace http://www.nemsis.org
Annotations

The file (pdf, jpeg, etc.) that is attached electronically to the patient care report.
Diagram
Diagram
Type xs:base64Binary
Used by
Source

<xs:simpleType name="FileImage">
  <xs:annotation>
    <xs:documentation>The file (pdf, jpeg, etc.) that is attached electronically to the patient care report.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:base64Binary"/>
</xs:simpleType>
Simple Type FileName
Namespace http://www.nemsis.org
Annotations

The name of the attached file.
Diagram
Diagram
Type restriction of xs:string
Facets
maxLength 255
Used by
Source

<xs:simpleType name="FileName">
  <xs:annotation>
    <xs:documentation>The name of the attached file.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Simple Type SignatureType
Namespace http://www.nemsis.org
Annotations

The individuals signature associated with the Signature Status.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4512001
EMS Crew Member (Other)
enumeration 4512003
EMS Primary Care Provider (for this event)
enumeration 4512005
Healthcare Provider
enumeration 4512007
Medical Director
enumeration 4512009
Non-Healthcare Provider
enumeration 4512011
Online Medical Control Healthcare Practitioner
enumeration 4512013
Other
enumeration 4512015
Patient
enumeration 4512017
Patient Representative
enumeration 4512019
Witness
Used by
Source

<xs:simpleType name="SignatureType">
  <xs:annotation>
    <xs:documentation>The individuals signature associated with the Signature Status.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4512001">
      <xs:annotation>
        <xs:documentation>EMS Crew Member (Other)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512003">
      <xs:annotation>
        <xs:documentation>EMS Primary Care Provider (for this event)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512005">
      <xs:annotation>
        <xs:documentation>Healthcare Provider</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512007">
      <xs:annotation>
        <xs:documentation>Medical Director</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512009">
      <xs:annotation>
        <xs:documentation>Non-Healthcare Provider</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512011">
      <xs:annotation>
        <xs:documentation>Online Medical Control Healthcare Practitioner</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512013">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512015">
      <xs:annotation>
        <xs:documentation>Patient</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512017">
      <xs:annotation>
        <xs:documentation>Patient Representative</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4512019">
      <xs:annotation>
        <xs:documentation>Witness</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type SignatureReason
Namespace http://www.nemsis.org
Annotations

The signature reason
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4513001
HIPAA acknowledgement/Release
enumeration 4513003
Permission to Treat
enumeration 4513005
Release for Billing
enumeration 4513007
Transfer of Patient Care
enumeration 4513009
Refusal of Care
enumeration 4513011
Controlled Substance, Administration
enumeration 4513013
Controlled Substance, Waste
enumeration 4513015
Airway Verification
enumeration 4513017
Patient Belongings (Receipt)
enumeration 4513019
Permission to Transport
enumeration 4513021
Refusal of Transport
enumeration 4513023
Other
Used by
Source

<xs:simpleType name="SignatureReason">
  <xs:annotation>
    <xs:documentation>The signature reason</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4513001">
      <xs:annotation>
        <xs:documentation>HIPAA acknowledgement/Release</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513003">
      <xs:annotation>
        <xs:documentation>Permission to Treat</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513005">
      <xs:annotation>
        <xs:documentation>Release for Billing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513007">
      <xs:annotation>
        <xs:documentation>Transfer of Patient Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513009">
      <xs:annotation>
        <xs:documentation>Refusal of Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513011">
      <xs:annotation>
        <xs:documentation>Controlled Substance, Administration</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513013">
      <xs:annotation>
        <xs:documentation>Controlled Substance, Waste</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513015">
      <xs:annotation>
        <xs:documentation>Airway Verification</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513017">
      <xs:annotation>
        <xs:documentation>Patient Belongings (Receipt)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513019">
      <xs:annotation>
        <xs:documentation>Permission to Transport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513021">
      <xs:annotation>
        <xs:documentation>Refusal of Transport</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4513023">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type RelationshipSignature
Namespace http://www.nemsis.org
Annotations

If Patient Representative is chosen as the owner of the signature, this documents the relationship of the individual signing to the patient.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4514001
Aunt
enumeration 4514003
Brother
enumeration 4514005
Daughter
enumeration 4514007
Discharge Planner
enumeration 4514009
Domestic Partner
enumeration 4514011
Father
enumeration 4514013
Friend
enumeration 4514015
Grandfather
enumeration 4514017
Grandmother
enumeration 4514019
Guardian
enumeration 4514021
Husband
enumeration 4514023
Law Enforcement
enumeration 4514025
MD/DO
enumeration 4514027
Mother
enumeration 4514029
Nurse (RN)
enumeration 4514031
Nurse Practitioner (NP)
enumeration 4514033
Other Care Provider (Home health, hospice, etc.)
enumeration 4514035
Other
enumeration 4514037
Physician's Assistant (PA)
enumeration 4514039
Power of Attorney
enumeration 4514041
Other Relative
enumeration 4514043
Self
enumeration 4514045
Sister
enumeration 4514047
Son
enumeration 4514049
Uncle
enumeration 4514051
Wife
Used by
Source

<xs:simpleType name="RelationshipSignature">
  <xs:annotation>
    <xs:documentation>If Patient Representative is chosen as the owner of the signature, this documents the relationship of the individual signing to the patient.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4514001">
      <xs:annotation>
        <xs:documentation>Aunt</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514003">
      <xs:annotation>
        <xs:documentation>Brother</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514005">
      <xs:annotation>
        <xs:documentation>Daughter</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514007">
      <xs:annotation>
        <xs:documentation>Discharge Planner</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514009">
      <xs:annotation>
        <xs:documentation>Domestic Partner</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514011">
      <xs:annotation>
        <xs:documentation>Father</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514013">
      <xs:annotation>
        <xs:documentation>Friend</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514015">
      <xs:annotation>
        <xs:documentation>Grandfather</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514017">
      <xs:annotation>
        <xs:documentation>Grandmother</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514019">
      <xs:annotation>
        <xs:documentation>Guardian</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514021">
      <xs:annotation>
        <xs:documentation>Husband</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514023">
      <xs:annotation>
        <xs:documentation>Law Enforcement</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514025">
      <xs:annotation>
        <xs:documentation>MD/DO</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514027">
      <xs:annotation>
        <xs:documentation>Mother</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514029">
      <xs:annotation>
        <xs:documentation>Nurse (RN)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514031">
      <xs:annotation>
        <xs:documentation>Nurse Practitioner (NP)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514033">
      <xs:annotation>
        <xs:documentation>Other Care Provider (Home health, hospice, etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514035">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514037">
      <xs:annotation>
        <xs:documentation>Physician's Assistant (PA)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514039">
      <xs:annotation>
        <xs:documentation>Power of Attorney</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514041">
      <xs:annotation>
        <xs:documentation>Other Relative</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514043">
      <xs:annotation>
        <xs:documentation>Self</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514045">
      <xs:annotation>
        <xs:documentation>Sister</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514047">
      <xs:annotation>
        <xs:documentation>Son</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514049">
      <xs:annotation>
        <xs:documentation>Uncle</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4514051">
      <xs:annotation>
        <xs:documentation>Wife</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type SignatureStatus
Namespace http://www.nemsis.org
Annotations

Indication that a signature has been collected or attempted to be collected.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 4515001
Not Signed - Crew Called out to another call
enumeration 4515003
Not Signed - Deceased
enumeration 4515005
Not Signed - Due to Distress Level
enumeration 4515007
Not Signed - Equipment Failure
enumeration 4515009
Not Signed - In Law Enforcement Custody
enumeration 4515011
Not Signed - Language Barrier
enumeration 4515013
Not Signed - Mental Status/Impaired
enumeration 4515015
Not Signed - Minor/Child
enumeration 4515017
Not Signed - Physical Impairment of Extremities
enumeration 4515019
Not Signed - Refused
enumeration 4515021
Not Signed - Transferred Care/No Access to Obtain Signature
enumeration 4515023
Not Signed - Unconscious
enumeration 4515025
Not Signed -Visually Impaired
enumeration 4515027
Physical Signature/Paper Copy Obtained
enumeration 4515031
Signed
enumeration 4515033
Signed-Not Patient
enumeration 4515035
Not Signed-Illiterate (Unable to Read)
enumeration 4515037
Not Signed-Restrained
enumeration 4515039
Not Signed-Combative or Uncooperative
Used by
Source

<xs:simpleType name="SignatureStatus">
  <xs:annotation>
    <xs:documentation>Indication that a signature has been collected or attempted to be collected.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="4515001">
      <xs:annotation>
        <xs:documentation>Not Signed - Crew Called out to another call</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515003">
      <xs:annotation>
        <xs:documentation>Not Signed - Deceased</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515005">
      <xs:annotation>
        <xs:documentation>Not Signed - Due to Distress Level</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515007">
      <xs:annotation>
        <xs:documentation>Not Signed - Equipment Failure</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515009">
      <xs:annotation>
        <xs:documentation>Not Signed - In Law Enforcement Custody</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515011">
      <xs:annotation>
        <xs:documentation>Not Signed - Language Barrier</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515013">
      <xs:annotation>
        <xs:documentation>Not Signed - Mental Status/Impaired</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515015">
      <xs:annotation>
        <xs:documentation>Not Signed - Minor/Child</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515017">
      <xs:annotation>
        <xs:documentation>Not Signed - Physical Impairment of Extremities</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515019">
      <xs:annotation>
        <xs:documentation>Not Signed - Refused</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515021">
      <xs:annotation>
        <xs:documentation>Not Signed - Transferred Care/No Access to Obtain Signature</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515023">
      <xs:annotation>
        <xs:documentation>Not Signed - Unconscious</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515025">
      <xs:annotation>
        <xs:documentation>Not Signed -Visually Impaired</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515027">
      <xs:annotation>
        <xs:documentation>Physical Signature/Paper Copy Obtained</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515031">
      <xs:annotation>
        <xs:documentation>Signed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515033">
      <xs:annotation>
        <xs:documentation>Signed-Not Patient</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515035">
      <xs:annotation>
        <xs:documentation>Not Signed-Illiterate (Unable to Read)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515037">
      <xs:annotation>
        <xs:documentation>Not Signed-Restrained</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4515039">
      <xs:annotation>
        <xs:documentation>Not Signed-Combative or Uncooperative</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type SignatureGraphic
Namespace http://www.nemsis.org
Annotations

The graphic file for the signature.
Diagram
Diagram
Type xs:string
Source

<xs:simpleType name="SignatureGraphic">
  <xs:annotation>
    <xs:documentation>The graphic file for the signature.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string"/>
</xs:simpleType>
Attribute eOther / eOther.02 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eOther / eOther.EMSCrewMemberGroup / eOther.03 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eOther / eOther.EMSCrewMemberGroup / eOther.05 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eOther / eOther.EMSCrewMemberGroup / eOther.06 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eOther / eOther.EMSCrewMemberGroup / eOther.06 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eOther / eOther.EMSCrewMemberGroup / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eOther / eOther.07 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eOther / eOther.08 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eOther / eOther.FileGroup / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eOther / eOther.SignatureGroup / eOther.13 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eOther / eOther.SignatureGroup / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
XML Schema documentation generated by ® XML Editor.
