Schema documentation for eProcedures

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Model

Properties

Source

Used by

Included schema eProcedures_v3.xsd

Namespace

http://www.nemsis.org

Properties

attribute form default	unqualified
element form default	qualified

Element eProcedures / eProcedures.ProcedureGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold eProcedures information

Diagram

Properties

content	complex
maxOccurs	unbounded

Model

eProcedures.01 , eProcedures.02 , eProcedures.03 , eProcedures.04{0,1} , eProcedures.05 , eProcedures.06 , eProcedures.07+ , eProcedures.08 , eProcedures.09{0,1} , eProcedures.10 , eProcedures.11{0,1} , eProcedures.12{0,1} , eProcedures.13{0,1} , eProcedures.14* , eProcedures.15{0,1}

Children

eProcedures.01, eProcedures.02, eProcedures.03, eProcedures.04, eProcedures.05, eProcedures.06, eProcedures.07, eProcedures.08, eProcedures.09, eProcedures.10, eProcedures.11, eProcedures.12, eProcedures.13, eProcedures.14, eProcedures.15

Instance

<eProcedures.ProcedureGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eProcedures.01 NV="">{1,1}</eProcedures.01>
  <eProcedures.02 NV="">{1,1}</eProcedures.02>
  <eProcedures.03 NV="" PN="">{1,1}</eProcedures.03>
  <eProcedures.04>{0,1}</eProcedures.04>
  <eProcedures.05 NV="">{1,1}</eProcedures.05>
  <eProcedures.06 NV="">{1,1}</eProcedures.06>
  <eProcedures.07 CorrelationID="" NV="">{1,unbounded}</eProcedures.07>
  <eProcedures.08 NV="">{1,1}</eProcedures.08>
  <eProcedures.09 NV="">{0,1}</eProcedures.09>
  <eProcedures.10 NV="">{1,1}</eProcedures.10>
  <eProcedures.11>{0,1}</eProcedures.11>
  <eProcedures.12>{0,1}</eProcedures.12>
  <eProcedures.13 NV="">{0,1}</eProcedures.13>
  <eProcedures.14 CorrelationID="" NV="">{0,unbounded}</eProcedures.14>
  <eProcedures.15 NV="">{0,1}</eProcedures.15>
</eProcedures.ProcedureGroup>

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eProcedures.ProcedureGroup" id="eProcedures.ProcedureGroup" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold eProcedures information</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eProcedures.01" nillable="true" id="eProcedures.DateTimeProcedurePerformed">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.01</number>
              <name>Date/Time Procedure Performed</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The date/time the procedure was performed on the patient.</definition>
              <v2Number>E19_01</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DateTimeType">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.02" nillable="true" id="eProcedures.ProcedurePerformedPriortothisUnitsEMSCare">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.02</number>
              <name>Procedure Performed Prior to this Unit's EMS Care</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>Indicates that the procedure which was performed and documented was performed prior to this EMS units care.</definition>
              <v2Number>E19_02</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.03" nillable="true" id="eProcedures.Procedure">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.03</number>
              <name>Procedure</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The procedure performed on the patient.</definition>
              <v2Number>E19_03</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Procedures which are recorded as a Vital Sign do not have to be documented in the Procedure Section. <br/>Code list is represented in SNOMEDCT. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>SNOMEDCT <br/>Website: http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html <br/>Product: Product - UMLS Metathesaurus</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="snomed">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.ContraindicationNoted PN.DeniedByOrder PN.Refused PN.UnableToComplete PN.OrderCriteriaNotMet"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.04" type="SizeOfProcedureEquipment" id="eProcedures.SizeofProcedureEquipment" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.04</number>
              <name>Size of Procedure Equipment</name>
              <national>No</national>
              <state>No</state>
              <definition>The size of the equipment used in the procedure on the patient.</definition>
              <v2Number>E19_04</v2Number>
              <usage>Optional</usage>
              <comment>Need business logic to require detail of size appropriate for the procedure.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eProcedures.05" nillable="true" id="eProcedures.NumberofProcedureAttempts">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.05</number>
              <name>Number of Procedure Attempts</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The number of attempts taken to complete a procedure or intervention regardless of success.</definition>
              <v2Number>E19_05</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="NumberOfProcedureAttempts">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.06" nillable="true" id="eProcedures.ProcedureSuccessful">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.06</number>
              <name>Procedure Successful</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>Indicates that this individual procedure attempt which was performed on the patient was successful.</definition>
              <v2Number>E19_06</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.07" nillable="true" id="eProcedures.ProcedureComplication" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.07</number>
              <name>Procedure Complication</name>
              <national>Yes</national>
              <state>Yes</state>

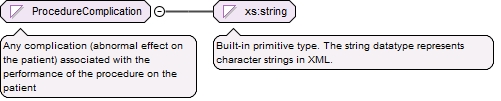

              <definition>Any complication (abnormal effect on the patient) associated with the performance of the procedure on the patient.</definition>
              <v2Number>E19_07</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ProcedureComplication">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.08" nillable="true" id="eProcedures.ResponsetoProcedure">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.08</number>
              <name>Response to Procedure</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's response to the procedure.</definition>
              <v2Number>E19_08</v2Number>
              <usage>Required</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="Response">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.09" nillable="true" id="eProcedures.ProcedureCrewMembersID" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.09</number>
              <name>Procedure Crew Members ID</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The statewide assigned ID number of the EMS crew member performing the procedure on the patient.</definition>
              <v2Number>E19_09</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>For an incident that occurs in multiple states, the certification ID number the EMS agency would typically use is based on the EMS agency's state license specific to each EMS professional. If the incident needs to be reported to each state, then the EMS Agency Number for each state should be submitted as well as the certification ID numbers for each EMS professional on the unit.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="CrewMemberID">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.10" nillable="true" id="eProcedures.RoleofPersonPerformingtheProcedure">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.10</number>
              <name>Role/Type of Person Performing the Procedure</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The type (level) of EMS or Healthcare Professional performing the procedure. For procedures performed prior to EMS arrival, this may be a non-EMS healthcare professional.</definition>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Added to document the type of healthcare professional administering the medication. This could be auto-completed from the crew ID but is necessary to document medication administration prior to EMS arrival. State may maintain an enumerated list but must collapse to the National Standard. <br/><br/>The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level.</comment>
              <v3Changes>Added to document the type of healthcare professional performing the procedure.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="EMSCaregiverLevel">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.11" type="TxAuthorization" id="eProcedures.ProcedureAuthorization" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.11</number>
              <name>Procedure Authorization</name>
              <national>No</national>
              <state>No</state>
              <definition>The type of treatment authorization obtained.</definition>
              <v2Number>E19_10</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eProcedures.12" type="PersonName" id="eProcedures.ProcedureAuthorizingPhysician" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.12</number>
              <name>Procedure Authorizing Physician</name>
              <national>No</national>
              <state>No</state>
              <definition>The name of the authorizing physician ordering the procedure, if the order was provided by any manner other than protocol (standing order) in eProcedures.11.</definition>
              <v2Number>E19_11</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eProcedures.13" nillable="true" id="eProcedures.VascularAccessLocation" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.13</number>
              <name>Vascular Access Location</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The location of the vascular access site attempt on the patient, if applicable.</definition>
              <v2Number>E19_12</v2Number>
              <usage>Recommended</usage>
              <comment>This is now associated with the Date/Time of the procedure and therefore changed to single choice. This allows the location to be documented with each procedure and attempt. If the vascular access has been established prior to EMS, this should be documented as such.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="VascularAccessLocation">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.14" id="eProcedures.AirwayPlacementTechnique" nillable="true" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.14</number>
              <name>Airway Placement Technique</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The manner/equipment used during the placement of the advanced airway.</definition>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
              </performanceMeasuresGroup>
              <v3Changes>Added to better document airway management.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="AirwayPlacementTechnique">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eProcedures.15" id="eProcedures.ProcedureByOtherUnit" nillable="true" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eProcedures.15</number>
              <name>Procedure Performed by Another Unit</name>
              <national>No</national>
              <state>Yes</state>
              <definition>Indicates the procedure was performed by someone other than the EMS clinicians in this EMS unit. This is not for prior to arrival procedures, but for procedures performed when multiple units/caregivers are on scene simultaneously providing patient care.</definition>
              <usage>Recommended</usage>
              <comment>This is the method to document when care is provided by others when multiple units are present at the scene.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.01

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.01</number>
  <name>Date/Time Procedure Performed</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The date/time the procedure was performed on the patient.</definition>
  <v2Number>E19_01</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
</nemsisTacDoc>

Diagram

Type

extension of DateTimeType

Type hierarchy

xs:dateTime
- DateTimeType

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.01" nillable="true" id="eProcedures.DateTimeProcedurePerformed">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.01</number>
        <name>Date/Time Procedure Performed</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The date/time the procedure was performed on the patient.</definition>
        <v2Number>E19_01</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DateTimeType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.02

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.02</number>
  <name>Procedure Performed Prior to this Unit's EMS Care</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indicates that the procedure which was performed and documented was performed prior to this EMS units care.</definition>
  <v2Number>E19_02</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
</nemsisTacDoc>

Diagram

Type

extension of YesNoValues

Type hierarchy

xs:string
- YesNoValues

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.02" nillable="true" id="eProcedures.ProcedurePerformedPriortothisUnitsEMSCare">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.02</number>
        <name>Procedure Performed Prior to this Unit's EMS Care</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indicates that the procedure which was performed and documented was performed prior to this EMS units care.</definition>
        <v2Number>E19_02</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.03

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.03</number>
  <name>Procedure</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The procedure performed on the patient.</definition>
  <v2Number>E19_03</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Procedures which are recorded as a Vital Sign do not have to be documented in the Procedure Section. <br/>Code list is represented in SNOMEDCT. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>SNOMEDCT <br/>Website: http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html <br/>Product: Product - UMLS Metathesaurus</comment>
</nemsisTacDoc>

Diagram

Type

extension of snomed

Type hierarchy

xs:integer
- snomed

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.ContraindicationNoted, PN.DeniedByOrder, PN.Refused, PN.UnableToComplete, PN.OrderCriteriaNotMet)	optional

Source

<xs:element name="eProcedures.03" nillable="true" id="eProcedures.Procedure">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.03</number>
        <name>Procedure</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The procedure performed on the patient.</definition>
        <v2Number>E19_03</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Procedures which are recorded as a Vital Sign do not have to be documented in the Procedure Section. <br/>Code list is represented in SNOMEDCT. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>SNOMEDCT <br/>Website: http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html <br/>Product: Product - UMLS Metathesaurus</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="snomed">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.ContraindicationNoted PN.DeniedByOrder PN.Refused PN.UnableToComplete PN.OrderCriteriaNotMet"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.04

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.04</number>
  <name>Size of Procedure Equipment</name>
  <national>No</national>
  <state>No</state>
  <definition>The size of the equipment used in the procedure on the patient.</definition>
  <v2Number>E19_04</v2Number>
  <usage>Optional</usage>
  <comment>Need business logic to require detail of size appropriate for the procedure.</comment>
</nemsisTacDoc>

Diagram

Type

SizeOfProcedureEquipment

Properties

content	simple
minOccurs	0

Facets

minLength	1
maxLength	20

Source

<xs:element name="eProcedures.04" type="SizeOfProcedureEquipment" id="eProcedures.SizeofProcedureEquipment" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.04</number>
        <name>Size of Procedure Equipment</name>
        <national>No</national>
        <state>No</state>
        <definition>The size of the equipment used in the procedure on the patient.</definition>
        <v2Number>E19_04</v2Number>
        <usage>Optional</usage>
        <comment>Need business logic to require detail of size appropriate for the procedure.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.05

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.05</number>
  <name>Number of Procedure Attempts</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The number of attempts taken to complete a procedure or intervention regardless of success.</definition>
  <v2Number>E19_05</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>

Diagram

Type

extension of NumberOfProcedureAttempts

Type hierarchy

xs:integer
- NumberOfProcedureAttempts

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.05" nillable="true" id="eProcedures.NumberofProcedureAttempts">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.05</number>
        <name>Number of Procedure Attempts</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The number of attempts taken to complete a procedure or intervention regardless of success.</definition>
        <v2Number>E19_05</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="NumberOfProcedureAttempts">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.06

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.06</number>
  <name>Procedure Successful</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indicates that this individual procedure attempt which was performed on the patient was successful.</definition>
  <v2Number>E19_06</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>

Diagram

Type

extension of YesNoValues

Type hierarchy

xs:string
- YesNoValues

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.06" nillable="true" id="eProcedures.ProcedureSuccessful">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.06</number>
        <name>Procedure Successful</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indicates that this individual procedure attempt which was performed on the patient was successful.</definition>
        <v2Number>E19_06</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.07

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.07</number>
  <name>Procedure Complication</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Any complication (abnormal effect on the patient) associated with the performance of the procedure on the patient.</definition>
  <v2Number>E19_07</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>

Diagram

Type

extension of ProcedureComplication

Type hierarchy

xs:string
- ProcedureComplication

Properties

content	complex
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.07" nillable="true" id="eProcedures.ProcedureComplication" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.07</number>
        <name>Procedure Complication</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Any complication (abnormal effect on the patient) associated with the performance of the procedure on the patient.</definition>
        <v2Number>E19_07</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ProcedureComplication">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.08

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.08</number>
  <name>Response to Procedure</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's response to the procedure.</definition>
  <v2Number>E19_08</v2Number>
  <usage>Required</usage>
</nemsisTacDoc>

Diagram

Type

extension of Response

Type hierarchy

xs:string
- Response

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.08" nillable="true" id="eProcedures.ResponsetoProcedure">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.08</number>
        <name>Response to Procedure</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's response to the procedure.</definition>
        <v2Number>E19_08</v2Number>
        <usage>Required</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="Response">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.09

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.09</number>
  <name>Procedure Crew Members ID</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The statewide assigned ID number of the EMS crew member performing the procedure on the patient.</definition>
  <v2Number>E19_09</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>For an incident that occurs in multiple states, the certification ID number the EMS agency would typically use is based on the EMS agency's state license specific to each EMS professional. If the incident needs to be reported to each state, then the EMS Agency Number for each state should be submitted as well as the certification ID numbers for each EMS professional on the unit.</comment>
</nemsisTacDoc>

Diagram

Type

extension of CrewMemberID

Type hierarchy

xs:string
- CrewMemberID

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional

Source

<xs:element name="eProcedures.09" nillable="true" id="eProcedures.ProcedureCrewMembersID" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.09</number>
        <name>Procedure Crew Members ID</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The statewide assigned ID number of the EMS crew member performing the procedure on the patient.</definition>
        <v2Number>E19_09</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>For an incident that occurs in multiple states, the certification ID number the EMS agency would typically use is based on the EMS agency's state license specific to each EMS professional. If the incident needs to be reported to each state, then the EMS Agency Number for each state should be submitted as well as the certification ID numbers for each EMS professional on the unit.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CrewMemberID">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.10

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.10</number>
  <name>Role/Type of Person Performing the Procedure</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The type (level) of EMS or Healthcare Professional performing the procedure. For procedures performed prior to EMS arrival, this may be a non-EMS healthcare professional.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Added to document the type of healthcare professional administering the medication. This could be auto-completed from the crew ID but is necessary to document medication administration prior to EMS arrival. State may maintain an enumerated list but must collapse to the National Standard. <br/><br/>The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level.</comment>
  <v3Changes>Added to document the type of healthcare professional performing the procedure.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of EMSCaregiverLevel

Type hierarchy

xs:string
- EMSCaregiverLevel

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.10" nillable="true" id="eProcedures.RoleofPersonPerformingtheProcedure">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.10</number>
        <name>Role/Type of Person Performing the Procedure</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The type (level) of EMS or Healthcare Professional performing the procedure. For procedures performed prior to EMS arrival, this may be a non-EMS healthcare professional.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Added to document the type of healthcare professional administering the medication. This could be auto-completed from the crew ID but is necessary to document medication administration prior to EMS arrival. State may maintain an enumerated list but must collapse to the National Standard. <br/><br/>The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level.</comment>
        <v3Changes>Added to document the type of healthcare professional performing the procedure.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="EMSCaregiverLevel">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.11

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.11</number>
  <name>Procedure Authorization</name>
  <national>No</national>
  <state>No</state>
  <definition>The type of treatment authorization obtained.</definition>
  <v2Number>E19_10</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

TxAuthorization

Properties

content	simple
minOccurs	0

Facets

enumeration

9918001

On-Line (Remote Verbal Order)

enumeration

9918003

On-Scene

enumeration

9918005

Protocol (Standing Order)

enumeration

9918007

Written Orders (Patient Specific)

Source

<xs:element name="eProcedures.11" type="TxAuthorization" id="eProcedures.ProcedureAuthorization" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.11</number>
        <name>Procedure Authorization</name>
        <national>No</national>
        <state>No</state>
        <definition>The type of treatment authorization obtained.</definition>
        <v2Number>E19_10</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.12

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.12</number>
  <name>Procedure Authorizing Physician</name>
  <national>No</national>
  <state>No</state>
  <definition>The name of the authorizing physician ordering the procedure, if the order was provided by any manner other than protocol (standing order) in eProcedures.11.</definition>
  <v2Number>E19_11</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

PersonName

Properties

content	simple
minOccurs	0

Facets

minLength	1
maxLength	255

Source

<xs:element name="eProcedures.12" type="PersonName" id="eProcedures.ProcedureAuthorizingPhysician" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.12</number>
        <name>Procedure Authorizing Physician</name>
        <national>No</national>
        <state>No</state>
        <definition>The name of the authorizing physician ordering the procedure, if the order was provided by any manner other than protocol (standing order) in eProcedures.11.</definition>
        <v2Number>E19_11</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.13

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.13</number>
  <name>Vascular Access Location</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The location of the vascular access site attempt on the patient, if applicable.</definition>
  <v2Number>E19_12</v2Number>
  <usage>Recommended</usage>
  <comment>This is now associated with the Date/Time of the procedure and therefore changed to single choice. This allows the location to be documented with each procedure and attempt. If the vascular access has been established prior to EMS, this should be documented as such.</comment>
</nemsisTacDoc>

Diagram

Type

extension of VascularAccessLocation

Type hierarchy

xs:string
- VascularAccessLocation

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional

Source

<xs:element name="eProcedures.13" nillable="true" id="eProcedures.VascularAccessLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.13</number>
        <name>Vascular Access Location</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The location of the vascular access site attempt on the patient, if applicable.</definition>
        <v2Number>E19_12</v2Number>
        <usage>Recommended</usage>
        <comment>This is now associated with the Date/Time of the procedure and therefore changed to single choice. This allows the location to be documented with each procedure and attempt. If the vascular access has been established prior to EMS, this should be documented as such.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="VascularAccessLocation">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.14

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.14</number>
  <name>Airway Placement Technique</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The manner/equipment used during the placement of the advanced airway.</definition>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
  </performanceMeasuresGroup>
  <v3Changes>Added to better document airway management.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of AirwayPlacementTechnique

Type hierarchy

xs:string
- AirwayPlacementTechnique

Properties

content	complex
minOccurs	0
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.14" id="eProcedures.AirwayPlacementTechnique" nillable="true" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.14</number>
        <name>Airway Placement Technique</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The manner/equipment used during the placement of the advanced airway.</definition>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
        </performanceMeasuresGroup>
        <v3Changes>Added to better document airway management.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="AirwayPlacementTechnique">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eProcedures / eProcedures.ProcedureGroup / eProcedures.15

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eProcedures.15</number>
  <name>Procedure Performed by Another Unit</name>
  <national>No</national>
  <state>Yes</state>
  <definition>Indicates the procedure was performed by someone other than the EMS clinicians in this EMS unit. This is not for prior to arrival procedures, but for procedures performed when multiple units/caregivers are on scene simultaneously providing patient care.</definition>
  <usage>Recommended</usage>
  <comment>This is the method to document when care is provided by others when multiple units are present at the scene.</comment>
</nemsisTacDoc>

Diagram

Type

extension of YesNoValues

Type hierarchy

xs:string
- YesNoValues

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eProcedures.15" id="eProcedures.ProcedureByOtherUnit" nillable="true" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eProcedures.15</number>
        <name>Procedure Performed by Another Unit</name>
        <national>No</national>
        <state>Yes</state>
        <definition>Indicates the procedure was performed by someone other than the EMS clinicians in this EMS unit. This is not for prior to arrival procedures, but for procedures performed when multiple units/caregivers are on scene simultaneously providing patient care.</definition>
        <usage>Recommended</usage>
        <comment>This is the method to document when care is provided by others when multiple units are present at the scene.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Complex Type eProcedures

Namespace

http://www.nemsis.org

Diagram

Used by

Element

EMSDataSet/Header/PatientCareReport/eProcedures

Model

eProcedures.ProcedureGroup+

Children

eProcedures.ProcedureGroup

Source

<xs:complexType name="eProcedures">
  <xs:sequence>
    <xs:element name="eProcedures.ProcedureGroup" id="eProcedures.ProcedureGroup" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold eProcedures information</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eProcedures.01" nillable="true" id="eProcedures.DateTimeProcedurePerformed">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.01</number>
                  <name>Date/Time Procedure Performed</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The date/time the procedure was performed on the patient.</definition>
                  <v2Number>E19_01</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DateTimeType">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.02" nillable="true" id="eProcedures.ProcedurePerformedPriortothisUnitsEMSCare">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.02</number>
                  <name>Procedure Performed Prior to this Unit's EMS Care</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>Indicates that the procedure which was performed and documented was performed prior to this EMS units care.</definition>
                  <v2Number>E19_02</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.03" nillable="true" id="eProcedures.Procedure">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.03</number>
                  <name>Procedure</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The procedure performed on the patient.</definition>
                  <v2Number>E19_03</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Procedures which are recorded as a Vital Sign do not have to be documented in the Procedure Section. <br/>Code list is represented in SNOMEDCT. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>SNOMEDCT <br/>Website: http://www.nlm.nih.gov/research/umls/Snomed/snomed_main.html <br/>Product: Product - UMLS Metathesaurus</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="snomed">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.ContraindicationNoted PN.DeniedByOrder PN.Refused PN.UnableToComplete PN.OrderCriteriaNotMet"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.04" type="SizeOfProcedureEquipment" id="eProcedures.SizeofProcedureEquipment" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.04</number>
                  <name>Size of Procedure Equipment</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The size of the equipment used in the procedure on the patient.</definition>
                  <v2Number>E19_04</v2Number>
                  <usage>Optional</usage>
                  <comment>Need business logic to require detail of size appropriate for the procedure.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eProcedures.05" nillable="true" id="eProcedures.NumberofProcedureAttempts">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.05</number>
                  <name>Number of Procedure Attempts</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The number of attempts taken to complete a procedure or intervention regardless of success.</definition>
                  <v2Number>E19_05</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="NumberOfProcedureAttempts">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.06" nillable="true" id="eProcedures.ProcedureSuccessful">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.06</number>
                  <name>Procedure Successful</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>Indicates that this individual procedure attempt which was performed on the patient was successful.</definition>
                  <v2Number>E19_06</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.07" nillable="true" id="eProcedures.ProcedureComplication" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.07</number>
                  <name>Procedure Complication</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>Any complication (abnormal effect on the patient) associated with the performance of the procedure on the patient.</definition>
                  <v2Number>E19_07</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ProcedureComplication">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.08" nillable="true" id="eProcedures.ResponsetoProcedure">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.08</number>
                  <name>Response to Procedure</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient's response to the procedure.</definition>
                  <v2Number>E19_08</v2Number>
                  <usage>Required</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="Response">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.09" nillable="true" id="eProcedures.ProcedureCrewMembersID" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.09</number>
                  <name>Procedure Crew Members ID</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The statewide assigned ID number of the EMS crew member performing the procedure on the patient.</definition>
                  <v2Number>E19_09</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>For an incident that occurs in multiple states, the certification ID number the EMS agency would typically use is based on the EMS agency's state license specific to each EMS professional. If the incident needs to be reported to each state, then the EMS Agency Number for each state should be submitted as well as the certification ID numbers for each EMS professional on the unit.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="CrewMemberID">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.10" nillable="true" id="eProcedures.RoleofPersonPerformingtheProcedure">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.10</number>
                  <name>Role/Type of Person Performing the Procedure</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The type (level) of EMS or Healthcare Professional performing the procedure. For procedures performed prior to EMS arrival, this may be a non-EMS healthcare professional.</definition>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Added to document the type of healthcare professional administering the medication. This could be auto-completed from the crew ID but is necessary to document medication administration prior to EMS arrival. State may maintain an enumerated list but must collapse to the National Standard. <br/><br/>The category EMT-Intermediate includes EMS professionals with an "85" or "99" certification level.</comment>
                  <v3Changes>Added to document the type of healthcare professional performing the procedure.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="EMSCaregiverLevel">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.11" type="TxAuthorization" id="eProcedures.ProcedureAuthorization" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.11</number>
                  <name>Procedure Authorization</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The type of treatment authorization obtained.</definition>
                  <v2Number>E19_10</v2Number>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eProcedures.12" type="PersonName" id="eProcedures.ProcedureAuthorizingPhysician" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.12</number>
                  <name>Procedure Authorizing Physician</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The name of the authorizing physician ordering the procedure, if the order was provided by any manner other than protocol (standing order) in eProcedures.11.</definition>
                  <v2Number>E19_11</v2Number>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eProcedures.13" nillable="true" id="eProcedures.VascularAccessLocation" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.13</number>
                  <name>Vascular Access Location</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The location of the vascular access site attempt on the patient, if applicable.</definition>
                  <v2Number>E19_12</v2Number>
                  <usage>Recommended</usage>
                  <comment>This is now associated with the Date/Time of the procedure and therefore changed to single choice. This allows the location to be documented with each procedure and attempt. If the vascular access has been established prior to EMS, this should be documented as such.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="VascularAccessLocation">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.14" id="eProcedures.AirwayPlacementTechnique" nillable="true" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.14</number>
                  <name>Airway Placement Technique</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The manner/equipment used during the placement of the advanced airway.</definition>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                  </performanceMeasuresGroup>
                  <v3Changes>Added to better document airway management.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="AirwayPlacementTechnique">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eProcedures.15" id="eProcedures.ProcedureByOtherUnit" nillable="true" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eProcedures.15</number>
                  <name>Procedure Performed by Another Unit</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>Indicates the procedure was performed by someone other than the EMS clinicians in this EMS unit. This is not for prior to arrival procedures, but for procedures performed when multiple units/caregivers are on scene simultaneously providing patient care.</definition>
                  <usage>Recommended</usage>
                  <comment>This is the method to document when care is provided by others when multiple units are present at the scene.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Simple Type SizeOfProcedureEquipment

Namespace

http://www.nemsis.org

Annotations

The size of the equipment used in the procedure on the patient

Diagram

Type

restriction of xs:string

Facets

minLength	1
maxLength	20

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.04

Source

<xs:simpleType name="SizeOfProcedureEquipment">
  <xs:annotation>
    <xs:documentation>The size of the equipment used in the procedure on the patient</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="20"/>
  </xs:restriction>
</xs:simpleType>

Simple Type NumberOfProcedureAttempts

Namespace

http://www.nemsis.org

Annotations

The number of attempts taken to complete a procedure or intervention regardless of success

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	10
minInclusive	1

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.05

Source

<xs:simpleType name="NumberOfProcedureAttempts">
  <xs:annotation>
    <xs:documentation>The number of attempts taken to complete a procedure or intervention regardless of success</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="10"/>
  </xs:restriction>
</xs:simpleType>

Simple Type ProcedureComplication

Namespace

http://www.nemsis.org

Annotations

Any complication (abnormal effect on the patient) associated with the performance of the procedure on the patient

Diagram

Type

restriction of xs:string

Facets

enumeration

3907001

Altered Mental Status

enumeration

3907003

Apnea

enumeration

3907005

Bleeding

enumeration

3907007

Bradypnea

enumeration

3907009

Diarrhea

enumeration

3907011

Esophageal Intubation-immediately

enumeration

3907013

Esophageal Intubation-other

enumeration

3907015

Extravasation

enumeration

3907017

Hypertension

enumeration

3907019

Hyperthermia

enumeration

3907021

Hypotension

enumeration

3907023

Hypothermia

enumeration

3907025

Hypoxia

enumeration

3907027

Injury

enumeration

3907031

Nausea

enumeration

3907033

None

enumeration

3907035

Other

enumeration

3907039

Respiratory Distress

enumeration

3907041

Tachycardia

enumeration

3907043

Tachypnea

enumeration

3907045

Vomiting

enumeration

3907047

Bradycardia

enumeration

3907049

Itching

enumeration

3907051

Urticaria

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.07

Source

<xs:simpleType name="ProcedureComplication">
  <xs:annotation>
    <xs:documentation>Any complication (abnormal effect on the patient) associated with the performance of the procedure on the patient</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3907001">
      <xs:annotation>
        <xs:documentation>Altered Mental Status</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907003">
      <xs:annotation>
        <xs:documentation>Apnea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907005">
      <xs:annotation>
        <xs:documentation>Bleeding</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907007">
      <xs:annotation>
        <xs:documentation>Bradypnea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907009">
      <xs:annotation>
        <xs:documentation>Diarrhea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907011">
      <xs:annotation>
        <xs:documentation>Esophageal Intubation-immediately</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907013">
      <xs:annotation>
        <xs:documentation>Esophageal Intubation-other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907015">
      <xs:annotation>
        <xs:documentation>Extravasation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907017">
      <xs:annotation>
        <xs:documentation>Hypertension</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907019">
      <xs:annotation>
        <xs:documentation>Hyperthermia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907021">
      <xs:annotation>
        <xs:documentation>Hypotension</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907023">
      <xs:annotation>
        <xs:documentation>Hypothermia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907025">
      <xs:annotation>
        <xs:documentation>Hypoxia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907027">
      <xs:annotation>
        <xs:documentation>Injury</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907031">
      <xs:annotation>
        <xs:documentation>Nausea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907033">
      <xs:annotation>
        <xs:documentation>None</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907035">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907039">
      <xs:annotation>
        <xs:documentation>Respiratory Distress</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907041">
      <xs:annotation>
        <xs:documentation>Tachycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907043">
      <xs:annotation>
        <xs:documentation>Tachypnea</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907045">
      <xs:annotation>
        <xs:documentation>Vomiting</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907047">
      <xs:annotation>
        <xs:documentation>Bradycardia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907049">
      <xs:annotation>
        <xs:documentation>Itching</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3907051">
      <xs:annotation>
        <xs:documentation>Urticaria</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type VascularAccessLocation

Namespace

http://www.nemsis.org

Annotations

The location of the vascular access site, if applicable.

Diagram

Type

restriction of xs:string

Facets

enumeration

3913001

Antecubital-Left

enumeration

3913003

Antecubital-Right

enumeration

3913005

External Jugular-Left

enumeration

3913007

External Jugular-Right

enumeration

3913009

Femoral-Left IV

enumeration

3913011

Femoral-Right IV

enumeration

3913013

Foot-Right

enumeration

3913015

Foot-Left

enumeration

3913017

Forearm-Left

enumeration

3913019

Forearm-Right

enumeration

3913021

Hand-Left

enumeration

3913023

Hand-Right

enumeration

3913025

Internal Jugular-Left

enumeration

3913027

Internal Jugular-Right

enumeration

3913029

IO-Iliac Crest-Left

enumeration

3913031

IO-Iliac Crest-Right

enumeration

3913033

IO-Femoral-Left Distal

enumeration

3913035

IO-Femoral-Right Distal

enumeration

3913037

IO-Humeral-Left

enumeration

3913039

IO-Humeral-Right

enumeration

3913041

IO-Tibia-Left Distal

enumeration

3913043

IO-Sternum

enumeration

3913045

IO-Tibia-Right Distal

enumeration

3913047

IO-Tibia-Left Proximal

enumeration

3913049

IO-Tibia-Right Proximal

enumeration

3913051

Lower Extremity-Left

enumeration

3913053

Lower Extremity-Right

enumeration

3913055

Other Peripheral

enumeration

3913057

Other Central (PICC, Portacath, etc.)

enumeration

3913059

Scalp

enumeration

3913061

Subclavian-Left

enumeration

3913063

Subclavian-Right

enumeration

3913065

Umbilical

enumeration

3913067

Venous Cutdown-Left Lower Extremity

enumeration

3913069

Venous Cutdown-Right Lower Extremity

enumeration

3913071

Upper Arm-Left

enumeration

3913073

Upper Arm-Right

enumeration

3913075

Radial-Left

enumeration

3913077

Radial-Right

enumeration

3913079

Wrist-Left

enumeration

3913081

Wrist-Right

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.13

Source

<xs:simpleType name="VascularAccessLocation">
  <xs:annotation>
    <xs:documentation>The location of the vascular access site, if applicable.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3913001">
      <xs:annotation>
        <xs:documentation>Antecubital-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913003">
      <xs:annotation>
        <xs:documentation>Antecubital-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913005">
      <xs:annotation>
        <xs:documentation>External Jugular-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913007">
      <xs:annotation>
        <xs:documentation>External Jugular-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913009">
      <xs:annotation>
        <xs:documentation>Femoral-Left IV</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913011">
      <xs:annotation>
        <xs:documentation>Femoral-Right IV</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913013">
      <xs:annotation>
        <xs:documentation>Foot-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913015">
      <xs:annotation>
        <xs:documentation>Foot-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913017">
      <xs:annotation>
        <xs:documentation>Forearm-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913019">
      <xs:annotation>
        <xs:documentation>Forearm-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913021">
      <xs:annotation>
        <xs:documentation>Hand-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913023">
      <xs:annotation>
        <xs:documentation>Hand-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913025">
      <xs:annotation>
        <xs:documentation>Internal Jugular-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913027">
      <xs:annotation>
        <xs:documentation>Internal Jugular-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913029">
      <xs:annotation>
        <xs:documentation>IO-Iliac Crest-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913031">
      <xs:annotation>
        <xs:documentation>IO-Iliac Crest-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913033">
      <xs:annotation>
        <xs:documentation>IO-Femoral-Left Distal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913035">
      <xs:annotation>
        <xs:documentation>IO-Femoral-Right Distal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913037">
      <xs:annotation>
        <xs:documentation>IO-Humeral-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913039">
      <xs:annotation>
        <xs:documentation>IO-Humeral-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913041">
      <xs:annotation>
        <xs:documentation>IO-Tibia-Left Distal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913043">
      <xs:annotation>
        <xs:documentation>IO-Sternum</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913045">
      <xs:annotation>
        <xs:documentation>IO-Tibia-Right Distal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913047">
      <xs:annotation>
        <xs:documentation>IO-Tibia-Left Proximal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913049">
      <xs:annotation>
        <xs:documentation>IO-Tibia-Right Proximal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913051">
      <xs:annotation>
        <xs:documentation>Lower Extremity-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913053">
      <xs:annotation>
        <xs:documentation>Lower Extremity-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913055">
      <xs:annotation>
        <xs:documentation>Other Peripheral</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913057">
      <xs:annotation>
        <xs:documentation>Other Central (PICC, Portacath, etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913059">
      <xs:annotation>
        <xs:documentation>Scalp</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913061">
      <xs:annotation>
        <xs:documentation>Subclavian-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913063">
      <xs:annotation>
        <xs:documentation>Subclavian-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913065">
      <xs:annotation>
        <xs:documentation>Umbilical</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913067">
      <xs:annotation>
        <xs:documentation>Venous Cutdown-Left Lower Extremity</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913069">
      <xs:annotation>
        <xs:documentation>Venous Cutdown-Right Lower Extremity</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913071">
      <xs:annotation>
        <xs:documentation>Upper Arm-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913073">
      <xs:annotation>
        <xs:documentation>Upper Arm-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913075">
      <xs:annotation>
        <xs:documentation>Radial-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913077">
      <xs:annotation>
        <xs:documentation>Radial-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913079">
      <xs:annotation>
        <xs:documentation>Wrist-Left</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3913081">
      <xs:annotation>
        <xs:documentation>Wrist-Right</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type AirwayPlacementTechnique

Namespace

http://www.nemsis.org

Annotations

The manner/equipment used during the placement of the advanced airway.

Diagram

Type

restriction of xs:string

Facets

enumeration

3914001

Blind Digital Technique

enumeration

3914003

Cross Finger Technique

enumeration

3914005

Direct Laryngoscopy

enumeration

3914007

Fiberoptic Laryngoscopy

enumeration

3914009

Indirect Laryngoscopy

enumeration

3914011

Video Laryngoscopy

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.14

Source

<xs:simpleType name="AirwayPlacementTechnique">
  <xs:annotation>
    <xs:documentation>The manner/equipment used during the placement of the advanced airway.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3914001">
      <xs:annotation>
        <xs:documentation>Blind Digital Technique</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3914003">
      <xs:annotation>
        <xs:documentation>Cross Finger Technique</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3914005">
      <xs:annotation>
        <xs:documentation>Direct Laryngoscopy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3914007">
      <xs:annotation>
        <xs:documentation>Fiberoptic Laryngoscopy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3914009">
      <xs:annotation>
        <xs:documentation>Indirect Laryngoscopy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3914011">
      <xs:annotation>
        <xs:documentation>Video Laryngoscopy</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.01 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.01

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.02 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.02

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.03 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.03

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.03 / @PN

Namespace

No namespace

Type

union of(PN.ContraindicationNoted, PN.DeniedByOrder, PN.Refused, PN.UnableToComplete, PN.OrderCriteriaNotMet)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.03

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.ContraindicationNoted PN.DeniedByOrder PN.Refused PN.UnableToComplete PN.OrderCriteriaNotMet"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.05 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.05

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.06 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.06

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.07 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.07

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.07 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.07

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.08 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.08

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.09 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.09

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.10 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.10

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.13 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.13

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.14 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.14

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.14 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.14

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eProcedures / eProcedures.ProcedureGroup / eProcedures.15 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eProcedures/eProcedures.ProcedureGroup/eProcedures.15

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eProcedures / eProcedures.ProcedureGroup / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eProcedures/eProcedures.ProcedureGroup

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
