Included schema eSituation_v3.xsd
Namespace http://www.nemsis.org
Properties
attribute form default unqualified
element form default qualified
Element eSituation / eSituation.01
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.01</number>
  <name>Date/Time of Symptom Onset</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The date and time the symptom began (or was discovered) as it relates to this EMS event. This is described or estimated by the patient, family, and/or healthcare professionals.</definition>
  <v2Number>E05_01</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
  <v3Changes>Added to better define the EMS patient event.</v3Changes>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#DateTimeTypeeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.01_NVeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.01_PN
Type extension of DateTimeType
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
PN union of(PN.UnableToComplete, PN.Approximate) optional
Source

<xs:element name="eSituation.01" nillable="true" id="eSituation.DateTimeofSymptomOnset">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.01</number>
        <name>Date/Time of Symptom Onset</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The date and time the symptom began (or was discovered) as it relates to this EMS event. This is described or estimated by the patient, family, and/or healthcare professionals.</definition>
        <v2Number>E05_01</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
        <v3Changes>Added to better define the EMS patient event.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DateTimeType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.UnableToComplete PN.Approximate"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.02
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.02</number>
  <name>Possible Injury</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indication whether or not there was an injury.</definition>
  <v2Number>E09_04</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This data element provides documentation to classify the EMS Reason for Encounter as either injury or non-injury related based on mechanism and not on actual injury. eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoUnkValueseSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.02_NV
Type extension of YesNoUnkValues
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.02" nillable="true" id="eSituation.PossibleInjury">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.02</number>
        <name>Possible Injury</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indication whether or not there was an injury.</definition>
        <v2Number>E09_04</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This data element provides documentation to classify the EMS Reason for Encounter as either injury or non-injury related based on mechanism and not on actual injury. eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoUnkValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.PatientComplaintGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold information about patient's complaint
Diagram
DiagrameSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_CorrelationIDeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation.03eSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation.04eSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation.05eSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation.06
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children eSituation.03, eSituation.04, eSituation.05, eSituation.06
Instance

<eSituation.PatientComplaintGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eSituation.03 NV="">{0,1}</eSituation.03>
  <eSituation.04 NV="">{0,1}</eSituation.04>
  <eSituation.05 NV="">{0,1}</eSituation.05>
  <eSituation.06 NV="">{0,1}</eSituation.06>
</eSituation.PatientComplaintGroup>
Attributes
QName Type Use
CorrelationID CorrelationID optional
Source

<xs:element name="eSituation.PatientComplaintGroup" id="eSituation.PatientComplaintGroup" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold information about patient's complaint</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eSituation.03" nillable="true" id="eSituation.ComplaintType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eSituation.03</number>
              <name>Complaint Type</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The type of patient healthcare complaint being documented.</definition>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>This was added to group complaints in a more efficient manner</comment>
              <v3Changes>Added to improve data integrity.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ComplaintType">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eSituation.04" nillable="true" id="eSituation.Complaint" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eSituation.04</number>
              <name>Complaint</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The statement of the problem by the patient or the history provider.</definition>
              <v2Number>E09_05</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Response</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="Complaint">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eSituation.05" nillable="true" id="eSituation.DurationofComplaint" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eSituation.05</number>
              <name>Duration of Complaint</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The duration of the complaint.</definition>
              <v2Number>E09_06</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Associated with eSituation.06 (Time Units of Duration of the Complaint).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DurationComplaint">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eSituation.06" nillable="true" id="eSituation.TimeUnitsofDurationofComplaint" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eSituation.06</number>
              <name>Time Units of Duration of Complaint</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The time units of the duration of the patient's complaint.</definition>
              <v2Number>E09_07</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Associated with eSituation.05 (Duration of the Complaint).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="TimeUnitsOfChiefComplaint">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.PatientComplaintGroup / eSituation.03
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.03</number>
  <name>Complaint Type</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The type of patient healthcare complaint being documented.</definition>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This was added to group complaints in a more efficient manner</comment>
  <v3Changes>Added to improve data integrity.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#ComplaintTypeeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation.03_NV
Type extension of ComplaintType
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eSituation.03" nillable="true" id="eSituation.ComplaintType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.03</number>
        <name>Complaint Type</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The type of patient healthcare complaint being documented.</definition>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This was added to group complaints in a more efficient manner</comment>
        <v3Changes>Added to improve data integrity.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ComplaintType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.PatientComplaintGroup / eSituation.04
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.04</number>
  <name>Complaint</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The statement of the problem by the patient or the history provider.</definition>
  <v2Number>E09_05</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Response</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#ComplainteSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation.04_NV
Type extension of Complaint
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eSituation.04" nillable="true" id="eSituation.Complaint" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.04</number>
        <name>Complaint</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The statement of the problem by the patient or the history provider.</definition>
        <v2Number>E09_05</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Response</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="Complaint">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.PatientComplaintGroup / eSituation.05
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.05</number>
  <name>Duration of Complaint</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The duration of the complaint.</definition>
  <v2Number>E09_06</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Associated with eSituation.06 (Time Units of Duration of the Complaint).</comment>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#DurationComplainteSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation.05_NV
Type extension of DurationComplaint
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eSituation.05" nillable="true" id="eSituation.DurationofComplaint" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.05</number>
        <name>Duration of Complaint</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The duration of the complaint.</definition>
        <v2Number>E09_06</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Associated with eSituation.06 (Time Units of Duration of the Complaint).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DurationComplaint">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.PatientComplaintGroup / eSituation.06
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.06</number>
  <name>Time Units of Duration of Complaint</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The time units of the duration of the patient's complaint.</definition>
  <v2Number>E09_07</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Associated with eSituation.05 (Duration of the Complaint).</comment>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#TimeUnitsOfChiefComplainteSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation_eSituation_eSituation.PatientComplaintGroup_eSituation.06_NV
Type extension of TimeUnitsOfChiefComplaint
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eSituation.06" nillable="true" id="eSituation.TimeUnitsofDurationofComplaint" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.06</number>
        <name>Time Units of Duration of Complaint</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The time units of the duration of the patient's complaint.</definition>
        <v2Number>E09_07</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Associated with eSituation.05 (Duration of the Complaint).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TimeUnitsOfChiefComplaint">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.07
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.07</number>
  <name>Chief Complaint Anatomic Location</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The primary anatomic location of the chief complaint as identified by EMS personnel.</definition>
  <v2Number>E09_11</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#ComplaintAnatomicLocationeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.07_NV
Type extension of ComplaintAnatomicLocation
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.07" nillable="true" id="eSituation.ChiefComplaintAnatomicLocation">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.07</number>
        <name>Chief Complaint Anatomic Location</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The primary anatomic location of the chief complaint as identified by EMS personnel.</definition>
        <v2Number>E09_11</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ComplaintAnatomicLocation">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.08
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.08</number>
  <name>Chief Complaint Organ System</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The primary organ system of the patient injured or medically affected.</definition>
  <v2Number>E09_12</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Altered to follow the anatomical organ systems as defined by general anatomy. Added Lymphatic/Immune; Merged Skin with Muscular-Skeletal. Changed OB/Gyn to Reproductive.<br/><br/>Retained non-organ system designations for Global/General and Behavioral/Psychiatric.<br/><br/>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
</nemsisTacDoc>

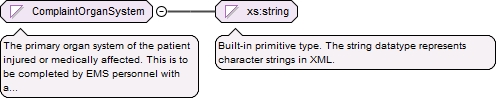

Diagram
DiagrameSituation_v3_xsd.tmp#ComplaintOrganSystemeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.08_NV
Type extension of ComplaintOrganSystem
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.08" nillable="true" id="eSituation.ChiefComplaintOrganSystem">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.08</number>
        <name>Chief Complaint Organ System</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The primary organ system of the patient injured or medically affected.</definition>
        <v2Number>E09_12</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Altered to follow the anatomical organ systems as defined by general anatomy. Added Lymphatic/Immune; Merged Skin with Muscular-Skeletal. Changed OB/Gyn to Reproductive.<br/><br/>Retained non-organ system designations for Global/General and Behavioral/Psychiatric.<br/><br/>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ComplaintOrganSystem">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.09
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.09</number>
  <name>Primary Symptom</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The primary sign and symptom present in the patient or observed by EMS personnel.</definition>
  <v2Number>E09_13</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter. <br/><br/>Code list is represented in ICD-10-CM Diagnosis Codes. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#AssociatedSymptomseSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.09_NV
Type extension of AssociatedSymptoms
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.09" nillable="true" id="eSituation.PrimarySymptom">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.09</number>
        <name>Primary Symptom</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The primary sign and symptom present in the patient or observed by EMS personnel.</definition>
        <v2Number>E09_13</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter. <br/><br/>Code list is represented in ICD-10-CM Diagnosis Codes. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="AssociatedSymptoms">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.10
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.10</number>
  <name>Other Associated Symptoms</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Other symptoms identified by the patient or observed by EMS personnel.</definition>
  <v2Number>E09_14</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#AssociatedSymptomseSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.10_NVeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.10_PNeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.10_CorrelationID
Type extension of AssociatedSymptoms
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
PN union of(PN.SymptomNotPresent) optional
Source

<xs:element name="eSituation.10" nillable="true" id="eSituation.OtherAssociatedSymptoms" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.10</number>
        <name>Other Associated Symptoms</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Other symptoms identified by the patient or observed by EMS personnel.</definition>
        <v2Number>E09_14</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="AssociatedSymptoms">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.SymptomNotPresent"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.11
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.11</number>
  <name>Provider's Primary Impression</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The EMS personnel's impression of the patient's primary problem or most significant condition which led to the management given to the patient (treatments, medications, or procedures).</definition>
  <v2Number>E09_15</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
</nemsisTacDoc>

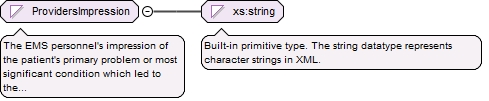

Diagram
DiagrameSituation_v3_xsd.tmp#ProvidersImpressioneSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.11_NV
Type extension of ProvidersImpression
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.11" nillable="true" id="eSituation.ProvidersPrimaryImpression">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.11</number>
        <name>Provider's Primary Impression</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The EMS personnel's impression of the patient's primary problem or most significant condition which led to the management given to the patient (treatments, medications, or procedures).</definition>
        <v2Number>E09_15</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ProvidersImpression">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.12
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.12</number>
  <name>Provider's Secondary Impressions</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The EMS personnel's impression of the patient's secondary problem or most significant condition which led to the management given to the patient (treatments, medications, or procedures).</definition>
  <v2Number>E09_16</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#ProvidersImpressioneSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.12_NVeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.12_CorrelationID
Type extension of ProvidersImpression
Type hierarchy
Properties
content complex
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.12" nillable="true" id="eSituation.ProvidersSecondaryImpressions" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.12</number>
        <name>Provider's Secondary Impressions</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The EMS personnel's impression of the patient's secondary problem or most significant condition which led to the management given to the patient (treatments, medications, or procedures).</definition>
        <v2Number>E09_16</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ProvidersImpression">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.13
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.13</number>
  <name>Initial Patient Acuity</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The acuity of the patient's condition upon EMS arrival at the scene.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="https://www.ems.gov/assets/National_EMS_Core_Content.pdf">https://www.ems.gov/assets/National_EMS_Core_Content.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as refusal for a lift assist-or for routine transfers.</comment>
  <v3Changes>With the release of V3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#InitialPatientAcuityeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.13_NV
Type extension of InitialPatientAcuity
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.13" nillable="true" id="eSituation.InitialPatientAcuity">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.13</number>
        <name>Initial Patient Acuity</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The acuity of the patient's condition upon EMS arrival at the scene.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="https://www.ems.gov/assets/National_EMS_Core_Content.pdf">https://www.ems.gov/assets/National_EMS_Core_Content.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as refusal for a lift assist-or for routine transfers.</comment>
        <v3Changes>With the release of V3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="InitialPatientAcuity">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.WorkRelatedGroup
Namespace http://www.nemsis.org
Annotations

Group Tag to hold patient details if the illness or injury is work related

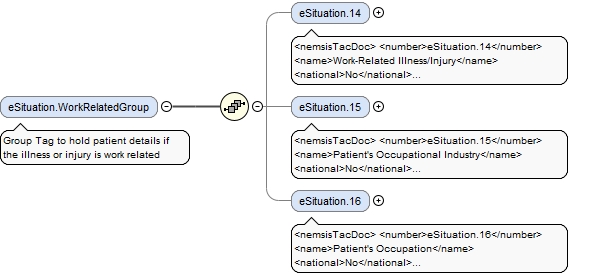

Diagram
DiagrameSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.WorkRelatedGroup_eSituation.14eSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.WorkRelatedGroup_eSituation.15eSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.WorkRelatedGroup_eSituation.16
Properties
content complex
minOccurs 0
Model
Children eSituation.14, eSituation.15, eSituation.16
Instance

<eSituation.WorkRelatedGroup xmlns="http://www.nemsis.org">
  <eSituation.14 NV="">{0,1}</eSituation.14>
  <eSituation.15>{0,1}</eSituation.15>
  <eSituation.16>{0,1}</eSituation.16>
</eSituation.WorkRelatedGroup>
Source

<xs:element name="eSituation.WorkRelatedGroup" id="eSituation.WorkRelatedGroup" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Group Tag to hold patient details if the illness or injury is work related</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eSituation.14" nillable="true" id="eSituation.WorkRelatedIllnessInjury" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eSituation.14</number>
              <name>Work-Related Illness/Injury</name>
              <national>No</national>
              <state>Yes</state>
              <definition>Indication of whether or not the illness or injury is work related.</definition>
              <v2Number>E07_15</v2Number>
              <usage>Recommended</usage>
              <comment>Moved from Version 2.2.1 E07_15 to allow more complete documentation of work related illness and injury.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoUnkValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eSituation.15" type="OccupationIndustry" id="eSituation.PatientsOccupationalIndustry" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eSituation.15</number>
              <name>Patient's Occupational Industry</name>
              <national>No</national>
              <state>No</state>
              <definition>The occupational industry of the patient's work.</definition>
              <v2Number>E07_16</v2Number>
              <usage>Optional</usage>
              <comment>From the North American Industry Classification System (NAICS) from US Bureau of Labor Statistics <br/>(https://www.census.gov/naics/?58967?yearbck=2022).</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eSituation.16" type="PatientsOccupation" id="eSituation.PatientsOccupation" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eSituation.16</number>
              <name>Patient's Occupation</name>
              <national>No</national>
              <state>No</state>
              <definition>The occupation of the patient.</definition>
              <v2Number>E07_17</v2Number>
              <usage>Optional</usage>
              <comment>Based on the Standard Occupational Classification of the US Bureau of Labor Statistics <br/>(https://www.bls.gov/soc/2018/soc_structure_2018.pdf)</comment>
              <v3Changes>Added to better describe work related injury.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.WorkRelatedGroup / eSituation.14
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.14</number>
  <name>Work-Related Illness/Injury</name>
  <national>No</national>
  <state>Yes</state>
  <definition>Indication of whether or not the illness or injury is work related.</definition>
  <v2Number>E07_15</v2Number>
  <usage>Recommended</usage>
  <comment>Moved from Version 2.2.1 E07_15 to allow more complete documentation of work related illness and injury.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#YesNoUnkValueseSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.WorkRelatedGroup_eSituation_eSituation_eSituation.WorkRelatedGroup_eSituation.14_NV
Type extension of YesNoUnkValues
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eSituation.14" nillable="true" id="eSituation.WorkRelatedIllnessInjury" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.14</number>
        <name>Work-Related Illness/Injury</name>
        <national>No</national>
        <state>Yes</state>
        <definition>Indication of whether or not the illness or injury is work related.</definition>
        <v2Number>E07_15</v2Number>
        <usage>Recommended</usage>
        <comment>Moved from Version 2.2.1 E07_15 to allow more complete documentation of work related illness and injury.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoUnkValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.WorkRelatedGroup / eSituation.15
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.15</number>
  <name>Patient's Occupational Industry</name>
  <national>No</national>
  <state>No</state>
  <definition>The occupational industry of the patient's work.</definition>
  <v2Number>E07_16</v2Number>
  <usage>Optional</usage>
  <comment>From the North American Industry Classification System (NAICS) from US Bureau of Labor Statistics <br/>(https://www.census.gov/naics/?58967?yearbck=2022).</comment>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#OccupationIndustry
Type OccupationIndustry
Properties
content simple
minOccurs 0
Facets
enumeration 2815001
Accommodation and Food Services
enumeration 2815003
Administrative and Support and Waste Management and Remediation Services
enumeration 2815005
Agriculture, Forestry, Fishing and Hunting
enumeration 2815007
Arts, Entertainment, and Recreation
enumeration 2815009
Construction
enumeration 2815011
Educational Services
enumeration 2815013
Finance and Insurance
enumeration 2815015
Health Care and Social Assistance
enumeration 2815017
Information
enumeration 2815019
Management of Companies and Enterprises
enumeration 2815021
Manufacturing
enumeration 2815023
Mining, Quarrying, and Oil and Gas Extraction
enumeration 2815025
Other Services (except Public Administration)
enumeration 2815027
Professional, Scientific, and Technical Services
enumeration 2815029
Public Administration
enumeration 2815031
Real Estate and Rental and Leasing
enumeration 2815033
Retail Trade
enumeration 2815035
Transportation and Warehousing
enumeration 2815037
Utilities
enumeration 2815039
Wholesale Trade
Source

<xs:element name="eSituation.15" type="OccupationIndustry" id="eSituation.PatientsOccupationalIndustry" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.15</number>
        <name>Patient's Occupational Industry</name>
        <national>No</national>
        <state>No</state>
        <definition>The occupational industry of the patient's work.</definition>
        <v2Number>E07_16</v2Number>
        <usage>Optional</usage>
        <comment>From the North American Industry Classification System (NAICS) from US Bureau of Labor Statistics <br/>(https://www.census.gov/naics/?58967?yearbck=2022).</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eSituation / eSituation.WorkRelatedGroup / eSituation.16
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.16</number>
  <name>Patient's Occupation</name>
  <national>No</national>
  <state>No</state>
  <definition>The occupation of the patient.</definition>
  <v2Number>E07_17</v2Number>
  <usage>Optional</usage>
  <comment>Based on the Standard Occupational Classification of the US Bureau of Labor Statistics <br/>(https://www.bls.gov/soc/2018/soc_structure_2018.pdf)</comment>
  <v3Changes>Added to better describe work related injury.</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#PatientsOccupation
Type PatientsOccupation
Properties
content simple
minOccurs 0
Facets
enumeration 2816001
Architecture and Engineering Occupations
enumeration 2816003
Arts, Design, Entertainment, Sports, and Media Occupations
enumeration 2816005
Building and Grounds Cleaning and Maintenance Occupations
enumeration 2816007
Business and Financial Operations Occupations
enumeration 2816009
Community and Social Services Occupations
enumeration 2816011
Computer and Mathematical Occupations
enumeration 2816013
Construction and Extraction Occupations
enumeration 2816015
Educational Instruction and Library Occupations
enumeration 2816017
Farming, Fishing and Forestry Occupations
enumeration 2816019
Food Preparation and Serving Related Occupations
enumeration 2816021
Healthcare Practitioners and Technical Occupations
enumeration 2816023
Healthcare Support Occupations
enumeration 2816025
Installation, Maintenance, and Repair Occupations
enumeration 2816027
Legal Occupations
enumeration 2816029
Life, Physical, and Social Science Occupations
enumeration 2816031
Management Occupations
enumeration 2816033
Military Specific Occupations
enumeration 2816035
Office and Administrative Support Occupations
enumeration 2816037
Personal Care and Service Occupations
enumeration 2816039
Production Occupations
enumeration 2816041
Protective Service Occupations
enumeration 2816043
Sales and Related Occupations
enumeration 2816045
Transportation and Material Moving Occupations
Source

<xs:element name="eSituation.16" type="PatientsOccupation" id="eSituation.PatientsOccupation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.16</number>
        <name>Patient's Occupation</name>
        <national>No</national>
        <state>No</state>
        <definition>The occupation of the patient.</definition>
        <v2Number>E07_17</v2Number>
        <usage>Optional</usage>
        <comment>Based on the Standard Occupational Classification of the US Bureau of Labor Statistics <br/>(https://www.bls.gov/soc/2018/soc_structure_2018.pdf)</comment>
        <v3Changes>Added to better describe work related injury.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>
Element eSituation / eSituation.17
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.17</number>
  <name>Patient Activity</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The activity the patient was involved in at the time the patient experienced the onset of symptoms or experienced an injury.</definition>
  <usage>Recommended</usage>
  <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>Code list is represented in ICD-10 Codes. <br/>Website - http://uts.nlm.nih.gov <br/>Product - UMLS Metathesaurus</comment>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#icd10ActivityeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.17_CorrelationIDeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.17_NV
Type extension of icd10Activity
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
nillable true
Attributes
QName Type Use
CorrelationID CorrelationID optional
NV union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting) optional
Source

<xs:element name="eSituation.17" nillable="true" id="eSituation.PatientActivity" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.17</number>
        <name>Patient Activity</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The activity the patient was involved in at the time the patient experienced the onset of symptoms or experienced an injury.</definition>
        <usage>Recommended</usage>
        <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>Code list is represented in ICD-10 Codes. <br/>Website - http://uts.nlm.nih.gov <br/>Product - UMLS Metathesaurus</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="icd10Activity">
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.18
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.18</number>
  <name>Date/Time Last Known Well</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The estimated date and time the patient was last known to be well or in their usual state of health. This is described or estimated by the patient, family, and/or bystanders.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>For stroke related events, this is the date and time the patient was last seen normal. For cardiac or respiratory arrest related events, this is the date and time the patient was last known to have a pulse or when interaction was had with the patient. For drowning related events, this is the date and time the patient was last seen. For injury or trauma related events, this is the date and time the patient was injured.</comment>
</nemsisTacDoc>
Diagram
DiagramcommonTypes_v3_xsd.tmp#DateTimeTypeeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.18_NVeSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.18_PN
Type extension of DateTimeType
Type hierarchy
Properties
content complex
minOccurs 1
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
PN union of(PN.UnableToComplete, PN.Approximate) optional
Source

<xs:element name="eSituation.18" id="eTimes.DateTimeLastKnownWell" minOccurs="1" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.18</number>
        <name>Date/Time Last Known Well</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The estimated date and time the patient was last known to be well or in their usual state of health. This is described or estimated by the patient, family, and/or bystanders.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>For stroke related events, this is the date and time the patient was last seen normal. For cardiac or respiratory arrest related events, this is the date and time the patient was last known to have a pulse or when interaction was had with the patient. For drowning related events, this is the date and time the patient was last seen. For injury or trauma related events, this is the date and time the patient was injured.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DateTimeType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.UnableToComplete PN.Approximate"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.19
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.19</number>
  <name>Justification for Transfer or Encounter</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The ordering physician or medical provider diagnosis or stated reason for a hospital-to-hospital transfer, other medical transport, or Mobile Integrated Healthcare encounter.</definition>
  <usage>Recommended</usage>
  <comment>This is the diagnosis or reason for transfer, or medical transport or Integrated Healthcare Encounter provided by the ordering physician or medical provider. Hospital-to-hospital transfers and medical transports are based on the ordering medical provider, and not the EMS provider's impression. The text of the reason or diagnosis would be entered here rather than using the patient complaint field (as the patient may still have complaints to document), eSituation.11 Provider's Primary Impression or eSituation.12 Provider's Secondary Impressions.<br/><br/>This element should only be documented when eResponse.05 Type of Service Requested is a transfer, Other Routine Medical Transport, or Mobile Integrated Health Care Encounter.</comment>
  <v3Changes>This element is being added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#JustificationforTransferorEncountereSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.19_NV
Type extension of JustificationforTransferorEncounter
Type hierarchy
Properties
content complex
minOccurs 0
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.19" id="eSituation.JustificationforTransferorEncounter" minOccurs="0" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.19</number>
        <name>Justification for Transfer or Encounter</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The ordering physician or medical provider diagnosis or stated reason for a hospital-to-hospital transfer, other medical transport, or Mobile Integrated Healthcare encounter.</definition>
        <usage>Recommended</usage>
        <comment>This is the diagnosis or reason for transfer, or medical transport or Integrated Healthcare Encounter provided by the ordering physician or medical provider. Hospital-to-hospital transfers and medical transports are based on the ordering medical provider, and not the EMS provider's impression. The text of the reason or diagnosis would be entered here rather than using the patient complaint field (as the patient may still have complaints to document), eSituation.11 Provider's Primary Impression or eSituation.12 Provider's Secondary Impressions.<br/><br/>This element should only be documented when eResponse.05 Type of Service Requested is a transfer, Other Routine Medical Transport, or Mobile Integrated Health Care Encounter.</comment>
        <v3Changes>This element is being added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="JustificationforTransferorEncounter">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Element eSituation / eSituation.20
Namespace http://www.nemsis.org
Annotations

<nemsisTacDoc>
  <number>eSituation.20</number>
  <name>Reason for Interfacility Transfer/Medical Transport</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The general categories of the reason for an interfacility transfer/medical transport.</definition>
  <usage>Required</usage>
  <comment>This supports and works in combination with eSituation.19 Justification for Transfer or Encounter to provide defined categories for an interfacility transfer or other medical transport. This documentation provides support for reimbursement and a means for regions and states to evaluate transfer patterns and types.</comment>
  <v3Changes>Element added with the release of v3.5.0</v3Changes>
</nemsisTacDoc>
Diagram
DiagrameSituation_v3_xsd.tmp#ReasonforInterfacilityTransfereSituation_v3_xsd.tmp#eSituation_eSituation_eSituation.20_NV
Type extension of ReasonforInterfacilityTransfer
Type hierarchy
Properties
content complex
nillable true
Attributes
QName Type Use
NV union of(NV.NotApplicable, NV.NotRecorded) optional
Source

<xs:element name="eSituation.20" id="eSituation.ReasonforInterfacilityTransferMedicalTransport" nillable="true">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eSituation.20</number>
        <name>Reason for Interfacility Transfer/Medical Transport</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The general categories of the reason for an interfacility transfer/medical transport.</definition>
        <usage>Required</usage>
        <comment>This supports and works in combination with eSituation.19 Justification for Transfer or Encounter to provide defined categories for an interfacility transfer or other medical transport. This documentation provides support for reimbursement and a means for regions and states to evaluate transfer patterns and types.</comment>
        <v3Changes>Element added with the release of v3.5.0</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ReasonforInterfacilityTransfer">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>
Complex Type eSituation
Namespace http://www.nemsis.org
Diagram
DiagrameSituation_v3_xsd.tmp#eSituation_eSituation.01eSituation_v3_xsd.tmp#eSituation_eSituation.02eSituation_v3_xsd.tmp#eSituation_eSituation.PatientComplaintGroupeSituation_v3_xsd.tmp#eSituation_eSituation.07eSituation_v3_xsd.tmp#eSituation_eSituation.08eSituation_v3_xsd.tmp#eSituation_eSituation.09eSituation_v3_xsd.tmp#eSituation_eSituation.10eSituation_v3_xsd.tmp#eSituation_eSituation.11eSituation_v3_xsd.tmp#eSituation_eSituation.12eSituation_v3_xsd.tmp#eSituation_eSituation.13eSituation_v3_xsd.tmp#eSituation_eSituation.WorkRelatedGroupeSituation_v3_xsd.tmp#eSituation_eSituation.17eSituation_v3_xsd.tmp#eSituation_eSituation.18eSituation_v3_xsd.tmp#eSituation_eSituation.19eSituation_v3_xsd.tmp#eSituation_eSituation.20
Used by
Model
Children eSituation.01, eSituation.02, eSituation.07, eSituation.08, eSituation.09, eSituation.10, eSituation.11, eSituation.12, eSituation.13, eSituation.17, eSituation.18, eSituation.19, eSituation.20, eSituation.PatientComplaintGroup, eSituation.WorkRelatedGroup
Source

<xs:complexType name="eSituation" id="eSituation.Situation">
  <xs:sequence>
    <xs:element name="eSituation.01" nillable="true" id="eSituation.DateTimeofSymptomOnset">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.01</number>
            <name>Date/Time of Symptom Onset</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The date and time the symptom began (or was discovered) as it relates to this EMS event. This is described or estimated by the patient, family, and/or healthcare professionals.</definition>
            <v2Number>E05_01</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
            <v3Changes>Added to better define the EMS patient event.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="DateTimeType">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="PN" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="PN.UnableToComplete PN.Approximate"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.02" nillable="true" id="eSituation.PossibleInjury">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.02</number>
            <name>Possible Injury</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Indication whether or not there was an injury.</definition>
            <v2Number>E09_04</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>Response</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>This data element provides documentation to classify the EMS Reason for Encounter as either injury or non-injury related based on mechanism and not on actual injury. eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="YesNoUnkValues">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.PatientComplaintGroup" id="eSituation.PatientComplaintGroup" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold information about patient's complaint</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eSituation.03" nillable="true" id="eSituation.ComplaintType" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eSituation.03</number>
                  <name>Complaint Type</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The type of patient healthcare complaint being documented.</definition>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>This was added to group complaints in a more efficient manner</comment>
                  <v3Changes>Added to improve data integrity.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ComplaintType">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eSituation.04" nillable="true" id="eSituation.Complaint" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eSituation.04</number>
                  <name>Complaint</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The statement of the problem by the patient or the history provider.</definition>
                  <v2Number>E09_05</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Response</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="Complaint">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eSituation.05" nillable="true" id="eSituation.DurationofComplaint" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eSituation.05</number>
                  <name>Duration of Complaint</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The duration of the complaint.</definition>
                  <v2Number>E09_06</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Associated with eSituation.06 (Time Units of Duration of the Complaint).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DurationComplaint">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eSituation.06" nillable="true" id="eSituation.TimeUnitsofDurationofComplaint" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eSituation.06</number>
                  <name>Time Units of Duration of Complaint</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The time units of the duration of the patient's complaint.</definition>
                  <v2Number>E09_07</v2Number>
                  <usage>Recommended</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Associated with eSituation.05 (Duration of the Complaint).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="TimeUnitsOfChiefComplaint">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.07" nillable="true" id="eSituation.ChiefComplaintAnatomicLocation">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.07</number>
            <name>Chief Complaint Anatomic Location</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The primary anatomic location of the chief complaint as identified by EMS personnel.</definition>
            <v2Number>E09_11</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ComplaintAnatomicLocation">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.08" nillable="true" id="eSituation.ChiefComplaintOrganSystem">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.08</number>
            <name>Chief Complaint Organ System</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The primary organ system of the patient injured or medically affected.</definition>
            <v2Number>E09_12</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Altered to follow the anatomical organ systems as defined by general anatomy. Added Lymphatic/Immune; Merged Skin with Muscular-Skeletal. Changed OB/Gyn to Reproductive.<br/><br/>Retained non-organ system designations for Global/General and Behavioral/Psychiatric.<br/><br/>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ComplaintOrganSystem">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.09" nillable="true" id="eSituation.PrimarySymptom">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.09</number>
            <name>Primary Symptom</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The primary sign and symptom present in the patient or observed by EMS personnel.</definition>
            <v2Number>E09_13</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>eSituation.02 (Possible Injury), eSituation.09 (Primary Symptom), eSituation.07 (Chief Complaint Anatomic Location), and eSituation.08 (Chief Complaint Organ System) are grouped together to form the EMS Reason for Encounter. <br/><br/>Code list is represented in ICD-10-CM Diagnosis Codes. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="AssociatedSymptoms">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.10" nillable="true" id="eSituation.OtherAssociatedSymptoms" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.10</number>
            <name>Other Associated Symptoms</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>Other symptoms identified by the patient or observed by EMS personnel.</definition>
            <v2Number>E09_14</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="AssociatedSymptoms">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="PN" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="PN.SymptomNotPresent"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.11" nillable="true" id="eSituation.ProvidersPrimaryImpression">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.11</number>
            <name>Provider's Primary Impression</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The EMS personnel's impression of the patient's primary problem or most significant condition which led to the management given to the patient (treatments, medications, or procedures).</definition>
            <v2Number>E09_15</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ProvidersImpression">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.12" nillable="true" id="eSituation.ProvidersSecondaryImpressions" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.12</number>
            <name>Provider's Secondary Impressions</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The EMS personnel's impression of the patient's secondary problem or most significant condition which led to the management given to the patient (treatments, medications, or procedures).</definition>
            <v2Number>E09_16</v2Number>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>ICD-10-CM <br/>Website - <a href="http://uts.nlm.nih.gov" target="_blank">http://uts.nlm.nih.gov</a> <br/>Product - UMLS Metathesaurus</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ProvidersImpression">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.13" nillable="true" id="eSituation.InitialPatientAcuity">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.13</number>
            <name>Initial Patient Acuity</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The acuity of the patient's condition upon EMS arrival at the scene.</definition>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>Definitions related to "Critical, Emergent, and Lower Acuity" can be found in the National EMS Core Content document from NHTSA EMS (DOT HS 809-898 July 2005) at <br/><a href="https://www.ems.gov/assets/National_EMS_Core_Content.pdf">https://www.ems.gov/assets/National_EMS_Core_Content.pdf</a> <br/><br/>Dead without Resuscitation Efforts would be appropriate if resuscitation was initiated by non-EMS personnel but discontinued immediately upon evaluation by first arriving EMS personnel. <br/><br/>"Non-Acute/Routine" added for use with patients with no clinical issues-such as refusal for a lift assist-or for routine transfers.</comment>
            <v3Changes>With the release of V3.5.0 additional values were added to meet the needs of EMS.</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="InitialPatientAcuity">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.WorkRelatedGroup" id="eSituation.WorkRelatedGroup" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Group Tag to hold patient details if the illness or injury is work related</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eSituation.14" nillable="true" id="eSituation.WorkRelatedIllnessInjury" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eSituation.14</number>
                  <name>Work-Related Illness/Injury</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>Indication of whether or not the illness or injury is work related.</definition>
                  <v2Number>E07_15</v2Number>
                  <usage>Recommended</usage>
                  <comment>Moved from Version 2.2.1 E07_15 to allow more complete documentation of work related illness and injury.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoUnkValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eSituation.15" type="OccupationIndustry" id="eSituation.PatientsOccupationalIndustry" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eSituation.15</number>
                  <name>Patient's Occupational Industry</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The occupational industry of the patient's work.</definition>
                  <v2Number>E07_16</v2Number>
                  <usage>Optional</usage>
                  <comment>From the North American Industry Classification System (NAICS) from US Bureau of Labor Statistics <br/>(https://www.census.gov/naics/?58967?yearbck=2022).</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eSituation.16" type="PatientsOccupation" id="eSituation.PatientsOccupation" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eSituation.16</number>
                  <name>Patient's Occupation</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The occupation of the patient.</definition>
                  <v2Number>E07_17</v2Number>
                  <usage>Optional</usage>
                  <comment>Based on the Standard Occupational Classification of the US Bureau of Labor Statistics <br/>(https://www.bls.gov/soc/2018/soc_structure_2018.pdf)</comment>
                  <v3Changes>Added to better describe work related injury.</v3Changes>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.17" nillable="true" id="eSituation.PatientActivity" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.17</number>
            <name>Patient Activity</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The activity the patient was involved in at the time the patient experienced the onset of symptoms or experienced an injury.</definition>
            <usage>Recommended</usage>
            <comment>Code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: https://nemsis.org/technical-resources/version-3/version-3-resource-repository/ <br/><br/>Code list is represented in ICD-10 Codes. <br/>Website - http://uts.nlm.nih.gov <br/>Product - UMLS Metathesaurus</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="icd10Activity">
            <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.18" id="eTimes.DateTimeLastKnownWell" minOccurs="1" nillable="true">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.18</number>
            <name>Date/Time Last Known Well</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The estimated date and time the patient was last known to be well or in their usual state of health. This is described or estimated by the patient, family, and/or bystanders.</definition>
            <usage>Required</usage>
            <performanceMeasuresGroup>
              <performanceMeasure>Airway</performanceMeasure>
              <performanceMeasure>Cardiac Arrest</performanceMeasure>
              <performanceMeasure>Pediatric</performanceMeasure>
              <performanceMeasure>STEMI</performanceMeasure>
              <performanceMeasure>Stroke</performanceMeasure>
              <performanceMeasure>Trauma</performanceMeasure>
            </performanceMeasuresGroup>
            <comment>For stroke related events, this is the date and time the patient was last seen normal. For cardiac or respiratory arrest related events, this is the date and time the patient was last known to have a pulse or when interaction was had with the patient. For drowning related events, this is the date and time the patient was last seen. For injury or trauma related events, this is the date and time the patient was injured.</comment>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="DateTimeType">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
            <xs:attribute name="PN" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="PN.UnableToComplete PN.Approximate"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.19" id="eSituation.JustificationforTransferorEncounter" minOccurs="0" nillable="true">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.19</number>
            <name>Justification for Transfer or Encounter</name>
            <national>No</national>
            <state>Yes</state>
            <definition>The ordering physician or medical provider diagnosis or stated reason for a hospital-to-hospital transfer, other medical transport, or Mobile Integrated Healthcare encounter.</definition>
            <usage>Recommended</usage>
            <comment>This is the diagnosis or reason for transfer, or medical transport or Integrated Healthcare Encounter provided by the ordering physician or medical provider. Hospital-to-hospital transfers and medical transports are based on the ordering medical provider, and not the EMS provider's impression. The text of the reason or diagnosis would be entered here rather than using the patient complaint field (as the patient may still have complaints to document), eSituation.11 Provider's Primary Impression or eSituation.12 Provider's Secondary Impressions.<br/><br/>This element should only be documented when eResponse.05 Type of Service Requested is a transfer, Other Routine Medical Transport, or Mobile Integrated Health Care Encounter.</comment>
            <v3Changes>This element is being added with the release of v3.5.0</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="JustificationforTransferorEncounter">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="eSituation.20" id="eSituation.ReasonforInterfacilityTransferMedicalTransport" nillable="true">
      <xs:annotation>
        <xs:documentation>
          <nemsisTacDoc>
            <number>eSituation.20</number>
            <name>Reason for Interfacility Transfer/Medical Transport</name>
            <national>Yes</national>
            <state>Yes</state>
            <definition>The general categories of the reason for an interfacility transfer/medical transport.</definition>
            <usage>Required</usage>
            <comment>This supports and works in combination with eSituation.19 Justification for Transfer or Encounter to provide defined categories for an interfacility transfer or other medical transport. This documentation provides support for reimbursement and a means for regions and states to evaluate transfer patterns and types.</comment>
            <v3Changes>Element added with the release of v3.5.0</v3Changes>
          </nemsisTacDoc>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="ReasonforInterfacilityTransfer">
            <xs:attribute name="NV" use="optional">
              <xs:simpleType>
                <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
              </xs:simpleType>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Simple Type ComplaintType
Namespace http://www.nemsis.org
Annotations

The type of patient healthcare complaint being documented.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2803001
Chief (Primary)
enumeration 2803003
Other
enumeration 2803005
Secondary
Used by
Source

<xs:simpleType name="ComplaintType">
  <xs:annotation>
    <xs:documentation>The type of patient healthcare complaint being documented.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2803001">
      <xs:annotation>
        <xs:documentation>Chief (Primary)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2803003">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2803005">
      <xs:annotation>
        <xs:documentation>Secondary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type Complaint
Namespace http://www.nemsis.org
Annotations

The statement of the problem by the patient or the history provider.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 255
Used by
Source

<xs:simpleType name="Complaint">
  <xs:annotation>
    <xs:documentation>The statement of the problem by the patient or the history provider.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Simple Type DurationComplaint
Namespace http://www.nemsis.org
Annotations

The duration of the chief complaint
Diagram
Diagram
Type restriction of xs:integer
Facets
maxInclusive 365
minInclusive 1
Used by
Source

<xs:simpleType name="DurationComplaint">
  <xs:annotation>
    <xs:documentation>The duration of the chief complaint</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="365"/>
  </xs:restriction>
</xs:simpleType>
Simple Type TimeUnitsOfChiefComplaint
Namespace http://www.nemsis.org
Annotations

The time units of the duration of the patient's chief complaint
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2806001
Seconds
enumeration 2806003
Minutes
enumeration 2806005
Hours
enumeration 2806007
Days
enumeration 2806009
Weeks
enumeration 2806011
Months
enumeration 2806013
Years
Used by
Source

<xs:simpleType name="TimeUnitsOfChiefComplaint">
  <xs:annotation>
    <xs:documentation>The time units of the duration of the patient's chief complaint</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2806001">
      <xs:annotation>
        <xs:documentation>Seconds</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2806003">
      <xs:annotation>
        <xs:documentation>Minutes</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2806005">
      <xs:annotation>
        <xs:documentation>Hours</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2806007">
      <xs:annotation>
        <xs:documentation>Days</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2806009">
      <xs:annotation>
        <xs:documentation>Weeks</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2806011">
      <xs:annotation>
        <xs:documentation>Months</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2806013">
      <xs:annotation>
        <xs:documentation>Years</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type ComplaintAnatomicLocation
Namespace http://www.nemsis.org
Annotations

The primary anatomic location of the chief complaint as identified by EMS personnel
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2807001
Abdomen
enumeration 2807003
Back
enumeration 2807005
Chest
enumeration 2807007
Extremity-Lower
enumeration 2807009
Extremity-Upper
enumeration 2807011
General/Global
enumeration 2807013
Genitalia
enumeration 2807015
Head
enumeration 2807017
Neck
Used by
Source

<xs:simpleType name="ComplaintAnatomicLocation">
  <xs:annotation>
    <xs:documentation>The primary anatomic location of the chief complaint as identified by EMS personnel</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2807001">
      <xs:annotation>
        <xs:documentation>Abdomen</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2807003">
      <xs:annotation>
        <xs:documentation>Back</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2807005">
      <xs:annotation>
        <xs:documentation>Chest</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2807007">
      <xs:annotation>
        <xs:documentation>Extremity-Lower</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2807009">
      <xs:annotation>
        <xs:documentation>Extremity-Upper</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2807011">
      <xs:annotation>
        <xs:documentation>General/Global</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2807013">
      <xs:annotation>
        <xs:documentation>Genitalia</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2807015">
      <xs:annotation>
        <xs:documentation>Head</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2807017">
      <xs:annotation>
        <xs:documentation>Neck</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type ComplaintOrganSystem
Namespace http://www.nemsis.org
Annotations

The primary organ system of the patient injured or medically affected. This is to be completed by EMS personnel with a minimum of an EMT-Paramedic level of credentialing
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2808001
Behavioral/Psychiatric
enumeration 2808003
Cardiovascular
enumeration 2808005
CNS/Neuro
enumeration 2808007
Endocrine/Metabolic
enumeration 2808009
GI
enumeration 2808011
Global/General
enumeration 2808013
Lymphatic/Immune
enumeration 2808015
Musculoskeletal/Skin
enumeration 2808017
Reproductive
enumeration 2808019
Pulmonary
enumeration 2808021
Renal
Used by
Source

<xs:simpleType name="ComplaintOrganSystem">
  <xs:annotation>
    <xs:documentation>The primary organ system of the patient injured or medically affected. This is to be completed by EMS personnel with a minimum of an EMT-Paramedic level of credentialing</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2808001">
      <xs:annotation>
        <xs:documentation>Behavioral/Psychiatric</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808003">
      <xs:annotation>
        <xs:documentation>Cardiovascular</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808005">
      <xs:annotation>
        <xs:documentation>CNS/Neuro</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808007">
      <xs:annotation>
        <xs:documentation>Endocrine/Metabolic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808009">
      <xs:annotation>
        <xs:documentation>GI</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808011">
      <xs:annotation>
        <xs:documentation>Global/General</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808013">
      <xs:annotation>
        <xs:documentation>Lymphatic/Immune</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808015">
      <xs:annotation>
        <xs:documentation>Musculoskeletal/Skin</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808017">
      <xs:annotation>
        <xs:documentation>Reproductive</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808019">
      <xs:annotation>
        <xs:documentation>Pulmonary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2808021">
      <xs:annotation>
        <xs:documentation>Renal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type AssociatedSymptoms
Namespace http://www.nemsis.org
Annotations

The sign and symptom present in the patient or observed by EMS personnel
Diagram
Diagram
Type restriction of xs:string
Facets
pattern (R[0-6][0-9](\.[0-9]{1,4})?|(R73\.9)|(R99))|([A-QSTUZ][0-9][0-9A-Z])((\.[0-9A-Z]{1,4})?)
Used by
Source

<xs:simpleType name="AssociatedSymptoms">
  <xs:annotation>
    <xs:documentation>The sign and symptom present in the patient or observed by EMS personnel</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="(R[0-6][0-9](\.[0-9]{1,4})?|(R73\.9)|(R99))|([A-QSTUZ][0-9][0-9A-Z])((\.[0-9A-Z]{1,4})?)"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ProvidersImpression
Namespace http://www.nemsis.org
Annotations

The EMS personnel's impression of the patient's primary problem or most significant condition which led to the management given to the patient (treatments, medications, or procedures).
Diagram
Diagram
Type restriction of xs:string
Facets
pattern (R[0-6][0-9](\.[0-9]{1,4})?|(R73\.9)|(R99))|([A-QSTUZ][0-9][0-9A-Z])((\.[0-9A-Z]{1,4})?)
Used by
Source

<xs:simpleType name="ProvidersImpression">
  <xs:annotation>
    <xs:documentation>The EMS personnel's impression of the patient's primary problem or most significant condition which led to the management given to the patient (treatments, medications, or procedures).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="(R[0-6][0-9](\.[0-9]{1,4})?|(R73\.9)|(R99))|([A-QSTUZ][0-9][0-9A-Z])((\.[0-9A-Z]{1,4})?)"/>
  </xs:restriction>
</xs:simpleType>
Simple Type InitialPatientAcuity
Namespace http://www.nemsis.org
Annotations

The condition of the patient on EMS arrival at the scene.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2813001
Critical (Red)
enumeration 2813003
Emergent (Yellow)
enumeration 2813005
Lower Acuity (Green)
enumeration 2813007
Dead without Resuscitation Efforts (Black)
enumeration 2813009
Non-Acute/Routine
Used by
Source

<xs:simpleType name="InitialPatientAcuity">
  <xs:annotation>
    <xs:documentation>The condition of the patient on EMS arrival at the scene.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2813001">
      <xs:annotation>
        <xs:documentation>Critical (Red)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2813003">
      <xs:annotation>
        <xs:documentation>Emergent (Yellow)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2813005">
      <xs:annotation>
        <xs:documentation>Lower Acuity (Green)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2813007">
      <xs:annotation>
        <xs:documentation>Dead without Resuscitation Efforts (Black)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2813009">
      <xs:annotation>
        <xs:documentation>Non-Acute/Routine</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type OccupationIndustry
Namespace http://www.nemsis.org
Annotations

The occupational industry of the patient's work.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2815001
Accommodation and Food Services
enumeration 2815003
Administrative and Support and Waste Management and Remediation Services
enumeration 2815005
Agriculture, Forestry, Fishing and Hunting
enumeration 2815007
Arts, Entertainment, and Recreation
enumeration 2815009
Construction
enumeration 2815011
Educational Services
enumeration 2815013
Finance and Insurance
enumeration 2815015
Health Care and Social Assistance
enumeration 2815017
Information
enumeration 2815019
Management of Companies and Enterprises
enumeration 2815021
Manufacturing
enumeration 2815023
Mining, Quarrying, and Oil and Gas Extraction
enumeration 2815025
Other Services (except Public Administration)
enumeration 2815027
Professional, Scientific, and Technical Services
enumeration 2815029
Public Administration
enumeration 2815031
Real Estate and Rental and Leasing
enumeration 2815033
Retail Trade
enumeration 2815035
Transportation and Warehousing
enumeration 2815037
Utilities
enumeration 2815039
Wholesale Trade
Used by
Source

<xs:simpleType name="OccupationIndustry">
  <xs:annotation>
    <xs:documentation>The occupational industry of the patient's work.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2815001">
      <xs:annotation>
        <xs:documentation>Accommodation and Food Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815003">
      <xs:annotation>
        <xs:documentation>Administrative and Support and Waste Management and Remediation Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815005">
      <xs:annotation>
        <xs:documentation>Agriculture, Forestry, Fishing and Hunting</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815007">
      <xs:annotation>
        <xs:documentation>Arts, Entertainment, and Recreation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815009">
      <xs:annotation>
        <xs:documentation>Construction</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815011">
      <xs:annotation>
        <xs:documentation>Educational Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815013">
      <xs:annotation>
        <xs:documentation>Finance and Insurance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815015">
      <xs:annotation>
        <xs:documentation>Health Care and Social Assistance</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815017">
      <xs:annotation>
        <xs:documentation>Information</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815019">
      <xs:annotation>
        <xs:documentation>Management of Companies and Enterprises</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815021">
      <xs:annotation>
        <xs:documentation>Manufacturing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815023">
      <xs:annotation>
        <xs:documentation>Mining, Quarrying, and Oil and Gas Extraction</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815025">
      <xs:annotation>
        <xs:documentation>Other Services (except Public Administration)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815027">
      <xs:annotation>
        <xs:documentation>Professional, Scientific, and Technical Services</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815029">
      <xs:annotation>
        <xs:documentation>Public Administration</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815031">
      <xs:annotation>
        <xs:documentation>Real Estate and Rental and Leasing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815033">
      <xs:annotation>
        <xs:documentation>Retail Trade</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815035">
      <xs:annotation>
        <xs:documentation>Transportation and Warehousing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815037">
      <xs:annotation>
        <xs:documentation>Utilities</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2815039">
      <xs:annotation>
        <xs:documentation>Wholesale Trade</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type PatientsOccupation
Namespace http://www.nemsis.org
Annotations

The occupation of the patient
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2816001
Architecture and Engineering Occupations
enumeration 2816003
Arts, Design, Entertainment, Sports, and Media Occupations
enumeration 2816005
Building and Grounds Cleaning and Maintenance Occupations
enumeration 2816007
Business and Financial Operations Occupations
enumeration 2816009
Community and Social Services Occupations
enumeration 2816011
Computer and Mathematical Occupations
enumeration 2816013
Construction and Extraction Occupations
enumeration 2816015
Educational Instruction and Library Occupations
enumeration 2816017
Farming, Fishing and Forestry Occupations
enumeration 2816019
Food Preparation and Serving Related Occupations
enumeration 2816021
Healthcare Practitioners and Technical Occupations
enumeration 2816023
Healthcare Support Occupations
enumeration 2816025
Installation, Maintenance, and Repair Occupations
enumeration 2816027
Legal Occupations
enumeration 2816029
Life, Physical, and Social Science Occupations
enumeration 2816031
Management Occupations
enumeration 2816033
Military Specific Occupations
enumeration 2816035
Office and Administrative Support Occupations
enumeration 2816037
Personal Care and Service Occupations
enumeration 2816039
Production Occupations
enumeration 2816041
Protective Service Occupations
enumeration 2816043
Sales and Related Occupations
enumeration 2816045
Transportation and Material Moving Occupations
Used by
Source

<xs:simpleType name="PatientsOccupation">
  <xs:annotation>
    <xs:documentation>The occupation of the patient</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2816001">
      <xs:annotation>
        <xs:documentation>Architecture and Engineering Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816003">
      <xs:annotation>
        <xs:documentation>Arts, Design, Entertainment, Sports, and Media Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816005">
      <xs:annotation>
        <xs:documentation>Building and Grounds Cleaning and Maintenance Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816007">
      <xs:annotation>
        <xs:documentation>Business and Financial Operations Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816009">
      <xs:annotation>
        <xs:documentation>Community and Social Services Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816011">
      <xs:annotation>
        <xs:documentation>Computer and Mathematical Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816013">
      <xs:annotation>
        <xs:documentation>Construction and Extraction Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816015">
      <xs:annotation>
        <xs:documentation>Educational Instruction and Library Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816017">
      <xs:annotation>
        <xs:documentation>Farming, Fishing and Forestry Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816019">
      <xs:annotation>
        <xs:documentation>Food Preparation and Serving Related Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816021">
      <xs:annotation>
        <xs:documentation>Healthcare Practitioners and Technical Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816023">
      <xs:annotation>
        <xs:documentation>Healthcare Support Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816025">
      <xs:annotation>
        <xs:documentation>Installation, Maintenance, and Repair Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816027">
      <xs:annotation>
        <xs:documentation>Legal Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816029">
      <xs:annotation>
        <xs:documentation>Life, Physical, and Social Science Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816031">
      <xs:annotation>
        <xs:documentation>Management Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816033">
      <xs:annotation>
        <xs:documentation>Military Specific Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816035">
      <xs:annotation>
        <xs:documentation>Office and Administrative Support Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816037">
      <xs:annotation>
        <xs:documentation>Personal Care and Service Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816039">
      <xs:annotation>
        <xs:documentation>Production Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816041">
      <xs:annotation>
        <xs:documentation>Protective Service Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816043">
      <xs:annotation>
        <xs:documentation>Sales and Related Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2816045">
      <xs:annotation>
        <xs:documentation>Transportation and Material Moving Occupations</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Simple Type icd10Activity
Namespace http://www.nemsis.org
Annotations

The activity the patient was involved in at the time the patient experienced the onset of symptoms or experienced an injury.
Diagram
Diagram
Type restriction of xs:string
Facets
pattern Y93\.[A-Za-z0-9]{1,4}
Used by
Source

<xs:simpleType name="icd10Activity">
  <xs:annotation>
    <xs:documentation>The activity the patient was involved in at the time the patient experienced the onset of symptoms or experienced an injury.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="Y93\.[A-Za-z0-9]{1,4}"/>
  </xs:restriction>
</xs:simpleType>
Simple Type JustificationforTransferorEncounter
Namespace http://www.nemsis.org
Annotations

The ordering physician or medical provider diagnosis or stated reason for a hospital-to-hospital transfer, other medical transport, or Mobile Integrated Healthcare encounter.
Diagram
Diagram
Type restriction of xs:string
Facets
minLength 1
maxLength 255
Used by
Source

<xs:simpleType name="JustificationforTransferorEncounter">
  <xs:annotation>
    <xs:documentation>The ordering physician or medical provider diagnosis or stated reason for a hospital-to-hospital transfer, other medical transport, or Mobile Integrated Healthcare encounter.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="255"/>
  </xs:restriction>
</xs:simpleType>
Simple Type ReasonforInterfacilityTransfer
Namespace http://www.nemsis.org
Annotations

The general categories of the reason for an interfacility transfer/medical transport.
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration 2820001
Cardiac Specialty
enumeration 2820003
Convenience Transfer (Patient Request)
enumeration 2820005
Diagnostic Testing
enumeration 2820007
Dialysis
enumeration 2820009
Drug and/or Alcohol Rehabilitation Care
enumeration 2820011
Extended Care
enumeration 2820013
Maternal/Neonatal
enumeration 2820015
Medical Specialty Care (Other, Not Listed)
enumeration 2820017
Neurological Specialty Care
enumeration 2820019
Palliative/Hospice Care (Home or Facility)
enumeration 2820021
Pediatric Specialty Care
enumeration 2820023
Psychiatric/Behavioral Care
enumeration 2820025
Physical Rehabilitation Care
enumeration 2820027
Return to Home/Residence
enumeration 2820029
Surgical Specialty Care (Other, Not Listed)
enumeration 2820031
Trauma/Orthopedic Specialty Care
Used by
Source

<xs:simpleType name="ReasonforInterfacilityTransfer">
  <xs:annotation>
    <xs:documentation>The general categories of the reason for an interfacility transfer/medical transport.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="2820001">
      <xs:annotation>
        <xs:documentation>Cardiac Specialty</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820003">
      <xs:annotation>
        <xs:documentation>Convenience Transfer (Patient Request)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820005">
      <xs:annotation>
        <xs:documentation>Diagnostic Testing</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820007">
      <xs:annotation>
        <xs:documentation>Dialysis</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820009">
      <xs:annotation>
        <xs:documentation>Drug and/or Alcohol Rehabilitation Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820011">
      <xs:annotation>
        <xs:documentation>Extended Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820013">
      <xs:annotation>
        <xs:documentation>Maternal/Neonatal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820015">
      <xs:annotation>
        <xs:documentation>Medical Specialty Care (Other, Not Listed)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820017">
      <xs:annotation>
        <xs:documentation>Neurological Specialty Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820019">
      <xs:annotation>
        <xs:documentation>Palliative/Hospice Care (Home or Facility)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820021">
      <xs:annotation>
        <xs:documentation>Pediatric Specialty Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820023">
      <xs:annotation>
        <xs:documentation>Psychiatric/Behavioral Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820025">
      <xs:annotation>
        <xs:documentation>Physical Rehabilitation Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820027">
      <xs:annotation>
        <xs:documentation>Return to Home/Residence</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820029">
      <xs:annotation>
        <xs:documentation>Surgical Specialty Care (Other, Not Listed)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2820031">
      <xs:annotation>
        <xs:documentation>Trauma/Orthopedic Specialty Care</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>
Attribute eSituation / eSituation.01 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.01 / @PN
Namespace No namespace
Type union of(PN.UnableToComplete, PN.Approximate)
Properties
use optional
Used by
Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.UnableToComplete PN.Approximate"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.02 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.PatientComplaintGroup / eSituation.03 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.PatientComplaintGroup / eSituation.04 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.PatientComplaintGroup / eSituation.05 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.PatientComplaintGroup / eSituation.06 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.PatientComplaintGroup / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eSituation / eSituation.07 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.08 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.09 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.10 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.10 / @PN
Namespace No namespace
Type union of(PN.SymptomNotPresent)
Properties
use optional
Used by
Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.SymptomNotPresent"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.10 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eSituation / eSituation.11 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.12 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.12 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eSituation / eSituation.13 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.WorkRelatedGroup / eSituation.14 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.17 / @CorrelationID
Namespace No namespace
Type CorrelationID
Properties
use optional
Facets
minLength 2
maxLength 255
Used by
Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
Attribute eSituation / eSituation.17 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.18 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.18 / @PN
Namespace No namespace
Type union of(PN.UnableToComplete, PN.Approximate)
Properties
use optional
Used by
Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.UnableToComplete PN.Approximate"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.19 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
Attribute eSituation / eSituation.20 / @NV
Namespace No namespace
Type union of(NV.NotApplicable, NV.NotRecorded)
Properties
use optional
Used by
Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>
XML Schema documentation generated by ® XML Editor.
