Schema documentation for eVitals

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Model

Properties

Source

Used by

Included schema eVitals_v3.xsd

Namespace

http://www.nemsis.org

Properties

attribute form default	unqualified
element form default	qualified

Element eVitals / eVitals.VitalGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold eVitals information

Diagram

Properties

content	complex
maxOccurs	unbounded

Model

eVitals.01 , eVitals.02 , eVitals.CardiacRhythmGroup , eVitals.BloodPressureGroup , eVitals.HeartRateGroup , eVitals.12 , eVitals.13{0,1} , eVitals.14 , eVitals.15{0,1} , eVitals.16 , eVitals.17{0,1} , eVitals.18 , eVitals.GlasgowScoreGroup , eVitals.TemperatureGroup{0,1} , eVitals.26 , eVitals.PainScaleGroup , eVitals.StrokeScaleGroup , eVitals.31 , eVitals.32{0,1} , eVitals.33{0,1}

Children

eVitals.01, eVitals.02, eVitals.12, eVitals.13, eVitals.14, eVitals.15, eVitals.16, eVitals.17, eVitals.18, eVitals.26, eVitals.31, eVitals.32, eVitals.33, eVitals.BloodPressureGroup, eVitals.CardiacRhythmGroup, eVitals.GlasgowScoreGroup, eVitals.HeartRateGroup, eVitals.PainScaleGroup, eVitals.StrokeScaleGroup, eVitals.TemperatureGroup

Instance

<eVitals.VitalGroup CorrelationID="" xmlns="http://www.nemsis.org">
  <eVitals.01 NV="">{1,1}</eVitals.01>
  <eVitals.02 NV="">{1,1}</eVitals.02>
  <eVitals.CardiacRhythmGroup>{1,1}</eVitals.CardiacRhythmGroup>
  <eVitals.BloodPressureGroup>{1,1}</eVitals.BloodPressureGroup>
  <eVitals.HeartRateGroup>{1,1}</eVitals.HeartRateGroup>
  <eVitals.12 NV="" PN="">{1,1}</eVitals.12>
  <eVitals.13>{0,1}</eVitals.13>
  <eVitals.14 NV="" PN="">{1,1}</eVitals.14>
  <eVitals.15>{0,1}</eVitals.15>
  <eVitals.16 ETCO2Type="" NV="" PN="">{1,1}</eVitals.16>
  <eVitals.17 NV="" PN="">{0,1}</eVitals.17>
  <eVitals.18 NV="" PN="">{1,1}</eVitals.18>
  <eVitals.GlasgowScoreGroup>{1,1}</eVitals.GlasgowScoreGroup>
  <eVitals.TemperatureGroup>{0,1}</eVitals.TemperatureGroup>
  <eVitals.26 NV="">{1,1}</eVitals.26>
  <eVitals.PainScaleGroup>{1,1}</eVitals.PainScaleGroup>
  <eVitals.StrokeScaleGroup>{1,1}</eVitals.StrokeScaleGroup>
  <eVitals.31 NV="" PN="">{1,1}</eVitals.31>
  <eVitals.32 PN="">{0,1}</eVitals.32>
  <eVitals.33 PN="">{0,1}</eVitals.33>
</eVitals.VitalGroup>

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional

Source

<xs:element name="eVitals.VitalGroup" id="eVitals.VitalGroup" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Group Tag to hold eVitals information</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eVitals.01" nillable="true" id="eVitals.DateTimeVitalSignsTaken">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.01</number>
              <name>Date/Time Vital Signs Taken</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The date/time vital signs were taken on the patient.</definition>
              <v2Number>E14_01</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DateTimeType">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.02" nillable="true" id="eVitals.ObtainedPriortothisUnitsEMSCare">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.02</number>
              <name>Obtained Prior to this Unit's EMS Care</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>Indicates that the information which is documented was obtained prior to the documenting EMS units care.</definition>
              <v2Number>E14_02</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="YesNoValues">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.CardiacRhythmGroup" id="eVitals.CardiacRhythmGroup">
        <xs:annotation>
          <xs:documentation>Group Tag to hold information of the type and method used for ECG interpretation associated with the cardiac rhythm.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eVitals.03" nillable="true" id="eVitals.CardiacRhythmandElectrocardiography" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.03</number>
                    <name>Cardiac Rhythm / Electrocardiography (ECG)</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The cardiac rhythm / ECG and other electrocardiography findings of the patient as interpreted by EMS personnel.</definition>
                    <v2Number>E14_03</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                    </performanceMeasuresGroup>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="CardiacRhythm">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.04" nillable="true" id="eVitals.ECGType">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.04</number>
                    <name>ECG Type</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The type of ECG associated with the cardiac rhythm.</definition>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>STEMI</performanceMeasure>
                    </performanceMeasuresGroup>
                    <v3Changes>Added to better document ECG results.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="ECGType">
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.05" nillable="true" id="eVitals.MethodofECGInterpretation" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.05</number>
                    <name>Method of ECG Interpretation</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The method of ECG interpretation.</definition>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>STEMI</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>"Transmission with no interpretation" may be used by EMS Agency Personnel that are not trained to interpret cardiac rhythms.</comment>
                    <v3Changes>Added to better document ECG results.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="ECGMethod">
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.BloodPressureGroup" id="eVitals.BloodPressureGroup">
        <xs:annotation>
          <xs:documentation>Group Tag to hold the details of patient's blood pressure.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eVitals.06" nillable="true" id="eVitals.SBPSystolicBloodPressure">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.06</number>
                    <name>SBP (Systolic Blood Pressure)</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The patient's systolic blood pressure.</definition>
                    <v2Number>E14_04</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>Pediatric</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                      <performanceMeasure>Stroke</performanceMeasure>
                      <performanceMeasure>Trauma</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>Required for ACS-Field Triage and other patient scoring systems.</comment>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="SBP">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.07" nillable="true" id="eVitals.DBPDiastolicBloodPressure" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.07</number>
                    <name>DBP (Diastolic Blood Pressure)</name>
                    <national>No</national>
                    <state>Yes</state>
                    <definition>The patient's diastolic blood pressure.</definition>
                    <v2Number>E14_05</v2Number>
                    <usage>Recommended</usage>
                    <comment>Diastolic blood pressure pattern allows for the following values:<br/>1) A number 0 through 500 <br/>2) P<br/>3) p</comment>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="DBP">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.08" nillable="true" id="eVitals.MethodofBloodPressureMeasurement" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.08</number>
                    <name>Method of Blood Pressure Measurement</name>
                    <national>No</national>
                    <state>Yes</state>
                    <definition>Indication of method of blood pressure measurement.</definition>
                    <v2Number>E14_06</v2Number>
                    <usage>Recommended</usage>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="BloodPressureMethod">
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.09" type="MAP" id="eVitals.MeanArterialPressure" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.09</number>
                    <name>Mean Arterial Pressure</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The patient's mean arterial pressure.</definition>
                    <usage>Optional</usage>
                    <v3Changes>Added for additional patient monitoring capability.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.HeartRateGroup" id="eVitals.HeartRateGroup">
        <xs:annotation>
          <xs:documentation>Group Tag to hold the details of patient's heart rate.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eVitals.10" nillable="true" id="eVitals.HeartRate">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.10</number>
                    <name>Heart Rate</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The patient's heart rate expressed as a number per minute.</definition>
                    <v2Number>E14_07</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>Pediatric</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                      <performanceMeasure>Stroke</performanceMeasure>
                      <performanceMeasure>Trauma</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>Pulse Rate and Electronic Monitor Rate have been merged with an additional data element for Method of Heart Rate Measurement.</comment>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="HeartRate">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.11" type="MethodMeasureHeartRate" id="eVitals.MethodofHeartRateMeasurement" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.11</number>
                    <name>Method of Heart Rate Measurement</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The method in which the Heart Rate was measured. Values include auscultated, palpated, electronic monitor.</definition>
                    <usage>Optional</usage>
                    <comment>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</comment>
                    <v3Changes>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.12" nillable="true" id="eVitals.PulseOximetry">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.12</number>
              <name>Pulse Oximetry</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's oxygen saturation.</definition>
              <v2Number>E14_09</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="PulseOximetry">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.13" type="PulseRhythm" id="eVitals.PulseRhythm" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.13</number>
              <name>Pulse Rhythm</name>
              <national>No</national>
              <state>No</state>
              <definition>The clinical rhythm of the patient's pulse.</definition>
              <v2Number>E14_10</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="eVitals.14" nillable="true" id="eVitals.RespiratoryRate">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.14</number>
              <name>Respiratory Rate</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's respiratory rate expressed as a number per minute.</definition>
              <v2Number>E14_11</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="RespiratoryRate">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.15" id="eVitals.RespiratoryEffort" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.15</number>
              <name>Respiratory Effort</name>
              <national>No</national>
              <state>No</state>
              <definition>The patient's respiratory effort.</definition>
              <v2Number>E14_12</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="RespiratoryEffort"/>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.16" nillable="true" id="eVitals.EndTidalCarbonDioxideETCO2">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.16</number>
              <name>End Tidal Carbon Dioxide (ETCO2)</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The numeric value of the patient's exhaled end tidal carbon dioxide (ETCO2) level measured as a unit of pressure in millimeters of mercury (mmHg), percentage or, kilopascal (kPa).</definition>
              <v2Number>E14_13</v2Number>
              <usage>Required</usage>
              <comment/>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="CO2">
              <xs:attribute name="ETCO2Type" type="ETCO2Type" use="optional"/>
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.17" nillable="true" id="eVitals.CarbonMonoxideCO" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.17</number>

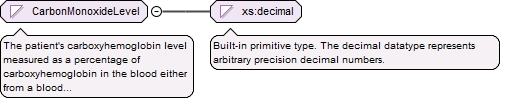

              <name>Carbon Monoxide (CO)</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The numeric value of the patient's carbon monoxide level measured as a percentage (%) of carboxyhemoglobin (COHb).</definition>
              <usage>Recommended</usage>
              <v3Changes>Added to allow use of new patient monitoring devices.</v3Changes>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="CarbonMonoxideLevel">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.18" nillable="true" id="eVitals.BloodGlucoseLevel">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.18</number>
              <name>Blood Glucose Level</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's blood glucose level.</definition>
              <v2Number>E14_14</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="BloodGlucoseLevel">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.GlasgowScoreGroup" id="eVitals.GlasgowScoreGroup">
        <xs:annotation>
          <xs:documentation>Group Tag to hold the details of patient's glasgow scale</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eVitals.19" nillable="true" id="eVitals.GlasgowComaScoreEye">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.19</number>
                    <name>Glasgow Coma Score-Eye</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The patient's Glasgow Coma Score Eye opening response.</definition>
                    <v2Number>E14_15</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>Pediatric</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                      <performanceMeasure>Stroke</performanceMeasure>
                      <performanceMeasure>Trauma</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="GlasgowComaScoreEyes">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.20" nillable="true" id="eVitals.GlasgowComaScoreVerbal">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.20</number>
                    <name>Glasgow Coma Score-Verbal</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The patient's Glasgow Coma Score Verbal response.</definition>
                    <v2Number>E14_16</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>Pediatric</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                      <performanceMeasure>Stroke</performanceMeasure>
                      <performanceMeasure>Trauma</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
                    <v3Changes/>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="GlasgowComaScoreVerbal">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.21" nillable="true" id="eVitals.GlasgowComaScoreMotor">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.21</number>
                    <name>Glasgow Coma Score-Motor</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The patient's Glasgow Coma Score Motor response.</definition>
                    <v2Number>E14_17</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>Pediatric</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                      <performanceMeasure>Stroke</performanceMeasure>
                      <performanceMeasure>Trauma</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
                    <v3Changes/>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="GlasgowComaScoreMotor">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.22" nillable="true" id="eVitals.GlasgowComaScoreQualifier" maxOccurs="unbounded">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.22</number>
                    <name>Glasgow Coma Score-Qualifier</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>Documentation of factors which make the GCS score more meaningful.</definition>
                    <v2Number>E14_18</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>Pediatric</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                      <performanceMeasure>Stroke</performanceMeasure>
                      <performanceMeasure>Trauma</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
                    <v3Changes/>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="GCSScoreQualifier">
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.23" nillable="true" id="eVitals.TotalGlasgowComaScore" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.23</number>
                    <name>Total Glasgow Coma Score</name>
                    <national>No</national>
                    <state>Yes</state>
                    <definition>The patient's total Glasgow Coma Score.</definition>
                    <v2Number>E14_19</v2Number>
                    <usage>Recommended</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Airway</performanceMeasure>
                      <performanceMeasure>Cardiac Arrest</performanceMeasure>
                      <performanceMeasure>Pediatric</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                      <performanceMeasure>Stroke</performanceMeasure>
                      <performanceMeasure>Trauma</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>Can be documented or calculated from EVitals.19 (GCS-Eye), EVitals.20 (GCS-Verbal), and EVitals.21 (GCS-Motor).</comment>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="TotalGCS">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.TemperatureGroup" id="eVitals.TemperatureGroup" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Group Tag to hold information about patient's body temperature.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eVitals.24" nillable="true" id="eVitals.Temperature" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.24</number>
                    <name>Temperature</name>
                    <national>No</national>
                    <state>Yes</state>
                    <definition>The patient's body temperature in degrees Celsius/centigrade.</definition>
                    <v2Number>E14_20</v2Number>
                    <usage>Recommended</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Pediatric</performanceMeasure>
                    </performanceMeasuresGroup>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="BodyTemperature">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.25" type="MethodBodyTemp" id="eVitals.TemperatureMethod" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.25</number>
                    <name>Temperature Method</name>
                    <national>No</national>
                    <state>No</state>
                    <definition>The method used to obtain the patient's body temperature.</definition>
                    <v2Number>E14_21</v2Number>
                    <usage>Optional</usage>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.26" nillable="true" id="eVitals.LevelofResponsivenessAVPU">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.26</number>
              <name>Level of Responsiveness (AVPU)</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's highest level of responsiveness.</definition>
              <v2Number>E14_22</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Definition changed to indicate highest level of responsiveness.</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="PatientsHighestLevelResponsiveness">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.PainScaleGroup" id="eVitals.PainScaleGroup">
        <xs:annotation>
          <xs:documentation>Group Tag to hold the scale of patient's pain and the type of pain scale used.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eVitals.27" nillable="true" id="eVitals.PainScore">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.27</number>
                    <name>Pain Scale Score</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The patient's indication of pain from a scale of 0-10.</definition>
                    <v2Number>E14_23</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Pediatric</performanceMeasure>
                      <performanceMeasure>STEMI</performanceMeasure>
                      <performanceMeasure>Trauma</performanceMeasure>
                    </performanceMeasuresGroup>
                    <comment>The Pain Score can be obtained from several pain measurement tools or pain scale types (eVitals.28). The pain scale type used should have a numeric value associated with each diagram as appropriate. If the pain scale type utilizes multiple indicators/categories the total should be calculated and entered for the pain score associated with the patient assessment.</comment>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="PainScale">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.28" nillable="true" id="eVitals.PainScaleType" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.28</number>
                    <name>Pain Scale Type</name>
                    <national>No</national>
                    <state>Yes</state>
                    <definition>The type of pain scale used.</definition>
                    <usage>Recommended</usage>
                    <v3Changes>Added to better document the patient's pain level.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="TypeOfPainScale">
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.StrokeScaleGroup" id="eVitals.StrokeScaleGroup">
        <xs:annotation>
          <xs:documentation>Group Tag to hold the results of patient's stroke scale and the type of stroke pain scale used.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="eVitals.29" nillable="true" id="eVitals.StrokeScaleScore">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.29</number>
                    <name>Stroke Scale Score</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The findings or results of the Stroke Scale Type (eVitals.30) used to assess the patient exhibiting stroke-like symptoms.</definition>
                    <v2Number>E14_24</v2Number>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Stroke</performanceMeasure>
                    </performanceMeasuresGroup>
                    <PNNil>Yes</PNNil>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="StrokeScale">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.30" nillable="true" id="eVitals.StrokeScaleType">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.30</number>
                    <name>Stroke Scale Type</name>
                    <national>Yes</national>
                    <state>Yes</state>
                    <definition>The type of stroke scale used.</definition>
                    <usage>Required</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Stroke</performanceMeasure>
                    </performanceMeasuresGroup>
                    <v3Changes>Added to include additional detail on the stroke scale used.</v3Changes>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="TypeOfStrokeScale">
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="eVitals.34" nillable="true" id="eVitals.StrokeSeverityScore" minOccurs="0">
              <xs:annotation>
                <xs:documentation>
                  <nemsisTacDoc>
                    <number>eVitals.34</number>
                    <name>Stroke Severity Score</name>
                    <national>No</national>
                    <state>Yes</state>
                    <definition>The stroke severity value associated with the stroke scale type listed in eVitals.30.</definition>
                    <usage>Recommended</usage>
                    <performanceMeasuresGroup>
                      <performanceMeasure>Stroke</performanceMeasure>
                    </performanceMeasuresGroup>
                    <PNNil>Yes</PNNil>
                    <comment>Score associated with the stroke scale listed in eVitals.30</comment>
                  </nemsisTacDoc>
                </xs:documentation>
              </xs:annotation>
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="StrokeScore">
                    <xs:attribute name="PN" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="PN.UnableToComplete"/>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="NV" use="optional">
                      <xs:simpleType>
                        <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                      </xs:simpleType>
                    </xs:attribute>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.31" nillable="true" id="eVitals.ReperfusionChecklist">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.31</number>
              <name>Reperfusion Checklist</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The results of the patient's Reperfusion Checklist for potential Thrombolysis use.</definition>
              <v2Number>E14_25</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Name changed from Thrombolytic Screen</comment>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ReperfusionChecklist">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.32" nillable="true" id="eVitals.APGAR" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.32</number>
              <name>APGAR</name>
              <national>No</national>
              <state>No</state>
              <definition>The patient's total APGAR score (0-10).</definition>
              <v2Number>E14_26</v2Number>
              <usage>Optional</usage>
              <comment>Recommended to be taken at 1 and 5 minutes after the infants birth</comment>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="APGAR">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.33" nillable="true" id="eVitals.RevisedTraumaScore" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.33</number>
              <name>Revised Trauma Score</name>
              <national>No</national>
              <state>No</state>
              <definition>The patient's Revised Trauma Score.</definition>
              <v2Number>E14_27</v2Number>
              <usage>Optional</usage>
              <comment>The Unweighted Revised Trauma Score is a physiological scoring system that is based on the first set of vital signs obtained from the patient, and consists of Glasgow Coma Scale, Systolic Blood Pressure and Respiratory Rate.</comment>
              <performanceMeasuresGroup>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="RTS">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.01

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.01</number>
  <name>Date/Time Vital Signs Taken</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The date/time vital signs were taken on the patient.</definition>
  <v2Number>E14_01</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
</nemsisTacDoc>

Diagram

Type

extension of DateTimeType

Type hierarchy

xs:dateTime
- DateTimeType

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eVitals.01" nillable="true" id="eVitals.DateTimeVitalSignsTaken">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.01</number>
        <name>Date/Time Vital Signs Taken</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The date/time vital signs were taken on the patient.</definition>
        <v2Number>E14_01</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DateTimeType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.02

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.02</number>
  <name>Obtained Prior to this Unit's EMS Care</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Indicates that the information which is documented was obtained prior to the documenting EMS units care.</definition>
  <v2Number>E14_02</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
</nemsisTacDoc>

Diagram

Type

extension of YesNoValues

Type hierarchy

xs:string
- YesNoValues

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eVitals.02" nillable="true" id="eVitals.ObtainedPriortothisUnitsEMSCare">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.02</number>
        <name>Obtained Prior to this Unit's EMS Care</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Indicates that the information which is documented was obtained prior to the documenting EMS units care.</definition>
        <v2Number>E14_02</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="YesNoValues">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold information of the type and method used for ECG interpretation associated with the cardiac rhythm.

Diagram

Properties

content

complex

Model

eVitals.03+ , eVitals.04 , eVitals.05+

Children

eVitals.03, eVitals.04, eVitals.05

Instance

<eVitals.CardiacRhythmGroup xmlns="http://www.nemsis.org">
  <eVitals.03 CorrelationID="" NV="" PN="">{1,unbounded}</eVitals.03>
  <eVitals.04 NV="">{1,1}</eVitals.04>
  <eVitals.05 CorrelationID="" NV="">{1,unbounded}</eVitals.05>
</eVitals.CardiacRhythmGroup>

Source

<xs:element name="eVitals.CardiacRhythmGroup" id="eVitals.CardiacRhythmGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold information of the type and method used for ECG interpretation associated with the cardiac rhythm.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eVitals.03" nillable="true" id="eVitals.CardiacRhythmandElectrocardiography" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.03</number>
              <name>Cardiac Rhythm / Electrocardiography (ECG)</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The cardiac rhythm / ECG and other electrocardiography findings of the patient as interpreted by EMS personnel.</definition>
              <v2Number>E14_03</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="CardiacRhythm">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.04" nillable="true" id="eVitals.ECGType">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.04</number>
              <name>ECG Type</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The type of ECG associated with the cardiac rhythm.</definition>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
              <v3Changes>Added to better document ECG results.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ECGType">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.05" nillable="true" id="eVitals.MethodofECGInterpretation" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.05</number>
              <name>Method of ECG Interpretation</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The method of ECG interpretation.</definition>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>STEMI</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>"Transmission with no interpretation" may be used by EMS Agency Personnel that are not trained to interpret cardiac rhythms.</comment>
              <v3Changes>Added to better document ECG results.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="ECGMethod">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.03

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.03</number>
  <name>Cardiac Rhythm / Electrocardiography (ECG)</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The cardiac rhythm / ECG and other electrocardiography findings of the patient as interpreted by EMS personnel.</definition>
  <v2Number>E14_03</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of CardiacRhythm

Type hierarchy

xs:string
- CardiacRhythm

Properties

content	complex
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.03" nillable="true" id="eVitals.CardiacRhythmandElectrocardiography" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.03</number>
        <name>Cardiac Rhythm / Electrocardiography (ECG)</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The cardiac rhythm / ECG and other electrocardiography findings of the patient as interpreted by EMS personnel.</definition>
        <v2Number>E14_03</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CardiacRhythm">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.04

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.04</number>
  <name>ECG Type</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The type of ECG associated with the cardiac rhythm.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
  <v3Changes>Added to better document ECG results.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of ECGType

Type hierarchy

xs:string
- ECGType

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eVitals.04" nillable="true" id="eVitals.ECGType">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.04</number>
        <name>ECG Type</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The type of ECG associated with the cardiac rhythm.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
        <v3Changes>Added to better document ECG results.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ECGType">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.05

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.05</number>
  <name>Method of ECG Interpretation</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The method of ECG interpretation.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>STEMI</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>"Transmission with no interpretation" may be used by EMS Agency Personnel that are not trained to interpret cardiac rhythms.</comment>
  <v3Changes>Added to better document ECG results.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of ECGMethod

Type hierarchy

xs:string
- ECGMethod

Properties

content	complex
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eVitals.05" nillable="true" id="eVitals.MethodofECGInterpretation" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.05</number>
        <name>Method of ECG Interpretation</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The method of ECG interpretation.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>STEMI</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>"Transmission with no interpretation" may be used by EMS Agency Personnel that are not trained to interpret cardiac rhythms.</comment>
        <v3Changes>Added to better document ECG results.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ECGMethod">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold the details of patient's blood pressure.

Diagram

Properties

content

complex

Model

eVitals.06 , eVitals.07{0,1} , eVitals.08{0,1} , eVitals.09{0,1}

Children

eVitals.06, eVitals.07, eVitals.08, eVitals.09

Instance

<eVitals.BloodPressureGroup xmlns="http://www.nemsis.org">
  <eVitals.06 NV="" PN="">{1,1}</eVitals.06>
  <eVitals.07 NV="" PN="">{0,1}</eVitals.07>
  <eVitals.08 NV="">{0,1}</eVitals.08>
  <eVitals.09>{0,1}</eVitals.09>
</eVitals.BloodPressureGroup>

Source

<xs:element name="eVitals.BloodPressureGroup" id="eVitals.BloodPressureGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold the details of patient's blood pressure.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eVitals.06" nillable="true" id="eVitals.SBPSystolicBloodPressure">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.06</number>
              <name>SBP (Systolic Blood Pressure)</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's systolic blood pressure.</definition>
              <v2Number>E14_04</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Required for ACS-Field Triage and other patient scoring systems.</comment>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="SBP">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.07" nillable="true" id="eVitals.DBPDiastolicBloodPressure" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.07</number>
              <name>DBP (Diastolic Blood Pressure)</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The patient's diastolic blood pressure.</definition>
              <v2Number>E14_05</v2Number>
              <usage>Recommended</usage>
              <comment>Diastolic blood pressure pattern allows for the following values:<br/>1) A number 0 through 500 <br/>2) P<br/>3) p</comment>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="DBP">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.08" nillable="true" id="eVitals.MethodofBloodPressureMeasurement" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.08</number>
              <name>Method of Blood Pressure Measurement</name>
              <national>No</national>
              <state>Yes</state>
              <definition>Indication of method of blood pressure measurement.</definition>
              <v2Number>E14_06</v2Number>
              <usage>Recommended</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="BloodPressureMethod">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.09" type="MAP" id="eVitals.MeanArterialPressure" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.09</number>
              <name>Mean Arterial Pressure</name>
              <national>No</national>
              <state>No</state>
              <definition>The patient's mean arterial pressure.</definition>
              <usage>Optional</usage>
              <v3Changes>Added for additional patient monitoring capability.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.06

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.06</number>
  <name>SBP (Systolic Blood Pressure)</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's systolic blood pressure.</definition>
  <v2Number>E14_04</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Required for ACS-Field Triage and other patient scoring systems.</comment>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of SBP

Type hierarchy

xs:integer
- SBP

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.06" nillable="true" id="eVitals.SBPSystolicBloodPressure">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.06</number>
        <name>SBP (Systolic Blood Pressure)</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's systolic blood pressure.</definition>
        <v2Number>E14_04</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Required for ACS-Field Triage and other patient scoring systems.</comment>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="SBP">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.07

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.07</number>
  <name>DBP (Diastolic Blood Pressure)</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The patient's diastolic blood pressure.</definition>
  <v2Number>E14_05</v2Number>
  <usage>Recommended</usage>
  <comment>Diastolic blood pressure pattern allows for the following values:<br/>1) A number 0 through 500 <br/>2) P<br/>3) p</comment>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of DBP

Type hierarchy

xs:string
- DBP

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional
PN	union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.07" nillable="true" id="eVitals.DBPDiastolicBloodPressure" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.07</number>
        <name>DBP (Diastolic Blood Pressure)</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The patient's diastolic blood pressure.</definition>
        <v2Number>E14_05</v2Number>
        <usage>Recommended</usage>
        <comment>Diastolic blood pressure pattern allows for the following values:<br/>1) A number 0 through 500 <br/>2) P<br/>3) p</comment>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="DBP">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.08

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.08</number>
  <name>Method of Blood Pressure Measurement</name>
  <national>No</national>
  <state>Yes</state>
  <definition>Indication of method of blood pressure measurement.</definition>
  <v2Number>E14_06</v2Number>
  <usage>Recommended</usage>
</nemsisTacDoc>

Diagram

Type

extension of BloodPressureMethod

Type hierarchy

xs:string
- BloodPressureMethod

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional

Source

<xs:element name="eVitals.08" nillable="true" id="eVitals.MethodofBloodPressureMeasurement" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.08</number>
        <name>Method of Blood Pressure Measurement</name>
        <national>No</national>
        <state>Yes</state>
        <definition>Indication of method of blood pressure measurement.</definition>
        <v2Number>E14_06</v2Number>
        <usage>Recommended</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="BloodPressureMethod">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.09

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.09</number>
  <name>Mean Arterial Pressure</name>
  <national>No</national>
  <state>No</state>
  <definition>The patient's mean arterial pressure.</definition>
  <usage>Optional</usage>
  <v3Changes>Added for additional patient monitoring capability.</v3Changes>
</nemsisTacDoc>

Diagram

Type

MAP

Properties

content	simple
minOccurs	0

Facets

maxInclusive	500
minInclusive	1

Source

<xs:element name="eVitals.09" type="MAP" id="eVitals.MeanArterialPressure" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.09</number>
        <name>Mean Arterial Pressure</name>
        <national>No</national>
        <state>No</state>
        <definition>The patient's mean arterial pressure.</definition>
        <usage>Optional</usage>
        <v3Changes>Added for additional patient monitoring capability.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.HeartRateGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold the details of patient's heart rate.

Diagram

Properties

content

complex

Model

eVitals.10 , eVitals.11{0,1}

Children

eVitals.10, eVitals.11

Instance

<eVitals.HeartRateGroup xmlns="http://www.nemsis.org">
  <eVitals.10 NV="" PN="">{1,1}</eVitals.10>
  <eVitals.11>{0,1}</eVitals.11>
</eVitals.HeartRateGroup>

Source

<xs:element name="eVitals.HeartRateGroup" id="eVitals.HeartRateGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold the details of patient's heart rate.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eVitals.10" nillable="true" id="eVitals.HeartRate">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.10</number>
              <name>Heart Rate</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's heart rate expressed as a number per minute.</definition>
              <v2Number>E14_07</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Pulse Rate and Electronic Monitor Rate have been merged with an additional data element for Method of Heart Rate Measurement.</comment>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="HeartRate">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.11" type="MethodMeasureHeartRate" id="eVitals.MethodofHeartRateMeasurement" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.11</number>
              <name>Method of Heart Rate Measurement</name>
              <national>No</national>
              <state>No</state>
              <definition>The method in which the Heart Rate was measured. Values include auscultated, palpated, electronic monitor.</definition>
              <usage>Optional</usage>
              <comment>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</comment>
              <v3Changes>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.HeartRateGroup / eVitals.10

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.10</number>
  <name>Heart Rate</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's heart rate expressed as a number per minute.</definition>
  <v2Number>E14_07</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Pulse Rate and Electronic Monitor Rate have been merged with an additional data element for Method of Heart Rate Measurement.</comment>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of HeartRate

Type hierarchy

xs:integer
- HeartRate

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.10" nillable="true" id="eVitals.HeartRate">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.10</number>
        <name>Heart Rate</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's heart rate expressed as a number per minute.</definition>
        <v2Number>E14_07</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Pulse Rate and Electronic Monitor Rate have been merged with an additional data element for Method of Heart Rate Measurement.</comment>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="HeartRate">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.HeartRateGroup / eVitals.11

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.11</number>
  <name>Method of Heart Rate Measurement</name>
  <national>No</national>
  <state>No</state>
  <definition>The method in which the Heart Rate was measured. Values include auscultated, palpated, electronic monitor.</definition>
  <usage>Optional</usage>
  <comment>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</comment>
  <v3Changes>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</v3Changes>
</nemsisTacDoc>

Diagram

Type

MethodMeasureHeartRate

Properties

content	simple
minOccurs	0

Facets

enumeration

3311001

Auscultated

enumeration

3311003

Doppler

enumeration

3311005

Electronic Monitor - Cardiac

enumeration

3311007

Electronic Monitor - Pulse Oximeter

enumeration

3311009

Electronic Monitor (Other)

enumeration

3311011

Palpated

Source

<xs:element name="eVitals.11" type="MethodMeasureHeartRate" id="eVitals.MethodofHeartRateMeasurement" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.11</number>
        <name>Method of Heart Rate Measurement</name>
        <national>No</national>
        <state>No</state>
        <definition>The method in which the Heart Rate was measured. Values include auscultated, palpated, electronic monitor.</definition>
        <usage>Optional</usage>
        <comment>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</comment>
        <v3Changes>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.12

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.12</number>
  <name>Pulse Oximetry</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's oxygen saturation.</definition>
  <v2Number>E14_09</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of PulseOximetry

Type hierarchy

xs:integer
- PulseOximetry

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.12" nillable="true" id="eVitals.PulseOximetry">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.12</number>
        <name>Pulse Oximetry</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's oxygen saturation.</definition>
        <v2Number>E14_09</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PulseOximetry">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.13

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.13</number>
  <name>Pulse Rhythm</name>
  <national>No</national>
  <state>No</state>
  <definition>The clinical rhythm of the patient's pulse.</definition>
  <v2Number>E14_10</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

PulseRhythm

Properties

content	simple
minOccurs	0

Facets

enumeration

3313001

Irregularly Irregular

enumeration

3313003

Regular

enumeration

3313005

Regularly Irregular

Source

<xs:element name="eVitals.13" type="PulseRhythm" id="eVitals.PulseRhythm" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.13</number>
        <name>Pulse Rhythm</name>
        <national>No</national>
        <state>No</state>
        <definition>The clinical rhythm of the patient's pulse.</definition>
        <v2Number>E14_10</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.14

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.14</number>
  <name>Respiratory Rate</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's respiratory rate expressed as a number per minute.</definition>
  <v2Number>E14_11</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of RespiratoryRate

Type hierarchy

xs:integer
- RespiratoryRate

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.14" nillable="true" id="eVitals.RespiratoryRate">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.14</number>
        <name>Respiratory Rate</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's respiratory rate expressed as a number per minute.</definition>
        <v2Number>E14_11</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="RespiratoryRate">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.15

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.15</number>
  <name>Respiratory Effort</name>
  <national>No</national>
  <state>No</state>
  <definition>The patient's respiratory effort.</definition>
  <v2Number>E14_12</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

extension of RespiratoryEffort

Type hierarchy

xs:string
- RespiratoryEffort

Properties

content	complex
minOccurs	0

Source

<xs:element name="eVitals.15" id="eVitals.RespiratoryEffort" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.15</number>
        <name>Respiratory Effort</name>
        <national>No</national>
        <state>No</state>
        <definition>The patient's respiratory effort.</definition>
        <v2Number>E14_12</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="RespiratoryEffort"/>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.16

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.16</number>
  <name>End Tidal Carbon Dioxide (ETCO2)</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The numeric value of the patient's exhaled end tidal carbon dioxide (ETCO2) level measured as a unit of pressure in millimeters of mercury (mmHg), percentage or, kilopascal (kPa).</definition>
  <v2Number>E14_13</v2Number>
  <usage>Required</usage>
  <comment/>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of CO2

Type hierarchy

xs:decimal
- CO2

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
ETCO2Type	ETCO2Type	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.16" nillable="true" id="eVitals.EndTidalCarbonDioxideETCO2">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.16</number>
        <name>End Tidal Carbon Dioxide (ETCO2)</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The numeric value of the patient's exhaled end tidal carbon dioxide (ETCO2) level measured as a unit of pressure in millimeters of mercury (mmHg), percentage or, kilopascal (kPa).</definition>
        <v2Number>E14_13</v2Number>
        <usage>Required</usage>
        <comment/>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CO2">
        <xs:attribute name="ETCO2Type" type="ETCO2Type" use="optional"/>
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.17

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.17</number>
  <name>Carbon Monoxide (CO)</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The numeric value of the patient's carbon monoxide level measured as a percentage (%) of carboxyhemoglobin (COHb).</definition>
  <usage>Recommended</usage>
  <v3Changes>Added to allow use of new patient monitoring devices.</v3Changes>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of CarbonMonoxideLevel

Type hierarchy

xs:decimal
- CarbonMonoxideLevel

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.17" nillable="true" id="eVitals.CarbonMonoxideCO" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.17</number>
        <name>Carbon Monoxide (CO)</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The numeric value of the patient's carbon monoxide level measured as a percentage (%) of carboxyhemoglobin (COHb).</definition>
        <usage>Recommended</usage>
        <v3Changes>Added to allow use of new patient monitoring devices.</v3Changes>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="CarbonMonoxideLevel">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.18

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.18</number>
  <name>Blood Glucose Level</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's blood glucose level.</definition>
  <v2Number>E14_14</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of BloodGlucoseLevel

Type hierarchy

xs:string
- BloodGlucoseLevel

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.18" nillable="true" id="eVitals.BloodGlucoseLevel">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.18</number>
        <name>Blood Glucose Level</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's blood glucose level.</definition>
        <v2Number>E14_14</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="BloodGlucoseLevel">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold the details of patient's glasgow scale

Diagram

Properties

content

complex

Model

eVitals.19 , eVitals.20 , eVitals.21 , eVitals.22+ , eVitals.23{0,1}

Children

eVitals.19, eVitals.20, eVitals.21, eVitals.22, eVitals.23

Instance

<eVitals.GlasgowScoreGroup xmlns="http://www.nemsis.org">
  <eVitals.19 NV="" PN="">{1,1}</eVitals.19>
  <eVitals.20 NV="" PN="">{1,1}</eVitals.20>
  <eVitals.21 NV="" PN="">{1,1}</eVitals.21>
  <eVitals.22 CorrelationID="" NV="">{1,unbounded}</eVitals.22>
  <eVitals.23 NV="" PN="">{0,1}</eVitals.23>
</eVitals.GlasgowScoreGroup>

Source

<xs:element name="eVitals.GlasgowScoreGroup" id="eVitals.GlasgowScoreGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold the details of patient's glasgow scale</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eVitals.19" nillable="true" id="eVitals.GlasgowComaScoreEye">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.19</number>
              <name>Glasgow Coma Score-Eye</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's Glasgow Coma Score Eye opening response.</definition>
              <v2Number>E14_15</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="GlasgowComaScoreEyes">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.20" nillable="true" id="eVitals.GlasgowComaScoreVerbal">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.20</number>
              <name>Glasgow Coma Score-Verbal</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's Glasgow Coma Score Verbal response.</definition>
              <v2Number>E14_16</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
              <v3Changes/>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="GlasgowComaScoreVerbal">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.21" nillable="true" id="eVitals.GlasgowComaScoreMotor">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.21</number>
              <name>Glasgow Coma Score-Motor</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's Glasgow Coma Score Motor response.</definition>
              <v2Number>E14_17</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
              <v3Changes/>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="GlasgowComaScoreMotor">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.22" nillable="true" id="eVitals.GlasgowComaScoreQualifier" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.22</number>
              <name>Glasgow Coma Score-Qualifier</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>Documentation of factors which make the GCS score more meaningful.</definition>
              <v2Number>E14_18</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
              <v3Changes/>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="GCSScoreQualifier">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.23" nillable="true" id="eVitals.TotalGlasgowComaScore" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.23</number>
              <name>Total Glasgow Coma Score</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The patient's total Glasgow Coma Score.</definition>
              <v2Number>E14_19</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Airway</performanceMeasure>
                <performanceMeasure>Cardiac Arrest</performanceMeasure>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Stroke</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>Can be documented or calculated from EVitals.19 (GCS-Eye), EVitals.20 (GCS-Verbal), and EVitals.21 (GCS-Motor).</comment>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="TotalGCS">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.19

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.19</number>
  <name>Glasgow Coma Score-Eye</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's Glasgow Coma Score Eye opening response.</definition>
  <v2Number>E14_15</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of GlasgowComaScoreEyes

Type hierarchy

xs:string
- GlasgowComaScoreEyes

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.19" nillable="true" id="eVitals.GlasgowComaScoreEye">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.19</number>
        <name>Glasgow Coma Score-Eye</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's Glasgow Coma Score Eye opening response.</definition>
        <v2Number>E14_15</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="GlasgowComaScoreEyes">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.20

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.20</number>
  <name>Glasgow Coma Score-Verbal</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's Glasgow Coma Score Verbal response.</definition>
  <v2Number>E14_16</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
  <v3Changes/>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of GlasgowComaScoreVerbal

Type hierarchy

xs:string
- GlasgowComaScoreVerbal

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.20" nillable="true" id="eVitals.GlasgowComaScoreVerbal">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.20</number>
        <name>Glasgow Coma Score-Verbal</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's Glasgow Coma Score Verbal response.</definition>
        <v2Number>E14_16</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
        <v3Changes/>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="GlasgowComaScoreVerbal">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.21

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.21</number>
  <name>Glasgow Coma Score-Motor</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's Glasgow Coma Score Motor response.</definition>
  <v2Number>E14_17</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
  <v3Changes/>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of GlasgowComaScoreMotor

Type hierarchy

xs:string
- GlasgowComaScoreMotor

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.21" nillable="true" id="eVitals.GlasgowComaScoreMotor">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.21</number>
        <name>Glasgow Coma Score-Motor</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's Glasgow Coma Score Motor response.</definition>
        <v2Number>E14_17</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
        <v3Changes/>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="GlasgowComaScoreMotor">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.22

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.22</number>
  <name>Glasgow Coma Score-Qualifier</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>Documentation of factors which make the GCS score more meaningful.</definition>
  <v2Number>E14_18</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
  <v3Changes/>
</nemsisTacDoc>

Diagram

Type

extension of GCSScoreQualifier

Type hierarchy

xs:string
- GCSScoreQualifier

Properties

content	complex
maxOccurs	unbounded
nillable	true

Attributes

QName	Type	Use
CorrelationID	CorrelationID	optional
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eVitals.22" nillable="true" id="eVitals.GlasgowComaScoreQualifier" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.22</number>
        <name>Glasgow Coma Score-Qualifier</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>Documentation of factors which make the GCS score more meaningful.</definition>
        <v2Number>E14_18</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
        <v3Changes/>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="GCSScoreQualifier">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.23

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.23</number>
  <name>Total Glasgow Coma Score</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The patient's total Glasgow Coma Score.</definition>
  <v2Number>E14_19</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Can be documented or calculated from EVitals.19 (GCS-Eye), EVitals.20 (GCS-Verbal), and EVitals.21 (GCS-Motor).</comment>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of TotalGCS

Type hierarchy

xs:integer
- TotalGCS

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.23" nillable="true" id="eVitals.TotalGlasgowComaScore" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.23</number>
        <name>Total Glasgow Coma Score</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The patient's total Glasgow Coma Score.</definition>
        <v2Number>E14_19</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Can be documented or calculated from EVitals.19 (GCS-Eye), EVitals.20 (GCS-Verbal), and EVitals.21 (GCS-Motor).</comment>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TotalGCS">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.TemperatureGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold information about patient's body temperature.

Diagram

Properties

content	complex
minOccurs	0

Model

eVitals.24{0,1} , eVitals.25{0,1}

Children

eVitals.24, eVitals.25

Instance

<eVitals.TemperatureGroup xmlns="http://www.nemsis.org">
  <eVitals.24 NV="" PN="">{0,1}</eVitals.24>
  <eVitals.25>{0,1}</eVitals.25>
</eVitals.TemperatureGroup>

Source

<xs:element name="eVitals.TemperatureGroup" id="eVitals.TemperatureGroup" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Group Tag to hold information about patient's body temperature.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eVitals.24" nillable="true" id="eVitals.Temperature" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.24</number>
              <name>Temperature</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The patient's body temperature in degrees Celsius/centigrade.</definition>
              <v2Number>E14_20</v2Number>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Pediatric</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="BodyTemperature">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.25" type="MethodBodyTemp" id="eVitals.TemperatureMethod" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.25</number>
              <name>Temperature Method</name>
              <national>No</national>
              <state>No</state>
              <definition>The method used to obtain the patient's body temperature.</definition>
              <v2Number>E14_21</v2Number>
              <usage>Optional</usage>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.TemperatureGroup / eVitals.24

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.24</number>
  <name>Temperature</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The patient's body temperature in degrees Celsius/centigrade.</definition>
  <v2Number>E14_20</v2Number>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Pediatric</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of BodyTemperature

Type hierarchy

xs:decimal
- BodyTemperature

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.24" nillable="true" id="eVitals.Temperature" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.24</number>
        <name>Temperature</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The patient's body temperature in degrees Celsius/centigrade.</definition>
        <v2Number>E14_20</v2Number>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Pediatric</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="BodyTemperature">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.TemperatureGroup / eVitals.25

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.25</number>
  <name>Temperature Method</name>
  <national>No</national>
  <state>No</state>
  <definition>The method used to obtain the patient's body temperature.</definition>
  <v2Number>E14_21</v2Number>
  <usage>Optional</usage>
</nemsisTacDoc>

Diagram

Type

MethodBodyTemp

Properties

content	simple
minOccurs	0

Facets

enumeration

3325001

Axillary

enumeration

3325003

Central (Venous or Arterial)

enumeration

3325005

Esophageal

enumeration

3325007

Oral

enumeration

3325009

Rectal

enumeration

3325011

Temporal Artery

enumeration

3325013

Tympanic

enumeration

3325015

Urinary Catheter

enumeration

3325017

Skin Probe

Source

<xs:element name="eVitals.25" type="MethodBodyTemp" id="eVitals.TemperatureMethod" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.25</number>
        <name>Temperature Method</name>
        <national>No</national>
        <state>No</state>
        <definition>The method used to obtain the patient's body temperature.</definition>
        <v2Number>E14_21</v2Number>
        <usage>Optional</usage>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.26

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.26</number>
  <name>Level of Responsiveness (AVPU)</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's highest level of responsiveness.</definition>
  <v2Number>E14_22</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Airway</performanceMeasure>
    <performanceMeasure>Cardiac Arrest</performanceMeasure>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Definition changed to indicate highest level of responsiveness.</comment>
</nemsisTacDoc>

Diagram

Type

extension of PatientsHighestLevelResponsiveness

Type hierarchy

xs:string
- PatientsHighestLevelResponsiveness

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eVitals.26" nillable="true" id="eVitals.LevelofResponsivenessAVPU">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.26</number>
        <name>Level of Responsiveness (AVPU)</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's highest level of responsiveness.</definition>
        <v2Number>E14_22</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Airway</performanceMeasure>
          <performanceMeasure>Cardiac Arrest</performanceMeasure>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Definition changed to indicate highest level of responsiveness.</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PatientsHighestLevelResponsiveness">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.PainScaleGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold the scale of patient's pain and the type of pain scale used.

Diagram

Properties

content

complex

Model

eVitals.27 , eVitals.28{0,1}

Children

eVitals.27, eVitals.28

Instance

<eVitals.PainScaleGroup xmlns="http://www.nemsis.org">
  <eVitals.27 NV="" PN="">{1,1}</eVitals.27>
  <eVitals.28 NV="">{0,1}</eVitals.28>
</eVitals.PainScaleGroup>

Source

<xs:element name="eVitals.PainScaleGroup" id="eVitals.PainScaleGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold the scale of patient's pain and the type of pain scale used.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eVitals.27" nillable="true" id="eVitals.PainScore">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.27</number>
              <name>Pain Scale Score</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The patient's indication of pain from a scale of 0-10.</definition>
              <v2Number>E14_23</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Pediatric</performanceMeasure>
                <performanceMeasure>STEMI</performanceMeasure>
                <performanceMeasure>Trauma</performanceMeasure>
              </performanceMeasuresGroup>
              <comment>The Pain Score can be obtained from several pain measurement tools or pain scale types (eVitals.28). The pain scale type used should have a numeric value associated with each diagram as appropriate. If the pain scale type utilizes multiple indicators/categories the total should be calculated and entered for the pain score associated with the patient assessment.</comment>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="PainScale">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.28" nillable="true" id="eVitals.PainScaleType" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.28</number>
              <name>Pain Scale Type</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The type of pain scale used.</definition>
              <usage>Recommended</usage>
              <v3Changes>Added to better document the patient's pain level.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="TypeOfPainScale">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.PainScaleGroup / eVitals.27

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.27</number>
  <name>Pain Scale Score</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The patient's indication of pain from a scale of 0-10.</definition>
  <v2Number>E14_23</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Pediatric</performanceMeasure>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>The Pain Score can be obtained from several pain measurement tools or pain scale types (eVitals.28). The pain scale type used should have a numeric value associated with each diagram as appropriate. If the pain scale type utilizes multiple indicators/categories the total should be calculated and entered for the pain score associated with the patient assessment.</comment>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of PainScale

Type hierarchy

xs:integer
- PainScale

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.27" nillable="true" id="eVitals.PainScore">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.27</number>
        <name>Pain Scale Score</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The patient's indication of pain from a scale of 0-10.</definition>
        <v2Number>E14_23</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Pediatric</performanceMeasure>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>The Pain Score can be obtained from several pain measurement tools or pain scale types (eVitals.28). The pain scale type used should have a numeric value associated with each diagram as appropriate. If the pain scale type utilizes multiple indicators/categories the total should be calculated and entered for the pain score associated with the patient assessment.</comment>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="PainScale">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.PainScaleGroup / eVitals.28

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.28</number>
  <name>Pain Scale Type</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The type of pain scale used.</definition>
  <usage>Recommended</usage>
  <v3Changes>Added to better document the patient's pain level.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of TypeOfPainScale

Type hierarchy

xs:string
- TypeOfPainScale

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)	optional

Source

<xs:element name="eVitals.28" nillable="true" id="eVitals.PainScaleType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.28</number>
        <name>Pain Scale Type</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The type of pain scale used.</definition>
        <usage>Recommended</usage>
        <v3Changes>Added to better document the patient's pain level.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TypeOfPainScale">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup

Namespace

http://www.nemsis.org

Annotations

Group Tag to hold the results of patient's stroke scale and the type of stroke pain scale used.

Diagram

Properties

content

complex

Model

eVitals.29 , eVitals.30 , eVitals.34{0,1}

Children

eVitals.29, eVitals.30, eVitals.34

Instance

<eVitals.StrokeScaleGroup xmlns="http://www.nemsis.org">
  <eVitals.29 NV="" PN="">{1,1}</eVitals.29>
  <eVitals.30 NV="">{1,1}</eVitals.30>
  <eVitals.34 NV="" PN="">{0,1}</eVitals.34>
</eVitals.StrokeScaleGroup>

Source

<xs:element name="eVitals.StrokeScaleGroup" id="eVitals.StrokeScaleGroup">
  <xs:annotation>
    <xs:documentation>Group Tag to hold the results of patient's stroke scale and the type of stroke pain scale used.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="eVitals.29" nillable="true" id="eVitals.StrokeScaleScore">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.29</number>
              <name>Stroke Scale Score</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The findings or results of the Stroke Scale Type (eVitals.30) used to assess the patient exhibiting stroke-like symptoms.</definition>
              <v2Number>E14_24</v2Number>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Stroke</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="StrokeScale">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.30" nillable="true" id="eVitals.StrokeScaleType">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.30</number>
              <name>Stroke Scale Type</name>
              <national>Yes</national>
              <state>Yes</state>
              <definition>The type of stroke scale used.</definition>
              <usage>Required</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Stroke</performanceMeasure>
              </performanceMeasuresGroup>
              <v3Changes>Added to include additional detail on the stroke scale used.</v3Changes>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="TypeOfStrokeScale">
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="eVitals.34" nillable="true" id="eVitals.StrokeSeverityScore" minOccurs="0">
        <xs:annotation>
          <xs:documentation>
            <nemsisTacDoc>
              <number>eVitals.34</number>
              <name>Stroke Severity Score</name>
              <national>No</national>
              <state>Yes</state>
              <definition>The stroke severity value associated with the stroke scale type listed in eVitals.30.</definition>
              <usage>Recommended</usage>
              <performanceMeasuresGroup>
                <performanceMeasure>Stroke</performanceMeasure>
              </performanceMeasuresGroup>
              <PNNil>Yes</PNNil>
              <comment>Score associated with the stroke scale listed in eVitals.30</comment>
            </nemsisTacDoc>
          </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="StrokeScore">
              <xs:attribute name="PN" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="PN.UnableToComplete"/>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="NV" use="optional">
                <xs:simpleType>
                  <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                </xs:simpleType>
              </xs:attribute>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup / eVitals.29

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.29</number>
  <name>Stroke Scale Score</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The findings or results of the Stroke Scale Type (eVitals.30) used to assess the patient exhibiting stroke-like symptoms.</definition>
  <v2Number>E14_24</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Stroke</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of StrokeScale

Type hierarchy

xs:string
- StrokeScale

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.29" nillable="true" id="eVitals.StrokeScaleScore">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.29</number>
        <name>Stroke Scale Score</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The findings or results of the Stroke Scale Type (eVitals.30) used to assess the patient exhibiting stroke-like symptoms.</definition>
        <v2Number>E14_24</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Stroke</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="StrokeScale">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup / eVitals.30

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.30</number>
  <name>Stroke Scale Type</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The type of stroke scale used.</definition>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Stroke</performanceMeasure>
  </performanceMeasuresGroup>
  <v3Changes>Added to include additional detail on the stroke scale used.</v3Changes>
</nemsisTacDoc>

Diagram

Type

extension of TypeOfStrokeScale

Type hierarchy

xs:string
- TypeOfStrokeScale

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional

Source

<xs:element name="eVitals.30" nillable="true" id="eVitals.StrokeScaleType">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.30</number>
        <name>Stroke Scale Type</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The type of stroke scale used.</definition>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Stroke</performanceMeasure>
        </performanceMeasuresGroup>
        <v3Changes>Added to include additional detail on the stroke scale used.</v3Changes>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="TypeOfStrokeScale">
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup / eVitals.34

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.34</number>
  <name>Stroke Severity Score</name>
  <national>No</national>
  <state>Yes</state>
  <definition>The stroke severity value associated with the stroke scale type listed in eVitals.30.</definition>
  <usage>Recommended</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>Stroke</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
  <comment>Score associated with the stroke scale listed in eVitals.30</comment>
</nemsisTacDoc>

Diagram

Type

extension of StrokeScore

Type hierarchy

xs:integer
- StrokeScore

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.34" nillable="true" id="eVitals.StrokeSeverityScore" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.34</number>
        <name>Stroke Severity Score</name>
        <national>No</national>
        <state>Yes</state>
        <definition>The stroke severity value associated with the stroke scale type listed in eVitals.30.</definition>
        <usage>Recommended</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>Stroke</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
        <comment>Score associated with the stroke scale listed in eVitals.30</comment>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="StrokeScore">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.31

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.31</number>
  <name>Reperfusion Checklist</name>
  <national>Yes</national>
  <state>Yes</state>
  <definition>The results of the patient's Reperfusion Checklist for potential Thrombolysis use.</definition>
  <v2Number>E14_25</v2Number>
  <usage>Required</usage>
  <performanceMeasuresGroup>
    <performanceMeasure>STEMI</performanceMeasure>
    <performanceMeasure>Stroke</performanceMeasure>
  </performanceMeasuresGroup>
  <comment>Name changed from Thrombolytic Screen</comment>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of ReperfusionChecklist

Type hierarchy

xs:string
- ReperfusionChecklist

Properties

content	complex
nillable	true

Attributes

QName	Type	Use
NV	union of(NV.NotApplicable, NV.NotRecorded)	optional
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.31" nillable="true" id="eVitals.ReperfusionChecklist">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.31</number>
        <name>Reperfusion Checklist</name>
        <national>Yes</national>
        <state>Yes</state>
        <definition>The results of the patient's Reperfusion Checklist for potential Thrombolysis use.</definition>
        <v2Number>E14_25</v2Number>
        <usage>Required</usage>
        <performanceMeasuresGroup>
          <performanceMeasure>STEMI</performanceMeasure>
          <performanceMeasure>Stroke</performanceMeasure>
        </performanceMeasuresGroup>
        <comment>Name changed from Thrombolytic Screen</comment>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="ReperfusionChecklist">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="NV" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.32

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.32</number>
  <name>APGAR</name>
  <national>No</national>
  <state>No</state>
  <definition>The patient's total APGAR score (0-10).</definition>
  <v2Number>E14_26</v2Number>
  <usage>Optional</usage>
  <comment>Recommended to be taken at 1 and 5 minutes after the infants birth</comment>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of APGAR

Type hierarchy

xs:integer
- APGAR

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
PN	union of(PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.32" nillable="true" id="eVitals.APGAR" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.32</number>
        <name>APGAR</name>
        <national>No</national>
        <state>No</state>
        <definition>The patient's total APGAR score (0-10).</definition>
        <v2Number>E14_26</v2Number>
        <usage>Optional</usage>
        <comment>Recommended to be taken at 1 and 5 minutes after the infants birth</comment>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="APGAR">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element eVitals / eVitals.VitalGroup / eVitals.33

Namespace

http://www.nemsis.org

Annotations

<nemsisTacDoc>
  <number>eVitals.33</number>
  <name>Revised Trauma Score</name>
  <national>No</national>
  <state>No</state>
  <definition>The patient's Revised Trauma Score.</definition>
  <v2Number>E14_27</v2Number>
  <usage>Optional</usage>
  <comment>The Unweighted Revised Trauma Score is a physiological scoring system that is based on the first set of vital signs obtained from the patient, and consists of Glasgow Coma Scale, Systolic Blood Pressure and Respiratory Rate.</comment>
  <performanceMeasuresGroup>
    <performanceMeasure>Trauma</performanceMeasure>
  </performanceMeasuresGroup>
  <PNNil>Yes</PNNil>
</nemsisTacDoc>

Diagram

Type

extension of RTS

Type hierarchy

xs:integer
- RTS

Properties

content	complex
minOccurs	0
nillable	true

Attributes

QName	Type	Use
PN	union of(PN.Refused, PN.UnableToComplete)	optional

Source

<xs:element name="eVitals.33" nillable="true" id="eVitals.RevisedTraumaScore" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <nemsisTacDoc>
        <number>eVitals.33</number>
        <name>Revised Trauma Score</name>
        <national>No</national>
        <state>No</state>
        <definition>The patient's Revised Trauma Score.</definition>
        <v2Number>E14_27</v2Number>
        <usage>Optional</usage>
        <comment>The Unweighted Revised Trauma Score is a physiological scoring system that is based on the first set of vital signs obtained from the patient, and consists of Glasgow Coma Scale, Systolic Blood Pressure and Respiratory Rate.</comment>
        <performanceMeasuresGroup>
          <performanceMeasure>Trauma</performanceMeasure>
        </performanceMeasuresGroup>
        <PNNil>Yes</PNNil>
      </nemsisTacDoc>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="RTS">
        <xs:attribute name="PN" use="optional">
          <xs:simpleType>
            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
          </xs:simpleType>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Complex Type eVitals

Namespace

http://www.nemsis.org

Diagram

Used by

Element

EMSDataSet/Header/PatientCareReport/eVitals

Model

eVitals.VitalGroup+

Children

eVitals.VitalGroup

Source

<xs:complexType name="eVitals">
  <xs:sequence>
    <xs:element name="eVitals.VitalGroup" id="eVitals.VitalGroup" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Group Tag to hold eVitals information</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence>
          <xs:element name="eVitals.01" nillable="true" id="eVitals.DateTimeVitalSignsTaken">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.01</number>
                  <name>Date/Time Vital Signs Taken</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The date/time vital signs were taken on the patient.</definition>
                  <v2Number>E14_01</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>DateTime consists of finite-length characters of the form: yyyy '-' mm '-' dd 'T' hh ':' mm ':' ss ('.' s+)? (zzzzzz) <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">yyyy</td><td>a four-digit numeral that represents the year</td></tr> <tr><td align="center">'-'</td><td>separators between parts of the date portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the month</td></tr> <tr><td align="center">dd</td><td>a two-digit numeral that represents the day</td></tr> <tr><td align="center">T</td><td>separator that indicates time-of-day follows</td></tr> <tr><td align="center">hh</td><td>a two-digit numeral that represents the hour</td></tr> <tr><td align="center">':'</td><td>a separator between parts of the time-of-day portion</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minute</td></tr> <tr><td align="center">ss</td><td>a two-integer-digit numeral that represents the whole seconds</td></tr> <tr><td align="center">'.' s+</td><td>(not required) represents the fractional seconds</td></tr> <tr><td align="center">zzzzzz</td><td>(required) represents the timezone (as described below)</td></tr> </table> </td></tr></table> <br/>Timezones, required, are durations with (integer-valued) hour and minute properties in the form: ('+' | '-') hh ':' mm <table cellspacing="2"><tr><td> <table border="1px" cellpadding="3px" cellspacing="0"> <tr><td align="center">hh</td><td>a two-digit numeral (with leading zeros as required) that represents the hours</td></tr> <tr><td align="center">mm</td><td>a two-digit numeral that represents the minutes</td></tr> <tr><td align="center">'+'</td><td>a nonnegative duration</td></tr> <tr><td align="center">'-'</td><td>a nonpositive duration</td></tr> </table> </td></tr></table></comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="DateTimeType">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.02" nillable="true" id="eVitals.ObtainedPriortothisUnitsEMSCare">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.02</number>
                  <name>Obtained Prior to this Unit's EMS Care</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>Indicates that the information which is documented was obtained prior to the documenting EMS units care.</definition>
                  <v2Number>E14_02</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>This is the NEMSIS Version 3 method to document prior aid.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="YesNoValues">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.CardiacRhythmGroup" id="eVitals.CardiacRhythmGroup">
            <xs:annotation>
              <xs:documentation>Group Tag to hold information of the type and method used for ECG interpretation associated with the cardiac rhythm.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eVitals.03" nillable="true" id="eVitals.CardiacRhythmandElectrocardiography" maxOccurs="unbounded">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.03</number>
                        <name>Cardiac Rhythm / Electrocardiography (ECG)</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The cardiac rhythm / ECG and other electrocardiography findings of the patient as interpreted by EMS personnel.</definition>
                        <v2Number>E14_03</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                        </performanceMeasuresGroup>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="CardiacRhythm">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.04" nillable="true" id="eVitals.ECGType">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.04</number>
                        <name>ECG Type</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The type of ECG associated with the cardiac rhythm.</definition>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>STEMI</performanceMeasure>
                        </performanceMeasuresGroup>
                        <v3Changes>Added to better document ECG results.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="ECGType">
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.05" nillable="true" id="eVitals.MethodofECGInterpretation" maxOccurs="unbounded">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.05</number>
                        <name>Method of ECG Interpretation</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The method of ECG interpretation.</definition>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>STEMI</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>"Transmission with no interpretation" may be used by EMS Agency Personnel that are not trained to interpret cardiac rhythms.</comment>
                        <v3Changes>Added to better document ECG results.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="ECGMethod">
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.BloodPressureGroup" id="eVitals.BloodPressureGroup">
            <xs:annotation>
              <xs:documentation>Group Tag to hold the details of patient's blood pressure.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eVitals.06" nillable="true" id="eVitals.SBPSystolicBloodPressure">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.06</number>
                        <name>SBP (Systolic Blood Pressure)</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The patient's systolic blood pressure.</definition>
                        <v2Number>E14_04</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>Pediatric</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                          <performanceMeasure>Stroke</performanceMeasure>
                          <performanceMeasure>Trauma</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>Required for ACS-Field Triage and other patient scoring systems.</comment>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="SBP">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.07" nillable="true" id="eVitals.DBPDiastolicBloodPressure" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.07</number>
                        <name>DBP (Diastolic Blood Pressure)</name>
                        <national>No</national>
                        <state>Yes</state>
                        <definition>The patient's diastolic blood pressure.</definition>
                        <v2Number>E14_05</v2Number>
                        <usage>Recommended</usage>
                        <comment>Diastolic blood pressure pattern allows for the following values:<br/>1) A number 0 through 500 <br/>2) P<br/>3) p</comment>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="DBP">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.08" nillable="true" id="eVitals.MethodofBloodPressureMeasurement" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.08</number>
                        <name>Method of Blood Pressure Measurement</name>
                        <national>No</national>
                        <state>Yes</state>
                        <definition>Indication of method of blood pressure measurement.</definition>
                        <v2Number>E14_06</v2Number>
                        <usage>Recommended</usage>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="BloodPressureMethod">
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.09" type="MAP" id="eVitals.MeanArterialPressure" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.09</number>
                        <name>Mean Arterial Pressure</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The patient's mean arterial pressure.</definition>
                        <usage>Optional</usage>
                        <v3Changes>Added for additional patient monitoring capability.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.HeartRateGroup" id="eVitals.HeartRateGroup">
            <xs:annotation>
              <xs:documentation>Group Tag to hold the details of patient's heart rate.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eVitals.10" nillable="true" id="eVitals.HeartRate">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.10</number>
                        <name>Heart Rate</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The patient's heart rate expressed as a number per minute.</definition>
                        <v2Number>E14_07</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>Pediatric</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                          <performanceMeasure>Stroke</performanceMeasure>
                          <performanceMeasure>Trauma</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>Pulse Rate and Electronic Monitor Rate have been merged with an additional data element for Method of Heart Rate Measurement.</comment>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="HeartRate">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.11" type="MethodMeasureHeartRate" id="eVitals.MethodofHeartRateMeasurement" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.11</number>
                        <name>Method of Heart Rate Measurement</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The method in which the Heart Rate was measured. Values include auscultated, palpated, electronic monitor.</definition>
                        <usage>Optional</usage>
                        <comment>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</comment>
                        <v3Changes>This data element was added when Pulse Rate and Electronic Monitor Rate were merged as EVitals.10.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.12" nillable="true" id="eVitals.PulseOximetry">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.12</number>
                  <name>Pulse Oximetry</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient's oxygen saturation.</definition>
                  <v2Number>E14_09</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <PNNil>Yes</PNNil>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="PulseOximetry">
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.13" type="PulseRhythm" id="eVitals.PulseRhythm" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.13</number>
                  <name>Pulse Rhythm</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The clinical rhythm of the patient's pulse.</definition>
                  <v2Number>E14_10</v2Number>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
          </xs:element>
          <xs:element name="eVitals.14" nillable="true" id="eVitals.RespiratoryRate">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.14</number>
                  <name>Respiratory Rate</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient's respiratory rate expressed as a number per minute.</definition>
                  <v2Number>E14_11</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <PNNil>Yes</PNNil>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="RespiratoryRate">
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.15" id="eVitals.RespiratoryEffort" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.15</number>
                  <name>Respiratory Effort</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The patient's respiratory effort.</definition>
                  <v2Number>E14_12</v2Number>
                  <usage>Optional</usage>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="RespiratoryEffort"/>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.16" nillable="true" id="eVitals.EndTidalCarbonDioxideETCO2">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.16</number>
                  <name>End Tidal Carbon Dioxide (ETCO2)</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The numeric value of the patient's exhaled end tidal carbon dioxide (ETCO2) level measured as a unit of pressure in millimeters of mercury (mmHg), percentage or, kilopascal (kPa).</definition>
                  <v2Number>E14_13</v2Number>
                  <usage>Required</usage>
                  <comment/>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <PNNil>Yes</PNNil>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="CO2">
                  <xs:attribute name="ETCO2Type" type="ETCO2Type" use="optional"/>
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.17" nillable="true" id="eVitals.CarbonMonoxideCO" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.17</number>
                  <name>Carbon Monoxide (CO)</name>
                  <national>No</national>
                  <state>Yes</state>
                  <definition>The numeric value of the patient's carbon monoxide level measured as a percentage (%) of carboxyhemoglobin (COHb).</definition>
                  <usage>Recommended</usage>
                  <v3Changes>Added to allow use of new patient monitoring devices.</v3Changes>
                  <PNNil>Yes</PNNil>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="CarbonMonoxideLevel">
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.18" nillable="true" id="eVitals.BloodGlucoseLevel">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.18</number>
                  <name>Blood Glucose Level</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient's blood glucose level.</definition>
                  <v2Number>E14_14</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                  </performanceMeasuresGroup>
                  <PNNil>Yes</PNNil>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="BloodGlucoseLevel">
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.GlasgowScoreGroup" id="eVitals.GlasgowScoreGroup">
            <xs:annotation>
              <xs:documentation>Group Tag to hold the details of patient's glasgow scale</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eVitals.19" nillable="true" id="eVitals.GlasgowComaScoreEye">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.19</number>
                        <name>Glasgow Coma Score-Eye</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The patient's Glasgow Coma Score Eye opening response.</definition>
                        <v2Number>E14_15</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>Pediatric</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                          <performanceMeasure>Stroke</performanceMeasure>
                          <performanceMeasure>Trauma</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="GlasgowComaScoreEyes">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.20" nillable="true" id="eVitals.GlasgowComaScoreVerbal">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.20</number>
                        <name>Glasgow Coma Score-Verbal</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The patient's Glasgow Coma Score Verbal response.</definition>
                        <v2Number>E14_16</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>Pediatric</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                          <performanceMeasure>Stroke</performanceMeasure>
                          <performanceMeasure>Trauma</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
                        <v3Changes/>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="GlasgowComaScoreVerbal">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.21" nillable="true" id="eVitals.GlasgowComaScoreMotor">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.21</number>
                        <name>Glasgow Coma Score-Motor</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The patient's Glasgow Coma Score Motor response.</definition>
                        <v2Number>E14_17</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>Pediatric</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                          <performanceMeasure>Stroke</performanceMeasure>
                          <performanceMeasure>Trauma</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
                        <v3Changes/>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="GlasgowComaScoreMotor">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.22" nillable="true" id="eVitals.GlasgowComaScoreQualifier" maxOccurs="unbounded">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.22</number>
                        <name>Glasgow Coma Score-Qualifier</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>Documentation of factors which make the GCS score more meaningful.</definition>
                        <v2Number>E14_18</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>Pediatric</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                          <performanceMeasure>Stroke</performanceMeasure>
                          <performanceMeasure>Trauma</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>Definitions now based on the National Trauma Data Standard (NTDS).</comment>
                        <v3Changes/>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="GCSScoreQualifier">
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.23" nillable="true" id="eVitals.TotalGlasgowComaScore" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.23</number>
                        <name>Total Glasgow Coma Score</name>
                        <national>No</national>
                        <state>Yes</state>
                        <definition>The patient's total Glasgow Coma Score.</definition>
                        <v2Number>E14_19</v2Number>
                        <usage>Recommended</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Airway</performanceMeasure>
                          <performanceMeasure>Cardiac Arrest</performanceMeasure>
                          <performanceMeasure>Pediatric</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                          <performanceMeasure>Stroke</performanceMeasure>
                          <performanceMeasure>Trauma</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>Can be documented or calculated from EVitals.19 (GCS-Eye), EVitals.20 (GCS-Verbal), and EVitals.21 (GCS-Motor).</comment>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="TotalGCS">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.TemperatureGroup" id="eVitals.TemperatureGroup" minOccurs="0">
            <xs:annotation>
              <xs:documentation>Group Tag to hold information about patient's body temperature.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eVitals.24" nillable="true" id="eVitals.Temperature" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.24</number>
                        <name>Temperature</name>
                        <national>No</national>
                        <state>Yes</state>
                        <definition>The patient's body temperature in degrees Celsius/centigrade.</definition>
                        <v2Number>E14_20</v2Number>
                        <usage>Recommended</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Pediatric</performanceMeasure>
                        </performanceMeasuresGroup>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="BodyTemperature">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.25" type="MethodBodyTemp" id="eVitals.TemperatureMethod" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.25</number>
                        <name>Temperature Method</name>
                        <national>No</national>
                        <state>No</state>
                        <definition>The method used to obtain the patient's body temperature.</definition>
                        <v2Number>E14_21</v2Number>
                        <usage>Optional</usage>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.26" nillable="true" id="eVitals.LevelofResponsivenessAVPU">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.26</number>
                  <name>Level of Responsiveness (AVPU)</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The patient's highest level of responsiveness.</definition>
                  <v2Number>E14_22</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Airway</performanceMeasure>
                    <performanceMeasure>Cardiac Arrest</performanceMeasure>
                    <performanceMeasure>Pediatric</performanceMeasure>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Definition changed to indicate highest level of responsiveness.</comment>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="PatientsHighestLevelResponsiveness">
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.PainScaleGroup" id="eVitals.PainScaleGroup">
            <xs:annotation>
              <xs:documentation>Group Tag to hold the scale of patient's pain and the type of pain scale used.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eVitals.27" nillable="true" id="eVitals.PainScore">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.27</number>
                        <name>Pain Scale Score</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The patient's indication of pain from a scale of 0-10.</definition>
                        <v2Number>E14_23</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Pediatric</performanceMeasure>
                          <performanceMeasure>STEMI</performanceMeasure>
                          <performanceMeasure>Trauma</performanceMeasure>
                        </performanceMeasuresGroup>
                        <comment>The Pain Score can be obtained from several pain measurement tools or pain scale types (eVitals.28). The pain scale type used should have a numeric value associated with each diagram as appropriate. If the pain scale type utilizes multiple indicators/categories the total should be calculated and entered for the pain score associated with the patient assessment.</comment>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="PainScale">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.28" nillable="true" id="eVitals.PainScaleType" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.28</number>
                        <name>Pain Scale Type</name>
                        <national>No</national>
                        <state>Yes</state>
                        <definition>The type of pain scale used.</definition>
                        <usage>Recommended</usage>
                        <v3Changes>Added to better document the patient's pain level.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="TypeOfPainScale">
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.StrokeScaleGroup" id="eVitals.StrokeScaleGroup">
            <xs:annotation>
              <xs:documentation>Group Tag to hold the results of patient's stroke scale and the type of stroke pain scale used.</xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:sequence>
                <xs:element name="eVitals.29" nillable="true" id="eVitals.StrokeScaleScore">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.29</number>
                        <name>Stroke Scale Score</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The findings or results of the Stroke Scale Type (eVitals.30) used to assess the patient exhibiting stroke-like symptoms.</definition>
                        <v2Number>E14_24</v2Number>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Stroke</performanceMeasure>
                        </performanceMeasuresGroup>
                        <PNNil>Yes</PNNil>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="StrokeScale">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.30" nillable="true" id="eVitals.StrokeScaleType">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.30</number>
                        <name>Stroke Scale Type</name>
                        <national>Yes</national>
                        <state>Yes</state>
                        <definition>The type of stroke scale used.</definition>
                        <usage>Required</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Stroke</performanceMeasure>
                        </performanceMeasuresGroup>
                        <v3Changes>Added to include additional detail on the stroke scale used.</v3Changes>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="TypeOfStrokeScale">
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
                <xs:element name="eVitals.34" nillable="true" id="eVitals.StrokeSeverityScore" minOccurs="0">
                  <xs:annotation>
                    <xs:documentation>
                      <nemsisTacDoc>
                        <number>eVitals.34</number>
                        <name>Stroke Severity Score</name>
                        <national>No</national>
                        <state>Yes</state>
                        <definition>The stroke severity value associated with the stroke scale type listed in eVitals.30.</definition>
                        <usage>Recommended</usage>
                        <performanceMeasuresGroup>
                          <performanceMeasure>Stroke</performanceMeasure>
                        </performanceMeasuresGroup>
                        <PNNil>Yes</PNNil>
                        <comment>Score associated with the stroke scale listed in eVitals.30</comment>
                      </nemsisTacDoc>
                    </xs:documentation>
                  </xs:annotation>
                  <xs:complexType>
                    <xs:simpleContent>
                      <xs:extension base="StrokeScore">
                        <xs:attribute name="PN" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="PN.UnableToComplete"/>
                          </xs:simpleType>
                        </xs:attribute>
                        <xs:attribute name="NV" use="optional">
                          <xs:simpleType>
                            <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                          </xs:simpleType>
                        </xs:attribute>
                      </xs:extension>
                    </xs:simpleContent>
                  </xs:complexType>
                </xs:element>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.31" nillable="true" id="eVitals.ReperfusionChecklist">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.31</number>
                  <name>Reperfusion Checklist</name>
                  <national>Yes</national>
                  <state>Yes</state>
                  <definition>The results of the patient's Reperfusion Checklist for potential Thrombolysis use.</definition>
                  <v2Number>E14_25</v2Number>
                  <usage>Required</usage>
                  <performanceMeasuresGroup>
                    <performanceMeasure>STEMI</performanceMeasure>
                    <performanceMeasure>Stroke</performanceMeasure>
                  </performanceMeasuresGroup>
                  <comment>Name changed from Thrombolytic Screen</comment>
                  <PNNil>Yes</PNNil>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="ReperfusionChecklist">
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                  <xs:attribute name="NV" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.32" nillable="true" id="eVitals.APGAR" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.32</number>
                  <name>APGAR</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The patient's total APGAR score (0-10).</definition>
                  <v2Number>E14_26</v2Number>
                  <usage>Optional</usage>
                  <comment>Recommended to be taken at 1 and 5 minutes after the infants birth</comment>
                  <PNNil>Yes</PNNil>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="APGAR">
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
          <xs:element name="eVitals.33" nillable="true" id="eVitals.RevisedTraumaScore" minOccurs="0">
            <xs:annotation>
              <xs:documentation>
                <nemsisTacDoc>
                  <number>eVitals.33</number>
                  <name>Revised Trauma Score</name>
                  <national>No</national>
                  <state>No</state>
                  <definition>The patient's Revised Trauma Score.</definition>
                  <v2Number>E14_27</v2Number>
                  <usage>Optional</usage>
                  <comment>The Unweighted Revised Trauma Score is a physiological scoring system that is based on the first set of vital signs obtained from the patient, and consists of Glasgow Coma Scale, Systolic Blood Pressure and Respiratory Rate.</comment>
                  <performanceMeasuresGroup>
                    <performanceMeasure>Trauma</performanceMeasure>
                  </performanceMeasuresGroup>
                  <PNNil>Yes</PNNil>
                </nemsisTacDoc>
              </xs:documentation>
            </xs:annotation>
            <xs:complexType>
              <xs:simpleContent>
                <xs:extension base="RTS">
                  <xs:attribute name="PN" use="optional">
                    <xs:simpleType>
                      <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
                    </xs:simpleType>
                  </xs:attribute>
                </xs:extension>
              </xs:simpleContent>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
        <xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

Simple Type ECGType

Namespace

http://www.nemsis.org

Annotations

The type of ECG associated with the cardiac rhythm.

Diagram

Type

restriction of xs:string

Facets

enumeration

3304000

2 Lead ECG (pads or paddles)

enumeration

3304001

3 Lead

enumeration

3304003

4 Lead

enumeration

3304005

5 Lead

enumeration

3304007

12 Lead-Left Sided (Normal)

enumeration

3304009

12 Lead-Right Sided

enumeration

3304011

15 Lead

enumeration

3304013

18 Lead

enumeration

3304015

Other

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.CardiacRhythmGroup/eVitals.04

Source

<xs:simpleType name="ECGType">
  <xs:annotation>
    <xs:documentation>The type of ECG associated with the cardiac rhythm.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3304000">
      <xs:annotation>
        <xs:documentation>2 Lead ECG (pads or paddles)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3304001">
      <xs:annotation>
        <xs:documentation>3 Lead</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3304003">
      <xs:annotation>
        <xs:documentation>4 Lead</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3304005">
      <xs:annotation>
        <xs:documentation>5 Lead</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3304007">
      <xs:annotation>
        <xs:documentation>12 Lead-Left Sided (Normal)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3304009">
      <xs:annotation>
        <xs:documentation>12 Lead-Right Sided</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3304011">
      <xs:annotation>
        <xs:documentation>15 Lead</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3304013">
      <xs:annotation>
        <xs:documentation>18 Lead</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3304015">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type ECGMethod

Namespace

http://www.nemsis.org

Annotations

The method of ECG interpretation.

Diagram

Type

restriction of xs:string

Facets

enumeration

3305001

Computer Interpretation

enumeration

3305003

Manual Interpretation

enumeration

3305005

Transmission with No Interpretation

enumeration

3305007

Transmission with Remote Interpretation

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.CardiacRhythmGroup/eVitals.05

Source

<xs:simpleType name="ECGMethod">
  <xs:annotation>
    <xs:documentation>The method of ECG interpretation.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3305001">
      <xs:annotation>
        <xs:documentation>Computer Interpretation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3305003">
      <xs:annotation>
        <xs:documentation>Manual Interpretation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3305005">
      <xs:annotation>
        <xs:documentation>Transmission with No Interpretation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3305007">
      <xs:annotation>
        <xs:documentation>Transmission with Remote Interpretation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type BloodPressureMethod

Namespace

http://www.nemsis.org

Annotations

Indication of method of blood pressure procedure.

Diagram

Type

restriction of xs:string

Facets

enumeration

3308001

Arterial Line

enumeration

3308003

Doppler

enumeration

3308005

Cuff-Automated

enumeration

3308007

Cuff-Manual Auscultated

enumeration

3308009

Cuff-Manual Palpated Only

enumeration

3308011

Venous Line

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.BloodPressureGroup/eVitals.08

Source

<xs:simpleType name="BloodPressureMethod">
  <xs:annotation>
    <xs:documentation>Indication of method of blood pressure procedure.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3308001">
      <xs:annotation>
        <xs:documentation>Arterial Line</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3308003">
      <xs:annotation>
        <xs:documentation>Doppler</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3308005">
      <xs:annotation>
        <xs:documentation>Cuff-Automated</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3308007">
      <xs:annotation>
        <xs:documentation>Cuff-Manual Auscultated</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3308009">
      <xs:annotation>
        <xs:documentation>Cuff-Manual Palpated Only</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3308011">
      <xs:annotation>
        <xs:documentation>Venous Line</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type MAP

Namespace

http://www.nemsis.org

Annotations

The patient's mean arterial pressure.

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	500
minInclusive	1

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.BloodPressureGroup/eVitals.09

Source

<xs:simpleType name="MAP">
  <xs:annotation>
    <xs:documentation>The patient's mean arterial pressure.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="1"/>
    <xs:maxInclusive value="500"/>
  </xs:restriction>
</xs:simpleType>

Simple Type HeartRate

Namespace

http://www.nemsis.org

Annotations

The patient's heart rate expressed as a number per minute.

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	500
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.HeartRateGroup/eVitals.10

Source

<xs:simpleType name="HeartRate">
  <xs:annotation>
    <xs:documentation>The patient's heart rate expressed as a number per minute.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="500"/>
  </xs:restriction>
</xs:simpleType>

Simple Type MethodMeasureHeartRate

Namespace

http://www.nemsis.org

Annotations

The method in which the Heart Rate was measured. Values include auscultated, palpated, electronic monitor).

Diagram

Type

restriction of xs:string

Facets

enumeration

3311001

Auscultated

enumeration

3311003

Doppler

enumeration

3311005

Electronic Monitor - Cardiac

enumeration

3311007

Electronic Monitor - Pulse Oximeter

enumeration

3311009

Electronic Monitor (Other)

enumeration

3311011

Palpated

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.HeartRateGroup/eVitals.11

Source

<xs:simpleType name="MethodMeasureHeartRate">
  <xs:annotation>
    <xs:documentation>The method in which the Heart Rate was measured. Values include auscultated, palpated, electronic monitor).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3311001">
      <xs:annotation>
        <xs:documentation>Auscultated</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3311003">
      <xs:annotation>
        <xs:documentation>Doppler</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3311005">
      <xs:annotation>
        <xs:documentation>Electronic Monitor - Cardiac</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3311007">
      <xs:annotation>
        <xs:documentation>Electronic Monitor - Pulse Oximeter</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3311009">
      <xs:annotation>
        <xs:documentation>Electronic Monitor (Other)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3311011">
      <xs:annotation>
        <xs:documentation>Palpated</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type PulseOximetry

Namespace

http://www.nemsis.org

Annotations

The patient's oxygen saturation.

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	100
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.12

Source

<xs:simpleType name="PulseOximetry">
  <xs:annotation>
    <xs:documentation>The patient's oxygen saturation.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="100"/>
  </xs:restriction>
</xs:simpleType>

Simple Type PulseRhythm

Namespace

http://www.nemsis.org

Annotations

The clinical rhythm of the patient's pulse (regular, irregular, etc.).

Diagram

Type

restriction of xs:string

Facets

enumeration

3313001

Irregularly Irregular

enumeration

3313003

Regular

enumeration

3313005

Regularly Irregular

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.13

Source

<xs:simpleType name="PulseRhythm">
  <xs:annotation>
    <xs:documentation>The clinical rhythm of the patient's pulse (regular, irregular, etc.).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3313001">
      <xs:annotation>
        <xs:documentation>Irregularly Irregular</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3313003">
      <xs:annotation>
        <xs:documentation>Regular</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3313005">
      <xs:annotation>
        <xs:documentation>Regularly Irregular</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type RespiratoryRate

Namespace

http://www.nemsis.org

Annotations

The patient's respiratory rate expressed as a number per minute.

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	300
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.14

Source

<xs:simpleType name="RespiratoryRate">
  <xs:annotation>
    <xs:documentation>The patient's respiratory rate expressed as a number per minute.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="300"/>
  </xs:restriction>
</xs:simpleType>

Simple Type RespiratoryEffort

Namespace

http://www.nemsis.org

Annotations

The patient's respiratory effort

Diagram

Type

restriction of xs:string

Facets

enumeration

3315001

Apneic

enumeration

3315003

Labored

enumeration

3315005

Mechanically Assisted (BVM, CPAP, etc.)

enumeration

3315007

Normal

enumeration

3315009

Rapid

enumeration

3315011

Shallow

enumeration

3315013

Weak/Agonal

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.15

Source

<xs:simpleType name="RespiratoryEffort">
  <xs:annotation>
    <xs:documentation>The patient's respiratory effort</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3315001">
      <xs:annotation>
        <xs:documentation>Apneic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3315003">
      <xs:annotation>
        <xs:documentation>Labored</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3315005">
      <xs:annotation>
        <xs:documentation>Mechanically Assisted (BVM, CPAP, etc.)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3315007">
      <xs:annotation>
        <xs:documentation>Normal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3315009">
      <xs:annotation>
        <xs:documentation>Rapid</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3315011">
      <xs:annotation>
        <xs:documentation>Shallow</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3315013">
      <xs:annotation>
        <xs:documentation>Weak/Agonal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type CO2

Namespace

http://www.nemsis.org

Annotations

The patient's end-tidal or other CO2 level.

Diagram

Type

restriction of xs:decimal

Facets

totalDigits	4
fractionDigits	1
maxInclusive	760
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.16

Source

<xs:simpleType name="CO2">
  <xs:annotation>
    <xs:documentation>The patient's end-tidal or other CO2 level.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:totalDigits value="4"/>
    <xs:fractionDigits value="1"/>
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="760"/>
  </xs:restriction>
</xs:simpleType>

Simple Type ETCO2Type

Namespace

http://www.nemsis.org

Annotations

The type measurement for ETCO2.

Diagram

Type

restriction of xs:string

Facets

enumeration

3340001

mmHg

enumeration

3340003

Percentage

enumeration

3340005

kPa

Used by

Attribute

eVitals/eVitals.VitalGroup/eVitals.16/@ETCO2Type

Source

<xs:simpleType name="ETCO2Type">
  <xs:annotation>
    <xs:documentation>The type measurement for ETCO2.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3340001">
      <xs:annotation>
        <xs:documentation>mmHg</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3340003">
      <xs:annotation>
        <xs:documentation>Percentage</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3340005">
      <xs:annotation>
        <xs:documentation>kPa</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type CarbonMonoxideLevel

Namespace

http://www.nemsis.org

Annotations

The patient's carboxyhemoglobin level measured as a percentage of carboxyhemoglobin in the blood either from a blood sample or CO-oximeter.

Diagram

Type

restriction of xs:decimal

Facets

totalDigits	3
fractionDigits	1
maxInclusive	100
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.17

Source

<xs:simpleType name="CarbonMonoxideLevel">
  <xs:annotation>
    <xs:documentation>The patient's carboxyhemoglobin level measured as a percentage of carboxyhemoglobin in the blood either from a blood sample or CO-oximeter.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="100"/>
    <xs:totalDigits value="3"/>
    <xs:fractionDigits value="1"/>
  </xs:restriction>
</xs:simpleType>

Simple Type BloodGlucoseLevel

Namespace

http://www.nemsis.org

Annotations

The Patient's Blood Glucose Level

Diagram

Type

restriction of xs:string

Facets

pattern

[2][0][0][0]|[1][0-9][0-9][0-9]|[1-9][0-9][0-9]|[1-9][0-9]|[0-9]|High|Low

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.18

Source

<xs:simpleType name="BloodGlucoseLevel">
  <xs:annotation>
    <xs:documentation>The Patient's Blood Glucose Level</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:pattern value="[2][0][0][0]|[1][0-9][0-9][0-9]|[1-9][0-9][0-9]|[1-9][0-9]|[0-9]|High|Low"/>
  </xs:restriction>
</xs:simpleType>

Simple Type GlasgowComaScoreEyes

Namespace

http://www.nemsis.org

Annotations

The patient's Glasgow Coma Score Eye opening.

Diagram

Type

restriction of xs:string

Facets

enumeration

No eye movement when assessed (All Age Groups)

enumeration

Opens Eyes to painful stimulation (All Age Groups)

enumeration

Opens Eyes to verbal stimulation (All Age Groups)

enumeration

Opens Eyes spontaneously (All Age Groups)

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.19

Source

<xs:simpleType name="GlasgowComaScoreEyes">
  <xs:annotation>
    <xs:documentation>The patient's Glasgow Coma Score Eye opening.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>No eye movement when assessed (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>Opens Eyes to painful stimulation (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation>Opens Eyes to verbal stimulation (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4">
      <xs:annotation>
        <xs:documentation>Opens Eyes spontaneously (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type GlasgowComaScoreVerbal

Namespace

http://www.nemsis.org

Annotations

The patient's Glasgow Coma Score Verbal.

Diagram

Type

restriction of xs:string

Facets

enumeration

No verbal/vocal response (All Age Groups)

enumeration

Incomprehensible sounds (>2 Years); Inconsolable, agitated

enumeration

Inappropriate words (>2 Years); Inconsistently consolable, moaning

enumeration

Confused (>2 Years); Cries but is consolable, inappropriate interactions

enumeration

Oriented (>2 Years); Smiles, oriented to sounds, follows objects, interacts

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.20

Source

<xs:simpleType name="GlasgowComaScoreVerbal">
  <xs:annotation>
    <xs:documentation>The patient's Glasgow Coma Score Verbal.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>No verbal/vocal response (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>Incomprehensible sounds (>2 Years); Inconsolable, agitated</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation>Inappropriate words (>2 Years); Inconsistently consolable, moaning</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4">
      <xs:annotation>
        <xs:documentation>Confused (>2 Years); Cries but is consolable, inappropriate interactions</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="5">
      <xs:annotation>
        <xs:documentation>Oriented (>2 Years); Smiles, oriented to sounds, follows objects, interacts</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type GlasgowComaScoreMotor

Namespace

http://www.nemsis.org

Annotations

The patient's Glasgow Coma Score Motor.

Diagram

Type

restriction of xs:string

Facets

enumeration

No Motor Response (All Age Groups)

enumeration

Extension to pain (All Age Groups)

enumeration

Flexion to pain (All Age Groups)

enumeration

Withdrawal from pain (All Age Groups)

enumeration

Localizing pain (All Age Groups)

enumeration

Obeys commands (>2Years); Appropriate response to stimulation

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.21

Source

<xs:simpleType name="GlasgowComaScoreMotor">
  <xs:annotation>
    <xs:documentation>The patient's Glasgow Coma Score Motor.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="1">
      <xs:annotation>
        <xs:documentation>No Motor Response (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="2">
      <xs:annotation>
        <xs:documentation>Extension to pain (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3">
      <xs:annotation>
        <xs:documentation>Flexion to pain (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="4">
      <xs:annotation>
        <xs:documentation>Withdrawal from pain (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="5">
      <xs:annotation>
        <xs:documentation>Localizing pain (All Age Groups)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="6">
      <xs:annotation>
        <xs:documentation>Obeys commands (>2Years); Appropriate response to stimulation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type GCSScoreQualifier

Namespace

http://www.nemsis.org

Annotations

Documentation of factors which make the GCS score more meaningful.

Diagram

Type

restriction of xs:string

Facets

enumeration

3322001

Eye Obstruction Prevents Eye Assessment

enumeration

3322003

Initial GCS has legitimate values without interventions such as intubation and sedation

enumeration

3322005

Patient Chemically Paralyzed

enumeration

3322007

Patient Chemically Sedated

enumeration

3322009

Patient Intubated

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.22

Source

<xs:simpleType name="GCSScoreQualifier">
  <xs:annotation>
    <xs:documentation>Documentation of factors which make the GCS score more meaningful.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3322001">
      <xs:annotation>
        <xs:documentation>Eye Obstruction Prevents Eye Assessment</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3322003">
      <xs:annotation>
        <xs:documentation>Initial GCS has legitimate values without interventions such as intubation and sedation</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3322005">
      <xs:annotation>
        <xs:documentation>Patient Chemically Paralyzed</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3322007">
      <xs:annotation>
        <xs:documentation>Patient Chemically Sedated</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3322009">
      <xs:annotation>
        <xs:documentation>Patient Intubated</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type TotalGCS

Namespace

http://www.nemsis.org

Annotations

The patient's total Glasgow Coma Score. Can be documented or calculated from EVitals.19 (GCS-Eye), EVitals.20 (GCS-Verbal), and EVitals.21 (GCS-Motor).

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	15
minInclusive	3

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.23

Source

<xs:simpleType name="TotalGCS">
  <xs:annotation>
    <xs:documentation>The patient's total Glasgow Coma Score. Can be documented or calculated from EVitals.19 (GCS-Eye), EVitals.20 (GCS-Verbal), and EVitals.21 (GCS-Motor).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="3"/>
    <xs:maxInclusive value="15"/>
  </xs:restriction>
</xs:simpleType>

Simple Type BodyTemperature

Namespace

http://www.nemsis.org

Annotations

The patient's body temperature in degrees Celsius/centigrade.

Diagram

Type

restriction of xs:decimal

Facets

totalDigits	3
fractionDigits	1
maxInclusive	50
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.TemperatureGroup/eVitals.24

Source

<xs:simpleType name="BodyTemperature">
  <xs:annotation>
    <xs:documentation>The patient's body temperature in degrees Celsius/centigrade.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:decimal">
    <xs:totalDigits value="3"/>
    <xs:fractionDigits value="1"/>
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="50"/>
  </xs:restriction>
</xs:simpleType>

Simple Type MethodBodyTemp

Namespace

http://www.nemsis.org

Annotations

The method used to obtain the patient's body temperature.

Diagram

Type

restriction of xs:string

Facets

enumeration

3325001

Axillary

enumeration

3325003

Central (Venous or Arterial)

enumeration

3325005

Esophageal

enumeration

3325007

Oral

enumeration

3325009

Rectal

enumeration

3325011

Temporal Artery

enumeration

3325013

Tympanic

enumeration

3325015

Urinary Catheter

enumeration

3325017

Skin Probe

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.TemperatureGroup/eVitals.25

Source

<xs:simpleType name="MethodBodyTemp">
  <xs:annotation>
    <xs:documentation>The method used to obtain the patient's body temperature.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3325001">
      <xs:annotation>
        <xs:documentation>Axillary</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3325003">
      <xs:annotation>
        <xs:documentation>Central (Venous or Arterial)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3325005">
      <xs:annotation>
        <xs:documentation>Esophageal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3325007">
      <xs:annotation>
        <xs:documentation>Oral</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3325009">
      <xs:annotation>
        <xs:documentation>Rectal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3325011">
      <xs:annotation>
        <xs:documentation>Temporal Artery</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3325013">
      <xs:annotation>
        <xs:documentation>Tympanic</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3325015">
      <xs:annotation>
        <xs:documentation>Urinary Catheter</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3325017">
      <xs:annotation>
        <xs:documentation>Skin Probe</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type PatientsHighestLevelResponsiveness

Namespace

http://www.nemsis.org

Annotations

The patient's highest level of responsiveness.

Diagram

Type

restriction of xs:string

Facets

enumeration

3326001

Alert

enumeration

3326003

Verbal

enumeration

3326005

Painful

enumeration

3326007

Unresponsive

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.26

Source

<xs:simpleType name="PatientsHighestLevelResponsiveness">
  <xs:annotation>
    <xs:documentation>The patient's highest level of responsiveness.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3326001">
      <xs:annotation>
        <xs:documentation>Alert</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3326003">
      <xs:annotation>
        <xs:documentation>Verbal</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3326005">
      <xs:annotation>
        <xs:documentation>Painful</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3326007">
      <xs:annotation>
        <xs:documentation>Unresponsive</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type PainScale

Namespace

http://www.nemsis.org

Annotations

The patient's indication of pain from a scale of 0-10.

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	10
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.PainScaleGroup/eVitals.27

Source

<xs:simpleType name="PainScale">
  <xs:annotation>
    <xs:documentation>The patient's indication of pain from a scale of 0-10.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="10"/>
  </xs:restriction>
</xs:simpleType>

Simple Type TypeOfPainScale

Namespace

http://www.nemsis.org

Annotations

The type of pain scale used.

Diagram

Type

restriction of xs:string

Facets

enumeration

3328001

FLACC (Face, Legs, Activity, Cry, Consolability)

enumeration

3328003

Numeric (0-10)

enumeration

3328005

Other

enumeration

3328007

Wong-Baker (FACES)

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.PainScaleGroup/eVitals.28

Source

<xs:simpleType name="TypeOfPainScale">
  <xs:annotation>
    <xs:documentation>The type of pain scale used.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3328001">
      <xs:annotation>
        <xs:documentation>FLACC (Face, Legs, Activity, Cry, Consolability)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3328003">
      <xs:annotation>
        <xs:documentation>Numeric (0-10)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3328005">
      <xs:annotation>
        <xs:documentation>Other</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3328007">
      <xs:annotation>
        <xs:documentation>Wong-Baker (FACES)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type StrokeScale

Namespace

http://www.nemsis.org

Annotations

The patient's Stroke Scale Results.

Diagram

Type

restriction of xs:string

Facets

enumeration

3329001

Negative

enumeration

3329003

Non-Conclusive

enumeration

3329005

Positive

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.StrokeScaleGroup/eVitals.29

Source

<xs:simpleType name="StrokeScale">
  <xs:annotation>
    <xs:documentation>The patient's Stroke Scale Results.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3329001">
      <xs:annotation>
        <xs:documentation>Negative</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3329003">
      <xs:annotation>
        <xs:documentation>Non-Conclusive</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3329005">
      <xs:annotation>
        <xs:documentation>Positive</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type TypeOfStrokeScale

Namespace

http://www.nemsis.org

Annotations

The type of stroke pain scale used.

Diagram

Type

restriction of xs:string

Facets

enumeration

3330001

Cincinnati Prehospital Stroke Scale (CPSS)

enumeration

3330004

Los Angeles Prehospital Stroke Screen (LAPSS)

enumeration

3330005

Massachusetts Stroke Scale (MSS)

enumeration

3330007

Miami Emergency Neurologic Deficit Exam (MEND)

enumeration

3330009

NIH Stroke Scale (NIHSS)

enumeration

3330011

Other Stroke Scale Type

enumeration

3330013

FAST

enumeration

3330015

Boston Stroke Scale (BOSS)

enumeration

3330017

Ontario Prehospital Stroke Scale (OPSS)

enumeration

3330019

Melbourne Ambulance Stroke Screen (MASS)

enumeration

3330021

Rapid Arterial oCclusion Evaluation (RACE)

enumeration

3330023

Los Angeles Motor Score (LAMS)

enumeration

3330025

Vision, Aphasia, Neglect (VAN)

enumeration

3330027

FAST-ED

enumeration

3330029

BEFAST

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.StrokeScaleGroup/eVitals.30

Source

<xs:simpleType name="TypeOfStrokeScale">
  <xs:annotation>
    <xs:documentation>The type of stroke pain scale used.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3330001">
      <xs:annotation>
        <xs:documentation>Cincinnati Prehospital Stroke Scale (CPSS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330004">
      <xs:annotation>
        <xs:documentation>Los Angeles Prehospital Stroke Screen (LAPSS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330005">
      <xs:annotation>
        <xs:documentation>Massachusetts Stroke Scale (MSS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330007">
      <xs:annotation>
        <xs:documentation>Miami Emergency Neurologic Deficit Exam (MEND)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330009">
      <xs:annotation>
        <xs:documentation>NIH Stroke Scale (NIHSS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330011">
      <xs:annotation>
        <xs:documentation>Other Stroke Scale Type</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330013">
      <xs:annotation>
        <xs:documentation>FAST</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330015">
      <xs:annotation>
        <xs:documentation>Boston Stroke Scale (BOSS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330017">
      <xs:annotation>
        <xs:documentation>Ontario Prehospital Stroke Scale (OPSS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330019">
      <xs:annotation>
        <xs:documentation>Melbourne Ambulance Stroke Screen (MASS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330021">
      <xs:annotation>
        <xs:documentation>Rapid Arterial oCclusion Evaluation (RACE)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330023">
      <xs:annotation>
        <xs:documentation>Los Angeles Motor Score (LAMS)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330025">
      <xs:annotation>
        <xs:documentation>Vision, Aphasia, Neglect (VAN)</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330027">
      <xs:annotation>
        <xs:documentation>FAST-ED</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3330029">
      <xs:annotation>
        <xs:documentation>BEFAST</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type StrokeScore

Namespace

http://www.nemsis.org

Annotations

Score associated with the stroke scale listed in eVitals.30

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	42
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.StrokeScaleGroup/eVitals.34

Source

<xs:simpleType name="StrokeScore">
  <xs:annotation>
    <xs:documentation>Score associated with the stroke scale listed in eVitals.30</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="42"/>
  </xs:restriction>
</xs:simpleType>

Simple Type ReperfusionChecklist

Namespace

http://www.nemsis.org

Annotations

The results of the patient's Reperfusion Checklist for potential Thrombolysis use.

Diagram

Type

restriction of xs:string

Facets

enumeration

3331001

Definite Contraindications to Thrombolytic Use

enumeration

3331003

No Contraindications to Thrombolytic Use

enumeration

3331005

Possible Contraindications to Thrombolytic Use

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.31

Source

<xs:simpleType name="ReperfusionChecklist">
  <xs:annotation>
    <xs:documentation>The results of the patient's Reperfusion Checklist for potential Thrombolysis use.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:string">
    <xs:enumeration value="3331001">
      <xs:annotation>
        <xs:documentation>Definite Contraindications to Thrombolytic Use</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3331003">
      <xs:annotation>
        <xs:documentation>No Contraindications to Thrombolytic Use</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
    <xs:enumeration value="3331005">
      <xs:annotation>
        <xs:documentation>Possible Contraindications to Thrombolytic Use</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
  </xs:restriction>
</xs:simpleType>

Simple Type APGAR

Namespace

http://www.nemsis.org

Annotations

The patient's total APGAR score (0-10).

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	10
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.32

Source

<xs:simpleType name="APGAR">
  <xs:annotation>
    <xs:documentation>The patient's total APGAR score (0-10).</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="10"/>
  </xs:restriction>
</xs:simpleType>

Simple Type RTS

Namespace

http://www.nemsis.org

Annotations

The patient's Revised Trauma Score.

Diagram

Type

restriction of xs:integer

Facets

maxInclusive	12
minInclusive	0

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.33

Source

<xs:simpleType name="RTS">
  <xs:annotation>
    <xs:documentation>The patient's Revised Trauma Score.</xs:documentation>
  </xs:annotation>
  <xs:restriction base="xs:integer">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="12"/>
  </xs:restriction>
</xs:simpleType>

Attribute eVitals / eVitals.VitalGroup / eVitals.01 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.01

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.02 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.02

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.03 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.CardiacRhythmGroup/eVitals.03

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.03 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.CardiacRhythmGroup/eVitals.03

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.03 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.CardiacRhythmGroup/eVitals.03

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.04 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.CardiacRhythmGroup/eVitals.04

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.05 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.CardiacRhythmGroup/eVitals.05

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.CardiacRhythmGroup / eVitals.05 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.CardiacRhythmGroup/eVitals.05

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.06 / @PN

Namespace

No namespace

Type

union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.BloodPressureGroup/eVitals.06

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.06 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.BloodPressureGroup/eVitals.06

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.07 / @PN

Namespace

No namespace

Type

union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.BloodPressureGroup/eVitals.07

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.07 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.BloodPressureGroup/eVitals.07

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.BloodPressureGroup / eVitals.08 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.BloodPressureGroup/eVitals.08

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.HeartRateGroup / eVitals.10 / @PN

Namespace

No namespace

Type

union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.HeartRateGroup/eVitals.10

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.HeartRateGroup / eVitals.10 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.HeartRateGroup/eVitals.10

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.12 / @PN

Namespace

No namespace

Type

union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.12

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.12 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.12

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.14 / @PN

Namespace

No namespace

Type

union of(PN.ExamFindingNotPresent, PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.14

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.ExamFindingNotPresent PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.14 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.14

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.16 / @ETCO2Type

Namespace

No namespace

Type

ETCO2Type

Properties

use	optional

Facets

enumeration

3340001

mmHg

enumeration

3340003

Percentage

enumeration

3340005

kPa

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.16

Source

<xs:attribute name="ETCO2Type" type="ETCO2Type" use="optional"/>

Attribute eVitals / eVitals.VitalGroup / eVitals.16 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.16

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.16 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.16

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.17 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.17

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.17 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.17

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.18 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.18

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.18 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.18

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.19 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.19

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.19 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.19

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.20 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.20

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.20 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.20

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.21 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.21

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.21 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.21

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.22 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.22

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.22 / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.22

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.23 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.23

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.GlasgowScoreGroup / eVitals.23 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.GlasgowScoreGroup/eVitals.23

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.TemperatureGroup / eVitals.24 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.TemperatureGroup/eVitals.24

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.TemperatureGroup / eVitals.24 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.TemperatureGroup/eVitals.24

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.26 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.26

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.PainScaleGroup / eVitals.27 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.PainScaleGroup/eVitals.27

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.PainScaleGroup / eVitals.27 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.PainScaleGroup/eVitals.27

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.PainScaleGroup / eVitals.28 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded, NV.NotReporting)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.PainScaleGroup/eVitals.28

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup / eVitals.29 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.StrokeScaleGroup/eVitals.29

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup / eVitals.29 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.StrokeScaleGroup/eVitals.29

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup / eVitals.30 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.StrokeScaleGroup/eVitals.30

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup / eVitals.34 / @PN

Namespace

No namespace

Type

union of(PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.StrokeScaleGroup/eVitals.34

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.StrokeScaleGroup / eVitals.34 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.StrokeScaleGroup/eVitals.34

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.31 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.31

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.31 / @NV

Namespace

No namespace

Type

union of(NV.NotApplicable, NV.NotRecorded)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.31

Source

<xs:attribute name="NV" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.32 / @PN

Namespace

No namespace

Type

union of(PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.32

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / eVitals.33 / @PN

Namespace

No namespace

Type

union of(PN.Refused, PN.UnableToComplete)

Properties

use	optional

Used by

Element

eVitals/eVitals.VitalGroup/eVitals.33

Source

<xs:attribute name="PN" use="optional">
  <xs:simpleType>
    <xs:union memberTypes="PN.Refused PN.UnableToComplete"/>
  </xs:simpleType>
</xs:attribute>

Attribute eVitals / eVitals.VitalGroup / @CorrelationID

Namespace

No namespace

Type

CorrelationID

Properties

use	optional

Facets

minLength	2
maxLength	255

Used by

Element

eVitals/eVitals.VitalGroup

Source

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>
