element -> <PatientCareReport>

Container Tag to hold each instance of a patient care report (PCR)

Namespace:	http://www.nemsis.org
Type:	anonymous complexType
Content:	complex, 25 elements
Defined:	locally within Header element in EMSDataSet_v3.xsd; see XML source
Includes:	definitions of 25 elements

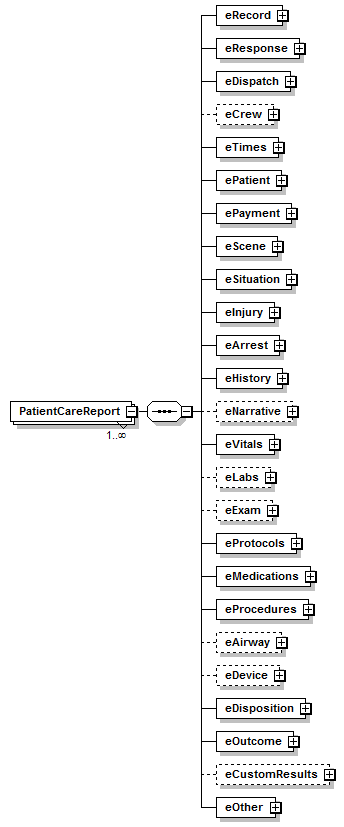

Content Model Diagram

XML Representation Summary

<PatientCareReport>

Content:

eRecord, eResponse, eDispatch, eCrew?, eTimes, ePatient, ePayment, eScene, eSituation, eInjury, eArrest, eHistory, eNarrative?, eVitals, eLabs?, eExam?, eProtocols, eMedications, eProcedures, eAirway?, eDevice?, eDisposition, eOutcome, eCustomResults?, eOther

</PatientCareReport>

Content model elements (25):

eAirway (in PatientCareReport),

eArrest (in PatientCareReport),

eCrew (in PatientCareReport),

eCustomResults (in PatientCareReport),

eDevice (in PatientCareReport),

eDispatch (in PatientCareReport),

eDisposition (in PatientCareReport),

eExam (in PatientCareReport),

eHistory (in PatientCareReport),

eInjury (in PatientCareReport),

eLabs (in PatientCareReport),

eMedications (in PatientCareReport),

eNarrative (in PatientCareReport),

eOther (in PatientCareReport),

eOutcome (in PatientCareReport),

ePatient (in PatientCareReport),

ePayment (in PatientCareReport),

eProcedures (in PatientCareReport),

eProtocols (in PatientCareReport),

eRecord (in PatientCareReport),

eResponse (in PatientCareReport),

eScene (in PatientCareReport),

eSituation (in PatientCareReport),

eTimes (in PatientCareReport),

eVitals (in PatientCareReport)

Included in content model of elements (1):

Header (in EMSDataSet)

XML Source (w/o annotations (26); see within schema source)

<xs:element id="PatientCareReportGroup" maxOccurs="unbounded" name="PatientCareReport">

<xs:complexType>

<xs:sequence>

<xs:element id="eRecordSection" name="eRecord" type="eRecord"/>

<xs:element id="eResponseSection" name="eResponse" type="eResponse"/>

<xs:element id="eDispatchSection" name="eDispatch" type="eDispatch"/>

<xs:element id="eCrewSection" minOccurs="0" name="eCrew" type="eCrews"/>

<xs:element id="eTimesSection" name="eTimes" type="eTimes"/>

<xs:element id="ePatientSection" name="ePatient" type="ePatient"/>

<xs:element id="ePaymentSection" name="ePayment" type="ePayment"/>

<xs:element id="eSceneSection" name="eScene" type="eScene"/>

<xs:element id="eSituationSection" name="eSituation" type="eSituation"/>

<xs:element id="eInjurySection" name="eInjury" type="eInjury"/>

<xs:element id="eArrestSection" name="eArrest" type="eArrest"/>

<xs:element id="eHistorySection" name="eHistory" type="eHistory"/>

<xs:element id="eNarrativeSection" minOccurs="0" name="eNarrative" type="eNarrative"/>

<xs:element id="eVitalsSection" name="eVitals" type="eVitals"/>

<xs:element id="eLabsSection" minOccurs="0" name="eLabs" type="eLabs"/>

<xs:element id="eExamSection" minOccurs="0" name="eExam" type="eExam"/>

<xs:element id="eProtocolsSection" name="eProtocols" type="eProtocols"/>

<xs:element id="eMedicationsSection" name="eMedications" type="eMedications"/>

<xs:element id="eProceduresSection" name="eProcedures" type="eProcedures"/>

<xs:element id="eAirwaysSection" minOccurs="0" name="eAirway" type="eAirways"/>

<xs:element id="eDevicesSection" minOccurs="0" name="eDevice" type="eDevices"/>

<xs:element id="eDispositionSection" name="eDisposition" type="eDisposition"/>

<xs:element id="eOutcomeSection" name="eOutcome" type="eOutcome"/>

<xs:element id="eCustomResultsSection" minOccurs="0" name="eCustomResults" type="eCustomResults"/>

<xs:element id="eOtherSection" name="eOther" type="eOther"/>

</xs:sequence>

</xs:complexType>

</xs:element>

Content Element Detail (all declarations; defined in this component only; 25/25)

Type:

eAirways, complex content

Airway Device Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eAirwaysSection" minOccurs="0" name="eAirway" type="eAirways"/>

Type:

eArrest, complex content

Cardiac Arrest Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eArrestSection" name="eArrest" type="eArrest"/>

Type:

eCrews, complex content

Crew Member Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCrewSection" minOccurs="0" name="eCrew" type="eCrews"/>

Type:

eCustomResults, complex content

Custom Data Elements Results

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eCustomResultsSection" minOccurs="0" name="eCustomResults" type="eCustomResults"/>

Type:

eDevices, complex content

Medical Device Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eDevicesSection" minOccurs="0" name="eDevice" type="eDevices"/>

Type:

eDispatch, complex content

Dispatch Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eDispatchSection" name="eDispatch" type="eDispatch"/>

Type:

eDisposition, complex content

Patient Disposition Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eDispositionSection" name="eDisposition" type="eDisposition"/>

Type:

eExam, complex content

Patient Exam Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eExamSection" minOccurs="0" name="eExam" type="eExam"/>

Type:

eHistory, complex content

Patient History Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eHistorySection" name="eHistory" type="eHistory"/>

Type:

eInjury, complex content

Injury Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjurySection" name="eInjury" type="eInjury"/>

Type:

eLabs, complex content

Lab Results Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eLabsSection" minOccurs="0" name="eLabs" type="eLabs"/>

Type:

eMedications, complex content

Intervention Medications Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eMedicationsSection" name="eMedications" type="eMedications"/>

Type:

eNarrative, complex content

Call Event Narrative

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eNarrativeSection" minOccurs="0" name="eNarrative" type="eNarrative"/>

Type:

eOther, complex content

Other Miscellaneous Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eOtherSection" name="eOther" type="eOther"/>

Type:

eOutcome, complex content

Patient Outcome Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eOutcomeSection" name="eOutcome" type="eOutcome"/>

Type:

ePatient, complex content

Patient Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="ePatientSection" name="ePatient" type="ePatient"/>

Type:

ePayment, complex content

Insurance/Payment Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="ePaymentSection" name="ePayment" type="ePayment"/>

Type:

eProcedures, complex content

Intervention Procedures Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eProceduresSection" name="eProcedures" type="eProcedures"/>

Type:

eProtocols, complex content

Medical Protocols Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eProtocolsSection" name="eProtocols" type="eProtocols"/>

Type:

eRecord, complex content

Patient Record Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eRecordSection" name="eRecord" type="eRecord"/>

Type:

eResponse, complex content

Unit Agency Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eResponseSection" name="eResponse" type="eResponse"/>

Type:

eScene, complex content

Incident Scene Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eSceneSection" name="eScene" type="eScene"/>

Type:

eSituation, complex content

Situation Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eSituationSection" name="eSituation" type="eSituation"/>

Type:

eTimes, complex content

Call Event Times Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eTimesSection" name="eTimes" type="eTimes"/>

Type:

eVitals, complex content

Patient Vital Sign Information

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eVitalsSection" name="eVitals" type="eVitals"/>
