complexType "eInjury"

Namespace:	http://www.nemsis.org
Content:	complex, 11 elements
Defined:	globally in eInjury_v3.xsd; see XML source
Includes:	definitions of 11 elements
Used:	at 1 location

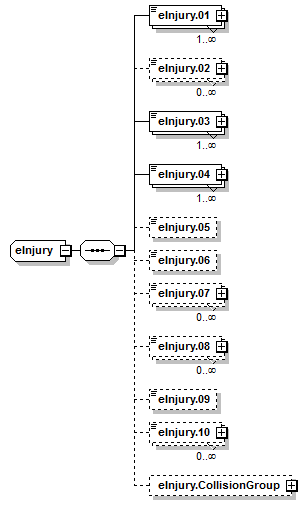

Content Model Diagram

XML Representation Summary

<...>

Content:

eInjury.01+, eInjury.02*, eInjury.03+, eInjury.04+, eInjury.05?, eInjury.06?, eInjury.07*, eInjury.08*, eInjury.09?, eInjury.10*, eInjury.CollisionGroup?

</...>

Content Model Elements (11):

All Direct / Indirect Based Elements (1):

Known Usage Locations

As direct type of elements (1):
eInjury (in PatientCareReport)

XML Source (w/o annotations (31); see within schema source)

<xs:complexType id="eInjury.SituationTrauma" name="eInjury">

<xs:sequence>

<xs:element id="eInjury.CauseofInjury" maxOccurs="unbounded" name="eInjury.01" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="icd10CodeInjury">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.MechanismofInjury" maxOccurs="unbounded" minOccurs="0" name="eInjury.02" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="MechanismOfInjury">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.TraumaCenterCriteria" maxOccurs="unbounded" name="eInjury.03" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="TraumaCenterCriteria">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.VehicularPedestrianorOtherInjuryRiskFactor" maxOccurs="unbounded" name="eInjury.04" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="VehicularInjuryIndicators">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="PN" use="optional">

<xs:simpleType>

<xs:union memberTypes="PN.ExamFindingNotPresent"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.MainAreaoftheVehicleimpactedbythecollision" minOccurs="0" name="eInjury.05" type="AreaOfVehicleImpact"/>

<xs:element id="eInjury.LocationofPatientinVehicle" minOccurs="0" name="eInjury.06" type="SeatRowLocation"/>

<xs:element id="eInjury.UseofOccupantSafetyEquipment" maxOccurs="unbounded" minOccurs="0" name="eInjury.07" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="UseOfOccupantSafetyEquipment">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.AirbagDeployment" maxOccurs="unbounded" minOccurs="0" name="eInjury.08">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="AirbagDeployment">

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.HeightofFallfeet" minOccurs="0" name="eInjury.09" type="HeightOfFall"/>

<xs:element id="eInjury.OSHAPersonalProtectiveEquipmentUsed" maxOccurs="unbounded" minOccurs="0" name="eInjury.10">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="EquipmentUsed">

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.CollisionGroup" minOccurs="0" name="eInjury.CollisionGroup">

<xs:complexType>

<xs:sequence>

<xs:element id="eInjury.ACNSystemCompanyProvidingACNData" minOccurs="0" name="eInjury.11" type="Company"/>

<xs:element id="eInjury.ACNIncidentID" minOccurs="0" name="eInjury.12" type="IncidentID"/>

<xs:element id="eInjury.ACNCallBackPhoneNumber" maxOccurs="unbounded" minOccurs="0" name="eInjury.13">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="PhoneNumber">

<xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.ACNIncidentDateTime" minOccurs="0" name="eInjury.14" type="DateTimeType"/>

<xs:element id="eInjury.ACNIncidentLocation" minOccurs="0" name="eInjury.15" type="GPSLocation">

</xs:element>

<xs:element id="eInjury.ACNIncidentVehicleBodyType" minOccurs="0" name="eInjury.16" type="BodyType"/>

<xs:element id="eInjury.ACNIncidentVehicleManufacturer" minOccurs="0" name="eInjury.17" type="Manufacturer"/>

<xs:element id="eInjury.ACNIncidentVehicleMake" minOccurs="0" name="eInjury.18" type="Make"/>

<xs:element id="eInjury.ACNIncidentVehicleModel" minOccurs="0" name="eInjury.19" type="Model"/>

<xs:element id="eInjury.ACNIncidentVehicleModelYear" minOccurs="0" name="eInjury.20" type="Year"/>

<xs:element id="eInjury.ACNIncidentMultipleImpacts" minOccurs="0" name="eInjury.21" type="YesNoValues"/>

<xs:element id="eInjury.ACNIncidentDeltaVelocity" maxOccurs="unbounded" minOccurs="0" name="eInjury.22">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="DeltaVelocity">

<xs:attribute name="DeltaVelocityOrdinal" type="DeltaVelocityOrdinalRanking" use="optional"/>

<xs:attribute name="VelocityUnit" type="VelocityUnits" use="optional"/>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.ACNHighProbabilityofInjury" minOccurs="0" name="eInjury.23" type="YesNoValues"/>

<xs:element id="eInjury.ACNIncidentPDOF" minOccurs="0" name="eInjury.24" type="PDOF"/>

<xs:element id="eInjury.ACNIncidentRollover" minOccurs="0" name="eInjury.25" type="ACNYesNoType"/>

<xs:element id="eInjury.SeatGroup" maxOccurs="unbounded" minOccurs="0" name="eInjury.SeatGroup">

<xs:complexType>

<xs:sequence>

<xs:element id="eInjury.ACNVehicleSeatLocation" minOccurs="0" name="eInjury.26">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="SeatLocation"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.SeatOccupied" minOccurs="0" name="eInjury.27" type="ACNYesNoType"/>

<xs:element id="eInjury.ACNIncidentSeatbeltUse" minOccurs="0" name="eInjury.28" type="ACNYesNoType"/>

<xs:element id="eInjury.ACNIncidentAirbagDeployed" minOccurs="0" name="eInjury.29" type="ACNYesNoType"/>

</xs:sequence>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

Content Element Detail (all declarations; defined in this component only; 11/11)

Type:	anonymous (extension of icd10CodeInjury), simple content
Nillable:	(can be declared as nil using xsi:nil attribute in instance XML documents)

eInjury.01 Cause of Injury Yes Yes The category of the reported/suspected external cause of the injury. E10_01 Required Trauma Suggested code list is represented in ICD-10-CM. Reference the NEMSIS Suggested Lists at: http://nemsis.org/v3/resources.html Code list is represented in ICD-10 Codes. Website - http://uts.nlm.nih.gov Product - UMLS Metathesaurus

Pattern:

([TV-Y][0-9]{2})((\.[0-9A-Z]{1,7})?)

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.CauseofInjury" maxOccurs="unbounded" name="eInjury.01" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="icd10CodeInjury">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

Type:	anonymous (extension of MechanismOfInjury), simple content
Nillable:	(can be declared as nil using xsi:nil attribute in instance XML documents)

eInjury.02 Mechanism of Injury No Yes The mechanism of the event which caused the injury E10_03 Recommended Trauma

enumeration of xs:string

Enumeration:

"2902001"	-	Blunt
"2902003"	-	Burn
"2902005"	-	Other
"2902007"	-	Penetrating

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.MechanismofInjury" maxOccurs="unbounded" minOccurs="0" name="eInjury.02" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="MechanismOfInjury">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

Type:	anonymous (extension of TraumaCenterCriteria), simple content
Nillable:	(can be declared as nil using xsi:nil attribute in instance XML documents)

eInjury.03 Trauma Center Criteria Yes Yes Physiologic and Anatomic Field Trauma Triage Criteria (steps 1 and 2) as defined by the Centers for Disease Control. Required Trauma 2011 Guidelines for the Field Triage of Injured Patients - value choices for Steps 1 and 2. For falls, one story is equal to 10 feet. Added to better evaluate the CDC-ACS 2011 Guidelines for the Field Triage of Injured Patients. Website: http://www.cdc.gov/mmwr/pdf/rr/rr6101.pdf

enumeration of xs:string

Enumeration:

"2903001"	-	Amputation proximal to wrist or ankle
"2903003"	-	Crushed, degloved, mangled, or pulseless extremity
"2903005"	-	Chest wall instability or deformity (e.g., flail chest)
"2903007"	-	Glasgow Coma Score < 14
"2903009"	-	Open or depressed skull fracture
"2903011"	-	Paralysis
"2903013"	-	Pelvic fractures
"2903015"	-	All penetrating injuries to head, neck, torso, and extremities proximal to elbow or knee
"2903017"	-	Respiratory Rate <10 or >29 breaths per minute (<20 in infants aged <1 year) or need for ventilatory support
"2903019"	-	Systolic Blood Pressure <90 mmHg
"2903021"	-	Two or more proximal long-bone fractures

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.TraumaCenterCriteria" maxOccurs="unbounded" name="eInjury.03" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="TraumaCenterCriteria">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

Type:	anonymous (extension of VehicularInjuryIndicators), simple content
Nillable:	(can be declared as nil using xsi:nil attribute in instance XML documents)

eInjury.04 Vehicular, Pedestrian, or Other Injury Risk Factor Yes Yes Mechanism and Special Considerations Field Trauma Triage Criteria (steps 3 and 4) as defined by the Centers for Disease Control. E10_04 Required Trauma Assesses mechanism of injury and evidence of high-energy impact (Step 3) AND Assess special patient or system considerations (Step 4) based on CDC 2011 Guidelines for the Field Triage of Injured Patients Step 3 and 4. Website: http://www.cdc.gov/FieldTriage/. Added to better evaluate the CDC-ACS 2011 Guidelines for the Field Triage of Injured Patients. Website: http://www.cdc.gov/mmwr/pdf/rr/rr6101.pdf Yes

enumeration of xs:string

Enumeration:

"2904001"	-	Auto v. Pedestrian/Bicyclist Thrown, Run Over, or > 20 MPH Impact
"2904003"	-	Fall Adults: > 20 ft. (one story is equal to 10 ft.)
"2904005"	-	Fall Children: > 10 ft. or 2-3 times the height of the child
"2904007"	-	Crash Death in Same Passenger Compartment
"2904009"	-	Crash Ejection (partial or complete) from vehicle
"2904011"	-	Crash Intrusion, including roof: > 12 in. occupant site; > 18 in. any site
"2904013"	-	Crash Vehicle Telemetry Data (AACN) Consistent with High Risk of Injury
"2904015"	-	Motorcycle Crash > 20 MPH
"2904017"	-	SBP < 110 for age > 65
"2904019"	-	Anticoagulants and Bleeding Disorders
"2904021"	-	Pregnancy > 20 weeks
"2904023"	-	EMS Provider Judgment

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.VehicularPedestrianorOtherInjuryRiskFactor" maxOccurs="unbounded" name="eInjury.04" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="VehicularInjuryIndicators">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="PN" use="optional">

<xs:simpleType>

<xs:union memberTypes="PN.ExamFindingNotPresent"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

Type:

AreaOfVehicleImpact, simple content

eInjury.05 Main Area of the Vehicle Impacted by the Collision No Yes The area or location of initial impact on the vehicle based on 12-point clock diagram. E10_05 Optional The front of the vehicle is 12, passenger (right) side is 3, rear is 6, etc. Based on MMUCC via areas(s) of impact & FARS coding manual clock diagram.

maxInclusive:	12
minInclusive:	1

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.MainAreaoftheVehicleimpactedbythecollision" minOccurs="0" name="eInjury.05" type="AreaOfVehicleImpact"/>

Type:

SeatRowLocation, simple content

eInjury.06 Location of Patient in Vehicle No Yes The seat row location of the vehicle at the time of the crash with the front seat numbered as 1 E10_06 Optional MMUCC P6 data element

enumeration of xs:string

Enumeration:

"2906001"	-	Front Seat-Left Side (or motorcycle driver)
"2906003"	-	Front Seat-Middle
"2906005"	-	Front Seat-Right Side
"2906007"	-	Passenger in other enclosed passenger or cargo area (non-trailing unit such as a bus, etc.)
"2906009"	-	Passenger in unenclosed passenger or cargo area (non-trailing unit such as a pickup, etc.)
"2906011"	-	Riding on Vehicle Exterior (non-trailing unit)
"2906013"	-	Second Seat-Left Side (or motorcycle passenger)
"2906015"	-	Second Seat-Middle
"2906017"	-	Second Seat-Right Side
"2906019"	-	Sleeper Section of Cab (truck)
"2906021"	-	Third Row-Left Side (or motorcycle passenger)
"2906023"	-	Third Row-Middle
"2906025"	-	Third Row-Right Side
"2906027"	-	Trailing Unit
"2906029"	-	Unknown

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.LocationofPatientinVehicle" minOccurs="0" name="eInjury.06" type="SeatRowLocation"/>

Type:	anonymous (extension of UseOfOccupantSafetyEquipment), simple content
Nillable:	(can be declared as nil using xsi:nil attribute in instance XML documents)

eInjury.07 Use of Occupant Safety Equipment No Yes Safety equipment in use by the patient at the time of the injury E10_08 Recommended Trauma MMUCC P7 data element used as baseline information. Data element expanded for added definition in non-vehicular settings.

enumeration of xs:string

Enumeration:

"2907001"	-	Child Booster Seat
"2907003"	-	Eye Protection
"2907005"	-	Helmet Worn
"2907007"	-	Infant Car Seat Forward Facing
"2907009"	-	Infant Car Seat Rear Facing
"2907015"	-	None
"2907017"	-	Other
"2907019"	-	Personal Floatation Device
"2907021"	-	Protective Clothing
"2907023"	-	Protective Non-Clothing Gear
"2907027"	-	Shoulder and Lap Belt Used
"2907029"	-	Lap Belt Only Used
"2907031"	-	Shoulder Belt Only Used

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.UseofOccupantSafetyEquipment" maxOccurs="unbounded" minOccurs="0" name="eInjury.07" nillable="true">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="UseOfOccupantSafetyEquipment">

<xs:attribute name="NV" use="optional">

<xs:simpleType>

<xs:union memberTypes="NV.NotApplicable NV.NotRecorded NV.NotReporting"/>

</xs:simpleType>

</xs:attribute>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

Type:

anonymous (extension of AirbagDeployment), simple content

eInjury.08 Airbag Deployment No Yes Indication of Airbag Deployment E10_09 Optional MMUCC P8 data element baseline was used for this element.

enumeration of xs:string

Enumeration:

"2908001"	-	Airbag Deployed Front
"2908003"	-	Airbag Deployed Side
"2908005"	-	Airbag Deployed Other (knee, air belt, etc.)
"2908007"	-	No Airbag Deployed
"2908009"	-	No Airbag Present

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.AirbagDeployment" maxOccurs="unbounded" minOccurs="0" name="eInjury.08">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="AirbagDeployment">

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

Type:

HeightOfFall, simple content

eInjury.09 Height of Fall (feet) No Yes The distance in feet the patient fell, measured from the lowest point of the patient to the ground E10_10 Optional Classify same level falls as 0 feet

maxInclusive:	10000
minInclusive:	0

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.HeightofFallfeet" minOccurs="0" name="eInjury.09" type="HeightOfFall"/>

Type:

anonymous (extension of EquipmentUsed), simple content

eInjury.10 OSHA Personal Protective Equipment Used No No Documentation of the use of OSHA required protective equipment used by the patient at the time of injury. Optional Added to better document personal protection equipment used by the patient associated with an injury.

enumeration of xs:string

Enumeration:

"2910001"	-	Eye and Face Protection
"2910003"	-	Foot Protection
"2910005"	-	Head Protection
"2910007"	-	Hearing Protection
"2910009"	-	Respiratory Protection
"2910011"	-	Safety Belts, lifelines, and lanyards
"2910013"	-	Safety Nets

XML Source (w/o annotations (1); see within schema source)

<xs:element id="eInjury.OSHAPersonalProtectiveEquipmentUsed" maxOccurs="unbounded" minOccurs="0" name="eInjury.10">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="EquipmentUsed">

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

Type:

anonymous, complex content

Group Tag to hold the automated collision notification details

XML Source (w/o annotations (21); see within schema source)

<xs:element id="eInjury.CollisionGroup" minOccurs="0" name="eInjury.CollisionGroup">

<xs:complexType>

<xs:sequence>

<xs:element id="eInjury.ACNSystemCompanyProvidingACNData" minOccurs="0" name="eInjury.11" type="Company"/>

<xs:element id="eInjury.ACNIncidentID" minOccurs="0" name="eInjury.12" type="IncidentID"/>

<xs:element id="eInjury.ACNCallBackPhoneNumber" maxOccurs="unbounded" minOccurs="0" name="eInjury.13">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="PhoneNumber">

<xs:attribute name="PhoneNumberType" type="PhoneNumberType" use="optional"/>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.ACNIncidentDateTime" minOccurs="0" name="eInjury.14" type="DateTimeType"/>

<xs:element id="eInjury.ACNIncidentLocation" minOccurs="0" name="eInjury.15" type="GPSLocation">

</xs:element>

<xs:element id="eInjury.ACNIncidentVehicleBodyType" minOccurs="0" name="eInjury.16" type="BodyType"/>

<xs:element id="eInjury.ACNIncidentVehicleManufacturer" minOccurs="0" name="eInjury.17" type="Manufacturer"/>

<xs:element id="eInjury.ACNIncidentVehicleMake" minOccurs="0" name="eInjury.18" type="Make"/>

<xs:element id="eInjury.ACNIncidentVehicleModel" minOccurs="0" name="eInjury.19" type="Model"/>

<xs:element id="eInjury.ACNIncidentVehicleModelYear" minOccurs="0" name="eInjury.20" type="Year"/>

<xs:element id="eInjury.ACNIncidentMultipleImpacts" minOccurs="0" name="eInjury.21" type="YesNoValues"/>

<xs:element id="eInjury.ACNIncidentDeltaVelocity" maxOccurs="unbounded" minOccurs="0" name="eInjury.22">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="DeltaVelocity">

<xs:attribute name="DeltaVelocityOrdinal" type="DeltaVelocityOrdinalRanking" use="optional"/>

<xs:attribute name="VelocityUnit" type="VelocityUnits" use="optional"/>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:extension>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.ACNHighProbabilityofInjury" minOccurs="0" name="eInjury.23" type="YesNoValues"/>

<xs:element id="eInjury.ACNIncidentPDOF" minOccurs="0" name="eInjury.24" type="PDOF"/>

<xs:element id="eInjury.ACNIncidentRollover" minOccurs="0" name="eInjury.25" type="ACNYesNoType"/>

<xs:element id="eInjury.SeatGroup" maxOccurs="unbounded" minOccurs="0" name="eInjury.SeatGroup">

<xs:complexType>

<xs:sequence>

<xs:element id="eInjury.ACNVehicleSeatLocation" minOccurs="0" name="eInjury.26">

<xs:complexType>

<xs:simpleContent>

<xs:extension base="SeatLocation"/>

</xs:simpleContent>

</xs:complexType>

</xs:element>

<xs:element id="eInjury.SeatOccupied" minOccurs="0" name="eInjury.27" type="ACNYesNoType"/>

<xs:element id="eInjury.ACNIncidentSeatbeltUse" minOccurs="0" name="eInjury.28" type="ACNYesNoType"/>

<xs:element id="eInjury.ACNIncidentAirbagDeployed" minOccurs="0" name="eInjury.29" type="ACNYesNoType"/>

</xs:sequence>

<xs:attribute name="CorrelationID" type="CorrelationID" use="optional"/>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>

</xs:element>
