Main schema DEMDataSet_v3.xsd
Namespace http://www.nemsis.org
Properties
attribute form default unqualified
element form default qualified
Element DEMDataSet
Namespace http://www.nemsis.org
Annotations

Root Tag For Demographic DataSet
Diagram
DiagramDEMDataSet_v3_xsd.tmp#DEMDataSet_dCustomConfigurationDEMDataSet_v3_xsd.tmp#DEMDataSet_DemographicReport
Properties
content complex
Model
Children DemographicReport, dCustomConfiguration
Instance

<DEMDataSet xmlns="http://www.nemsis.org">
  <dCustomConfiguration>{0,1}</dCustomConfiguration>
  <DemographicReport timeStamp="">{1,unbounded}</DemographicReport>
</DEMDataSet>
Source

<xs:element name="DEMDataSet">
  <xs:annotation>
    <xs:documentation>Root Tag For Demographic DataSet</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="dCustomConfiguration" type="dCustomConfiguration" id="dCustomConfigurationSection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Contains information for demographic custom elements.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="DemographicReport" id="DemographicReportGroup" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Container Tag to hold each instance of a demographic record</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="dRecord" type="dRecord" id="dRecordSection" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Software Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dAgency" type="dAgency" id="dAgencySection">
              <xs:annotation>
                <xs:documentation>Agency Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dContact" type="dContact" id="dContactSection" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Contact Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dConfiguration" type="dConfiguration" id="dConfigurationSection">
              <xs:annotation>
                <xs:documentation>Configuration Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dLocation" type="dLocation" id="dLocationSection" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Location Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dVehicle" type="dVehicle" id="dVehicleSection" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Vehicle Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dPersonnel" type="dPersonnel" id="dPersonnelSection" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Personnel Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dDevice" type="dDevice" id="dDeviceSection" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Device Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dFacility" type="dFacility" id="dFacilitySection" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Facility Information</xs:documentation>
              </xs:annotation>
            </xs:element>
            <xs:element name="dCustomResults" type="dCustomResults" id="dCustomResultsSection" minOccurs="0">
              <xs:annotation>
                <xs:documentation>Custom Data Element Results</xs:documentation>
              </xs:annotation>
            </xs:element>
          </xs:sequence>
          <xs:attribute name="timeStamp" type="DateTimeType" use="required"/>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element DEMDataSet / dCustomConfiguration
Namespace http://www.nemsis.org
Annotations

Contains information for demographic custom elements.
Diagram
DiagramdCustom_v3_xsd.tmp#dCustomConfiguration_dCustomConfiguration.CustomGroupdCustom_v3_xsd.tmp#dCustomConfiguration
Type dCustomConfiguration
Properties
content complex
minOccurs 0
Model
Children dCustomConfiguration.CustomGroup
Instance

<dCustomConfiguration xmlns="http://www.nemsis.org">
  <dCustomConfiguration.CustomGroup CustomElementID="">{0,unbounded}</dCustomConfiguration.CustomGroup>
</dCustomConfiguration>
Source

<xs:element name="dCustomConfiguration" type="dCustomConfiguration" id="dCustomConfigurationSection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Contains information for demographic custom elements.</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport
Namespace http://www.nemsis.org
Annotations

Container Tag to hold each instance of a demographic record
Diagram
DiagramDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_timeStampDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dRecordDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dAgencyDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dContactDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dConfigurationDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dLocationDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dVehicleDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dPersonnelDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dDeviceDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dFacilityDEMDataSet_v3_xsd.tmp#DEMDataSet_DEMDataSet_DemographicReport_dCustomResults
Properties
content complex
maxOccurs unbounded
Model
Children dAgency, dConfiguration, dContact, dCustomResults, dDevice, dFacility, dLocation, dPersonnel, dRecord, dVehicle
Instance

<DemographicReport timeStamp="" xmlns="http://www.nemsis.org">
  <dRecord>{0,1}</dRecord>
  <dAgency>{1,1}</dAgency>
  <dContact>{0,1}</dContact>
  <dConfiguration>{1,1}</dConfiguration>
  <dLocation>{0,1}</dLocation>
  <dVehicle>{0,1}</dVehicle>
  <dPersonnel>{0,1}</dPersonnel>
  <dDevice>{0,1}</dDevice>
  <dFacility>{0,1}</dFacility>
  <dCustomResults>{0,1}</dCustomResults>
</DemographicReport>
Attributes
QName Type Use
timeStamp DateTimeType required
Source

<xs:element name="DemographicReport" id="DemographicReportGroup" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Container Tag to hold each instance of a demographic record</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="dRecord" type="dRecord" id="dRecordSection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Software Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dAgency" type="dAgency" id="dAgencySection">
        <xs:annotation>
          <xs:documentation>Agency Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dContact" type="dContact" id="dContactSection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Contact Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dConfiguration" type="dConfiguration" id="dConfigurationSection">
        <xs:annotation>
          <xs:documentation>Configuration Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dLocation" type="dLocation" id="dLocationSection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Location Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dVehicle" type="dVehicle" id="dVehicleSection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Vehicle Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dPersonnel" type="dPersonnel" id="dPersonnelSection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Personnel Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dDevice" type="dDevice" id="dDeviceSection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Device Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dFacility" type="dFacility" id="dFacilitySection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Facility Information</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="dCustomResults" type="dCustomResults" id="dCustomResultsSection" minOccurs="0">
        <xs:annotation>
          <xs:documentation>Custom Data Element Results</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="timeStamp" type="DateTimeType" use="required"/>
  </xs:complexType>
</xs:element>

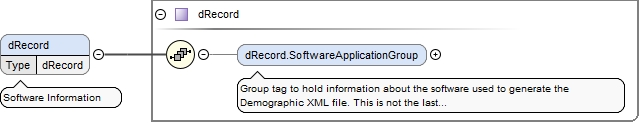

Element DEMDataSet / DemographicReport / dRecord
Namespace http://www.nemsis.org
Annotations

Software Information
Diagram
DiagramdRecord_v3_xsd.tmp#dRecord_dRecord.SoftwareApplicationGroupdRecord_v3_xsd.tmp#dRecord
Type dRecord
Properties
content complex
minOccurs 0
Model
Children dRecord.SoftwareApplicationGroup
Instance

<dRecord xmlns="http://www.nemsis.org">
  <dRecord.SoftwareApplicationGroup>{0,1}</dRecord.SoftwareApplicationGroup>
</dRecord>
Source

<xs:element name="dRecord" type="dRecord" id="dRecordSection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Software Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dAgency
Namespace http://www.nemsis.org
Annotations

Agency Information
Diagram
DiagramdAgency_v3_xsd.tmp#dAgency_dAgency.01dAgency_v3_xsd.tmp#dAgency_dAgency.02dAgency_v3_xsd.tmp#dAgency_dAgency.03dAgency_v3_xsd.tmp#dAgency_dAgency.04dAgency_v3_xsd.tmp#dAgency_dAgency.AgencyServiceGroupdAgency_v3_xsd.tmp#dAgency_dAgency.09dAgency_v3_xsd.tmp#dAgency_dAgency.10dAgency_v3_xsd.tmp#dAgency_dAgency.11dAgency_v3_xsd.tmp#dAgency_dAgency.12dAgency_v3_xsd.tmp#dAgency_dAgency.13dAgency_v3_xsd.tmp#dAgency_dAgency.14dAgency_v3_xsd.tmp#dAgency_dAgency.AgencyYearGroupdAgency_v3_xsd.tmp#dAgency_dAgency.23dAgency_v3_xsd.tmp#dAgency_dAgency.24dAgency_v3_xsd.tmp#dAgency_dAgency.25dAgency_v3_xsd.tmp#dAgency_dAgency.26dAgency_v3_xsd.tmp#dAgency_dAgency.27dAgency_v3_xsd.tmp#dAgency
Type dAgency
Properties
content complex
Model
Children dAgency.01, dAgency.02, dAgency.03, dAgency.04, dAgency.09, dAgency.10, dAgency.11, dAgency.12, dAgency.13, dAgency.14, dAgency.23, dAgency.24, dAgency.25, dAgency.26, dAgency.27, dAgency.AgencyServiceGroup, dAgency.AgencyYearGroup
Instance

<dAgency xmlns="http://www.nemsis.org">
  <dAgency.01>{1,1}</dAgency.01>
  <dAgency.02>{1,1}</dAgency.02>
  <dAgency.03 NV="">{0,1}</dAgency.03>
  <dAgency.04>{1,1}</dAgency.04>
  <dAgency.AgencyServiceGroup CorrelationID="" UUID="">{1,unbounded}</dAgency.AgencyServiceGroup>
  <dAgency.09>{1,1}</dAgency.09>
  <dAgency.10 CorrelationID="" NV="">{0,unbounded}</dAgency.10>
  <dAgency.11>{1,1}</dAgency.11>
  <dAgency.12>{1,1}</dAgency.12>
  <dAgency.13>{1,1}</dAgency.13>
  <dAgency.14>{1,1}</dAgency.14>
  <dAgency.AgencyYearGroup CorrelationID="" UUID="">{0,unbounded}</dAgency.AgencyYearGroup>
  <dAgency.23>{0,1}</dAgency.23>
  <dAgency.24>{0,1}</dAgency.24>
  <dAgency.25 CorrelationID="" NV="">{1,unbounded}</dAgency.25>
  <dAgency.26 CorrelationID="" NV="">{1,unbounded}</dAgency.26>
  <dAgency.27>{0,1}</dAgency.27>
</dAgency>
Source

<xs:element name="dAgency" type="dAgency" id="dAgencySection">
  <xs:annotation>
    <xs:documentation>Agency Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dContact
Namespace http://www.nemsis.org
Annotations

Contact Information
Diagram
DiagramdContact_v3_xsd.tmp#dContact_dContact.ContactInfoGroupdContact_v3_xsd.tmp#dContact
Type dContact
Properties
content complex
minOccurs 0
Model
Children dContact.ContactInfoGroup
Instance

<dContact xmlns="http://www.nemsis.org">
  <dContact.ContactInfoGroup CorrelationID="" UUID="">{0,unbounded}</dContact.ContactInfoGroup>
</dContact>
Source

<xs:element name="dContact" type="dContact" id="dContactSection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Contact Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dConfiguration
Namespace http://www.nemsis.org
Annotations

Configuration Information
Diagram
DiagramdConfiguration_v3_xsd.tmp#dConfiguration_dConfiguration.ConfigurationGroupdConfiguration_v3_xsd.tmp#dConfiguration
Type dConfiguration
Properties
content complex
Model
Children dConfiguration.ConfigurationGroup
Instance

<dConfiguration xmlns="http://www.nemsis.org">
  <dConfiguration.ConfigurationGroup CorrelationID="" UUID="">{1,unbounded}</dConfiguration.ConfigurationGroup>
</dConfiguration>
Source

<xs:element name="dConfiguration" type="dConfiguration" id="dConfigurationSection">
  <xs:annotation>
    <xs:documentation>Configuration Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dLocation
Namespace http://www.nemsis.org
Annotations

Location Information
Diagram
DiagramdLocation_v3_xsd.tmp#dLocation_dLocation.LocationGroupdLocation_v3_xsd.tmp#dLocation
Type dLocation
Properties
content complex
minOccurs 0
Model
Children dLocation.LocationGroup
Instance

<dLocation xmlns="http://www.nemsis.org">
  <dLocation.LocationGroup CorrelationID="" UUID="">{0,unbounded}</dLocation.LocationGroup>
</dLocation>
Source

<xs:element name="dLocation" type="dLocation" id="dLocationSection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Location Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dVehicle
Namespace http://www.nemsis.org
Annotations

Vehicle Information
Diagram
DiagramdVehicle_v3_xsd.tmp#dVehicle_dVehicle.VehicleGroupdVehicle_v3_xsd.tmp#dVehicle
Type dVehicle
Properties
content complex
minOccurs 0
Model
Children dVehicle.VehicleGroup
Instance

<dVehicle xmlns="http://www.nemsis.org">
  <dVehicle.VehicleGroup CorrelationID="" UUID="">{0,unbounded}</dVehicle.VehicleGroup>
</dVehicle>
Source

<xs:element name="dVehicle" type="dVehicle" id="dVehicleSection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Vehicle Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dPersonnel
Namespace http://www.nemsis.org
Annotations

Personnel Information
Diagram
DiagramdPersonnel_v3_xsd.tmp#dPersonnel_dPersonnel.PersonnelGroupdPersonnel_v3_xsd.tmp#dPersonnel
Type dPersonnel
Properties
content complex
minOccurs 0
Model
Children dPersonnel.PersonnelGroup
Instance

<dPersonnel xmlns="http://www.nemsis.org">
  <dPersonnel.PersonnelGroup CorrelationID="" UUID="">{0,unbounded}</dPersonnel.PersonnelGroup>
</dPersonnel>
Source

<xs:element name="dPersonnel" type="dPersonnel" id="dPersonnelSection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Personnel Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dDevice
Namespace http://www.nemsis.org
Annotations

Device Information
Diagram
DiagramdDevice_v3_xsd.tmp#dDevice_dDevice.DeviceGroupdDevice_v3_xsd.tmp#dDevice
Type dDevice
Properties
content complex
minOccurs 0
Model
Children dDevice.DeviceGroup
Instance

<dDevice xmlns="http://www.nemsis.org">
  <dDevice.DeviceGroup CorrelationID="" UUID="">{0,unbounded}</dDevice.DeviceGroup>
</dDevice>
Source

<xs:element name="dDevice" type="dDevice" id="dDeviceSection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Device Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dFacility
Namespace http://www.nemsis.org
Annotations

Facility Information
Diagram
DiagramdFacility_v3_xsd.tmp#dFacility_dFacilityGroupdFacility_v3_xsd.tmp#dFacility
Type dFacility
Properties
content complex
minOccurs 0
Model
Children dFacilityGroup
Instance

<dFacility xmlns="http://www.nemsis.org">
  <dFacilityGroup CorrelationID="" UUID="">{0,unbounded}</dFacilityGroup>
</dFacility>
Source

<xs:element name="dFacility" type="dFacility" id="dFacilitySection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Facility Information</xs:documentation>
  </xs:annotation>
</xs:element>
Element DEMDataSet / DemographicReport / dCustomResults
Namespace http://www.nemsis.org
Annotations

Custom Data Element Results
Diagram
DiagramdCustom_v3_xsd.tmp#dCustomResults_dCustomResults.ResultsGroupdCustom_v3_xsd.tmp#dCustomResults
Type dCustomResults
Properties
content complex
minOccurs 0
Model
Children dCustomResults.ResultsGroup
Instance

<dCustomResults xmlns="http://www.nemsis.org">
  <dCustomResults.ResultsGroup CorrelationID="">{0,unbounded}</dCustomResults.ResultsGroup>
</dCustomResults>
Source

<xs:element name="dCustomResults" type="dCustomResults" id="dCustomResultsSection" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Custom Data Element Results</xs:documentation>
  </xs:annotation>
</xs:element>
Attribute DEMDataSet / DemographicReport / @timeStamp
Namespace No namespace
Type DateTimeType
Properties
use required
Facets
maxInclusive 2050-01-01T00:00:00-00:00
minInclusive 1950-01-01T00:00:00-00:00
pattern [0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}(\.\d+)?(\+|-)[0-9]{2}:[0-9]{2}
Used by
Source

<xs:attribute name="timeStamp" type="DateTimeType" use="required"/>
XML Schema documentation generated by ® XML Editor.
